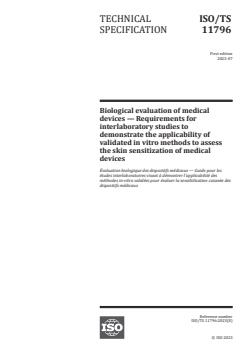

ISO/TS 11796:2023

TECHNICAL ISO/TS
SPECIFICATION 11796
First edition
2023-07
Biological evaluation of medical
devices — Requirements for
interlaboratory studies to
demonstrate the applicability of
validated in vitro methods to assess
the skin sensitization of medical
devices
Évaluation biologique des dispositifs médicaux — Guide pour les
études interlaboratoires visant à démontrer l'applicabilité des
méthodes in-vitro validées pour évaluer la sensibilisation cutanée des
dispositifs médicaux
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

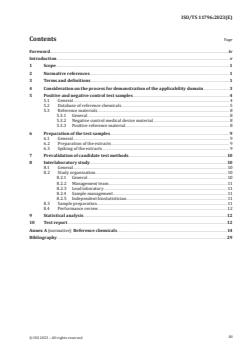

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Consideration on the process for demonstration of the applicability domain .3
5 Positive and negative control test samples . 4
5.1 General . 4
5.2 Database of reference chemicals . 5
5.3 Reference materials . 8
5.3.1 General . 8
5.3.2 Negative control medical device material . 8
5.3.3 Positive reference material . 8
6 Preparation of the test samples .9
6.1 General . 9
6.2 Preparation of the extracts . 9
6.3 Spiking of the extracts . 9
7 Prevalidation of candidate test methods .10
8 Interlaboratory study .10
8.1 General . 10
8.2 Study organization . 10
8.2.1 General . 10
8.2.2 Management team . 11
8.2.3 Lead laboratory . 11
8.2.4 Sample management . 11
8.2.5 Independent biostatistician . 11
8.3 Sample preparation . 11
8.4 Performance review .12
9 Statistical analysis .12
10 Test report .12
Annex A (normative) Reference chemicals .14
Bibliography .29
iii

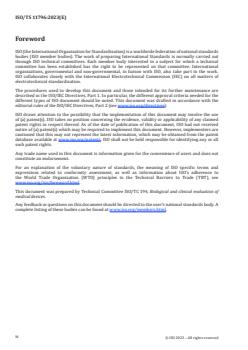

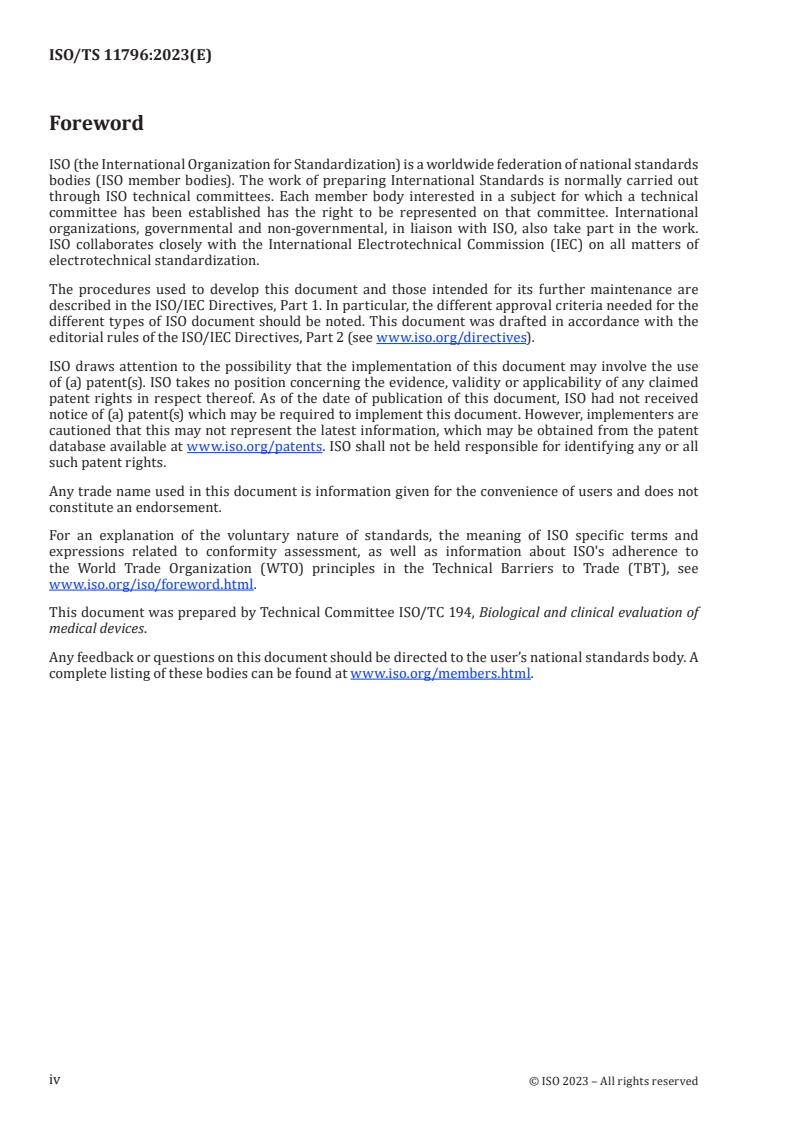

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use
of (a) patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents. ISO shall not be held responsible for identifying any or all
such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 194, Biological and clinical evaluation of
medical devices.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
International Standards can be used to demonstrate the safety and compliance of medical devices.
ISO 10993-10 specifies the procedure for the assessment of medical devices and their constituent
materials with regard to their potential to induce skin sensitization (Type IV hypersensitivity reaction).
The methods included in ISO 10993-10 are based on animal or human testing, with an annex on in vitro
and in chemico tests for skin sensitization that have been validated for neat chemicals. The effort to
reduce or replace the use of animals in toxicity testing has led to the development of many new non-
animal methods. The test guidelines in References [56] and [57] include alternatives to animal testing
methods for skin sensitization that have been previously validated to confirm their equivalence/
superiority to the current in vivo methods. However, currently, none of the OECD test guideline methods
are considered sufficient stand-alone replacements for in vivo tests that assess the skin sensitization
[1]
potential of chemicals .
Current OECD test guideline methods are validated with neat chemicals and not with more complex
mixtures such as medical devices or medical devices extracts. In order to use these methods in the
specific context of medical devices, an evaluation is needed to verify their applicability for assessing
skin sensitization of medical devices. Given the number of candidate test methods and the time that
is required to assess them, it is important to ensure that the same science-based evaluation process
and criteria are consistently applied to any new candidate test method. The purpose of this document
is to provide a framework for the conduct of prevalidation and interlaboratory studies to assess the
applicability of candidate test methods for assessing one or more key events related to OECD’s adverse
[2]
outcome pathway (AOP) for skin sensitization when evaluating medical devices .
v
TECHNICAL SPECIFICATION ISO/TS 11796:2023(E)
Biological evaluation of medical devices — Requirements
for interlaboratory studies to demonstrate the
applicability of validated in vitro methods to assess the
skin sensitization of medical devices
1 Scope
This document specifies the framework and the methodology to evaluate and demonstrate the
applicability of a validated non-animal method from an OECD test guideline to assess the skin sensitizing
potential of a medical device or a medical device material. This document addresses:
— the database of reference chemical skin sensitizers and non-skin sensitizers;
— reference materials;
— feasibility testing of candidate test methods, including any method optimization for use with
extracts of medical devices;
— prevalidation of candidate test methods;
— the interlaboratory study:
— sample preparation and coding;
— spiking of the extracts from the negative control medical device material;
— data collection;
— statistical analysis to assess reliability and reproducibility.
The use of the approaches described in this document to assess the applicability of a candidate test
method does not imply that the candidate test method can be used as a stand-alone test for evaluating
the skin sensitization potential of medical devices. For certain candidate test methods, integrated
[1]
approaches and/or defined approaches are needed. The evaluation of skin sensitization potential of a
medical device is described in ISO 10993-10.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 10993-12, Biological evaluation of medical devices — Part 12: Sample preparation and reference
materials
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
allergen
sensitizer
substance or material that is capable of inducing a specific hypersensitivity reaction upon repeated
contact with that substance or material
3.2
candidate test method
test method for in vitro skin sensitiz
...
