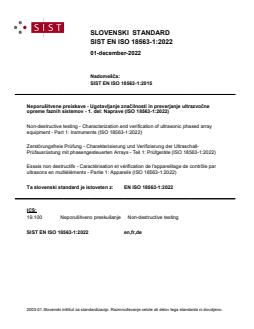

SIST EN ISO 18563-1:2022

SLOVENSKI STANDARD
01-december-2022
Nadomešča:
SIST EN ISO 18563-1:2015
Neporušitvene preiskave - Ugotavljanje značilnosti in preverjanje ultrazvočne
opreme faznih sistemov - 1. del: Naprave (ISO 18563-1:2022)
Non-destructive testing - Characterization and verification of ultrasonic phased array
equipment - Part 1: Instruments (ISO 18563-1:2022)
Zerstörungsfreie Prüfung - Charakterisierung und Verifizierung der Ultraschall-
Prüfausrüstung mit phasengesteuerten Arrays - Teil 1: Prüfgeräte (ISO 18563-1:2022)
Essais non destructifs - Caractérisation et vérification de l'appareillage de contrôle par
ultrasons en multiéléments - Partie 1: Appareils (ISO 18563-1:2022)
Ta slovenski standard je istoveten z: EN ISO 18563-1:2022
ICS:
19.100 Neporušitveno preskušanje Non-destructive testing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

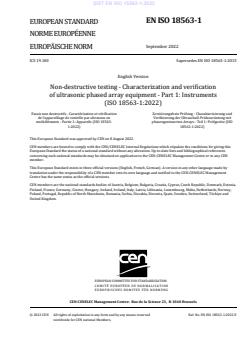

EN ISO 18563-1
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2022
EUROPÄISCHE NORM
ICS 19.100 Supersedes EN ISO 18563-1:2015
English Version
Non-destructive testing - Characterization and verification
of ultrasonic phased array equipment - Part 1: Instruments
(ISO 18563-1:2022)
Essais non destructifs - Caractérisation et vérification Zerstörungsfreie Prüfung - Charakterisierung und
de l'appareillage de contrôle par ultrasons en Verifizierung der Ultraschall-Prüfausrüstung mit
multiéléments - Partie 1: Appareils (ISO 18563- phasengesteuerten Arrays - Teil 1: Prüfgeräte (ISO
1:2022) 18563-1:2022)
This European Standard was approved by CEN on 8 August 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 18563-1:2022 E
worldwide for CEN national Members.

Contents Page
European foreword . 3

European foreword
This document (EN ISO 18563-1:2022) has been prepared by Technical Committee ISO/TC 135 "Non-
destructive testing" in collaboration with Technical Committee CEN/TC 138 “Non-destructive testing”
the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2023, and conflicting national standards shall
be withdrawn at the latest by March 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 18563-1:2015.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 18563-1:2022 has been approved by CEN as EN ISO 18563-1:2022 without any
modification.
INTERNATIONAL ISO
STANDARD 18563-1
Second edition
2022-08
Non-destructive testing —
Characterization and verification of
ultrasonic phased array equipment —
Part 1:
Instruments
Essais non destructifs — Caractérisation et vérification de
l'appareillage de contrôle par ultrasons en multiéléments —
Partie 1: Appareils
Reference number
ISO 18563-1:2022(E)
ISO 18563-1:2022(E)
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 18563-1:2022(E)
Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms.2
5 General requirements of conformity . 4
6 Manufacturer’s technical specification for ultrasonic phased array instruments .4
7 Performance requirements for ultrasonic phased array instruments .8
8 Group 1 tests .10
8.1 Equipment required for group 1 tests . 10
8.2 Battery operational time . 11
8.2.1 General . 11
8.2.2 Procedure . 11
8.2.3 Acceptance criterion .12
8.3 Stability after warm-up time . 12
8.3.1 Procedure . 12
8.3.2 Acceptance criteria . 14
8.4 Stability against temperature . 14
8.4.1 Procedure . 14
8.4.2 Acceptance criteria . 14
8.5 Stability against voltage variations . 15
8.5.1 Procedure .15
8.5.2 Acceptance criteria . 15
8.6 Deviation of time base .15
8.6.1 General .15
8.6.2 Procedure . 15
8.6.3 Acceptance criterion . 17
8.7 Transmitter . 17
8.7.1 General . 17
8.7.2 Pulse repetition frequency . 17
8.7.3 Effective output impedance . 17
8.7.4 Resolution of time delay . 18
8.8 Receiver . 19
8.8.1 General . 19
8.8.2 Cross-talk attenuation between receivers . 19
8.8.3 Dead time after the transmitter pulse . 20
8.8.4 Dynamic range and maximum input voltage .22
8.8.5 Receiver input impedance . 24
8.8.6 Time-corrected gain (TCG) . 24
8.8.7 Resolution of time delay .25
8.8.8 Linearity of vertical display against frequency . 26
8.8.9 Summation . 26
8.9 Gates. 27
8.9.1 General . 27
8.9.2 Linearity of gate amplitude .28
8.9.3 Linearity of time-of-flight in the gate .29
8.9.4 Monitor gates with analogue outputs .30
8.10 Highest digitized frequency. 32
8.10.1 Procedures . 32
8.10.2 Acceptance criterion .34
8.11 Response time of ultrasonic phased array instrument .34
8.11.1 General .34
iii
ISO 18563-1:2022(E)
8.11.2 Procedure .34
8.11.3 Acceptance criterion . 36
9 Group 2 tests .36
9.1 Equipment required for group 2 tests . 36
9.2 Physical state and external aspects . 36
9.2.1 Procedure .36
9.2.2 Acceptance criteria . 36
9.3 Transmitter . 36
9.3.1 General .36
9.3.2 Transmitter pulse voltage, rise time and duration .36
9.3.3 Linearity of time delays .39
9.4 Receiver . 39
9.4.1 General .39
9.4.2 Frequency response .39
9.4.3 Equivalent input noise . 41
9.4.4 Linearity of gain . 42
9.4.5 Variation of channel gain . 43
9.4.6 Linearity of vertical display .44
9.4.7 Linearity of time delay . 45
Bibliography .47
iv
ISO 18563-1:2022(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/
iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 135, Non-destructive testing, Subcommittee
SC 3, Ultrasonic testing, in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 138, Non-destructive testing, in accordance with the Agreement on
technical cooperation between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 18563-1:2015), which has been
technically revised.
The main changes are as follows:
— test methods introduced in ISO 22232-1 have been incorporated;
— the layout has been rearranged to follow the layout of ISO 22232-1;
— the sequence of tests has been modified to follow the sequence of tests in ISO 22232-1.
A list of all parts in the ISO 18563 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
v
INTERNATIONAL STANDARD ISO 18563-1:2022(E)
Non-destructive testing — Characterization and
verification of ultrasonic phased array equipment —
Part 1:
Instruments
1 Scope
This document specifies the functional characteristics of multi-channel ultrasonic phased array
instruments used for array probes and provides methods for their measurement and verification.
This document is also applicable to ultrasonic phased array instruments in automated systems; but
other tests can be needed to ensure satisfactory performance. When the phased array instrument is a
part of an automated system, the acceptance criteria can be modified by agreement between the parties
involved.
This document also can partly be applicable to FMC instruments and TFM instruments.
This document gives the extent of the verification and defines acceptance criteria within a frequency
range of 0,5 MHz to 10 MHz.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 5577, Non-destructive testing — Ultrasonic testing — Vocabulary
ISO 22232-1, Non-destructive testing — Characterization and verification of ultrasonic test equipment —
Part 1: Instruments
ISO 23243, Non-destructive testing — Ultrasonic testing with arrays — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5577, ISO 22232-1, ISO 23243
and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
maximum number of channels that can be simultaneously activated
maximum number of transmitting and/or receiving channels which can be used for one shot
Note 1 to entry: An ultrasonic phased array instrument featuring a maximum number of channels that can be
simultaneously activated (3.1) equal to the number of channels in the phased array instrument is indicated as
parallel ultrasonic phased array instrument.
ISO 18563-1:2022(E)
3.2
multiplexed ultrasonic phased array instrument
ultrasonic phased array instrument featuring a maximum number of channels that can be simultaneously
activated (3.1) smaller than the number of channels in the ultrasonic phased array instrument and
which are controlled by an internal multiplexing device
EXAMPLE In a type 16/64 multiplexed ultrasonic phased array instrument, the maximum number of
channels that can be simultaneously activated is 16 and the total number of channels available is 64. See Figure 1.

Key
1 ultrasonic phased array instrument
2 multiplexer input channels (1 to 16)
3 multiplexer
4 multiplexer output channels (1 to 64)
5 array probe
NOTE 16 is the maximum number of channels that can be activated simultaneously.
64 is the number of channels in the ultrasonic phased array instrument.
Figure 1 — Diagram of a 16/64 multiplexed ultrasonic phased array instrument
3.3
time resolution of the ultrasonic phased array instrument
inverse of the maximum digitization frequency without processing
4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in Table 1 apply.
ISO 18563-1:2022(E)
Table 1 — Symbols and abbreviated terms and their units and meanings
Symbol/Abbrevi-
Unit Meaning
ated term
A % Minimum amplitudes measured on a screen
min
A % Maximum amplitudes measured on a screen
max
A , A dB Attenuator settings used during tests
0 n
CT dB Cross-talk attenuation
f Hz Centre frequency
f Hz Upper frequency limit at −3 dB
u
f Hz Lower frequency limit at −3 dB
l
f Hz Frequency with the maximum amplitude in the frequency spectrum
max
f Hz Highest digitized frequency
h
Δf Hz Frequency bandwidth
f Hz Pulse repetition frequency (PRF)
R
FMC - Full matrix capture
FSH - Full screen height
ΔG dB Channel gain variation
G dB Input signal dynamic range
D
G dB Instrument gain on channel i
i
H % Reference screen height
R
I A Amplitude of the maximum current that can be driven by the proportional gate
max
output
N Noise per root bandwidth for receiver input
V
in
Hz
R , R , R Ω Termination resistors
A B l
S dB Attenuator setting
Δt s Time increment
t s Time delay
t s Time to the start of distance-amplitude curve
t s Dead time
t s Pulse duration
d
t s Time to the end of distance-amplitude curve
final
t s Transmitter pulse rise time from an amplitude of 10 % to 90 % of peak
r
amplitude
t s Response time
RT
t , t , s Transmitter or receiver time delays
Target 0 Target i
t , t , t , t
Pi P 0 difi dif
TFM - Total focusing method
t s Time-of-flight
TOF
V , V V Pulse voltage amplitudes
A B
V V Equivalent input noise
ein
V V Input voltage when measuring the equivalent input noise
in
V V Output voltage modified when measuring the output impedance of the analogue
l
gate
V V Minimum input voltage of the receiver
min
V V Maximum input voltage of the receiver
max
ISO 18563-1:2022(E)
TTabablele 1 1 ((ccoonnttiinnueuedd))
Symbol/Abbrevi-
Unit Meaning
ated term
V V Output voltage to get an indication at 80 % of FSH when measuring the output
O
impedance of the analogue gate
V V Voltage amplitude of the 50 Ω loaded transmitter pulse
Z Ω Output impedance of transmitter
Z Ω Output impedance of proportional output
A
5 General requirements of conformity
An ultrasonic phased array instrument conforms with this document if it fulfils all of the following
requirements:
a) the ultrasonic phased array instrument shall conform with Clause 7;
b) a declaration of conformity shall be available, issued by either the manufacturer operating a
quality management system (e.g. in accordance with ISO 9001) or by an organization operating a
laboratory (e.g. in accordance with ISO/IEC 17025);
c) the ultrasonic phased array instrument shall carry a unique serial number;
d) a manufacturer's technical specification corresponding to the phased array instrument, which
defines the performance criteria in accordance with Clause 6, shall be available.
6 Manufacturer’s technical specification for ultrasonic phased array
instruments
The manufacturer’s technical specification relative to a specific model of an ultrasonic phased array
instrument shall contain, as a minimum, the information listed in Table 2. Table 2 specifies the
information which shall be supplied by the manufacturer in the ultrasonic phased array instrument’s
technical specification.
The values obtained from the tests described in Clause 7 shall be established as nominal values, with
tolerances given as indicated.
ISO 18563-1:2022(E)
Table 2 — Technical characteristics to be shown in the ultrasonic phased array instrument’s
technical specification
Information Type of Remarks
information
General features
Size OI Width (mm) × Height (mm) × Depth (mm)
Weight OI At an operational stage including all batteries
Type(s) of power supply OI
Type(s) of instrument sockets OI Including the wiring diagram
Battery operational time M At fully charged new batteries
Number and type of batteries OI
Stability against temperature M
Stability after warm-up time M
Stability against voltage variations M
Temperature and voltage (mains and/or OI When a warm-up time is necessary, its duration
batteries) ranges in which the ultrasonic shall be stated
phased array instrument operates in accord-
ance with the technical specification (opera-
tion and storage)
Form of indication given when a low OI
battery voltage takes the performance of the
ultrasonic phased array instrument outside
of specification
Pulse repetition frequencies M Minimum and maximum values
Maximum power consumption OI V·A (volt-amperes)
Protection grade OI
Environment OI For example: restriction of hazardous sub-
stances (RoHS), explosive atmosphere (ATEX),
vibration, humidity
Multi-channel configuration OI Number of channels controlled simultaneously
and number of available channels
Extension of the number of channels by OI
interconnection of the ultrasonic phased
array instruments
Available measurement units OI For example: mm, inches, %, dB, V
Display
Screen size and resolution OI
Range of sound velocities OI
Time base range OI
Time base delay range OI
List of available views OI
Response time for A-scan presentations M
Maximum digitization frequency without OI
processing
Digitization frequency with processing OI For example: interpolation
Vertical resolution of digitizer OI In bits
Highest digitized frequency M
Key
M  Measurement
OI  Other information
ISO 18563-1:2022(E)
TTabablele 2 2 ((ccoonnttiinnueuedd))
Information Type of Remarks
information
Deviation of time base M
Inputs/outputs
Signal unrectified output (i.e. radio OI
frequency, RF) and/or rectified available
on the output socket
Number and characteristics of logic and OI Including the wiring diagram
analogue control outputs
Number and characteristics of encoder OI Including the wiring diagram
inputs
Power input OI AC, DC, voltage range, power (W)
Available power supply for external devices OI Voltage, power
Synchronization input/output OI
Beam forming
Maximum number of channels active OI
simultaneously
Maximum number of delay laws OI
Maximum number of groups of shots OI
Summation M
Transmitter
Number of transmitters available OI
simultaneously
Shape of transmitter pulse and where OI I.e. rectangular, unipolar, bipolar, arbitrary
applicable, polarity pulse
Transmitter voltage rise time M
Transmitter voltage fall time M
Transmitter voltage duration M
Output impedance M
Maximum time delay OI
Resolution of time delay M
Linearity of time delays M
Possibility to apply different voltages on each OI
channel
Maximum power available per transmitter OI
Receiver
Number of receivers available OI
simultaneously
Characteristics of the gain control, i.e. range OI
in decibels, value of increments
Characteristics of the logarithmic amplifier OI
Input voltage at FSH OI
Maximum input voltage M
Linearity of vertical display M
Key
M  Measurement
OI  Other information
ISO 18563-1:2022(E)
TTabablele 2 2 ((ccoonnttiinnueuedd))
Information Type of Remarks
information
Linearity of the vertical display over the fre- M
quency ranges of the ultrasonic phased array
instrument
Frequency response M
Dead time after transmitter pulse M
Equivalent input noise M
Dynamic range M
Input impedance M
Maximum time delay OI
Resolution of time delay M
Time-corrected gain (TCG) M
Possibility to apply different gain values on OI
each channel
Cross-talk attenuation between receivers M
Linearity of time delays M
Linearity of gain M
Variation of channel gain M
Data acquisition
Transfer rate and type of connection between OI Interface type;
the external storage unit and the ultrasonic Megabytes/s
phased array instrument
Maximum number of A-scans stored per OI A-scan characteristics shall be stated
second
Maximum number of C-scans stored per OI C-scan characteristics shall be stated
second
Maximum number of samples per A-scan OI
Storage capacity OI Mbytes
Gates
Number of gates OI
Threshold operation OI For example: coincidence or anticoincidence
Measurement mode OI For example: threshold, max, zero crossing
Synchronisation of gates OI For example: transmission pulse, first echo
Characteristics of gates OI Threshold, position, duration
Resolution of measurements OI
Trigger of alarms OI For example: number of sequences before an
alarm is triggered
Linearity of monitor gate amplitude M
Linearity of time-of-flight in the gate M
Impedance of analogue output M
Linearity of analogue output M
Influence of the measurement signal position M
in the gate on the analogue gate output
Key
M  Measurement
OI  Other information
ISO 18563-1:2022(E)
TTabablele 2 2 ((ccoonnttiinnueuedd))
Information Type of Remarks
information
Rise time of analogue gate output M
Fall time of analogue gate output M
Hold time of analogue gate output M
Signal processing
Processing features OI For example: averaging, fast Fourier transform
(FFT), rectification, envelope, compression,
dimensional measurements
Key
M  Measurement
OI  Other information
7 Performance requirements for ultrasonic phased array instruments
In order to fulfil the requirements of this document, ultrasonic phased array instruments shall be
verified with the following tests depending on the situation.
— Group 1 tests: to be performed by the manufacturer (or his or her agent) on a representative sample
of the ultrasonic phased array instruments.
High-level measuring instruments are required for these tests.
— Group 2 tests: to be performed on every ultrasonic phased array instrument:
a) by the manufacturer (or his or her agent) prior to the supply of the ultrasonic phased array
instrument (zero point tests);
b) by the manufacturer, the owner, or a laboratory, at 12-month intervals, to verify the
performance of the ultrasonic phased array instrument during its lifetime;
c) following the repair of the ultrasonic phased array instrument.
Only basic electronic measuring instruments are needed for group 2 tests.
By agreement between the parties involved, these tests may be supplemented with additional tests
from group 1.
A third group of tests for the combined system (ultrasonic phased array instrument and connected
probes) is given in ISO 18563-3, these tests shall be performed at regular intervals on site.
For ultrasonic phased array instruments marketed before the introduction of this document, continuing
fitness for purpose shall be demonstrated by performing the periodic group 2 tests every 12 months.
Following the repair, all parameters which can have been influenced by the repair shall be checked
using the appropriate group 1 or group 2 tests.
Table 3 contains all tests to be performed on ultrasonic phased array instruments.
ISO 18563-1:2022(E)
Table 3 — List of tests for ultrasonic phased array instruments
Group 1 Group 2
Manufacturing test Periodic and repair test
Title of the test
Subclause Subclause
Physical state and external aspects 9.2 9.2
Portable or battery operated ultrasonic phased array instruments
Battery operational time 8.2
Stability
Stability after warm-up time 8.3
Stability against temperature 8.4
Stability against voltage variations 8.5
Display
Deviation of time base 8.6
Highest digitized frequency 8.10
Response time of ultrasonic phased array 8.11
instrument
Beam forming
Summation 8.8.9
Transmitter
Pulse repetition frequency 8.7.2
Effective output impedance 8.7.3
Resolution of time delay 8.7.4
Transmitter pulse voltage, rise time and 9.3.2 9.3.2
duration
Linearity of time delays 9.3.3 9.3.3
Receiver
Resolution of time delay 8.7.4
Cross-talk attenuation between receivers 8.8.2
Dead time after the transmitter pulse 8.8.3
Dynamic range and maximum input voltage 8.8.4
Receiver input impedance 8.8.5
Time-corrected gain (TCG) 8.8.6
Linearity of vertical display against frequen- 8.8.8
cy
Frequency response 9.4.2 9.4.2
Linearity of gain 9.4.4 9.4.4
Equivalent input noise 9.4.3 9.4.3
Variation of channel gain 9.4.5 9.4.5
Linearity of vertical display 9.4.6 9.4.6
Linearity of time delays 9.4.7 9.4.7
Monitor gate
Linearity of gate amplitude 8.9.2
Linearity of time-of-flight in the gate 8.9.3
Impedance of analogue output 8.9.4.1
Linearity of the analogue output 8.9.4.2
Influence of signal position within gate 8.9.4.3
ISO 18563-1:2022(E)
TTabablele 3 3 ((ccoonnttiinnueuedd))
Group 1 Group 2
Manufacturing test Periodic and repair test
Title of the test
Subclause Subclause
Rise, fall, delay and hold time of analogue 8.9.4.4
output
8 Group 1 tests
8.1 Equipment required for group 1 tests
The equipment utilized to obtain the required information shall not affect the characteristics of the
ultrasonic phased array instrument under consideration.
The equipment required for the group 1 tests on ultrasonic phased array instruments includes the
following items or functions:
a) oscilloscope with a minimum bandwidth of 100 MHz;
b) (50 ± 0,5) Ω non-reactive resistors;
c) non-reactive resistors with values R and R
A B;
d) standard 50 Ω attenuator with 1 dB steps and a total range of 100 dB. The attenuator shall have
a cumulative error of less than 0,3 dB in any 10 dB span for signals with a frequency less than or
equal to 15 MHz;
e) switching means;
f) pulse generator, capable of producing a trigger pulse with or without a defined delay;
g) signal generator, capable of producing a defined sinusoidal signal or a sinusoidal burst signal;
NOTE An arbitrary waveform generator can be used to replace one or both of the above listed generators
due to its multifunctional design.
h) protection circuit (see Figure 2);
i) impedance analyser;
j) environmental test chamber;
k) regulated DC power supply (for testing the performances of battery operated ultrasonic phased
array instruments);
l) array probe (2 MHz to 6 MHz);
m) reference block to generate a back-wall echo (e.g. calibration block no. 1 according to ISO 2400).
All of the tests in group 1, except the test for stability against temperature (see 8.4), require electronic
means to produce the necessary signals.
The characteristics and stability of the equipment used shall be adapted to the tests.
Before the oscilloscope is connected to the transmitter of the ultrasonic phased array instrument, as
specified in some of the test procedures in this document, it shall be verified that the oscilloscope will
not be damaged by the high transmitter voltage.
ISO 18563-1:2022(E)
Key
1 from ultrasonic phased array instrument
2 to the input of the pulse generator, signal generator or oscilloscope
3 silicon switching diodes
R1, R2, R3 resistors
Figure 2 — Circuit to protect the instrument(s) from the transmitter pulse
8.2 Battery operational time
8.2.1 General
This test only applies to ultrasonic phased array instruments featuring a battery operation mode.
8.2.2 Procedure
The battery operational time of the unloaded (without any probe connected) ultrasonic phased array
instrument using batteries only shall be measured with the following conditions (i.e. the ultrasonic
phased array instrument shall be disconnected from the main power supply):
a) fully charged new battery(ies);
b) ambient temperature between 20 °C and 30 °C;
c) gain set to mid-gain position;
If the ultrasonic phased array instrument features a screen:
d) display A–scan and S-scan presentations;
e) brightness is set at mid-range.
When made possible by the characteristics of the ultrasonic phased array instrument:
f) pulse repetition frequency set to 1 kHz;
g) 16 channels active simultaneously;
h) 10 delay laws;
i) pulse voltage set to 50 V;
j) pulse width set to 100 ns;
k) time base set to 50 µs.
ISO 18563-1:2022(E)
In all other cases, set those parameters to their typical values.
Parameters that have been modified shall be specified by the manufacturer.
8.2.3 Acceptance criterion
The duration measured shall be higher than or equal to the duration stated in the manufacturer’s
technical specification.
8.3 Stability after warm-up time
8.3.1 Procedure
The procedure for the stability check after warm-up time shall be performed as follows:
a) Program the ultrasonic phased array instrument with one active transmitter channel and one
different active receiver channel.
b) Use the signal from the active transmitter channel as the trigger for the pulse generator.
c) Connect the output from the pulse generator to the trigger input of the signal generator.
d) Connect the signal generator output via the variable attenuator to the active receiver channel, see
Figure 3.
ISO 18563-1:2022(E)
Key
1 ultrasonic phased array instrument 9 pulse generator
2 protection circuit (see Figure 2) 10 signal generator
3 input 11 RF output
4 output 12 transmitter output
5 variable attenuator 13 receiver input
6 100 MHz oscilloscope 14 representation of voltage-limited transmitter pulse
7 input channel A 15 representation of test signal
8 input channel B
Figure 3 — Setup for measuring stability after warm-up time and against temperature
e) Set the ultrasonic phased array instrumen
...
