ISO/TR 20278:2015

TECHNICAL ISO/TR
REPORT 20278
First edition
2015-12-01
Unwanted reflections from the active
and inactive areas of display surfaces
visible during use
Réflexions non désirées des zones actives et inactives des surfaces de
l’écran visibles durant l’utilisation
Reference number
©
ISO 2015
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

Contents Page
Foreword .v
1 Scope . 1
2 Terms and definitions . 1
3 Unwanted reflections within the context of the ISO 9241-3xx series .2
3.1 Glare and unwanted reflections . 2
3.2 Direct glare in the context of the ISO 9241-3xx standards series . 2
3.3 Glare by reflection . 3
4 Visual discomfort and glare while using computer displays . 3
4.1 Asthenopia . 3
5 Unwanted reflections from displays . 3
5.1 General . 3
5.2 Glare and unwanted reflections on screens in the ISO 9241-3xx series . 4
6 Pertinent regulations regarding glare and unwanted reflections .4
6.1 European Directive 90-270 — On the minimum safety and health requirements
for work with display screen equipment . 4
6.2 The meaning of disturbing glare within the ISO 9241-3xx series . 4
6.2.1 General. 4
6.2.2 CIE definitions of discomfort glare and disability glare . 4
6.2.3 Unwanted reflections as currently specified and limited in ISO 9241-303,
9241-305 and 9241-307 for the active area of displays (screens) . 5
6.3 Interaction between specular, diffuse and haze reflection components . 6
6.3.1 General. 6
6.3.2 Recognition of the interaction of unwanted reflection components in the
ISO 9241-3xx series . 6
7 Luminance balance . 6
8 Glare and the ambient illumination in the office-working environment .6
8.1 Ambient illuminance . 6
8.2 Arrangement of the computer work area . 7
8.3 Surface finishes (reflectivity) . 7
8.3.1 General. 7
8.3.2 Conversion of specular gloss values to specular reflectance values . 8
9 Literature review of research regarding unwanted reflections from the bezel,
screen housing, or other inactive areas of the display visible during use .8
9.1 General . 8
9.2 Bezel gloss . 8
9.2.1 Howarth and Hodder, 2004 . 8
9.2.2 Béland and Andrén . 8
9.2.3 Howarth and Hodder, 2013 . 8
9.3 Bezel reflectance . 9
9.3.1 General. 9
9.3.2 Hunter, et al. . 9
9.3.3 Soderston, et al. . 9
9.3.4 Béland and Andrén .10
9.3.5 Howarth and Hodder .11
9.3.6 Conclusions from the literature regarding bezel gloss and reflectance .11
10 A review of the literature regarding eyestrain due to vergence and accommodative
demands of glare reflections .11
10.1 Accommodative stress .11
10.2 Vergence stress .12
11 Summary and conclusions .12

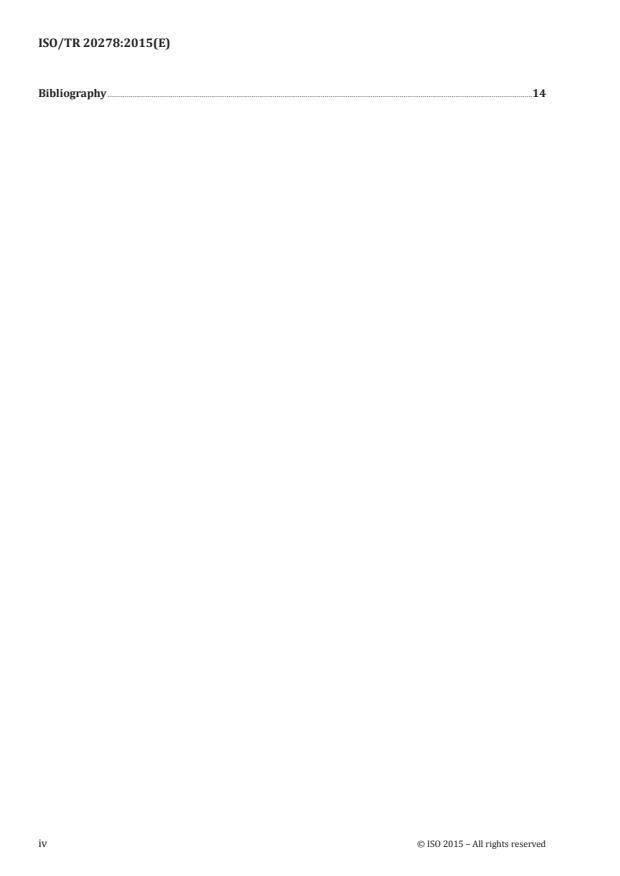

Bibliography .14
iv © ISO 2015 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT), see the following URL: Foreword — Supplementary information.
The committee responsible for this document is ISO/TC 159, Ergonomics, Subcommittee SC 4, Ergonomics
of human-system interaction.
TECHNICAL REPORT ISO/TR 20278:2015(E)
Unwanted reflections from the active and inactive areas of
display surfaces visible during use
1 Scope
This Technical Report provides users a summary of the existing knowledge about ergonomics
requirements for unwanted reflections on electronic displays. The document furthermore provides
some guidance on specification of unwanted reflections.
NOTE ISO 9241 contains normative requirements related to unwanted reflections. It is possible that the
information contained in this Technical Report will be used for a future update of ISO 9241.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
asthenopia
weakness or tiring of the eyes accompanied by pain, headache, and dim vision
Note 1 to entry: Symptoms include pain in or around the eyes; headache, usually aggravated by using the eyes for
close work; fatigue; vertigo; and reflex symptoms such as nausea, twitching of facial muscles, or migraine.
[SOURCE: Taber’s Medical Dictionary]
2.2
disability glare
glare that impairs the vision of objects without necessarily causing discomfort
2.3
direct glare
glare caused by self-luminous objects located in the visual field, especially near the line of sight
2.4
discomfort glare
glare that causes discomfort without necessarily impairing the vision of objects
2.5
glare
condition of vision in which there is discomfort or a reduction in the ability to see details or objects,
caused by an unsuitable distribution or range of luminance, or by extreme contrasts
2.6
glare by reflection
glare produced by reflections, particularly when the reflected images appear in the same or nearly the
same direction as the object viewed
2.7
gloss (of a surface)
mode of appearance by which reflected highlights of light sources of objects are perceived as
superimposed on the surface due to the directionally selective properties of that surface
2.8
glossmeter
instrument for measuring the various photometric properties of a surface giving rise to gloss
2.9
reflectometer
instrument for measuring quantities pertaining to reflection
2.10
specular gloss
ratio of the luminous flux reflected from an object in the specular direction for a specified source
and receptor angle to the luminous flux reflected from glass with a refractive index of 1,567 in the
specular direction
2.11
veiling glare (imaging)
light, reflected from an imaging medium, that has not been modulated by the means used to
produce the image
3 Unwanted reflections within the context of the ISO 9241-3xx series
3.1 Glare and unwanted reflections
At various places in the ISO 9241-3xx series, we specifically adopt the CIE definition of glare, which
includes both discomfort glare and disability glare. We note that the CIE defines discomfort glare
verbally as:
[11]
“glare which causes discomfort without necessarily impairing the vision of objects”,
and disability glare as
[13]
“glare t
...
