ISO/TR 17051:2020
(Main)Rubber, vulcanized — Guidelines for material specification
Rubber, vulcanized — Guidelines for material specification
This document establishes guidelines for the specification of vulcanized rubber based on the properties of individual rubber types. This document helps users of rubber products, who are not rubber experts, to create a specification for the rubber materials they wish to use. It also describes a designation system to enable a line call-cut code to be devised for each specification. Since the properties of rubber depend on the type of rubber, such as composition, some rubbers are classified into several types and organized by hardness. Representative specifications for the following rubber types are given in Annexes B to M: natural rubber (NR), styrene butadiene rubber (SBR), nitrile rubber (NBR), hydrogenated nitrile rubber (HNBR), nitrile rubber mixed with PVC (NBR/PVC), chloroprene rubber (CR), ethylene acrylic rubber (AEM), fluorocarbon rubber (FKM), silicone rubber (VMQ), epichlorohydrin rubber (ECO) and ethylene propylene rubber (EPM and EPDM). In cases of mixed rubber polymers, the main polymer in the rubber material gives the name of the rubber type.
Caoutchouc vulcanisé — Lignes directrices pour la spécification des matériaux
Le présent document donne des lignes directrices pour la spécification d'un caoutchouc vulcanisé sur la base des propriétés de types particuliers de caoutchouc. L'objectif du présent Rapport technique est d'aider les utilisateurs de produits en caoutchouc, qui ne sont pas des experts en caoutchouc, à créer une spécification pour les matériaux en caoutchouc qu'ils souhaitent utiliser. Il décrit également un système de désignation permettant d'établir un code de sélection pour chaque spécification. Comme les propriétés d'un caoutchouc dépendent du type de caoutchouc, telle que sa composition, certains caoutchoucs sont classés en plusieurs types et organisés selon leur dureté. Les spécifications représentatives des types de caoutchouc suivants sont données dans les Annexes B à M: caoutchouc naturel (NR), caoutchouc styrène-butadiène (SBR), caoutchouc nitrile (NBR), caoutchouc nitrile hydrogéné (HNBR), caoutchouc nitrile-PVC (NBR/PVC), caoutchouc chloroprène (CR), caoutchouc éthylène acrylique (AEM), caoutchouc fluorocarboné (FKM), caoutchouc silicone (VMQ), caoutchouc épichlorhydrine (ECO) et caoutchouc éthylène propylène (EPM et EPDM). Dans le cas de coupages de polymères, le polymère principal dans le matériau caoutchouc donne le nom du type de caoutchouc.
General Information
Standards Content (Sample)

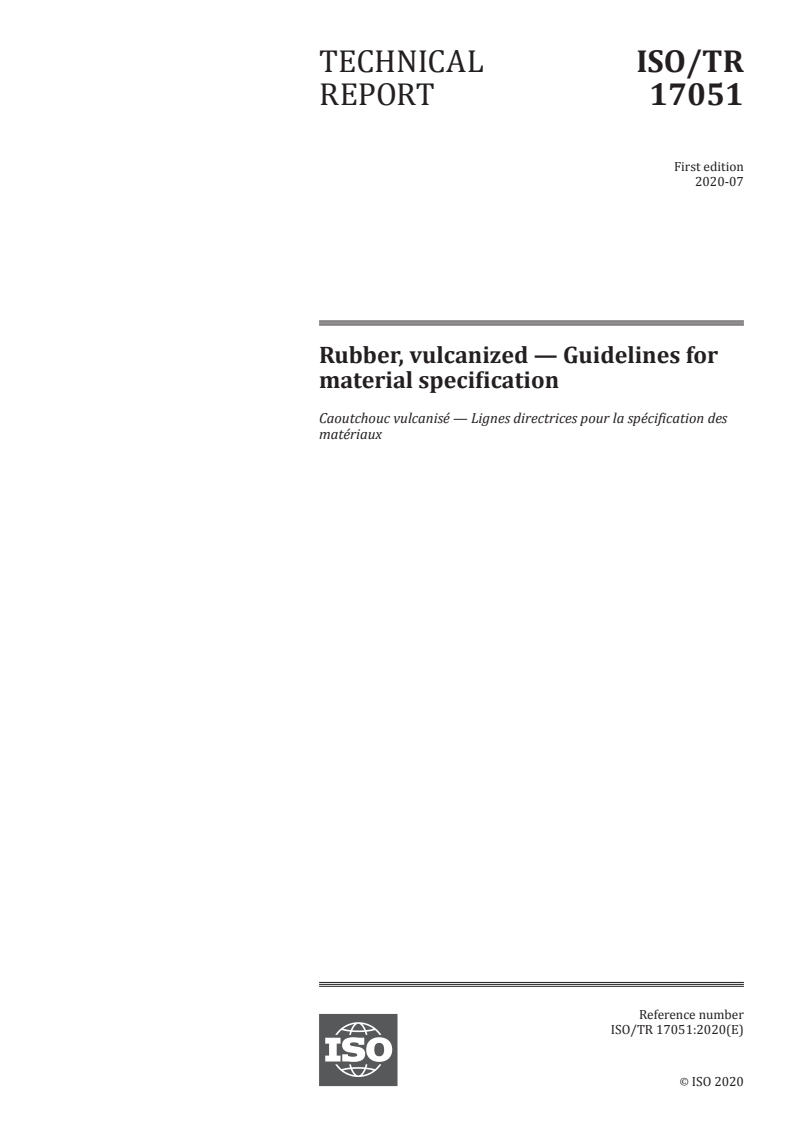

TECHNICAL ISO/TR
REPORT 17051
First edition
2020-07
Rubber, vulcanized — Guidelines for
material specification
Caoutchouc vulcanisé — Lignes directrices pour la spécification des
matériaux
Reference number
©
ISO 2020

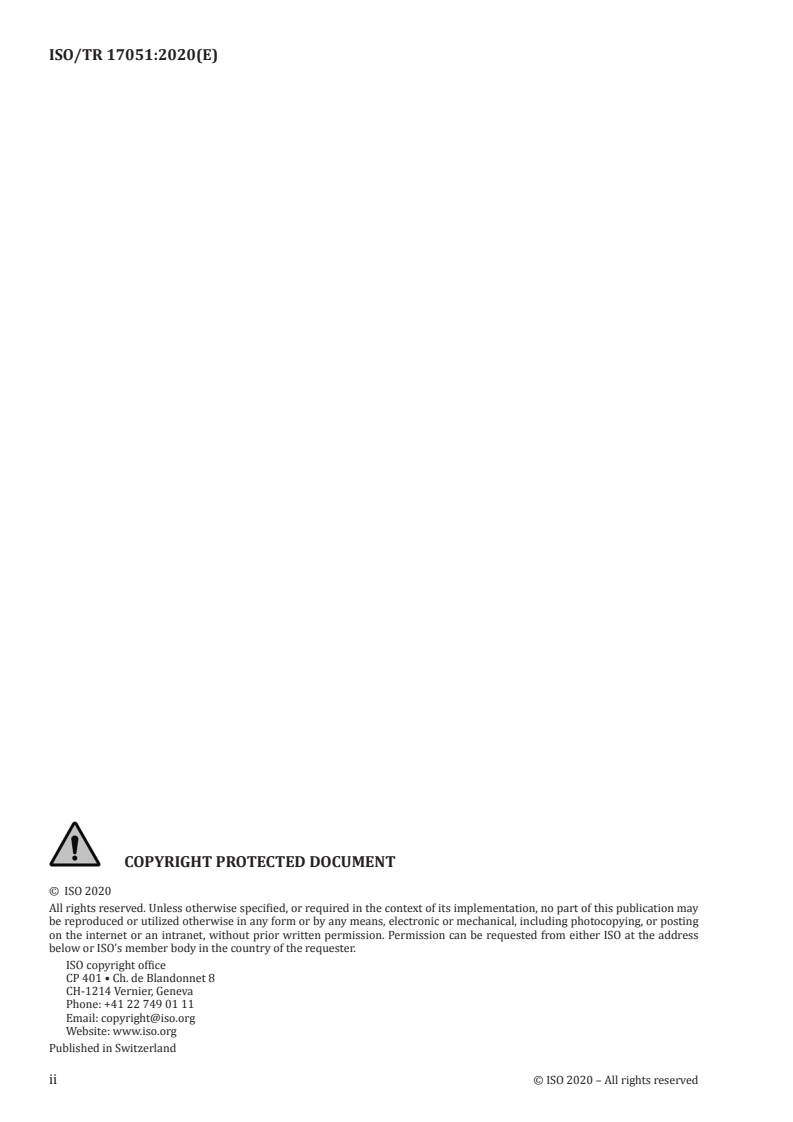

© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

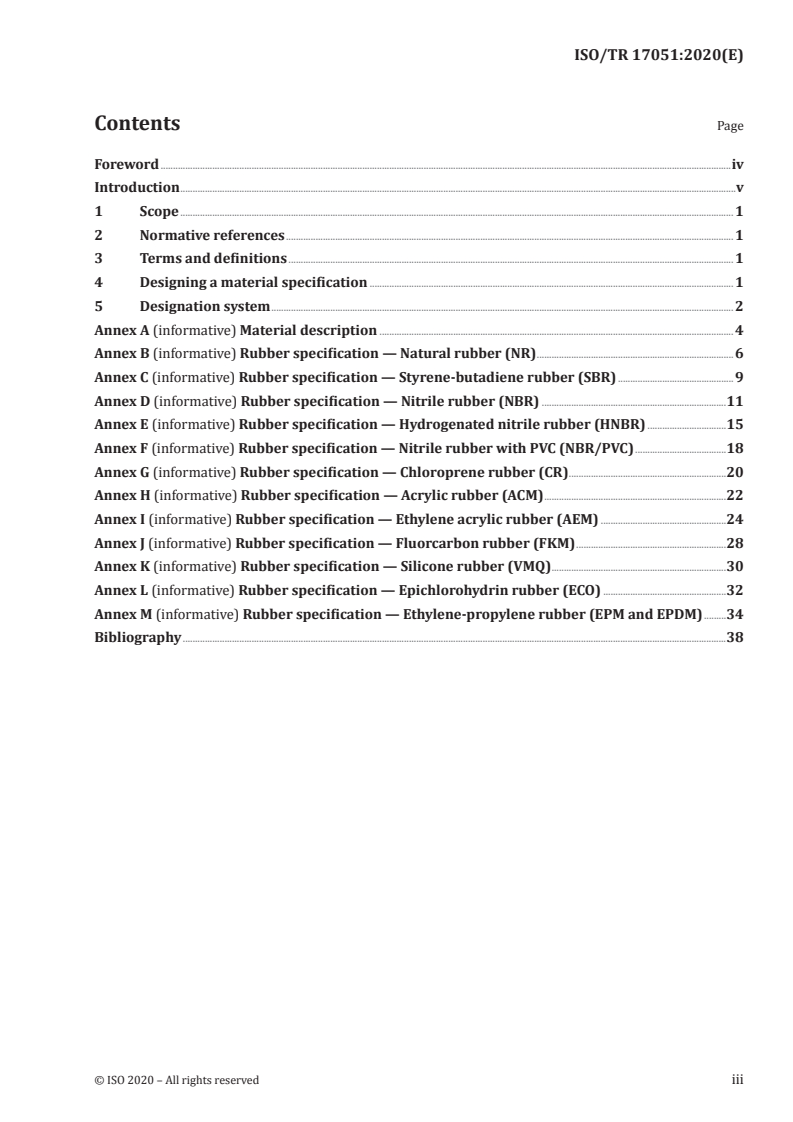

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Designing a material specification . 1
5 Designation system . 2
Annex A (informative) Material description . 4
Annex B (informative) Rubber specification — Natural rubber (NR) . 6
Annex C (informative) Rubber specification — Styrene-butadiene rubber (SBR) .9
Annex D (informative) Rubber specification — Nitrile rubber (NBR) .11
Annex E (informative) Rubber specification — Hydrogenated nitrile rubber (HNBR) .15
Annex F (informative) Rubber specification — Nitrile rubber with PVC (NBR/PVC) .18
Annex G (informative) Rubber specification — Chloroprene rubber (CR) .20
Annex H (informative) Rubber specification — Acrylic rubber (ACM) .22
Annex I (informative) Rubber specification — Ethylene acrylic rubber (AEM) .24
Annex J (informative) Rubber specification — Fluorcarbon rubber (FKM) .28
Annex K (informative) Rubber specification — Silicone rubber (VMQ) .30
Annex L (informative) Rubber specification — Epichlorohydrin rubber (ECO) .32
Annex M (informative) Rubber specification — Ethylene-propylene rubber (EPM and EPDM) .34
Bibliography .38

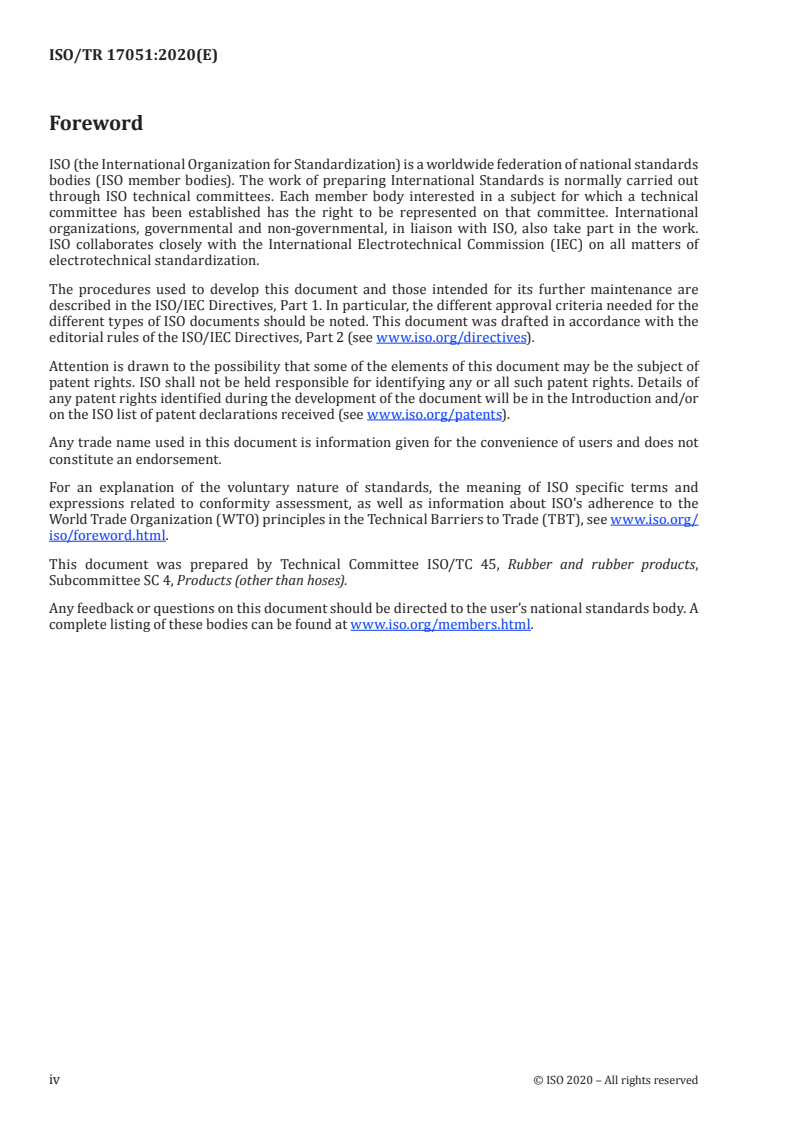

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 45, Rubber and rubber products,
Subcommittee SC 4, Products (other than hoses).
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
Introduction
The specifications in this document give good basic materials for general use. For specific product
applications, materials with modified specifications can be needed. There can also be a need to specify
additional tests such as for dynamic properties.
TECHNICAL REPORT ISO/TR 17051:2020(E)
Rubber, vulcanized — Guidelines for material specification
1 Scope
This document establishes guidelines for the specification of vulcanized rubber based on the properties
of individual rubber types. This document helps users of rubber products, who are not rubber experts,
to create a specification for the rubber materials they wish to use.
It also describes a designation system to enable a line call-cut code to be devised for each specification.
Since the properties of rubber depend on the type of rubber, such as composition, some rubbers are
classified into several types and organized by hardness.
Representative specifications for the following rubber types are given in Annexes B to M: natural
rubber (NR), styrene butadiene rubber (SBR), nitrile rubber (NBR), hydrogenated nitrile rubber
(HNBR), nitrile rubber mixed with PVC (NBR/PVC), chloroprene rubber (CR), ethylene acrylic rubber
(AEM), fluorocarbon rubber (FKM), silicone rubber (VMQ), epichlorohydrin rubber (ECO) and ethylene
propylene rubber (EPM and EPDM).
In cases of mixed rubber polymers, the main polymer in the rubber material gives the name of the
rubber type.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1629, Rubber and latices — Nomenclature
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 1629 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Designing a material specification
For each rubber polymer described in Annex A there are two or more alternative specifications given in
Annexes B to M.
When using this document, it is recommended to start by selecting rubber polymer according to
ISO/TR 7620, and then select hardness.
In several cases, there are also supplementary properties which can be added to the material
specification given in the annexes for the material specifications.
The designation of the selected material is described in Clause 5.
5 Designation system
The vulcanized rubber material can be designated by the number of this document, i.e. ISO/TR 17051,
followed by the rubber type, hardness, type and designation(s) for supplementary properties.
Supplementary properties:
— C = Cold-resistant;
— F = Fuel resistance;
— L = Long-term properties;
— O = Oil resistance;
— Oz = Ozone resistance;
— T = Tear resistance.
EXAMPLE ISO/TR 17051 NR 70-1-C-L.
All materials have certain obligatory properties to be fulfilled by the material. For certain materials, the
specification can be made more stringent by supplementary properties. Table 1 lists the supplementary
properties possible for various materials.
Table 1 — Supplementary properties for different materials
Supplementary designation
Material
C F L O Oz T
Natural rubber (NR) type 1 X X X
Natural rubber (NR) type 2 X X X
Natural rubber (NR) type 3
Natural rubber (NR) type 4
Styrene butadien rubber (SBR) type 1 X X X
Styrene butadien rubber (SBR) type 2 X X X
Nitrile rubber (NBR) acrylic content 33 % type 1 X X
Nitrile rubber (NBR) acrylic content 28 % type 2 X
Nitrile rubber (NBR) acrylic content 33 % type 3 X X
Nitrile rubber (NBR) acrylic content 28 % type 4 X
Hydrogenated nitrile rubber (HNBR) type 1
Hydrogenated nitrile rubber (HNBR) type 2
Hydrogenated nitrile rubber (HNBR) type 3
Nitrile/PVC rubber (NBR/PVC) type 1
Nitrile/PVC Rubber (NBR/PVC) type 2
Chloroprene rubber (CR) type 1 X
Chloroprene rubber (CR) type 2
Acrylic rubber (ACM) type 1
Acrylic rubber (ACM) type 2
Ethylene acrylic rubber (AEM) type 1
Ethylene acrylic rubber (AEM) type 2
Ethylene acrylic rubber (AEM) type 3
2 © ISO 2020 – All rights reserved
Table 1 (continued)
Supplementary designation
Material
C F L O Oz T
Ethylene acrylic rubber (AEM) type 4
Fluorocarbon rubber copolymer (FKM) type 1
Fluorocarbon rubber terpolymer (FKM) type 2
Silicone rubber (VMQ) type 1 X X
Silicone rubber (VMQ) type 2 X
Epichlorhydrin rubber (ECO) type 1
Epichlorhydrin rubber (ECO) type 2
Ethylene propylene rubber sulfur vulcanised (EPDM) X
Ethylene propylene rubber sulfur vulcanised (EPDM) X
Ethylene propylene rubber peroxide vulcanised (EPM and EPDM) X
Ethylene propylene rubber peroxide vulcanised (EPM and EPDM) X
Annex A
(informative)
Material description
A.1 Natural rubber (NR)
NR has good tensile strength and good wear properties, even without reinforcing fillers. This makes it
possible to manufacture soft rubber products with good mechanical properties. For manufacturing of
complex products the good processability is an advantage. The low temperature properties are good
and the mechanical damping is very low. The oil and ozone resistance is poor. Specifications are given
in Annex B.
A.2 Styrene-butadiene rubber (SBR)
SBR requires reinforcing fillers to achieve good mechanical properties. Compared with natural rubber
the SBR has higher mechanical damping and not so good low temperature properties. The wear
properties are often better than natural rubber when used in tyres at high temperature and high speed.
The oil and ozone resistances are poor. Specifications are given in Annex C.
A.3 Ethylene-propylene rubber (EPM, EPDM)
Ethylene propylene rubber is fully resistant to ozone attack, due to the saturated chemical backbone
structure and has also very good heat resistance and good resistance against many chemicals. The
EPDM can be extended with high amounts of fillers and softeners. Special care should be taken to
achieve good adhesion to textile and metal. Oil resistance is poor. Specifications are given in Annex M.
A.4 Chloroprene rubber (CR)
The ozone resistance of CR is better than the ozone resistance of natural- styrene- and nitrile rubber,
but not as good as EPDM. The oil resistance of chloroprene rubber is better than the oil resistance of
natural or styrene butadiene rubber, but not as good as nitrile rubber. As CR contains chlorine it does
not burn too easily. Specifications are given in Annex G.
A.5 Nitrile rubber (NBR)
NBR has good resistance against oils and fuels are needed. With increased content of acrylonitrile
(ACN) the low temperature properties are reduced, while the volume swell in oil and fuel is improved.
Heat resistance is good, when the rubber is suitable compounded, but the ozone resistance is poor.
Specifications are given in Annex D.
A.6 Hydrogenated nitrile rubber (HNBR)
HNBR has the same resistance against oils and fuels as normal NBR but has an improved high
temperature and ozone resistance. Specifications are given in Annex E.
A.7 Nitrile rubber mixed with PVC, NBR/PVC
Nitrile rubber mixed with PVC has an improved ozone resistance over normal nitrile rubber.
Specificati
...

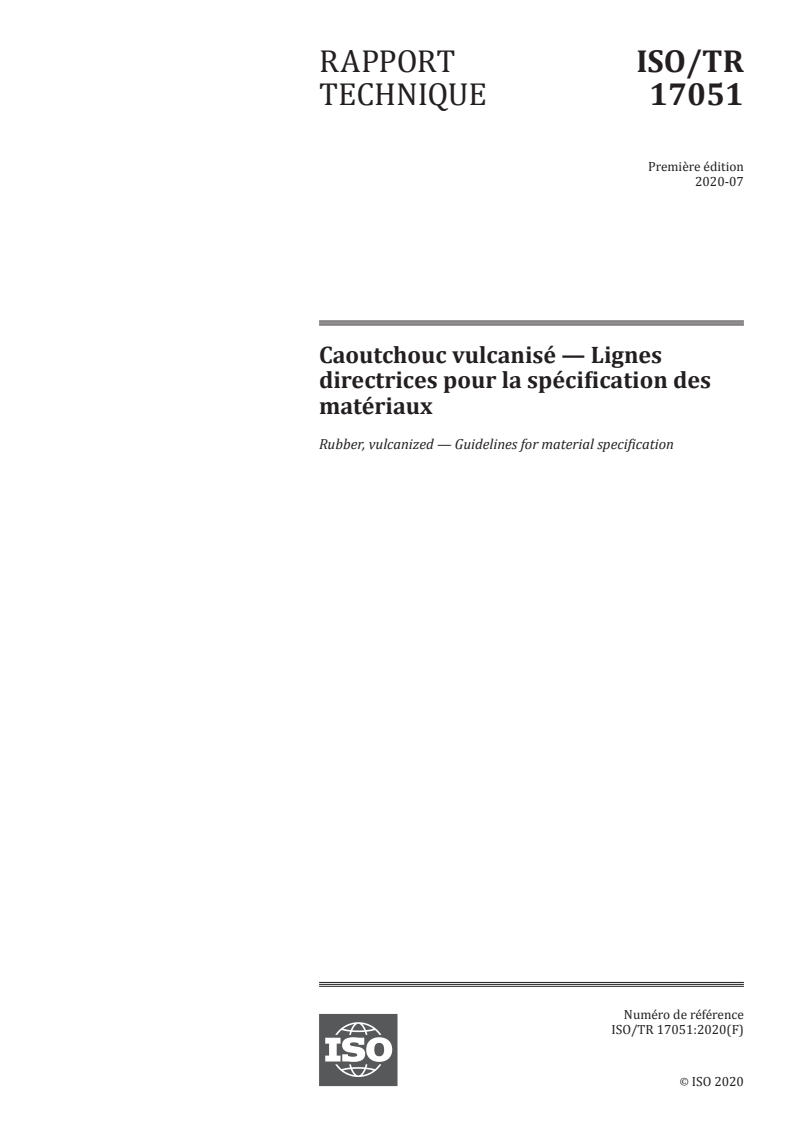

RAPPORT ISO/TR
TECHNIQUE 17051
Première édition
2020-07
Caoutchouc vulcanisé — Lignes
directrices pour la spécification des
matériaux
Rubber, vulcanized — Guidelines for material specification
Numéro de référence
©
ISO 2020
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2020
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii © ISO 2020 – Tous droits réservés

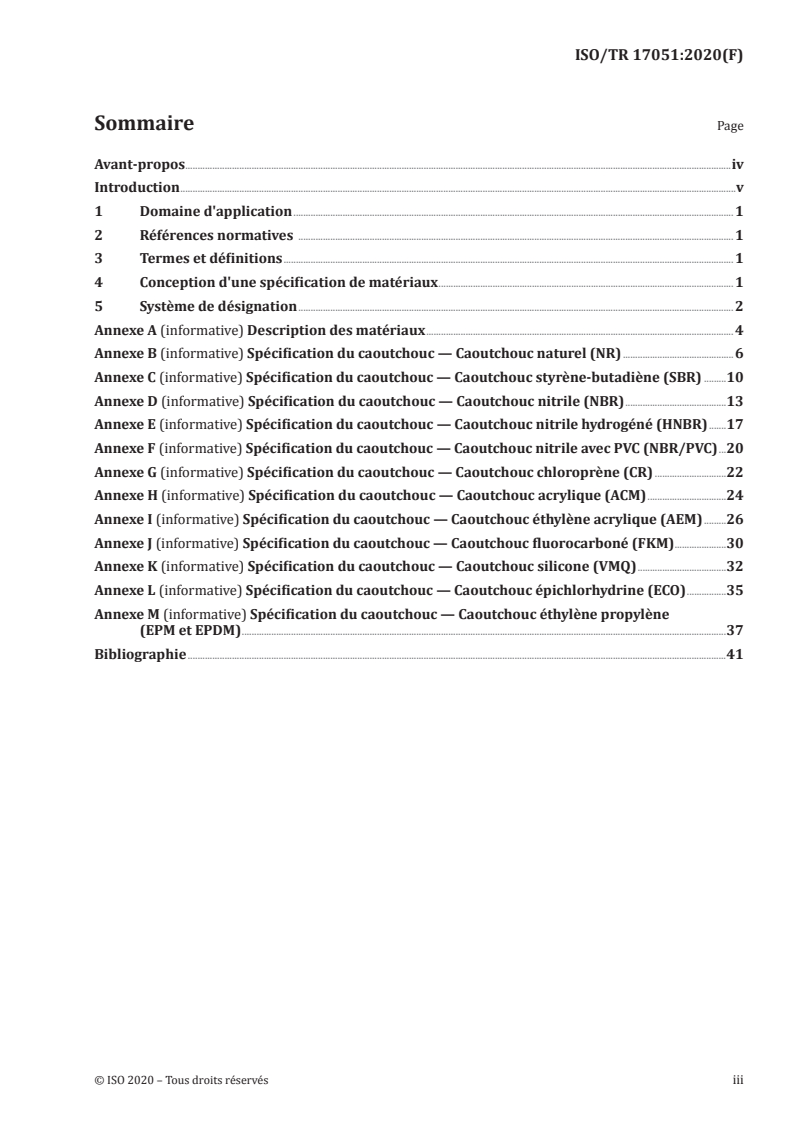

Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d'application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Conception d'une spécification de matériaux . 1
5 Système de désignation . 2
Annexe A (informative) Description des matériaux . 4
Annexe B (informative) Spécification du caoutchouc — Caoutchouc naturel (NR) .6
Annexe C (informative) Spécification du caoutchouc — Caoutchouc styrène-butadiène (SBR) .10
Annexe D (informative) Spécification du caoutchouc — Caoutchouc nitrile (NBR) .13
Annexe E (informative) Spécification du caoutchouc — Caoutchouc nitrile hydrogéné (HNBR) .17
Annexe F (informative) Spécification du caoutchouc — Caoutchouc nitrile avec PVC (NBR/PVC) .20
Annexe G (informative) Spécification du caoutchouc — Caoutchouc chloroprène (CR) .22
Annexe H (informative) Spécification du caoutchouc — Caoutchouc acrylique (ACM) .24
Annexe I (informative) Spécification du caoutchouc — Caoutchouc éthylène acrylique (AEM) .26
Annexe J (informative) Spécification du caoutchouc — Caoutchouc fluorocarboné (FKM) .30
Annexe K (informative) Spécification du caoutchouc — Caoutchouc silicone (VMQ) .32
Annexe L (informative) Spécification du caoutchouc — Caoutchouc épichlorhydrine (ECO) .35
Annexe M (informative) Spécification du caoutchouc — Caoutchouc éthylène propylène
(EPM et EPDM) .37
Bibliographie .41

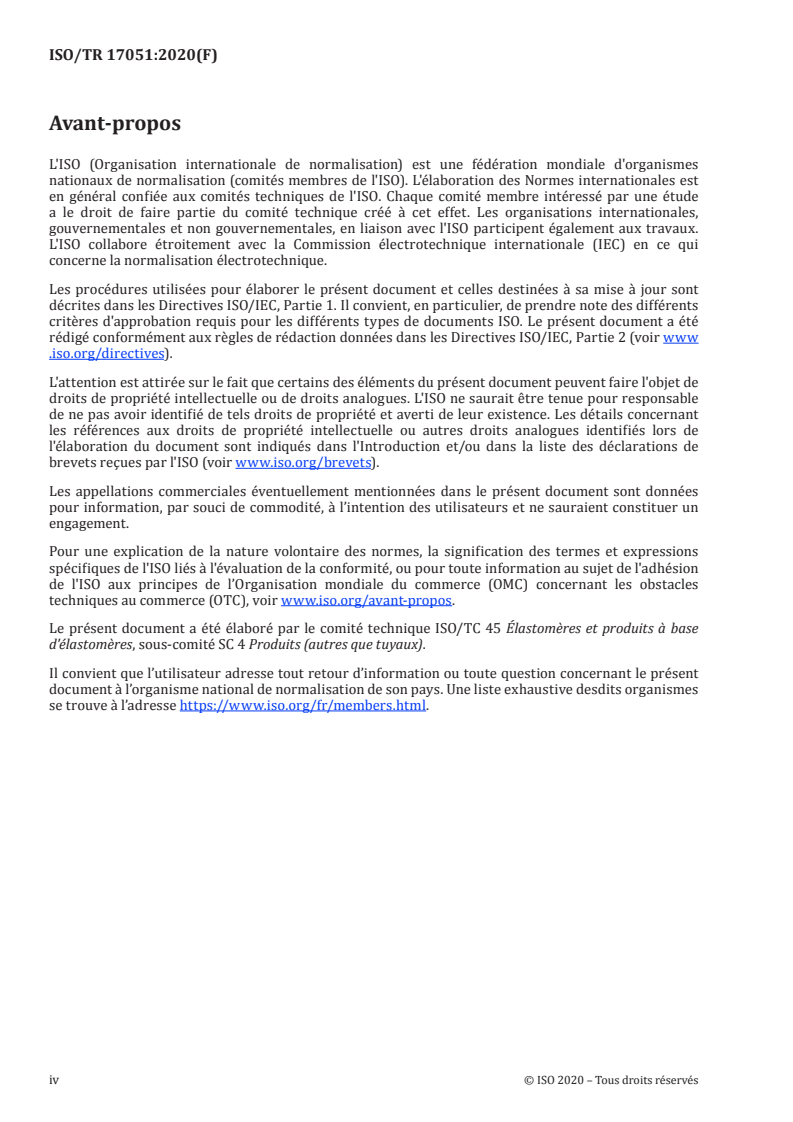

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes
nationaux de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est
en général confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l'ISO participent également aux travaux.
L'ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/ directives).
L'attention est attirée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l'élaboration du document sont indiqués dans l'Introduction et/ou dans la liste des déclarations de
brevets reçues par l'ISO (voir www .iso .org/ brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion
de l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir www .iso .org/ avant -propos.
Le présent document a été élaboré par le comité technique ISO/TC 45 Élastomères et produits à base
d'élastomères, sous-comité SC 4 Produits (autres que tuyaux).
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes
se trouve à l’adresse https:// www .iso .org/ fr/ members .html.
iv © ISO 2020 – Tous droits réservés
Introduction
Les spécifications du présent document donnent des matériaux de base adaptés à un usage général.
Pour des applications de produits spécifiques, des matériaux avec des spécifications modifiées peuvent
être nécessaires. Il peut également être nécessaire de spécifier des essais supplémentaires, par exemple
pour les propriétés dynamiques.
RAPPORT TECHNIQUE ISO/TR 17051:2020(F)
Caoutchouc vulcanisé — Lignes directrices pour la
spécification des matériaux
1 Domaine d'application
Le présent document donne des lignes directrices pour la spécification d’un caoutchouc vulcanisé sur
la base des propriétés de types particuliers de caoutchouc. L'objectif du présent Rapport technique est
d'aider les utilisateurs de produits en caoutchouc, qui ne sont pas des experts en caoutchouc, à créer
une spécification pour les matériaux en caoutchouc qu'ils souhaitent utiliser.
Il décrit également un système de désignation permettant d’établir un code de sélection pour chaque
spécification.
Comme les propriétés d’un caoutchouc dépendent du type de caoutchouc, telle que sa composition,
certains caoutchoucs sont classés en plusieurs types et organisés selon leur dureté.
Les spécifications représentatives des types de caoutchouc suivants sont données dans les Annexes B
à M: caoutchouc naturel (NR), caoutchouc styrène-butadiène (SBR), caoutchouc nitrile (NBR),
caoutchouc nitrile hydrogéné (HNBR), caoutchouc nitrile-PVC (NBR/PVC), caoutchouc chloroprène
(CR), caoutchouc éthylène acrylique (AEM), caoutchouc fluorocarboné (FKM), caoutchouc silicone
(VMQ), caoutchouc épichlorhydrine (ECO) et caoutchouc éthylène propylène (EPM et EPDM).
Dans le cas de coupages de polymères, le polymère principal dans le matériau caoutchouc donne le nom
du type de caoutchouc.
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur
contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique.
Pour les références non datées, la dernière édition du document de référence s'applique (y compris les
éventuels amendements).
ISO 1629, Caoutchouc et latex — Nomenclature
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés dans l’ISO 1629 s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en
normalisation, consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l’adresse http:// www .electropedia .org/
4 Conception d'une spécification de matériaux
Pour chaque polymère caoutchouc décrit dans l'Annexe A, il existe au moins deux spécifications
alternatives données dans les Annexes B à M.
Lors de l'utilisation du présent document, il est recommandé de commencer par choisir le polymère
caoutchouc conformément à l’ISO/TR 7620, puis de choisir la dureté.
Dans plusieurs cas, des propriétés complémentaires peuvent être ajoutées à la spécification du matériau
indiquée dans les annexes pour les spécifications du matériau.
La façon de désigner le matériau choisi est décrite à Article 5.
5 Système de désignation
Le matériau caoutchouc vulcanisé peut être désigné par le numéro du présent document, c’est-à-dire
ISO/TR 17051, suivi par le type de caoutchouc, la dureté, le type et la(les) désignation(s) des propriétés
complémentaires.
Propriétés complémentaires:
— C = Résistance au froid;
— F = Résistance aux carburants;
— L = Propriétés à long terme;
— O = Résistance aux huiles;
— Oz = Résistance à l’ozone;
— T = Résistance au déchirement.
EXEMPLE ISO/TR 17051 NR 70-1-C-L.
Tous les matériaux ont certaines propriétés qui doivent être satisfaites. Pour certains matériaux, la
spécification peut être rendue plus stricte par des propriétés complémentaires. Le Tableau 1 liste les
propriétés complémentaires possibles pour divers matériaux.
Tableau 1 — Propriétés complémentaires pour différents matériaux
Désignation complémentaire
Matériau
C F L O Oz T
Caoutchouc naturel (NR) type 1 X X X
Caoutchouc naturel (NR) type 2 X X X
Caoutchouc naturel (NR) type 3
Caoutchouc naturel (NR) type 4
Caoutchouc butadiène-styrène (SBR) type 1 X X X
Caoutchouc butadiène-styrène (SBR) type 2 X X X
Caoutchouc nitrile (NBR) taux d’acrylonitrile 33 % type 1 X X
Caoutchouc nitrile (NBR) taux d’acrylonitrile 28 % type 2 X
Caoutchouc nitrile (NBR) taux d’acrylonitrile 33 % type 3 X X
Caoutchouc nitrile (NBR) taux d’acrylonitrile 28 % type 4 X
Caoutchouc nitrile hydrogéné (HNBR) type 1
Caoutchouc nitrile hydrogéné (HNBR) type 2
Caoutchouc nitrile hydrogéné (HNBR) type 3
Caoutchouc nitrile/PVC (NBR/PVC) type 1
Caoutchouc nitrile/PVC (NBR/PVC) type 2
Caoutchouc chloroprène (CR) type 1 X
Caoutchouc chloroprène (CR) type 2
Caoutchouc acrylique (ACM) type 1
Caoutchouc acrylique (ACM) type 2
2 © ISO 2020 – Tous droits réservés
Tableau 1 (suite)
Désignation complémentaire
Matériau
C F L O Oz T
Caoutchouc acrylate éthylène (AEM) type 1
Caoutchouc acrylate éthylène (AEM) type 2
Caoutchouc acrylate éthylène (AEM) type 3
Caoutchouc acrylate éthylène (AEM) type 4
Copolymère de caoutchouc fluorocarboné (FKM) type 1
Terpolymère de caoutchouc fluorocarboné (FKM) type 2
Caoutchouc silicone (VMQ) type 1 X X
Caoutchouc silicone (VMQ) type 2 X
Caoutchouc épichlorhydrine (ECO) type 1
Caoutchouc épichlorhydrine (ECO) type 2
Caoutchouc éthylène propylène vulcanisé au soufre (EPDM) X
Caoutchouc éthylène propylène vulcanisé au soufre (EPDM) X
Caoutchouc éthylène propylène vulcanisé au peroxyde (EPM et
X
EPDM)
Caoutchouc éthylène propylène vulcanisé au peroxyde (EPM et
X
EPDM)
Annexe A
(informative)
Description des matériaux
A.1 Caoutchouc naturel, NR
Le caoutchouc naturel a une bonne résistance à la traction et à l'usure, même sans charges renforçantes.
Cela permet de fabriquer des produits en caoutchouc souple avec de bonnes propriétés mécaniques.
Pour la fabrication de produits complexes, la bonne aptitude à la transformation est un avantage. Les
propriétés à basse température sont bonnes et l'amortissement mécanique est très faible. La résistance
à l'huile et à l'ozone est faible. Les spécifications sont données dans l'Annexe B.
A.2 Caoutchouc butadiène-styrène, SBR
Le caoutchouc styrène-butadiène nécessite des charges renforçantes pour obtenir de bonnes
propriétés mécaniques. Par rapport au caoutchouc naturel, le caoutchouc styrène-butadiène présente
un amortissement mécanique plus élevé et de moins bonnes propriétés à basse température. Les
propriétés d'usure sont souvent meilleures que celles du caoutchouc naturel lorsqu'il est utilisé dans
des pneumatiques à haute température et à grande vitesse. Les résistances à l'huile et à l'ozone sont
faibles. Les spécifications sont données dans l'Annexe C.
A.3 Caoutchouc éthylène propylène, EPM, EPDM
Le caoutchouc éthylène-propylène est totalement résistant
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
