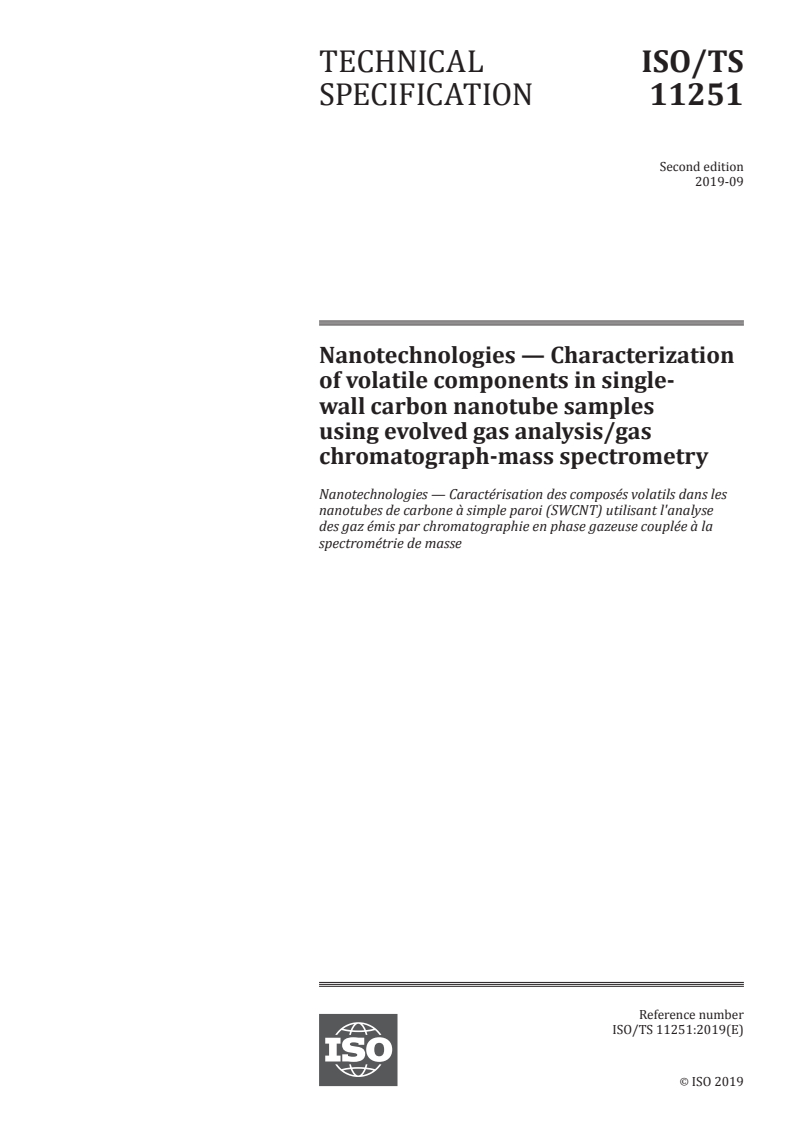

ISO/TS 11251:2019

TECHNICAL ISO/TS
SPECIFICATION 11251
Second edition
2019-09
Nanotechnologies — Characterization
of volatile components in single-
wall carbon nanotube samples
using evolved gas analysis/gas
chromatograph-mass spectrometry
Nanotechnologies — Caractérisation des composés volatils dans les
nanotubes de carbone à simple paroi (SWCNT) utilisant l'analyse
des gaz émis par chromatographie en phase gazeuse couplée à la
spectrométrie de masse
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

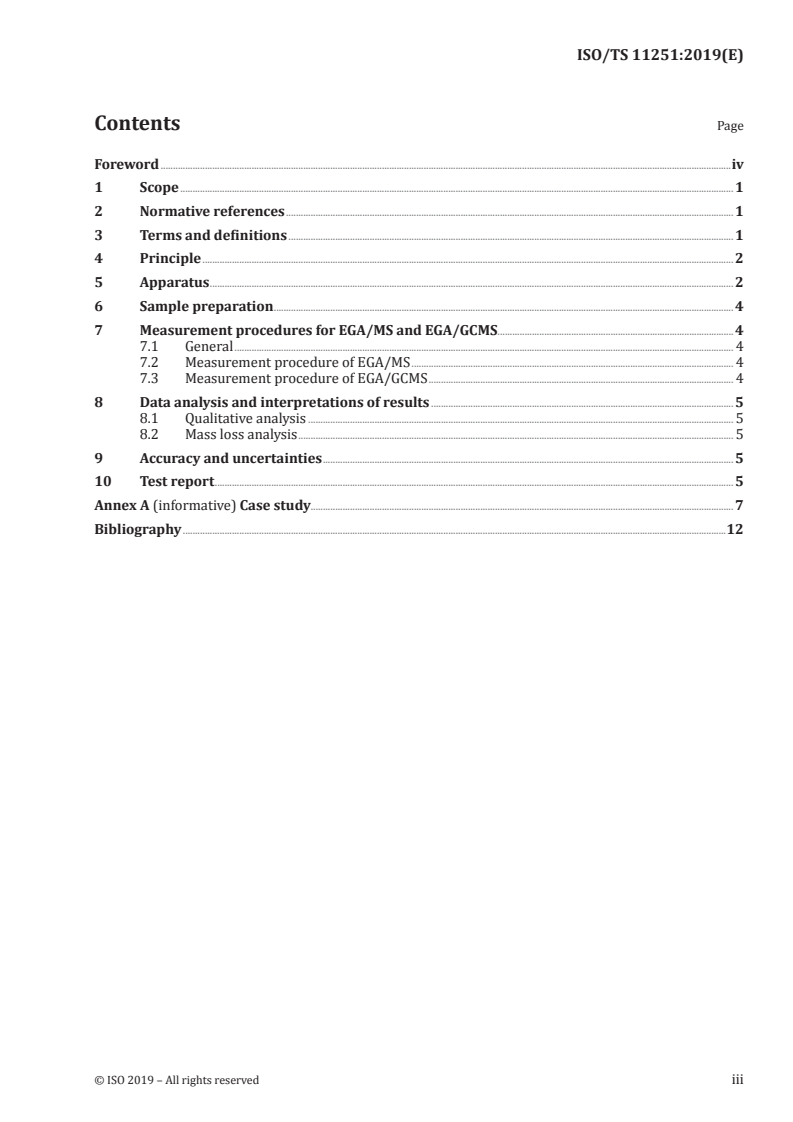

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Apparatus . 2
6 Sample preparation . 4
7 Measurement procedures for EGA/MS and EGA/GCMS. 4
7.1 General . 4
7.2 Measurement procedure of EGA/MS . 4
7.3 Measurement procedure of EGA/GCMS . 4
8 Data analysis and interpretations of results . 5
8.1 Qualitative analysis . 5
8.2 Mass loss analysis . 5
9 Accuracy and uncertainties . 5
10 Test report . 5
Annex A (informative) Case study. 7
Bibliography .12
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 229, Nanotechnologies.
This second edition cancels and replaces the first edition (ISO/TS 11251:2010), which has been
technically revised.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

TECHNICAL SPECIFICATION ISO/TS 11251:2019(E)
Nanotechnologies — Characterization of volatile
components in single-wall carbon nanotube samples
using evolved gas analysis/gas chromatograph-mass
spectrometry
1 Scope
This document specifies a method for the characterization of evolved gas components in single-wall
carbon nanotube (SWCNT) samples using evolved gas analysis/gas chromatograph mass spectrometry
(EGA/GCMS).
NOTE Some difference could appear between qualitative and quantitative results of emitted gas and gas
content in the sample due to the heating and the possible presence of catalysts.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/TS 80004-3, Nanotechnologies — Vocaburlary — Part 3: Carbon nano-objects
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/TS 80004-3 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
single-wall carbon nanotube
SWCNT
carbon nanotube consisting of cylindrical graphene layer
3.2
evolved gas analysis
EGA
technique in which the nature and/or amount of evolved gas product(s) released by a sample subjected
to a controlled temperature program is(are) determined
Note 1 to entry: The method of analysis should always be clearly stated (Reference [1] in the Bibliography).
3.3
EGA/MS
evolved gas analysis/mass spectrometry
technique using mass spectrometry to analyse gaseous components evolved from a sample as a function
of temperature
Note 1 to entry: Although the gases evolved at any particular temperature are detected simultaneously, it might
not be possible to uniquely identify the different components using MS alone.
3.4
EGA/GCMS
evolved gas analysis/gas chromatography coupled to mass spectrometry
technique combining a gas chromatograph and a mass spectrometer to identify the chemical
composition of gases evolved from a sample as a function of temperature
Note 1 to entry: The evolved gases are passed through a gas chromatograph (GC) to separate each component so
that it can be identified in the MS unit.
3.5
volatile compounds
compounds that are evolved from a sample at the temperature under consideration
4 Principle
EGA/MS and EGA/GCMS are used to characterize evolved gas impurities in samples of SWCNT. Evolved
gas compounds are identified by measuring the mass spectra of the gaseous component evolved from
the heated samples in a furnace or other suitable heating device, such as that used for programmed
temperature pyrolysis or thermogravimetric analysis. EGA/MS is used to determine the temperature
range over which the release of evolved gas components occurs. EGA/GCMS analysis is used to
identify each component separately by the use of a GC capillary column. Quantitative information can
additionally be obtained by the sample mass loss in thermogravimetric analysis (TGA) and the peak
area in EGA/MS.
NOTE Some details of the technique are described in References [2] to [6] in the Bibliography. EGA/
GCMS plays a complementary role to TGA, which is mainly devoted to quantifying the mass of the evolved gas
components.
5 Apparatus
Figure 1 shows a schematic diagram of EGA/MS which is composed of a furnace, a heating unit without
a GC capillary column and a MS unit. In the EGA/MS, evolved gas from the furnace is led to the MS unit
directly through a capillary tube without a separation process.
Figure 2 shows a schematic diagram of an EGA/GCMS which is composed of a furnace, a GC with a
capillary column and an MS unit. In the EGA/GCMS, all compounds evolved from the sample within the
furnace are captured by the cooling trap and are then introduced to the GC capillary column unit by
heating the trap. The compounds are separated by the column in the GC unit.
2 © ISO 2019 – All rights reserved

Key
1 furnace
2 heating unit
3 MS unit
4 temperature controller of furnace
Figure 1 — Schematic diagram of EGA/MS
Key
1 furnace
2 cooling trap
3 capillary column
4 GC unit
5 MS unit
6 temperature controller of furnace
Figure 2 — Schematic diagram of EGA/GCMS
6 Sample preparation
Sample preparation, such as dissolution or dispersion, is not required. For a qualitative analysis, the
sample shall be introduced into the EGA/MS or EGA/GCMS as it is. In order to avoid the vaporization of
any evolved gas that might be present, samples shall not be exposed to temperature above 30 °C before
analysis.
7 Measurement procedures for EGA/MS and EGA/GCMS
7.1 General
Load the SWCNT sample into the furnace and heat it up to identify the temperature range of gasification
using EGA/MS measurement, and use the EGA/GCMS to identify each component at the designated
temperature range.
7.2 Measurement procedure of EGA/MS
Weigh between 0,5 mg and 2 mg of the SWCNT sample, to the nearest 0,01 mg, using a calibrated mass
balance.
Load the weighed sample into the furnace, including the sample cup used when weighing.
Heat the sample at a constant rate until gas evolution stops. Measure the total ions from evolved gas
components. Determine the start temperature and the end-point of gasification using the EGA curve.
Compare the observed mass spectrum with the mass spectral database and determine each component
in the evolved gas species. For appropriate comparison of mass spectra, ionization energy and tuning
conditions used for the analysis shall match those in the spectral database.
Perform EGA/GCMS if the measured spectrum cannot be identified using the MS spectral database due
to the mixture of components (see 7.3).
Weigh the sample after EGA/MS measurement, to the nearest 0,01 mg.
NOTE The rate of heating depends on the calorific capacity of the sample. Generally, a range of 10 to 25 °C/
min is used for EGA/MS.
7.3 Measurement procedure of EGA/GCMS
Weigh between 0,5 mg and 2 mg of SWCNT from the same sample as that used in 7.2, to the nearest
0,01 mg.
Load the sample into the furnace.
Heat the sample at a constant rate to the lower temperature of either the end-point of the gasification or
upper limit of the instrument.
Compare the electron ionization (EI) mass spectrum for each of the GC peaks with the mass spectral
database and determine each component of the evolved gas species. For appropriate comparison of
mass spectra, ionization energy and tuning conditions used for the analysis shall match those in the
spectral database (typically 70 electron volts).
The mass analyser shall be calibrated manually or via the instrument’s tuning algorithm by using a
calibration reference material.
The rate of heating depends on the sample. Generally, a range of 45 to 65 °C/min is used for EGA/GCMS
to shorten the analytical time. The temperature of the trap should be less than abou
...
