ISO 26429-7:2008

INTERNATIONAL ISO
STANDARD 26429-7
First edition
2008-09-01
Digital cinema (D-cinema) packaging —
Part 7:
Composition playlist
Emballage du cinéma numérique (cinéma D) —
Partie 7: Liste d'écoute de composition

Reference number
©
ISO 2008
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2008 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
ISO 26429-7 was prepared by the Society of Motion Picture and Television Engineers (as
SMPTE 429-7-2006) and was adopted, under a special “fast-track procedure”, by Technical Committee
ISO/TC 36, Cinematography, in parallel with its approval by the ISO member bodies.
ISO 26429 consists of the following parts, under the general title Digital cinema (D-cinema) packaging:
⎯ Part 3: Sound and picture track file
⎯ Part 4: MXF JPEG 2000 application
⎯ Part 6: MXF track file essence encryption
⎯ Part 7: Composition playlist

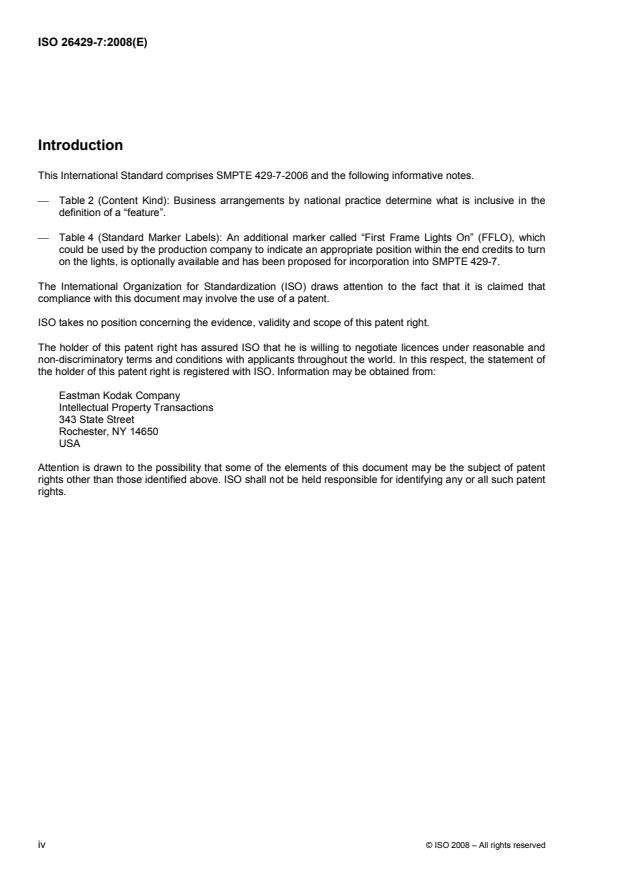

Introduction
This International Standard comprises SMPTE 429-7-2006 and the following informative notes.
⎯ Table 2 (Content Kind): Business arrangements by national practice determine what is inclusive in the
definition of a “feature”.
⎯ Table 4 (Standard Marker Labels): An additional marker called “First Frame Lights On” (FFLO), which
could be used by the production company to indicate an appropriate position within the end credits to turn
on the lights, is optionally available and has been proposed for incorporation into SMPTE 429-7.
The International Organization for Standardization (ISO) draws attention to the fact that it is claimed that
compliance with this document may involve the use of a patent.
ISO takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured ISO that he is willing to negotiate licences under reasonable and
non-discriminatory terms and conditions with applicants throughout the world. In this respect, the statement of
the holder of this patent right is registered with ISO. Information may be obtained from:
Eastman Kodak Company
Intellectual Property Transactions
343 State Street
Rochester, NY 14650
USA
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights other than those identified above. ISO shall not be held responsible for identifying any or all such patent
rights.
iv © ISO 2008 – All rights reserved

SMPTE 429-7-2006
SMPTE STANDARD
D-Cinema Packaging —
Composition Playlist
Page 1 of 30 pages
Table of Contents                Page

1 Scope . 3
2 Normative References . 3
3 Overview . 4
4 Terminology . 5
5 Synchronization. 6
6 CompositionPlaylist Structure . 7
6.1  Id . 7
6.2  AnnotationText [optional] . 7
6.3  IconId [optional]. 8
6.4  Issue Date. 8
6.5  Issuer [optional]. 8
6.6  Creator [optional]. 8
6.7  ContentTitleText. 8
6.8  ContentKind . 8
6.9  ContentVersion . 9
6.10 RatingList . 10
6.11 ReelList . 10
6.12 Signer [optional] . 10
6.13 Signature [optional] . 11
7 Reel Structure . 11
7.1  Id . 12
7.2  AnnotationText [optional] . 12
7.3  AssetList. 12
8 Asset Structure. 13
8.1  GenericAssetType. 13
8.2  TrackFileAssetType . 15
8.3  MarkerAssetType. 16
8.4  PictureTrackFileAssetType . 18
8.5  SoundTrackFileAssetType. 19
8.6  SubtitleTrackFileAssetType . 19
9 CPL Constraints. 20
9.1 Content Markers. 20
9.2 Minimum Reel Duration . 21
MOTION PICTURE AND TELEVISION ENGINEERS
October 3, 2006
3 Barker Avenue, White Plains, NY 10601
(914) 761-1100
SMPTE 429-7-2006
10 XML Schema .22
11 Sample (Informative) .26
12 XML Diagram Legend (Informative) .27
12.1 Element symbols .27
12.2 Model symbols ("compositors") .28
12.3 Types.28
12.4 Model groups and references.29
Annex A  Bibliography (Informative).30

Foreword
SMPTE (the Society of Motion Picture and Television Engineers) is an internationally-recognized standards
developing organization. Headquartered and incorporated in the United States of America, SMPTE has
members in over 80 countries on six continents. SMPTE’s Engineering Documents, including Standards,
Recommended Practices and Engineering Guidelines, are prepared by SMPTE’s Technology Committees.
Participation in these Committees is open to all with a bona fide interest in their work. SMPTE cooperates
closely with other standards-developing organizations, including ISO, IEC and ITU.

SMPTE Engineering Documents are drafted in accordance with the rules given in Part XIII of its
Administrative practices.
Proposed SMPTE Standard 429-7 was prepared by Technology Committee DC28.
Page 2 of 30 pages
2 © ISO 2008 – All rights reserved

SMPTE 429-7-2006
1 Scope
This document specifies the Composition Playlist structure. The Composition Playlist is a self-contained
representation of a single complete D-Cinema work, such as a motion picture, or a trailer, or an
advertisement, etc. The Composition Playlist consists of an ordered sequence of Reel structures, each
referencing a set of external Track Files, e.g. a sound or picture Track File, which are meant to be reproduced
in parallel. Each Reel is analogous to a film reel and the Composition Playlist controls the order and timing of
the playout of the Reels.
2 Normative References
The following standards contain provisions which, through reference in this text, constitute provisions of this
standard. At the time of publication, the editions indicated were valid. All standards are subject to revision,
and parties to agreements based on this standard are encouraged to investigate the possibility of applying the
most recent edition of the standards indicated below.

World Wide Web Consortium (W3C) (2004, February 4). Extensible Markup Language (XML) 1.0 (Third
Edition).
World Wide Web Consortium (W3C) (2004, October 28). XML Schema Part 1: Structures (Second Edition).

World Wide Web Consortium (W3C) (2004, October 28). XML Schema Part 2: Datatypes (Second Edition).

World Wide Web Consortium (W3C) (2002, February 12). XML-Signature Syntax and Processing.

Internet Engineering Task Force (IETF) (1996, November). RFC 2045 – Multipurpose Internet Mail
Extensions (MIME) Part One: Format of Internet Message Bodies.

Internet Engineering Task Force (IETF) RFC2046 (November 1996) Multipurpose Internet Mail Extensions
(MIME) Part Two: Media Types.
Internet Engineering Task Force (IETF) (1996, November).
...
