ISO 26430-6:2009

INTERNATIONAL ISO
STANDARD 26430-6
First edition
2009-12-15
Digital cinema (D-cinema) operations —
Part 6:
Auditorium security messages for intra-
theater communications
Opérations du cinéma numérique (cinéma D) —
Partie 6: Messages de sécurité de salle pour les communications à
l'intérieur du théâtre
Reference number
©
ISO 2009

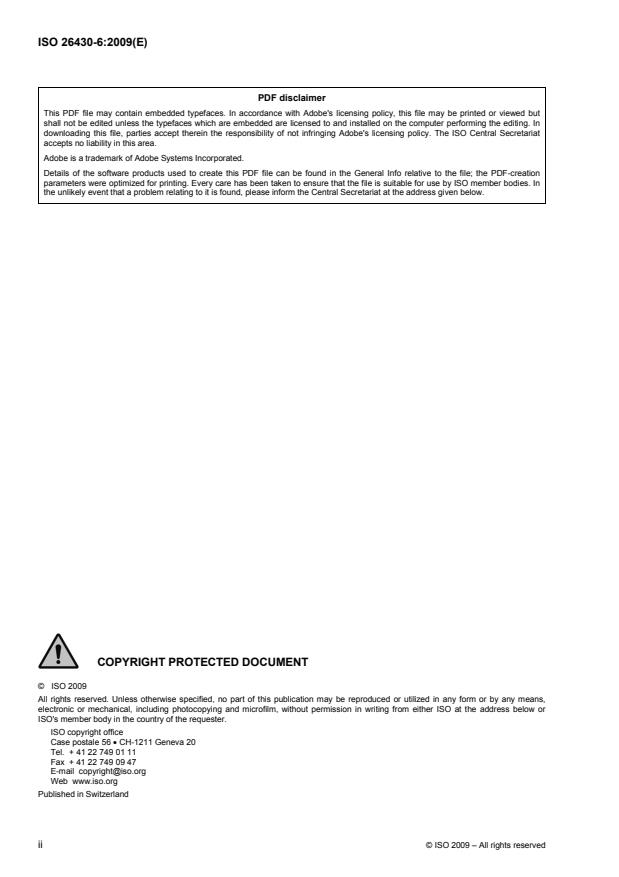

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 26430-6 was prepared by the Society of Motion Picture and Television Engineers (as
SMPTE 430-6-2008) and was adopted, under a special “fast-track procedure”, by Technical Committee
ISO/TC 36, Cinematography, in parallel with its approval by the ISO member bodies.
ISO 26430 consists of the following parts, under the general title Digital cinema (D-cinema) operations:
⎯ Part 1: Key delivery message [equivalent to SMPTE 430-1]
⎯ Part 2: Digital certificate [equivalent to SMPTE 430-2]
⎯ Part 3: Generic extra-theater message format [equivalent to SMPTE 430-3]
⎯ Part 4: Log record format specification [equivalent to SMPTE 430-4]
⎯ Part 5: Security log event class and constraints [equivalent to SMPTE 430-5]
⎯ Part 6: Auditorium security messages for intra-theater communications [equivalent to SMPTE 430-6]
⎯ Part 9: Key delivery bundle [equivalent to SMPTE 430-9]

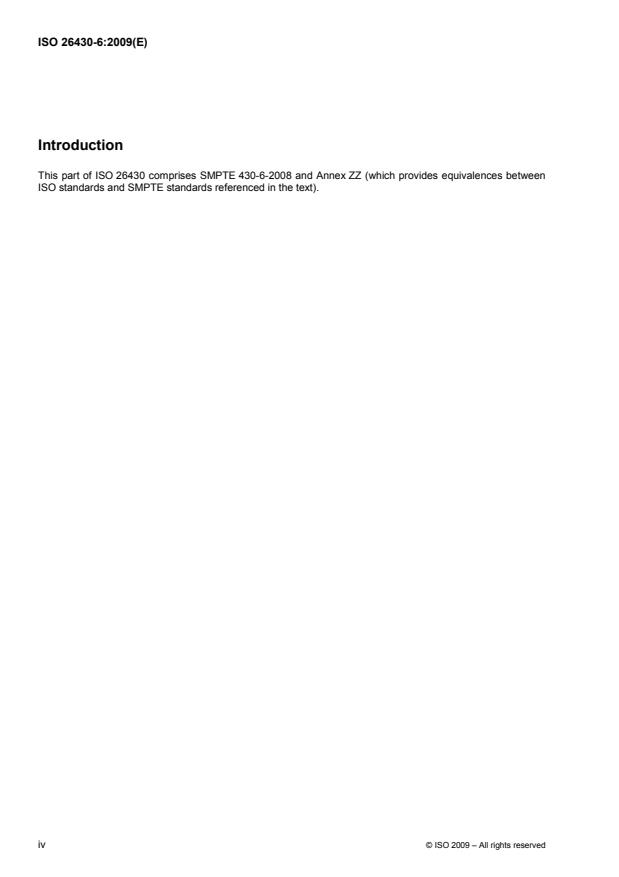

Introduction
This part of ISO 26430 comprises SMPTE 430-6-2008 and Annex ZZ (which provides equivalences between
ISO standards and SMPTE standards referenced in the text).

iv © ISO 2009 – All rights reserved

SMPTE 430-6-2008
SMPTE STANDARD
D-Cinema Operations —
Auditorium Security Messages
for Intra-Theater Communications

Page 1 of 18 pages
Table of Contents       Page

Foreword . 2
1 Scope . 3
2 Conformance Notation . 3
3 Normative References . 3
4 Glossary . 4
5 Overview (Informative). 4
6 Message Security, RRP Structure and General Requirements. 5
6.1 Message Security: Transport Layer Security (TLS). 5
6.2 Message Structure: Key-Length-Value (KLV). 5
6.3 General ASM Command Elements. 6
6.4 General TLS and RRP Requirements for Auditorium Secutiry Messages . 6
7 General Purpose ASM Commands. 7
7.1 BadRequest Response . 8
7.2 GetTime . 8
7.3 GetEventList. 9
7.4 GetEventID. 10
7.5 QuerySPB . 10
8 Link Encryption ASM Commands . 11
8.1 LEKeyLoad. 12
8.2 LEKeyQueryID . 13
8.3 LEKeyQueryAll. 14
8.4 LEKeyPurgeID . 14
8.5 LEKeyPurgeAll. 15
Annex A  Auditorium Security Messages Variable Length Universal Label (UL) Key (Normative). 16
Annex B  Bibliography (Informative) . 18

Approved
MOTION PICTURE AND TELEVISION ENGINEERS
595 W. Hartsdale Ave., White Plains, NY 10607 March 3, 2008
(914) 761-1100
SMPTE 430-6-2008
Foreword
SMPTE (the Society of Motion Picture and Television Engineers) is an internationally-recognized standards
developing organization. Headquartered and incorporated in the United States of America, SMPTE has
members in over 80 countries on six continents. SMPTE’s Engineering Documents, including Standards,
Recommended Practices and Engineering Guidelines, are prepared by SMPTE’s Technology Committees.
Participation in these Committees is open to all with a bona fide interest in their work. SMPTE cooperates
closely with other standards-developing organizations, including ISO, IEC and ITU.

SMPTE Engineering Documents are drafted in accordance with the rules given in Part XIII of its
Administrative Practices.
SMPTE Standard 430-6 was prepared by Technology Committee DC28.

Page 2 of 18 pages
2 © ISO 2009 – All rights reserved

SMPTE 430-6-2008
1 Scope
The Auditorium Security Message (ASM) specification enables interoperable communication of security-
critical information (information necessary to ensure security of D-Cinema content) between devices over an
intra-theater exhibition network. The specification uses Transport Layer Security (TLS) for authentication and
confidentiality, and Key-Length-Value (KLV) coding for message encoding. It defines a protocol, a general
purpose request-response message set and a specific message set for link encryption keying.

2 Conformance Notation
Normative text is text that describes elements of the design that are indispensable or contains the
conformance language keywords: "shall", "should", or "may". Informative text is text that is potentially helpful
to the user, but not indispensable, and can be removed, changed, or added editorially without affecting
interoperability. Informative text does not contain any conformance keywords.

All text in this document is, by default, normative, except: the Introduction, any section explicitly labeled as
"Informative" or individual paragraphs that start with "Note:”

The keywords "shall" and "shall not" indicate requirements strictly to be followed in order to conform to the
document and from which no deviation is permitted.

The keywords, "should" and "should not" indicate that, among several possibilities, one is recommended as
particularly suitable, without mentioning or excluding others; or that a certain course of action is preferred but
not necessarily required; or that (in the negative form) a certain possibility or course of action is deprecated
but not prohibited.
The keywords "may" and "need not" indicate courses of action permissible within the limits of the document.

The keyword “reserved” indicates a provision that is not defined at this time, shall not be used, and may be
defined in the future. The keyword “forbidden” indicates “reserved” and in addition indicates that the provision
will never be defined in the future.

A conformant implementation according to this document is one that includes all mandatory provisions
("shall") and, if implemented, all recommended provisions ("should") as described. A conformant
implementation need not implement optional provisions ("may") and need not implement them as described.

3 Normative References
The following standards contain provisions which, through reference in this text, constitute provisions of this
recommended practice. At the time of publication, the editions indicated were valid. All standards are subject
to revision, and parties to agreements based on this recommended practice are encouraged to investigate the
possibility of applying the most recent edition of the standards indicated below.

[336M] SMPTE 336M-2007, Data Encoding Protocol Using Key-Length-Value

[Dcert] SMPTE 430-2-2006, D-Cinema Operations — Digital Certificate

[IANA] Internet Assigned Numbers Authority. See www.iana.org/assignments/port-numbers

[KDM] SMPTE 430-1-2006, D-Cinema Operations — Key Delivery Message

[Log] SMPTE 430-5-2008, D-Cinema Packaging — Security Log Event Class and Constraints

[TLS] “The TLS Protocol, Version 1.0” RFC 2246 See www.ietf.org/rfc/rfc2246.txt

[TLS-AES] “AES Cyphersuites for TLS” RFC 3268 See www.ietf.org/rfc/rfc3268.txt
Page 3 of 18 pages
SMPTE 430-6-2008
4 Glossary
The following acronyms are used in this specification:

ASM  Auditorium Security Message
AES  Advanced Encryption Standard
BER  Basic Encoding Rules (ASN.1)
CBC  Cipher Block Chaining
IMB   Image Media Block
KLV  Key Length Value
LDB  Link Decryptor Block
LE   Link Encryption
RRP  Request Response Pair
RSA  Rivest Shamir Adleman public key encryption
SHA-1  Secure Hash Algorithm revision 1
SM  Security Manager
SPB  Secure Processing Block
TLS  Transport Layer Security
Uintx  Unsigned x bit integer
UL  Universal Label
UTC  Coordinated Universal Time
UUID  Universally Unique Identifier (ISO 11578)

5 Overview (Informative)
Exhibition security equipment configurations which employ remote Secure Processing Blocks (SPBs) (i.e.,
SPBs which are remote from that which contains the Security Manager) require a secure method of
communicating with such SPBs. The generic model for this is illustrated in Figure 1.
Remote SPB
Media Block SPB
TLS Link
(End Point) (End Point)
Security
Manager
Initiator          Responder

Figure 1 – Auditorium Security Message Model
Page 4 of 18 pages
4 © ISO 2009 – All rights reserved

SMPTE 430-6-2008
The communication security protection mechanism needs to provide (1) confidentiality, (2) integrity, (3) authentication
and (4) prevention of replay. In addition, the mechanism needs to be inexpensive to implement, and simple to
support in secure silicon processors.

Message descriptions are given in terms of the Initiator and Responder (and this specification makes no
distinction between messages emanating from the Security Manager vs. the Image Media Block that contains
it). As used herein the g
...
