INTERNATIONAL ISO
STANDARD 13833
First edition
2013-04-01
Stationary source emissions —
Determination of the ratio of biomass
(biogenic) and fossil-derived carbon
dioxide — Radiocarbon sampling and
determination
Émissions de sources fixes — Détermination du rapport du dioxyde
de carbone de la biomasse (biogénique) et des dérivés fossiles —
Échantillonnage et détermination du radiocarbone
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 2
4.1 Symbols . 2
4.2 Abbreviations . 3
5 Principle . 4
5.1 General . 4
5.2 Principles of sampling . 4
5.3 14
C measurement techniques. 5
6 Reagent, materials and equipment . 5
7 Analysis . 9
8 Calculation of the results . 9
9 Quality assurance and quality control procedures .11
10 Test report .11
Annex A (normative) Procedure for C determination by accelerator mass spectrometry .13
Annex B (normative) Procedure for C determination by liquid scintillation counter method .16
Annex C (normative) Procedures for C determination by beta-ionization .21
Annex D (informative) Performance characteristics C methods .24
Annex E (informative) Definitions and equations of the C-based method .28
Bibliography .36

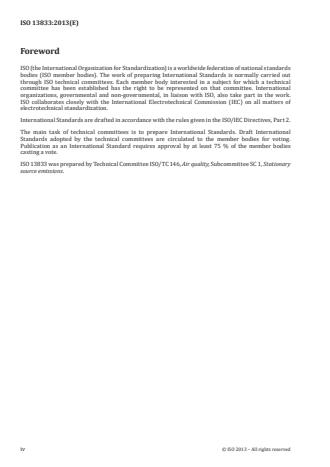

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
ISO 13833 was prepared by Technical Committee ISO/TC 146, Air quality, Subcommittee SC 1, Stationary
source emissions.
iv © ISO 2013 – All rights reserved
Introduction
Reliable data for biogenic carbon dioxide (CO ) emissions are needed for carbon emission trading and in
order to provide more accurate inventories.
When combusting mixtures of fuels from fossil and biogenic origin, it is often difficult to determine the
exact ratio of biogenic and fossil CO in the total CO that is emitted through the stack gas, because the
2 2
biogenic and fossil composition of the combusted fuels is not always known or cannot be determined
with sufficient accuracy. This is the case when solid recovered fuels (SRF) are used.
The contribution of solid, liquid, and gaseous biofuels to energy production is likely to increase. A reliable
and robust method for the determination of the ratio of fossil and biogenic CO in the total emitted CO
2 2
of stack gas will enhance the implementation of these products, as reliable data for carbon emission
trading can be generated with this approach.
Different methods exist to determine the ratio of fossil and biogenic CO in stack gas. The radiocarbon
( C isotope) method has been applied since the 1950s in a variety of sample types, like food, fuels,
polymers, and atmospheric and combustion CO to determine the ratio of biogenic and fossil carbon
(Reference [18]). Biogenic and fossil carbon can be distinguished based on the measured amount of
the C isotope in the sample. Another, relatively new applied method is the “balance method”, which
combines standard data on the chemical composition of biogenic and fossil organic matter with routinely
measured operating data of the plant (Reference [10]). Similar methods using stoichiometric methods,
for example, can also be used.
This International Standard gives sampling and analysis methods for the determination of the ratio of
biomass and fossil fuel-derived CO in the total emitted CO from exhaust gases of stationary sources,
2 2
based on the radiocarbon ( C isotope) method. Sample strategies for integrated sampling for periods
from 1 h up to 1 month are given. Radiocarbon determination procedures include accelerated mass
spectrometry (AMS), beta-ionization (BI), and liquid scintillation (LS) measurement procedures for the
determination of the radiocarbon content.
The International Organization for Standardization (ISO) draws attention to the fact that it is
claimed that compliance with this document may involve the use of patents concerning the use of the
radiocarbon isotope as biogenic marker: a) Method for determining the relationship of renewable to non-
renewable sources of energy; b) Method for determining the fossil fuel content in a fuel stream, as well as a
an incineration furnace.
ISO takes no position concerning the evidence, validity and scope of these patent rights.
The holders of these patent rights have assured ISO that they are willing to negotiate licences under
reasonable and non-discriminatory terms and conditions with applicants throughout the world. In this
respect, statements of the holders of these patent rights are registered with ISO. Information may be
obtained from:
a) European Cement Research Academy (ECRA)
Tannenstrasse 2, D-40476, DÜSSELDORF. Tel.: +49 211 23 98 38 0; E-mail: info@ecra-online.org
b) Energy Research Centre of the Netherlands
Westerduinweg 3, PO Box 1, NL-1755 ZG PETTEN. Tel.: +31 224 56 4475; E-mail: denuijl@ecn.nl
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights other than those identified above. ISO shall not be held responsible for identifying any or
all such patent rights.
ISO (www.iso.org/patents) maintains on-line databases of patents relevant to its documents. Users are
encouraged to consult the databases for the most up to date information concerning patents.
INTERNATIONAL STANDARD ISO 13833:2013(E)
Stationary source emissions — Determination of the ratio
of biomass (biogenic) and fossil-derived carbon dioxide —
Radiocarbon sampling and determination
1 Scope
This International Standard specifies sampling methods and analysis methods for the determination of
the ratio of biomass- and fossil-derived carbon dioxide (CO ) in the CO from exhaust gases of stationary
2 2
sources, based on the radiocarbon ( C isotope) method. The lower limit of application is a biogenic to
total CO fraction of 0,02. The working range is a biogenic to total CO fraction of 0,02 to 1,0.
2 2
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 7934, Stationary source emissions — Determination of the mass concentration of sulfur dioxide —
Hydrogen peroxide/barium perchlorate/Thorin method
ISO 10396, Stationary source emissions — Sampling for the automated determination of gas emission
concentrations for permanently-installed monitoring systems
ISO 15713, Stationary source emissions — Sampling and determination of gaseous fluoride content
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
biogenic
produced in natural processes by living organisms but not fossilized or derived from fossil resources
3.2
biomass
material of biological origin excluding material embedded in geological formation or transformed to fossil
3.3
isotope abundance
fraction of atoms of a particular isotope of an element
3.4
organic carbon
amount of carbon bound in an organic material
3.5
percentage modern carbon
pmC
normalized and standardized value for the amount of the C isotope in a sample, calculated relative to the
1)
standardized and normalized C isotope amount of oxalic acid standard reference material, SRM 4990c
Note 1 to entry: In 2009, the value of 100 % bio-based carbon was set at 105 pmC.
1) SRM 4990c is the trade name of a product supplied by the US National Institute of Standards and Technology.
3.6
proportional sampling
flow proportional sampling
technique for obtaining a sample from flowing stack gas in which the wet or dry sample flow rate is
directly proportional to the mass flow rate, volume flow rate or velocity in the stack
3.7
radiocarbon
radioactive isotope of the element carbon, C, having 8 neutrons, 6 protons, and 6 electrons
−10 14
Note 1 to entry: Of the total carbon on Earth, 1 × 10 % mass fraction is C. It decays exponentially with a half-
life of 5 730 years and as such it is not measurable in fossil materials derived from petroleum, coal, natural gas or
any other source older than about 50 000 years.
3.8
sample
quantity of material, representative of a larger quantity for which the property is to be determined
3.9
sample preparation
all the actions taken to obtain representative analyses, samples or test portions from the original sample
3.10
test portion
quantity of material drawn from the test sample (or from the laboratory sample if both are the same)
and on which the test or observation is actually carried out
3.11
beta-particle
electron or positron which has been emitted by an atomic nucleus or neutron in a nuclear transformation
[1]
[ISO 921:1997, definition 81]
4 Symbols and abbreviated terms
4.1 Symbols
A disintegrations per second
b default C content (in pmC) of 100 % biomass, produced and harvested in 2011
E counting rate
C coefficient of variation
V
E(R ) counting rate of blank
E(R ) lower limit of detection
n,LLD
i increment number
k + k coverage factor (typical value: 1,645)
1 − α 1 − β
m measured C content of the sample
m mass of CO
CO
This information is given for t
...
NORME ISO
INTERNATIONALE 13833
Première édition
2013-04-01
Émissions de sources fixes —
Détermination du rapport du
dioxyde de carbone de la biomasse
(biogénique) et des dérivés
fossiles — Échantillonnage et
détermination du radiocarbone
Stationary source emissions — Determination of the ratio of biomass
(biogenic) and fossil-derived carbon dioxide — Radiocarbon sampling
and determination
Numéro de référence
©
ISO 2013
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2013
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2013 – Tous droits réservés
Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Symboles et abréviations . 2
4.1 Symboles . 2
4.2 Abréviations . 3
5 Principe de la méthode . 4
5.1 Généralités . 4
5.2 Principes de l’échantillonnage . 4
5.3 Techniques de mesure du C . 5
6 Réactifs, matériel et équipement . 5
7 Analyse . 9
8 Calcul des résultats .10
9 Procédures d’assurance qualité et de contrôle qualité .11
10 Rapport d’essai .12
Annexe A (normative) Mode opératoire de détermination du C par spectrométrie de masse par
accélérateur (SMA) .13
Annexe B (normative) Mode opératoire de détermination du C par comptage par scintillation
liquide (CSL) .16
Annexe C (normative) Modes opératoires de détermination du C par ionisation bêta (IB) .21
Annexe D (informative) Caractéristiques de performance des méthodes de mesure du C .24
Annexe E (informative) Définitions et équations relatives à la méthode de mesure du C .28
Bibliographie .36

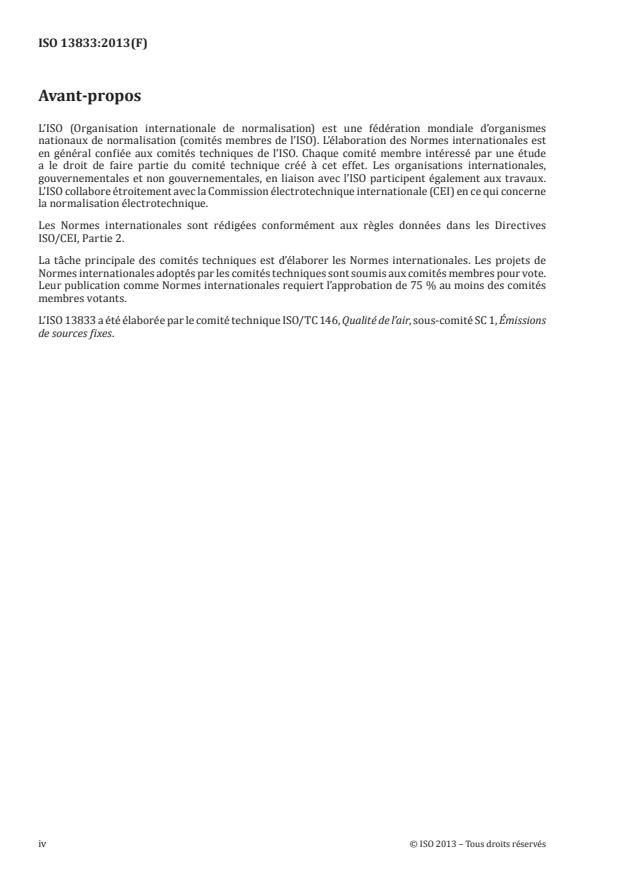

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (CEI) en ce qui concerne
la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives
ISO/CEI, Partie 2.
La tâche principale des comités techniques est d’élaborer les Normes internationales. Les projets de
Normes internationales adoptés par les comités techniques sont soumis aux comités membres pour vote.
Leur publication comme Normes internationales requiert l’approbation de 75 % au moins des comités
membres votants.
L’ISO 13833 a été élaborée par le comité technique ISO/TC 146, Qualité de l’air, sous-comité SC 1, Émissions
de sources fixes.
iv © ISO 2013 – Tous droits réservés
Introduction
Des données fiables relatives à l’émission de dioxyde de carbone (CO ) biogénique sont nécessaires à
l’échange de droits d’émissions de carbone ainsi que pour fournir des inventaires plus précis.
Lors de la combustion de mélanges de combustibles d’origine fossile et biogénique, il est souvent
difficile de déterminer le rapport exact de CO biogénique et fossile dans le CO total qui est émis dans
2 2
le gaz émis à la cheminée, car la composition biogénique et fossile des combustibles consumés n’est pas
toujours connue ou ne peut pas être déterminée avec une précision suffisante. C’est le cas lorsque des
combustibles solides de récupération (CSR) sont utilisés.
La contribution des biocombustibles solides, liquides et gazeux à la production d’énergie est appelée à
augmenter. Une méthode fiable et robuste pour déterminer le rapport du CO fossile et biogénique dans
le CO total émis du gaz émis à la cheminée facilite la mise en œuvre de ces produits car cette approche
permet de produire des données fiables concernant l’échange de droits d’émissions de carbone.
Différentes méthodes permettent de déterminer le rapport du CO fossile et biogénique dans le gaz émis à
la cheminée. La méthode du radiocarbone (isotope C) est appliquée depuis les années 50 dans plusieurs
types d’échantillons, notamment les aliments, les combustibles, les polymères et le CO atmosphérique et
de combustion pour déterminer le rapport du carbone biogénique et fossile (Référence [18]). Le carbone
biogénique et le carbone fossile peuvent être différenciés d’après la quantité mesurée de l’isotope C
dans l’échantillon. Une autre méthode, relativement nouvelle, est la «méthode de la balance», qui combine
les données normalisées sur la composition chimique de la matière organique biogénique et fossile et
les données de fonctionnement mesurées en routine de l’installation (Référence [10]). Des méthodes
similaires, utilisant par exemple des proportions stœchiométriques, peuvent également être utilisées.
La présente Norme internationale décrit des méthodes d’échantillonnage et d’analyse pour la
détermination du rapport du CO provenant de la biomasse et de combustibles fossiles dans le CO
2 2
total émis des effluents gazeux de sources fixes, d’après la méthode du radiocarbone (isotope C). Des
stratégies d’échantillonnage pour l’échantillonnage intégré sur des périodes allant d’1 h à 1 mois sont
données. Des modes opératoires de détermination du radiocarbone comprendront les modes opératoires
de mesure par spectrométrie de masse par accélérateur (SMA), ionisation bêta (IB) et scintillation
liquide (SL) pour la détermination de la teneur en radiocarbone.
L’Organisation internationale de normalisation (ISO) attire l’attention sur le fait qu’il est déclaré que la
conformité avec les dispositions du présent document peut impliquer l’utilisation de brevets concernant
l’utilisation du radiocarbone comme marqueur biogénique: a) Méthode de détermination de la relation
des sources d’énergie renouvelables par rapport aux sources d’énergie non renouvelables; b) Méthode de
détermination de la teneur en combustibles fossiles dans un flux de combustibles, ainsi que dans un four
d’incinération.
L’ISO ne prend pas position quant à la preuve, à la validité et à la portée de ces droits de propriété.
Le détenteur de ces droits de propriété a donné l’assurance à l’ISO qu’il consent à négocier des licences
avec des demandeurs du monde entier, soit gratuites, soit à des termes et conditions raisonnables et non
discriminatoires. À ce propos, la déclaration du détenteur des droits de propriété est enregistrée à l’ISO.
Des informations peuvent être demandées à:
a) European Cement Research Academy (ECRA)
Tannenstrasse 2, D-40476, DÜSSELDORF. Tel.: +49 211 23 98 38 0; E-mail: info@ecra-online.org
b) Energy Research Centre of the Netherlands
Westerduinweg 3, PO Box 1, NL-1755 ZG PETTEN. Tel.: +31 224 56 4475; E-mail: denuijl@ecn.nl
L’attention est d’autre part attirée sur le fait que certains des éléments du présent document peuvent
faire l’objet de droits de propriété autres que ceux qui ont été mentionnés ci-dessus. L’ISO ne saurait être
tenue pour responsable de l’identification de ces droits de propriété en tout ou partie.
L’ISO (www.iso.org/brevets) tient à jour des bases de données en ligne des droits de propriété relatifs à
ses normes. Les utilisateurs sont invités à consulter les bases de données pour avoir l’information la plus
à jour sur les droits de propriété.
vi © ISO 2013 – Tous droits réservés
NORME INTERNATIONALE ISO 13833:2013(F)
Émissions de sources fixes — Détermination du rapport
du dioxyde de carbone de la biomasse (biogénique) et
des dérivés fossiles — Échantillonnage et détermination
du radiocarbone
1 Domaine d’application
La présente Norme internationale spécifie des méthodes d’échantillonnage et d’analyse pour la
détermination du rapport du dioxyde de carbone (CO ) provenant de la biomasse et de combustibles
fossiles dans le CO des effluents gazeux de sources fixes, d’après la méthode du radiocarbone
(isotope C). La limite inférieure d’application est une fraction de CO biogénique/total de 0,02. La
plage de travail est une fraction de CO biogénique/total de 0,02 à 1,0.
2 Références normatives
Les documents de référence suivants sont indispensables pour l’application du présent document. Pour
les références datées, seule l’édition citée s’applique. Pour les références non datées, la dernière édition
du document de référence s’applique (y compris les éventuels amendements).
ISO 7934, Émissions de sources fixes — Détermination de la concentration en masse de dioxyde de soufre —
Méthode au peroxyde d’hydrogène/perchlorate de baryum/Thorin
ISO 10396, Émissions de sources fixes — Échantillonnage pour la détermination automatisée des
concentrations d’émission de gaz pour des systèmes fixes de surveillance
ISO 15713, Émissions de sources fixes — Échantillonnage et détermination de la teneur en fluorure gazeux
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions suivants s’appliquent.
3.1
biogénique
produit lors de processus naturels par des organismes vivants mais non fossilisés ou dérivés de
ressources fossiles
3.2
biomasse
matière d’origine biologique, à l’exclusion de la matière incorporée dans la formation géologique ou
transformée en fossile
3.3
abondance isotopique
fraction d’atomes d’un isotope particulier d’un élément
3.4
carbone organique
quantité de carbone intégrée dans la matière organique
3.5
pourcentage de carbone moderne
pmC
valeur normalisée et standardisée pour la quantité de l’isotope C dans un échantillon, calculée en fonction
14 1)
de la quantité standardisée et normalisée d’isotope C du matériau de référence acide oxalique SRM 4990c
Note 1 à l’article: En 2009, la valeur du carbone biosourcé à 100 % était fixée à 105 pmC.
3.6
échantillonnage proportionnel
échantillonnage proportionnel au débit
technique permettant de prélever un échantillon d’un gaz émis à la cheminée en circulation de sorte
que le débit de l’échantillon humide ou sec est directement proportionnel au débit massique, au débit
volumétrique ou à la vitesse du gaz ém
...
МЕЖДУНАРОДНЫЙ ISO
СТАНДАРТ 13833
Первое издание
2013-04-01
Выбросы стационарных источников.
Определение соотношения CO ,
выделяемого биомассой биогенного и
ископаемого происхождения. Отбор проб
и определение радиоуглеродным методом
Stationary source emission – Determination of the ratio of biomass
(biogenic) and fossil-derived carbon dioxide – Radiocarbon sampling
and determination
Ответственность за подготовку русской версии несёт GOST R
(Российская Федерация) в соответствии со статьёй 18.1 Устава ISO
Ссылочный номер
©
ISO 2013
ДОКУМЕНТ ЗАЩИЩЕН АВТОРСКИМ ПРАВОМ
Все права сохраняются. Если не указано иное, никакую часть настоящей публикации нельзя копировать или использовать в
какой-либо форме или каким-либо электронным или механическим способом, включая фотокопии и микрофильмы, без
предварительного письменного согласия ISO, которое должно быть получено после запроса о разрешении, направленного по
адресу, приведенному ниже, или в комитет-член ISO в стране запрашивающей стороны.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Опубликовано в Швейцарии
ii © ISO 2013 – Все права сохраняются
Содержание Страница
Предисловие .iv
Введение .v
1 Область применения .1
2 Нормативные ссылки .1
3 Термины и определения .1
4 Символы и сокращенные термины .3
4.1 Символы .3
4.2 Сокращения.4
5 Принцип.4
5.1 Общие положения.4
5.2 Принципы отбора проб.5
5.3 Техника измерения содержания изотопов C .6
6 Реагент, материалы и оборудование .6
7 Анализ.10
8 Вычисление результатов .11
9 Процедуры обеспечения качества и контроля качества.13
10 Протокол испытания.13
Приложение A (нормативное) Процедура для определения C ускорительным масс-
спектрометром.15
Приложение B (нормативное) Процедура для определения C с использованием
жидкостного сцинтилляционного счетчика .18
Приложение C (нормативное) Процедуры для определения C путем бета ионизации .23
Приложение D (информативное) Рабочие характеристики методов измерений изотопов C .26
Приложение E (информативное) Определения и уравнения метода на основе C .30
Библиография.38
iii

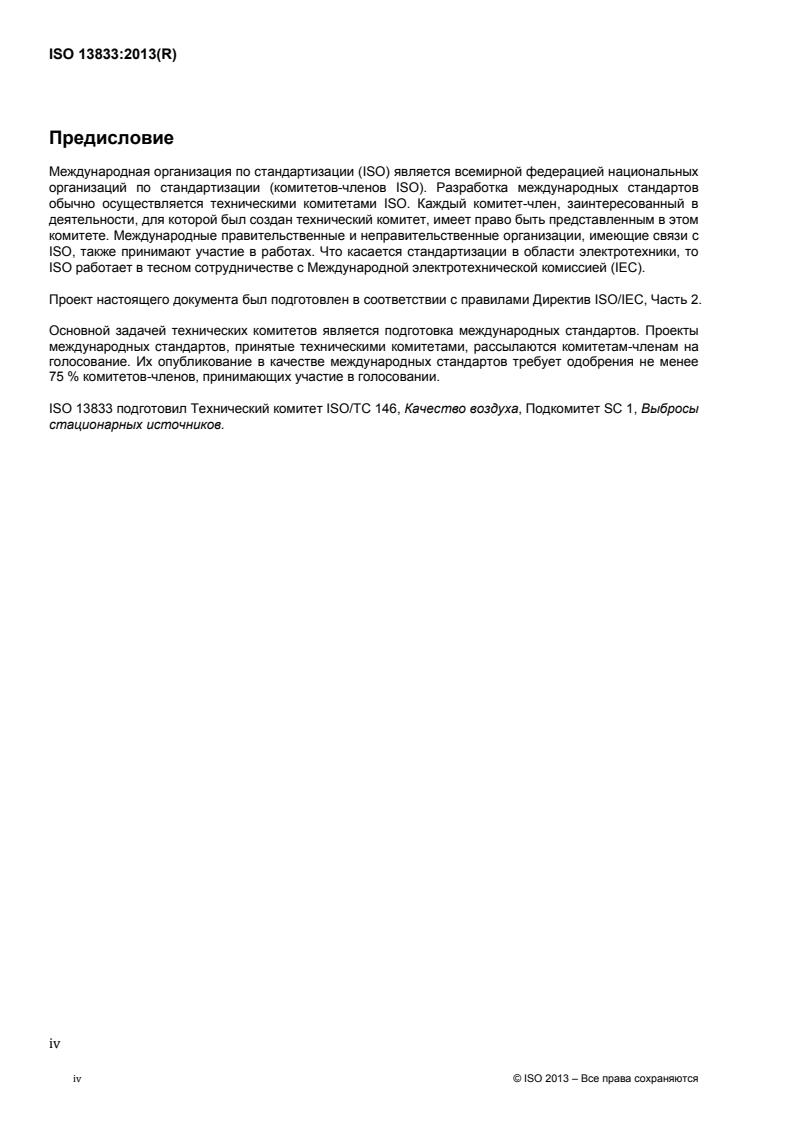

Предисловие
Международная организация по стандартизации (ISO) является всемирной федерацией национальных
организаций по стандартизации (комитетов-членов ISO). Разработка международных стандартов
обычно осуществляется техническими комитетами ISO. Каждый комитет-член, заинтересованный в
деятельности, для которой был создан технический комитет, имеет право быть представленным в этом
комитете. Международные правительственные и неправительственные организации, имеющие связи с
ISO, также принимают участие в работах. Что касается стандартизации в области электротехники, то
ISO работает в тесном сотрудничестве с Международной электротехнической комиссией (IEC).
Проект настоящего документа был подготовлен в соответствии с правилами Директив ISO/IEC, Часть 2.
Основной задачей технических комитетов является подготовка международных стандартов. Проекты
международных стандартов, принятые техническими комитетами, рассылаются комитетам-членам на
голосование. Их опубликование в качестве международных стандартов требует одобрения не менее
75 % комитетов-членов, принимающих участие в голосовании.
ISO 13833 подготовил Технический комитет ISO/TC 146, Качество воздуха, Подкомитет SC 1, Выбросы
стационарных источников.
iv
iv © ISO 2013 – Все права сохраняются
Введение
Надежные данные выбросов биогенного диоксида углерода (CO ) необходимы для поиска компромиссов в
углеродных выбросах и для того, чтобы дать более точные данные его суммарного количества.
При сжигании смесей топлив ископаемого и биогенного происхождения часто трудно установить
точное соотношение биогенного и ископаемого CO в суммарном количестве углекислого газа, который
выбрасывается вместе с топочным (дымовым) газом, так как биогенный и ископаемый состав
сжигаемых топлив не всегда известен или не может быть определен с достаточной правильностью.
Это как раз относится к случаю использования твердых добываемых топлив (solid recovered fuels-SRF).
Вклад твердых, жидких и газообразных биотоплив в производство энергии, вероятно, будет увеличиваться.
Надежный и устойчивый метод определения соотношения ископаемого и биогенного углекислого газа в суммарном
выбросе CO топочного дыма будет способствовать внедрению этих топлив по мере того, как надежные данные для
поиска компромиссов в углеродных выбросах могут быть получены с таким подходом.
Существуют разные методы, чтобы установить соотношение ископаемого и биогенного CO в топочном (дымовом)
газе. Радиоуглеродный метод (определение соотношения содержания радиоактивного изотопа С) был применен с
1950-ых годов в разнообразии таких типов образцов и проб, как продукты питания, виды топлива, полимеры,
углекислых газ в атмосфере и выделяемый при горении, чтобы установить соотношение биогенного и ископаемого
углерода (ссылка [18]). Углерод биогенного и ископаемого происхождения можно различить на основе измеренного в
образце или пробе количества изотопа С. Другим, относительно новым применяемым методом, является ”метод
баланса”, который объединяет стандартные данные химического состава биогенного и ископаемого органического
вещества с регулярно измеренными рабочими данным производственного предприятия (ссылка [10]). Подобные
методы, использующие стехиометрическое горение, могут быть также использованы.
Настоящий международный стандарт дает методы отбора проб и анализа для определения соотношения СО
биомассы и углекислого газа, выделяемого из ископаемого топлива, в общем выбросе CO отходящих газов
стационарных источников. Он базируется на радиоуглеродном методе определения содержания изотопа С. Здесь
также даются методики выборки для объединенного отбора проб за периоды от 1 ч до 1 месяца. Радиоуглеродные
методы включают применение ускорительного масс-спектрометра (AMS), бета ионизацию (BI) и жидкостную
сцинтилляцию для измерения содержания радиоактивного углерода
Международная организация по стандартизации (ISO) обращает внимание на заявление о том, что соответствие
этому документу может вовлекать патентные права, касающиеся использования радиоуглеродного изотопа в
качестве биогенного маркера. К ним относятся: a) Метод определения взаимоотношения между
возобновляемыми и не возобновляемыми источниками энергии; и b) Метод для определения содержания
ископаемого топлива в топливном потоке, а также мусоросжигательной установке.
Позиция ISO является нейтральной в том, что касается подтверждения, проверки достоверности и
области применения этих патентных прав.
Обладатели этих патентных прав заверили ISO в том, что они проявляют желание вести переговоры о выдаче
лицензий на разумных и не дискриминационных условиях с заявителями по всему миру. В этом случае, заявления
обладателей патентных прав регистрируются в ISO. Информация может быть получена в следующих организациях:
a) Европейский НИИ цемента (ECRA)
Tannenstrasse 2, D-40476, Дюссельдорф, тел. +49 211 23 98 38 0; E-mail: info@ecra-online.org
b) Энергетический НИЦ Нидерландов
Westerduinweg 3, PO Box 1, NL-1755 ZG PETTEN, тел. +31 224 56 4475; E-mail: denuijl@ecn.nl
Внимание обращается на возможность, что некоторые элементы этого документа могут быть предметом
других патентных прав, кроме прав, указанных выше. ISO не берет на себя никаких обязательств в
отношении идентификации любого или всех таких прав.
ISO (www.iso.org/patents) оперативно поддерживает базы данных о патентах, имеющих отношение к ее
документам. Пользователи могут использовать эти базы данных для получения самой последней
информации, касающейся патентов.
v
МЕЖДУНАРОДНЫЙ СТАНДАРТ ISO 13833:2013(R)
Выбросы стационарных источников. Определение
соотношения CO , выделяемого биомассой биогенного и
ископаемого происхождения. Отбор проб и определение
радиоуглеродным методом
1 Область применения
Настоящий международный стандарт задает методы отбора проб и методы анализа для установления
соотношения диоксида углерода, извлеченного из биомассы и ископаемого топлива, в CO отходящих
газов стационарных источников на основе определения содержания радиоактивного изотопа C.
Нижним пределом применения является величина 0,02 соотношения фракции биогенного CO к
суммарному содержанию углекислого газа. Рабочий диапазон соотношения фракции биогенного CO к
общему CO составляет от 0,02 до 1,0.
2 Нормативные ссылки
Следующие ссылочные документы являются обязательными для применения настоящего документа.
Для датированных документов применяется только указанное издание. Для недатированных
документов применяется самое последнее издание такого документа (включая любые поправки).
ISO 7934, Выбросы стационарных источников. Определение массовой концентрации диоксида серы.
Метод перекиси водорода/перхлората бора/тория
ISO 10396, Выбросы стационарных источников. Отбор проб для автоматического определения
концентраций выделения газа во временно установленных системах мониторинга
ISO 15713, Выбросы стационарных источников. Отбор проб и определение газо-фторидного
содержания
3 Термины и определения
В настоящем документе применяются следующие термины и определения.
3.1
биогенная (биомасса)
biogenic
созданная в природных процессах живыми организмами, но не окаменевшая или извлеченная из
ископаемых ресурсов
3.2
биомасса
biomass
материал биологического происхождения, исключая материал, вкрапленный в геологическую
формацию или преобразованный в ископаемое
3.3
относительное содержание изотопа
isotope abundance
фракция атомов конкретного изотопа элемента
3.4
органический углерод
organic carbon
количество углерода, связанного в органическом материале
3.5
процент нового углерода
percentage modern carbon
pmC
нормализованное и стандартизованное значение для количества изотопа C в пробе, вычисленное
относительно стандартизованного и нормализованного количества изотопов C в стандартном
контрольном материале щавелевой кислоты (standard reference material) SRM 4990c
ПРИМЕЧАНИЕ В 2009 году значение 100 % биологического углерода было установлено на величину,
105 pmC.
3.6
пропорциональный отбор проб
proportional sampling
flow proportional sampling
пропорциональный отбор проб потока
техника получения пробы из текущего топочного (дымового) газа, в котором расход мокрой или сухой
пробы прямо пропорционален массовому расходу, объемному расходу или скорости в дымовой трубе
3.7
радиоактивный изотоп углерода
radiocarbon
радиоактивный изотоп элементного углерода, C, имеющий 8 нейтронов, 6 протонов и 6 электронов
−10 14
ПРИМЕЧАНИЕ Из общего углерода на Земле массовая фракция 1 × 10 % приходится на изотоп C. Его
экспоненциальный период полураспада исчисляется 5 730 годами и, как таковой, он не является измеримым в
ископаемых материалах, которые являются производными нефти, угля, природного газа или любого другого
источника старше около 50 000 лет.
3.8
проба
sample
количество материала, представляющего большую величину, для которой надо установить
определенное свойство
3.9
приготовление пробы
sample preparation
все предпринятые действия, чтобы получить представительный анализ, образцы или пробы или
исследуемые части исходного образца для испытаний
3.10
исследуемая часть
test portion
количество материала, полученного из образца или пробы для испытаний (или от лабораторного
образца, если оба являются одним и тем же), на котором реально проводится испытание или
наблюдение
SRM 4990c является торговым названием продукта, поставляемого Национальным институтом стандартов и
технологий США. Эта информация дается для удобства пользователей настоящего документа и не означает
официального признания названного продукта со стороны ISO. Эквивалентные продукты могут быть
использованы, если может быть показано, что они ведут к тем же результатам.
2 © ISO 2013
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
