ISO 4101:1983

SLOVENSKI STANDARD
01-maj-1997
9OHþHQDMHNOHQDåLFD]DYUYLGYLJDOOLIWRY6SHFLILNDFLMH
Drawn steel wire for elevator ropes -- Specifications
Fils tréfilés en acier pour câbles d'ascenseur -- Spécifications
Ta slovenski standard je istoveten z: ISO 4101:1983
ICS:
77.140.65 Jeklene žice, jeklene vrvi in Steel wire, wire ropes and
verige link chains
91.140.90 'YLJDOD7HNRþHVWRSQLFH Lifts. Escalators
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

International Standard
INTERNATIONAL ORGANIZATION FOR STANDARDIZATIONWlE~YHAPOfiHAR OPTAHH3ALWlR fl0 CTAH&APTM3Al.WlM@ORGANlSATION INTERNATIONALE DE NORMALISATION
Drawn steel wire for elevator ropes - Specifications
Fds trhfJ& en acier pour cables d’ascenseur - Sphcifications
First edition - 1983-09-15
UDC 669-426 : 677.721 : 621.876 Ref. No. ISO 4101-1983 (E)
elevators, specifications, dimensions, reverse bend tests, tension tests, torsion tests.
Descriptors : steel products, wire, wire rope,
Price based on 3 pages

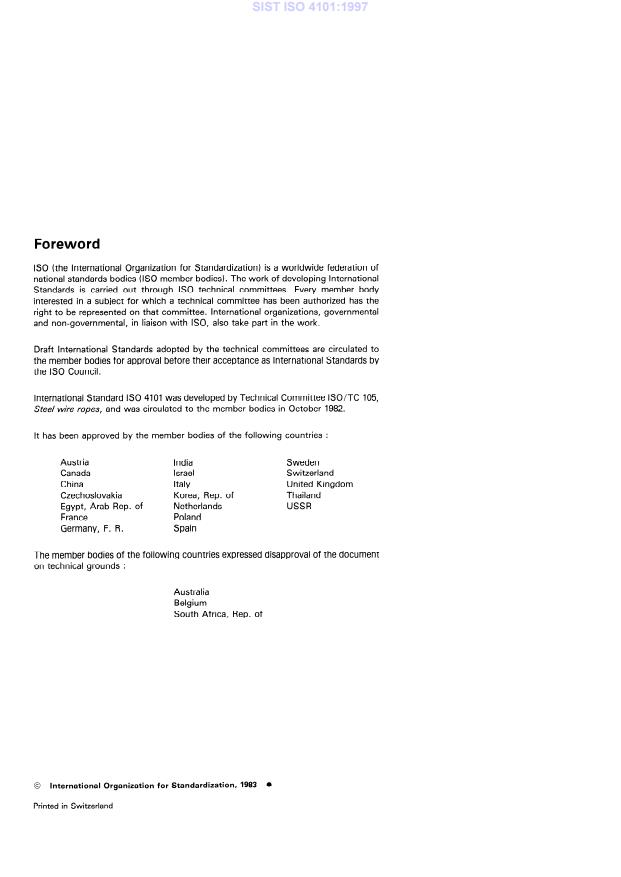

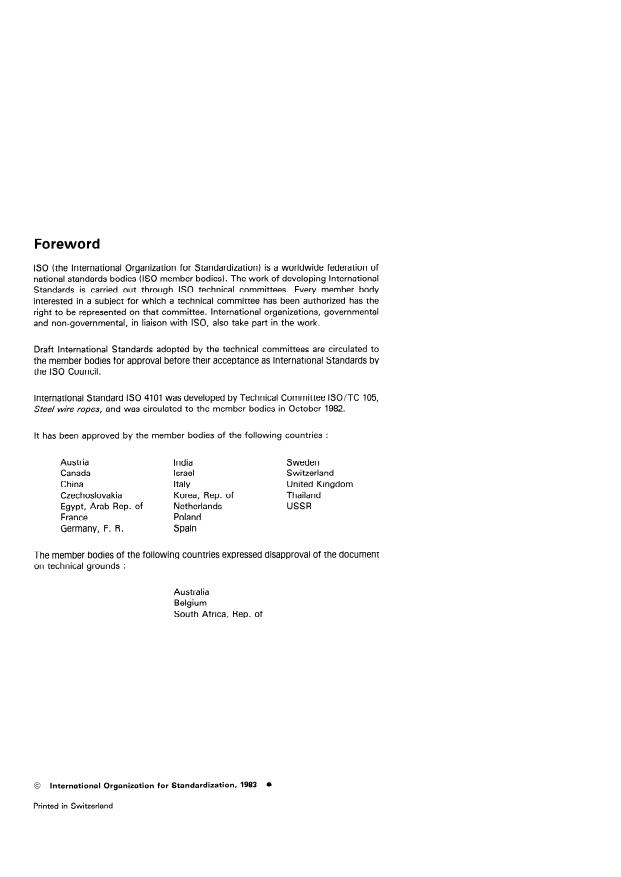

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of
national Standards bodies (ISO member bedies). The work of developing International
Standards is carried out through ISO technical committees. Every member body
interested in a subject for which a technical committee has been authorized has the
right to be represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the ISO Council.
International Standard ISO 4101 was developed by Technical Committee lSO/TC 105,
Steel wire ropes, and was circulated to the member bodies in October 1982.
lt has been approved by the member bodies sf the following countries :
Austria
India Sweden
Canada Israel Switzerland
China Italy
United Kingdom
Czechoslovakia Korea, Rep. of Thailand
Egypt, Arab Rep. of
Netherlands USSR
France Poland
Germany, F. R. Spain
The member bodies of the following countries expressed disapproval of the document
on technical grounds :
Australia
Belgium
South Africa, Rep. of
@ International Organkation for Standardkation, 1983 l
Printed in Switzerland
INTERNATIONAL STANDARD ISO 4101-1983 (EI
Drawn steel wire for elevator ropes - Specifications
ISO 144, Steel - Reverse bend testing of wire.
1 Scope
ISO 2701, Drawn wire for general purpose non-a/loy steel wire
This International Standard gives the specifications for steel
ropes - Terms of acceptance.
wire to be used for elevator ropes only.
lt lays down :
4 Diameters and ovality
-
the dimensional tolerantes;
4.1 Nominal diameter of the wire, d
-
the mechanical characteristics.
The nominal diameter of the wire, d, is the diameter in milli-
metres specified by the ropemaker on the Order. lt shall be the
basis on which the values of all characteristics are determined
2 Field of application
for acceptance of the wire.
This International Standard applies to new steel wire of be-
4.2 Actual diameter of the wire
tween 0,25 and 1,8 mm diameter, used solely for manufacture
of elevator ropes. lt does not apply to steel wires taken from a
The actual diameter of the wire shall be the diameter given by
rope.
the arithmetic mean of two measurements, one being perpen-
dicular to the other in the same plane. The arithmetic mean
shall be within the tolerante limits specified in table 1.
3 References
4.3 Ovality of the wire
ISO 89, Steel - Tenside testing of wire.
The two measurements, taken as specified in 4.2, shall not dif-
fer by more than half the total tolerante given in table 1.
Simple torsion testing of wire.
ISO 136, Steel -
ISO 4101-1983 (E)

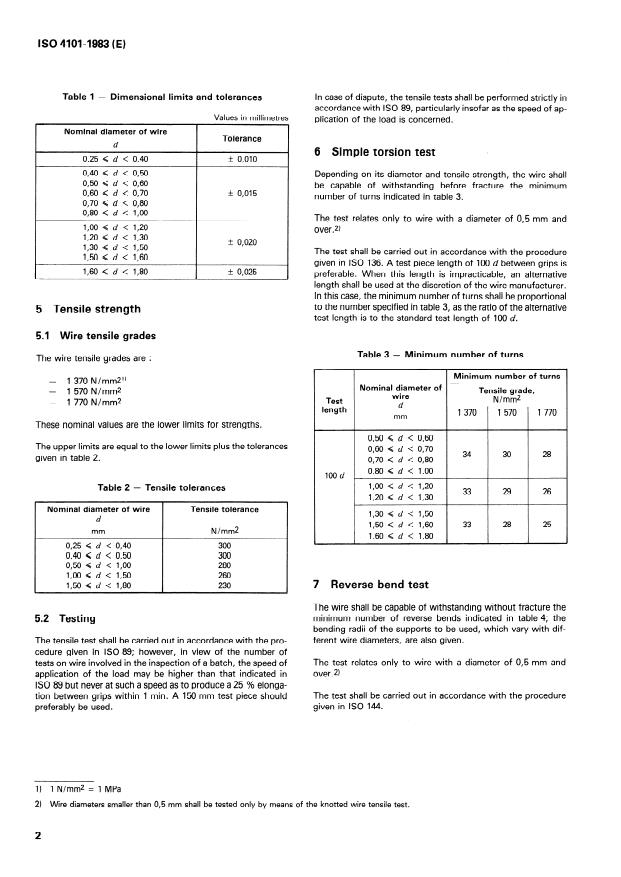

Table 1 -
...
