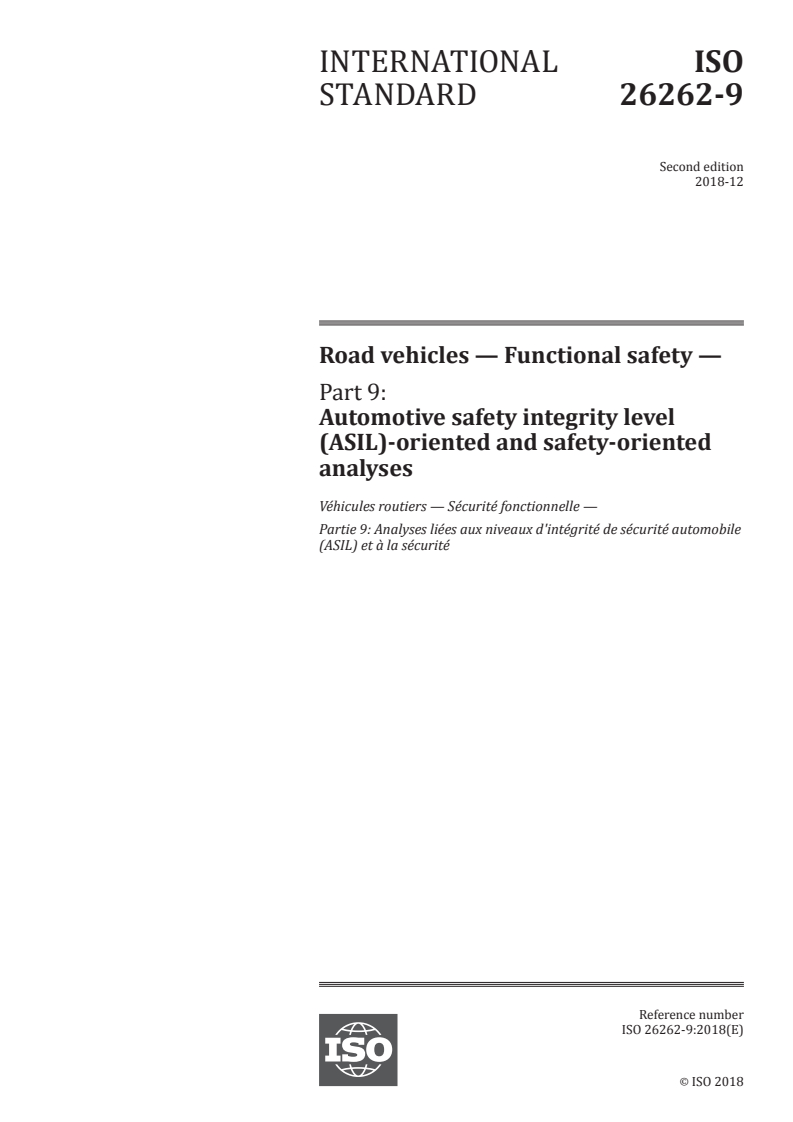

ISO 26262-9:2018

INTERNATIONAL ISO
STANDARD 26262-9
Second edition
2018-12
Road vehicles — Functional safety —
Part 9:
Automotive safety integrity level
(ASIL)-oriented and safety-oriented
analyses
Véhicules routiers — Sécurité fonctionnelle —
Partie 9: Analyses liées aux niveaux d'intégrité de sécurité automobile
(ASIL) et à la sécurité
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

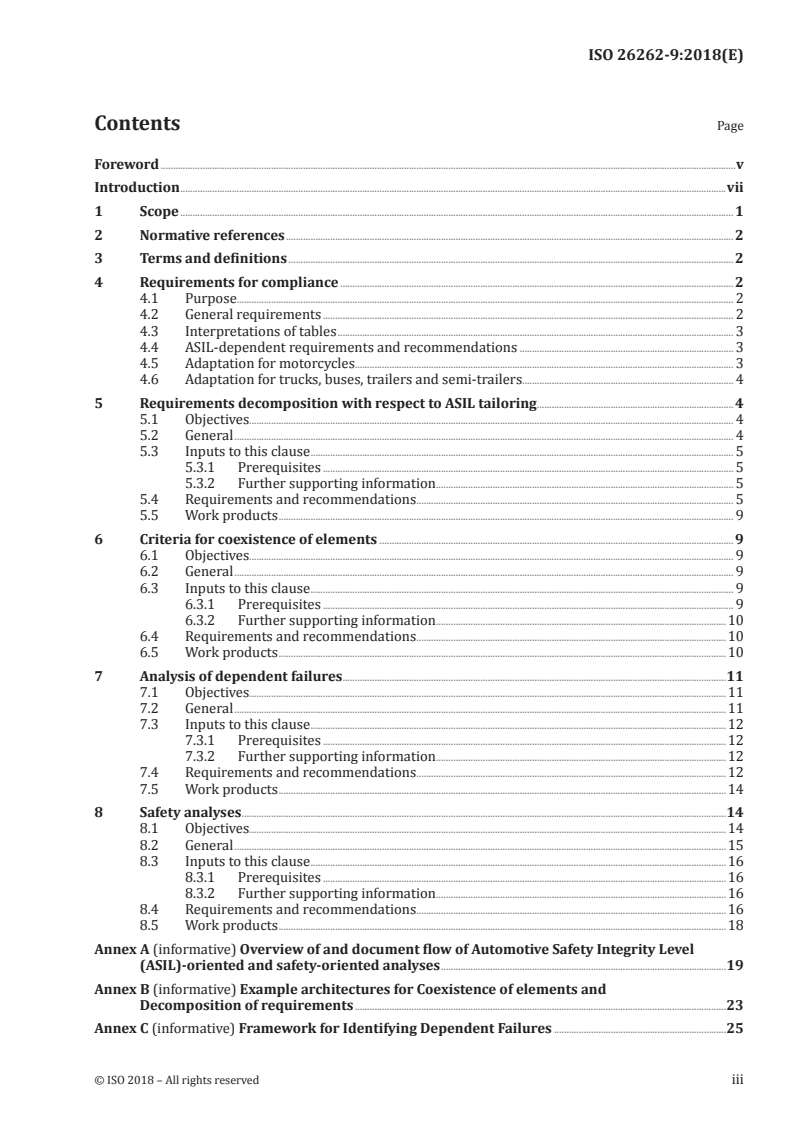

Contents Page
Foreword .v
Introduction .vii
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Requirements for compliance . 2
4.1 Purpose . 2
4.2 General requirements . 2
4.3 Interpretations of tables . 3
4.4 ASIL-dependent requirements and recommendations . 3
4.5 Adaptation for motorcycles . 3
4.6 Adaptation for trucks, buses, trailers and semi-trailers. 4
5 Requirements decomposition with respect to ASIL tailoring . 4
5.1 Objectives. 4
5.2 General . 4
5.3 Inputs to this clause . 5
5.3.1 Prerequisites . 5
5.3.2 Further supporting information . 5
5.4 Requirements and recommendations . 5
5.5 Work products . 9
6 Criteria for coexistence of elements . 9
6.1 Objectives. 9
6.2 General . 9
6.3 Inputs to this clause . 9
6.3.1 Prerequisites . 9
6.3.2 Further supporting information .10
6.4 Requirements and recommendations .10
6.5 Work products .10
7 Analysis of dependent failures .11
7.1 Objectives.11
7.2 General .11
7.3 Inputs to this clause .12
7.3.1 Prerequisites .12
7.3.2 Further supporting information .12
7.4 Requirements and recommendations .12
7.5 Work products .14
8 Safety analyses .14
8.1 Objectives.14
8.2 General .15
8.3 Inputs to this clause .16
8.3.1 Prerequisites .16
8.3.2 Further supporting information .16
8.4 Requirements and recommendations .16
8.5 Work products .18
Annex A (informative) Overview of and document flow of Automotive Safety Integrity Level
(ASIL)-oriented and safety-oriented analyses .19
Annex B (informative) Example architectures for Coexistence of elements and
Decomposition of requirements .23
Annex C (informative) Framework for Identifying Dependent Failures .25
Bibliography .29
iv © ISO 2018 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives ).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents ).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html .
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 32,
Electrical and electronic components and general system aspects.
This edition of ISO 26262 series of standards cancels and replaces the edition ISO 26262:2011 series of
standards, which has been technically revised and includes the following main changes:
— requirements for trucks, buses, trailers and semi-trailers;
— extension of the vocabulary;
— more detailed objectives;
— objective oriented confirmation measures;
— management of safety anomalies;
— references to cyber security;
— updated target values for hardware architecture metrics;
— guidance on model based development and software safety analysis;
— evaluation of hardware elements;
— additional guidance on dependent failure analysis;
— guidance on fault tolerance, safety related special characteristics and software tools;
— guidance for semiconductors;
— requirements for motorcycles; and
— general restructuring of all parts for improved clarity.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
A list of all parts in the ISO 26262 series can be found on the ISO website.
vi © ISO 2018 – All rights reserved

Introduction
The ISO 26262 series of standards is the adaptation of IEC 61508 series of standards to address the
sector specific needs of electrical and/or electronic (E/E) systems within road vehicles.
This adaptation applies to all activities during the safety lifecycle of safety-related systems comprised
of electrical, electronic and software components.
Safety is one of the key issues in the development of road vehicles. Development and integration of
automotive functionalities strengthen the need for functional safety and the need to provide evidence
that functional safety objectives are satisfied.
With the trend of increasing technological complexity, software content and mechatronic
implementation, there are increasing risks from systematic failures and random hardware failures,
these being considered within the scope of functional safety. ISO 26262 series of standards includes
guidance to mitigate these risks by providing appropriate requirements and processes.
To achieve functional safety, the ISO 26262 series of standards:
a) provides a reference for the automotive safety lifecycle and supports the tailoring of the activities
to be performed during the lifecycle phases, i.e., development, production, operation, service and
decommissioning;
b) provides an automotive-specific risk-based approach to determine integrity levels [Automotive
Safety Integrity Levels (ASILs)];
c) uses ASILs to specify which of the requirements of ISO 26262 are applicable to avoid unreasonable
residual risk;
d) provides requirements for functional safety management, design, implementation, verification,
validation and confirmation measures; and
e) provides requirements for relations between customers and suppliers.
The ISO 26262 series of standards is concerned with functional safety of E/E systems that is achieved
through safety measures including safety mechanisms. It also provides a framework within which
safety-related systems based on other technologies (e.g. mechanical, hydraulic and pneumatic) can be
considered.
The achievement of functional safety is influenced by the development process (including such
activities as requirements specification, design, implementation, integration, verification, validation
and configuration), the production and service processes and the management processes.
Safety is intertwined with common function-oriented and quality-oriented activities and work
products. The ISO 26262 series of standards addresses the safety-related aspects of these activities and
work products.
Figure 1 shows the overall structure of the ISO 26262 series of standards. The ISO 26262 series of
standards is based upon a V-model as a reference process model for the different phases of product
development. Within the figure:
— the shaded “V”s represent the interconnection among ISO 26262-3, ISO 26262-4, ISO 26262-5,
ISO 26262-6 and ISO 26262-7;
— for motorcycles:
— ISO 26262-12:2018, Clause 8 supports ISO 26262-3;
— ISO 26262-12:2018, Clauses 9 and 10 support ISO 26262-4;
— the specific clauses are indicated in the following manner: “m-n”, where “m” represents the number
of the particular part and “n” indicates the number of the clause within that part.
EXAMPLE “2-6” represents ISO 26262-2:2018, Clause 6.
Figure 1 — Overview of the ISO 26262 series of standards
viii © ISO 2018 – All rights reserved

INTERNATIONAL STANDARD ISO 26262-9:2018(E)
Road vehicles — Functional safety —
Part 9:
Automotive safety integrity level (ASIL)-oriented and
safety-oriented analyses
1 Scope
This document is intended to be applied to safety-related systems that include one or more electrical
and/or electronic (E/E) systems and that are installed in series production road vehicles, excluding
mopeds. This document does not address unique E/E systems in special vehicles such as E/E systems
designed for drivers with disabilities.
NOTE Other dedicated application-specific safety standards exist and can complement the ISO 26262 series
of standards or vice versa.
Systems and their components released for production, or systems and their components already under
development prior to the publication date of this document, are exempted from the scope of this edition.
This document addresses alterations to existing systems and their components released for production
prior to the publication of this document by tailoring the safety lifecycle depending on the alteration.
This document addresses integration of existing systems not developed according to this document and
systems developed according to this document by tailoring the safety lifecycle.
This document addresses possible hazards caused by malfunctioning behaviour of safety-related E/E
systems, including interaction of these systems. It does not address hazards related to electric shock,
fire, smoke, heat, radiation, toxicity, flammability, reactivity, corrosion, release of energy and similar
hazards, unless directly caused by malfunctioning behaviour of safety-related E/E systems.
This document describes a framework for functional safety to assist the development of safety-
related E/E systems. This framework is intended to be used to integrate functional safety activities
into a company-specific development framework. Some requirements have a clear technical focus to
implement functional safety into a product; others address the development process and can therefore
be seen as process requirements in order to demonstrate the capability of an organization with respect
to functional safety.
This document does not address the nominal performance of E/E systems.
This document specifies the requirements for Automotive Safety Integrity Level (ASIL)-oriented and
safety-oriented analyses, including the following:
— requirements decomposition with respect to ASIL tailoring;
— criteria for coexistence of elements;
— analysis of dependent failures; and
— safety analyses.
Annex A provides an overview on objectives, prerequisites and work products of this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 26262-1:2018, Road vehicles — Functional safety — Part 1: Vocabulary
ISO 26262-2:2018, Road vehicles — Functional safety — Part 2: Management of Functional Safety
ISO 26262-3:2018, Road vehicles — Functional safety — Part 3: Concept phase
ISO 26262-4:2018, Road vehicles — Functional safety — Part 4: Product development at the system level
ISO 26262-5:2018, Road vehicles — Functional safety — Part 5: Product development at the hardware level
ISO 26262-6:2018, Road vehicles — Functional safety — Part 6: Product development at the software level
ISO 26262-7:2018, Road vehicles — Functional safety — Part 7: Production, operation, service and
decommissioning
ISO 26262-8:2018, Road vehicles — Functional safety — Part 8: Supporting processes
3 Terms and definitions
For the purposes of this document, the terms, definitions and abbreviated terms given in
ISO 26262-1:2018 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
4 Requirements for compliance
4.1 Purpose
This clause describes how:
a) to achieve compliance with the ISO 26262 series of standards;
b) to interpret the tables used in the ISO 26262 series of standards; and
c) to interpret the applicability of each clause, depending on the relevant ASIL(s).
4.2 General requirements
When claiming compliance with the ISO 26262 series of standards, each requirement shall be met,
unless one of the following applies:
a) tailoring of the safety activities in accordance with ISO 26262-2 has been performed that shows
that the requirement does not apply; or
b) a rationale is available that the non-compliance is acceptable and the rationale has been evaluated
in accordance with ISO 26262-2.
Informative content, including notes and examples, is only for guidance in understanding, or for
clarification of the associated requirement, and shall not be interpreted as a requirement itself or as
complete or exhaustive.
2 © ISO 2018 – All rights reserved

The results of safety activities are given as work products. “Prerequisites” are information which shall
be available as work products of a previous phase. Given that certain requirements of a clause are
ASIL-dependent or may be tailored, certain work products may not be needed as prerequisites.
“Further supporting information” is information that can be considered, but which in some cases is not
required by the ISO 26262 series of standards as a work product of a previous phase and which may be
made available by external sources that are different from the persons or organizations responsible for
the functional safety activities.
4.3 Interpretations of tables
Tables are normative or informative depending on their context. The different methods listed in a table
contribute to the level of confidence in achieving compliance with the corresponding requirement. Each
method in a table is either:
a) a consecutive entry (marked by a sequence number in the leftmost column, e.g. 1, 2, 3), or
b) an alternative entry (marked by a number followed by a letter in the leftmost column, e.g. 2a, 2b, 2c).
For consecutive entries, all listed highly recommended and recommended methods in accordance with
the ASIL apply. It is allowed to substitute a highly recommended or recommended method by others
not listed in the table, in this case, a rationale shall be given describing why these comply with the
corresponding requirement. If a rationale can be given to comply with the corresponding requirement
without choosing all entries, a further rationale for omitted methods is not necessary.
For alternative entries, an appropriate combination of methods shall be applied in accordance with the
ASIL indicated, independent of whether they are listed in the table or not. If methods are listed with
different degrees of recommendation for an ASIL, the methods with the higher recommendation should
be preferred. A rationale shall be given that the selected combination of methods or even a selected
single method complies with the corresponding requirement.
NOTE A rationale based on the methods listed in the table is sufficient. However, this does not imply a bias
for or against methods not listed in the table.
For each method, the degree of recommendation to use the corresponding method depends on the ASIL
and is categorized as follows:
— “++” indicates that the method is highly recommended for the identified ASIL;
— “+” indicates that the method is recommended for the identified ASIL; and
— “o” indicates that the method has no recommendation for or against its usage for the identified ASIL.
4.4 ASIL-dependent requirements and recommendations
The requirements or recommendations of each sub-clause shall be met for ASIL A, B, C and D, if not
stated otherwise. These requirements and recommendations refer to the ASIL of the safety goal. If ASIL
decomposition has been performed at an earlier stage of development, in accordance with Clause 5, the
ASIL resulting from the decomposition shall be met.
If an ASIL is given in parentheses in the ISO 26262 series of standards, the corresponding sub-clause
shall be considered as a recommendation rather than a requirement for this ASIL. This has no link with
the parenthesis notation related to ASIL decomposition.
4.5 Adaptation for motorcycles
For items or elements of motorcycles for which requirements of ISO 26262-12 are applicable,
the requirements of ISO 26262-12 supersede the corresponding requirements in this document.
Requirements of ISO 26262-2 that are superseded by ISO 26262-12 are defined in Part 12.
4.6 Adaptation for trucks, buses, trailers and semi-trailers
Content that is intended to be unique for trucks, buses, trailers and semi-trailers (T&B) is indicated
as such.
5 Requirements decomposition with respect to ASIL tailoring
5.1 Objectives
If ASIL decomposition is applied, the objectives of this clause are:
a) to ensure that a safety requirement is decomposed into redundant safety requirements at the next
level of detail, and that these are allocated to sufficiently independent design elements; and
b) to apply ASIL decomposition according to permitted ASIL decomposition schemas.
NOTE The independence mentioned in this clause is technical independence and not organizational
independence (see ISO 26262-1:2018, 3.78)
5.2 General
The ASIL of the safety goals of an item under development is propagated throughout the item's
development. Starting from safety goals, the safety requirements are derived and refined during the
development phases. The ASIL, as an attribute of the safety goal, is inherited by each subsequent safety
requirement. The safety requirements are allocated to architectural elements, starting with functional
safety requirements allocated to elements of system architectural design and finally resulting in safety
requirements allocated to the hardware and/or software elements.
ASIL decomposition is a method of ASIL tailoring during the concept and development phases. During
the safety requirements allocation process, benefit can be obtained from architectural decisions
including the existence of sufficiently independent architectural elements. This offers the opportunity
— to implement safety requirements redundantly by these independent architectural elements, and
— to assign a potentially lower ASIL to (some of) these decomposed safety requirements.
If the architectural elements are not sufficiently independent, then the redundant requirements and
the architectural elements inherit the initial ASIL.
ASIL decomposition is an ASIL tailoring measure that can be applied to the functional, technical,
hardware or software safety requirements of the item or element.
In general, ASIL decomposition allows the apportioning of the ASIL of a safety requirement between
several elements that ensure compliance with the same safety requirement addressing the same safety
goal. ASIL decomposition between an intended functionality and its corresponding safety mechanism
is allowed under certain conditions (see 5.4.7).
The requirements specific to the random hardware failures, including the evaluation of the hardware
architectural metrics and the evaluation of safety goal violations due to random hardware failures (see
ISO 26262-5:2018, Clause 8 and Clause 9) remain unchanged by ASIL decomposition.
An example architecture decomposition is given in Annex B.
4 © ISO 2018 – All rights reserved

5.3 Inputs to this clause
5.3.1 Prerequisites
The following information shall be available:
— the safety requirements at the level at which the ASIL decomposition is to be applied: vehicle, system,
hardware, or software in accordance with ISO 26262-3:2018, 7.5.1, or ISO 26262-4:2018, 6.5.1, or
ISO 26262-5:2018, 6.5.1 or ISO 26262-6:2018, 6.5.1; and
— the architectural information at the level at which the ASIL decomposition is to be applied: vehicle,
system, hardware, or software in accordance with ISO 26262-3:2018, 7.5.1, or ISO 26262-4:2018,
6.5.3, or ISO 26262-5:2018, 7.5.1, or ISO 26262-6:2018, 7.5.1.
5.3.2 Further supporting information
The following information can be considered:
— item definition (see ISO 26262-3:2018, 5.5.1); and
— safety goals included in the hazard analysis and risk assessment report (see ISO 26262-3:2018, 6.5.1).
5.4 Requirements and recommendations
5.4.1 If ASIL decomposition is applied, all the requirements within this clause shall be complied with.
5.4.2 ASIL decomposition shall be performed by considering each initial safety requirement
individually.
NOTE 1 Several safety requirements can be allocated to the same independent elements as the result of ASIL
decompositions of different initial safety requirements.
5.4.3 The initial safety requirement shall be decomposed to redundant safety requirements, that shall
be implemented by sufficiently independent elements. These elements are sufficiently independent if the
analysis of dependent failures (see Clause 7) does not find a plausible cause of dependent failures that
can lead to the violation of an initial safety requirement, or if each identified cause of dependent failures
is controlled by an adequate safety measure according to the ASIL of the initial safety requirement.
NOTE 1 A given decomposed requirement can be the result of the decomposition of several initial safety
requirements.
NOTE 2 The use of homogenous redundancy to implement the decomposed requirements (e.g. by duplicated
device or duplicated software) does not address the systematic failures of hardware and software. This prevents
the ASIL from being reduced, unless an analysis of dependent failures (see Clause 7) provides evidence that
sufficient independence (see ISO 26262-1:2018, 3.78) exists or that the potential common causes lead to a safe
state. Therefore, homogenous redundancy alone is, in general, not sufficient for reducing the ASIL without the
support of the analysis of dependent failures for the specific system context.
NOTE 3 In general, ASIL decomposition does not apply to elements ensuring the channel selection or switching
in multi-channel architectural designs.
5.4.4 Each decomposed safety requirement shall comply with the initial safety requirement by itself.
NOTE 1 This provides redundancy by definition.
NOTE 2 If a decomposed safety requirement is allocated to a safety mechanism, the effectiveness of this safety
mechanism is considered in the evaluation of the compliance of the decomposed requirement with the initial
safety requirement.
EXAMPLE An ASIL D requirement allocated to a given ECU might naively be decomposed between an
ASIL D requirement allocated to a simple watchdog in this ECU and a QM safety requirement allocated to the
microprocessor of the ECU. However, this simple watchdog is insufficient to cover the failure modes of a
microprocessor with regard to an ASIL D requirement. In this case, this watchdog does not effectively comply
with the initial safety requirement.
5.4.5 The requirements on the evaluation of the hardware architectural metrics and the evaluation
of safety goal violations due to random hardware failures in accordance with ISO 26262-5 shall remain
unchanged by ASIL decomposition.
5.4.6 If ASIL decomposition is applied at the software level, sufficient independence between the
elements implementing the decomposed requirements shall be verified at the system level. If necessary,
additional measures shall be taken at the software level, hardware level, or system level to achieve
sufficient independence.
5.4.7 If ASIL decomposition of an initial safety requirement results in the allocation of decomposed
requirements to the intended functionality and an associated safety mechanism, then:
a) the associated safety mechanism should be assigned the higher decomposed ASIL; and
NOTE 1 In general, the safety mechanisms have a lower complexity and lower size than the intended
functionality.
b) a safety requirement shall be allocated to the intended functionality and implemented applying the
corresponding decomposed ASIL.
NOTE 2 If the decomposition schema ASIL x(x) + QM(x) is chosen, then QM(x) means that the quality
management system is sufficient to develop element(s) that implement the safety requirement allocated to
the intended functionality.
5.4.8 When applying ASIL decomposition to a safety requirement:
a) ASIL decomposition shall be applied in accordance with 5.4.9;
b) ASIL decomposition may be applied more than once (in this case, the intermediate requirement
allocation step may be omitted); and
c) each decomposed ASIL shall be marked by giving the ASIL of the safety goal in parenthesis.
EXAMPLE If an ASIL D requirement is decomposed into one ASIL C requirement and one ASIL A requirement,
then these are marked as “ASIL C(D)” and “ASIL A(D)”. If the ASIL C(D) requirement is further decomposed into
one ASIL B requirement and one ASIL A requirement, then these are also marked with the ASIL of the safety goal
as “ASIL B(D)” and “ASIL A(D)”.
5.4.9 One of the following decomposition schemas outlined below shall be chosen in accordance with
the ASIL before decomposition (as shown in Figure 2). A decomposition schema resulting in higher ASILs
may also be used.
NOTE 1 The step from one level of the selected decomposition schema to the lower next level defines one
decomposition of the ASIL.
a) An ASIL D requirement shall be decomposed as one of the following:
1) one ASIL C(D) requirement and one ASIL A(D) requirement; or
2) one ASIL B(D) requirement and one ASIL B(D) requirement; or
6 © ISO 2018 – All rights reserved

3) one ASIL D(D) requirement and one QM(D) requirement.
b) An ASIL C requirement shall be decomposed as one of the following:
1) one ASIL B(C) requirement and one ASIL A(C) requirement; or
2) one ASIL C(C) requirement and one QM(C) requirement.
c) An ASIL B requirement shall be decomposed as one of the following:
1) one ASIL A(B) requirement and one ASIL A(B) requirement; or
2) one ASIL B(B) requirement and one QM(B) requirement.
d) An ASIL A shall only be decomposed, if needed, as one ASIL A(A) requirement and one QM(A)
requirement.
Figure 2 — ASIL decomposition schemas
Key
Req. X ASIL D → Elmt.E means that the requirement X with the ASIL D attribute is allocated to the element E
EXAMPLE The cases described in 5.4.7, where QM is assigned to the intended functionality and an ASIL
equal to the initial ASIL is assigned to its associated safety mechanism, are shown in the leftmost column.
NOTE 2 The uppermost box of each decomposition step represents the ASIL before decomposition.
NOTE 3 Architectural elements E.1 and E.2 are sufficiently independent to comply with 5.4.3
5.4.10 When using any of the decomposition schemas given in 5.4.9, evidence for sufficient independence
of the elements after decomposition shall be made available (see 5.4.3).
8 © ISO 2018 – All rights reserved

5.4.11 The development of the decomposed elements at the system level and at the software level
shall be performed, as a minimum, in accordance with the ASIL requirements (after decomposition)
of ISO 26262-4 and ISO 26262-6. The development of the decomposed elements at the hardware level
shall be performed, as a minimum, in accordance with the ASIL requirements (after decomposition) of
ISO 26262-5, except for the evaluation of the hardware architectural metrics and the evaluation of safety
goal violations due to random hardware failures (see 5.4.5).
5.4.12 At each level of the design process at which decomposition is applied, the corresponding
integration activities of the decomposed elements and subsequent activities, including verification
and confirmation measures, shall be applied in accordance with the requirements of the ASIL before
decomposition.
5.5 Work products
5.5.1 Update of architectural information, resulting from 5.4.
5.5.2 Update of ASIL as attribute of safety requirements and elements, resulting from 5.4.
6 Criteria for coexistence of elements
6.1 Objectives
This clause provides criteria for the coexistence within the same element of:
a) safety-related sub-elements with non-safety-related sub-elements; and
b) safety-related sub-elements that have different ASILs assigned.
6.2 General
By default, when an element is composed of several sub-elements, each of those sub-elements is
developed in accordance with the measures corresponding to the highest ASIL applicable to the
element, i.e. the highest ASIL of the safety requirements allocated to the element.
In the case of the coexistence of sub-elements that have different or no ASILs assigned, or the coexistence
of non-safety-related sub-elements with safety-related ones, it can be beneficial to avoid assigning
the ASIL of the element to all the sub-elements. For this purpose, this clause provides guidance for
determining if sub-elements with different ASILs can coexist within the same element. This clause is
based on the analysis of interference of each sub-element with the other sub-elements of an element.
In the context of this clause, interference is the presence of cascading failures from a sub-element with
no ASIL assigned, or a lower ASIL assigned, to a sub-element with a higher ASIL assigned which leads to
the violation of a safety requirement of the element (see ISO 26262-1:2018, 3.65).
When determining the ASIL of sub-elements of an element, the rationale for freedom from interference
is supported by analyses of dependent failures (see Clause 7), focused on cascading failures.
6.3 Inputs to this clause
6.3.1 Prerequisites
The following information shall be available:
— the safety requirements at the level at which the analysis is to be performed: system, or hardware, or
software in accordance with ISO 26262-3:2018, 7.5.1, or ISO 26262-4:2018, 6.5.1, or ISO 26262-5:2018,
6.5.1, or ISO 26262-6:2018, 6.5.1;
— the architectural information of the element at the level at which the analysis is to be performed:
system, or hardware, or software, in accordance with ISO 26262-3:2018, 7.5.1, ISO 26262-4:2018,
6.5.3, or ISO 26262-5:2018, 7.5.1, or ISO 26262-6:2018, 7.5.1; and
— the allocation of the safety requirements to the element and sub-elements under consideration.
6.3.2 Further supporting information
None.
6.4 Requirements and recommendations
6.4.1 This clause may be applied at any refinement step during the design process, in parallel with the
allocation of the safety requirements to the elements and sub-elements of an architecture.
NOTE Criteria of coexistence are typically considered during system design, hardware design, or software
architectural design, in accordance with ISO 26262-4, or ISO 26262-5, or ISO 26262-6.
6.4.2 The following shall be considered during the analysis of an element:
a) each safety requirement allocated to the element; and
b) each sub-element that is part of the element.
6.4.3 If a non-safety-related sub-element and safety-related sub-elements coexist in the same element,
then the non-safety-related sub-element shall only be treated as a non-safety-related sub-element if
evidence is made available that this non-safety-related sub-element cannot, directly or indirectly, violate
any safety requirement allocated to the element. That is, this non-safety-related sub-element cannot
interfere with any safety-related sub-element of the element.
NOTE 1 This means that there are no cascading failures from this sub-element to the safety-related sub-
elements.
NOTE 2 This can be achieved by design measures, such as those concerning the data flow and control flow for
software, or the input/output signals and control lines for hardware.
Otherwise, this sub-element shall be assigned the highest ASIL of the coexisting safety-related sub-
elements for which evidence of freedom from interference is not available.
6.4.4 If safety-related sub-elements implementing requirements with different ASILs, including
QM(X) (see 5.4.9), coexist in the same element, then a considered sub-element shall only be treated as
a sub-element with a lower ASIL if evidence is available that, for each safety requirement allocated to
the element, the considered sub-element cannot, directly or indirectly, violate any safety requirement
allocated to the sub-elements implementing higher ASIL requirements. Otherwise, the considered
sub-element shall be assigned the highest ASIL of the coexisting safety-related sub-elements for which
evidence of freedom from interference is not available.
NOTE The evaluation of the freedom from interference is commensurate with the highest ASIL requirements
allocated to the coexisting sub-elements (see 7.4.8).
6.5 Work products
6.5.1 Update of the ASIL attribute of the sub-elements of the element, resulting from 6.4.
10 © ISO 2018 – All rights reserved

7 Analysis of dependent failures
7.1 Objectives
The objectives of this clause are:
a) to confirm that a required independence or freedom from interference is sufficiently achieved in
the design by analysing their potential causes or initiators; and
b) to define safety measures to mitigate plausible dependent failures, if necessary.
7.2 General
The scope of the analysis of dependent failures can be influenced by the technology of the given
elements (e.g. software elements, hardware elements, or a mix of hardware and software elements),
and by the safety requirements involved.
Figure 3 — Relationship between the different classes of dependent failures
Figure 3 describes the relationship between dependent failures, freedom from interference, and
technical independence.
Freedom from interference is used to justify the coexistence of elements with different, or no, assigned
ASIL (See Clause 6).
Freedom from interference and absence of common cause failures are used to justify independence
when performing ASIL decomposition (See Clause 5).
NOTE 1 Other system properties can also require independence and, thus, absence of dependent failures. For
instance, the analysis of dependent failures can be used to support
...
