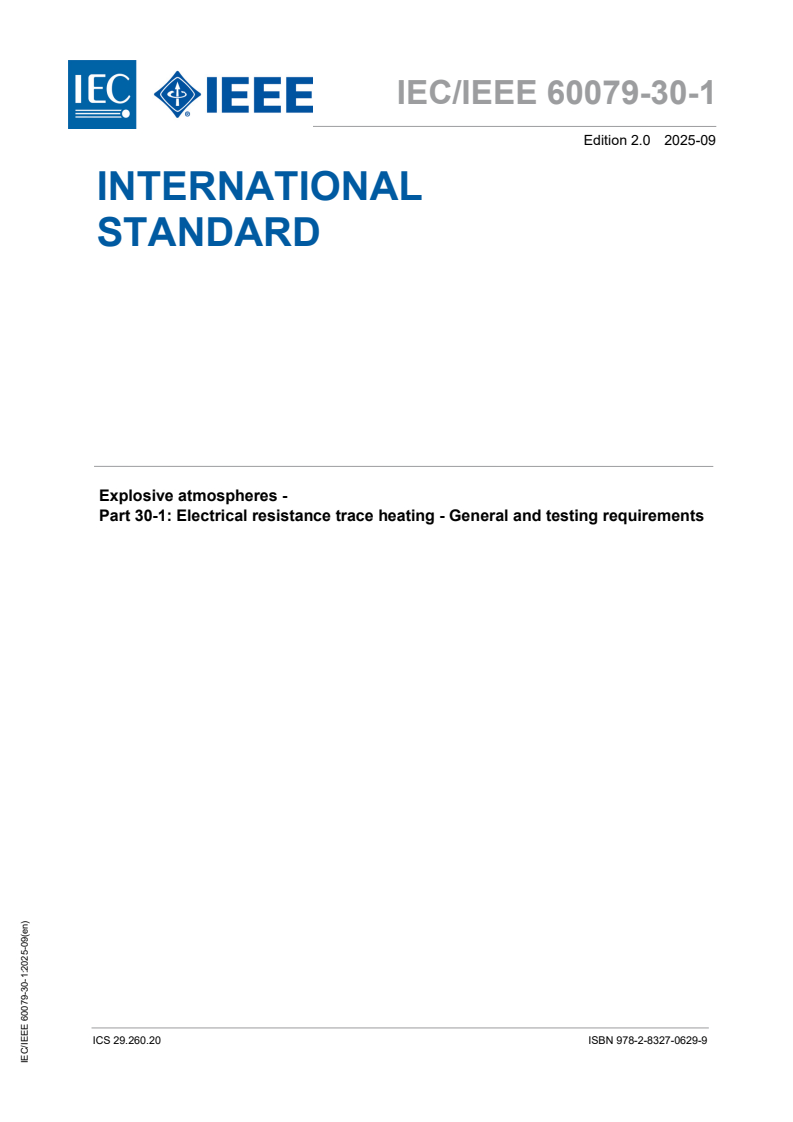

IEC/IEEE 60079-30-1:2025

IEC/IEEE 60079-30-1 ®
Edition 2.0 2025-09
INTERNATIONAL
STANDARD
REDLINE VERSION
Explosive atmospheres -
Part 30-1: Electrical resistance trace heating - General and testing requirements
ICS 29.260.20  ISBN 978-2-8327-0727-2

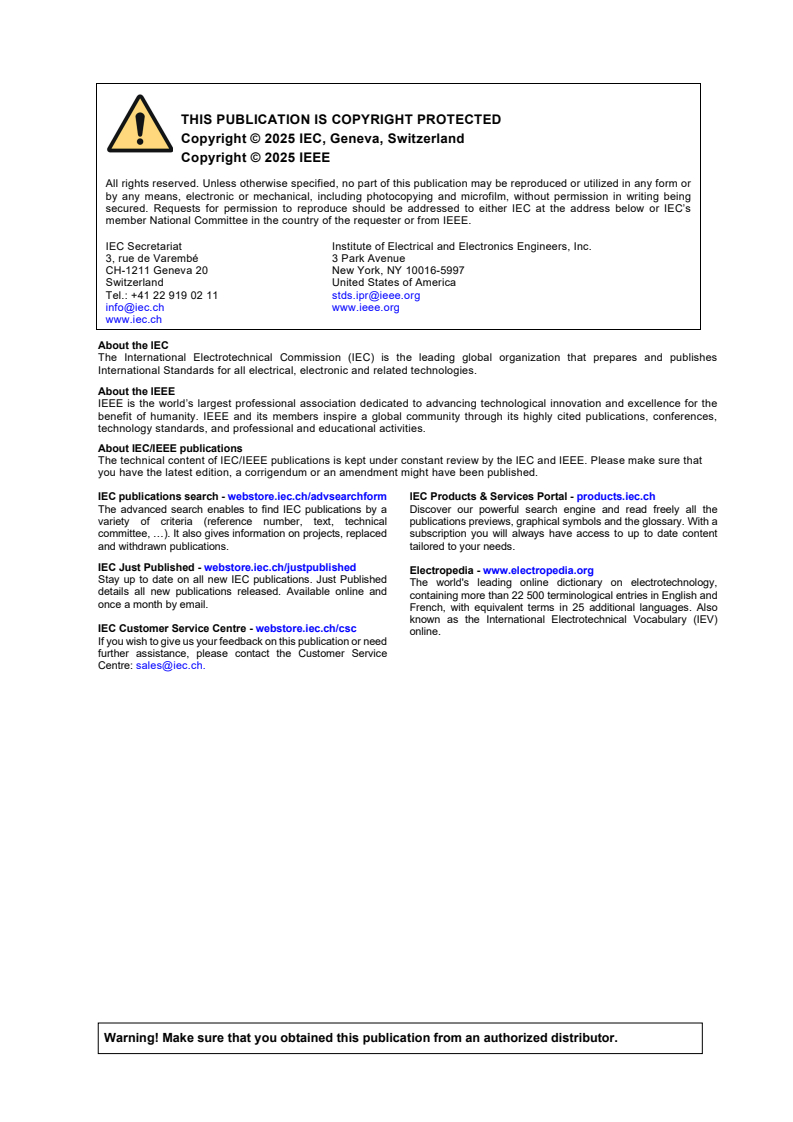

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing being
secured. Requests for permission to reproduce should be addressed to either IEC at the address below or IEC’s
member Natio nal Committee in the country of the requester or from IEEE.

IEC Secretariat Institute of Electrical and Electronics Engineers, Inc.
3, rue de Varembé 3 Park Avenue
CH-1211 Geneva 20 New York, NY 10016-5997
Switzerland United States of America
Tel.: +41 22 919 02 11 stds.ipr@ieee.org
info@iec.ch www.ieee.org
www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About the IEEE
IEEE is the world’s largest professional association dedicated to advancing technological innovation and excellence for the
benefit of humanity. IEEE and its members inspire a global community through its highly cited publications, conferences,
technology standards, and professional and educational activities.

About IEC/IEEE publications
The technical content of IEC/IEEE publications is kept under constant review by the IEC and IEEE. Please make sure that
you have the latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary. With a
committee, …). It also gives information on projects, replaced subscription you will always have access to up to date content
and withdrawn publications. tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and
containing more than 22 500 terminological entries in English and
once a month by email.
French, with equivalent terms in 25 additional languages. Also

known as the International Electrotechnical Vocabulary (IEV)
IEC Customer Service Centre - webstore.iec.ch/csc
online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.

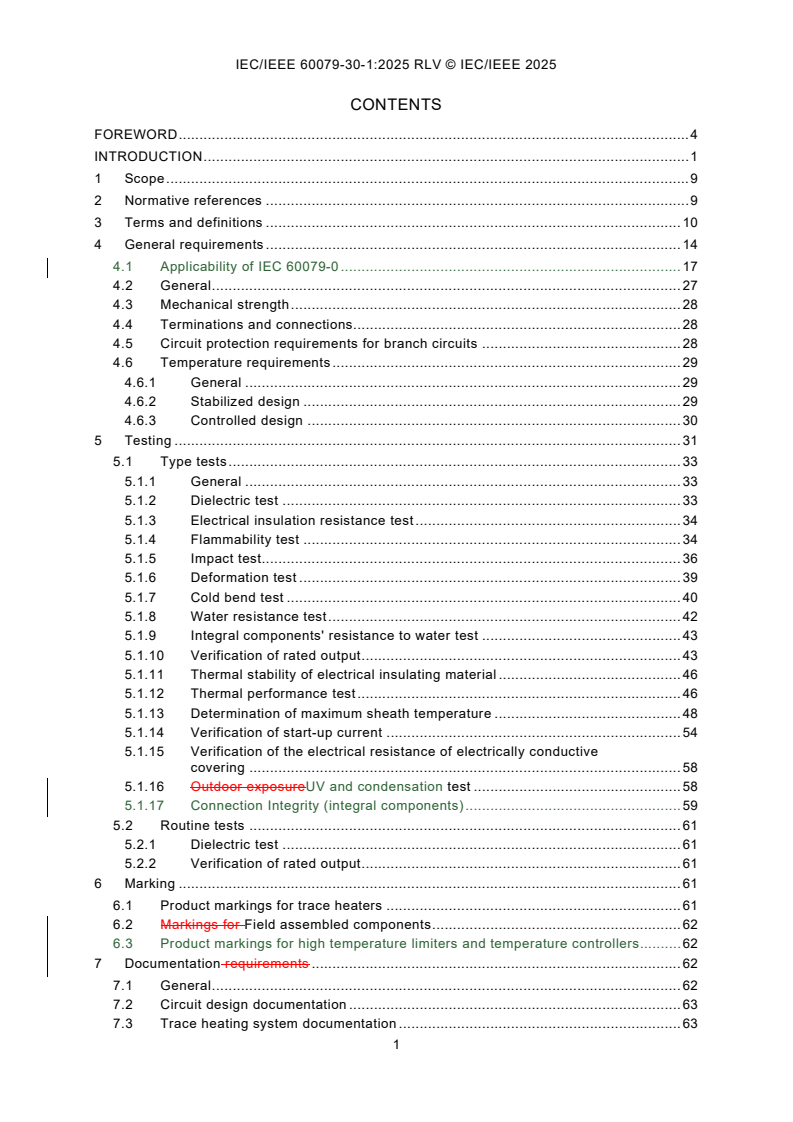

CONTENTS
FOREWORD . 4
INTRODUCTION . 1
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 10
4 General requirements . 14
4.1 Applicability of IEC 60079-0 . 17
4.2 General . 27
4.3 Mechanical strength . 28
4.4 Terminations and connections. 28
4.5 Circuit protection requirements for branch circuits . 28
4.6 Temperature requirements . 29
4.6.1 General . 29
4.6.2 Stabilized design . 29
4.6.3 Controlled design . 30
5 Testing . 31
5.1 Type tests . 33
5.1.1 General . 33
5.1.2 Dielectric test . 33
5.1.3 Electrical insulation resistance test . 34
5.1.4 Flammability test . 34
5.1.5 Impact test. 36
5.1.6 Deformation test . 39
5.1.7 Cold bend test . 40
5.1.8 Water resistance test . 42
5.1.9 Integral components' resistance to water test . 43
5.1.10 Verification of rated output . 43
5.1.11 Thermal stability of electrical insulating material . 46
5.1.12 Thermal performance test . 46
5.1.13 Determination of maximum sheath temperature . 48
5.1.14 Verification of start-up current . 54
5.1.15 Verification of the electrical resistance of electrically conductive
covering . 58
5.1.16 Outdoor exposureUV and condensation test . 58
5.1.17 Connection Integrity (integral components) . 59
5.2 Routine tests . 61
5.2.1 Dielectric test . 61
5.2.2 Verification of rated output . 61
6 Marking . 61
6.1 Product markings for trace heaters . 61
6.2 Markings for Field assembled components . 62
6.3 Product markings for high temperature limiters and temperature controllers . 62
7 Documentation requirements . 62
7.1 General . 62
7.2 Circuit design documentation . 63
7.3 Trace heating system documentation . 63

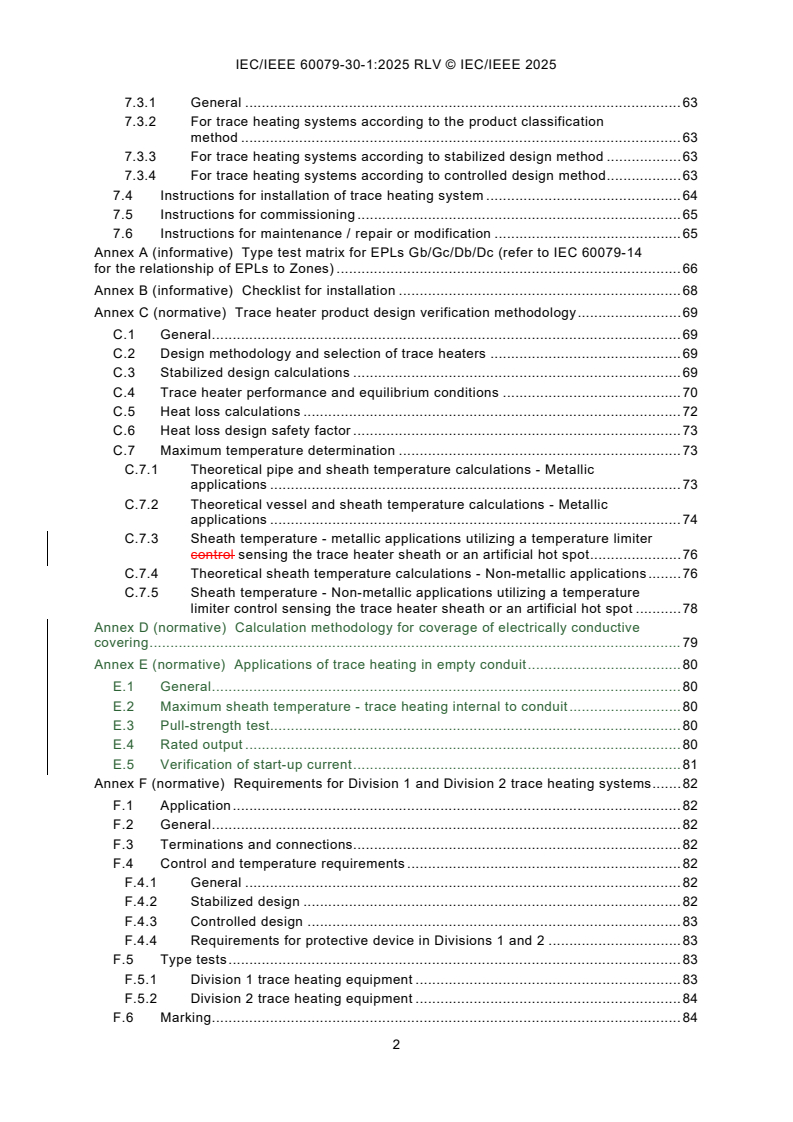

7.3.1 General . 63
7.3.2 For trace heating systems according to the product classification
method . 63
7.3.3 For trace heating systems according to stabilized design method . 63
7.3.4 For trace heating systems according to controlled design method . 63
7.4 Instructions for installation of trace heating system . 64
7.5 Instructions for commissioning . 65
7.6 Instructions for maintenance / repair or modification . 65
Annex A (informative) Type test matrix for EPLs Gb/Gc/Db/Dc (refer to IEC 60079-14
for the relationship of EPLs to Zones) . 66
Annex B (informative) Checklist for installation . 68
Annex C (normative) Trace heater product design verification methodology . 69
C.1 General . 69
C.2 Design methodology and selection of trace heaters . 69
C.3 Stabilized design calculations . 69
C.4 Trace heater performance and equilibrium conditions . 70
C.5 Heat loss calculations . 72
C.6 Heat loss design safety factor . 73
C.7 Maximum temperature determination . 73
C.7.1 Theoretical pipe and sheath temperature calculations - Metallic
applications . 73
C.7.2 Theoretical vessel and sheath temperature calculations - Metallic
applications . 74
C.7.3 Sheath temperature - metallic applications utilizing a temperature limiter
control sensing the trace heater sheath or an artificial hot spot . 76
C.7.4 Theoretical sheath temperature calculations - Non-metallic applications . 76
C.7.5 Sheath temperature - Non-metallic applications utilizing a temperature
limiter control sensing the trace heater sheath or an artificial hot spot . 78
Annex D (normative) Calculation methodology for coverage of electrically conductive
covering . 79
Annex E (normative) Applications of trace heating in empty conduit . 80
E.1 General . 80
E.2 Maximum sheath temperature - trace heating internal to conduit . 80
E.3 Pull-strength test. 80
E.4 Rated output . 80
E.5 Verification of start-up current . 81
Annex F (normative) Requirements for Division 1 and Division 2 trace heating systems . 82
F.1 Application . 82
F.2 General . 82
F.3 Terminations and connections. 82
F.4 Control and temperature requirements . 82
F.4.1 General . 82
F.4.2 Stabilized design . 82
F.4.3 Controlled design . 83
F.4.4 Requirements for protective device in Divisions 1 and 2 . 83
F.5 Type tests . 83
F.5.1 Division 1 trace heating equipment . 83
F.5.2 Division 2 trace heating equipment . 84
F.6 Marking . 84
F.7 Instructions - Installation requirements . 84
Annex G (normative) Type test matrix for Division 1 and 2 explosive atmospheres . 86
Bibliography . 89

Figure 1 – Flammability test . 36
Figure 2 – Example of room temperature impact test . 38
Figure 3 – Example of minimum temperature impact test . 39
Figure 4 – Cold bend test . 42
Figure 5 – Integral components resistance to water test. 43
Figure 6 – Verification of rated output . 45
Figure 7 – Maximum sheath temperature using Product classification approach. 49
Figure 8 – Verification of sheath temperatures using pipe sculpture . 51
Figure 9 – Verification of sheath temperature, plate test . 54
Figure 10 – Verification of sheath temperature - plate test with serpentined sample . 55
Figure 11 – Plate test with two samples crossed over . 56
Figure 12 – Plate test with a single sample crossed over . 57
Figure 13 – Typical splice firm attachment apparatus . 60
Figure C.1 – Equilibrium conditions for workpiece maintenance . 70
Figure C.2 – Equilibrium conditions for upper limit evaluation . 71

Table 1 – Application or exclusion of specific clauses of IEC 60079-0 . 17
Table 2 – Sheath temperature design conditions based on Equipment Protection
Levels (EPLs) - Stabilized design approach . 29
Table 3 – Sheath temperature design conditions based on Equipment Protection
Levels - Controlled design approach . 31
Table 4 – Test voltages for the dielectric test . 33
Table A.1 – Determination of test samples . 66
Table B.1 – Trace heater installation record - Example . 68
Table F.1 – Division trace heating systems . 82
Table F.2 - Sheath temperature design conditions - Stabilized design approach . 83
Table F.3 – Sheath temperature design conditions - With temperature control device
controller and/or high temperature limiter . 83
Table G.1 – Applicable trace heater and trace heater pads and panels tests by
installation location . 86
Table G.2 – Applicable tests for integral components with trace heaters and trace
heater pads and panels . 87

Explosive atmospheres -
Part 30-1: Electrical resistance trace heating -
General and testing requirements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC document(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation.
IEEE Standards documents are developed within IEEE Societies and Standards Coordinating Committees of the
IEEE Standards Association (IEEE SA) Standards Board. IEEE develops its standards through a consensus
development process, approved by the American National Standards Institute, which brings together volunteers
representing varied viewpoints and interests to achieve the final product. Volunteers are not necessarily members
of IEEE and serve without compensation. While IEEE administers the process and establishes rules to promote
fairness in the consensus development process, IEEE does not independently evaluate, test, or verify the
accuracy of any of the information contained in its standards. Use of IEEE Standards documents is wholly
voluntary. IEEE documents are made available for use subject to important notices and legal disclaimers (see
https://standards.ieee.org/ipr/disclaimers.html for more information).
IEC collaborates closely with IEEE in accordance with conditions determined by agreement between the two
organizations. This Dual Logo International Standard was jointly developed by the IEC and IEEE under the terms
of that agreement.
2) The formal decisions of IEC on technical matters express, as nearly as possible, an international consensus of
opinion on the relevant subjects since each technical committee has representation from all interested IEC
National Committees. The formal decisions of IEEE on technical matters, once consensus within IEEE Societies
and Standards Coordinating Committees has been reached, is determined by a balanced ballot of materially
interested parties who indicate interest in reviewing the proposed standard. Final approval of the IEEE standards
document is given by the IEEE Standards Association (IEEE SA) Standards Board.
3) IEC/IEEE Publications have the form of recommendations for international use and are accepted by IEC National
Committees/IEEE Societies in that sense. While all reasonable efforts are made to ensure that the technical
content of IEC/IEEE Publications is accurate, IEC or IEEE cannot be held responsible for the way in which they
are used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
(including IEC/IEEE Publications) transparently to the maximum extent possible in their national and regional
publications. Any divergence between any IEC/IEEE Publication and the corresponding national or regional
publication shall be clearly indicated in the latter.
5) IEC and IEEE do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC and IEEE are not responsible
for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or IEEE or their directors, employees, servants or agents including individual
experts and members of technical committees and IEC National Committees, or volunteers of IEEE Societies and
the Standards Coordinating Committees of the IEEE Standards Association (IEEE SA) Standards Board, for any
personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for
costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC/IEEE
Publication or any other IEC or IEEE Publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that implementation of this IEC/IEEE Publication may require use of material
covered by patent rights. By publication of this standard, no position is taken with respect to the existence or
validity of any patent rights in connection therewith. IEC or IEEE shall not be held responsible for identifying
Essential Patent Claims for which a license may be required, for conducting inquiries into the legal validity or
scope of Patent Claims or determining whether any licensing terms or conditions provided in connection with
submission of a Letter of Assurance, if any, or in any licensing agreements are reasonable or non-discriminatory.
Users of this standard are expressly advised that determination of the validity of any patent rights, and the risk
of infringement of such rights, is entirely their own responsibility.
This redline version of the official IEC Standard allows the user to identify the changes made
to the previous edition IEC/IEEE 60079-30-1:2015. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in strikethrough
red text.
IEC/IEEE 60079-30-1 has been prepared by IEC technical committee 31: Equipment for
explosive atmospheres, in cooperation with the Petroleum & Chemical Industry Committee of
the IEEE Industrial Applications Society under the IEC/IEEE Dual Logo Agreement.
This publication is published as an IEC/IEEE Dual Logo standard.
This second edition of IEC/IEEE 60079-30-1 cancels and replaces the first edition of
IEC/IEEE 60079-30-1 published in 2015. This edition constitutes a technical revision.
Users of this document are advised that interpretation sheets clarifying the interpretation of this
document can be published. Interpretation sheets are available from the IEC webstore and can
be found in the "history" tab of the page for each document.
This edition includes the following significant technical changes with respect to the previous
edition:
The significance of changes between IEC/IEEE 60079-30-1, Edition 1.0 (2015) and
IEC/IEEE 60079-30-1, Edition 2.0 (this document) is as listed below:
Type
Changes Clause Minor and Extension Major
editorial technical
changes changes
Redefined Maximum withstand temperature as it

X
3.20
applies to the performance benchmark test.
Separated maximum maintain temperature and

maximum continuous operating temperature to X
3.15 and 3.16
clarify the meaning of both terms.
Addition of requirements for controllers and high
C1
temperature limiters, added specific reference
4.6.3
standards.
Rewrite of the requirements for controlled design as
C2
it applies to the application of controllers and high
4.6.3
temperature limiters as for use in EPL's.
Addition of requirement for specifying various
C3
temperatures defined by the standard and including
4.2 and 7
them in user documentation.
Connection Integrity (integral components) X
5.1.17
Applications of Trace Heating in empty conduit X
Annex E
NOTE The technical changes referred to include the significance of technical changes in the revised IEC Standard,
but they do not form an exhaustive list of all modifications from the previous version.
Explanations:
A) Definitions
Minor and editorial changes
clarification
decrease of technical requirements
minor technical change
editorial corrections
These are changes which modify requirements in an editorial or a minor technical way. They
include changes of the wording to clarify technical requirements without any technical change,
or a reduction in level of existing requirement.
Extension addition of technical options
These are changes which add new or modify existing technical requirements, in a way that new
options are given, but without increasing requirements for equipment that was fully compliant
with the previous standard. Therefore, these will not have to be considered for products in
conformity with the preceding edition.
Major technical changes
addition of technical requirements
increase of technical requirements
These are changes to technical requirements (addition, increase of the level or removal) made
in a way that a product in conformity with the preceding edition will not always be able to fulfil
the requirements given in the later edition. These changes have to be considered for products
in conformity with the preceding edition. For these changes additional information is provided
in clause B) below.
NOTE 1 These changes represent current technological knowledge. However, these changes should not normally
have an influence on equipment already placed on the market.
B) Information about the background of 'Major technical changes'
C1 There are no additional requirements for temperature controllers and high temperature
limiters beyond those of the general industrial standards.
C2 The application of temperature controllers and high temperature limiters shall be as
specified.
C3 The documentation shall include the various temperatures specified in the standard.
The text of this International Standard is based on the following IEC documents:
Draft Report on voting
31/1867/FDIS 31/1893/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with the rules given in the ISO/IEC Directives, Part 2,
available at www.iec.ch/members_experts/refdocs. The main document types developed by IEC
are described in greater detail at www.iec.ch/publications/.
This document is to be used in conjunction with IEC 60079-0, Explosive atmospheres - Part 0:
Equipment - General requirements and IEC/IEEE 60079-30-2, Explosive atmospheres -
Part 30-2: Electrical resistance trace heating - Guidance on application for design, installation
and maintenance.
A list of all parts of IEC 60079 series, under the general title Explosive atmospheres, can be
found on the IEC website.
The IEC Technical Committee and IEEE Technical Committee have decided that the contents
of this document will remain unchanged until the stability date indicated on the IEC website
under webstore.iec.ch in the data related to the specific document. At this date, the document
will be
– reconfirmed,
– withdrawn, or
– revised.
INTRODUCTION
IEC/IEEE 60079-30-1 is intended to provide a comprehensive overview of the essential
requirements and testing appropriate to electric surface heating equipment used in explosive
atmospheres. The requirements of this part of IEC 60079 are considered to be the minimum
requirements for Equipment Protection Levels (EPLs) Gb, Gc, Db, and Dc in explosive
atmospheres for gases, dusts, and fibres/flyings. While some of this work already exists in
national standards or international standards, this document has collated much of this existing
work and considerably added to it. This document also contains the minimum requirements for
users applying the Division method of area classification.

1 Scope
This part of IEC 60079 specifies general and testing requirements for electrical resistance trace
heaters for application in explosive atmospheres with the exclusion of those for Equipment
Protection Levels (EPL) Ga, Da, Ma and Mb equipment. This document covers trace heaters
that comprise either factory or field (worksite) assembled units, and which may can be series
trace heaters, parallel trace heaters, trace heater pads, or trace heater panels that have been
assembled and/or terminated in accordance with the manufacturer's instructions.
This document also includes requirements for termination assemblies and control methods used
with trace heating systems. The explosive atmospheres referred to in this document are those
defined in IEC 60079-10-1 and IEC 60079-10-2.
Annex F and Annex G outline the application of this document for those users applying the
Division method of area classification.
This standard supplements and modifies the general requirements of IEC 60079-0, except as
indicated in Table 1. Where a requirement of this standard conflicts with a requirement of
IEC 60079-0, the requirement of this standard takes precedence.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050-151:2001, International Electrotechnical Vocabulary (IEV) - Part 151: Electrical and
magnetic devices
IEC 60050-426:2008, International Electrotechnical Vocabulary – Part 426: Equipment for
explosive atmospheres
IEC 60079-0:2011, Explosive atmospheres - Part 0: Equipment - General requirements
IEC 60079-7, Explosive atmospheres - Part 7: Equipment protection by increased safety "e"
IEC/IEEE 60079-30-2, Explosive atmospheres - Part 30-2: Electrical resistance trace heating -
Guidance on application for design, installation and maintenance
IEC 60695-11-3, Fire hazard testing - Part 11-3: Test flames - 500 W flames - Apparatus and
confirmational test methods
ISO 4582, Plastics – Determination of changes in colour and variations in properties after
exposure to daylight under glass, natural weathering or laboratory light sources
ISO 4892-1, Plastics – Methods of exposure to laboratory light sources – Part 1: General
guidance
ISO 4892-2, Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc
lamps
ASTM D5025, Standard specification for laboratory burner used for small-scale burning tests
on plastic materials
ASTM G155, Standard practice for operating xenon arc light apparatus for exposure of non-
metallic materials
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60079-0,
IEC 60079-7, IEC 60050-151 and IEC 60050-426 (except as modified by this clause) and the
following apply.
NOTE Definition 3.40 is identical to definition 3.16 of IEC 60079-7: 2006.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
3.1
ambient temperature
temperature surrounding the workpiece including the trace heater and any
thermal insulation or weather barrier that may be applied the object under consideration
Note 1 to entry: Where a trace heater or surface heater is enclosed in thermal insulation, the ambient temperature
is the temperature external to the thermal insulation.
3.1.1
maximum ambient temperature
highest specified ambient temperature
3.1.2
minimum ambient temperature

lowest ambient temperature specified at which trace heating is operable and performs according
to specified requirements (and on which heat-loss calculations are based)
[SOURCE: IEC 60050-426:2008, 426-20-20]
3.2
branch circuit
portion of the wiring installation between the overcurrent device protecting the
circuit and the trace heater unit(s)
[SOURCE: IEC 60050-426:2008, 426-20-02]
3.3
connection
termination
termination or splice used to attach trace heaters or surface heaters to power wiring or to
connect sections of these devices
3.3.1
cold lead
electrically insulated conductor or conductors that do not produce significant
heat and are used to connect a trace heater to a branch circuit and designed so that it does not
produce significant heat
[SOURCE: IEC 60050-426:2008, 426-20-03]
3.3.2
end termination
termination, which may can be heat producing, applied to a trace heater at the
end opposite to that where the power is supplied
[SOURCE: IEC 60050-426:2008, 426-20-04]
3.3.3
power termination
termination applied to the end of a trace heater at which the power is supplied
[SOURCE: IEC 60050-426:2008, 426-20-05]
3.3.4
tee
electrical connection of trace heaters, in series or in parallel, to accommodate
a branch or a branch circuit of a trace heater
[SOURCE: IEC 60050-426:2008, 426-20-06, modified ("tee or branch" replaced by "branch or
a branch circuit")]
3.4
controlled design
design where the set point of the applicable temperature controller and/or high-limit device
temperature limiter is used in establishing/limiting the maximum sheath temperature
3.5
dead leg

segment of process piping segregated from the normal flow pattern for the purpose of providing
a heat loss reference
[SOURCE: IEC 60050-426:2008, 426-20-07]
3.6
design loading
minimum power that meets the design requirements, in the specified adverse conditions
(minimum ambient and maximum wind velocity), after voltage and resistance tolerances and
appropriate safety factors have been considered
[SOURCE: IEC 60050-426:2008, 426-20-08]
3.5
electrically conductive covering
metallic sheath, metallic braid or other conductive material
metallic braid, metallic sheath, or alternative covering with sufficient conductivity so that, when
bonded to ground, it will allow a ground fault protective device to operate under a fault condition
3.6
factory fabricated
assembled into units or sets, including the necessary terminations and
connections trace heater unit or set, including the necessary terminations and connections,
assembled by the manufacturer
[SOURCE: IEC 60050-426:2008, 426-20-09]
3.7
field assembled
trace heaters supplied in bulk unterminated with terminating components to be
assembled at the work site
[SOURCE: IEC 60050-426:2008, 426-20-10]
3.8
heat loss
energy flow from a workpiece, pipe, or vessel or equipment to its surroundings
[SOURCE: IEC 60050-426:2008, 426-20-11]
3.9
heat sink
part that conducts and dissipates heat away from a workpiece
Note 1 to entry: Typical heat sinks are pipe shoes, pipe supports and items of large mass such as valve actuators
or pump bodies.
[SOURCE: IEC 60050-426:2008, 426-20-12]
3.10
heat transfer aid
thermally conductive material, such as metallic foil or heat transfer compound
used to increase the heat transfer efficiency from trace heaters to the workpiece
[SOURCE: IEC 60050-426:2008, 426-20-13]
3.11
high limit temperature
maximum allowable temperature of the system, including piping, fluid and trace
heating system
[SOURCE: IEC 60050-426:2008, 426-20-16, modified (addition of "trace")]
3.12
high temperature limiter
safety device, or combination of safety devices, incorporating a means of sensing temperature
and a means of switching power to the trace heater before the maximum surface temperature
is exceeded
3.13
integral components
components such as heat shrink terminations, cold lead connections, moulded end seals, or
splices, which may conform to the general shape of the trace heater and are exposed to the
same environments (such as under the thermal insulation) as the trace heater, that are not
intended to be re-used in the event of a repair or modification, which may be factory fabricated
or field assembled
component such as a heat shrink termination, a cold lead connection, a molded end seal, or a
splice, which conforms to the general shape of the trace heater and is exposed to the same
environment as the trace heater, which can be factory fabricated or field assembled, and is not
intended to be re-used in the event of a repair or modification
3.14
maximum continuous exposure temperature (trace heater de-energized)
highest allowable continuous temperature to which the trace heating system
may can be exposed while de-energized as declared by the manufacturer
3.15
maximum maintain temperature / maximum continuous operating temperature (trace
heater energized)
specified maximum workpiece or process temperature that the trace heater
operates at continuously is able to maintain as declared by the manufacturer
3.16
maximum continuous operating temperature
specified maximum workpiece temperature; at which, the trace heater, can operate continuously
when energized as declared by the manufacturer
3.17
maximum intermittent exposure temperature (trace heater energized or de-energized)
highest allowable intermittent temperature to which a trace heater may can be
exposed, as declared by the manufacturer
3.18
maintain temperature
specified temperature of a workpiece or process that the trace heaters shall be
able to maintain continuously when energized as declared by the manufacturer
3.19
maximum sheath temperature
maximum temperature of the outermost continuous covering of a trace heater
3.20
maximum withstand temperature
maximum operating or exposure temperature that will not adversely affect the thermal stability
of the trace heater and its component parts
[SOURCE: IEC 60050-426:2008, 426-20-18]
maximum continuous exposure temperature or the maximum intermittent
exposure temperature (energized or de-energized) whichever is higher, as declared by the
manufacturer
3.21
minimum installation temperature
minimum temperature at which the trace heating system may can be handled
and installed
3.22
MI trace heater
mineral insulated metal sheathed trace heater typically containing one or more
heating conductors
3.23
operating voltage
actual voltage applied to the trace heater when in service
[SOURCE: IEC 60050-426:2008, 426-20-21]
3.24
outdoor exposure
exposure to outdoor conditions of ultraviolet light and moisture
3.25
overjacket
continuous layer of non-metallic material applied outside the electrically
conductive covering metallic sheath or screen to protect against corrosion
3.26
parallel trace heater
heating element that is electrically connected in parallel with another parallel
trace heater, either continuously or in zones, so that the watt density power output per lineal
length is maintained, irrespective of any change in length for the continuous type or for any
number of discrete zones
3.27
power density
power output for a trace heater expressed in watts per linear length or in watts per unit surface
area
3.27
rated output
total power or power per unit length or unit surface area of a trace heater, at
rated voltage, temperature and length or area
[SOURCE: IEC 60050-426:2008, 426-20-24, modified (removal of "which is normally expressed
in watts, watts per metre or watts per square metre")]
3.28
rated voltage
rated value of the voltage assigned by the manufacturer to which operating and
performance characteristics of trace heaters are referred
[SOURCE: IEC 60050-426:2008, 426-20-25, modified (addition of "assigned by the
manufacturer")]
3.29
routine test
test that is carried out by the manufacturer of the trace heater on all trace heaters during or
after the production process
3.30
series trace heater
heating element electrically connected in series with another series trace heater
with a single current path and with a specific resistance at a given temperature for a given
length
[SOURCE: IEC 60050-426:2008, 426-20-26]
3.31
sheath
uniform and continuous metallic or non-metallic outer covering enclosing the
trace heater used to provide protection against influence from the surroundings (corrosion,
moisture, abrasion etc.)
Note 1 to entry: See overjacket (3.25)
[SOURCE: IEC 60050-426:2008, 426-20-26, modified (addition of Note 1 to entry)]
3.32
sheath temperature
temperature of the outermost continuous covering (braid, sheath, or overjacket)
that may can be exposed to the surrounding atmosphere
[SOURCE: IEC 60050-426:2008, 426-20-28]
3.33
stabilized design
design where the temperature of the trace heater, by design and use, stabilizes
below the high limit temperature, under the most unfavourable conditions, without the need for
a protective system to limit the temperature
[SOURCE: IEC 60050-426:2008, 426-20-29]
3.34
start-up current
current response of a trace heater following energization
[SOURCE: IEC 60050-426:2008, 426-20-30, modi
...
