IEC 61850-6:2009/AMD1:2018

IEC 61850-6 ®
Edition 2.0 2018-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Communication networks and systems for power utility automation –
Part 6: Configuration description language for communication in electrical
substations related to IEDs
Réseaux et systèmes de communication pour l'automatisation des systèmes
électriques –
Partie 6: Langage pour la description de configuration pour la communication
dans les postes électriques, entre les dispositifs électroniques intelligents (IED)

IEC 61850-6:2009-12/AMD1:2018-06(en-fr)

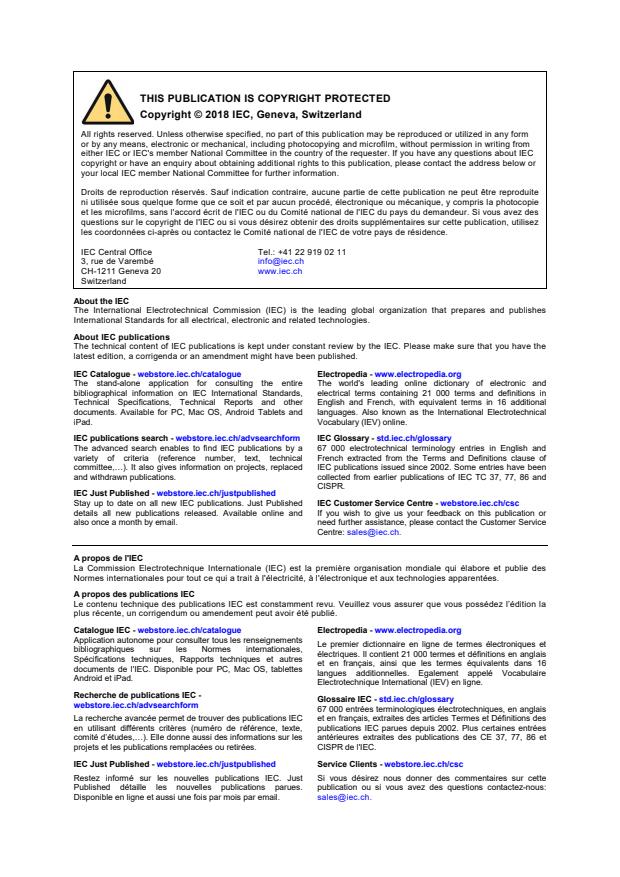

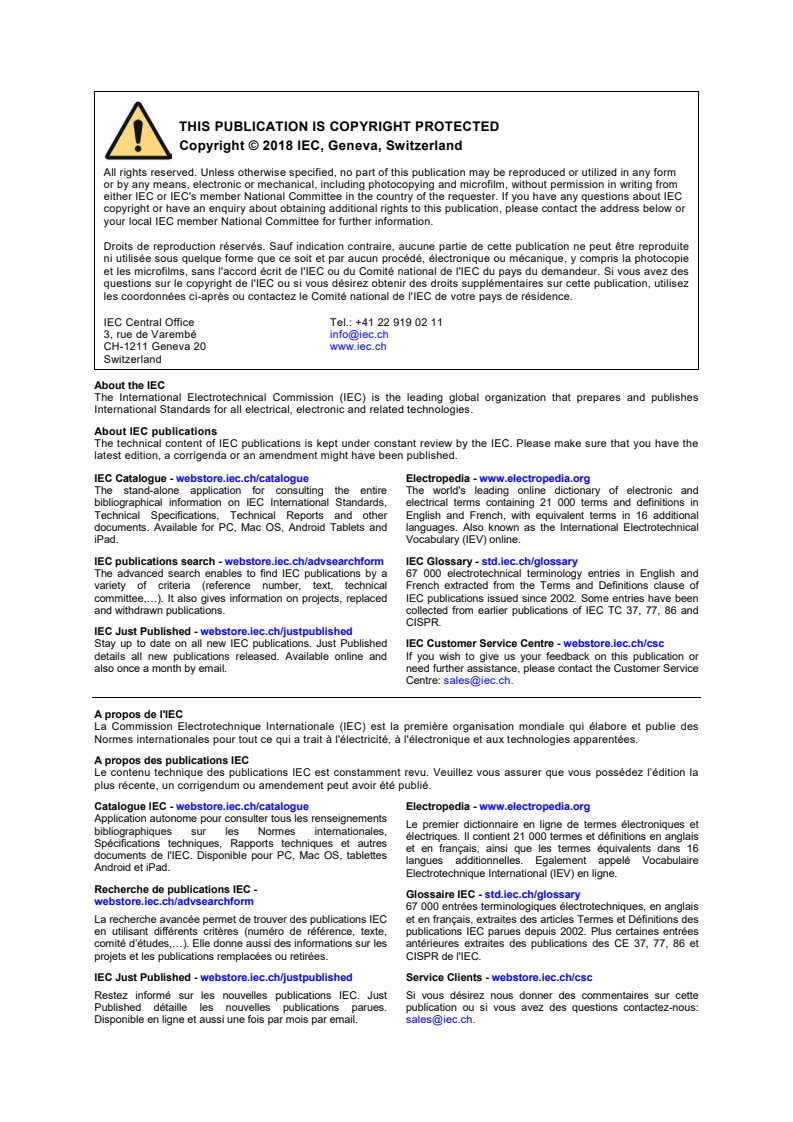

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.

IEC 61850-6 ®
Edition 2.0 2018-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Communication networks and systems for power utility automation –

Part 6: Configuration description language for communication in electrical

substations related to IEDs
Réseaux et systèmes de communication pour l'automatisation des systèmes

électriques –
Partie 6: Langage pour la description de configuration pour la communication

dans les postes électriques, entre les dispositifs électroniques intelligents (IED)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.200 ISBN 978-2-8322-6242-9

– 2 – IEC 61850-6:2009/AMD1:2018
 IEC 2018

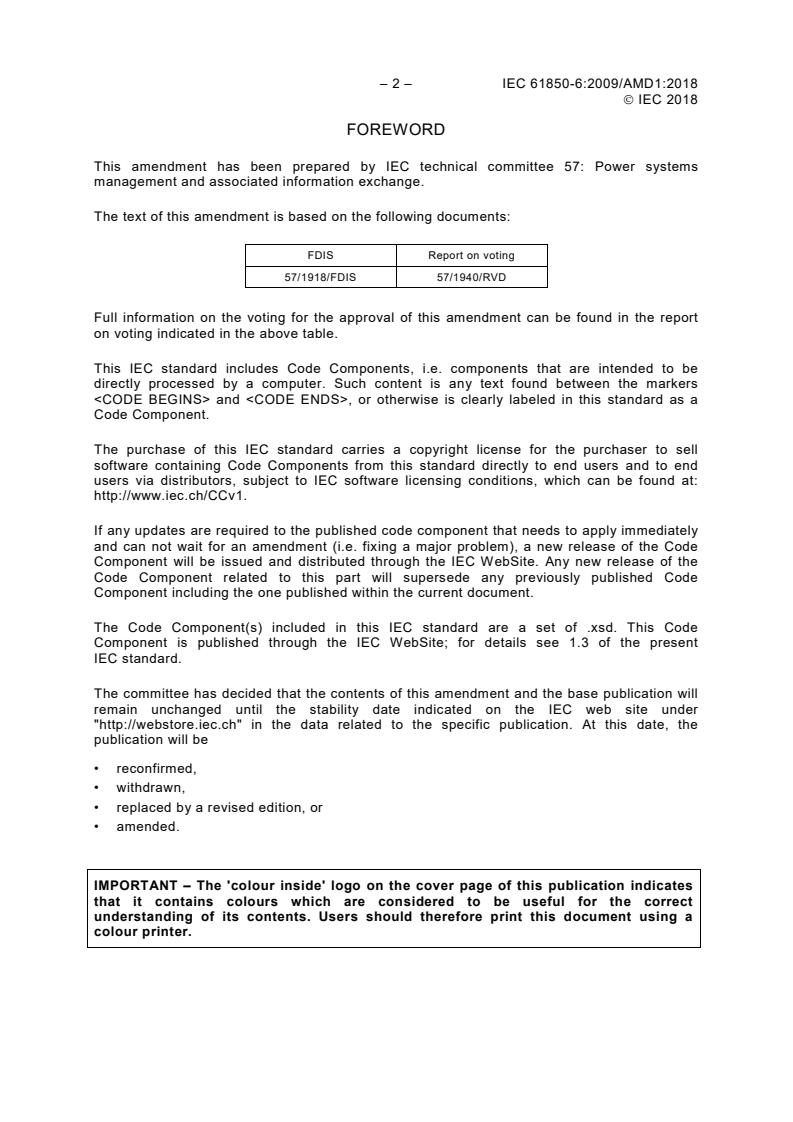

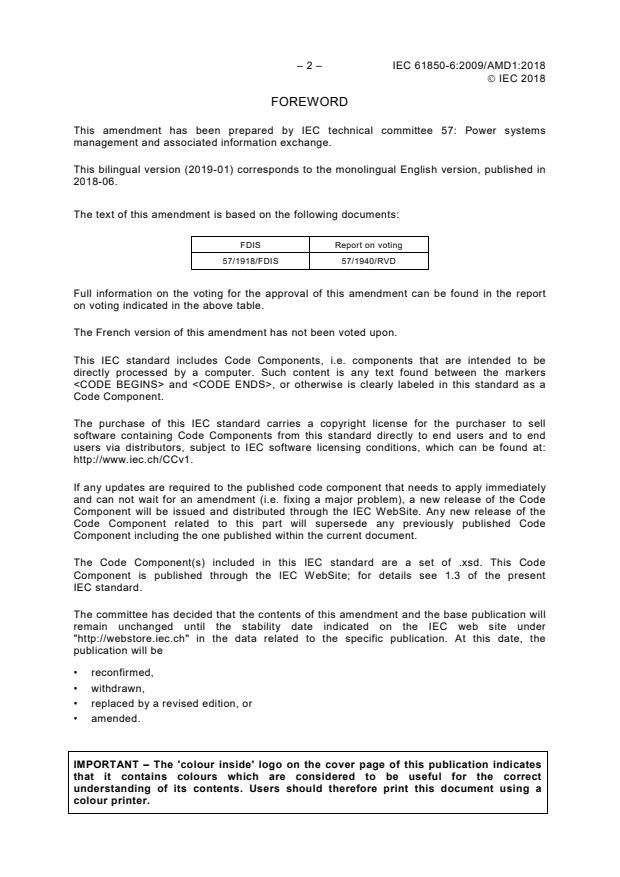

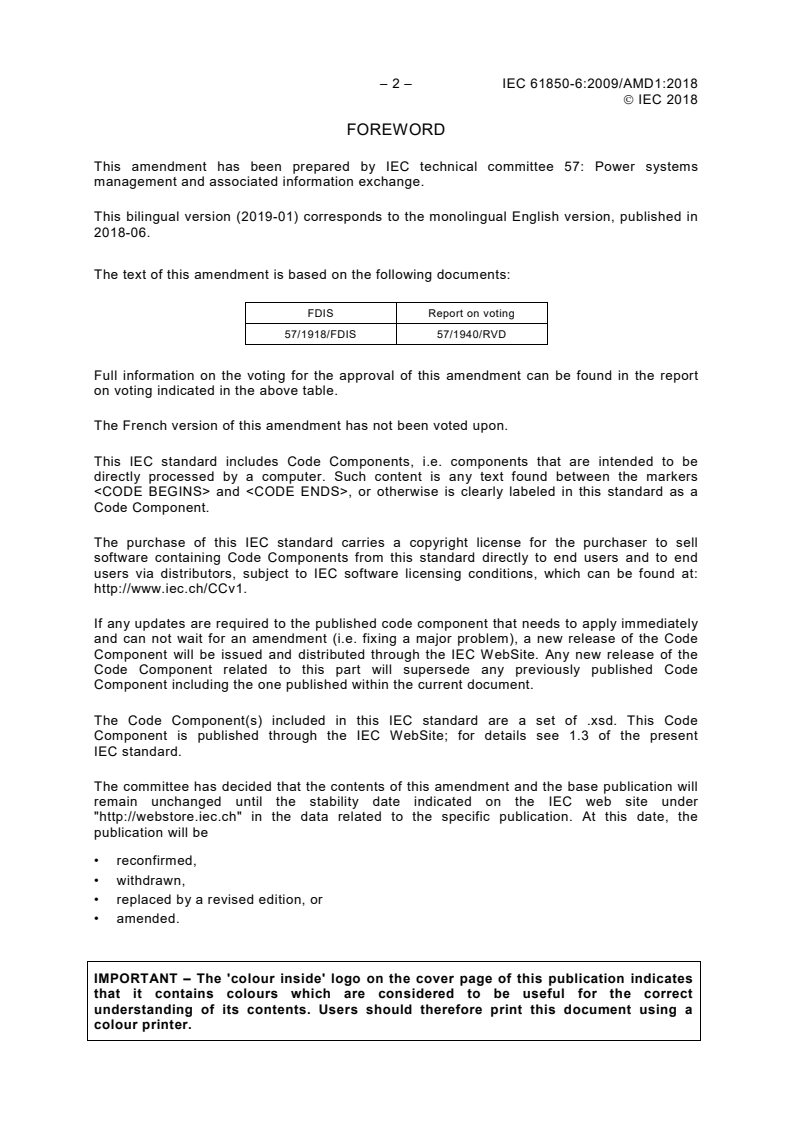

FOREWORD
This amendment has been prepared by IEC technical committee 57: Power systems
management and associated information exchange.
This bilingual version (2019-01) corresponds to the monolingual English version, published in
2018-06.
The text of this amendment is based on the following documents:
FDIS Report on voting
57/1918/FDIS 57/1940/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The French version of this amendment has not been voted upon.
This IEC standard includes Code Components, i.e. components that are intended to be
directly processed by a computer. Such content is any text found between the markers
and , or otherwise is clearly labeled in this standard as a
Code Component.
The purchase of this IEC standard carries a copyright license for the purchaser to sell
software containing Code Components from this standard directly to end users and to end
users via distributors, subject to IEC software licensing conditions, which can be found at:
http://www.iec.ch/CCv1.
If any updates are required to the published code component that needs to apply immediately
and can not wait for an amendment (i.e. fixing a major problem), a new release of the Code
Component will be issued and distributed through the IEC WebSite. Any new release of the
Code Component related to this part will supersede any previously published Code
Component including the one published within the current document.
The Code Component(s) included in this IEC standard are a set of .xsd. This Code
Component is published through the IEC WebSite; for details see 1.3 of the present
IEC standard.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
 IEC 2018
INTRODUCTION
This Amendment 1 aims to amend the original content of IEC 61850-6:2009 and to correct its
content in order ensure a better interoperability of the components implementing it.
This Amendment 1 brings two distinct sets of changes
1) Resolved Interop Issues (covered by Clause 3 of this Amendment 1) which have
already followed the technical issues ( Tissues) process as described in IEC 61850-1
and have reached the green “status”.
2) Resolved Editorial Tissues (Technical Issues) (covered by Clause 4 of this Amendment
1) which may have lead to interoperability issues.
The resolutions of these issues which lead to these changes are described in greater detail in
the Tissue database hosted at http://tissue.iec61850.com.
The only new features compared to the original IEC 61850-6:2009 are the inclusion of the
Process and Line elements supporting other application areas than substations, and
necessary enhancements to fully support the amended communication related parts. Apart
from this this Amendment 1 strictly respects the scope of the original edition.
Because some of the corrected issues may have a widespread impact on many pages of the
original standard, a complete consolidation of these changes into IEC 61850-6:2009 is
circulated through the reference 57/xxxx/INF, which reflects the content of IEC 61850-6:2009
as amended by this Amendment 1.
Technical issues summary
N°, Subject, Cat, Clause and Paragraph are as they appear on the Tissue database hosted at
http://tissue.iec61850.com where all technical issues have been stored from the origin of
IEC 61850.
“Subject” defines very briefly the topic under focus.
“Cat” defines whether this has been considered as an Interoperability Issue (IntOp2) or just a
need for amending IEC 61850-6:2009.
The Tissues which have been considered in this Amendment 1 are:
N° Subject Cat Clause Paragraph
658 Tracking related features IntOp2 Annex A
660 XML encoding header repeat Ed2 Annex A.4
FCDA element cannot be a
663 IntOp2 9.3.7 Table 22
"functionally constrained logical node"
668 Modeling of autotransformer IntOp2 9.2.4
678, 699 DO type description table Ed2 Table 43
687 ResvTms attribute at the SGCB Ed2 9.3.12
719 ConfDataSet maxAttributes defineds IntOp2 9.3.2 Table 11
FCDA elements in data set
721 Log element name IntOp2 9.3.5
731 SCL example inconsistent Ed2 9.3.4§
752 Input section naming Ed2 9.3.13
768 bType VisString65 is missing IntOp2 Annex A
779 Relative object references IntOp2 9.5.4.1

– 4 – IEC 61850-6:2009/AMD1:2018
 IEC 2018
N° Subject Cat Clause Paragraph
787 SICS I45 inconsistency Ed2 Annex G
788 SICS S56 from optional to mandatory IntOp2 Annex G
789 (822) ConfLdName for services applies to IntOp2 9.3.2 Table 11
client and server
804 valKind and IED versus system IntOp2 9.5.4.1
configurator
806 Max length of log name incosnsten to Ed2 Annex A SCL_BaseSimpleTypes
part 7-2
807 Indicate if ‘owner’ is present in RCB Ed2 9.3.2 Table 11
823 valKind for structured data attributes IntOp2 9.5.4.1
824 Short addresses at structured data IntOp2 9.3.6, 9.5.4.1
attributes
825 Floating point values IntOp2 9.5.4.1 Table 45
845 SGCB ResvTms IntOp2 9.3.2 Table 11
853 SBO and ProtNs IntOp2 9.5.5
855 recursive SubFunction Ed2 9.2.7
856 Voltage level frequency and phases Ed2 9.2.2
857 Function/SubFunction for primary Ed2 9.2.4
equipment
873 Examples for “curvpts” Ed2 9.3.6 end of paragraph
886 Missing 8-1 P-Types Ed2 Annex A
901 tServices at Ap and at IED Ed2 9.3.2 below Table 12
936 SupSubscription parameter usage is IntOp2 9.3.2 Table 11
difficult
948 Enumeration (string) value format IntOp2 9.5.6
949 type of LN inst is ambiguous Ed2 9.3.5 Table 17
1118 RptEnabled definition Ed2 9.3.8
1147 Filehandling service capability Ed2 9.3.2 Table 11
1195 Typographical error Ed2 9.3.2
1208 IP V6 address format IntOp2 Annex A.5
1284 SCSM mapping may require a Ed2 7
communication section in an ICD file
1298 How to differentiate preconfigured Ed2 9.3.2 Table 11
Report data sets from those generated
by the system tool
1304 Error in SCL object model Ed2 Figure 6
1318 SSD will not validate against XSD Ed2 9.2.6 Note 2
1328 Limitation of the size of identifiers IntOp2 9.5.2, 9.5.3, 9.5.6
1354 Changes to SICS Ed2 Annex G
1359 Replace “c37_238” with “61850-9-3” Ed2 9.3.2
1365 Need to tighten up the XSD in regards IntOp2 9.2.6 3
to IED name usage
1395 Client LN attributes IntOp2 9.3.8
1396 The use and configuration flow of Ed2 9.3.2 Table 11
LGOS and LSVS is Unclear
1397 Subscription limitation visible in IxD file Ed2 Annex G
1398 originalSclVersion management in SCT Ed2 9.3.2
1402 Extref during engineering Ed2 9.3.13, Annex
H(new)
 IEC 2018
N° Subject Cat Clause Paragraph
1415 SICS-S110 IID import mandatory Ed2 Annex G Table G.2
1419 Support of ldName on other IEDs Ed2 Annex G Table G.1
1434 Add capability to change nofASDU is Ed2 9.3.2 Table 11
missing
1444 Need to support fixed and SCT Ed2
controlled data sets
1445 ConfReportControl and a fixed Ed2 9.3.2 Table 11
reportSettings
1447 Restriction on EnumTypes in SCL Ed2
1448 Not possible to determine the Ed2
restriction on number of BRCBs if
rptMod=both
1450 originalSclXxx computation rules IntOp2 9.3.2
1457 Multiple DOI nodes with the same Ed2
name
1458 New ExtRef attributes for later binding Ed2

– 6 – IEC 61850-6:2009/AMD1:2018
 IEC 2018
INTRODUCTION
Add, after the first paragraph of the Introduction, the following new paragraph:
While this part describes the language to describe the configuration of IEC 61850 systems,
other parts of the standard describe how to configure the system and possible restrictions.
Therefore implementations claiming conformance to this standard shall take into account
constraints from the other normative references. Some references to the other parts have
been included for the purpose of clarification but these references are not all inclusive.
1 Scope
Replace the existing text of the Scope with the following new text:
1.1 General
This part of IEC 61850 specifies a file format for describing communication-related IED
(Intelligent Electronic Device) configurations and IED parameters, communication system
configurations, switch yard (function) structures, and the relations between them. The main
purpose of this format is to exchange IED capability descriptions, and SA system descriptions
between IED engineering tools and the system engineering tool(s) of different manufacturers
in a compatible way.
The defined language is called System Configuration description Language (SCL). The IED
and communication system model in SCL is according to IEC 61850-5 and IEC 61850-7-x.
SCSM specific extensions or usage rules may be required in the appropriate parts.
The configuration language is based on the Extensible Markup Language (XML) version 1.0
(see XML references in Clause 2).
This standard does not specify individual implementations or products using the language, nor
does it constrain the implementation of entities and interfaces within a computer system. This
part of the standard does not specify the download format of configuration data to an IED,
although it could be used for part of the configuration data.
1.2 Namespace name and version
This new section is mandatory for any IEC 61850 namespace (as defined by
IEC 61850-7-1:2011).
The parameters which are identifying this new release of the SCL namespace
xmlns:scl="http://www.iec.ch/61850/2003/SCL" are:
• Namespace Version: 2007
• Namespace Revision: B
• Namespace Release: 4
• Namespace release date: 2018/01/22

 IEC 2018
The table below provides an overview of all published versions of this namespace.

Edition Publication date Webstore Namespace
Edition 1.0 2004-03 IEC 61850-6:2004 IEC 61850-6:2003
Edition 2.0 2009-12 IEC 61850-6:2009 IEC 61850-6:2007B
Amendment 1 of Edition 2018 IEC 61850-6:2009/AMD1:2018 IEC 61850-6:2007B4
2.0
Edition 2.1 2018 IEC 61850-6:2009+AMD1:2018 CSV IEC 61850-6:2007B4

1.3 Code Component distribution
The Code Components included in this IEC standard are also available as electronic machine
readable file at:
http://www.iec.ch/tc57/supportdocuments/IEC_61850-6.2018.SCL.2007B4.full.zip
The Code Component(s) included in this IEC standard are potentially subject to maintenance
works and user shall select the latest release in the repository located at:
http://www.iec.ch/tc57/supportdocuments
The latest version/release of the document will be found by selecting the file
IEC_61850-6.2018.SCL.{VersionStateInfo}.full.zip with the filed VersionStateInfo of the
highest value.
Each Code Component is a ZIP package containing the electronic representation of the Code
Component itself, with a file describing the content of the package (IECManifest.xml).
The IECManifest contains different sections giving information on:
– The copyright notice
– The identification of the code component
– The publication related to the code component
– The list of the electronic files which compose the code component
– An optional list of history files to track changes during the evolution process of the
code component
The IECManifest related to this publication is:



COPYRIGHT (c) IEC, 2017. This version of this XSD is part of IEC 61850-
6:2009/AMD1:2018; see the IEC 61850-6:2009/AMD1:2018 for full legal notices. In case of any differences
between the here-below code and the IEC published content, the here-below defintion supersedes the IEC
publication; it may contain updates. See history files. The whole document has to be taken into account to have a
full description of this code component.
See www.iec.ch/CCv1 for copyright details.

IEC License

content="full" date="2018-01-22">








– 8 – IEC 61850-6:2009/AMD1:2018
 IEC 2018



startingVersion="SCL.XSD.v2007B" endingVersion="SCL.XSD.v2007B4"/>


The package is identified using the following naming rule:
{RefStandard}.{CodeComponentName}.{VersionRevision}.{LightFull}{PublicationStage}.zip
For current publication, the Code Component package name is:
IEC_61850-6.2018.SCL.2007B4.full.zip
The life cycle of a code component is not restricted to the life cycle of the related publication.
The publication life cycle goes through two stages, Version (corresponding to an edition) and
Revision (corresponding to an amendment). A third publication stage (Release) allow
publication of Code Component without need to publish an amendment.
This is useful when InterOp Tissues need to be fixed. Then a new release of the Code
Component will be released, which supersedes the previous release, and distributed through
the IEC TC57 web site.
2 Normative references
Add the following two new references:
IEC 61850-4, Communication networks and systems for power utility automation – Part 4:
System and project management
IEC IEEE 61850-9-3, Communication networks and systems for power utility automation –
Part 9-3: Precision time protocol profile for power utility automation
Replace the existing reference to IEC 61850-7-1 with the following new reference:
IEC 61850-7-1:2011, Communication networks and systems for power utility automation –
Part 7-1: Basic communication structure – Principles and models
5 Intended engineering process with SCL
5.3 Use of SCL in the engineering process
Add, after the first sentence of the second paragraph of 5.3, the following new sentence:
Clause 10 provides more details about the engineering rights of the tool roles.
6 The SCL object model
6.1 General
Replace the existing text of the first numbered point in the fifth paragraph by the following:
1) Substation / Line / Process: this part describes the primary process related functions and
devices like switch yard, respectively any primary process in the functional view according
to IEC 81346-1, electrical connections on single line level (topology), and the designation
of equipment and functions;
 IEC 2018
Replace existing Figure 6 with the following new Figure 6:
Functional/substation structure
Function Subfunction
1 Product / IED structure
Communication structure
Transformer
Substation
1 1
SubEquipment
Equipment
1 Phase
Voltage
Bay
level 1
0.2
CBR DIS VTR
Terminal
ConnectivityNode
0.*
LNode Data
1 1.*
0.*
Client access points
0.*
1.* 1
AccessPoint
0,1 Server LDevice
1.*
1.*
1.*
0,1
Router
Subnetwork
IED
0,1
Clock
IEC
Figure 6 – SCL Substation object model
6.2 The substation model
Replace the existing title and text of Subclause 6.2 with the following new title and text:
6.2 The process model
The process model (upper part of Figure 6 for substations) is an object hierarchy based on
the functional structure of the primary process. A special primary process is the Substation,
which has its own SCL element. Another is the Line, which connects electrically bays of
substations. The generic Process element shall be used to model any additionally needed
structuring levels of a power grid above the substation and for all other primary processes.
Although each object is self-contained, its reference designation is derived from its place in
the hierarchy. Because LNs perform functions within the complete context of the Process /
Substation respective Line hierarchy, they can be attached as functional objects at each
function level. Typically, a switch controller LN is attached to a switching device, while a
measuring LN is attached to the bay, which delivers the measurands, and transformer-related
LNs are attached to the appropriate transformer.
NOTE 1 In the CIM model measurands are allocated to primary device terminals. This is a topological allocation,
while the allocation in SCL in first line serves functional naming. However, if the single line topology is modelled
completely, by means of the transformers (VTR, CTR) and their data acquisition nodes (TVTR, TCTR) also some
primary device terminal in the topology can be found to which the measurands belong according to the CIM model.
The purpose of the process model is
• to relate a logical node and its function to a function of or at the primary process (process
part or substation part or line part or equipment or subequipment);
• to derive a functional designation for the logical node from the process structure.

– 10 – IEC 61850-6:2009/AMD1:2018
 IEC 2018
The following objects of the functional structure (in hierarchical order) are used in the SCL
model, for power networks analogue to the CIM model for energy management systems. More
background information on these terms can be found in IEC 61850-2:
Process the whole or part of the primary process handled by the automation
system, which is no substation. Can be parts of the power grid containing
several substations, or complete other primary processes like power
plants.
Line a line connecting several substations.
Substation the object identifying a whole substation.
VoltageLevel an identifiable, electrically connected substation part having an identical
voltage level.
Bay an identifiable part or subfunction of the switch yard (substation) within
one voltage level.
Equipment an apparatus within the switch yard, for example circuit breaker,
disconnector, voltage transformer, power transformer winding etc. The
single line diagram of a switch yard shows the electrical connections
between these primary devices. Connectivity node objects model these
connections. Therefore, each primary device can contain at its terminals
references to the connectivity nodes to which it is connected. At single line
level, one or two terminals (connections) per equipment are normally
sufficient.
SubEquipment a part of an Equipment, which might especially be one phase of a three-
phase equipment.
ConnectivityNode the (electrical) connectivity node object connecting different primary
devices. Typical connectivity node examples are: connecting nodes within
a bay, bus bars connecting several bays in the same voltage level, lines
connecting bays in different substations. See also Equipment above.
Terminal an electrical connection point of a primary apparatus at single line level. A
terminal can be connected to a ConnectivityNode. Within SCL terminals
can be explicitly named, or exist implicitly.
Function allows additional functions at substation, voltage level or bay level, either
independent from the basic switch yard functionality like fire fighting or
building supervision, or as part of the switch yard like main 1 protection
and main 2 protection.
SubFunction a hierarchical subpart of a Function or SubFunction, e.g. earth fault
protection as subpart of the main 1 function.
EqFunction allows additional functions at or below Equipment level, e.g. redundant
functions on the same equipment.
EqSubFunction a hierarchical subpart of an EqFunction or EqSubFunction.
The PowerTransformer is a special equipment, which can hierarchically be located below
Substation, VoltageLevel or Bay. It contains Transformer windings as equipment, which might
again have a relation to a tap changer.
NOTE 2 Observe that the hierarchical structure is used for functional designations. If substructures of bays are
needed, this can be introduced by appropriate structured bay names. If, for example, a bay B1 is structured into
sub-bays SB1 and SB2, this would in the SCL model lead to two bays named B1.SB1 and B1.SB2. If logical nodes
are also attached to the B1 structure level, then B1 can be introduced as a third bay.
NOTE 3 In the CIM model the bay level is optional, while in SCL it is mandatory. However, if the bay level
structuring is not needed, a whole voltage level can be considered to be one bay. The only restriction here is that
the SCL syntax demands at least one character as name on each level, so that in this case the voltage level name
needs at least 2 characters, from which within the SCL substation structure the first character is taken as the
voltage level name, and the last character is taken as the name for the one bay element.

 IEC 2018
7 SCL description file types
Add the following new text at the end of the first paragraph of the first bullet (ICD file):
A specific SCSM might make this mandatory for some address parts.
8 SCL language
8.1 Specification method
Replace the existing paragraph following Table 1 by the following new paragraph:
In the following schema definition clauses it is assumed that the SCL schema definition file
starts as follows:

xmlns:scl="http://www.iec.ch/61850/2003/SCL"
xmlns="http://www.iec.ch/61850/2003/SCL"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
elementFormDefault="qualified" attributeFormDefault="unqualified"
finalDefault="extension" version="9999A9">

where version 9999A9 is the year, index letter and release number stating the SCL schema
version, which is 2007B4 for this document. The schema then ends with

Replace existing Figure 9 by the following new Figure 9:
class SCL2007B4
tBaseElement SCLSchemaVersion
+ v ersion: xs:normalizedString = 2007B4 {readOnly }
SCL
+DataTy peTemplates
+Header
tHeader tDataTypeTemplates
+ release: tSclRelease = "4" {readOnly }
0.1
+ rev ision: tSclRev ision = "B" {readOnly }
+ v ersion: tSclVersion = "2007" {readOnly }
+IED
0.1
tUnNaming
tUnNaming
0.*
tIED
+Communication
tCommunication
+Line 0.*
+Process
+Substation 0.* 0.*
tEquipmentContainer tGeneralEquipmentContainer tGeneralEquipmentContainer
tSubstation tLine tProcess
IEC
Add, after the fourth sentence of the last paragraph of 8.1, the following new text:
SCL may use values to identify another element of the XML file. When doing this, the
referenced element shall exist in the file, otherwise the structure is invalid. For example (full
definition of this example is given later) in element GSE, a specific attribute called cbName
indicates the element GSEControl and attribute IdInst indicates the Ldevice containing this

– 12 – IEC 61850-6:2009/AMD1:2018
 IEC 2018
GSEControl, for which the GSE has been created, and if this GSEControl is not present, the
GSE shall not exist.
8.2.1 MustUnderstand rules
Replace the existing first paragraph of 8.2.1 with the following new text:
The MustUndestand / MayIgnore rules have to be followed when reading an SCL file. When
producing SCL output, this should conform to the claimed supported SCL
version/revision/release.
Elements, which a tool or an IED must understand to produce interoperable results, shall be
declared as mustUnderstand and marked with the mustUnderstand attribute with value true,
so that the tool processing the instance knows if it can ignore the element or not. All elements
which the tool does not understand and which do not have the mustUnderstand property, can
safely be ignored. The ‘may ignore all’ strategy for elements (tags) is taken, i.e. ignore the
element and all its contained contents.If a known element contains directly below it an
element with mustUnderstand property which a tool does not understand, then it must also
ignore the known containing element.
For attributes just the attribute not understood is ignored. This means especially, that there is
no ‘mustUnderstand’ possibility for attributes, only for elements. Therefore adding of attributes
to the language is done only as optional attributes with a defined default value in the newer
version, which is backward compatible to ‘not knowing this attribute’. For later compatibility it
is good practice to use these default values from the schema by not explicitly writing them
into the SCL instance. This is possible because once released default values are not changed
in the schema, as long as the attribute itself is needed.
Add, at the end of 8.2.1, the following new text:
The following example illustrates the use of the mustUnderstand feature.
An IED defines a GOOSE control block as follows:

AA1_D1_Q11A1
AA1_D1_Q10A1
AA1_D1_Q07A1
R-GOOSE

If the tool importing this does not understand the Protocol element, then it is also not allowed
to use (e.g. add IED names) the GSEControl element containing it, although GSEControl is
known to it.
8.2.3 Incompatibilities to earlier versions
Replace the existing text of the fifth bullet point with the following new text:
• The introduction of the mustUnderstand attribute; it is currently used for the Protocol
element contained in GOOSE and SV control block definitions.
Add the following new text after the eighth bullet point:
• The newly introduced LDevice attribute ldName leads to incompatibilities with edition 1
(2003A) tools, as ignoring this attribute leads to wrong communication level configuration
• The attribute ReportControl.rptId shall no longer have the empty string value
• It is clarified that the meaning of the maxAttributes attribute of the ConfDataSet element
denotes FCDAs and not basic attributes.

 IEC 2018
• The max attribute of the SupSubscription element has been replaced by two special
attributes for GOOSE and SV supervision.
• The modeling of the transformer neutral point has been corrected.
• The length of DataTypeTemplate identifiers is restricted to 255 characters
• EqFunction and EqSubFunction are used below Equipment elements instead of Function /
SubFunction
8.3.5 XML name spaces
Replace the existing first paragraph with the following new text:
For all tag elements inheriting from tBaseElement, private or standardized extensions may be
added by means of (sub-)tags and attributes. These added parts shall belong to a defined
XML name space with defined semantics for all these elements. It is recommended to define
the used name spaces at the main tag (SCL), although standard XML allows to add it also
below at elements from this name space. Observe that standard XML rules allow to replace
this definition.
This namespace shall not be the same as the target namespace of the SCL schema (see
below). For private name spaces, the used internal name space abbreviation should start with
the character e. IED configurator tools shall be aware that the used name space abbreviation
might be changed by the system configurator, if its relation to the referenced URI is not
unique across all used ICD/IID files. An example of a standard extension for single line or
communication diagram layouts is given in Annex C. The name space URI of this version of
the SCL, which shall be used as default name space in all SCL files, is:
xmlns:scl="http://www.iec.ch/61850/2003/SCL"
8.4 General Structure
Replace the existing first paragraph with the following new text:
An SCL – XML document starts with the XML prolog, and then continues with elements as
defined later. The prolog shall contain the identification of the XML version and the character
coding used. UTF-8 coding is the preferred coding and shall be supported if standard
conformance is claimed. The XML encoding attribute shall be processed in a case-insensitive
way. SCL generators shall always use upper case encoding.
The whole SCL definition part is contained in the SCL element:
9 The SCL syntax elements
9.1 Header
Add the following new text after the Note after Table 3:
The revision history is optional. It describes the modification history of the containing file. This
means e.g. that in principle the history of an SCD file is independent from that of IID and ICD
files it is based on, although the SCD file history might contain the inclusion of a specific IID
file version and revision into a project as comment.

– 14 – IEC 61850-6:2009/AMD1:2018
 IEC 2018
9.2 Substation description
Replace the existing title of Subclause 9.2 by the following new title:
9.2 Process description
9.2.1 General
Replace the first five paragraphs before Figure 15 with the following new text:
The process section serves to describe the functional structure of a primary process like a
power plant or a substation, and to identify the primary devices and their electrical
connections inside substations and power networks. For an industrial process or to describe
whole power networks, it is possible to have several substation sections, one for each
substation served by the automation system. Sets of substations can be structured by means
of the Process element. Substations can be electrically connected by lines modelled with the
Line element. By means of logical nodes attached to the primary process elements, this
clause defines additionally the system functionality (for example, in an SSD file), or, in the
case where the logical nodes are already allocated to IEDs (SCD file), the relation of IED
functions to the power system.
Note that the name attribute is always mandatory and shall not be the empty string. If the
substation, line or process section is used as a template within an ICD file, then the name
shall be TEMPLATE. The name value is also a global identification of the process element,
because it shall be unique for all substation / line / process elements contained in the SCL
file.
If the desc attribute is missing, its default value is an empty string.
The Process and Function related elements have additionally an optional type attribute, which
allows to define the type of the process / function object. it is recommended that other
application areas standardize on these type values.
Logical nodes (LNode) can be attached at each level of the structure (i.e., substation, voltage
level, bay, equipment, subequipment respective function, subfunction). Power transformers
(PowerTransformer) can also be attached at the structure levels substation, voltage level and
bay. Conducting equipments (ConductingEquipment) can only be attached to the bay level.
Logical node instances at the same level shall have different identifications.
The UML diagram of 209HFigure 15 gives an overview on the substation section without the
Process element:
Add the following new text and figure to the end of Subclause 9.2.1:
The Process element is a logical node container, which can be used for other processes than
substations, or to group several substations into parts of a power grid. For the first purpose it
can also contain equipment elements. It can be recursively used, and its type attribute can
indicate the type of the process part / process object identified by the name attribute. It is
recommended that the standards for the application areas standardize the type attribute
values.
The structure of the Process and Line elements is shown as UML diagram in Figure 24.

 IEC 2018
IEC
Figure 24 – UML diagram of Process and Line elements
The general Process element (of type tProcess, see Figure 24), which is referred to by the
SCL element, includes additionally several identity constraints:
• Within a Process, there cannot be two Substation elements with the same name.
• Within a Process, there cannot be two direct ConductingEquipment or
GeneralEquipment elements with the same name.
• Within a Process, there cannot be two Function elements with the same name.
• Within a Process, there cannot be two LNode elements with the same combination of
lnInst, lnClass, iedName, ldInst, and prefix.
• Further, in order to avoid any ambiguities, within a Process there cannot be two direct
child elements with the same name.
• In general, at each hierarchy level within the Process section all names shall be
unique, leading to unique object references (path names) of all objects defined by the
substation naming hierarchy.
Further, inside system specifications, the following rule holds:
• For a primary system template within an ICD file, the Process name shall be TEMPLATE.
There can be a maximum of one Process element named TEMPLATE per level in one SCL
file.
• Process elements at different levels in a hierarchy branch, which have a type defined,
should have different types. Any exceptions shall be explicitly defined for this usage.

– 16 – IEC 61850-6:2009/AMD1:2018
 IEC 2018
The Line element is a logical node container, which can be used to model lines between
substations of a power grid. It can contain equipment elements modelling line segments,
general equipment and connectivity nodes.
The Line element has similar restrictions as all other process elements, namely that
• each contained element shall have a unique name.
• if a Line element is used as template in an ICD file, its name shall be TEMPLATE.
Terminals inside Line elements are allowed to reference connectivity nodes in substations.
Substations shall never reference connectivity nodes inside Line elements.
9.2.2 Voltage level
Replace the existing XML schema with the following new schema, and add the following new
