IEC 61918
(First edition – 2007)
INDUSTRIAL COMMUNICATION NETWORKS –
Installation of communication networks in industrial premises
CORRIGENDUM 1

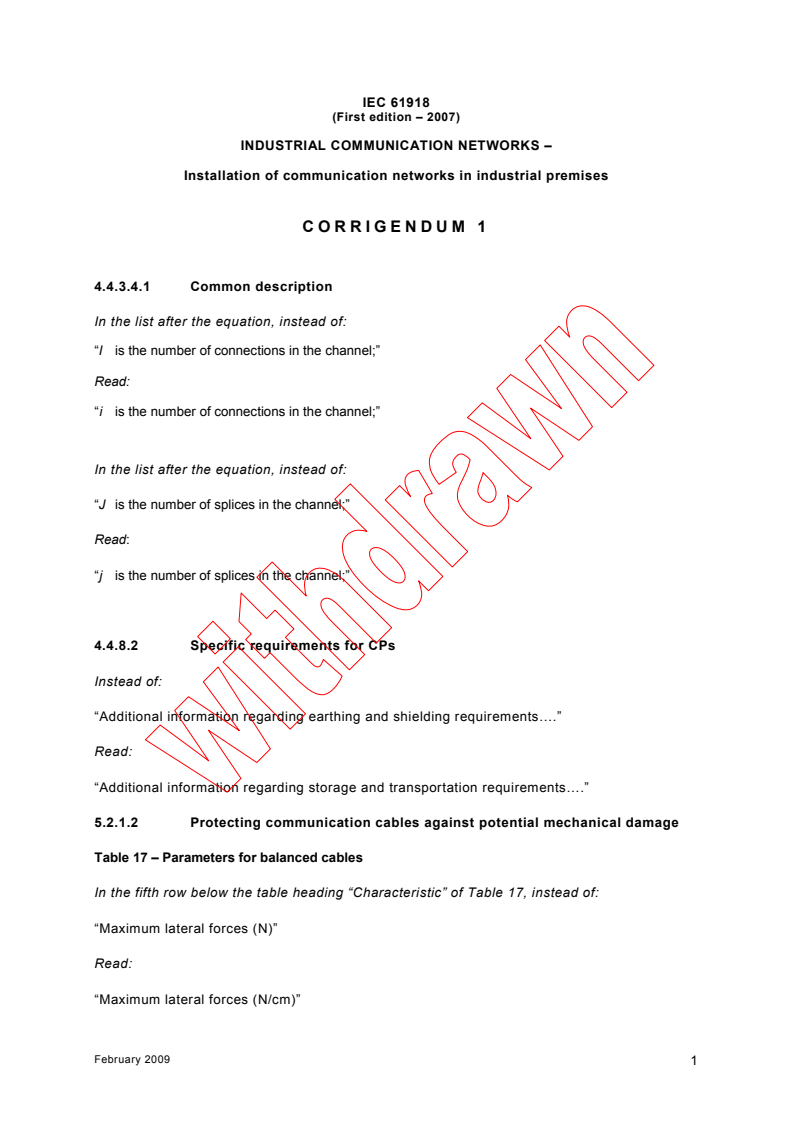

4.4.3.4.1 Common description
In the list after the equation, instead of:
“I is the number of connections in the channel;”
Read:
“i is the number of connections in the channel;”
In the list after the equation, instead of:
“J is the number of splices in the channel;”
Read:
“j is the number of splices in the channel;”
4.4.8.2 Specific requirements for CPs
Instead of:
“Additional information regarding earthing and shielding requirements….”
Read:
“Additional information regarding storage and transportation requirements….”
5.2.1.2 Protecting communication cables against potential mechanical damage
Table 17 – Parameters for balanced cables
In the fifth row below the table heading “Characteristic” of Table 17, instead of:
“Maximum lateral forces (N)”
Read:
“Maximum lateral forces (N/cm)”
February 2009
6.3.1 General
Instead of:
NOTE 2 The term “validation” in this standard has the specific meaning described in 3.1.71.
Read:
NOTE 2 The term “validation” in this standard has the specific meaning described in 3.1.70.
8.3.5 Simplified troubleshooting procedure
In the title of Figure 47, instead of:
“Figure 47 – Fault detection without special tools Further procedure”
Read:
“Figure 47 – Fault detection without special tools”
B.2 Introduction to MICE
In the second paragraph after Figure B.1, instead of:
“ … >150ms . ”
Read:
-2
“ … > 150 ms …”
B.3.1 Common description
In the fourth sentence of the paragraph above Figure B.3, instead of:
“In some cases this may restrict flexibility or may a cost and/or availability issue.”
Read:
“In some cases this may restrict flexibility or may create a cost and/or availability issue.”
February 2009

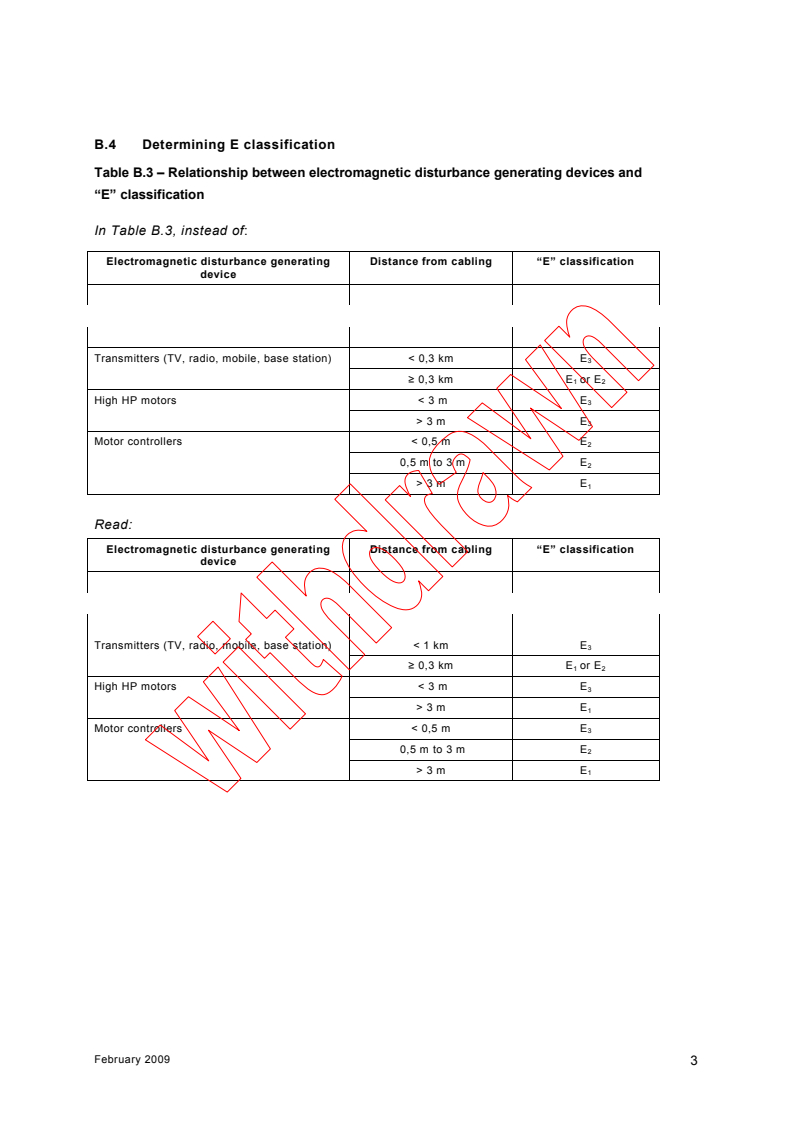

B.4 Determining E classification
Table B.3 – Relationship between electromagnetic disturbance generating devices and
“E” classification
In Table B.3, instead of:
Electromagnetic disturbance generating Distance from cabling “E” classification
device
Transmitters (TV, radio, mobile, base station) < 0,3 km E
≥ 0,3 km E or E
1 2
High HP motors < 3 m E
> 3 m E
Motor controllers < 0,5 m E
0,5 m to 3 m E2
> 3 m E
Read:
Electromagnetic disturbance generating Distance from cabling “E” classification
device
Transmitters (TV, radio, mobile, base station) < 1 km E
≥ 0,3 km E or E
1 2
High HP motors < 3 m E3
> 3 m E
Motor controllers < 0,5 m E
0,5 m to 3 m E
> 3 m E
February 2009
Annex D Connector table
Table D.2 – Connector table
In Table D.2, for the pin
...
