IEC 62196-3:2026/COR1:2026
(Corrigendum)Corrigendum 1 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 3: Dimensional compatibility requirements for DC and AC/DC pin and contact-tube vehicle couplers
General Information
- Abstract
IEC 62196-3:2026 is applicable to vehicle couplers with pins and contact tubes of standardized configuration, herein also referred to as "accessories", intended for use in electric vehicle conductive charging systems which incorporate control means, with rated operating voltage and current in accordance with IEC 62196-1:2025.
This document applies to high power DC interfaces and combined AC/DC interfaces of vehicle couplers that are intended for use in conductive charging systems for circuits specified in IEC 61851-1 and IEC 61851-23.
This third edition cancels and replaces the second edition published in 2022. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) The content of IEC TS 62196-3-1 has been integrated into this document as normative Annex AA.
b) increased ratings for all configurations;
c) reference to new tests in IEC 62196-1:2025 (Clauses 34, 35, 36 and 37).
- Status
- Published
- Publication Date
- 12-Aug-2026
- Technical Committee
- SC 23H - Plugs, Socket-outlets and Couplers for industrial and similar applications, and for Electric Vehicles
- Drafting Committee
- MT 8 - TC 23/SC 23H/MT 8
- Current Stage
- PPUB - Publication issued
- Start Date
- 13-Aug-2026
- Completion Date
- 12-Oct-2026
Buy Documents
IEC 62196-3:2026/COR1:2026 - Corrigendum 1 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 3: Dimensional compatibility requirements for DC and AC/DC pin and contact-tube vehicle couplers
Relations
- Effective Date
- 24-Jul-2026
Buy Documents
IEC 62196-3:2026/COR1:2026 - Corrigendum 1 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 3: Dimensional compatibility requirements for DC and AC/DC pin and contact-tube vehicle couplers
Get Certified
Connect with accredited certification bodies for this standard
TÜV Rheinland
TÜV Rheinland is a leading international provider of technical services.
TÜV SÜD
TÜV SÜD is a trusted partner of choice for safety, security and sustainability solutions.
DEKRA Certification Inc.
DEKRA US certification services.
Sponsored listings
Frequently Asked Questions
IEC 62196-3:2026/COR1:2026 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Corrigendum 1 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 3: Dimensional compatibility requirements for DC and AC/DC pin and contact-tube vehicle couplers". This standard covers: IEC 62196-3:2026 is applicable to vehicle couplers with pins and contact tubes of standardized configuration, herein also referred to as "accessories", intended for use in electric vehicle conductive charging systems which incorporate control means, with rated operating voltage and current in accordance with IEC 62196-1:2025. This document applies to high power DC interfaces and combined AC/DC interfaces of vehicle couplers that are intended for use in conductive charging systems for circuits specified in IEC 61851-1 and IEC 61851-23. This third edition cancels and replaces the second edition published in 2022. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) The content of IEC TS 62196-3-1 has been integrated into this document as normative Annex AA. b) increased ratings for all configurations; c) reference to new tests in IEC 62196-1:2025 (Clauses 34, 35, 36 and 37).
IEC 62196-3:2026 is applicable to vehicle couplers with pins and contact tubes of standardized configuration, herein also referred to as "accessories", intended for use in electric vehicle conductive charging systems which incorporate control means, with rated operating voltage and current in accordance with IEC 62196-1:2025. This document applies to high power DC interfaces and combined AC/DC interfaces of vehicle couplers that are intended for use in conductive charging systems for circuits specified in IEC 61851-1 and IEC 61851-23. This third edition cancels and replaces the second edition published in 2022. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) The content of IEC TS 62196-3-1 has been integrated into this document as normative Annex AA. b) increased ratings for all configurations; c) reference to new tests in IEC 62196-1:2025 (Clauses 34, 35, 36 and 37).
IEC 62196-3:2026/COR1:2026 is classified under the following ICS (International Classification for Standards) categories: 29.120.30 - Plugs, socket-outlets, couplers; 43.120 - Electric road vehicles. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 62196-3:2026/COR1:2026 has the following relationships with other standards: It is inter standard links to IEC 62196-3:2026. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 62196-3:2026/COR1:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

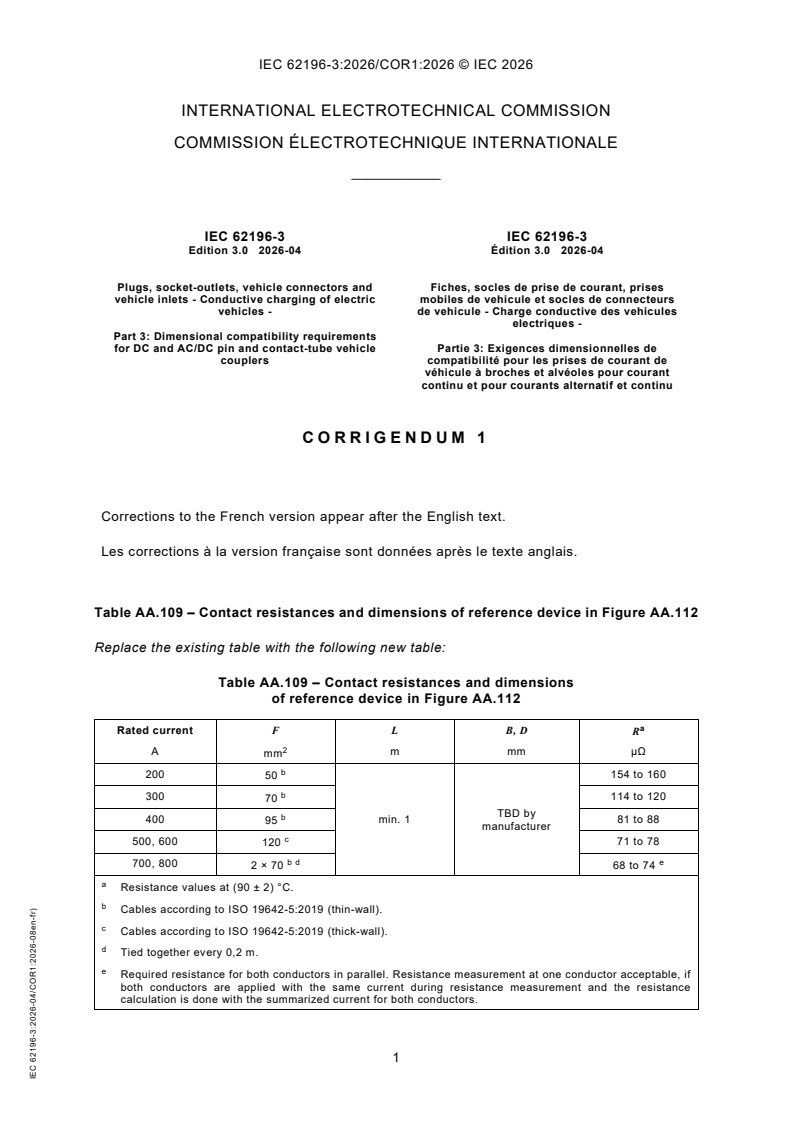

INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 62196-3 IEC 62196-3
Edition 3.0 2026-04 Édition 3.0 2026-04
Plugs, socket-outlets, vehicle connectors and Fiches, socles de prise de courant, prises
vehicle inlets - Conductive charging of electric mobiles de vehicule et socles de connecteurs
vehicles - de vehicule - Charge conductive des vehicules
electriques -
Part 3: Dimensional compatibility requirements
for DC and AC/DC pin and contact-tube vehicle Partie 3: Exigences dimensionnelles de
couplers compatibilité pour les prises de courant de
véhicule à broches et alvéoles pour courant
continu et pour courants alternatif et continu
CO RRI G E NDUM 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.
Table AA.109 – Contact resistances and dimensions of reference device in Figure AA.112
Replace the existing table with the following new table:
Table AA.109 – Contact resistances and dimensions
of reference device in Figure AA.112
a
Rated current F L B, D
R
A m mm µΩ
mm
b
200 154 to 160
b
300 114 to 120
TBD by
b
400 min. 1 81 to 88
manufacturer
c
500, 600 71 to 78
b d e
700, 800
2 × 70 68 to 74
a
Resistance values at (90 ± 2) °C.
b
Cables according to ISO 19642-5:2019 (thin-wall).
c
Cables according to ISO 19642-5:2019 (thick-wall).
d
Tied together every 0,2 m.
e
Required resistance for both conductors in parallel. Resistance measurement at one conductor acceptable, if
both conductors are applied with the same current during resistance measurement and the resistance
calculation is done with the summarized current for both conductors.
IEC 62196-3:2026-04/COR1:2026-08en-fr)

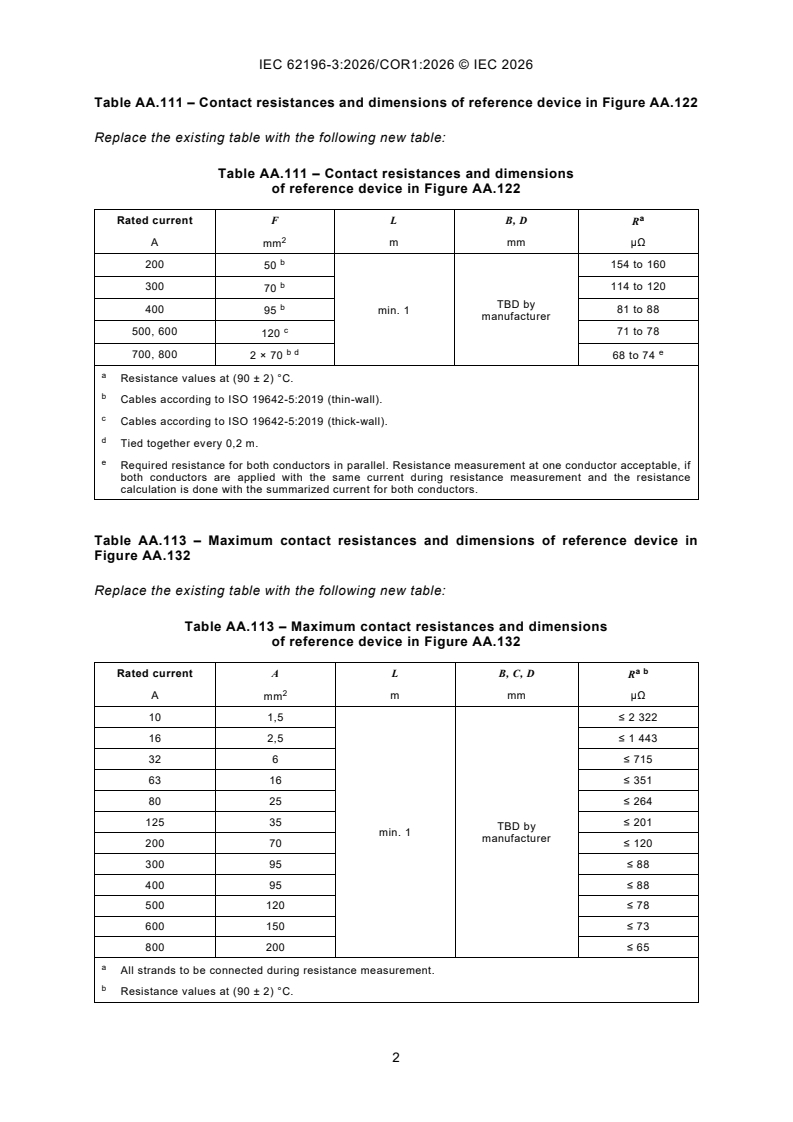

Table AA.111 – Contact resistances and dimensions of reference device in Figure AA.122
Replace the existing table with the following new table:
Table AA.111 – Contact resistances and dimensions
of reference device in Figure AA.122
a
Rated current F L B, D
R
A m mm µΩ
mm
b
200 154 to 160
b
114 to 120
TBD by
b
400 81 to 88
95 min. 1
manufacturer
c
500, 600 71 to 78
b d e
700, 800
2 × 70 68 to 74
a
Resistance values at (90 ± 2) °C.
b
Cables according to ISO 19642-5:2019 (thin-wall).
c
Cables according to ISO 19642-5:2019 (thick-wall).
d
Tied together every 0,2 m.
e
Required resistance for both conductors in parallel. Resistance measurement at one conductor acceptable, if
both conductors are applied with the same current during resistance measurement and the resistance
calculation is done with the summarized current for both conductors.
Table AA.113 – Maximum contact resistances and dimensions of reference device in
Figure AA.132
Replace the existing table with the following new table:
Table AA.113 – Maximum contact resistances and dimensions
of reference device in Figure AA.132
a b
Rated current A L B, C, D
R
A m mm µΩ
mm
10 1,5 ≤ 2 322
16 2,5 ≤ 1 443
...
