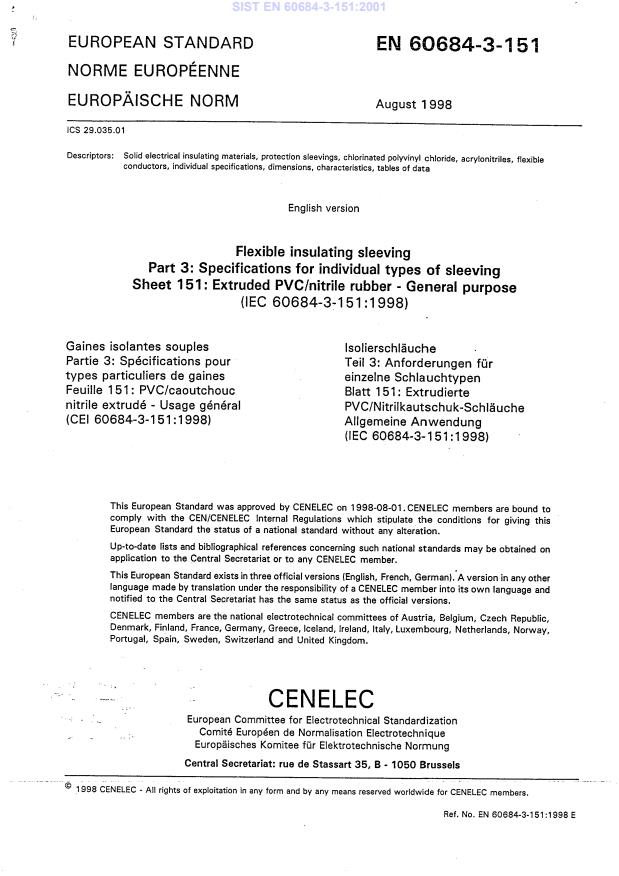

EN 60684-3-151:1998

Overview

EN 60684-3-151:1998 is a European standard developed by the CLC (CENELEC) to specify the requirements for flexible insulating sleeving-specifically, extruded general-purpose sleeving made from a blend of polyvinyl chloride (PVC) and nitrile rubber (acrylonitrile elastomers). This standard covers non-heat shrinkable tubing designed for electrical insulation, typically available with internal diameters up to 25 mm, and offered in various opaque colors such as black, brown, red, orange, yellow, green, blue, violet, grey, white, pink, and green/yellow. The document provides manufacturers and users with clear criteria to ensure product consistency and safety in electrical insulation applications.

Key Topics

• Scope of Application
  • Non-heat shrinkable, extruded PVC/nitrile rubber sleeving for general insulation purposes
  • Diameters typically up to 25 mm
• Material Composition
  • Based on blends of polyvinyl chloride (PVC) and acrylonitrile elastomers (nitrile rubber)
• Color Availability
  • Wide range of opaque colors to support coding and identification in electrical installations
• Performance Criteria
  • Outlines general requirements for mechanical and electrical properties aligned with insulation demands
• Standard Compliance
  • Ensures consistency, reliability, and adherence to European regulatory requirements

Applications

Flexible insulating sleeving manufactured under EN 60684-3-151:1998 is widely used in electrical engineering, industrial automation, and related industries where general-purpose electrical insulation is needed. Typical applications include:

• Wire and Cable Protection
  • Insulation of conductors, terminals, and joints to prevent electrical shocks, short circuits, and environmental damage
• Component Identification
  • Use of color coding for easy identification and organization within wiring looms and control panels
• Assembly in Control Cabinets
  • Facilitates neat and secure bundling or routing of wires, ensuring system reliability and maintenance safety
• Automotive and Industrial Machinery
  • Protection of wiring harnesses from abrasion, moisture, and chemical exposure
• General Electronics
  • Standard insulation material for various low and medium-voltage electronic assemblies

Related Standards

When implementing EN 60684-3-151:1998, it’s useful to consider additional and related standards for comprehensive insulation materials management:

• EN 60684-1: General requirements for flexible insulating sleeving
• EN 60684-2: Methods of test for flexible insulating sleeving
• IEC 60684 Series: International equivalents and harmonized testing protocols
• General Standards for Electrical Insulating Materials: For selection of materials and compatibility in broader systems

By adhering to EN 60684-3-151:1998, manufacturers and users can ensure that PVC/nitrile rubber flexible sleeving products provide reliable insulation, safety, and compliance with recognized European and international standards. This not only enhances electrical and mechanical system integrity but also supports efficient product identification and installation in a wide range of industries.
