EN 14316-2:2007
(Main)Thermal insulating products for buildings - In-situ thermal insulation formed from expanded perlite (EP) products - Part 2: Specification for the installed products
General Information
- Abstract
This European Standard specifies the requirements covering the four product types of expanded perlite products Perlite Aggregate (EPA), Coated Perlite (EPC), Hydrophobic Perlite (EPH) and Premixed Perlite (EPM), containing less than 1 % organic material as defined by annex D of prEN 14316-1:2002 for in-situ insulation of roofs, ceilings, walls and floors.
This Part 2 of the standard is a specification for the installed products.
This Part 2 of this standard contains specifies the checks and test procedures to be used for the declaration made by the installer of the product.
This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards.
This European Standard does not include factory made insulation products of formed shapes and boards made with expanded perlite or in-situ products intended to be used for the insulation of building equipment and industrial installations.
This European Standard does not specify performance requirements for airborne sound insulation and for acoustic absorption applications.
- Status
- Published
- Publication Date
- 30-Jan-2007
- Technical Committee
- CEN/TC 88 - Thermal insulating materials and products
- Drafting Committee
- CEN/TC 88 - Thermal insulating materials and products
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 07-Sep-2026
- Completion Date
- 23-Sep-2026
- Directive
- Harmonized Standard305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
Not Harmonized89/106/EEC - Construction products
Overview
EN 14316-2:2007 is a European Standard developed by CEN that specifies the requirements and test procedures for installed in-situ thermal insulation products formed from expanded perlite (EP). This standard covers four types of expanded perlite insulating products: Perlite Aggregate (EPA), Coated Perlite (EPC), Hydrophobic Perlite (EPH), and Premixed Perlite (EPM), each containing less than 1% organic material. The focus of Part 2 is on specifying the quality and installation verification of these insulation materials once they are applied to building elements such as roofs, ceilings, walls, and floors.
This document forms a crucial part of ensuring building energy performance by verifying that installed insulation meets specified thermal resistance and thickness requirements. EN 14316-2:2007 outlines measurement techniques, installer declarations, and suitability assessments but does not define absolute performance levels, which are given by related regulations or standards.
Key Topics
Scope of Application
- Covers in-situ insulation using expanded perlite products for building thermal insulation applications.
- Excludes factory-made perlite boards and formed shapes or products designed for industrial installations.
- Does not address airborne sound insulation or acoustic absorption properties.
Product Types
- Perlite Aggregate (EPA)
- Coated Perlite (EPC)
- Hydrophobic Perlite (EPH)
- Premixed Perlite (EPM)
Thermal Performance Requirements
- Installed insulation thickness must meet or exceed specified required thickness.
- Declared thermal resistance (RD) is calculated based on installed thickness and declared thermal conductivity (λD).
- Minimum installed thickness values: no individual measurement less than 80% of specified thickness.
Measurement and Verification
- Installer must conduct at least five thickness measurements per 100 m² area using calibrated depth gauges.
- Cavity widths must be measured to ensure full insulation fill before installation.
- Used methods include guides, level marks, and the pin and plate method per EN 823 where disputes arise.
Installer’s Declaration
- Installer provides a formal declaration including:
- Product trade name and designation
- Declared and installed thermal resistance
- Required and installed insulation thickness
- Volume of insulation material used
- Installation date
- Declaration confirms compliance with EN 14316-1 and appropriate installation procedures.
- Installer provides a formal declaration including:
Building and Product Suitability
- Assessment of structural integrity and suitability for loose fill or bonded perlite insulation.
- Consideration of joist systems, attic ventilation, vapor barriers, and service penetrations.
- Product checks to ensure conformity with specified designations.
Applications
EN 14316-2:2007 supports energy-efficient building design by ensuring that in-situ expanded perlite insulation is correctly installed to deliver expected thermal resistance. Applications include:
- Thermal insulation for residential and commercial roofs, ceilings, walls, and floors.
- Retrofitting existing buildings with loose fill or bonded expanded perlite insulation products.
- Compliance verification in construction projects to meet energy performance standards.
- Support for installers and specifiers with a standardized framework for installation quality assurance.
This standard is valuable for architects, engineers, installation contractors, and building inspectors involved in optimizing building thermal performance using environmentally friendly and mineral-based insulation materials.
Related Standards
- EN 14316-1:2004 – Specification for expanded perlite products before installation, providing harmonized product requirements.
- EN 823:1994 – Methods for measuring thickness of thermal insulating products, including pin and plate technique.
- EN ISO 9229:2005 – Definitions relating to thermal insulation terminology.
- EN ISO 6946 – Calculation methods for thermal resistance and transmittance of building elements.
- EN ISO 10456 – Procedures for determining declared and design thermal values of building materials.
By aligning installation practices with EN 14316-2:2007 and these complementary standards, stakeholders can ensure reliable thermal insulation performance and compliance with European building regulations.
Keywords: EN 14316-2:2007, expanded perlite insulation, in-situ thermal insulation, perlite aggregate (EPA), coated perlite (EPC), hydrophobic perlite (EPH), premixed perlite (EPM), thermal resistance, insulation thickness, building insulation standards, European Standard CEN, installer declaration, thermal conductivity, in-situ insulation verification.
Relations
- Refers
EN 823:1994 - Thermal insulating products for building applications - Determination of thickness - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
DIBt (Deutsches Institut für Bautechnik)
German Institute for Building Technology.
DIN CERTCO
DIN Group product certification.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
Sponsored listings
Frequently Asked Questions
EN 14316-2:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Thermal insulating products for buildings - In-situ thermal insulation formed from expanded perlite (EP) products - Part 2: Specification for the installed products". This standard covers: This European Standard specifies the requirements covering the four product types of expanded perlite products Perlite Aggregate (EPA), Coated Perlite (EPC), Hydrophobic Perlite (EPH) and Premixed Perlite (EPM), containing less than 1 % organic material as defined by annex D of prEN 14316-1:2002 for in-situ insulation of roofs, ceilings, walls and floors. This Part 2 of the standard is a specification for the installed products. This Part 2 of this standard contains specifies the checks and test procedures to be used for the declaration made by the installer of the product. This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards. This European Standard does not include factory made insulation products of formed shapes and boards made with expanded perlite or in-situ products intended to be used for the insulation of building equipment and industrial installations. This European Standard does not specify performance requirements for airborne sound insulation and for acoustic absorption applications.
This European Standard specifies the requirements covering the four product types of expanded perlite products Perlite Aggregate (EPA), Coated Perlite (EPC), Hydrophobic Perlite (EPH) and Premixed Perlite (EPM), containing less than 1 % organic material as defined by annex D of prEN 14316-1:2002 for in-situ insulation of roofs, ceilings, walls and floors. This Part 2 of the standard is a specification for the installed products. This Part 2 of this standard contains specifies the checks and test procedures to be used for the declaration made by the installer of the product. This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards. This European Standard does not include factory made insulation products of formed shapes and boards made with expanded perlite or in-situ products intended to be used for the insulation of building equipment and industrial installations. This European Standard does not specify performance requirements for airborne sound insulation and for acoustic absorption applications.
EN 14316-2:2007 is classified under the following ICS (International Classification for Standards) categories: 91.100.60 - Thermal and sound insulating materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14316-2:2007 has the following relationships with other standards: It is inter standard links to EN 823:1994, EN 14316-1:2004, EN ISO 9229:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14316-2:2007 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/103. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 14316-2:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

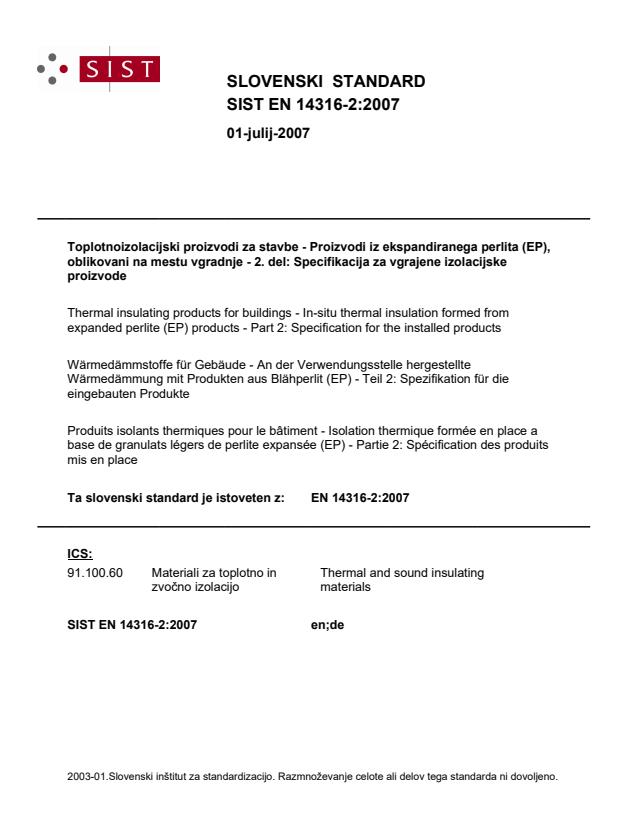

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Thermal insulating products for buildings - In-situ thermal insulation formed from expanded perlite (EP) products - Part 2: Specification for the installed productsToplotnoizolacijski proizvodi za stavbe - Proizvodi iz ekspandiranega perlita (EP), oblikovani na mestu vgradnje - 2. del: Specifikacija za vgrajene izolacijske proizvodeProduits isolants thermiques pour le bâtiment - Isolation thermique formée en place a base de granulats légers de perlite expansée (EP) - Partie 2: Spécification des produits mis en placeWärmedämmstoffe für Gebäude - An der Verwendungsstelle hergestellte Wärmedämmung mit Produkten aus Blähperlit (EP) - Teil 2: Spezifikation für die eingebauten ProdukteTa slovenski standard je istoveten z:EN 14316-2:2007SIST EN 14316-2:2007en;de91.100.60Thermal and sound insulating materialsICS:SLOVENSKI
STANDARDSIST EN 14316-2:200701-julij-2007

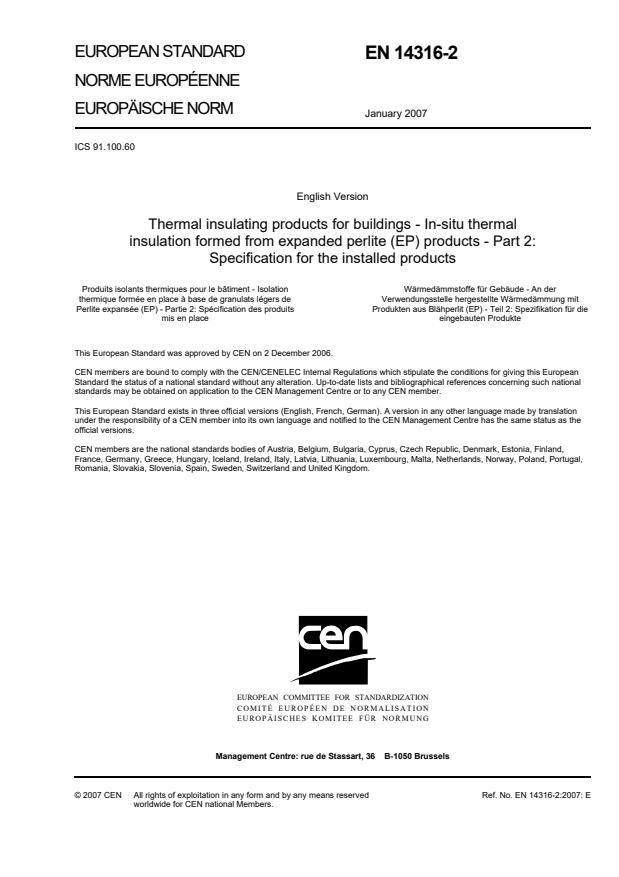

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14316-2January 2007ICS 91.100.60 English VersionThermal insulating products for buildings - In-situ thermalinsulation formed from expanded perlite (EP) products - Part 2:Specification for the installed productsProduits isolants thermiques pour le bâtiment - Isolationthermique formée en place à base de granulats légers dePerlite expansée (EP) - Partie 2: Spécification des produitsmis en placeWärmedämmstoffe für Gebäude - An derVerwendungsstelle hergestellte Wärmedämmung mitProdukten aus Blähperlit (EP) - Teil 2: Spezifikation für dieeingebauten ProdukteThis European Standard was approved by CEN on 2 December 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14316-2:2007: E

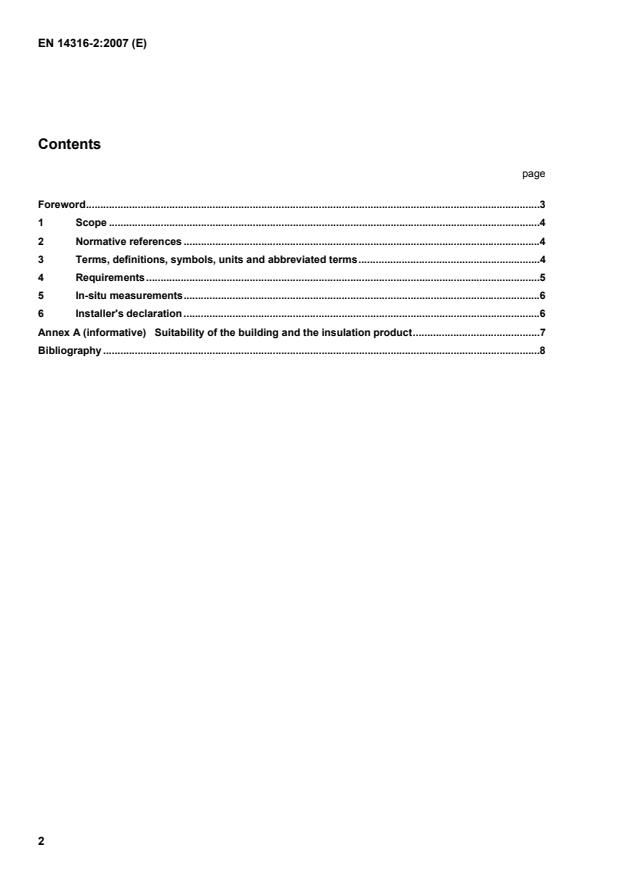

Suitability of the building and the insulation product.7 Bibliography.8
1 Scope This European Standard specifies the requirements covering the four product types of expanded perlite products Perlite Aggregate (EPA), Coated Perlite (EPC), Hydrophobic Perlite (EPH) and Premixed Perlite (EPM), containing less than 1 % organic material as defined by Annex D of EN 14316-1:2004 for in-situ insulation of roofs, ceilings, walls and floors. This Part 2 of the standard is a specification for the installed products. This Part 2 of this standard specifies the checks and test procedures to be used for the declaration made by the installer of the product. This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting standards. This European Standard does not include factory made insulation products of formed shapes and boards m
...
