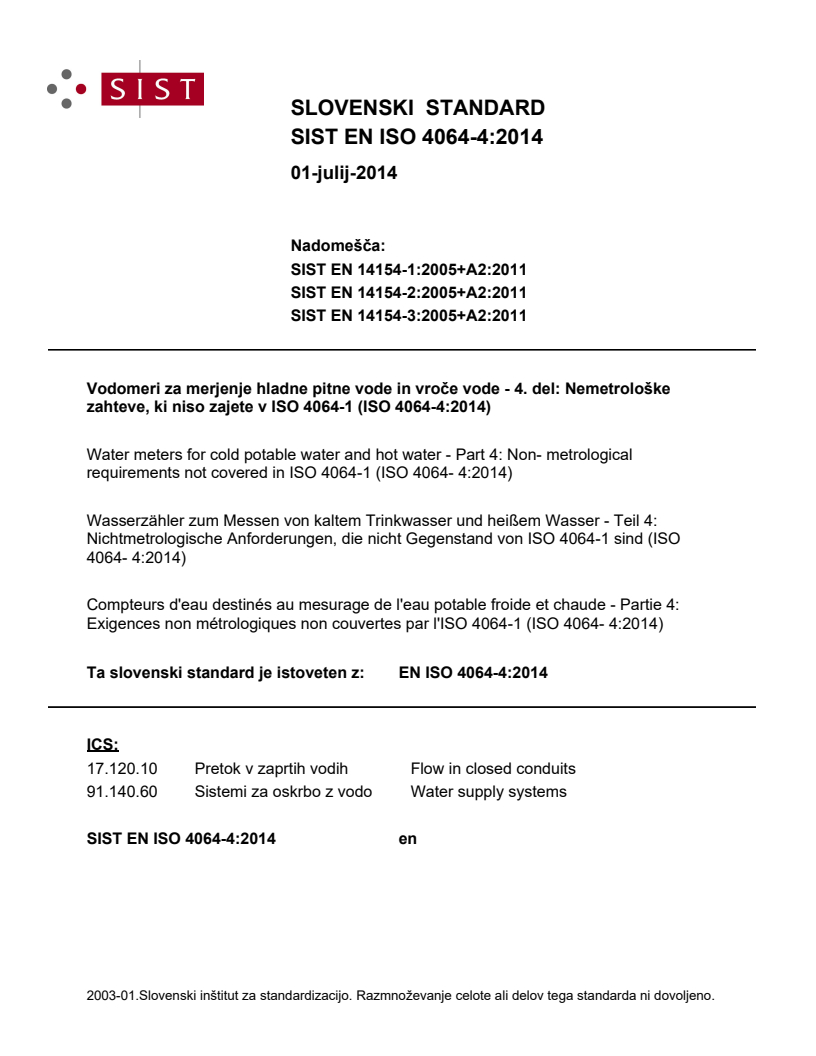

EN ISO 4064-4:2014

SLOVENSKI STANDARD
01-julij-2014
1DGRPHãþD
SIST EN 14154-1:2005+A2:2011
SIST EN 14154-2:2005+A2:2011
SIST EN 14154-3:2005+A2:2011
9RGRPHUL]DPHUMHQMHKODGQHSLWQHYRGHLQYURþHYRGHGHO1HPHWURORãNH
]DKWHYHNLQLVR]DMHWHY,62,62
Water meters for cold potable water and hot water - Part 4: Non- metrological
requirements not covered in ISO 4064-1 (ISO 4064- 4:2014)
Wasserzähler zum Messen von kaltem Trinkwasser und heißem Wasser - Teil 4:
Nichtmetrologische Anforderungen, die nicht Gegenstand von ISO 4064-1 sind (ISO
4064- 4:2014)
Compteurs d'eau destinés au mesurage de l'eau potable froide et chaude - Partie 4:
Exigences non métrologiques non couvertes par l'ISO 4064-1 (ISO 4064- 4:2014)
Ta slovenski standard je istoveten z: EN ISO 4064-4:2014
ICS:
17.120.10 Pretok v zaprtih vodih Flow in closed conduits
91.140.60 Sistemi za oskrbo z vodo Water supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

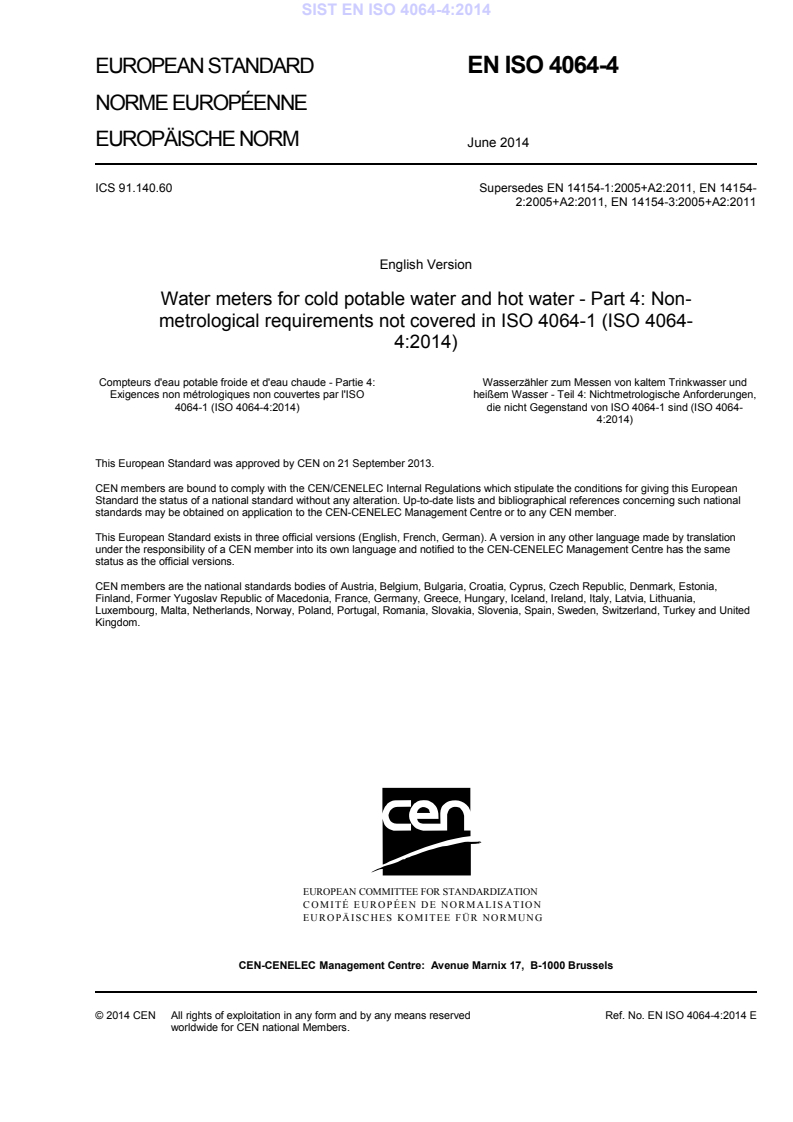

EUROPEAN STANDARD
EN ISO 4064-4
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2014
ICS 91.140.60 Supersedes EN 14154-1:2005+A2:2011, EN 14154-
2:2005+A2:2011, EN 14154-3:2005+A2:2011
English Version
Water meters for cold potable water and hot water - Part 4: Non-
metrological requirements not covered in ISO 4064-1 (ISO 4064-
4:2014)
Compteurs d'eau potable froide et d'eau chaude - Partie 4: Wasserzähler zum Messen von kaltem Trinkwasser und
Exigences non métrologiques non couvertes par l'ISO heißem Wasser - Teil 4: Nichtmetrologische Anforderungen,
4064-1 (ISO 4064-4:2014) die nicht Gegenstand von ISO 4064-1 sind (ISO 4064-
4:2014)
This European Standard was approved by CEN on 21 September 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 4064-4:2014 E
worldwide for CEN national Members.

Contents Page
Foreword .3

Foreword
This document (EN ISO 4064-4:2014) has been prepared by Technical Committee ISO/TC 30 “Measurement
of fluid flow in closed conduits” in collaboration with Technical Committee CEN/TC 92 “Water meters” the
secretariat of which is held by SNV.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2014, and conflicting national standards shall be withdrawn
at the latest by December 2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 14154-1:2005+A2:2011, EN 14154-2:2005+A2:2011,
EN 14154-3:2005+A2:2011.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 4064-4:2014 has been approved by CEN as EN ISO 4064-4:2014 without any modification.
INTERNATIONAL ISO
STANDARD 4064-4
First edition
2014-06-01
Water meters for cold potable water
and hot water —
Part 4:
Non-metrological requirements not
covered in ISO 4064-1
Compteurs d’eau potable froide et d’eau chaude —
Partie 4: Exigences non métrologiques non couvertes par l’ISO 4064-1
Reference number
ISO 4064-4:2014(E)
©
ISO 2014
ISO 4064-4:2014(E)
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

ISO 4064-4:2014(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Technical characteristics . 2
4.1 In-line meters . 2
4.2 Concentric and cartridge meters and exchangeable metrological modules . 4
Annex A (informative) Concentric water meter manifold .10
Annex B (normative) Connection interfaces — Solutions for cartridge meters .13
Annex C (informative) Examples of adaptors and converters .24
Bibliography .26
ISO 4064-4:2014(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2, www.iso.org/directives.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received, www.iso.org/patents.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
The committee responsible for this document is ISO/TC 30, Measurement of fluid flow in closed conduits,
Subcommittee SC 7, Volume methods including water meters.
ISO 4064 consists of the following parts, under the general title Water meters for cold potable water and
hot water:
— Part 1: Metrological and technical requirements
— Part 2: Test methods
— Part 3: Test report format
— Part 4: Non-metrological requirements not covered in ISO 4064-1
— Part 5: Installation requirements
iv © ISO 2014 – All rights reserved

INTERNATIONAL STANDARD ISO 4064-4:2014(E)
Water meters for cold potable water and hot water —
Part 4:
Non-metrological requirements not covered in ISO 4064-1
1 Scope
This part of ISO 4064 applies to water meters used to meter the volume of cold potable water and hot
water flowing through a fully charged, closed conduit. These water meters incorporate devices which
indicate the integrated volume.
This part of ISO 4064 specifies technical characteristics and pressure loss requirements for meters for
cold potable water and hot water. It applies to water meters which can withstand:
1)
a) a maximum admissible pressure (MAP) equal to at least 1 MPa [0,6 MPa for meters for use with
pipe nominal diameters (DNs) ≥500 mm];
b) a maximum admissible temperature (MAT) for cold potable water meters of 30 °C;
c) a MAT for hot water meters of up to 180 °C, depending on class.
In addition to meters based on mechanical principles, this part of ISO 4064 also applies to water
meters based on electrical or electronic principles, and to water meters based on mechanical principles
incorporating electronic devices, used to meter the volume flow of hot water and cold potable water. It
also applies to electronic ancillary devices. As a rule ancillary devices are optional. However, national
or international regulations may make some ancillary devices mandatory in relation to the utilization
of the water meter.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 228−1, Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions,
tolerances and designation
ISO 4064-1|OIML R 49-1, Water meters for cold potable water and hot water — Part 1: Metrological and
technical requirements
ISO 7005-2, Metallic flanges — Part 2: Cast iron flanges
ISO 7005-3, Metallic flanges — Part 3: Copper alloy and composite flanges
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 4064−1|OIML R 49-1 apply.
NOTE Many of the definitions used in this part of ISO 4064 conform to ISO/IEC Guide 99:2007|OIML V
[1] [2] [3]
2-200:2012, OIML V 1:2013, and OIML D 11.
1) 1 MPa = 10 bar
W
1 W
ISO 4064-4:2014(E)
4 Technical characteristics
4.1 In-line meters
4.1.1 Meter size and overall dimensions
Meter size is characterized either by the thread size of the end connections or by the nominal size of the
flange. For each meter size, there is a corresponding fixed set of overall dimensions. The dimensions of
the meter, as illustrated in Figure 1, shall be in accordance with Table 1.
a
Key
W , W W + W is the width of a cuboid within which the water meter can be contained
1 2 1 2
H , H H + H is the height of a cuboid within which the water meter can be contained
1 2 1 2
L length of a cuboid within which the water meter can be contained
NOTE The cover is at right angles to its closed position. Dimensions H , H , W and W are maxima; L is a fixed
1 2 1 2
value with specified tolerances.
a
Pipe axis.
Figure 1 — Meter size and overall dimensions
4.1.2 Threaded connection
Permissible values of dimensions a and b for threaded connections are given in Table 1. Threads shall
conform to ISO 228−1. Figure 2 defines dimensions a and b.
b
a
Figure 2 — Threaded connection
4.1.3 Flanged connection
Flanged end connections shall conform to ISO 7005-2 and ISO 7005-3 for the maximum pressure
corresponding to that of the water meter. Dimensions shall be as given in Table 1.
2 © ISO 2014 – All rights reserved
L
H H
1 2
ISO 4064-4:2014(E)
The manufacturer shall provide a reasonable clearance behind the rear face of the flange to allow access
for installation and removal.
Table 1 — Water meter dimensions for threaded and flanged connections
Dimensions in millimetres
a
DN Preferred
b
a b Alternative values of L W , W H H
min min 1 2 1 2
b
size values of L
80, 85, 100, 105, 110, 114, 115, 130, 134, 135, 145,
c c
15 10 12 165 65 60 220
170, 175, 180, 190, 200, 220
105, 110, 115, 130, 134, 135, 165, 175, 195, 200,
20 12 14 190 65 60 240
220, 229
25 12 16 260 110, 150, 175, 199, 200, 210, 225, 273 100 65 260
32 13 18 260 110, 150, 175, 199, 200, 230, 270, 300, 321 110 70 280
40 13 20 300 200, 220, 245, 260, 270, 387 120 75 300
50 13 20 200 170, 245, 25
...
