EN 16228-2:2014
(Main)Drilling and foundation equipment - Safety - Part 2: Mobile drill rigs for civil and geotechnical engineering, quarrying and mining
General Information
- Abstract
This European Standard, together with part 1, deals with all significant hazards for mobile drill rigs for civil and geotechnical engineering, quarrying and mining when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer associated with the whole life time of the machine (see Clause 4).
The requirements of this part are complementary to the common requirements formulated in EN 16228 1:2014.
This document does not repeat the requirements from EN 16228 1, but adds or replaces the requirements for application for mobile drill rigs.
In this document the general term “mobile drill rig” covers several different types of machines for use in:
— civil engineering;
— geotechnical engineering (including ground investigation, anchoring, soil nailing, mini-piling, ground stabilization, grouting);
— water well drilling;
— geothermal installations;
— landfill drilling;
— underpinning, tunnelling, mining and quarrying;
— for use above ground as well as underground.
Typically, the process of drilling involves the addition of drill rods, tubes, casings or augers etc., normally threaded, as the borehole extends to depth.
NOTE 1 For machines with torque greater than 35 kNm see EN 16228–4 initially.
NOTE 2 The term “drill rigs” includes rigs with a separate power pack supplied by the rig manufacturer.
- Status
- Withdrawn
- Publication Date
- 20-May-2014
- Withdrawal Date
- 22-Sep-2026
- Technical Committee
- CEN/TC 151 - Construction equipment and building material machines - Safety
- Drafting Committee
- CEN/TC 151/WG 3 - Drilling equipment - Safety
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 22-Dec-2021
- Completion Date
- 23-Sep-2026
- Directive
- Harmonized Standard2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)OJ Ref: C, C 054, C 92 OJ Date: 13-Feb-2015
Not Harmonized98/37/EC - Machinery
Relations
- Effective Date
- 08-Jun-2022
- Effective Date
- 08-Jun-2022
- Effective Date
- 18-Jan-2023
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 16228-4:2014 - Drilling and foundation equipment - Safety - Part 4: Foundation equipment - Effective Date
- 28-Jan-2026
- Referred By
EN 12111:2014 - Tunnelling machines - Road headers and continuous miners - Safety requirements - Effective Date
- 28-Jan-2026
- Effective Date
- 09-Nov-2016
Get Certified
Connect with accredited certification bodies for this standard
Zavod za gradbeništvo Slovenije (ZAG) - Inšpekcija
ZAG inspection body for construction products, structures, and materials.
Sponsored listings
Frequently Asked Questions
EN 16228-2:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Drilling and foundation equipment - Safety - Part 2: Mobile drill rigs for civil and geotechnical engineering, quarrying and mining". This standard covers: This European Standard, together with part 1, deals with all significant hazards for mobile drill rigs for civil and geotechnical engineering, quarrying and mining when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer associated with the whole life time of the machine (see Clause 4). The requirements of this part are complementary to the common requirements formulated in EN 16228 1:2014. This document does not repeat the requirements from EN 16228 1, but adds or replaces the requirements for application for mobile drill rigs. In this document the general term “mobile drill rig” covers several different types of machines for use in: — civil engineering; — geotechnical engineering (including ground investigation, anchoring, soil nailing, mini-piling, ground stabilization, grouting); — water well drilling; — geothermal installations; — landfill drilling; — underpinning, tunnelling, mining and quarrying; — for use above ground as well as underground. Typically, the process of drilling involves the addition of drill rods, tubes, casings or augers etc., normally threaded, as the borehole extends to depth. NOTE 1 For machines with torque greater than 35 kNm see EN 16228–4 initially. NOTE 2 The term “drill rigs” includes rigs with a separate power pack supplied by the rig manufacturer.
This European Standard, together with part 1, deals with all significant hazards for mobile drill rigs for civil and geotechnical engineering, quarrying and mining when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer associated with the whole life time of the machine (see Clause 4). The requirements of this part are complementary to the common requirements formulated in EN 16228 1:2014. This document does not repeat the requirements from EN 16228 1, but adds or replaces the requirements for application for mobile drill rigs. In this document the general term “mobile drill rig” covers several different types of machines for use in: — civil engineering; — geotechnical engineering (including ground investigation, anchoring, soil nailing, mini-piling, ground stabilization, grouting); — water well drilling; — geothermal installations; — landfill drilling; — underpinning, tunnelling, mining and quarrying; — for use above ground as well as underground. Typically, the process of drilling involves the addition of drill rods, tubes, casings or augers etc., normally threaded, as the borehole extends to depth. NOTE 1 For machines with torque greater than 35 kNm see EN 16228–4 initially. NOTE 2 The term “drill rigs” includes rigs with a separate power pack supplied by the rig manufacturer.
EN 16228-2:2014 is classified under the following ICS (International Classification for Standards) categories: 93.020 - Earthworks. Excavations. Foundation construction. Underground works. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16228-2:2014 has the following relationships with other standards: It is inter standard links to EN 791:1995+A1:2009, EN 996:1995+A3:2009, EN 16228-2:2014+A1:2021, EN 16228-1:2014, EN ISO 12100:2010, EN 280:2013, EN ISO 3450:2011, EN ISO 3449:2008, EN 16191:2014, EN 16228-7:2014, EN 16228-4:2014, EN 12111:2014, EN 16228-2:2014/FprA1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 16228-2:2014 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC, 98/37/EC; Standardization Mandates: M/079, M/396. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 16228-2:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

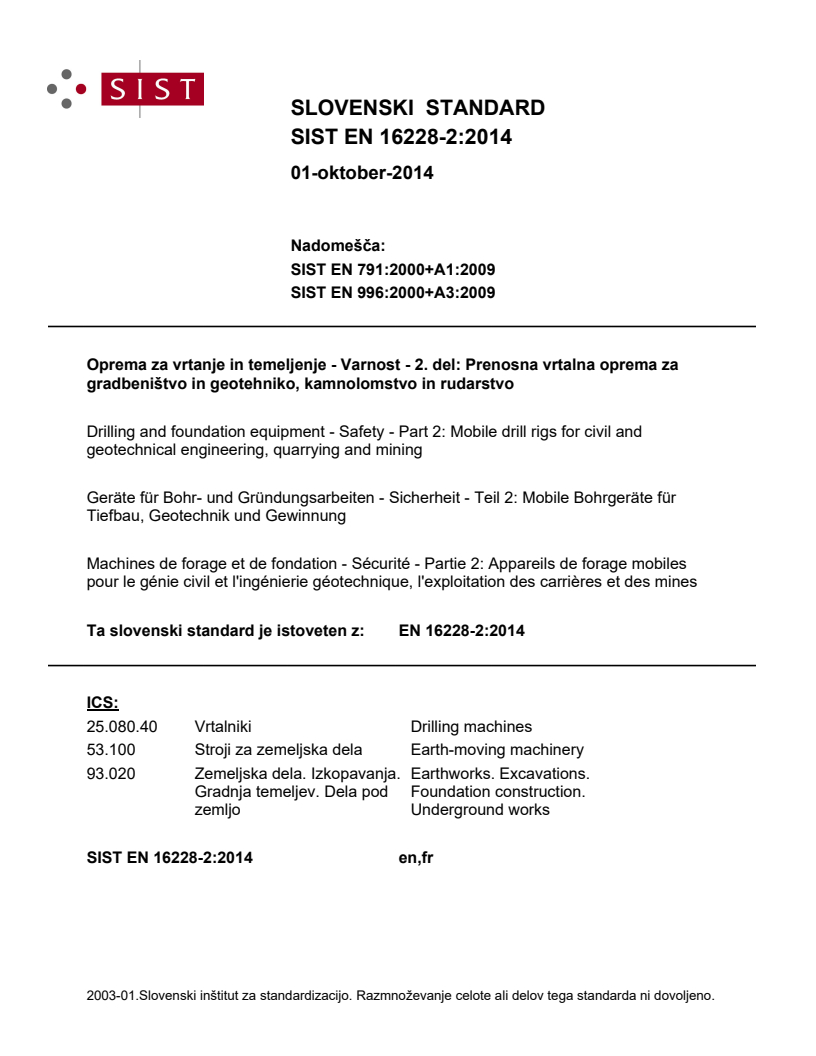

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oprema za vrtanje in temeljenje - Varnost - 2. del: Prenosna vrtalna oprema za gradbeništvo in geotehniko, kamnolomstvo in rudarstvoGeräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 2: Mobile Bohrgeräte für Tiefbau, Geotechnik und GewinnungMachines de forage et de fondation - Sécurité - Partie 2: Appareils de forage mobiles pour le génie civil et l'ingénierie géotechnique, l'exploitation des carrières et des minesDrilling and foundation equipment - Safety - Part 2: Mobile drill rigs for civil and geotechnical engineering, quarrying and mining93.020Zemeljska dela. Izkopavanja. Gradnja temeljev. Dela pod zemljoEarthworks. Excavations. Foundation construction. Underground works53.100Stroji za zemeljska delaEarth-moving machinery25.080.40VrtalnikiDrilling machinesICS:Ta slovenski standard je istoveten z:EN 16228-2:2014SIST EN 16228-2:2014en,fr01-oktober-2014SIST EN 16228-2:2014SLOVENSKI
STANDARDSIST EN 996:2000+A3:2009SIST EN 791:2000+A1:20091DGRPHãþD

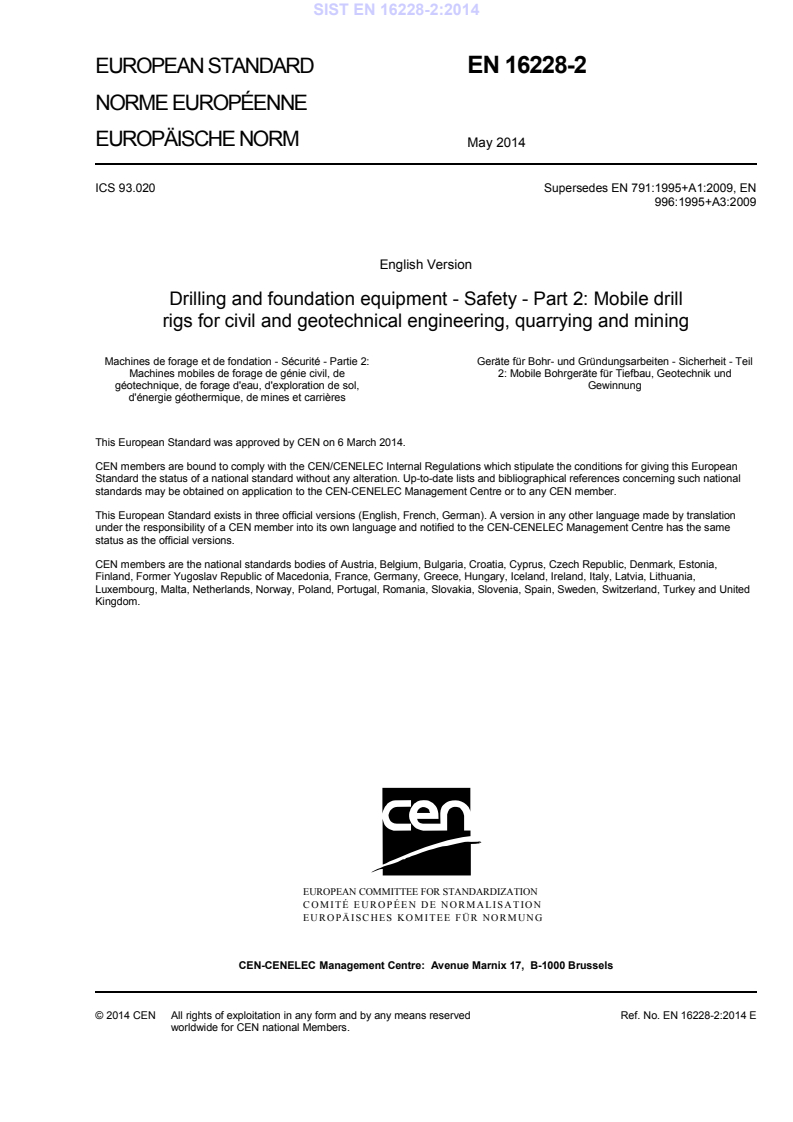

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16228-2
May 2014 ICS 93.020 Supersedes EN 791:1995+A1:2009, EN 996:1995+A3:2009English Version
Drilling and foundation equipment - Safety - Part 2: Mobile drill rigs for civil and geotechnical engineering, quarrying and mining Machines de forage et de fondation - Sécurité - Partie 2: Machines mobiles de forage de génie civil, de géotechnique, de forage d'eau, d'exploration de sol, d'énergie géothermique, de mines et carrières
Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 2: Mobile Bohrgeräte für Tiefbau, Geotechnik und Gewinnung This European Standard was approved by CEN on 6 March 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16228-2:2014 ESIST EN 16228-2:2014

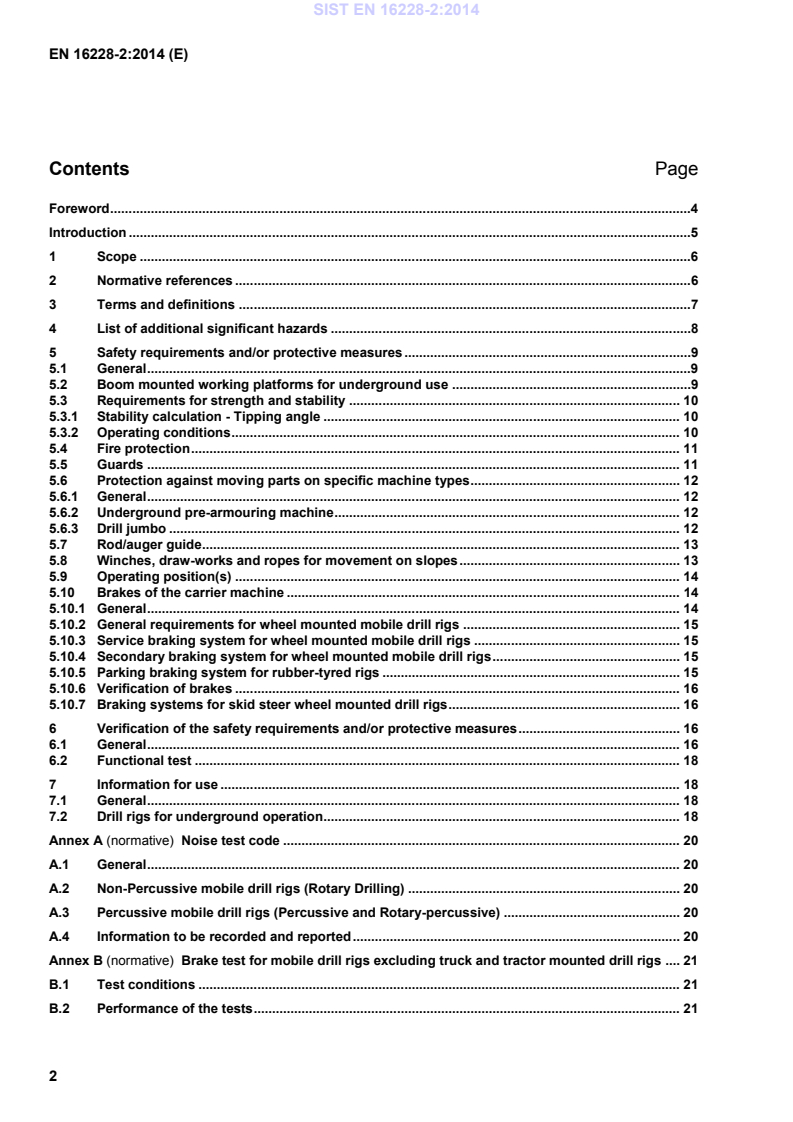

Noise test code . 20 A.1 General . 20 A.2 Non-Percussive mobile drill rigs (Rotary Drilling) . 20 A.3 Percussive mobile drill rigs (Percussive and Rotary-percussive) . 20 A.4 Information to be recorded and reported . 20 Annex B (normative)
Brake test for mobile drill rigs excluding truck and tractor mounted drill rigs . 21 B.1 Test conditions . 21 B.2 Performance of the tests . 21 SIST EN 16228-2:2014
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC . 24 Bibliography . 25
Hazard Relevant clause(s) in this standard 1 Mechanical hazards
1.1 Stability 5.3, 5.8 1.2 Crushing 5.5, 5.6 1.3 Shearing 5.5, 5.6 1.4 Cutting and severing 5.5, 5.6 1.5 Entanglement 5.5, 5.6, 5.7 1.6 Kinetic energy 5.9, 5.10, Annex B 1.7 Falling or ejected object 5.2 1.8 Uncontrolled loading, overloading 5.2, 5.8 1.9 Lifting of person 5.2 1.10 Insufficient instructions for the driver/operator 7.1, 7.2 2 Thermal hazards
2.1 Fire 5.4 4 Hazards generated by noise, resulting in:
4.1 Hearing losses and physiological disorders Annex A 4.2 Accidents due to interference with speech communication and warning signals Annex A 5 Safety requirements and/or protective measures 5.1 General Drill rigs shall comply with the requirements of EN 16228-1:2014, as far as not modified or replaced by the requirements of this part. 5.2 Boom mounted working platforms for underground use Subclause 5.13.2 of EN 16228-1:2014 does not apply. When a drill rig for underground use is equipped with a boom mounted working platform intended for use in an area where there is risk of object fall, the person(s) on the platform shall have adequate protection. A suitably designed protective structure, FOPS shall be provided over the platform. Level I of EN ISO 3449:2008 shall be the minimum requirement (e.g. underground pre-armouring machines). Level II shall be chosen where there is the risk of rock fall. NOTE The FOPS may be adjustable taking into account the various functions to be performed from the platform. Drill rigs equipped with one or more boom mounted platforms shall comply with EN 280:2013. SIST EN 16228-2:2014
...
