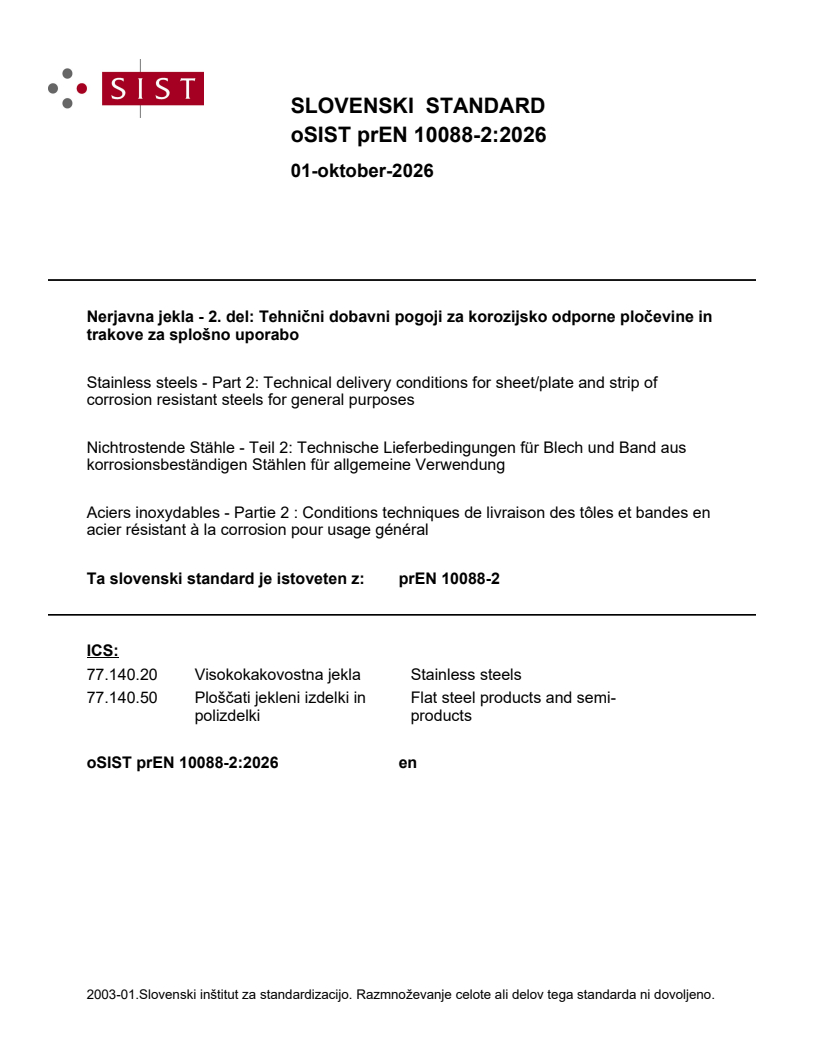

prEN 10088-2

SLOVENSKI STANDARD
01-oktober-2026
Nerjavna jekla - 2. del: Tehnični dobavni pogoji za korozijsko odporne pločevine in
trakove za splošno uporabo
Stainless steels - Part 2: Technical delivery conditions for sheet/plate and strip of
corrosion resistant steels for general purposes
Nichtrostende Stähle - Teil 2: Technische Lieferbedingungen für Blech und Band aus
korrosionsbeständigen Stählen für allgemeine Verwendung
Aciers inoxydables - Partie 2 : Conditions techniques de livraison des tôles et bandes en
acier résistant à la corrosion pour usage général
Ta slovenski standard je istoveten z: prEN 10088-2
ICS:
77.140.20 Visokokakovostna jekla Stainless steels
77.140.50 Ploščati jekleni izdelki in Flat steel products and semi-
polizdelki products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT

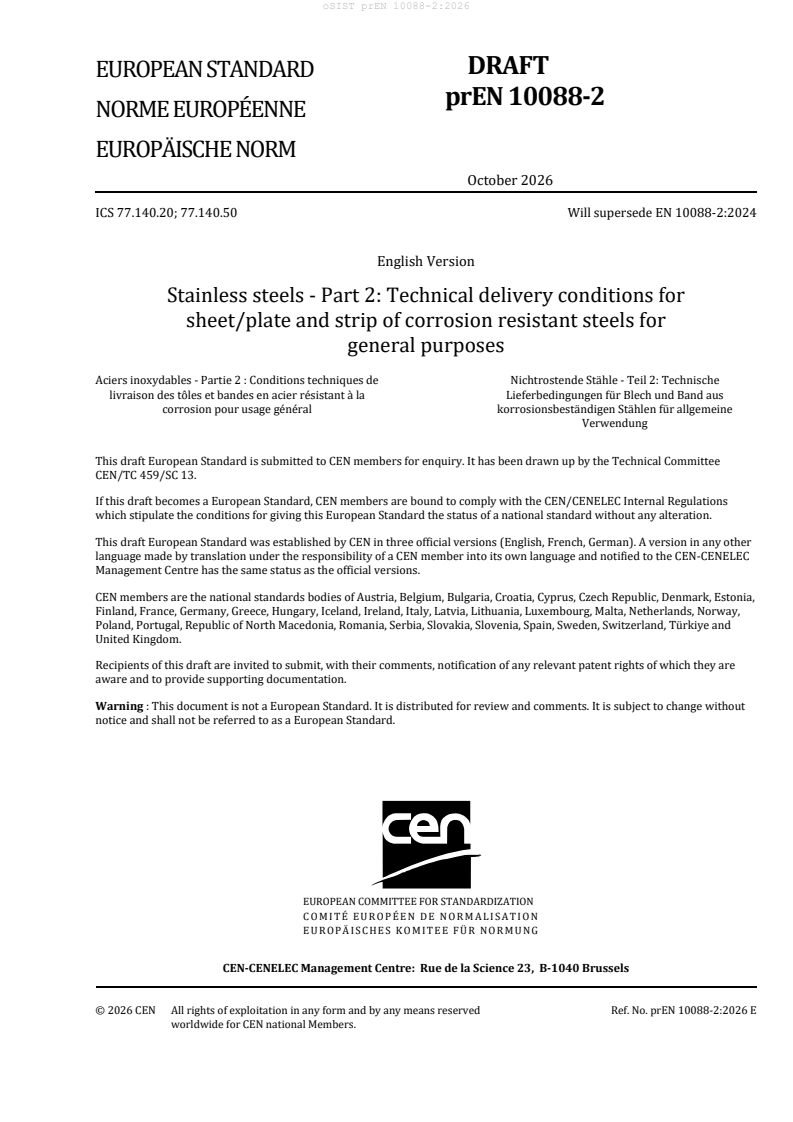

EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2026
ICS 77.140.20; 77.140.50 Will supersede EN 10088-2:2024
English Version
Stainless steels - Part 2: Technical delivery conditions for
sheet/plate and strip of corrosion resistant steels for
general purposes
Aciers inoxydables - Partie 2 : Conditions techniques de Nichtrostende Stähle - Teil 2: Technische
livraison des tôles et bandes en acier résistant à la Lieferbedingungen für Blech und Band aus
corrosion pour usage général korrosionsbeständigen Stählen für allgemeine
Verwendung
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 459/SC 13.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 10088-2:2026 E
worldwide for CEN national Members.

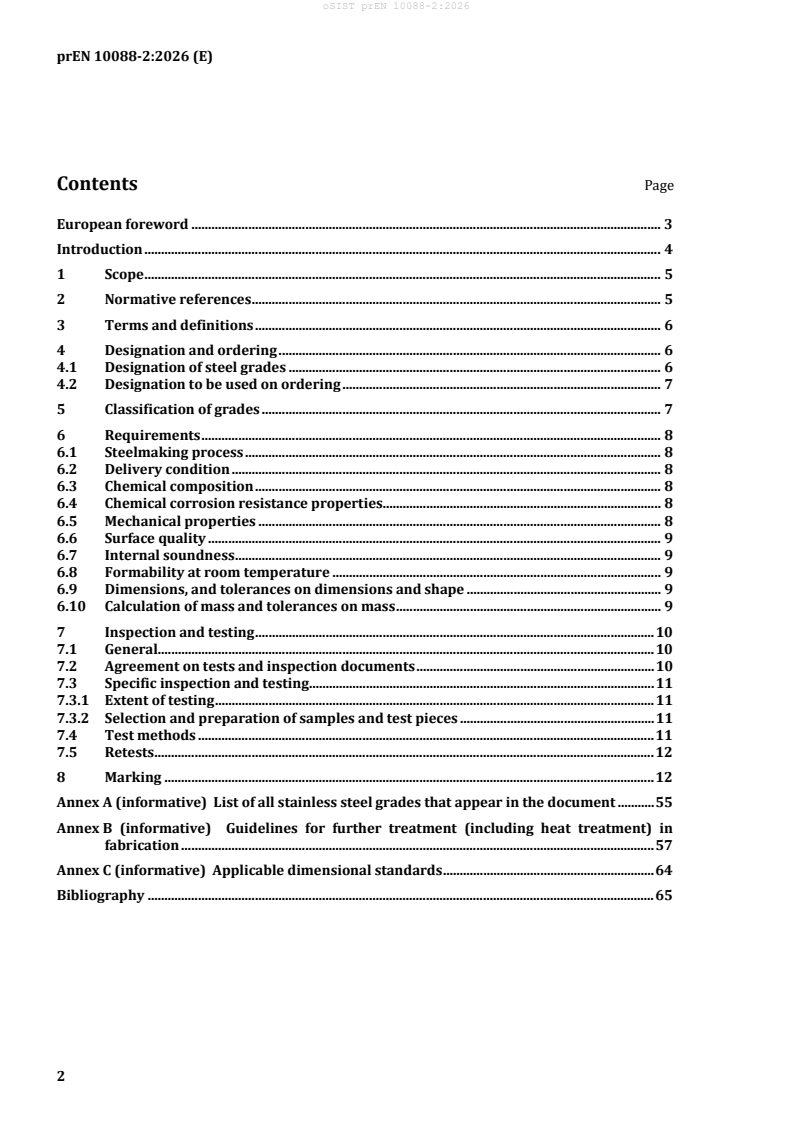

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Designation and ordering . 6
4.1 Designation of steel grades . 6
4.2 Designation to be used on ordering . 7
5 Classification of grades . 7
6 Requirements . 8
6.1 Steelmaking process . 8
6.2 Delivery condition . 8
6.3 Chemical composition . 8
6.4 Chemical corrosion resistance properties. 8
6.5 Mechanical properties . 8
6.6 Surface quality . 9
6.7 Internal soundness . 9
6.8 Formability at room temperature . 9
6.9 Dimensions, and tolerances on dimensions and shape . 9
6.10 Calculation of mass and tolerances on mass . 9
7 Inspection and testing . 10
7.1 General. 10
7.2 Agreement on tests and inspection documents . 10
7.3 Specific inspection and testing . 11
7.3.1 Extent of testing . 11
7.3.2 Selection and preparation of samples and test pieces . 11
7.4 Test methods . 11
7.5 Retests . 12
8 Marking . 12
Annex A (informative) List of all stainless steel grades that appear in the document . 55
Annex B (informative) Guidelines for further treatment (including heat treatment) in
fabrication . 57
Annex C (informative) Applicable dimensional standards . 64
Bibliography . 65

European foreword
This document (prEN 10088-2:2026) has been prepared by Technical Committee CEN/TC 459 “ECISS -
European Committee for Iron and Steel Standardization ”, the secretariat of which is held by AFNOR.
This document will supersede EN 10088-2:2024.
The EN 10088 series, under the general title Stainless steels, consists of the following parts:
— Part 1: List of stainless steels (including a table of European Standards, in which these stainless steels
are further specified, see Annex C);
— Part 2: Technical delivery conditions for sheet/plate and strip of corrosion resistant steels for general
purposes;
— Part 3: Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright
products of corrosion resistant steels for general purposes;
— Part 4: Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for
construction purposes;
— Part 5: Technical delivery conditions for bars, rods, wire, sections and bright products of corrosion
resisting steels for construction purposes.

Through its sub-committee SC 13 “Stainless steels”, (secretariat: SIS).
Introduction
The European Committee for Standardization (CEN) draws attention to the fact that it is claimed that
compliance with this document may involve the use of patents applied to eight steel grades, given in
Clause 8, Annex A and Annex B and which is claimed to be relevant for the following clause(s) of this
document:
Clauses: Clause 8, Annex A and Annex B
CEN takes no position concerning the evidence, validity and scope of these patent rights. The holders of
these patent rights have ensured CEN that they are willing to negotiate licenses, under reasonable and
non-discriminatory terms and conditions, with applicants throughout the world. In this respect, the
statements of the holders of these patent rights are registered with CEN. Information may be obtained
from:
Grade 1.4637, 1.4662
Outokumpu Stainless AB
SE-77480 Avesta, Sweden
Grade 1.4420, 1.4622
Outokumpu Oyj
FI-00180, Helsinki, Salmisaarenranta 11, Finland
Grade 1.4062
Ugitech
F-73403 Ugine Cedex, France
Grade 1.4062
Industeel
F-71200 Creusot, 56 Rue Clemenceau, France
Grade 1.4646, 1.4611, 1.4613
Acciai Speciali Terni
I-05100 Terni, Italy
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights other than those identified above. CEN shall not be held responsible for identifying any or
all such patent rights.
1 Scope
This document specifies the technical delivery conditions for hot or cold rolled sheet/plate and strip of
standard grades and special grades of corrosion resistant stainless steels for general purposes.
NOTE 1 General purposes include the use of stainless steels in contact with foodstuffs.
NOTE 2 General technical delivery conditions are also specified in EN 10021, in addition to the specifications of
this document.
This document does not apply to components manufactured by further processing of the product forms
listed above with quality characteristics altered as a result of such further processing.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 10021, General technical delivery conditions for steel products
EN 10079, Definition of steel products
EN 10088-1:2023, Stainless steels — Part 1: List of stainless steels
EN 10163-2, Delivery requirements for surface condition of hot-rolled steel plates, wide flats and sections —
Part 2: Plate and wide flats
EN 10168, Steel products — Inspection documents — List of information and description
EN 10204, Metallic products — Types of inspection documents
EN 10307, Non-destructive testing — Ultrasonic testing of austenitic and austenitic-ferritic stainless steels
flat products of thickness equal to or greater than 6 mm (reflection method)
EN ISO 148-1, Metallic materials — Charpy pendulum impact test — Part 1: Test method (ISO 148-1)
EN ISO 377, Steel and steel products — Location and preparation of samples and test pieces for mechanical
testing (ISO 377)
EN ISO 3651-2, Determination of resistance to intergranular corrosion of stainless steels — Part 2: Ferritic,
austenitic and ferritic-austenitic (duplex) stainless steels — Corrosion test in media containing sulfuric acid
(ISO 3651-2)
EN ISO 4885, Ferrous materials — Heat treatments — Vocabulary (ISO 4885)
EN ISO 6506-1, Metallic materials — Brinell hardness test — Part 1: Test method (ISO 6506-1)
EN ISO 6507-1, Metallic materials — Vickers hardness test — Part 1: Test method (ISO 6507-1)
EN ISO 6508-1, Metallic materials — Rockwell hardness test — Part 1: Test (ISO 6508-1)
EN ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
(ISO 6892-1)
EN ISO 6892-2, Metallic materials — Tensile testing — Part 2: Method of test at elevated temperature
(ISO 6892-2)
EN ISO 9444-2, Continuously hot-rolled stainless steel — Tolerances on dimensions and form — Part 2:
Wide strip and sheet/plate (ISO 9444-2)
EN ISO 14284, Steel and iron — Sampling and preparation of samples for the determination of chemical
composition (ISO 14284)
EN ISO 18286, Hot-rolled stainless steel plates — Tolerances on dimensions and shape (ISO 18286)
3 Terms and definitions
For the purposes of this document, the terms and definitions regarding types of heat treatment in
EN ISO 4885 and regarding product forms in EN 10079 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1
stainless steel
steel with at least 10,5 % of chromium and maximum 1,20 % of carbon
Note 1 to entry: Stainless steels are further subdivided in accordance with their main property into corrosion
resistant steels, heat resistant steels and creep resistant steels.
[SOURCE: EN 10020:2000, 3.2.2]
3.2
corrosion resistant steel
stainless steel (see 3.1) where its resistance to corrosion is of primary importance
3.3
general purpose
purpose other than the special purposes referred to in the Bibliography
3.4
standard grade
grade with a relatively good availability and a wider range of application
3.5
special grade
grade for special use and/or with limited availability
4 Designation and ordering
4.1 Designation of steel grades
The steel names and steel numbers (see Tables 1 to 4) were formed in accordance with EN 10027-1 and
EN 10027-2 respectively.
A complete overview of all grades that are in this document is given in Annex A.
4.2 Designation to be used on ordering
The complete designation for ordering a product according to this document shall contain the following
information:
— desired quantity (mass or pieces);
— product form (strip, sheet or plate);
— where an appropriate dimensional standard is available (see Annex C) the number of the standard,
plus any choice of requirements;
— if there is no dimensional standard, the nominal dimensions and tolerances required;
— type of material (steel);
— number of this document;
— steel name or steel number;
— if for the relevant steel in the table for the mechanical properties more than one treatment condition
is covered, the symbol for the desired heat treatment or cold worked condition;
— desired process route (see symbols in Table 6);
— if a verification of internal soundness is required, flat products with thickness ≥ 6 mm shall be tested
in accordance with EN 10307;
— any additional optional tests or inspections (see 7.2.3 d);
— standard designation for a test report 2.2 or, if required, any other type of inspection document in
accordance with EN 10204 (see 7.2.1).
EXAMPLE 10 plates according to EN ISO 18286 with thickness = 8 mm, width = 2 000 mm, length = 5 000 mm;
tolerances on width and length class B, flatness tolerance class N made of steel EN 10088-2 with the name
X5CrNi18–10 and the number 1.4301 in process route 1D (see Table 6), inspection certificate 3.1 as specified in
EN 10204:
10 plates EN ISO 18286 — 8 × 2000 × 5000 B N
Steel EN 10088-2 — X5CrNi18–10+1D
EN 10204 — 3.1
or
10 plates EN ISO 18286 — 8 × 2000 × 5000 B N
Steel EN 10088-2 — 1.4301+1D
EN 10204 — 3.1
5 Classification of grades
Steels covered in this document are classified according to their structures into:
— austenitic steels,
— austenitic-ferritic steels,
— ferritic steels,
— martensitic steels,
— precipitation hardening steels.
See also EN 10088-1:2023, Annex C.
6 Requirements
6.1 Steelmaking process
Unless a special steelmaking process is agreed at the time of enquiry and order, the steelmaking process
for steels conforming to this document shall be at the discretion of the manufacturer.
6.2 Delivery condition
The products shall be supplied in the delivery condition agreed at the time of enquiry and order by
reference to the process route given in Table 6 and, where different alternatives exist, to the treatment
conditions given in Tables 7 to 11, 17 and 18 (see also Annex B).
6.3 Chemical composition
6.3.1 The chemical composition requirements given in Tables 1 to 4 shall apply with respect to the
chemical composition according to the cast analysis.
Elements not quoted (“-”) or not listed in these tables shall not be intentionally added to the steel without
the agreement of the purchaser except for finishing the cast. All appropriate precautions shall be taken
to avoid the addition of such elements from scrap and other materials used in production which would
impair mechanical properties and the suitability of the steel.
6.3.2 The product analysis may deviate from the limiting values for the cast analysis given in Tables 1
to 4 by the values listed in Table 5.
6.4 Chemical corrosion resistance properties
For austenitic, austenitic-ferritic and ferritic steels, the specification in Tables 7 to 9, referring to
resistance to intergranular corrosion as determined according to EN ISO 3651-2, shall apply (see also
7.4.6).
NOTE 1 EN ISO 3651-2 is not applicable for testing martensitic and precipitation hardening steels.
NOTE 2 The corrosion resistance of stainless steels is very dependent on the type of environment and can
therefore not always be clearly ascertained through laboratory tests. It is therefore advisable to draw on the
available experience of the use of the steels.
6.5 Mechanical properties
6.5.1 The mechanical properties at room temperature as specified in Tables 7 to 11 shall apply for the
relevant specified heat treatment condition. This does not apply to the process route 1U (hot rolled, not
heat treated, not descaled).
If by agreement at the time of ordering the products shall be supplied in a non-heat treated condition, the
mechanical properties specified in Tables 7 to 11 shall be obtained from reference test pieces which have
received the appropriate heat treatment (simulated heat treatment). For the process routes 1M and 2M
for patterned finish, the mechanical properties specified in Tables 7 to 11 also do not apply. In this case,
agreements shall be made at the time of enquiry and order, e.g. performing a bend test according to
EN ISO 7438.
For cold worked products, the tensile strength levels at ambient temperature as specified in Table 17
shall apply. The available tensile strength levels in the cold worked condition are indicated in Table 19.
Alternatively, cold worked products can be ordered according to their 0,2 % proof strength as given in
Tables 18 and 20.
NOTE 1 Higher Rm or Rp0,2 values can be agreed at the time of enquiry and order.
NOTE 2 Austenitic steels are insensitive to brittle fracture in the solution annealed condition. As they do not have
a pronounced transition temperature, which is characteristic of other steels, they are also useful for application at
cryogenic temperatures.
6.5.2 The values in Tables 12 to 16 shall apply for the 0,2 % and 1,0 % proof strength at elevated
temperatures.
6.5.3 In case of demand for larger thicknesses than stated in Tables 7 to 11, appropriate mechanical
property values shall be agreed at the time of enquiry and order.
6.6 Surface quality
Slight surface imperfections, inherent in the rolling process, are permitted.
When products are delivered in coil form, the degree and extent of such imperfections may be expected
to be greater, due to the impracticability of removing short lengths of coil. For hot rolled quarto plates
(symbol P in Tables 7 to 11), the requirements in EN 10163-2, class A2, shall apply unless otherwise
agreed. For other products, where necessary, more precise requirements on surface quality may be
agreed at the time of enquiry and order.
Products delivered with hot rolled or cold rolled finishes (see Table 6) shall, unless otherwise agreed, be
supplied with only one surface inspected to the required finish (the prime surface). In such instances, the
manufacturer should indicate the prime surface, by marking the material or the packaging, or by some
other agreed method. The default method is to mark the prime surface, and to make this surface the top
surface of plates, sheets and cut lengths, or the outside surface of coiled products.
6.7 Internal soundness
The products shall be free of internal defects which would exclude them from being used for their usual
purpose. For austenitic and austenitic-ferritic stainless steel flat products with a thickness ≥ 6 mm,
ultrasonic testing may be agreed at the time of enquiry and order in accordance with EN 10307.
6.8 Formability at room temperature
Cold formability may be verified by elongation in the tensile test.
6.9 Dimensions, and tolerances on dimensions and shape
The dimensions, and the tolerances on dimensions and shape shall be agreed at the time of enquiry and
order, as far as possible with reference to the dimensional standards listed in Annex C. EN ISO 18286
shall normally only be applied for product form P (individually hot rolled plates, i.e. “quarto plates”) and
not for product form H (continuously hot rolled strip, or sheet or plate cut off from it), for which
EN ISO 9444-2 shall be applied. When applying EN ISO 18286, tolerances on width and length class A
shall apply, unless specifically agreed otherwise at the time of enquiry and order.
6.10 Calculation of mass and tolerances on mass
6.10.1 The nominal mass shall be calculated by using the steel density given in EN 10088-1:2023
Annex E and the nominal dimensions of the steel product.
6.10.2 Tolerances on mass may be agreed at the time of enquiry and order.
7 Inspection and testing
7.1 General
The appropriate process control, inspection, testing and modelling shall be carried out to ensure that the
product complies with the requirements of the order.
This includes the following:
— suitable frequency of verification of the dimensions of the products;
— adequate intensity of visual examination of the surface quality of the products;
— appropriate frequency and type of test to ensure that the correct grade of steel is used.
The nature and frequency of these verifications, examinations and tests is determined in the light of the
degree of consistency that has been determined by the evidence of the quality system. In view of this,
verifications by specific tests for these requirements are not necessary unless otherwise agreed.
7.2 Agreement on tests and inspection documents
7.2.1 Products complying with this document shall be ordered and delivered with one of the inspection
documents as specified in EN 10204. The type of document shall be agreed upon at the time of enquiry
and order. If the order does not contain any specification of this type, at least a test report 2.2 shall be
issued.
7.2.2 If it is agreed to issue a test report 2.2 in accordance with EN 10204, it shall indicate the following
information:
a) information groups A, B and Z of EN 10168;
b) results of the cast analysis in accordance with Table 1 to 4 with code numbers C71 to C92 in
EN 10168.
7.2.3 If the issuing of an inspection certificate 3.1 or 3.2 according to EN 10204 has been agreed,
specific inspections according to 7.3 shall be carried out and the following information shall be given in
the inspection document with the code numbers and details required by EN 10168:
a) information groups A, B and Z of EN 10168;
b) results of the cast analysis in accordance with Table 1 to 4 with code numbers C71 to C92 in
EN 10168;
c) results of all mandatory (m) tests according to Table 21;
d) results of any optional (o) test according to Table 21 or any further product verification agreed at the
time of enquiry and order.
7.3 Specific inspection and testing
7.3.1 Extent of testing
The tests to be carried out, either mandatorily (m) or optionally by agreement (o), and the composition
and size of the test units, and the number of sample products, samples and test pieces to be taken are
given in Table 21.
7.3.2 Selection and preparation of samples and test pieces
7.3.2.1 Sampling and sample preparation shall be in accordance with the requirements of
EN ISO 14284 and EN ISO 377. In addition, for the mechanical tests, the stipulations in 7.3.2.2 shall apply.
7.3.2.2 In accordance with Table 22, samples for tensile testing shall be taken from halfway between
the centre and a longitudinal edge. If it has been agreed that optional impact tests shall be carried out, the
test samples shall be taken from the same location.
The samples shall be taken from products in the delivery condition. If agreed, the samples may be taken
before flattening. For samples to be given a simulated heat treatment (see also 6.5.1) the conditions for
annealing, hardening and tempering shall be agreed.
7.3.2.3 Samples for hardness testing on martensitic steels and for optional testing of resistance to
intergranular corrosion shall be taken from the same location as those for the mechanical tests (see
7.3.2.2). The test pieces for testing of resistance to intergranular corrosion shall be pre-bend as shown in
Figure 1.
Key
1 rolling direction
Figure 1 — Test piece for determination of resistance to intergranular corrosion: direction of
bending in relation to the rolling direction
7.4 Test methods
7.4.1 The chemical analysis shall be carried out using appropriate European Standards. The choice of a
suitable physical or chemical method for the analysis shall be at the discretion of the manufacturer. If
requested, the manufacturer shall declare the test method used.
NOTE The list of available European Standards on chemical analysis is given in CEN/TR 10261.
7.4.2 Tensile testing at room temperature shall be carried out in accordance with EN ISO 6892-1 also
considering the additional or deviating conditions specified in Table 22, footnote a. The 0,2 % proof
strength, the tensile strength and the elongation after fracture shall be determined. In addition, for
austenitic steels only, also the 1,0 % proof strength shall be determined.
7.4.3 If a tensile test at elevated temperature has been ordered, this shall be carried out in accordance
with EN ISO 6892-2. As for room temperature testing (see 7.4.2), 0,2 % proof strength, and for austenitic
steels the 1,0 % proof strength shall also be determined.
7.4.4 For the determination of mechanical properties measured by tensile testing, the manufacturer
may use modelling with a verification method approved in accordance with EN 10373, if agreed with the
purchaser at the time of enquiry and order.
7.4.5 If an impact test has been ordered, it shall be carried out in accordance with EN ISO 148-1 on test
pieces with a V-notch and using a striker with a radius of 2 mm (KV ). The result shall be determined as
an average value obtained from a set of three test pieces. This testing and possible additional testing shall
be performed in accordance with EN 10021:2006 8.3.4.2.
7.4.6 If a hardness test has been ordered, Brinell hardness test shall be carried out in accordance with
EN ISO 6506-1, Vickers hardness test in accordance with EN ISO 6507-1, and Rockwell hardness test in
accordance with EN ISO 6508-1.
7.4.7 The resistance to intergranular corrosion shall be tested in accordance with EN ISO 3651-2.
7.4.8 The tolerances on dimensions and form of the product, and the measurement methods of
dimension and form shall be in accordance with the requirements of the relevant dimensional standards
(see also Annex C).
7.5 Retests
See EN 10021.
8 Marking
8.1 Each product shall be marked on one surface, providing the information stated in Table 23, and
with the exceptions mentioned in 8.2.
8.2 For sheets or plates in bundles and strip in coil or where the surface is ground or polished, or in
case of an agreement with the purchaser at the time of enquiry and order not to mark the product, the
marking shall instead be applied to the packaging or to a tag securely attached to it.
8.3 The method of marking and the material of marking shall, unless otherwise agreed, be at the
discretion of the manufacturer. The marking shall be durable for at least one year in unheated storage
under cover. Corrosion resistance of the product shall not be impaired by marking.
Table 1 — Chemical composition (cast analysis) of austenitic corrosion resistant steels
Steel designation a
% by mass
Name Number C Si Mn P S Cr Ni Mo N Cu Others
Standard grades
X2CrNiN18–7 1.4318 0,030 1,00 2,00 0,045 0,015 16,5 to 18,5 6,0 to 8,0 - 0,10 to 0,20 - -
X4CrNiCu18–7 1.4382 0,05 1,00 2,00 0,045 0,015 17,0 to 19,0 6,0 to 8,0 - 0,050 to 0,15 0,50 to 2,00 -
0,030 to
c
X10CrNi18–8 1.4310 2,00 2,00 0,045 0,015 16,0 to 19,0 6,0 to 9,5 0,80 0,10 -
-
0,15
b
X2CrNi18–9 1.4307 0,030 1,00 2,00 0,045 17,5 to 19,5 8,0 to 10,5 - 0,10 - -
0,015
0,15 to
X8CrNiS18–9 1.4305 0,10 1,00 2,00 0,045 17,0 to 19,0 8,0 to 10,0 - 0,10 1,00 -
0,35
b
X2CrNiN18–10 1.4311 0,030 1,00 2,00 0,045 17,5 to 19,5 8,5 to 11,5 - 0,12 to 0,22 - -
0,015
b
X5CrNi18–10 1.4301 0,07 1,00 2,00 0,045 17,5 to 19,5 8,0 to 10,5 - 0,10 - -
0,015
b
X6CrNiTi18–10 1.4541 0,08 1,00 2,00 0,045 17,0 to 19,0 9,0 to 12,0 - - - Ti: 5 × C to 0,70
0,015
b
X2CrNi19–11 1.4306 0,030 1,00 2,00 0,045 18,0 to 20,0 10,0 to 12,0 - 0,10 - -
0,015
b
X4CrNi18–12 1.4303 0,06 1,00 2,00 0,045 17,0 to 19,0 11,0 to 13,0 - 0,10 - -
0,015
b
X2CrNiMoN17–11–2 1.4406 0,030 1,00 2,00 0,045 16,5 to 18,5 10,0 to 12,5 2,00 to 2,50 0,12 to 0,22 - -
0,015
b
X2CrNiMo17–12–2 1.4404 0,030 1,00 2,00 0,045 16,5 to 18,5 10,0 to 13,0 2,00 to 3,00 0,10 - -
0,015
b
X5CrNiMo17–12–2 1.4401 0,07 1,00 2,00 0,045 16,5 to 18,5 10,0 to 13,0 2,00 to 2,50 0,10 - -
0,015
b
X6CrNiMoTi17–12–2 1.4571 0,08 1,00 2,00 0,045 16,5 to 18,5 10,5 to 13,5 2,00 to 2,50 - - Ti: 5 × C to 0,70
0,015
d
X2CrNiMoN21–9-1 * 1.4420 * 0,030 1,00 2,00 0,015 19,5 to 21,5 8,0 to 9,5 0,50 to 1,50 0,14 to 0,25 1,00 -
0,045
b
X2CrNiMo17–12–3 1.4432 0,030 1,00 2,00 0,045 16,5 to 18,5 10,5 to 13,0 2,50 to 3,00 0,10 - -
0,015
b
X2CrNiMo18–14–3 1.4435 0,030 1,00 2,00 0,045 17,0 to 19,0 12,5 to 15,0 2,50 to 3,00 0,10 - -
0,015
b
X2CrNiMoN17–13–5 1.4439 0,030 1,00 2,00 0,045 16,5 to18,5 12,5 to 14,5 4,0 to 5,0 0,12 to 0,22 - -
0,015
X1NiCrMoCu25–20–5 1.4539 0,020 0,70 2,00 0,030 0,010 19,0 to 21,0 24,0 to 26,0 4,0 to 5,0 0,15 1,20 to 2,00 -
Steel designation a
% by mass
Name Number C Si Mn P S Cr Ni Mo N Cu Others
Special grades
0,030 to 1,50 to
X5CrNiCu19–6-2 1.4640 0,50 0,045 0,015 18,0 to 19,0 5,5 to 6,9 - 0,030 to 0,11 1,30 to 2,00 -
0,08 4,0
0,80 to
X2CrNiSi18–10 1.4682 0,030 2,00 0,045 0,015 17,5 to 19,5 9,0 to 11,0 0,40 to 0,80 0,10 - -
2,00
X5CrNiN19–9 1.4315 0,06 1,00 2,00 0,045 0,015 18,0 to 20,0 8,0 to 11,0 - 0,12 to 0,22 - -
X6CrNiNb18–10 1.4550 0,08 1,00 2,00 0,045 0,015 17,0 to 19,0 9,0 to 12,0 - - - Nb: 10 × C to 1,00
X8CrMnCuN17–8-3 1.4597 0,10 2,00 6,5 to 9,0 0,040 0,030 15,0 to 18,0 3,00 1,00 0,10 to 0,30 2,00 to 3,5 -
X8CrMnNi19–6-3 1.4376 0,10 1,00 5,0 to 8,0 0,045 0,015 17,0 to 20,5 2,00 to 4,5 - 0,30 - -
X2CrMnNiN17–7-5 1.4371 0,030 1,00 6,0 to 8,0 0,045 0,015 16,0 to 17,5 3,5 to 5,5 - 0,15 to 0,25 1,00 -
X12CrMnNiN17–7-5 1.4372 0,15 1,00 5,5 to 7,5 0,045 0,015 16,0 to 18,0 3,5 to 5,5 - 0,050 to 0,25 - -
0,20 to 14,0 to
b
X30MnCrN16–14 1.4678 1,00 0,045 12,0 to 16,0 - - 0,20 to 0,40 2,00 -
0,015
0,40 18,0
X9CrMnNiCu17–8-5–2 1.4618 0,10 1,00 5,5 to 9,5 0,070 0,010 16,5 to 18,5 4,5 to 5,5 - 0,15 1,00 to 2,50 -
7,5 to
X12CrMnNiN18–9-5 1.4373 0,15 1,00 0,045 0,015 17,0 to 19,0 4,0 to 6,0 - 0,050 to 0,25 - -
10,5
0,07 to 0,50 to
X11CrNiMnN19–8-6 1.4369 5,0 to 7,5 0,030 0,015 17,5 to 19,5 6,5 to 8,5 - 0,20 to 0,30 - -
0,15 1,00
0,02 to 10,5 to
X6CrMnNiCuN18–12–4-2 * 1.4646 * 1,00 0,050 0,015 17,0 to 19,0 3,5 to 4,5 0,50 0,20 to 0,30 1,50 to 3,00 -
0,10 12,5
X1CrNiSi18–15–4 1.4361 0,015 3,7 to 4,5 2,00 0,025 0,010 16,5 to 18,5 14,0 to 16,0 0,20 0,10 - -
X1CrNi25–21 1.4335 0,020 0,25 2,00 0,025 0,010 24,0 to 26,0 20,0 to 22,0 0,20 0,10 - -
X6CrNiMoNb17–12–2 1.4580 0,08 1,00 2,00 0,045 0,015 16,5 to 18,5 10,5 to 13,5 2,00 to 2,50 - - Nb: 10 × C to 1,00
b
X3CrNiMo17–12–3 1.4436 0,05 1,00 2,00 0,045 16,5 to 18,5 10,5 to 13,0 2,50 to 3,00 0,10 - -
0,015
X2CrNiMoN17–13–3 1.4429 0,030 1,00 2,00 0,045 0,015 16,5 to 18,5 11,0 to 14,0 2,50 to 3,00 0,12 to 0,22 - -
X2CrNiMoN18–12–4 1.4434 0,030 1,00 2,00 0,045 0,015 16,5 to 19,5 10,5 to 14,0 3,00 to 4,0 0,10 to 0,20 - -
Steel designation a
% by mass
Name Number C Si Mn P S Cr Ni Mo N Cu Others
b
X2CrNiMo18–15–4 1.4438 0,030 1,00 2,00 0,045 17,5 to 19,5 13,0 to 16,0 3,00 to 4,0 0,10 - -
0,015
X1CrNiMoCuN20–18–7 1.4547 0,020 0,70 1,00 0,030 0,010 19,5 to 20,5 17,5 to 18,5 6,0 to 7,0 0,18 to 0,25 0,50 to 1,00 -
X1CrNiMoN25–22–2 1.4466 0,020 0,70 2,00 0,025 0,010 24,0 to 26,0 21,0 to 23,0 2,00 to 2,50 0,10 to 0,16 - -
2,00 to
X1CrNiMoCuNW24–22–6 1.4659 0,020 0,70 0,030 0,010 23,0 to 25,0 21,0 to 23,0 5,5 to 6,5 0,35 to 0,50 1,00 to 2,00 W: 1,50 to 2,50
4,0
2,00 to
X1CrNiMoCuN24–22–8 1.4652 0,020 0,50 0,030 0,005 23,0 to 25,0 21,0 to 23,0 7,0 to 8,0 0,45 to 0,55 0,30 to 0,60 -
4,0
X2CrNiMnMoN25–18–6-5 1.4565 0,030 1,00 5,0 to 7,0 0,030 0,015 24,0 to 26,0 16,0 to 19,0 4,0 to 5,0 0,30 to 0,60 - Nb: 0,15
X1NiCrMoCuN25–20–7 1.4529 0,020 0,75 2,00 0,030 0,010 19,0 to 21,0 24,0 to 26,0 6,0 to 7,0 0,15 to 0,25 0,50 to 1,50 -
X1NiCrMoCu31–27–4 1.4563 0,020 0,70 2,00 0,030 0,010 26,0 to 28,0 30,0 to 32,0 3,00 to 4,0 0,10 0,70 to 1,50 -
Elements not quoted (“-”) or not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast. All appropriate precautions shall be
taken to avoid the addition of such elements from scrap and other materials used in production which would impair mechanical properties and the suitability of the steel.
a
Maximum values unless indicated otherwise.
b
Particular ranges of sulfur content may provide improvement of the following properties: For weldability, a controlled sulfur content of 0,008 % to 0,015 % is recommended and permitted; for
machinability a controlled sulfur content of 0,015 % to 0,030 % is recommended and permitted; for polishability, a controlled sulfur content of 0,015 % max. is recommended.
c
For cold worked applications a copper content can be specified up to 1,00 %.
d
For application according to the Pressure Equipment Directive (PED) the phosphorus content is restricted to max. 0,035 %.
* Patented steel grade.
Table 2 — Chemical composition (cast analysis) of austenitic-ferritic corrosion resistant steels
Steel designation a
% by mass
Name Number C Si Mn P S Cr Ni Mo N Cu W
Standard grades
X2CrNiN22–2 * 1.4062 * 0,030 1,00 2,00 0,040 0,010 21,5 to 24,0 1,00 to 2,90 0,45 0,16 to 0,28 - -
X2CrNiN23–4 1.4362 0,030 1,00 2,00 0,035 0,015 22,0 to 24,5 3,5 to 5,5 0,10 to 0,60 0,050 to 0,20 0,10 to 0,60 -
X2CrMnNiN21–5-1 1.4162 0,04 1,00 4,0 to 6,0 0,040 0,015 21,0 to 22,0 1,35 to 1,90 0,10 to 0,80 0,20 to 0,25 0,10 to 0,80 -
X2CrMnNiMoN21–5-3 1.4482 0,030 1,00 4,0 to 6,0 0,035 0,030 19,5 to 21,5 1,50 to 3,50 0,10 to 0,60 0,050 to 0,20 1,00 -
b b
0,030 1,00 2,00 0,035 0,015 21,0 to 23,0 4,5 to 6,5 2,50 to 3,5 0,10 to 0,22 - -
X2CrNiMoN22–5-3 1.4462
2,50 to
X2CrNiMnMoCuN24–4-3–2 * 1.4662 * 0,030 0,70 0,035 0,005 23,0 to 25,0 3,00 to 4,5 1,00 to 2,00 0,20 to 0,30 0,10 to 0,80 -
4,0
Special grades
1,40 to 1,20 to
X2CrNiMoSi18–5-3 1.4424 0,030 0,035 0,015 18,0 to 19,0 4,5 to 5,2 2,50 to 3,00 0,050 to 0,10 - -
2,00 2,00
X2CrNiMnMoCuN21–3-1–1 * 1.4637 * 0,030 0,80 2,50 0,035 0,005 19,0 to 22,0 2,00 to 4,0 0,60 to 1,40 0,14 to 0,24 1,00 -
X2CrNiMoCuN25–6-3 1.4507 0,030 0,70 2,00 0,035 0,015 24,0 to 26,0 6,0 to 8,0 3,00 to 4,0 0,20 to 0,30 1,00 to 2,50 -
X2CrNiMoN25–7-4 1.4410 0,030 1,00 2,00 0,035 0,015 24,0 to 26,0 6,0 to 8,0 3,00 to 4,5 0,24 to 0,35 - -
X2CrNiMoCuWN25–7-4 1.4501 0,030 1,00 1,00 0,035 0,015 24,0 to 26,0 6,0 to 8,0 3,00 to 4,0 0,20 to 0,30 0,50 to 1,00 0,50 to 1,00
0,80 to
X2CrNiMoN29–7-2 1.4477 0,030 0,50 0,030 0,015 28,0 to 30,0 5,8 to 7,5 1,50 to 2,60 0,30 to 0,40 0,80 -
1,50
Elements not quoted (“-”) or not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast. All appropriate precautions shall be
taken to avoid the addition of such elements from scrap and other materials used in production which would impair mechanical properties and the suitability of the steel.
a
Maximum values unless indicated otherwise.
b
A minimum value of the Pitting Resistance Equivalent (PRE = Cr +3,3 Mo + 16 N) can be agreed upon at the time of enquiry and order.
* Patented steel grade.
Table 3 — Chemical composition (cast analysis) of ferritic corrosion resistant steels
Steel designation a
% by mass
Name Number C Si Mn P S Cr Ni Mo N Nb Ti Others
Standard grades
[6 × (C + N)] to
X2CrTi12 1.4512 0,030 1,00 1,00 0,040 0,015 10,5 to 12,5 - - - - -
c
0,65
X2CrNi12 1.4003 0,030 1,00 2,00 0,040 0,015 10,5 to12,5 0,30 to 1,00 - 0,030 - - -
X6CrNiTi12 1.4516 0,08 0,70 1,50 0,040 0,015 10,5 to 12,5 0,50 to 1,50 - - - 0,050 to 0,35 -
b
X6Cr13 1.4000 0,08 1,00 1,00 0,040 12,0 to 14,0 - - - - - -
0,015
b
X6CrAI13 1.4002 0,08 1,00 1,00 0,040 12,0 to 14,0 - - - - - Al: 0,10 to 0,30
0,015
[4 × (C + N) + 0,15]
b
X3CrTi17 1.4510 0,05 1,00 1,00 0,040 16,0 to 18,0 - - - - -
0,015
c
to 0,80
X3CrNb17 1.4511 0,05 1,00 1,00 0,040 0,015 16,0 to 18,0 - - - 12 × C to 1,00 - -
b
X6Cr17 1.4016 0,08 1,00 1,00 0,040 16,0 to 18,0 - - - - - -
0,015
b
X6CrMo17–1 1.4113 0,08 1,00 1,00 0,040 16,0 to 18,0 - 0,90 to 1,40 - - - -
0,015
[4 × (C + N) + 0,15]
X2CrMoTi18–2 1.4521 0,025 1,00 1,00 0,040 0,015 17,0 to 20,0 - 1,75 to 2,50 0,030 - -
c
to 0,80
Special grades
1,00 to
X2CrMnNiTi12 1.4600 0,030 1,00 0,040 0,015 11,0 to 13,0 0,30 to 1,00 - 0,025 - 6 × C to 0,35 -
2,50
X1CrNb15 1.4595 0,020 1,00 1,00 0,025 0,015 14,0 to 16,0 - - 0,020 0,20 to 0,60 - -
[4 × (C + N) + 0,15]
0,20 to Al: 1,50
X2CrSiTi15 1.4630 0,030 1,00 0,050 0,050 13,0 to 16,0 0,50 0,50 - -
c
1,50 Cu: 0,50
to 0,80
[4 × (C + N) + 0,15]
X2CrTi17 1.4520 0,025 0,50 0,50 0,040 0,015 16,0 to 18,0 - - 0,015 - -
c
to 0,80
X2CrNbZr17 1.4590 0,030 1,00 1,00 0,040 0,015 16,0 to 17,5 - - - 0,35 to 0,55 - Zr ≥ 7 × (C + N) + 0,15
Steel designation a
% by mass
Name Number C Si Mn P S Cr Ni Mo N Nb Ti Others
X6CrNi17–1 1.4017 0,08 1,00 1,00 0,040 0,015 16,0 to 18,0 1,20 to 1,60 - - - - -
X2CrTiNb18 1.4509 0,030 1,00 1,00 0,040 0,015 17,5 to 18,5 - - - [3 × C + 0,30] to 1,00 0,10 to 0,60 -
0,20 to [3 × C + 0,30] to 1,00 Al: 0,20 to 1,50
X2CrAlSiNb18 1.4634 0,030 1,00 0,050 0,050 17,5 to 18,5 0,50 0,50 - -
c
1,50 Cu: 0,50
[4 × (C + N) + 0,15]
X2CrNbTi20 1.4607 0,030 1,00 1,00 0,040 0,015 18,5 to 20,5 - - 0,030 1,00 -
c
to 0,80
[4 × (C + N) + 0,20]
Al: 0,050
X2CrTi21 * 1.4611 * 0,030 1,00 1,00 0,050 0,050 19,0 to 22,0 0,50 0,50 - -
c
Cu: 0,50
to 1,00
X2CrNbCu21 1.4621 0,030 1,00 1,00 0,040 0,015 20,0 to 21,5 - - 0,030 0,20 to 1,00 - Cu: 0,10 to 1,00
1.4622 *
Cu: 0,30 to 0,80
d
0,030 1,00 0,80 0,040 0,015 20,0 to 24,0 - - 0,030 0,10 to 0,70 0,10 to 0,70
X2CrCuNbTiV22–1*
d
V: 0,030 to 0,50
[4 × (C + N) + 0,20]
Al: 0,050
X2CrTi24 * 1.4613 * 0,030 1,00 1,00 0,050 0,050 22,0 to 25,0 0,50 0,50 - -
c
Cu: 0,50
to 1,00
X5CrNiMoTi15–2 1.4589 0,08 1,00 1,00 0,040 0,015 13,5 to 15,5 1,00 to 2,50 0,20 to 1,20 - - 0,30 to 0,50 -
[4 × (C + N) + 0,15]
X2CrMoTi17–1 1.4513 0,025 1,00 1,00 0,040 0,015 16,0 to 18,0 - 0,80 to 1,40 0,020 - -
c
to 0,80
[7 × (C + N) + 0,10]
X6CrMoNb17–1 1.4526 0,08 1,00 1,00 0,040 0,015 16,0 to 18,0 - 0,80 to 1,40 0,040 - -
to 1,00
[4 × (C + N) + 0,15]
X2CrMoTi29–4 1.4592 0,025 1,00 1,00 0,030 0,010 28,0 to 30,0 - 3,5 to 4,5 0,045 - -
c
to 0,80
Elements not quoted (“-”) or not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast. All precautions shall be taken to avoid
the addition of such elements from scrap and other materials used in production which would impair mechanical properties and the suitability of the steel.
a
Maximum values unless indicated otherwise.
b
Particular ranges of sulfur content may provide improvement of the following properties: For weldability, a controlled sulfur content of 0,008 % to 0,015 % is recommended and permitted; for
machinability a controlled sulfur content of 0,015 % to 0,030 % is recommended and permitted; for polishability, a controlled sulfur content of 0,015 % max. is recommended.
c
Stabilization may be obtained by use of titanium and/or niobium and/or zirconium. According to the atomic mass of these elements and the content of carbon and nitrogen, the equivalence shall be
the following: Nb (% by mass) ≡ Zr (% by mass) ≡ 7/4 Ti (% by mass).
Steel designation a
% by mass
Name Number C Si Mn P S Cr Ni Mo N Nb Ti Others
d
Ti + Nb: 8 × (C + N) to 0,80 %.
* Patented steel grade.
oSIST prEN 10
...
