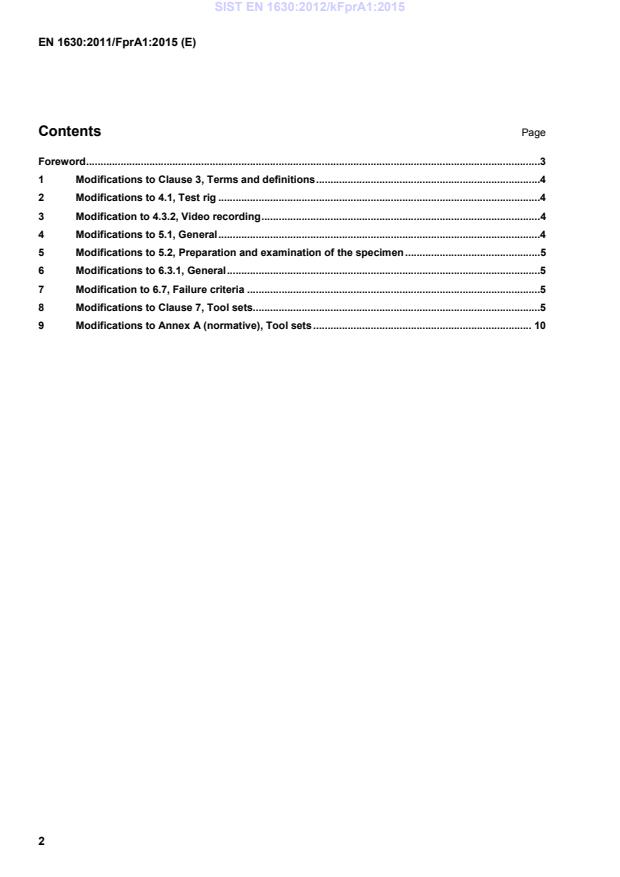

Contents Page
Foreword .3
1 Modifications to Clause 3, Terms and definitions .4
2 Modifications to 4.1, Test rig .4
3 Modification to 4.3.2, Video recording .4
4 Modifications to 5.1, General .4
5 Modifications to 5.2, Preparation and examination of the specimen .5
6 Modifications to 6.3.1, General .5
7 Modification to 6.7, Failure criteria .5
8 Modifications to Clause 7, Tool sets.5
9 Modifications to Annex A (normative), Tool sets . 10

Foreword
This document (EN 1630:2011/FprA1:2015) has been prepared by Technical Committee CEN/TC 33 “Doors,
windows, shutters, building hardware and curtain walling”, the secretariat of which is held by AFNOR.
This document is currently submitted to the Unique Acceptance Procedure.
1 Modifications to Clause 3, Terms and definitions
Delete 3.1.
Delete 3.6.
2 Modifications to 4.1, Test rig
Replace the first sentence with:
“The test rig shall consist of a rigid frame into which test specimens can be mounted with its subframe.
Annex C, Figure C.1 shows an example of a test rig.”.
Replace the second sentence with:
"The stiffness of the rig shall be such that a 15 kN force applied to any of the defined points shall not cause a
deflection of more than 5 mm. The test rig shall support the subframe.".
At the end of 4.1, add as a separate paragraph:
"For products intended to be installed in orientations other than vertical (e.g. roof lights) the test specimen
shall be tested in the orientation of its intended use. When a range of intended orientations is considered, the
test shall be performed in the most vulnerable orientation for the test specimen.".
3 Modification to 4.3.2, Video recording
In the first paragraph, replace "The videotape and any copies of it shall not be published nor shown publicly."
with:
"The videotape and any copies of it shall not be published nor shown publicly without permission from the
applicant.".
4 Modifications to 5.1, General
In the second paragraph, at the end, add:
“The test specimen shall be installed in the subframe and test rig as close to the tester as possible to give
maximum access to the test specimen.”.
Delete the third paragraph ("At least two specimens shall be provided for testing, one for the pre-test and one
for the main test.").
After the second paragraph, add the following two paragraphs:
"For products intended to be installed in orientations other than vertical (e.g. roof lights) the test specimen
shall be tested in the orientation of its intended use. When a range of intended orientations is considered, the
test shall be performed in the most vulnerable orientation for the test specimen.
The number of test specimens needed is described in EN 1627:2011, Clause 11.".
After Table 1, add the following NOTE:
“NOTE 3 If a higher grade of glass is used in the test specimen, it may not be possible to assess the use of lower
grade glass within those products without conducting further tests. This is because higher grades of glass may increase
the rigidity of the product.”.
5 Modifications to 5.2, Preparation and examination of the specimen
At the end of the subclause, after the NOTE, add:
"The client shall supply the specimens pre-fitted in sub-frames (timber, aluminium or steel box section) in
accordance with their installation instructions, with the maximum permitted gap between the specimen frame
and sub-frame. This should be representative of a typical installation and shall be recorded in the test report.
During test the test rig shall not support the joint line between specimen frame and sub-frame.".
6 Modifications to 6.3.1, General
After the first paragraph, add the following two paragraphs:
"If the glass should break during any tests, the test shall proceed and the test laboratory may apply adhesive
film to the exposed area of the glass to improve the protection of the tester for RC 2-RC 4.
For construction products without key unlockable hardware on the non-attack side entry might be gained by
penetrating the product (including infillings of glass) and operating the hardware. This vulnerability shall be
explored in all resistance classes.".
7 Modification to 6.7, Failure criteria
After the first paragraph, add:
"- Template E1: - a rectangle of  400 mm ± 2 mm x 250 mm ± 2 mm; or
Template E2: - an ellipse of  400 mm ± 2 mm x 300 mm ± 2 mm; or
Template E3: - a circle of diameter 350 mm ± 2 mm
All templates shall be at least 420 mm long.".
