General Information

Abstract

This European Standard specifies requirements for the acceptance inspection of thermal spraying equipment in the case of powder feed units used in spray jobs to produce thermally sprayed coatings of reproducible quality.
This part should be used in conjunction with EN 1395-1, which includes general requirements and explanations of procedures.
This part should be used in addition to EN 1395-2 when carrying out acceptance inspection for flame and/or HVOF (high velocity oxygen-fuel) spraying equipment, or EN 1395-4 when carrying out acceptance inspection for plasma spraying equipment.

Status
Published
Publication Date
30-Jan-2007
ICS
25.220.20 - Surface treatment
Technical Committee
CEN/TC 240 - Thermal spraying and thermally spraying coatings
Drafting Committee
CEN/TC 240 - Thermal spraying and thermally spraying coatings
Current Stage
9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
Start Date
12-Nov-2024
Completion Date
23-Sep-2026
Ref Project
SIST EN 1395-7:2007 - Thermal spraying - Acceptance inspection of thermal spraying equipment - Part 7: Powder feed systems

Buy Documents

Overview

EN 1395-7:2007 - Thermal spraying - Acceptance inspection of thermal spraying equipment - Part 7: Powder feed systems - defines minimum requirements and test procedures for acceptance inspection of powder feed units used to produce reproducible thermally sprayed coatings. It is intended to ensure stable, adjustable powder feed rates and uniform powder handling so spray jobs deliver consistent coating quality. This part is to be used together with EN 1395-1 (general requirements) and, where applicable, EN 1395-2 (flame/HVOF) or EN 1395-4 (plasma).

Key topics

  • Scope and applicability
    • Acceptance inspection criteria specifically for powder feed systems in thermal spraying.
    • Applies to standalone carrier-gas feed units and units integrated into flame/HVOF burners.
  • Performance and design requirements
    • Powder feed units must permit uniform processing of the designed spraying powder, allow adjustment of feed rate, and maintain constant, reproducible set values.
    • Carrier gas pressure/flow must be suitable for the spraying process (e.g., chamber low pressure or burner back-pressure).
  • Testing procedures
    • Function test: Verify compliance with manufacturer specification or contract confirmation.
    • Mass flow inspection (cold run): Operate without burner/arc for at least 1 minute, repeat three times. Allowed variation in mass flow: ±5% for Class A equipment and ±10% for Class B. Reproducibility must be shown after a ≥3 hour shutdown and recharge.
    • Powder de‑mixing (PSD) test: Fill container ~1 000 g, feed ~900 g, then analyse remaining ~10% for particle size distribution per EN 1274.
    • Measuring equipment capability: Limits of error specified (max. 5% of set value for certain classes).
  • Documentation
    • Annex A provides an inspection report template (initial test/retest), including fields for carrier gas settings, test results, and acceptance status.

Applications

  • Quality assurance and acceptance testing for:
    • Thermal spray shops and coating service providers
    • OEMs specifying sprayed coatings
    • Equipment manufacturers and suppliers of powder feed systems
    • Contracting parties validating equipment before production use
  • Ensures reproducible coating quality in processes such as flame spraying, HVOF and plasma spraying when used with the relevant EN 1395 parts.

Related standards

  • EN 1395-1 - Thermal spraying - Acceptance inspection: General requirements
  • EN 1395-2 - Flame spraying including HVOF (use alongside Part 7 for these systems)
  • EN 1395-4 - Plasma spraying (use alongside Part 7 for plasma systems)
  • EN 1274 - Thermal spraying - Powders - Composition, technical supply conditions
  • EN 657 - Thermal spraying - Terminology, classification

Keywords: EN 1395-7:2007, thermal spraying, powder feed systems, acceptance inspection, mass flow test, powder de‑mixing, particle size distribution, HVOF, plasma spraying, quality assurance.

Relations

Replaces
EN 1395:1996 - Thermal spraying - Acceptance inspection of thermal spraying equipment
Effective Date
22-Dec-2008
Refers
EN 1274:2004 - Thermal spraying - Powders - Composition, technical supply conditions
Effective Date
28-Jan-2026
Refers
EN 657:2005 - Thermal spraying - Terminology, classification
Effective Date
28-Jan-2026
Referred By
EN IEC 60455-2:2023 - Resin based reactive compounds used for electrical insulation - Part 2: Methods of test
Effective Date
09-Feb-2026
Referred By
EN 10329:2006 - Steel tubes and fittings for onshore and offshore pipelines - External field joint coatings
Effective Date
28-Jan-2026
Referred By
EN ISO 10350-1:2008 - Plastics - Acquisition and presentation of comparable single-point data - Part 1: Moulding materials (ISO 10350-1:2007)
Effective Date
28-Jan-2026
Referred By
EN ISO 6402-2:2003 - Plastics - Acrylonitrile-styrene-acrylate (ASA), acrylonitrile-(ethylene-propylene-diene)-styrene (AEPDS) and acrylonitrile-(chlorinated polyethylene)-styrene (ACS) moulding and extrusion materials - Part 2: Preparation of test specimens and determination of properties (ISO 6402-2:2003)
Effective Date
28-Jan-2026
Referred By
EN ISO 12690:2010 - Metallic and other inorganic coatings - Thermal spray coordination - Tasks and responsibilities (ISO 12690:2010)
Effective Date
28-Jan-2026
Referred By
EN ISO 2580-2:2003 - Plastics - Acrylonitrile-butadiene-styrene (ABS) moulding and extrusion materials - Part 2: Preparation of test specimens and determination of properties (ISO 2580-2:2003)
Effective Date
28-Jan-2026
Referred By
EN ISO 3673-2:2012 - Plastics - Epoxy resins - Part 2: Preparation of test specimens and determination of properties of crosslinked epoxy resins (ISO 3673-2:2012)
Effective Date
28-Jan-2026
Referred By
EN ISO 2897-2:2003 - Plastics - Impact-resistant polystyrene (PS-I) moulding and extrusion materials - Part 2: Preparation of test specimens and determination of properties (ISO 2897-2:2003)
Effective Date
28-Jan-2026
Referred By
EN ISO 16805:2005 - Binders for paints and varnishes - Determination of glass transition temperature (ISO 16805:2003)
Effective Date
28-Jan-2026
Referred By
EN ISO 10350-2:2011 - Plastics - Acquisition and presentation of comparable single-point data - Part 2: Long-fibre-reinforced plastics (ISO 10350-2:2011)
Effective Date
28-Jan-2026
Referred By
EN ISO 1873-2:2007 - Plastics - Polypropylene (PP) moulding and extrusion materials - Part 2: Preparation of test specimens and determination of properties (ISO 1873-2:2007)
Effective Date
28-Jan-2026
Referred By
EN ISO 8986-2:2009 - Plastics - Polybutene-1 (PB-1) moulding and extrusion materials - Part 2: Preparation of test specimens and determination of properties (ISO 8986-2:2009)
Effective Date
28-Jan-2026

Buy Documents

Get Certified

Connect with accredited certification bodies for this standard

DVS-ZERT GmbH

German welding certification society.

DAKKS Germany Verified
Visit Website

CARES (UK Certification Authority for Reinforcing Steels)

UK certification for reinforcing steels and construction.

UKAS United Kingdom Verified
Visit Website

EWF/IIW (European/International Welding Federation)

International welding personnel certification.

BELAC Belgium Verified
Visit Website

Sponsored listings

Frequently Asked Questions

EN 1395-7:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Thermal spraying - Acceptance inspection of thermal spraying equipment - Part 7: Powder feed systems". This standard covers: This European Standard specifies requirements for the acceptance inspection of thermal spraying equipment in the case of powder feed units used in spray jobs to produce thermally sprayed coatings of reproducible quality. This part should be used in conjunction with EN 1395-1, which includes general requirements and explanations of procedures. This part should be used in addition to EN 1395-2 when carrying out acceptance inspection for flame and/or HVOF (high velocity oxygen-fuel) spraying equipment, or EN 1395-4 when carrying out acceptance inspection for plasma spraying equipment.

This European Standard specifies requirements for the acceptance inspection of thermal spraying equipment in the case of powder feed units used in spray jobs to produce thermally sprayed coatings of reproducible quality. This part should be used in conjunction with EN 1395-1, which includes general requirements and explanations of procedures. This part should be used in addition to EN 1395-2 when carrying out acceptance inspection for flame and/or HVOF (high velocity oxygen-fuel) spraying equipment, or EN 1395-4 when carrying out acceptance inspection for plasma spraying equipment.

EN 1395-7:2007 is classified under the following ICS (International Classification for Standards) categories: 25.220.20 - Surface treatment. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 1395-7:2007 has the following relationships with other standards: It is inter standard links to EN 1395:1996, EN 1274:2004, EN 657:2005, EN IEC 60455-2:2023, EN 10329:2006, EN ISO 10350-1:2008, EN ISO 6402-2:2003, EN ISO 12690:2010, EN ISO 2580-2:2003, EN ISO 3673-2:2012, EN ISO 2897-2:2003, EN ISO 16805:2005, EN ISO 10350-2:2011, EN ISO 1873-2:2007, EN ISO 8986-2:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN 1395-7:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Thermal spraying - Acceptance inspection of thermal spraying equipment - Part 7: Powder feed systemsProjection thermique - Contrôle d'acceptation du matériel de projection thermique - Partie 7: Systemes d'alimentation de poudreThermisches Spritzen - Abnahmeprüfungen für Anlagen zum thermischen Spritzen - Teil 7: PulverfördersystemeTa slovenski standard je istoveten z:EN 1395-7:2007SIST EN 1395-7:2007en25.220.20Površinska obdelavaSurface treatmentICS:SIST EN 1395:19991DGRPHãþDSLOVENSKI
STANDARDSIST EN 1395-7:200701-april-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1395-7January 2007ICS 25.220.20Supersedes EN 1395:1996
English VersionThermal spraying - Acceptance inspection of thermal sprayingequipment - Part 7: Powder feed systemsProjection thermique - Contrôle d'acceptation du matérielde projection thermique - Partie 7: Systèmes d'alimentationde poudreThermisches Spritzen - Abnahmeprüfungen für Anlagenzum thermischen Spritzen - Teil 7: PulverfördersystemeThis European Standard was approved by CEN on 23 December 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1395-7:2007: E

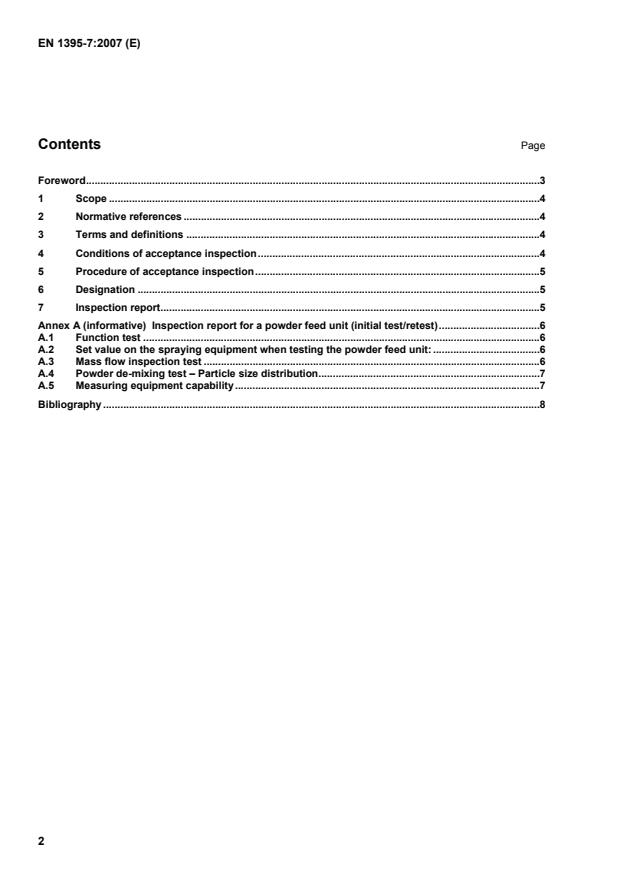

Inspection report for a powder feed unit (initial test/retest).6 A.1 Function test.6 A.2 Set value on the spraying equipment when testing the powder feed unit:.6 A.3 Mass flow inspection test.6 A.4 Powder de-mixing test – Particle size distribution.7 A.5 Measuring equipment capability.7 Bibliography.8

This document together with EN 1395-1, 1395-2, 1395-3, 1395-4, 1395-5 and 1395-6 supersedes EN 1395:1996. EN 1395 consists of the following Parts, under the general title Thermal spraying — Acceptance inspection of thermal spraying equipment:  Part 1: General requirements;  Part 2: Flame spraying including HVOF;  Part 3: Arc spraying;  Part 4: Plasma spraying;  Part 5: Plasma spraying in chambers;  Part 6: Manipulator systems;  Part 7: Powder feed systems. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
...
