SIST EN 50411-3-1:2012
(Main)Fibre organisers and closures to be used in optical fibre communication systems - Product specifications - Part 3-1: Fibre management system, splice wall box, for category C & G
Fibre organisers and closures to be used in optical fibre communication systems - Product specifications - Part 3-1: Fibre management system, splice wall box, for category C & G
1.1 Product definition This European Standard covers wall boxes for up to 288 fibre splices. Wall boxes for connectors will be covered in a future part of the EN 50411-3 series. This European Standard covers two environmental service requirements, for use inside a building under category C and externally of buildings under category G both to EN 61753-1:2007. This European Standard contains the initial, start of life dimensional, optical, mechanical and environmental performance requirements of a fully installed optical fibre wall box, in order for it to be categorised as an EN standard product. The wall box must be suitable for fixing to a vertical internal or external surface above ground level. The wall box is a housing containing a fibre management system, containing splice trays of various fibre separation levels, and may contain one or more of the following: • storage and/or routing of cable; • through-box/uncut fibre, cable storage; • passive devices. This document specifies the number of splice trays for each fibre separation level. 1.2 Operating environment The tests selected combined with the severity and duration is representative of indoor and outside plant for above ground environments defined by: EN 61753-1: - category C: Controlled environment - category G: Ground level environment 1.3 Reliability Whilst the anticipated service life expectancy of the product in this environment is 20 years, compliance with this European Standard does not guarantee the reliability of the product. This should be predicted using a recognised reliability assessment programme. 1.4 Quality assurance Compliance with this European Standard does not guarantee the manufacturing consistency of the product. This should be maintained using a recognised quality assurance programme. 1.5 Allowed fibre and cable types All types of fibre are permitted for a FMS with a minimum bend radius of 30 mm. A minimum bend of 20 mm can only be used with a B 6 fibre. The box, once tested according to this product specification, will be also suited for other fibre types, for example bend insensitive, dispersion shifted, non-zero dispersion shifted and multimode fibres. This wall box standard allows both single-mode and multi-mode fibre to be used and covers all IEC standard optical fibre cables with their various fibre capacities, types and designs as long as fitting in the box does not contravene the minimum bend radius. The minimum bend radius of fibre depends on its type, and is applicable for all operational wavelengths: • EN 60793-2-10, Type A1 multimode fibre is 30 mm; • EN 60793-2-50, Type B 1.1 and B 1.3 singlemode fibre is 30 mm; (20 mm is accepted for total lengths less than 2 m) • EN 60793-2-50, Type B6-a1, B6-a2 singlemode fibre (ITU-T G.657) is 20 mm (15 mm is accepted for total lengths less than 0,5 m)
LWL-Spleißkassetten und -Muffen für die Anwendung in LWL-Kommunikationssystemen - Produktnormen - Teil 3-1: Faser Management System, Wandspleißverteiler für die Kategorien C und G
1.1 Produktdefinition Dieses Dokument umfasst Wandverteiler bis zu 288 Faserspleißen. Wandverteiler für Steckverbindungen sind in prEN 50411-3-4 beschrieben. Dieses Dokument deckt zwei Umgebungsbedingungsanforderungen ab, für die Verwendung innerhalb eines Gebäudes unter Kategorie C und außerhalb von Gebäuden unter Kategorie G, beide nach EN 61753-1:2007. Dieses Dokument beinhaltet die Anfangs- und Maßanforderungen zu Beginn der Lebensdauer sowie die optischen, mechanischen und umweltbezogenen Leistungsanforderungen an einen vollständig installierten Wandverteiler, damit er als ein EN-Standardprodukt eingestuft werden kann. Der Wandverteiler muss dafür geeignet sein, an einer vertikalen Oberfläche oberirdisch im Innen- oder Außenbereich befestigt zu werden. Der Wandverteiler ist ein Gehäuse, das ein Faser Management System (FMS), Spleißkassetten mit unter-schiedlichem Fasertrennungsgrad und ein oder mehrere der folgenden Teile beinhaltet: • Aufbewahrung und/oder Führung von Kabel oder Mikrorohren; • Kabel Aufbewahrung für Durchleitung oder zur Aufbewahrung ungeschnittener Fasern; • passive Bauteile. Dieses Dokument beinhaltet die Anzahl an Spleißkassetten für jeden Fasertrennungsgrad. 1.2 Betriebsumgebung Die ausgewählten Prüfungen in Kombination mit den Prüfschärfen und der Dauer sind repräsentativ für Innen- oder Außenanlagen mit oberirdischer Umgebung, die definiert sind in: EN 61753 1 Kategorie C: kontrollierte Umgebung; Kategorie G: oberirdische Umgebung. 1.3 Zuverlässigkeit Die erwartete Betriebslebensdauer des Produkts in dieser Umgebung beträgt mindestens 20 Jahre, wobei die Einhaltung dieser Norm die Zuverlässigkeit des Produkts nicht garantiert. Dieser Wert sollte anhand eines anerkannten Zuverlässigkeitsbewertungsprogramms vorhergesagt werden. 1.4 Qualitätssicherung Die Einhaltung dieser Norm garantiert nicht die Gleichmäßigkeit bei der Fertigung des Produktes. Sie sollte mit einem anerkannten Qualitätssicherungsprogramm aufrechterhalten werden. 1.5 Zulässige Faser- und Kabeltypen Für ein FMS ist die Nutzung aller Fasertypen mit einem Mindestbiegeradius von 30 mm erlaubt. Ein Mindest-biegeradius von 20 mm kann nur mit Fasern des Typs B.6 genutzt werden. Der Verteiler, kann auch für andere Fasern, wie biegeunempfindliche Fasern, dispersionsverschobene Fasern, nulldispersionsverscho¬bene Fasern und Mehrmodenfasern genutzt werden, sobald er gemäß dieser Produktnorm geprüft wurde. Diese Norm für Wandverteiler erlaubt die Nutzung von Ein- und Mehrmodenfasern und deckt alle IEC-norm-konformen LWL-Kabel, mit Ihren verschiedenen Faserkapazitäten, Typen und Bauarten ab, solange der Mindestbiegeradius nicht im Widerspruch zur Anpassung in den Verteiler steht. Der Mindestbiegeradius von Fasern ist abhängig von der Bauart und ist auf alle Betriebswellenlängen anwendbar. • EN 60793-2-10 Type A1 unbeschichtete Mehrmoden-Faser ist 30 mm; • EN 60793-2-50, Type B 1.1 und B 1.3 Einmoden-Faser ist 30 mm; (20 mm wird für Gesamtlängen unter 2 m zugelassen); • EN 60793-2-50, Type B6 Einmoden-Faser (ITU-T G.657) ist 20 mm (15 mm wird für Gesamtlängen unter 0,5 m zugelassen);
Organiseurs et boîtiers de fibres destinés à être utilisés dans les systèmes de communication par fibres optiques - Spécifications de produits - Partie 3-1: Système de gestion de fibres, boîtier mural d'épissures, pour les catégories C & G
1.1 Définition du produit
La présente Norme Européenne couvre les boîtes murales pour les épissures jusqu'à 288 fibres. Les boîtes murales pour les connecteurs seront couvertes par une future partie de la série EN 50411-3.
La présente Norme Européenne couvre deux exigences environnementales de service, pour l’utilisation à l'intérieur d'un bâtiment dans la catégorie C, et à l'extérieur d'un bâtiment dans la catégorie G, les deux selon l'EN 61753-1:2007.
La présente Norme Européenne contient les exigences de performances initiales, dimensionnelles, optiques, mécaniques et environnementales, de début de vie, applicables à une boîte murale pour fibres optiques complètement installée afin d'être classée comme un produit conforme à une norme européenne.
La boîte murale doit être adaptée pour une fixation sur une surface verticale à l’intérieur ou à l’extérieur au-dessus du niveau du sol.
La boîte murale est un boîtier qui contient un système de gestion des fibres, des plateaux d'épissures avec différents niveaux de séparation de fibres et elle peut contenir un des éléments suivants:
• élément pour le stockage et/ou le routage des câbles;
• boîte de traversée/fibre non coupée, élément de stockage de câble;
• des dispositifs passifs.
Le présent document spécifie le nombre de plateaux d'épissures pour chaque niveau de séparation de fibres.
1.2 Environnement de fonctionnement
Les essais sélectionnés combinés aux sévérités et aux durées sont représentatifs d’une installation intérieure et extérieure au dessus du niveau du sol définies par la:
EN 61753-1: - catégorie C: Environnement contrôlé
- catégorie G: Environnement au niveau du sol
1.3 Fiabilité
Alors que l'espérance de vie du produit prévue dans cet environnement est de 20 ans, la conformité à la présente Norme Européenne ne garantit pas la fiabilité du produit. Il convient que celle-ci soit estimée en utilisant un programme reconnu d'évaluation de la fiabilité.
1.4 Assurance de la qualité
La conformité à la présente Norme Européenne ne garantit pas la cohérence de fabrication du produit. Il convient qu’elle soit suivie en utilisant un programme reconnu d'assurance de la qualité.
1.5 Types de fibres et câbles autorisés
Tous les types de fibres sont autorisés pour un FMS avec un rayon de courbure minimal de 30 mm. Un rayon de courbure minimal de 20 mm ne peut être utilisé qu'avec une fibre B6. La boîte, après avoir subi les essais selon la présente spécification de produit, sera aussi adaptée pour d'autres types de fibres, par exemple les fibres insensibles à la courbure, les fibres à dispersion décalée, les fibres à dispersion décalée, à dispersion décalée non nulle et les fibres multimodales.
Cette norme applicable aux boîtes murales permet l'utilisation à la fois des fibres unimodales et des fibres multimodales et s'applique à tous les câbles à fibres optiques normalisés CEI avec leurs différentes capacités de fibres, leurs différents types et leurs différentes conceptions tant que l'installation dans la boîte ne remet pas en cause le rayon de courbure minimal.
Le rayon de courbure minimal de la fibre dépend de son type et il est applicable pour toutes les longueurs d'onde de fonctionnement:
• EN 60793-2-10, pour la fibre multimodale de type A1, la valeur est de 30 mm;
• EN 60793-2-50, pour la fibre unimodale des types B 1.1 et B 1.3, la valeur est de 30 mm; (20 mm est une valeur acceptable pour des longueurs totales inférieures à 2 m)
• EN 60793-2-50, pour la fibre unimodale des types B6-a1, B6-a2 (UIT-T G.657) la valeur est de 20 mm; (15 mm est une valeur acceptable pour des longueurs totales inférieures à 0,5 m)
Delilniki za optična vlakna in kabelske spojnice za optične komunikacijske sisteme - Specifikacija izdelka - 3-1. del: Sistem za upravljanje optičnih elementov, stenska omarica s spojnicami, za kategoriji C in G
Ta evropski standard obravnava stenske omarice za do 288 spojnic za optična vlakna. Stenske omarice za konektorje bodo obravnavane v prihodnjem delu skupine standardov EN 50411-3. Ta evropski standard zajema dve okoljski zahtevi za uporabo v stavbi pod kategorijo C in zunaj pod kategorijo G iz standarda EN 61753-1:2007. Ta evropski standard vsebuje začetne dimenzijske, optične, mehanske in okoljske funkcionalne zahteve, ki jih mora na začetku življenjske dobe izpolnjevati v celoti nameščena stenska omarica z optičnimi vlakni, da se lahko kategorizira kot izdelek v skladu s standardom EN. Stenska omarica mora biti primerna za namestitev na navpično notranjo ali zunanjo površino nad tlemi. Stenska omarica je ohišje, ki vsebuje sistem za upravljanje optičnih elementov s pladnjem s spojnicami z različnimi ravnmi ločevanja vlaken, pri čemer lahko vsebuje enega ali več navedenih elementov: – shrambo in/ali traso za kable, – vlakna za omarico/nerezana vlakna, shrambo kablov, – pasivne naprave. Ta dokument določa število pladnjev s spojnicami za vsako raven ločevanja vlaken.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2012
'HOLOQLNL]DRSWLþQDYODNQDLQNDEHOVNHVSRMQLFH]DRSWLþQHNRPXQLNDFLMVNHVLVWHPH
6SHFLILNDFLMDL]GHONDGHO 6LVWHP]DXSUDYOMDQMHRSWLþQLKHOHPHQWRYVWHQVND
RPDULFDVVSRMQLFDPL]DNDWHJRULML&LQ*
Fibre organisers and closures to be used in optical fibre communication systems -
Product specifications - Part 3-1: Fibre management system, splice wall box, for category
C & G
LWL-Spleißkassetten und -Muffen für die Anwendung in LWL-Kommunikationssystemen
- Produktnormen - Teil 3-1: Faser Management System, Wandspleißverteiler für die
Kategorien C und G
Organiseurs et boîtiers de fibres destinés à être utilisés dans les systèmes de
communication par fibres optiques - Spécifications de produits - Partie 3-1: Système de
gestion de fibres, boîtier mural d'épissures, pour les catégories C & G
Ta slovenski standard je istoveten z: EN 50411-3-1:2012
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 50411-3-1
NORME EUROPÉENNE
June 2012
EUROPÄISCHE NORM
ICS 33.180.20
English version
Fibre organisers and closures to be used in optical fibre communication
systems -
Product specifications -
Part 3-1: Fibre management system, splice wall box, for category C & G
Organiseurs et boîtiers de fibres destinés LWL-Spleißkassetten und -Muffen für die
à être utilisés dans les systèmes de Anwendung in LWL-
communication par fibres optiques - Kommunikationssystemen -
Spécifications de produits - Produktnormen -
Partie 3-1: Système de gestion de fibres, Teil 3-1: Faser Management System,
boîtier mural d'épissures, pour les Wandspleißverteiler für die Kategorien C
catégories C & G und G
This European Standard was approved by CENELEC on 2012-05-28. CENELEC members are bound to comply with
the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status
of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to
the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-
CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50411-3-1:2012 E

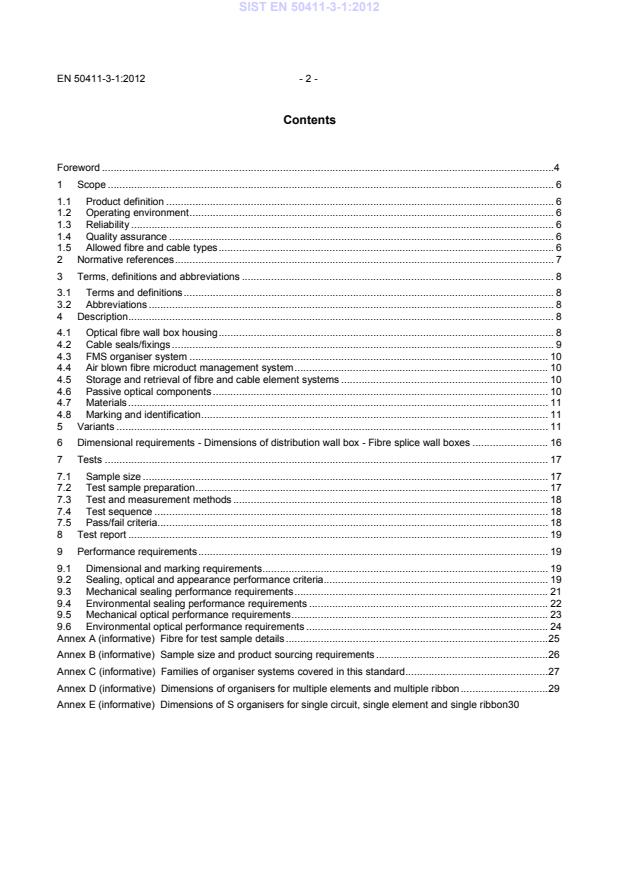

Contents
Foreword . 4
1 Scope . 6
1.1 Product definition . 6
1.2 Operating environment . 6
1.3 Reliability . 6
1.4 Quality assurance . 6
1.5 Allowed fibre and cable types . 6
2 Normative references . 7
3 Terms, definitions and abbreviations . 8
3.1 Terms and definitions . 8
3.2 Abbreviations . 8
4 Description . 8
4.1 Optical fibre wall box housing . 8
4.2 Cable seals/fixings . 9
4.3 FMS organiser system . 10
4.4 Air blown fibre microduct management system . 10
4.5 Storage and retrieval of fibre and cable element systems . 10
4.6 Passive optical components . 10
4.7 Materials . 11
4.8 Marking and identification . 11
5 Variants . 11
6 Dimensional requirements - Dimensions of distribution wall box - Fibre splice wall boxes . 16
7 Tests . 17
7.1 Sample size . 17
7.2 Test sample preparation . 17
7.3 Test and measurement methods . 18
7.4 Test sequence . 18
7.5 Pass/fail criteria. 18
8 Test report . 19
9 Performance requirements . 19
9.1 Dimensional and marking requirements . 19
9.2 Sealing, optical and appearance performance criteria . 19
9.3 Mechanical sealing performance requirements . 21
9.4 Environmental sealing performance requirements . 22
9.5 Mechanical optical performance requirements . 23
9.6 Environmental optical performance requirements . 24
Annex A (informative) Fibre for test sample details . 25
Annex B (informative) Sample size and product sourcing requirements . 26
Annex C (informative) Families of organiser systems covered in this standard . 27
Annex D (informative) Dimensions of organisers for multiple elements and multiple ribbon . 29
Annex E (informative) Dimensions of S organisers for single circuit, single element and single ribbon30
- 3 - EN 50411-3-1:2012
Figures
Figure 1 Dimensions of distribution wall box - Fibre splice wall boxes . 16
Figure 2 Track or spur wall box configuration sample . 17
Figure 3 Distribution wall box configuration sample . 18
Figure C.1 ‘Tree’, ‘Book’, ‘Juke box’ and ‘Shelf’ style organisers . 28
Figure D.1 Outline dimensions of the M organiser . 29
Figure E.1 Outline dimensions of the S organiser. 30
Tables
Table 1 Common wall box sizes with splice capacities for fibre separation levels SC and SE . 9
Table 2 Optical fibre wall box Type 1, for category C and G - variants . 11
Table 3 SC Splice tray and wall box selection (2 fibres per tray) . 13
Table 4 SE tray and wall box selection (12 fibres per tray) . 13
Table 5 SR tray and wall box selection (12 fibres per ribbon/tray) . 14
Table 6 ME splice tray and wall box selection (24 fibres per tray) . 14
Table 7 ME splice tray and wall box selection (36 fibres per tray) . 14
Table 8 ME splice tray and wall box selection (144 fibres per tray) . 14
Table 9 MR splice tray and wall box selection (36 fibres per tray) . 15
Table 10 Distribution wall box - Fibre splice wall box dimensions . 16
Table 11 Sealing, optical and appearance performance criteria (1 of 2). 19
Table 12 Mechanical optical performance requirements . 21
Table 13 Environmental sealing performance requirements . 22
Table 14 Mechanical optical performance requirements . 23
Table 15 Environmental optical performance requirements . 24
Table A.1 Fibre references . 25
Table A.2 Fibre references . 25
Table B.1 Minimum sample size requirements . 26
Table D.1 M organiser – Multiple element and multiple ribbon fibre . 29
Table E.1 S organiser – SC, SE and SR . 31
Table E.2 . 31
Foreword
This document (EN 50411-3-1:2012) has been prepared by CLC/TC 86BXA "Fibre optic interconnect, passive
and connectorised components".
The following dates are fixed:
(dop) 2013-05-28
• latest date by which this document has to be
implemented at national level by publication of
an identical national standard or by
endorsement
(dow) 2015-05-28
• latest date by which the national standards
conflicting with this document have to
be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
__________
- 5 - EN 50411-3-1:2012
Fibre organisers and closures to be used in optical fibre communication systems – Product specifications
Part 3-1: Fibre management system, splice wall box, for category C & G
Typical installation application
Description
Construction: Wall mounted box Track box (2 cables minimum)
Spur box (3 cables minimum)
Distribution box (6 cables minimum).
Performance
Applications: IEC 61753-1:2007, category C
Optical fibre cable networks IEC 61753-1:2007, category G
For indoor; for external above ground;
Fibre separation level - FMS splice trays:
Single circuit (>2 fibres per tray), Single ribbon (>4 fibres per tray),
Single element (>12 fibres per tray), Multiple ribbon (>144 fibres per tray)
Multiple element (>144 fibres per tray)
For reference on how fibre separation levels fits into the modularity of FMS organisers, see also FMS organiser options in
Annexes C to E
Construction and splice tray capacity:
FMS –Number splice trays (maximum) – for each fibre separation level – SC, SE, SR, ME and MR
S organiser M organiser
Single Single Single ribbon Multiple Multiple ribbon
circuit
element element
SR (4f) MR (144)
Number of trays needed for:
SC (4f) SE (12f) ME (144f)
Typical capacity 12 fibres 6 1 3 1 1
Typical capacity 144 fibres 36 12 36 1 1(12 f/R)
Box type - minimum no of cable entries: Track box - 2 Spur box - 3 Distribution box - 6
Schematic diagrams
(Cable entries can be in any orientation)
Typical installations A
Street cabinet or external configurations
Typical installations B
Office internal configurations
1 Scope
1.1 Product definition
This European Standard covers wall boxes for up to 288 fibre splices. Wall boxes for connectors will be covered
in a future part of the EN 50411-3 series.
This European Standard covers two environmental service requirements, for use inside a building under
category C and externally of buildings under category G both to EN 61753-1:2007.
This European Standard contains the initial, start of life dimensional, optical, mechanical and environmental
performance requirements of a fully installed optical fibre wall box, in order for it to be categorised as an EN
standard product.
The wall box must be suitable for fixing to a vertical internal or external surface above ground level.
The wall box is a housing containing a fibre management system, containing splice trays of various fibre
separation levels, and may contain one or more of the following:
• storage and/or routing of cable;
• through-box/uncut fibre, cable storage;
• passive devices.
This document specifies the number of splice trays for each fibre separation level.
1.2 Operating environment
The tests selected combined with the severity and duration is representative of indoor and outside plant for
above ground environments defined by:
EN 61753-1: - category C: Controlled environment
- category G: Ground level environment
1.3 Reliability
Whilst the anticipated service life expectancy of the product in this environment is 20 years, compliance with this
European Standard does not guarantee the reliability of the product. This should be predicted using a
recognised reliability assessment programme.
1.4 Quality assurance
Compliance with this European Standard does not guarantee the manufacturing consistency of the product. This
should be maintained using a recognised quality assurance programme.
1.5 Allowed fibre and cable types
All types of fibre are permitted for a FMS with a minimum bend radius of 30 mm. A minimum bend of 20 mm can
only be used with a B 6 fibre. The box, once tested according to this product specification, will be also suited for
other fibre types, for example bend insensitive, dispersion shifted, non-zero dispersion shifted and multimode
fibres.
This wall box standard allows both single-mode and multi-mode fibre to be used and covers all IEC standard
optical fibre cables with their various fibre capacities, types and designs as long as fitting in the box does not
contravene the minimum bend radius.
The minimum bend radius of fibre depends on its type, and is applicable for all operational wavelengths:
• EN 60793-2-10, Type A1 multimode fibre is 30 mm;
• EN 60793-2-50, Type B 1.1 and B 1.3 singlemode fibre is 30 mm; (20 mm is accepted for total lengths less
than 2 m)
• EN 60793-2-50, Type B6-a1, B6-a2 singlemode fibre (ITU-T G.657) is 20 mm (15 mm is accepted for total
lengths less than 0,5 m)
- 7 - EN 50411-3-1:2012
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are indispensable
for its application. For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
EN 50411-2
Fibre organisers and closures to be used in optical fibre communication systems
Product specifications Part 2: General and guidance for optical fibre cable joint
closures, protected microduct closures, and microduct connectors
EN 60529 Degrees of protection provided by enclosures (IP Code)(IEC 60529)
EN 60695-11-10
Fire hazard testing Part 11-10: Test flames 50 W horizontal and vertical flame test
methods (IEC 60695-11-10)
EN 60793-2-50:2008
Optical fibres Part 2-50: Product specifications Sectional specification for class B
single-mode fibres (IEC 60793-2-50:2008)
EN 60793-2-10
Optical fibres Part 2-10: Product specifications Sectional specification for category
A1 multimode fibres (IEC 60793-2-10)
EN 60794-2
Optical fibre cables Part 2: Indoor cables Sectional specification (IEC 60794-2)
EN 60794-3 Optical fibre cables Part 3: Sectional specification Outdoor cables (IEC 60794-3)
EN 61034-1 Measurement of smoke density of cables burning under defined conditions Part 1:
Test apparatus (IEC 61034-1)
EN 61300-2-1 Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 2-1: Tests Vibration (sinusoidal) (IEC 61300-2-1)
EN 61300-2-4
Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 2-4: Tests Fibre/cable retention (IEC 61300-2-4)
EN 61300-2-9 Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 2-9: Tests Shock (IEC 61300-2-9)
EN 61300-2-12:2009
Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 2-12: Tests Impact (IEC 61300-2-12:2009)
EN 61300-2-22
Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 2-22: Tests Change of temperature
(IEC 61300-2-22)
EN 61300-2-26
Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 2-26: Tests Salt mist (IEC 61300-2-26)
EN 61300-2-33 Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 2-33: Tests Assembly and disassembly of fibre
optic closures (IEC 61300-2-33)
EN 61300-2-34
Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 2-34: Tests Resistance to solvents and
contaminating fluids of interconnecting components and closures (IEC 61300-2-34)
EN 61300-3-1
Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 3-1: Examinations and measurements Visual
examination (IEC 61300-3-1)
EN 61300-3-3:2009 Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 3-3: Examinations and measurements Active
monitoring of changes in attenuation and return loss (IEC 61300-3-3:2009)
EN 61300-3-28 Fibre optic interconnecting devices and passive components Basic test and
measurement procedures Part 3-28: Examinations and measurements Transient
loss (IEC 61300-3-28)
EN 61753-1:2007 Fibre optic interconnecting devices and passive components performance standard
Part 1: General and guidance for performance standard (IEC 61753-1:2007)
EN 61756-1
Fibre optic interconnecting devices and passive components Interface Standard for
fibre management systems Part 1: General and guidance (IEC 61756-1)
EN 61758-1
Fibre optic interconnecting devices and passive components Interface standard for
closures Part 1: General and Guidance (IEC 61758-1)
IEC 60754-2 Test on gases evolved during combustion of materials from cables Part 2:
Determination of acidity (by pH measurement) and conductivity
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
fibre splicing management system
assembly of fibre splicing cassettes built in such a way that the routing of fibres and the storage of the fibres
and fibre splices is done in a controlled way. Controlled means in this case that the mechanical stress is
controlled by ensuring a minimum bending radius of the fibres.
3.1.2
single circuit fibre management system
fibre system separation level, that is down to the individual customer level achieving the minimum of customer
circuit disturbance
3.1.3
cable element
grouping of fibres under the cable sheath
3.2 Abbreviations
PS Product Specification
OD Outside Diameter
ID Inside Diameter
FMS Fibre Management System
4 Description
4.1 Optical fibre wall box housing
An optical fibre wall box comprises a housing that is attached to wall and the ends of the joined cable sheath.
The wall box has a means of containing and protecting the fibres, splices, and other passive optical devices.
Wall boxes used for blowing cable or fibre comprises an access housing that allows the interconnection of cable
microducts or tubes where the ends of the microducts or cables containing empty tubes are contained. The wall
box also contains an FSM.
- 9 - EN 50411-3-1:2012
The fibre management wall box provides facilities for the environmental protection, housing for fibre
management systems and sealing of input and output optical cables for category G. In order to comply with the
standard, the optical functionality, physical, geometrical and mechanical requirements are defined.
The following table illustrates the concept of a single wall box design/size being able to accommodate various
fibre separation levels in a splice wall box for SC and SE.
Table 1 Common wall box sizes with splice capacities for fibre separation levels SC and SE
EN 50411-3-1
Compatible Number Number Number
Number
tray/box Splices trays SC trays SE
splices (SE)
envelope (size)
(SC) (2 fibres/tray) (12 fibres/tray)
A and F 8 4 24 2
A and H 24 12 72 6
C and K 48 24 144 12
D and N 96 48 288 24
The design of the wall box housing shall allow the jointing of two or more cable ends in the following
configurations or applications:
Common wall boxes covering:
(T) Track wall box configuration used on customer feed cable with a minimum of 2 cable entries specified for
each wall box size in the tables, typical when joining two cables along a track.
(S) Spur wall box configuration used on local feeder cable with minimum of 3 cable entries, typically a cable
drop off point to along a track feeder cable.
(D) Distribution wall box configuration used on a local feeder cable with a minimum of 6 cable entries to
distribute smaller cables to different locations.
NOTE Cable entries can be more than one cable per cable entry port.
The design of the wall box housing shall allow the joining together of at least one pair of cables which are not at
the end of a cable section, without cutting all fibres between both cable openings. This application is generally
known as distribution joint or external node, but also called a mid-span or balloon splice wall box.
It is desirable that the wall box can be re-opened when necessary without interruption or disturbance of the
traffic of the live circuits.
4.2 Cable seals/fixings
For category G the cable entry or exit ports in the wall box must have a sealing and fixing system that can be
either:
a) Dedicated heat activated with heat source, for example, electrical, infrared, hot air or flame:
1) thermo-shrinkable materials;
2) hot melt adhesives;
3) polyethylene injection welding;
b) Cold applied:
1) mastic, tapes, pastes, potting compounds, gels and cold adhesives;
2) o-rings, grommets, rubber shapes, pre-expanded tubing are cold processes;
c) Combined heat activated and cold applied:
1) The optical fibre wall box allows for a physical housing structure that provides for optical cable fixing,
sealing, anchoring, water and gas blocking, storage and routing up to the input and output fibres of
the fibre or microduct management system.
4.3 FMS organiser system
The organiser system provides means for routing, storing and protecting of fibre splices or other passive optical
devices in a predetermined order, from one cable sheath opening to another.
Fibre circuits may be separated to an appropriate separation level. This will limit the risk of interruption of traffic
to those fibres that belong to the same group of circuits.
• Single circuit (SC) is a fibre management system that is a group of fibres providing 1 termination or service
of 1 or 2 fibres. In this document a Single Circuit is considered to be a circuit of 2 fibres. If the separation
level for one termination is more than 2 fibres, then the appropriate number of fibres can be stored on one
tray of the single circuit system.
• Single element (SE) is a fibre management system that is a cable subassembly comprising one or more
optical fibres inside a common covering e.g. tube or inside one groove of a grooved cable (slotted core
cable). Single Elements provide more than one termination or circuit of typically 12 fibres. In this document a
Single Element is considered to be a group of 12 fibres.
• Single ribbon (SR) is a fibre management system that is a cable subassembly comprising one optical
ribbon. Single Ribbon is a group of fibres providing one termination or service of typically 4, 8 or 12 fibres.
• Multiple element (ME) is a fibre management system that provides all necessary equipment to connect a
defined number of incoming and outgoing fibres/cables. It comprises storage and protection of fibres and
interconnections in one splice tray for more than one Single Element. Typically splice tray capacities
between 24 and 144 fibres.
• Multiple ribbon (MR) fibre management provides all necessary equipment to connect a defined number of
incoming and outgoing fibre ribbons that are generally housed within a singe tube or slot within the cable.
This tube is fixed to the entry and exit ports of the splice tray. It comprises storage and protection of more
than one single ribbon, but typically six or more fibre ribbons and their interconnections in a si
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
