SIST EN 60061-1:1999/A64:2026
(Main)Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 1: Lamp caps (IEC 60061-1:1969/AMD64:2025)
Lampensockel und -fassungen zusammen mit Lehren zur Kontrolle der Austauschbarkeit und Sicherheit - Teil 1: Lampensockel (IEC 60061-1:1969/AMD64:2025)
Culots de lampes et douilles ainsi que calibres pour le contrôle de l'interchangeabilité et de la sécurité - Partie 1: Culots de lampes (IEC 60061-1:1969/AMD64:2025)
Vznožki in okovi žarnic in sijalk skupaj s kalibri za kontrolo medsebojne zamenljivosti in varnosti - 1. del: Vznožki sijalk - Dopolnilo A1 (IEC 60061-1:1969/AMD64:2025)
General Information
- Status
- Published
- Public Enquiry End Date
- 31-Jul-2024
- Publication Date
- 17-May-2026
- Technical Committee
- STV - Steklo, svetloba in razsvetljava v gradbeništvu
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 24-Jun-2025
- Due Date
- 29-Aug-2025
- Completion Date
- 18-May-2026
Relations
- Effective Date
- 03-Feb-2026
- Effective Date
- 03-Feb-2026
- Effective Date
- 03-Feb-2026
- Referred By
SIST EN IEC 60598-1:2021 - Luminaires - Part 1: General requirements and tests (IEC 60598-1:2020) - Effective Date
- 03-Feb-2026
- Effective Date
- 01-Sep-2025
Overview
SIST EN 60061-1:1999/A64:2026 is a key amendment to the European and international standard for lamp caps, as part of the comprehensive IEC 60061 series. This standard, issued by the Slovenian Institute for Standardization (SIST) and aligned with IEC 60061-1:1969/AMD64:2025, specifies requirements for lamp caps-the components at the end of lamps that enable secure and safe electrical connection with lamp holders. The document sets out the standardized dimensions, shapes, and critical interfaces to ensure both interchangeability and safety across a wide range of lighting product types. Consistency with these requirements is crucial for manufacturers, test laboratories, and compliance bodies engaged in lamp and luminaire design, production, and certification.
Key Topics
- Lamp Caps Specification: The standard catalogues a diverse array of lamp cap types, including screw, bayonet, bi-pin, prefocus, wedge, festoon, double contact, and several specialized forms for various lamp technologies.
- Interchangeability: By defining exact measurements and tolerances, the standard guarantees that lamp caps from different manufacturers are compatible with industry-standard holders, facilitating global trade and ease of maintenance.
- Safety Assurance: The document includes requirements for dimension control using gauges (measurement tools), directly impacting product safety by preventing mismatches that could affect electrical contact or introduce fire and electric shock hazards.
- Gauges and Control: Details are provided on the use of standardized gauges for product verification in both manufacturing and quality control settings.
- Amendment Process: Guidance for the systematic update and replacement of standard sheets and instructions to maintain consistency as new designs are added and outdated specifications are withdrawn.
Applications
This standard is relevant to a broad range of stakeholders involved in the lighting industry:
- Manufacturers of lamps and luminaires depend on SIST EN 60061-1 to ensure their products are universally compatible and safe for end users.
- Test laboratories and certification bodies utilize the specified gauges and dimension requirements for conformity assessment and product approval under market regulations.
- Designers and engineers reference this standard during the development of new lighting products, ensuring integration with existing infrastructure.
- Procurement specialists and quality managers in retail and wholesale sectors rely on standardized lamp caps to simplify inventory management and minimize product returns due to compatibility issues.
- Maintenance teams in commercial, industrial, and public lighting projects benefit from assured interchangeability, leading to easier replacements and reduced downtime.
Related Standards
- IEC 60061-2: Covers lamp holders, providing the complementary interface specifications required for effective use with lamp caps.
- IEC 60061-3: Details gauges for lamp holders.
- EN 60061-1: The European adoption of this international standard, ensuring harmonized application across the EU and affiliated countries.
- IEC 60061-4: Addresses standardized combinations of caps and holders.
Other important standards for electrical safety and performance in lighting, such as IEC 60598 (Luminaires - General requirements and tests) and IEC 62471 (Photobiological safety of lamps and lamp systems), often reference or build on the base established by the 60061 series.
By following SIST EN 60061-1:1999/A64:2026, stakeholders help guarantee that lighting products are safe, interoperable, and suitable for international markets, supporting product longevity and consumer trust. For anyone involved in lamp design, production, testing, or installation, adherence to this lamp cap standard is a fundamental requirement for compliance and market access.
Get Certified
Connect with accredited certification bodies for this standard
IMQ S.p.A. (Certification)
Italian electrical product certification.
SLG Prüf- und Zertifizierungs GmbH
German testing and certification body.
UL Solutions
Global safety science company with testing, inspection and certification.
Sponsored listings
Frequently Asked Questions
SIST EN 60061-1:1999/A64:2026 is a amendment published by the Slovenian Institute for Standardization (SIST). Its full title is "Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 1: Lamp caps (IEC 60061-1:1969/AMD64:2025)". This standard covers: Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 1: Lamp caps (IEC 60061-1:1969/AMD64:2025)
Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 1: Lamp caps (IEC 60061-1:1969/AMD64:2025)
SIST EN 60061-1:1999/A64:2026 is classified under the following ICS (International Classification for Standards) categories: 29.140.10 - Lamp caps and holders. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 60061-1:1999/A64:2026 has the following relationships with other standards: It is inter standard links to SIST EN 61184:2018, SIST EN 60598-1:2015, SIST EN 60838-1:2017, SIST EN IEC 60598-1:2021, SIST EN 60061-1:1999. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 60061-1:1999/A64:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

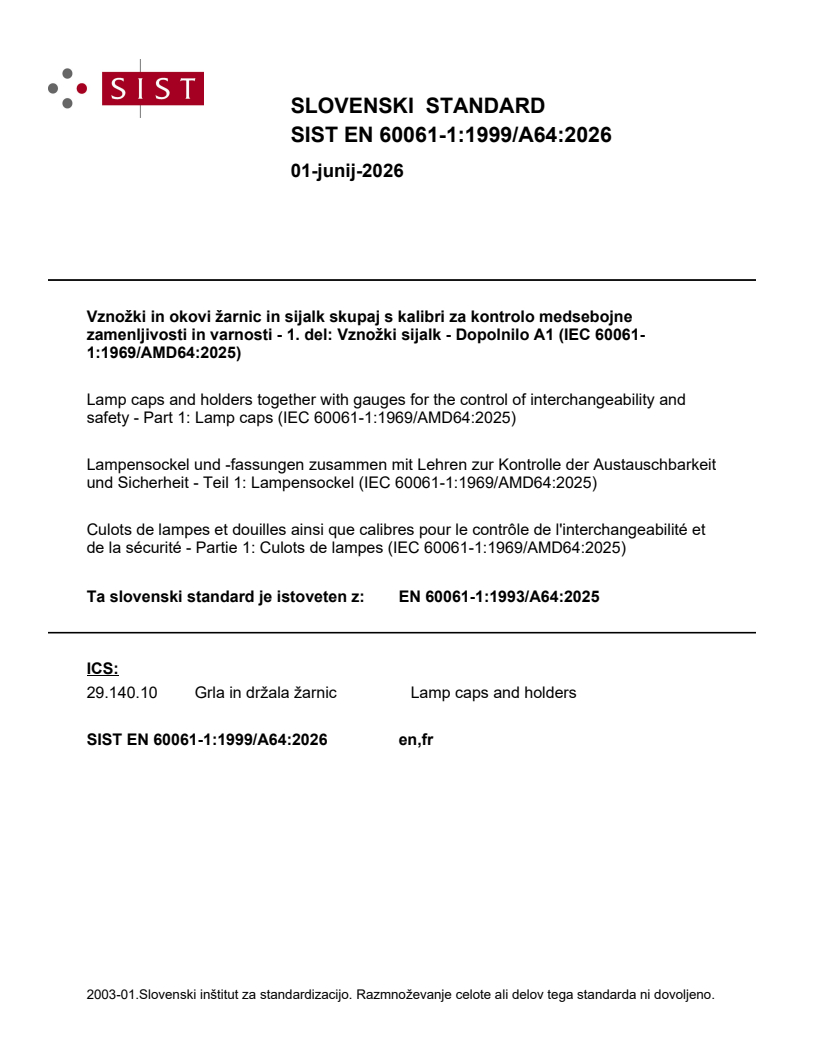

SLOVENSKI STANDARD
01-junij-2026
Vznožki in okovi žarnic in sijalk skupaj s kalibri za kontrolo medsebojne
zamenljivosti in varnosti - 1. del: Vznožki sijalk - Dopolnilo A1 (IEC 60061-
1:1969/AMD64:2025)
Lamp caps and holders together with gauges for the control of interchangeability and
safety - Part 1: Lamp caps (IEC 60061-1:1969/AMD64:2025)
Lampensockel und -fassungen zusammen mit Lehren zur Kontrolle der Austauschbarkeit
und Sicherheit - Teil 1: Lampensockel (IEC 60061-1:1969/AMD64:2025)
Culots de lampes et douilles ainsi que calibres pour le contrôle de l'interchangeabilité et
de la sécurité - Partie 1: Culots de lampes (IEC 60061-1:1969/AMD64:2025)
Ta slovenski standard je istoveten z: EN 60061-1:1993/A64:2025
ICS:
29.140.10 Grla in držala žarnic Lamp caps and holders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

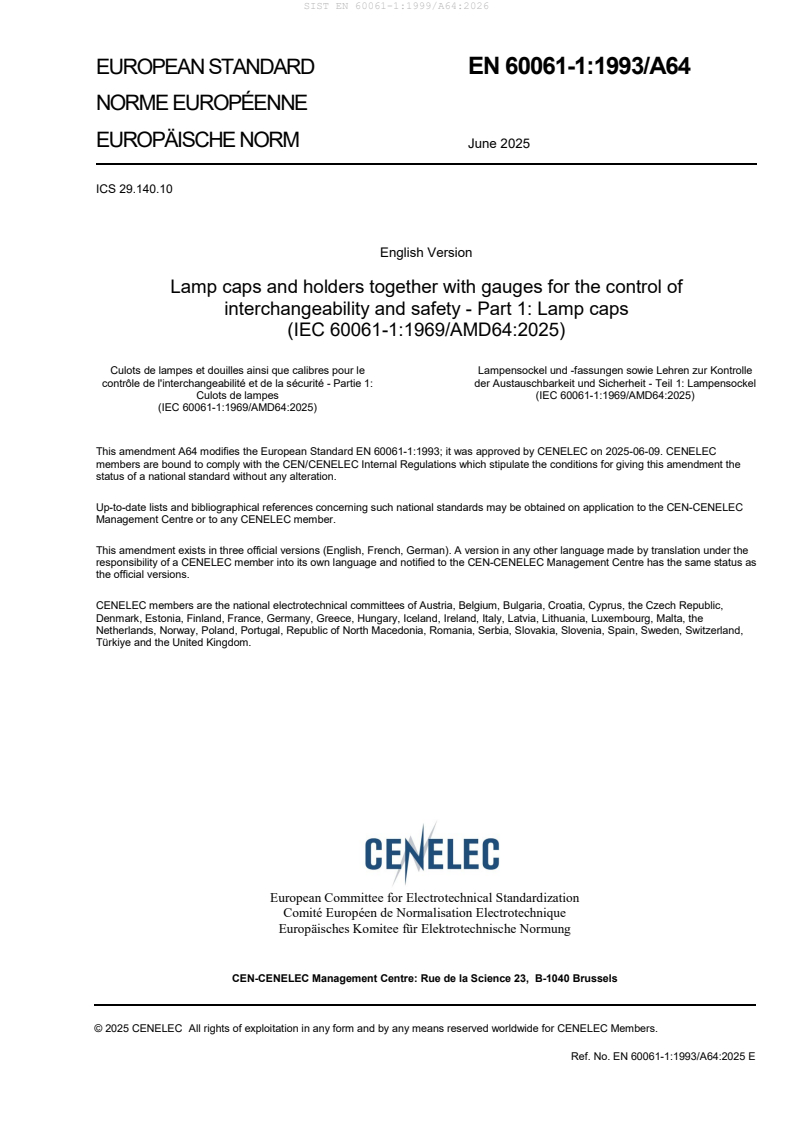

EUROPEAN STANDARD EN 60061-1:1993/A64
NORME EUROPÉENNE
EUROPÄISCHE NORM June 2025
ICS 29.140.10
English Version
Lamp caps and holders together with gauges for the control of
interchangeability and safety - Part 1: Lamp caps
(IEC 60061-1:1969/AMD64:2025)
Culots de lampes et douilles ainsi que calibres pour le Lampensockel und -fassungen sowie Lehren zur Kontrolle
contrôle de l'interchangeabilité et de la sécurité - Partie 1: der Austauschbarkeit und Sicherheit - Teil 1: Lampensockel
Culots de lampes (IEC 60061-1:1969/AMD64:2025)
(IEC 60061-1:1969/AMD64:2025)
This amendment A64 modifies the European Standard EN 60061-1:1993; it was approved by CENELEC on 2025-06-09. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60061-1:1993/A64:2025 E

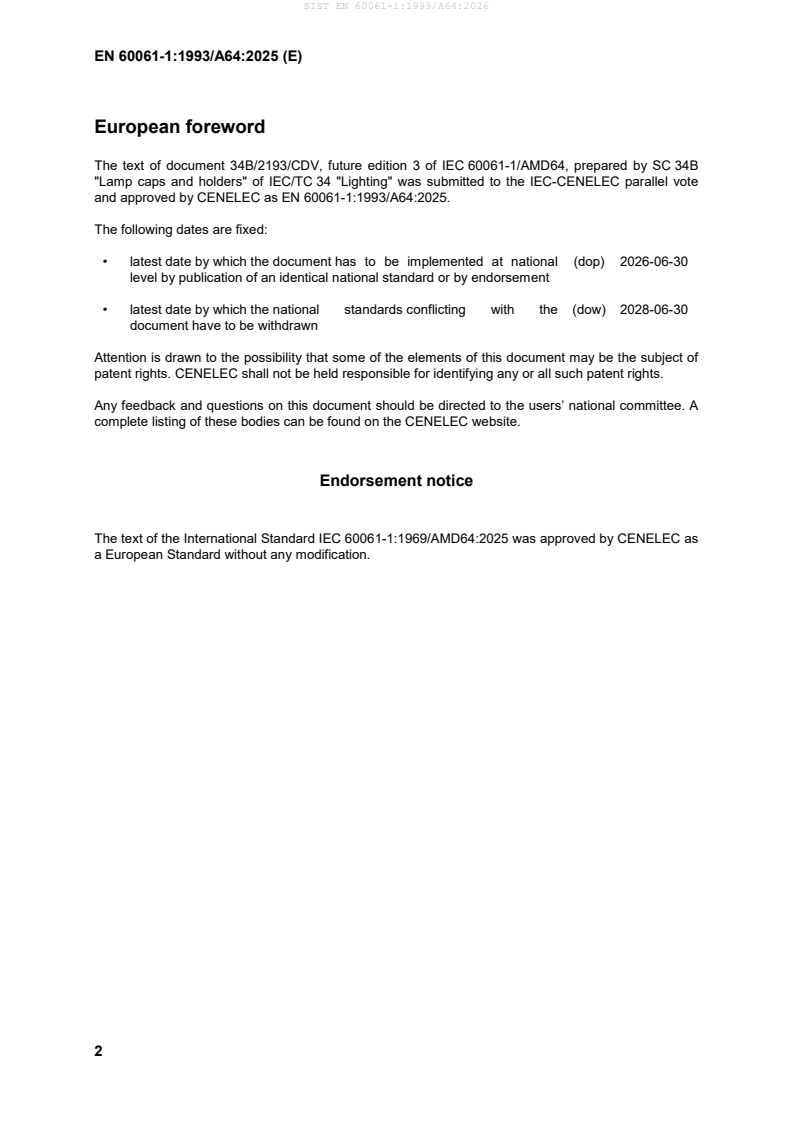

European foreword
The text of document 34B/2193/CDV, future edition 3 of IEC 60061-1/AMD64, prepared by SC 34B
"Lamp caps and holders" of IEC/TC 34 "Lighting" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN 60061-1:1993/A64:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-06-30
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-06-30
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60061-1:1969/AMD64:2025 was approved by CENELEC as
a European Standard without any modification.
IEC 60061-1 ®
Edition 3.0 2025-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 64
The sheets contained in this amendment are to be inserted in IEC 60061-1 (1969)
AMENDEMENT 64
Les feuilles de cet amendement sont à insérer dans l'IEC 60061-1 (1969)
Lamp caps and holders together with gauges for the control of
interchangeability and safety –
Part 1: Lamp caps
Culots de lampes et douilles ainsi que calibres pour le contrôle de
l'interchangeabilité et de la sécurité –
Partie 1: Culots de lampes
ICS 29.140.10 ISBN 978-2-8327-0368-7
IEC 60061-1:1969-01/AMD64:2025-05(en-fr)
IEC 60061-1:1969/AMD64:2025 IEC 2025
CONTENTS BY SHEET / SOMMAIRE PAR FEUILLE
Sheet
System Designation AMD Name English Nom Francais
Feuilles
7004-2-2 G1.27, GX1.27 & GY1.3 22 Bi-pin caps Culots à deux broches
7004-3-2 G2.54, GX2.54 & GY2.5 22 Bi-pin caps Culots à deux broches
7004-5-7 PX26d & PY26d-1 … 54 Caps Culots
PY26d-7
7004-6-1 E11 N Screw caps Culots à vis
7004-7-1 EY10 P Screw caps Culots à vis
7004-8-1 BAX9s N Bayonet caps Culots à baïonnette
7004-9-1 BAY9s N Bayonet caps Culots à baïonnette
7004-10-7 B22d 31 Caps Culots
7004-10A-2 B22d-3 Ed3.0 Bayonet cap Culot à baïonnette
(90°/135°)/25×26 (1969)
7004-11-6 B15d 31 Caps Culots
7004-11A-10 BA15 55 Bayonet caps Culots à baïonnette
7004-11B-8 BAY15 57 Bayonet caps Culots à baïonnette
7004-11C-3 BAZ15 31 Caps Culots
7004-11D-2 BA15s-3 (100°/130°) 57 Bayonet caps Culots à baïonnette
7004-11E-1 BAW15 31 Caps Culots
7004-12-7 BA20 N Bayonet caps Culots à baïonnette
7004-13-4 BA21-3(120°) Ed3.0 Bayonet automobile caps Culots à baïonnette pour
(1969) automobiles
7004-14-10 BA9s 60 Bayonet caps Culot à baïonnette
7004-15-2 BA7 C Bayonet cap Culot à baïonnette
7004-17-3 BY22d M Bayonet cap Culot à baïonnette
7004-18-2 BAX15d 57 Bayonet caps Culots à baïonnette
7004-19-2 BAU15 31 Caps Culots
7004-19A-1 BA15-3(110°), BAU15- 60 Caps Culots
3(110°), BAW15-
3(110°), BAY15-3(110°),
BAZ15-3(110°)
7004-20-2 G16d 22 Termination on finished Connecteur des lampes
lamps terminées
7004-21-10 E27 48 Screw caps Culots à vis
7004-21A-4 E26 52 Screw caps Culots à vis
7004-21A-4 E26 62 Screw caps Culots à vis
7004-22-6 E10 P Screw caps Culots à vis
7004-23-7 E14 56 Screw caps Culots à vis
7004-24-7 E40 56 Screw caps Culots à vis
7004-24A-3 E39 62 Screw caps Culots à vis
7004-25-3 E5 F Screw cap Culot à vis
7004-26-4 E17 62 Screw cap Culot à vis
7004-27-3 E27/51×39 N Screw cap Culot à vis
7004-28-2 E12 22 Screw cap Culot à vis
7004-29-2 E26d 26 Double contact screw cap Culot à vis à double contact
7004-30-2 EP10 N Prefocus screw caps Culots à vis préfocus
7004-31-2 P20d, PX20d, PY20d & 23 Prefocus caps Culots préfocus
PZ20d
IEC 60061-1:1969/AMD64:2025 IEC 2025
Sheet
System Designation AMD Name English Nom Francais
Feuilles
7004-32-2 P22d & PX22d 23 Prefocus caps Culots préfocus
7004-33-4 2G13 35 Caps Culots
7004-34-2 PX43t N Prefocus caps - Assembly Culots préfocus -
of ring and cap on finished Assemblage de la collerette
lamps et du culot sur lampes
terminées
7004-35-2 PX13.5s M Prefocus cap Culot préfocus
7004-36-1 P26s J Prefocus cap P26s on Culot préfocus P26s sur la
finished lamp lampe terminée
7004-37-2 PKX22s N Prefocus caps - Assembly Culots préfocus -
of ring and cap on finished Assemblage de la collerette
lamps et du culot sur lampes
terminées
7004-39-6 P43t 22 Prefocus caps Culots préfocus
7004-40-2 P13.5s M Prefocus cap Culot préfocus
7004-42-7 P28s M Prefocus caps Culots préfocus
7004-43-5 P40s E Prefocus caps Culots préfocus
7004-44-3 P30s-10.3 E Prefocus cap P30s-10.3. Culot préfocus P30s-10.3.
Assembly on finished lamps Assemblage sur lampes
terminées
G17q-7, GX17q-7 & Projector lamp caps on Culots de lampes de
7004-45-3 L
GY17d-7 finished lamps projection sur lampes
terminées
7004-46-2 P14.5s N Prefocus caps - Assembly Culots préfocus -
of ring and cap on finished Assemblage de la collerette
lamp et du culot sur la lampe
terminée
7004-47-4 PK22s R Prefocus cap Culot préfocus
7004-48-1 PG22-6.35 E Prefocus cap PG22-6.35. Culot préfocus PG22-6.35.
Assembly of collar and cap Assemblage de la collerette
on finished lamp et du culot sur la lampe
terminée
7004-51-10 G13 52 Bi-pin caps Culots à deux broches
7004-52-7 G5 45 Bi-pin caps Culots à deux broches
7004-52A-1 GX5 41 Bi-pin caps Culots à deux broches
Ed3.0(
7004-53-2 G20 Bi-pin cap Culot à deux broches
1969)
7004-54-4 G10q 48 Cap Culot
7004-55-3 Fa6 M Single-pin cap Culot à broche
7004-56-2 R17d K Recessed double contact Culot à deux contacts en
cap R17d on finished lamps retrait R17d sur lampes
terminées
7004-57-2 Fa8 26 Single-pin caps Culots à broche
7004-58-1 Fa4 Ed3.0( Single-pin cap and end of Culot à broche et extrémité
1969) lamp for tubular lamps de la lampe pour lampes
tubulaires
7004-59-6 G6.35, GX6.35 & 27 Bi-pin bases with and Socles à deux broches
GY6.35 without provision for use prévus ou non pour l'emploi
with heat sinks de refroidissseurs
7004-59A-3 GZ6.35 N Bi-pin lamp base Socle à deux broches
Ed3.0 Caps for double-capped Culots pour lampes
7004-60-2 S15s & S19s
(1969) tubular lamps tubulaires à deux culots
7004-61-1 SX6s B Flanged cap Culot à collet
7004-62-1 S5.7s C Grooved cap Culot à rainure
7004-63-2 G12 29 Caps on finished lamps Culots sur lampe terminée
IEC 60061-1:1969/AMD64:2025 IEC 2025
Sheet
System Designation AMD Name English Nom Francais
Feuilles
7004-64-3 PG12-. & PGX12-. S Caps on finished lamps Culots sur lampe terminée
7004-65-1 GX38q J Four-pin cap and lamp base Culot et socle de lampe à
quatre broches
7004-66-1 P29t N Prefocus caps Culots préfocus
7004-67-3 GZ4 N Bi-pin lamp base Socle de lampe à deux
broches
7004-68-3 GR8 Cap Culot
7004-69-1 G23 L Bi-pin cap Culot à deux broches
7004-70-2 G9.5 K Bi-pin cap Culot à deux broches
7004-70A-1 GX9.5 C Bi-pin cap Culot à deux broches
7004-70B-4 GY9.5, GZ9.5, GZX9.5, 31 Bi-pin caps Culots à deux broches
GZY9.5 & GZZ9.5
7004-72-3 G4 L Bi-pin lamp base Socle de lampe à deux
broches
7004-72A-1 GY4 P Bi-pin lamp base Socle de lampe à deux
broches
7004-73-2 G5.3 H Bi-pin cap Culot à deux broches
7004-73A-2 GX5.3 26 Bi-pin base Socle à deux broches
7004-73B-2 GY5.3 26 Bi-pin base Socle à deux broches
7004-74-2 GY16 K Bi-pin cap Culot à deux broches
Culot et socle à deux
7004-75-5 G22 53 Bi-pin cap and base
broches
7004-76-1 G38 H Bi-pin caps and lamp base Culots et socle de lampe à
deux broches
7004-77-2 GR10q T Cap Culot
7004-78-5 G24, GX24 & GY24 30 Caps Culots
7004-79-1 P11.5d N Caps Culots
7004-80-7 SV7 H Festoon caps Culots pour lampes
plafonnier
7004-81-4 SV8.5 H Festoon caps Culots pour lampes
plafonnier
7004-81A-1 SVX8.5 60 Festoon caps Culots pour lampes
plafonnier
7004-82-2 2G11 41 Cap Culots
7004-82A-2 2GX11 44 Cap Culots
Caps for tubular infra-red Culots pour lampes
7004-83-1 SK15s K
lamps tubulaires à radiation
infrarouge
7004-84-2 GX10q-. P Caps on finished lamps Culots sur lampes terminées
7004-85-2 GY10-q. P Caps on finished lamps Culots sur lampes terminées
7004-86-1 GX23 M Bi-pin cap Culot à deux broches
7004-87-2 G32, GX32 & GY32 N Caps on finished lamps Culots sur lampes terminées
7004-88-2 PY43d N Prefocus caps - Assembly Culots préfocus -
of ring and cap on finished Assemblage de la collerette
lamps et du culot sur lampes
terminées
7004-89-2 PZ43t N Prefocus cap - Assembly of Culot préfocus -
ring and cap on finished Assemblage de la collerette
lamps et du culot sur lampes
terminées
7004-90-2 W10.6×8.5d C Base of photo-flash lamp Socle de lampe flash
7004-91-3 W2.1×9.5d P Lamp base Socle de lampe
IEC 60061-1:1969/AMD64:2025 IEC 2025
Sheet
System Designation AMD Name English Nom Francais
Feuilles
7004-91A-1 WX2.1×9.5d 60 Lamp base Socle de lampe
7004-92-3 R7s Q Recessed single contact Culot à un contact encastré
cap and end of lamp et extrémité de la lampe
7004-92A-4 RX7s Q Recessed single contact Culot à un contact encastré
cap and end of lamp et extrémité de la lampe
7004-94-2 W2×4.6d K Lamp base Socle de lampe
7004-95-5 P45t Q Prefocus cap Culot préfocus
7004-97-2 SX4s/4 36 Flanged caps Culots à collet
7004-97A-1 SY4s/7 N Flanged caps Culots à collet
7004-99-2 X511 H Prefocus cap and end of Culot préfocus et extrémité
lamp for automobile lamps de la lampe pour lampes
pour automobiles
7004-100-3 G16t 23 Termination on finished Connecteur des lampes
lamps terminées
7004-101-1 GRX10q-. N Caps Culots
7004-102-2 2G7 41 Cap Culot
7004-103-2 2GX7 41 Cap Culot
7004-104-1 W2.5×16 U Wedge bases Socles
7004-104A-1 WX2.5×16 23 Wedge bases Socles
7004-104B-1 WY2.5×16 28 Wedge base Socle
7004-104C-1 WZ2.5×16 28 Wedge base Socle
7004-104D-1 WU2.5×16 31 Wedge base Socle
7004-105-3 W3x16d & WX3x16d 53 Lamp bases Socles
7004-106-4 W3×16q , WX3×16q & 53 Lamp bases Socles
WY3×16q
7004-107-4 PG13 & PGJ13 33 Caps Culots
7004-108-2 GU4 T Bi-pin lamp bases Socles de lampe à deux
broches
7004-109-2 GU5.3 26 Bi-pin bases Socles à deux broches
7004-110-3 PGJ19 61 Caps Culots
7004-110A-1 PGJX19 61 Prefocus Caps Culots Préfocus
7004-111-5 P32d & PK32d 54 Prefocus caps Culots prefocus
7004-112-1 S14 R Caps Culots
7004-113-1 GU7 S Bi-pin lamp base Socle de lampe à deux
broches
Culot et extrémité de la
7004-114-1 Fc2 T Cap and end of lamp
lampe
7004-115-1 W4.3×8.5d T Cap Culot
7004-116-1 EZ10 T Screw cap Culot à vis
7004-118-2 2G10 41 Cap Culot
7004-119-1 GY22 21 Bi-pin cap Culot à deux broches
7004-120-1 GZ10 24 Bi-pin lamp base Socle de lampe à deux
broches
7004-121-2 GU10 49 Bi-pin lamp base Socle de lampe à deux
broches
7004-122-3 G8.5 Type A 45 Base Socle
7004-123-1 GU10q 26 Cap Culot
7004-124-1 GZ10q 26 Cap Culot
7004-125-1 2GX13 26 Cap Culot
IEC 60061-1:1969/AMD64:2025 IEC 2025
Sheet
System Designation AMD Name English Nom Francais
Feuilles
7004-126-1 G5.3-4.8 26 Base Socle
7004-127-2 PG20 & PGU20 35 Caps Culots
7004-128-3 P(X)(Y)26.4t & PJ26.4t 41 Caps Culots
7004-129-3 G9 45 Base Socle
7004-130-1 E26/50×39 & E26/51×39 27 Skirted screw caps Culots à vis avec jupe
7004-131-1 GRZ10d 31 Caps Culots
7004-132-1 GRZ10t 31 Caps Culots
7004-133-1 P38t 32 Caps Culots
7004-134-1 G53 32 Termination on finished Connecteur des lampes
lamps terminées
7004-135-1 GX12 32 Caps Culots
7004-136-1 GZX7d-.,GZY7d-. & 32 Printed circuit caps Culots pour circuit imprimé
GZZ7d-.
7004-137-1 GUX2.5d, GUY2.5d & 32 Printed circuit caps Culots pour circuit imprimé
GUZ2.5d
7004-138-2 P23t 41 Cap Culot
7004-138A-1 PX23t 41 Cap Culot
7004-139-1 G7.9 & GX7.9 34 Caps Culots
7004-140-1 B8.4d & BX8.4d 34 Caps Culots
7004-141-2 2G8 38 Caps Culots
7004-142-2 GX53 46 Caps Culots
7004-143-1 GX8.5 36 Base Socle
7004-144-2 GX10 47 Base Socle
7004-146-1 PGJY19 36 Caps Culots
7004-147-1 PG18.5d 37 Caps Culots
7004-148-2 PGZ12 41 Cap Culot
7004-149-1 BAW9s 38 Cap Culot
7004-150-1 BAZ9s 38 Cap Culot
7004-150A-1 BAU9s 43 Cap Culot
7004-150B-1 BAUZ9s 43 Cap Culot
7004-151-2 WZ3x16q 53 Base Socle
7004-152-1 GU6.5 39 Cap Culot
7004-153-1 PGJ5 39 Cap Culot
7004-154-2 GU16d/GX16d Type 1 46 Termination on finished Connecteurs des lampes
lamps terminees
7004-155-1 PGJ23t 40 Caps Culots
7004-156-2 PGJ(X)50 51 Caps Culots
7004-157-1 GR14q 43 Caps Culots
7004-158-1 PU20d 43 Caps Culots
7004-159-1 SFa21-12 43 Cap Culot
7004-160-1 SFc10-4 & SFc15.5-6 43 Caps Culots
7004-161-1 G28d 43 Caps Culots
7004-162-1 CH14.65d 45 Caps Culots
7004-163-2 PGZ18 & PGZX18 50 Caps Culots
7004-164-2 WP3.3×14.5 48 Caps Culots
7004-165-1 PGJ21t 46 Caps Culots
IEC 60061-1:1969/AMD64:2025 IEC 2025
Sheet
System Designation AMD Name English Nom Francais
Feuilles
7004-166-2 GU8.5 60 Caps Culots
7004-167-1 GX51 47 Bi-pin lamp caps Culots et socle de lampe à
deux broches
7004-168-1 K12s 47 Cap and cable shoe Culot et pied de cable
7004-169-1 PGJX28 47 Caps Culots
7004-170-1 GUZ10 48 Bi-pin lamp base Socle de lampe à deux
broches
7004-171-2 PU43t 51 Caps Culots
7004-172-1 GX38 49 Caps Culots
7004-173-1 BA15d-3 (100°/130°) 51 Caps Culots à baïonette
7004-174-1 G14.5 & GX14.5 51 Caps Culots
7004-175-2 GUZ5.3-. 56 Cap Culot
7004-176-1 WUX2.5x16d 52 Wedge base Socle
7004-177-1 WUY2.5x16d 52 Wedge base Socle
7004-178-1 WUZ2.5×16q 52 Wedge base Socle
7004-179-1 WUU2.5×16q 52 Wedge base Socle
7004-180-1 WZX2.5x16q 52 Wedge base Socle
7004-181-1 WZY2.5x16q 52 Wedge base Socle
7004-182-1 PGJY50 52 Prefocus caps Culots préfocus
7004-183-2 GX16t-5 57 Caps Culots
7004-184-1 PGJX36 53 Caps Culots
7004-185-3 PGJ18.5d/t 61 Prefocus caps Culots préfocus
7004-186-1 GH36d-… 58 Caps Culots
7004-187-2 GR6d-… 59 Caps Culots
7004-188-2 GJ6.6 64 Caps Culots
IEC 60061-1:1969/AMD64:2025 IEC 2025
CONTENTS BY DESIGNATION / SOMMAIRE PAR DESIGNATION
Sheet
System Designation AMD Name English Nom Francais
Feuilles
2G10 7004-118-2 41 Cap Culot
2G11 7004-82-2 41 Cap Culots
2G13 7004-33-4 35 Caps Culots
2G7 7004-102-2 41 Cap Culot
2G8 7004-141-2 38 Caps Culots
2GX11 7004-82A-2 44 Cap Culots
2GX13 7004-125-1 26 Cap Culot
2GX7 7004-103-2 41 Cap Culot
B15d 7004-11-6 31 Caps Culots
B22d 7004-10-7 31 Caps Culots
B22d-3 7004-10A-2 Ed3.0 Bayonet cap Culot à baïonnette
(90°/135°)/25×26 (1969)
B8.4d & BX8.4d 7004-140-1 34 Caps Culots
BA15 7004-11A-10 55 Bayonet caps Culots à baïonnette
BA15-3(110°), BAU15- 7004-19A-1 60 Caps Culots
3(110°), BAW15-
3(110°), BAY15-3(110°),
BAZ15-3(110°)
BA15d-3 (100°/130°) 7004-173-1 51 Caps Culots à baïonette
BA15s-3 (100°/130°) 7004-11D-2 57 Bayonet caps Culots à baïonnette
BA20 7004-12-7 N Bayonet caps Culots à baïonnette
BA21-3(120°) 7004-13-4 Ed3.0 Bayonet automobile caps Culots à baïonnette pour
(1969) automobiles
BA7 7004-15-2 C Bayonet cap Culot à baïonnette
BA9s 7004-14-10 60 Bayonet caps Culot à baïonnette
BAU15 7004-19-2 31 Caps Culots
BAU9s 7004-150A-1 43 Cap Culot
BAUZ9s 7004-150B-1 43 Cap Culot
BAW15 7004-11E-1 31 Caps Culots
BAW9s 7004-149-1 38 Cap Culot
BAX15d 7004-18-2 57 Bayonet caps Culots à baïonnette
BAX9s 7004-8-1 N Bayonet caps Culots à baïonnette
BAY15 7004-11B-8 57 Bayonet caps Culots à baïonnette
BAY9s 7004-9-1 N Bayonet caps Culots à baïonnette
BAZ15 7004-11C-3 31 Caps Culots
BAZ9s 7004-150-1 38 Cap Culot
BY22d 7004-17-3 M Bayonet cap Culot à baïonnette
CH14.65d 7004-162-1 45 Caps Culots
E10 7004-22-6 P Screw caps Culots à vis
E11 7004-6-1 N Screw caps Culots à vis
E12 7004-28-2 22 Screw cap Culot à vis
E14 7004-23-7 56 Screw caps Culots à vis
E17 7004-26-4 62 Screw cap Culot à vis
E26 7004-21A-4 62 Screw caps Culots à vis
E26 7004-21A-4 52 Screw caps Culots à vis
IEC 60061-1:1969/AMD64:2025 IEC 2025
Sheet
System Designation AMD Name English Nom Francais
Feuilles
E26/50×39 & E26/51×39 7004-130-1 27 Skirted screw caps Culots à vis avec jupe
E26d 7004-29-2 26 Double contact screw cap Culot à vis à double contact
E27 7004-21-10 48 Screw caps Culots à vis
E27/51×39 7004-27-3 N Screw cap Culot à vis
E39 7004-24A-3 62 Screw caps Culots à vis
E40 7004-24-7 56 Screw caps Culots à vis
E5 7004-25-3 F Screw cap Culot à vis
EP10 7004-30-2 N Prefocus screw caps Culots à vis préfocus
EY10 7004-7-1 P Screw caps Culots à vis
EZ10 7004-116-1 T Screw cap Culot à vis
Fa4 7004-58-1 Ed3.0( Single-pin cap and end of Culot à broche et extrémité
1969) lamp for tubular lamps de la lampe pour lampes
tubulaires
Fa6 7004-55-3 M Single-pin cap Culot à broche
Fa8 7004-57-2 26 Single-pin caps Culots à broche
Fc2 7004-114-1 T Cap and end of lamp Culot et extrémité de la
lampe
G1.27, GX1.27 & GY1.3 7004-2-2 22 Bi-pin caps Culots à deux broches
G10q 7004-54-4 48 Cap Culot
G12 7004-63-2 29 Caps on finished lamps Culots sur lampe terminée
G13 7004-51-10 52 Bi-pin caps Culots à deux broches
G14.5 & GX14.5 7004-174-1 51 Caps Culots
G16d 7004-20-2 22 Termination on finished Connecteur des lampes
lamps terminées
G16t 7004-100-3 23 Termination on finished Connecteur des lampes
lamps terminées
G17q-7, GX17q-7 & 7004-45-3 L Projector lamp caps on Culots de lampes de
GY17d-7 finished lamps projection sur lampes
terminées
G2.54, GX2.54 & GY2.5 7004-3-2 22 Bi-pin caps Culots à deux broches
G20 7004-53-2 Ed3.0( Bi-pin cap Culot à deux broches
1969)
G22 7004-75-5 53 Bi-pin cap and base Culot et socle à deux
broches
G23 7004-69-1 L Bi-pin cap Culot à deux broches
G24, GX24 & GY24 7004-78-5 30 Caps Culots
G28d 7004-161-1 43 Caps Culots
G32, GX32 & GY32 7004-87-2 N Caps on finished lamps Culots sur lampes terminées
G38 7004-76-1 H Bi-pin caps and lamp base Culots et socle de lampe à
deux broches
G4 7004-72-3 L Bi-pin lamp base Socle de lampe à deux
broches
G5 7004-52-7 45 Bi-pin caps Culots à deux broches
G5.3 7004-73-2 H Bi-pin cap Culot à deux broches
G5.3-4.8 7004-126-1 26 Base Socle
G53 7004-134-1 32 Termination on finished Connecteur des lampes
lamps terminées
G6.35, GX6.35 & 7004-59-6 27 Bi-pin bases with and Socles à deux broches
GY6.35 without provision for use prévus ou non pour l'emploi
with heat sinks de refroidissseurs
IEC 60061-1:1969/AMD64:2025 IEC 2025
Sheet
System Designation AMD Name English Nom Francais
Feuilles
G7.9 & GX7.9 7004-139-1 34 Caps Culots
G8.5 Type A 7004-122-3 45 Base Socle
G9 7004-129-3 45 Base Socle
G9.5 7004-70-2 K Bi-pin cap Culot à deux broches
GH36d-… 7004-186-1 58 Caps Culots
GJ6.6 7004-188-2 64 Caps Culots
GR10q 7004-77-2 T Cap Culot
GR14q 7004-157-1 43 Caps Culots
GR6d-… 7004-187-2 59 Caps Culots
GR8 7004-68-3 Cap Culot
GRX10q-. 7004-101-1 N Caps Culots
GRZ10d 7004-131-1 31 Caps Culots
GRZ10t 7004-132-1 31 Caps Culots
GU10 7004-121-2 49 Bi-pin lamp base Socle de lampe à deux
broches
GU10q 7004-123-1 26 Cap Culot
GU16d/GX16d Type 1 7004-154-2 46 Termination on finished Connecteurs des lampes
lamps terminees
GU4 7004-108-2 T Bi-pin lamp bases Socles de lampe à deux
broches
GU5.3 7004-109-2 26 Bi-pin bases Socles à deux broches
GU6.5 7004-152-1 39 Cap Culot
GU7 7004-113-1 S Bi-pin lamp base Socle de lampe à deux
broches
GU8.5 7004-166-2 60 Caps Culots
GUX2.5d, GUY2.5d & 7004-137-1 32 Printed circuit caps Culots pour circuit imprimé
GUZ2.5d
GUZ10 7004-170-1 48 Bi-pin lamp base Socle de lampe à deux
broches
GUZ5.3-. 7004-175-2 56 Cap Culot
GX10 7004-144-2 47 Base Socle
GX10q-. 7004-84-2 P Caps on finished lamps Culots sur lampes terminées
GX12 7004-135-1 32 Caps Culots
GX16t-5 7004-183-2 57 Caps Culots
GX23 7004-86-1 M Bi-pin cap Culot à deux broches
GX38 7004-172-1 49 Caps Culots
GX38q 7004-65-1 J Four-pin cap and lamp base Culot et socle de lampe à
quatre broches
GX5 7004-52A-1 41 Bi-pin caps Culots à deux broches
GX5.3 7004-73A-2 26 Bi-pin base Socle à deux broches
GX51 7004-167-1 47 Bi-pin lamp caps Culots et socle de lampe à
deux broches
GX53 7004-142-2 46 Caps Culots
GX8.5 7004-143-1 36 Base Socle
GX9.5 7004-70A-1 C Bi-pin cap Culot à deux broches
GY10-q. 7004-85-2 P Caps on finished lamps Culots sur lampes terminées
GY16 7004-74-2 K Bi-pin cap Culot à deux broches
GY22 7004-119-1 21 Bi-pin cap Culot à deux broches
IEC 60061-1:1969/AMD64:2025 IEC 2025
Sheet
System Designation AMD Name English Nom Francais
Feuilles
GY4 7004-72A-1 P Bi-pin lamp base Socle de lampe à deux
broches
GY5.3 7004-73B-2 26 Bi-pin base Socle à deux broches
GY9.5, GZ9.5, GZX9.5, 7004-70B-4 31 Bi-pin caps Culots à deux broches
GZY9.5 & GZZ9.5
GZ10 7004-120-1 24 Bi-pin lamp base Socle de lampe à deux
broches
GZ10q 7004-124-1 26 Cap Culot
GZ4 7004-67-3 N Bi-pin lamp base Socle de lampe à deux
broches
GZ6.35 7004-59A-3 N Bi-pin lamp base Socle à deux broches
GZX7d-.,GZY7d-. & 7004-136-1 32 Printed circuit caps Culots pour circuit imprimé
GZZ7d-.
K12s 7004-168-1 47 Cap and cable shoe Culot et pied de cable
P(X)(Y)26.4t & PJ26.4t 7004-128-3 41 Caps Culots
P11.5d 7004-79-1 N Caps Culots
P13.5s 7004-40-2 M Prefocus cap Culot préfocus
P14.5s 7004-46-2 N Prefocus caps - Assembly Culots préfocus -
of ring and cap on finished Assemblage de la collerette
lamp et du culot sur la lampe
terminée
P20d, PX20d, PY20d & 7004-31-2 23 Prefocus caps Culots préfocus
PZ20d
P22d & PX22d 7004-32-2 23 Prefocus caps Culots préfocus
P23t 7004-138-2 41 Cap Culot
P26s 7004-36-1 J Prefocus cap P26s on Culot préfocus P26s sur la
finished lamp lampe terminée
P28s 7004-42-7 M Prefocus caps Culots préfocus
P29t 7004-66-1 N Prefocus caps Culots préfocus
P30s-10.3 7004-44-3 E Prefocus cap P30s-10.3. Culot préfocus P30s-10.3.
Assembly on finished lamps Assemblage sur lampes
terminées
P32d & PK32d 7004-111-5 54 Prefocus caps Culots prefocus
P38t 7004-133-1 32 Caps Culots
P40s 7004-43-5 E Prefocus caps Culots préfocus
P43t 7004-39-6 22 Prefocus caps Culots préfocus
P45t 7004-95-5 Q Prefocus cap Culot préfocus
PG12-. & PGX12-. 7004-64-3 S Caps on finished lamps Culots sur lampe terminée
PG13 & PGJ13 7004-107-4 33 Caps Culots
PG18.5d 7004-147-1 37 Caps Culots
PG20 & PGU20 7004-127-2 35 Caps Culots
PG22-6.35 7004-48-1 E Prefocus cap PG22-6.35. Culot préfocus PG22-6.35.
Assembly of collar and cap Assemblage de la collerette
on finished lamp et du culot sur la lampe
terminée
PGJ(X)50 7004-156-2 51
...
