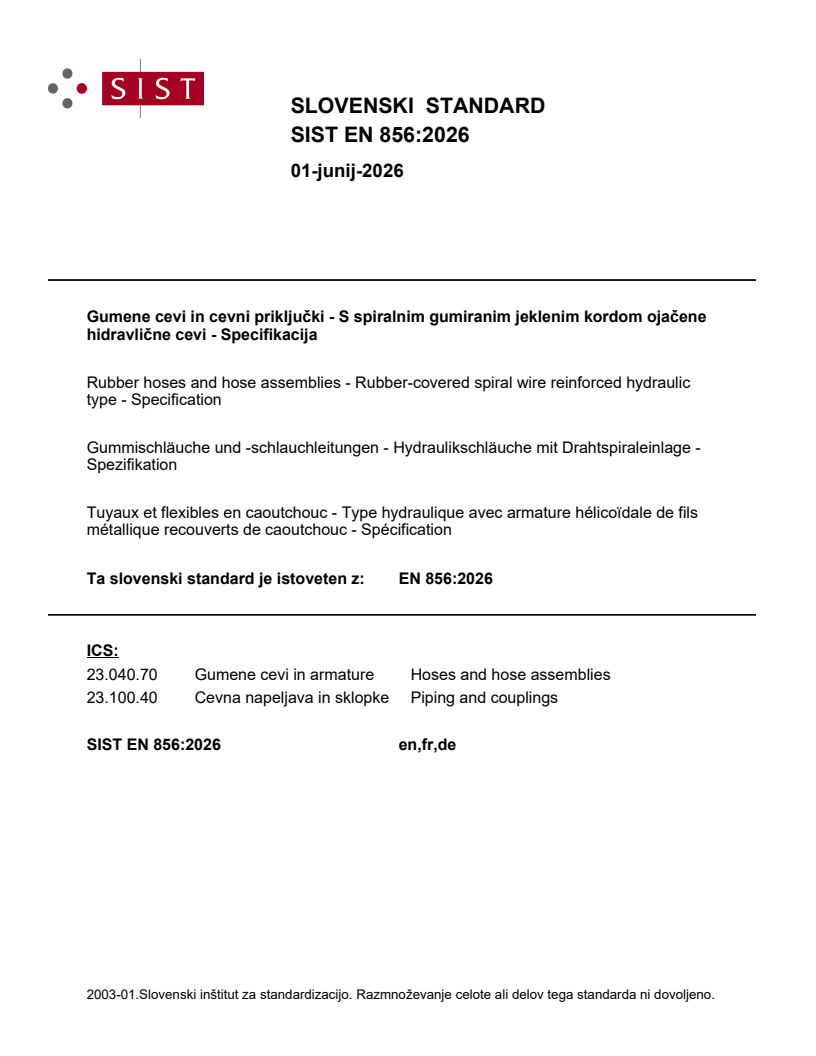

SIST EN 856:2026

SLOVENSKI STANDARD
01-junij-2026
Gumene cevi in cevni priključki - S spiralnim gumiranim jeklenim kordom ojačene
hidravlične cevi - Specifikacija
Rubber hoses and hose assemblies - Rubber-covered spiral wire reinforced hydraulic
type - Specification
Gummischläuche und -schlauchleitungen - Hydraulikschläuche mit Drahtspiraleinlage -
Spezifikation
Tuyaux et flexibles en caoutchouc - Type hydraulique avec armature hélicoïdale de fils
métallique recouverts de caoutchouc - Spécification
Ta slovenski standard je istoveten z: EN 856:2026
ICS:
23.040.70 Gumene cevi in armature Hoses and hose assemblies
23.100.40 Cevna napeljava in sklopke Piping and couplings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

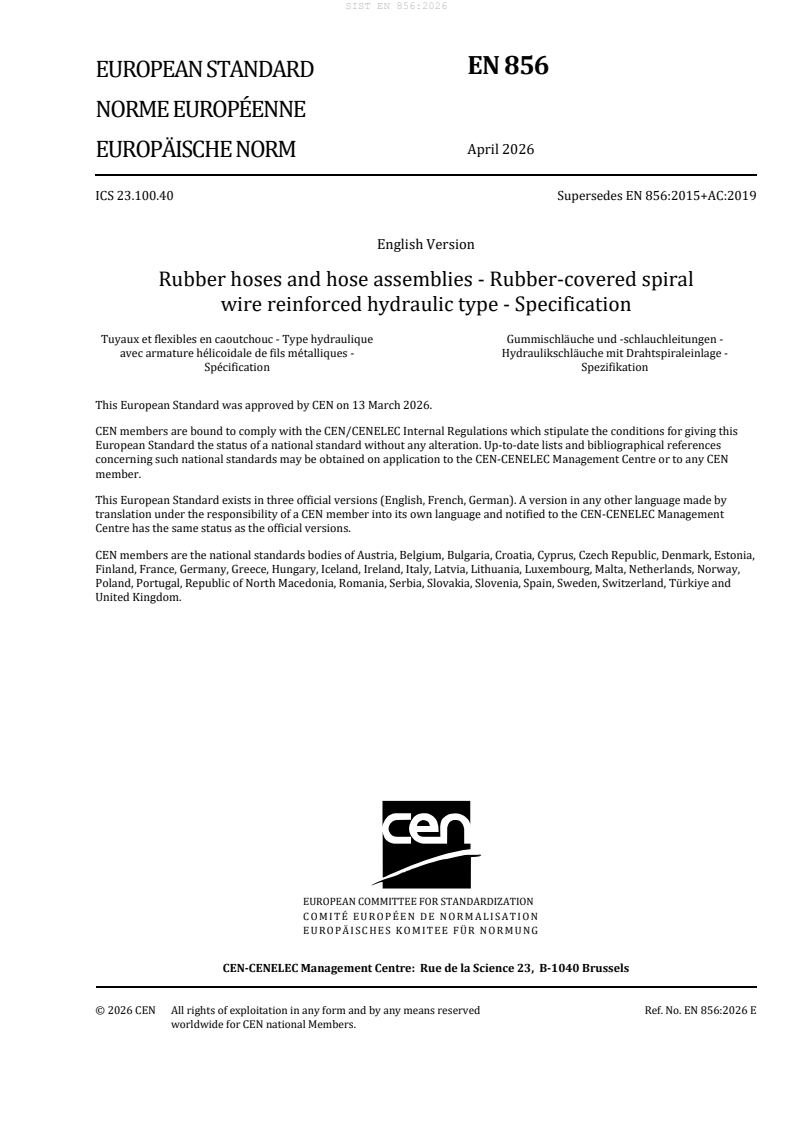

EN 856
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2026
EUROPÄISCHE NORM
ICS 23.100.40 Supersedes EN 856:2015+AC:2019
English Version
Rubber hoses and hose assemblies - Rubber-covered spiral
wire reinforced hydraulic type - Specification
Tuyaux et flexibles en caoutchouc - Type hydraulique Gummischläuche und -schlauchleitungen -
avec armature hélicoidale de fils métalliques - Hydraulikschläuche mit Drahtspiraleinlage -
Spécification Spezifikation
This European Standard was approved by CEN on 13 March 2026.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 856:2026 E
worldwide for CEN national Members.

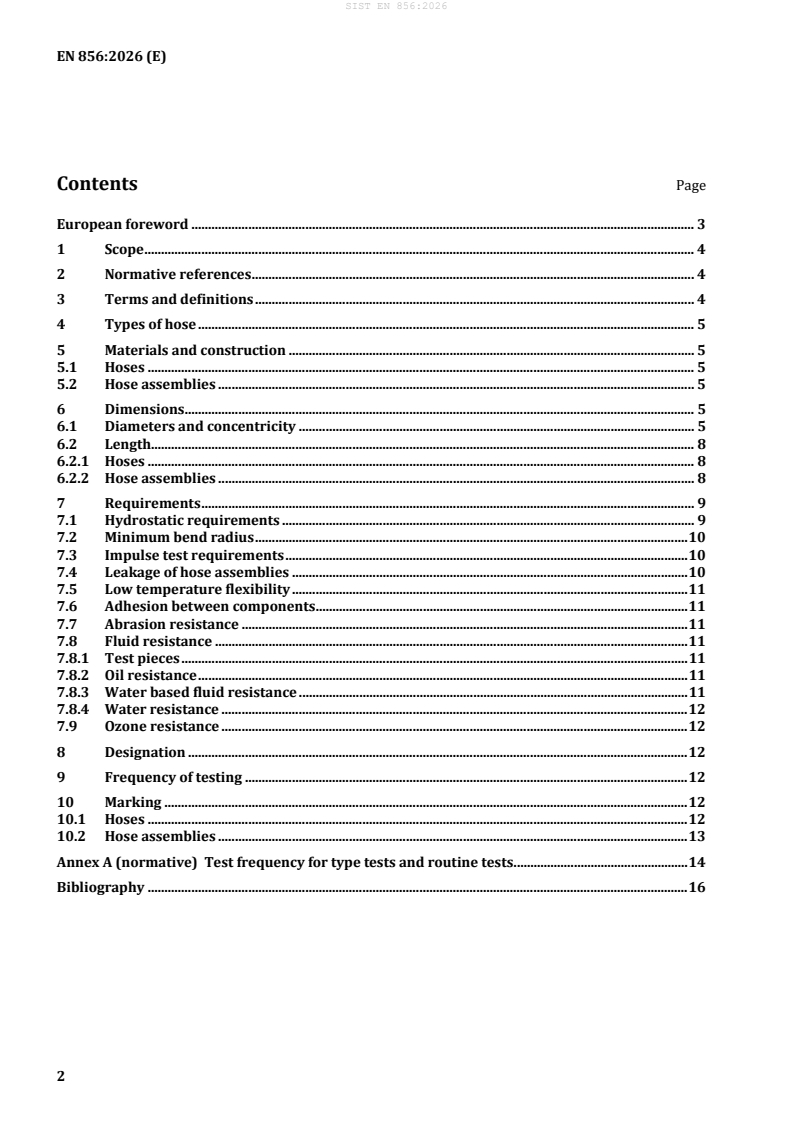

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Types of hose . 5
5 Materials and construction . 5
5.1 Hoses . 5
5.2 Hose assemblies . 5
6 Dimensions. 5
6.1 Diameters and concentricity . 5
6.2 Length. 8
6.2.1 Hoses . 8
6.2.2 Hose assemblies . 8
7 Requirements . 9
7.1 Hydrostatic requirements . 9
7.2 Minimum bend radius . 10
7.3 Impulse test requirements . 10
7.4 Leakage of hose assemblies . 10
7.5 Low temperature flexibility . 11
7.6 Adhesion between components . 11
7.7 Abrasion resistance . 11
7.8 Fluid resistance . 11
7.8.1 Test pieces . 11
7.8.2 Oil resistance . 11
7.8.3 Water based fluid resistance . 11
7.8.4 Water resistance . 12
7.9 Ozone resistance . 12
8 Designation . 12
9 Frequency of testing . 12
10 Marking . 12
10.1 Hoses . 12
10.2 Hose assemblies . 13
Annex A (normative) Test frequency for type tests and routine tests . 14
Bibliography . 16

European foreword
This document (EN 856:2026) has been prepared by Technical Committee CEN/TC 218 “Rubber and
plastics hoses and hose assemblies”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2026, and conflicting national standards shall
be withdrawn at the latest by October 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 856:2015+AC:2019.
This document includes the following significant technical changes with respect to
EN 856:2015+AC:2019:
— EN 853, EN 854, EN 856 and EN 857 have been aligned;
— updated normative references;
— Table 7 added;
— former Annex A deleted;
— former Annex C deleted.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies requirements for four types of rubber-covered spiral wire reinforced hydraulic
hoses and hose assemblies of nominal bore from 6 to 51: Types 4SP, 4SH, R13 and R15. They are suitable
for use with:
— hydraulic fluids covered in ISO 6743-4 with the exception of all flame retardant HFD fluids at
temperatures ranging from −40 °C to +100 °C for types 4SP and 4SH and −40 °C to +120 °C for
types R13 and R15;
— water-based fluids at temperatures ranging from −40 °C to 70 °C;
— water fluids at temperatures ranging from 0 °C to 70 °C.
The hoses are not suitable for use with castor oil based nor ester-based fluids.
This document does not include requirements for end fittings. It is limited to the performance of hoses
and hose assemblies.
NOTE Requirements for hydraulic hoses for underground mining are covered in a different document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 1402, Rubber and plastics hoses and hose assemblies — Hydrostatic testing (ISO 1402)
EN ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions
of hoses and the lengths of hose assemblies (ISO 4671)
EN ISO 6803, Rubber or plastics hoses and hose assemblies — Hydraulic-pressure impulse test without
flexing (ISO 6803)
EN ISO 7326:2016, Rubber and plastics hoses — Assessment of ozone resistance under static conditions
(ISO 7326:2016)
EN ISO 8033, Rubber and plastics hoses — Determination of adhesion between components (ISO 8033)
EN ISO 10619-2:2021, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 2: Bending tests at sub-ambient temperatures (ISO 10619-2:2021)
ISO 1817:2024, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO/TS 20444, Rubber and plastics hoses — Determination of abrasion resistance of the outer cover
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
4 Types of hose
Four types of hose are specified, distinguished by their construction and maximum working pressure:
1) Type 4SP – a 4-steel wire spiral medium pressure hose;
2) Type 4SH – a 4-steel wire spiral extra high pressure hose;
3) Type R13 – a multiple steel wire spiral heavy duty high temperature hose – high pressure rating
4) Type R15 – a multiple steel wire spiral heavy duty high temperature hose – high pressure rating.
Hoses and hose assemblies are not be operated outside the limits of this document.
5 Materials and construction
5.1 Hoses
Hoses shall consist of an oil and water resistant synthetic rubber lining, spiral plies of steel wire wrapped
in alternating directions, and an oil and weather resistant synthetic rubber cover. Each spiral wire ply
shall be separated by an insulating layer of synthetic rubber.
5.2 Hose assemblies
Hose assemblies shall only be manufactured with those hose fittings whose functionality as a defined
hose and fitting combination has been verified in accordance with 7.1, 7.3, 7.4 and 7.5 of this document.
The manufacturer’s instructions shall be followed for the preparation and fabrication of hose assemblies.
6 Dimensions
6.1 Diameters and concentricity
The diameters of the hoses shall be measured in accordance with EN ISO 4671 and as such shall conform
to the values in Table 1.
Table 1 — Diameters of hoses
Dimensions in millimetres, except nominal bore
Inside diameter
Nominal
Type 4SP Type 4SH Type R13 Type R15
bore
min. max. min. max. min. max. min. max.
6 6,2 7,0 — — — — — —
10 9,4 10,1 — — — — 9,3 10,1
12 12,6 13,5 — — — — 12,3 13,5
16 15,8 16,7 15,8 16,7 — — — —
19 18,8 19,8 19,1 19,8 18,6 19,8 18,6 19,8
25 25,4 26,4 25,5 26,4 25,0 26,4 25,0 26,4
31 31,8 33,0 32,0 3
...
