SIST EN 2467:2024
(Main)Aerospace series - Steel X2CrNi18-9 (1.4307) - Air melted - Softened - Plates, sheets and strips - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
Aerospace series - Steel X2CrNi18-9 (1.4307) - Air melted - Softened - Plates, sheets and strips - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
This document specifies the requirements relating to:
Steel X2CrNi18-9 (1.4307)
Air melted
Softened
Plates, sheets and strips
0,4 mm ≤ a ≤ 20 mm
520 MPa ≤ Rm ≤ 670 MPa
for aerospace applications.
W. nr: 1.4307.
ASD-STAN designation: FE-PA3901.
Luft- und Raumfahrt - Stahl X2CrNi18-9 (1.4307) - Lufterschmolzen - Weichgeglüht - Platten, Bänder und Bleche - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
Dieses Dokument legt die Anforderungen an:
Stahl X2CrNi18 9 (1.4307)
Lufterschmolzen
Weichgeglüht
Platten, Bleche und Bänder
0,4 mm ≤ a ≤ 20 mm
520 MPa ≤ Rm ≤ 670 MPa
für Anwendungen in der Luft- und Raumfahrt fest.
Werkstoffnummer: 1.4307.
ASD STAN-Werkstoffbezeichnung: FE PA3901.
Série aérospatiale - Acier X2CrNi18-9 (1.4307) - Élaboré à l'air - Adouci - Plaques, tôles et bandes - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
Le présent document spécifie les exigences relatives à :
Acier X2CrNi18-9 (1.4307)
Élaboré à l’air
Adouci
Plaques, tôles et bandes
0,4 mm ≤ a ≤ 20 mm
520 MPa ≤ Rm ≤ 670 MPa
pour les applications aérospatiales.
W.nr : 1.4307.
Désignation ASD-STAN : FE-PA3901.
Aeronavtika - Jeklo X2CrNi18-9 (1.4307) - Taljeno na zraku - Mehčano - Plošče, pločevina in trakovi - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
Ta dokument določa zahteve, ki se navezujejo na:
jeklo X2CrNi18-9 (1.4307),
taljeno na zraku,
mehčano,
plošče, pločevino in trakove,
0,4 mm ≤ a ≤ 200 mm,
520 MPa ≤ Rm ≤ 670 MPa,
za uporabo v aeronavtiki.
W. Nr: 1.4307.
Oznaka ASD-STAN: FE-PA3901.
General Information
- Status
- Published
- Public Enquiry End Date
- 30-Nov-2020
- Publication Date
- 29-Aug-2024
- Technical Committee
- I13 - Imaginarni 13
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 28-Aug-2024
- Due Date
- 02-Nov-2024
- Completion Date
- 30-Aug-2024
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
SIST EN 2590:2017 - Aerospace series - Steel - Sheets and plates, hot rolled - Dimensions - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 19-Jan-2023
Overview
SIST EN 2467:2024 is a European standard that specifies the requirements for aerospace-grade steel X2CrNi18-9 (material number 1.4307), also known under the ASD-STAN designation FE-PA3901. This standard applies to air-melted, softened plates, sheets, and strips with thicknesses ranging from 0.4 mm to 20 mm. The standard covers materials with a tensile strength between 520 MPa and 670 MPa, ensuring suitability for demanding aerospace applications. As a direct adoption of EN 2467:2024, this SIST standard aligns with the latest industry quality and performance benchmarks for flat steel products used in aircraft manufacturing and related sectors.
Key Topics
- Material Designation: Steel X2CrNi18-9 (1.4307), part of the austenitic stainless steel family, known for its excellent corrosion resistance and formability.
- Product Forms: Plates, sheets, and strips, making the standard applicable to a range of flat steel products used in aerospace structures.
- Dimensional Range: Thickness from 0.4 mm to 20 mm, accommodating thin sheets for panels and thicker plates for structural components.
- Mechanical Properties: Tensile strength requirements between 520 MPa and 670 MPa ensure robust performance under operational stresses.
- Processing Conditions: Steel must be air melted and softened, typically by solution annealing, to deliver optimal ductility and workability.
- Quality Assurance: The standard mandates rigorous testing, including visual and ultrasonic inspection (as per EN 4700-001), and chemical and mechanical property verification.
Applications
SIST EN 2467:2024 is specifically designed for the aerospace industry and associated high-technology sectors. Typical applications include:
- Aircraft structures: Utilized in the fabrication of fuselage sections, wing skins, and control surfaces due to its strength-to-weight ratio and corrosion resistance.
- Engine Components: Appropriate for housings, brackets, and mounting plates where constant exposure to varying temperatures and humidity exist.
- Precision Sheet Metal Fabrication: Supports secondary aerospace assemblies involving complex forming or welding, anticipating demands for uniformity and performance.
- Other High-Performance Uses: May serve in transportation, defense, or energy industries when similar durability and reliability requirements are present.
End users benefit from the standard's explicit requirements for product quality and consistency, reducing sourcing risks and supporting compliance with broader aerospace material standards.
Related Standards
For comprehensive material specification and process control, SIST EN 2467:2024 references several related standards, including:
- EN 4700-001: Defines technical specifications for steel and heat-resisting alloy wrought products in the aerospace series, covering aspects such as production, testing, and documentation.
- EN 2951: Outlines micrographic determination methods for non-metallic inclusions in metallic materials, supporting quality requirements for purity.
- EN 4258: Provides the organizational framework for metallic material standardization within the aerospace sector, detailing linkages between types of European Standards and their application.
- EN 4500-005: Establishes rules for drafting and presentation of standards concerning steels in the aerospace series.
By following SIST EN 2467:2024 and its related references, manufacturers, engineers, and procurement professionals ensure compatibility, safety, and traceability for aerospace steel flat products, supporting high industry standards and customer expectations.
Keywords: aerospace steel, X2CrNi18-9, 1.4307 stainless steel, aerospace standard, EN 2467, plates sheets strips, flat steel products, tensile strength, material specification, SIST, ASD-STAN.
Get Certified
Connect with accredited certification bodies for this standard
Element Materials Technology
Materials testing and product certification.
BUREAU VERITAS Certification Germany
Bureau Veritas certification in Germany.
AQMS Ltd.
AQMS provides ISO certification to SMEs across the UK.
Sponsored listings
Frequently Asked Questions
SIST EN 2467:2024 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Steel X2CrNi18-9 (1.4307) - Air melted - Softened - Plates, sheets and strips - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa". This standard covers: This document specifies the requirements relating to: Steel X2CrNi18-9 (1.4307) Air melted Softened Plates, sheets and strips 0,4 mm ≤ a ≤ 20 mm 520 MPa ≤ Rm ≤ 670 MPa for aerospace applications. W. nr: 1.4307. ASD-STAN designation: FE-PA3901.
This document specifies the requirements relating to: Steel X2CrNi18-9 (1.4307) Air melted Softened Plates, sheets and strips 0,4 mm ≤ a ≤ 20 mm 520 MPa ≤ Rm ≤ 670 MPa for aerospace applications. W. nr: 1.4307. ASD-STAN designation: FE-PA3901.
SIST EN 2467:2024 is classified under the following ICS (International Classification for Standards) categories: 49.025.10 - Steels; 77.140.50 - Flat steel products and semi-products. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 2467:2024 has the following relationships with other standards: It is inter standard links to SIST EN 4700-001:2025, SIST EN 2951:2019, SIST EN 2590:2017, SIST EN 4632-004:2014, SIST EN 2467:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 2467:2024 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

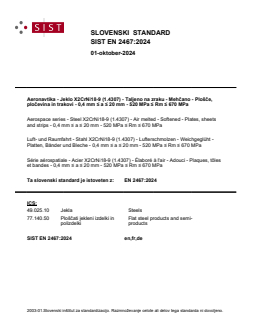

SLOVENSKI STANDARD
01-oktober-2024
Aeronavtika - Jeklo X2CrNi18-9 (1.4307) - Taljeno na zraku - Mehčano - Plošče,
pločevina in trakovi - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
Aerospace series - Steel X2CrNi18-9 (1.4307) - Air melted - Softened - Plates, sheets
and strips - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
Luft- und Raumfahrt - Stahl X2CrNi18-9 (1.4307) - Lufterschmolzen - Weichgeglüht -
Platten, Bänder und Bleche - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
Série aérospatiale - Acier X2CrNi18-9 (1.4307) - Élaboré à l'air - Adouci - Plaques, tôles
et bandes - 0,4 mm ≤ a ≤ 20 mm - 520 MPa ≤ Rm ≤ 670 MPa
Ta slovenski standard je istoveten z: EN 2467:2024
ICS:
49.025.10 Jekla Steels
77.140.50 Ploščati jekleni izdelki in Flat steel products and semi-
polizdelki products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

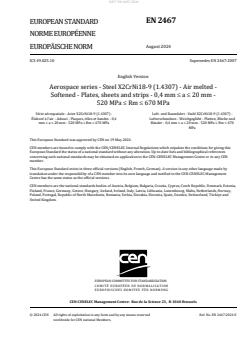

EN 2467
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2024
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 2467:2007
English Version
Aerospace series - Steel X2CrNi18-9 (1.4307) - Air melted -
Softened - Plates, sheets and strips - 0,4 mm a 20 mm -
520 MPa Rm 670 MPa
Série aérospatiale - Acier X2CrNi18-9 (1.4307) - Luft- und Raumfahrt - Stahl X2CrNi18-9 (1.4307) -
Élaboré à l'air - Adouci - Plaques, tôles et bandes - 0,4 Lufterschmolzen - Weichgeglüht - Platten, Bleche und
mm a 20 mm - 520 MPa Rm 670 MPa Bänder - 0,4 mm a 20 mm - 520 MPa Rm 670
MPa
This European Standard was approved by CEN on 19 May 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2467:2024 E
worldwide for CEN national Members.

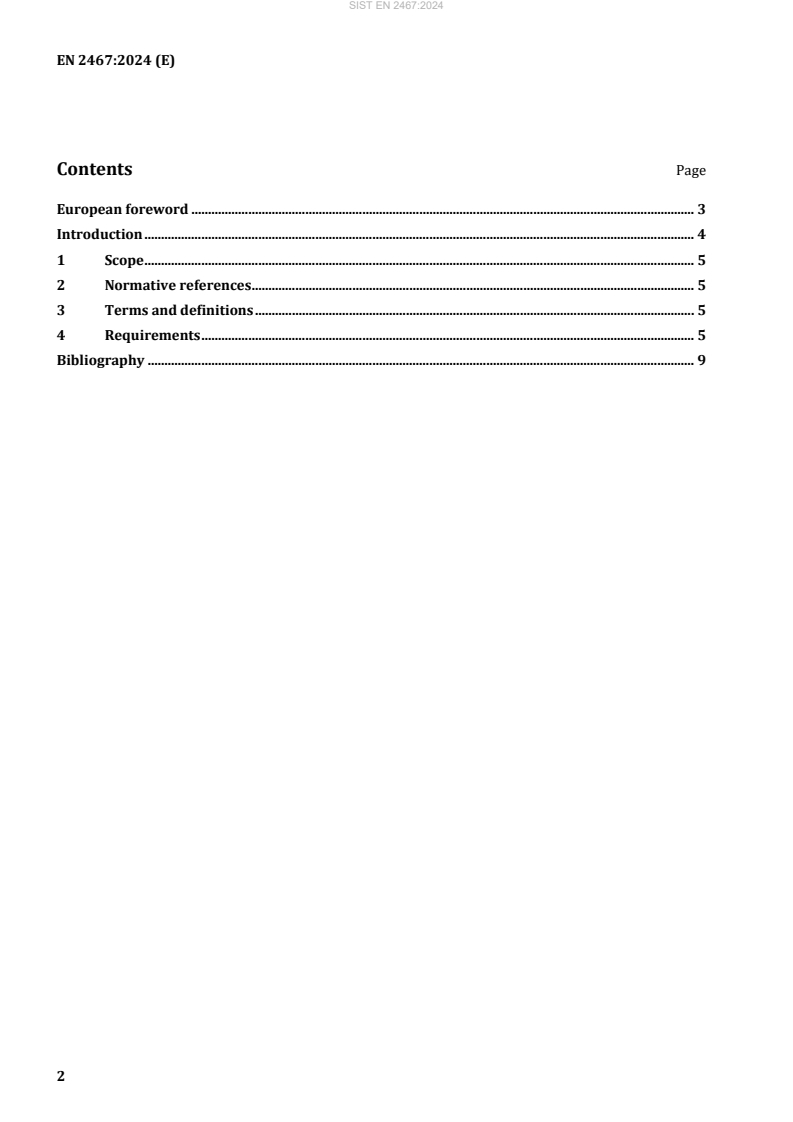

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9
European foreword
This document (EN 2467:2024) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by February 2025, and conflicting national standards shall be
withdrawn at the latest by February 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 2467:2007.
The main changes with respect to the previous edition are as
...
