SIST EN 14653-2:2005

SLOVENSKI STANDARD
01-julij-2005
5RþQRXSUDYOMDQHKLGUDYOLþQHQDSUDYH]DUD]SLUDQMHL]NRSRY±GHO'RND]RYDQMH
]L]UDþXQRPDOLVSUHVNXãDQMHP
Manually operated hydraulic shoring systems for groundwork support - Part 2:
Assessment by calculation or test
Manuell gesteuerte hydraulische Grabenverbaugeräte - Teil 2: Nachweis durch
Berechnung oder Prüfung
Composants des blindages de trancheés - Partie 2: Essais et évaluation
Ta slovenski standard je istoveten z: EN 14653-2:2005
ICS:
93.020 Zemeljska dela. Izkopavanja. Earthworks. Excavations.
Gradnja temeljev. Dela pod Foundation construction.
zemljo Underground works
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 14653-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2005
ICS 93.020
English version
Manually operated hydraulic shoring systems for groundwork
support - Part 2: Assessment by calculation or test
Composants des blindages de trancheés - Partie 2: Essais Manuell gesteuerte hydraulische Grabenverbaugeräte - Teil
et évaluation 2: Nachweis durch Berechnung oder Prüfung
This European Standard was approved by CEN on 28 February 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14653-2:2005: E
worldwide for CEN national Members.

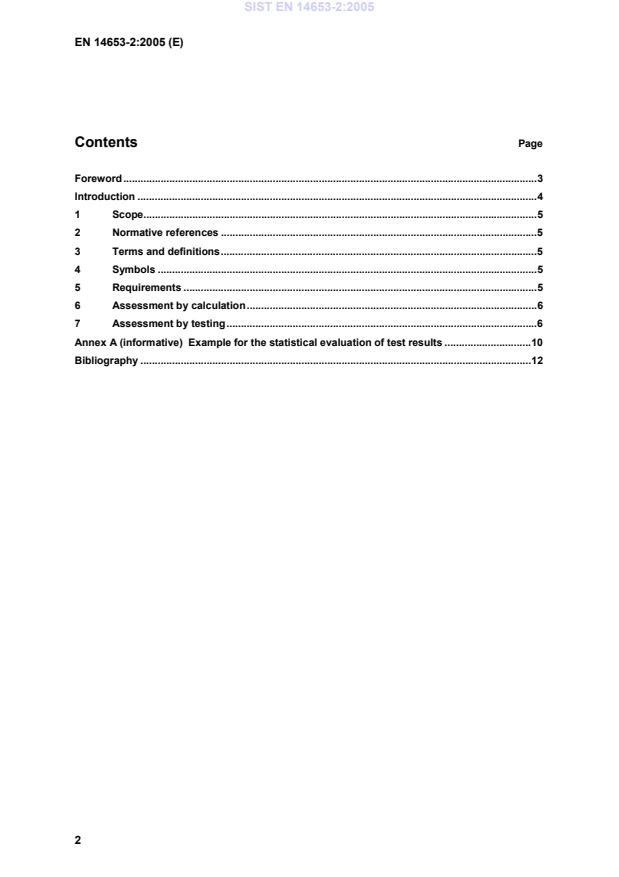

Contents Page
Foreword.3
Introduction .4
1 Scope.5
2 Normative references .5
3 Terms and definitions.5
4 Symbols .5
5 Requirements .5
6 Assessment by calculation.6
7 Assessment by testing.6
Annex A (informative) Example for the statistical evaluation of test results .10
Bibliography .12

Foreword
This document (EN 14653-2:2005) has been prepared by Technical Committee CEN/TC 53
“Temporary works equipment”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2005, and conflicting national standards
shall be withdrawn at the latest by October 2005.
This European Standard with the general title Manually operated hydraulic shoring systems for
groundwork support consists of the following parts:
Part 1: Product specifications
Part 2: Assessment by calculation or test
These standards are to be read in conjunction with EN 12811-2 and EN 12811-3.
This document includes a Bibliography.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia,
Spain, Sweden, Switzerland and United Kingdom.
Introduction
Manually operated hydraulic shoring systems comprise prefabricated equipment to support sheeting
to the sides of excavations. This document covers two types of equipment whose adjustment is by
hydraulic or a combination of hydraulic and mechanical means:
a) hydraulic bracing frames;
b) hydraulic waler frames.
A variety of components exist which when assembled forms a full system. The instruction manual
provides all the necessary information in the safe use of the systems.
The prefabricated components are used to make frame assemblies of different dimensions and
structural capacities.
This equipment is frequently used in conjunction with supplementary equipment, e.g. knee braces and
intermediate hydraulic bracing struts.
1 Scope
This document specifies methods of calculation and test to assess the conformity of manually
operated hydraulic systems for groundwork support whose performance is specified in EN 14653-1.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 10002-1, Metallic materials — Tensile testing — Part 1: Method of test at ambient temperature
EN 10204, Metallic products — Types of inspection documents
EN 12811-3:2002, Temporary works equipment — Part 3: Load testing
EN 14653–1:2005, Manually operated hydraulic shoring systems for groundwork support —
Part 1: Product specifications
ENV 1993-1-1:1992, Eurocode 3: Design of steel structures — Part 1-1: General rules and rules for
buildings
ENV 1999-1-1, Eurocode 9: Design of aluminium structures — Part 1-1: General rules — General
rules and rules for buildings
EN ISO 6506-1, Metallic materials — Brinell hardness test — Part 1: Test method (ISO 6506-1:1999)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 14653–1:2005 apply.
4 Symbols
For the purposes of this document, the symbols given in EN 14653-1:2005 and EN 12811-3:2002
apply.
5 Requirements
5.1 General
All manually operated hydraulic shoring systems and components and their associated instruction
manuals shall be assessed to ensure conformity to all of the requirements of EN 14653-1.
5.2 Structural configurations to be assessed
Manually operated hydraulic shoring systems and components shall be assessed under the structural
configurations, that will induce the most severe loading effects specified by the manufacturer.
5.3 Loading configurations to be considered
Manually operated hydraulic shoring systems shall be assessed all under the loading configurations
specified in EN 14653-1:2005, 7.4.
5.4 Testing or calculation
5.4.1 Assessment shall be carried out by calculation in accordance with ENV 1993-1-1
(Eurocode 3) for steel or ENV 1999-1-1 (Eurocode 9) for aluminium. For cast iron ENV 1993-1-1 shall
be used, subject to 6.2 of EN 14653-1:2005. When appropriate calculation models are not available,
structural testing shall be undertaken.
5.4.2 Assessment shall be carried out by structural testing for the following circumstances:
a) when a calculation model is not available to represent a particular structural component or
assembly;
b) when there is a degree of uncertainty in the validity of the model chosen;
c) when verification of structural performances is required by EN 14653-1.
The following shall be assessed by structural testing:
1) the axial compressive resistance of hydraulic waler struts with spigot type extension bars as
defined in EN 14653-1:2005, 3.13.1 c).
2) the axial compressive resistance of rams and struts with restraints conditions not conforming
to those described in EN 14653-1:2005, 8.5.
3) mechanical locking mechanisms on waler struts as defined in EN 14653-1:2005, 3.12.1.
4)  Non-proprietary valves as defined in EN 14653-1:2005, 8.8.
6 Assessment by calculation
The internal forces and moments shall be calculated using elastic analysis methods. No plastic
redistribution of moments and forces are permitted.
The influence of the deflections on the internal forces and moments shall be determined either by
using second orde
...
