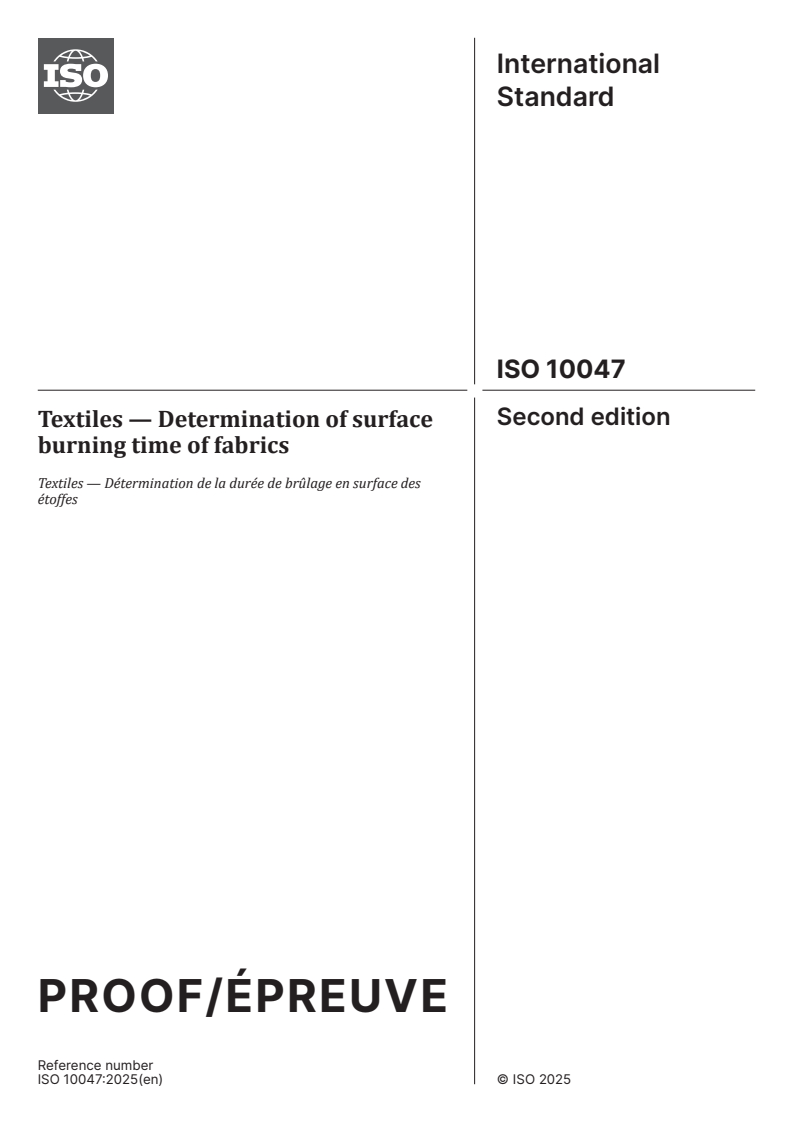

ISO 10047

ISO/DISPRF 10047
ISO/TC 38
Secretariat: JISC
Date: 2025-10-0830
Textiles — Determination of surface burning time of fabrics
Textiles — Détermination de la durée de brûlage en surface des étoffes
DIS stage
Warning for WD’s and CD’s
This document is not an ISO International Standard. It is distributed for review and comment. It is subject to change
without notice and may not be referred to as an International Standard.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which
they are aware and to provide supporting documentation.
PROOF
ISO/DISPRF 10047:2025(en)

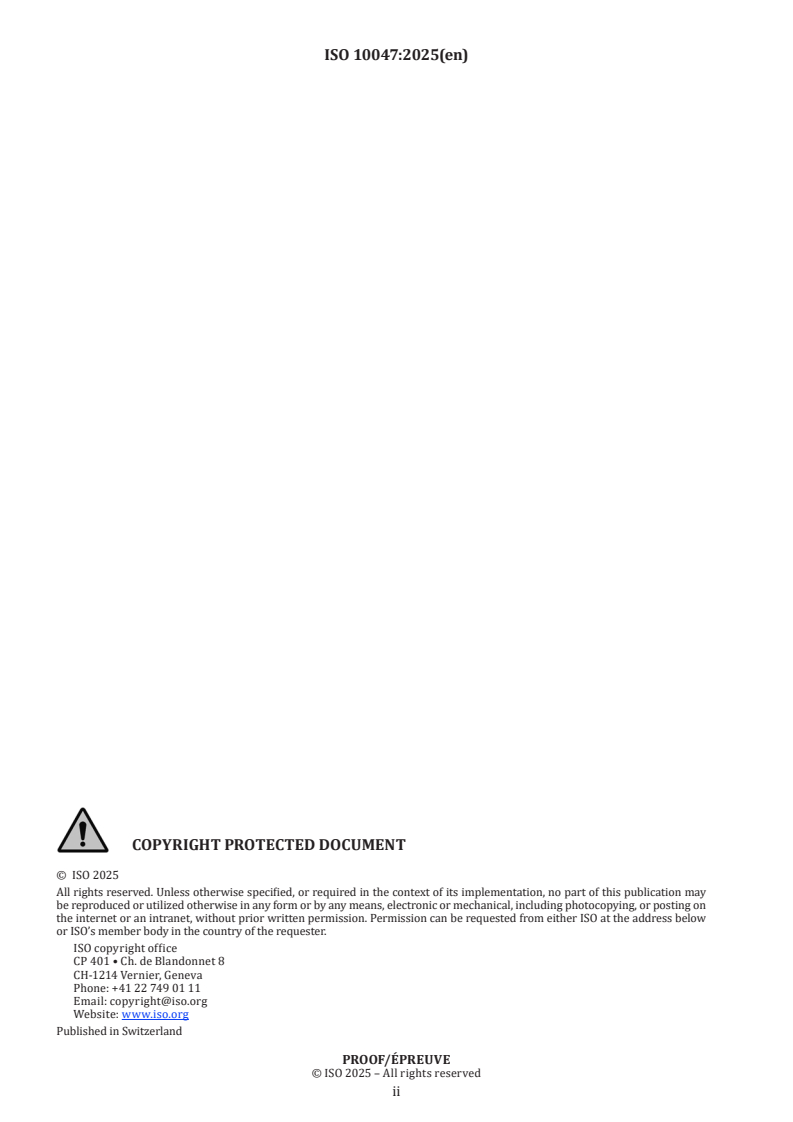

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
Formatted: French (Switzerland)
E-mail: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO/DISPRF 10047:2025(en)
Contents
Foreword . Error! Bookmark not defined.
Scope . Error! Bookmark not defined.
Normative references . Error! Bookmark not defined.
Terms and definitions . Error! Bookmark not defined.
Principle. Error! Bookmark not defined.
Health and safety of test operators . Error! Bookmark not defined.
Apparatus and materials . Error! Bookmark not defined.
Construction of testing equipment . Error! Bookmark not defined.
Location of test . Error! Bookmark not defined.
Preparation and conditioning of test specimens . Error! Bookmark not defined.
Size . Error! Bookmark not defined.
Number . Error! Bookmark not defined.
State of fabric . Error! Bookmark not defined.
Conditioning of test specimens . Error! Bookmark not defined.
Procedure . Error! Bookmark not defined.
Test report . Error! Bookmark not defined.
(normative) Description and construction of the burner . Error! Bookmark not defined.
(normative) Brushing device for raising the surface fibres of a fabric test specimen . Error!
Bookmark not defined.
Bibliography . Error! Bookmark not defined.
Foreword . iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Health and safety of test operators . 1
6 Apparatus and materials . 2
7 Location of test . 4
8 Preparation and conditioning of test specimens . 4
9 Procedure . 5
10 Test report . 6
Annex A (normative) Burner — Description and construction . 7
Annex B (normative) Brushing device for raising the surface fibres of a fabric test specimen . 11
Bibliography . 13

iii
ISO/DISPRF 10047:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO [had/had not] received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that this
may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 38, Textiles.
This second edition cancels and replaces the first edition (ISO 10047:1993), which has been technically
revised.
The main changes are as follows:
— — Figure A.10 b) has been revised to show the angular dimension lines and the angular dimensions clear.
Formatted: List Continue 1
This revision clarifies without any structural changes.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
ISO/DISPRF 10047:2025(en)
Textiles — Determination of surface burning time of fabrics
1 Scope
This document specifies a method for the measurement of surface burning time of textile fabrics which have
a raised fibre surface, i.e. a napped, pile, tufted, flocked or similar surface.

2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 4880, Burning behaviour of textiles and textile products — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions / terms and definitions given inISOin ISO 4880
Formatted: Font: Not Italic
and the following apply.
Formatted: Font: Not Italic
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
surface burn
combustion limited to the surface of a material
3.2
surface burning time
time required for the pile or nap of a fabric to burn a defined distance when tested by the method described
herein
4 Principle
A dry test specimen of the fabric is supported on a vertical plate and its raised surface is ignited near the top
in a specified manner. The spread of flame downwards on the surface of the fabric to a reference line is timed.
NOTE The flame of a pile surface travels more reproducibly downwards or sideways than upwards. It is considered
Formatted: Note
there is a possibility that the blanketing effect of the combustion products do not allow the surface pile above the flame
front to burn, whereas the surface pile below the flame front is not affected in this way.
5 Health and safety of test operators
Burning of textiles may produce smoke and toxic gases which can affect the health of operators. The testing
area shall be cleared of smoke and fumes by suitable means of forced ventilation after each test, then restored
to the required testing conditions (see clause 7 and 9.1).7 and 0).
ISO/DISPRF 10047:2025(en)
6 Apparatus and materials
6.1 Construction of testing equipment
Formatted: p2
Formatted: Font: Not Bold
The equipment shall be constructed of material which will not be adversely affected by the gas fumes. Some
products of combustion are corrosive, and the equipment shall be made of materials which will facilitate
cleaning.
6.2 Test specimen holder, consisting of a stainless steel plate approximately 150 mm long, 75 mm wide
and 3 mm thick (see Fi
...
