ISO 10333-6:2004

INTERNATIONAL ISO
STANDARD 10333-6
First edition
2004-01-15
Personal fall-arrest systems —
Part 6:
System performance tests
Systèmes individuels d'arrêt de chute —
Partie 6: Essais de performance

Reference number
©
ISO 2004
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2004 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Normative references. 1
3 Terms and definitions. 2
4 Designation. 3
5 Requirements. 7
5.1 Components and subsystems. 7
5.2 System performance. 7
6 Test methods. 8
6.1 Apparatus. 8
6.2 Performance test for A + EAL + FBH type PFAS . 11
6.3 Performance test for A + SRL + FBH type PFAS . 14
6.4 Performance test for A + TVLL + FBH type PFAS . 17
6.5 Performance test for A + PVLL + FBH type PFAS . 19
6.6 Performance test for A + VR + FBH type PFAS. 23
7 Supplied information. 27
Annex A (informative) Design, ergonomics and free space. 28
Bibliography . 30

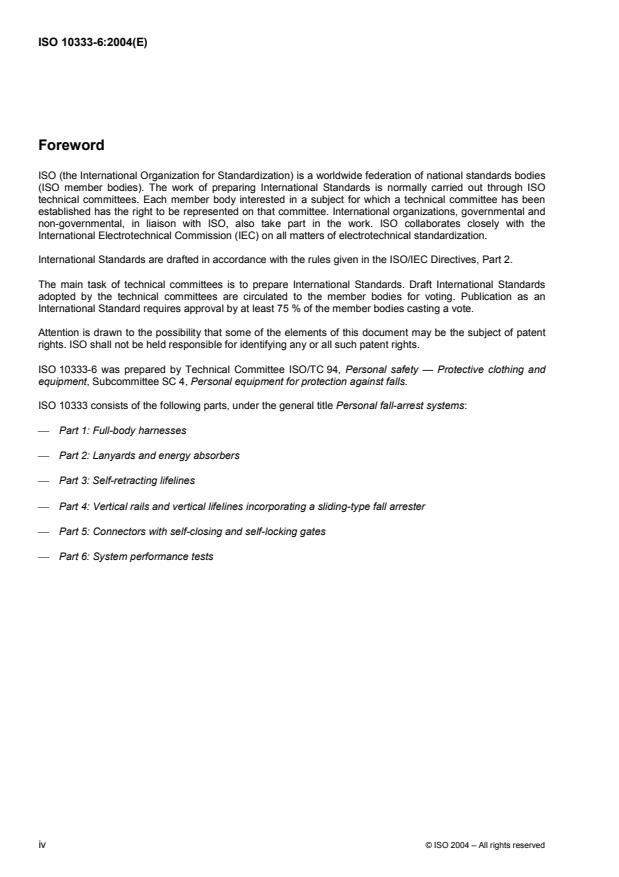

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10333-6 was prepared by Technical Committee ISO/TC 94, Personal safety — Protective clothing and
equipment, Subcommittee SC 4, Personal equipment for protection against falls.
ISO 10333 consists of the following parts, under the general title Personal fall-arrest systems:
 Part 1: Full-body harnesses
 Part 2: Lanyards and energy absorbers
 Part 3: Self-retracting lifelines
 Part 4: Vertical rails and vertical lifelines incorporating a sliding-type fall arrester
 Part 5: Connectors with self-closing and self-locking gates
 Part 6: System performance tests
iv © ISO 2004 – All rights reserved

Introduction
Fall arrest equipment has been traditionally manufactured and tested as discrete components, which are then
linked together in series to form a personal fall arrest system (PFAS) by the user, before commencing work.
This requires personnel in the supply and use chain who are capable of deciding which combinations of
components can be linked together and which of those cannot.
Over the years, a continuous process of fall simulation and strength testing has revealed the dangers of
linking incompatible components together, as a result of test failures, near misses and accidents. Examples
have included: inadvertent release of connections, localized overloading or overstressing of components, and
unexpected decrease in performance levels. These incidents occurred because insufficient analysis and
attention had been paid to the particular combination of components in question, and because the interaction
between the components in a fall was unknown.
Further investigation showed that the behaviour of a complete system under test could reveal shortcomings
which could not be detected when the individual components of the same system were tested separately.
Consequently, in 1979 and 1985, other fall arrest standards with a lineage back to 1947 were revised to
ensure that performance tests were conducted on complete systems. This allowed the complete PFAS to be
tested in the actual mode of use, and an arrested fall to be simulated as closely as possible under test
conditions.
This part of ISO 10333 fully supports the essential requirements of the range of current International
Standards written to specify the components that are used to form personal fall arrest systems, i.e. the other
parts of ISO 10333, and ISO 14567.
However, in recognizing the importance of complete personal fall arrest system performance tests, this part of
ISO 10333 provides test methods for situations where it is both important and desirable to ascertain
satisfactory system performance and interactive component compatibility. It goes beyond that required in the
above component standards by specifying system performance testing applicable to complete personal fall
arrest systems, as opposed to component testing, which only requires tests on individual components.
In cases where the hazard of falling from a height exists and where, for technical reasons or for work of very
short duration, safe access cannot be otherwise provided, it is necessary to consider the use of PFAS. Such
use should never be improvised and its adoption should be specifically provided for in the appropriate formal
provisions for safety in the work place.
PFAS complying with this part of ISO 10333 ought also to satisfy ergonomic requirements and only be used if
the work allows means of connection to a suitable anchor device of demonstrated strength and if it can be
implemented without compromising the safety of the user. Personnel need to be trained and instructed in the
safe use of the equipment and be observant of such training and instruction.
This part of ISO 10333 is based on current knowledge and practice concerning the use of PFAS that
incorporate a full-body harness as specified in ISO 10333-1.
This part of ISO 10333 presumes that the manufacturer of the PFAS, subsystems or components will, for the
sake of consistency and traceability, operate a quality management system which will comply with national
and regional regulations in force at the time. Guidance on the form this quality management system may take
can be found in ISO 9000.
INTERNATIONAL STANDARD ISO 10333-6:2004(E)

Personal fall-arrest systems —
Part 6:
System performance tests
1 Scope
This part of ISO 10333 specifies tests and requirements for complete personal fall arrest systems (PFAS)
made up from specific combinations of components and subsystems selected from those conforming to the
other parts of ISO 10333 and to ISO 14567, where it is both important and desirable to ascertain satisfactory
system performance and interactive component compatibility. It includes PFAS performance tests using a rigid
torso test mass as a surrogate for the faller. Examples of personal fall arrest systems, as well as descriptions
of how components or subsystems may be connected together to constitute a system, are also given.
This part of ISO 10333 is applicable to PFAS limited to single-person use of a total mass not exceeding
100 kg and, when activated, will arrest the person and limit the arresting force to a maximum of 6 kN.
It is not applicable to
a) PFAS which use waist belts or chest harnesses as the sole body holding component,
b) PFAS incorporating lanyards without energy absorbers or without a means of energy dissipation,
c) subsystems and components outside the PFAS scopes of the other parts of ISO 10333 and ISO 14567,
or
d) equipment used for material lifting purposes.
Where other features are integral with components and subsystems which allow them to be assembled into
other types of safety system associated with personal fall arrest systems — for example, work positioning
systems (WPS), fall restraint systems (FRS), controlled descent systems (CDS), confined space access
systems (CSAS) or rescue systems (RS) — this part of ISO 10333 relates only to the fall arrest function of
such components and subsystems.
This part of ISO 10333 does not specify those additional requirements that would apply when personal fall
arrest systems are subjected to special conditions of use (where, for example, there exist unusual limitations
concerning access to the place of work and/or particular environmental factors).
NOTE Personal fall arrest systems outside the scope of this part of ISO 10333 need to be performance tested in the
manner in which they are intended to be used, taking into account the workplace geometry. Advice will need to be sought
from the equipment manufacturer accordingly.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 10333-1:2000, Personal fall-arrest systems — Part 1: Full-body harnesses
ISO 10333-2: 2000, Personal fall arrest systems — Part 2: Lanyards and energy absorbers
ISO 10333-3: 2000, Personal fall arrest systems — Part 3: Self-retracting lifelines
ISO 10333-4: 2002, Personal fall arrest systems — Part 4: Vertical rails and vertical lifelines incorporating a
sliding-type fall arrester
ISO 10333-5:2001, Personal fall-arrest systems — Part 5: Connectors with self-closing and self-locking gates
ISO 14567:1999, Personal protective equipment for protection against falls from a height — Single-point
anchor devices
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 10333-1 to ISO 10333-5, ISO 14567
and the following apply.
3.1
personal fall arrest system
PFAS
assembly of interconnected components and subsystems, including a full-body harness worn by the user, that
when connected to a suitable anchor device will arrest a fall from a height
NOTE A personal fall arrest system minimizes the fall arrest forces, controls the total fall distance to prevent collision with
the ground or other relevant obstruction, and maintains the user in a suitable post-fall arrest attitude for rescue purposes. For
examples, see Figure 1.
3.2
subsystem
constituent part of a personal fall arrest system which may consist of one or more components and which is used
to connect the user from the fall arrest attachment element of the full-body harness to the anchor device
NOTE A subsystem performs the two essential functions of (a) connecting, and (b) arresting and energy-absorbing.
3.3
component
constituent part of a personal fall arrest system or subsystem that has completed the manuf
...
