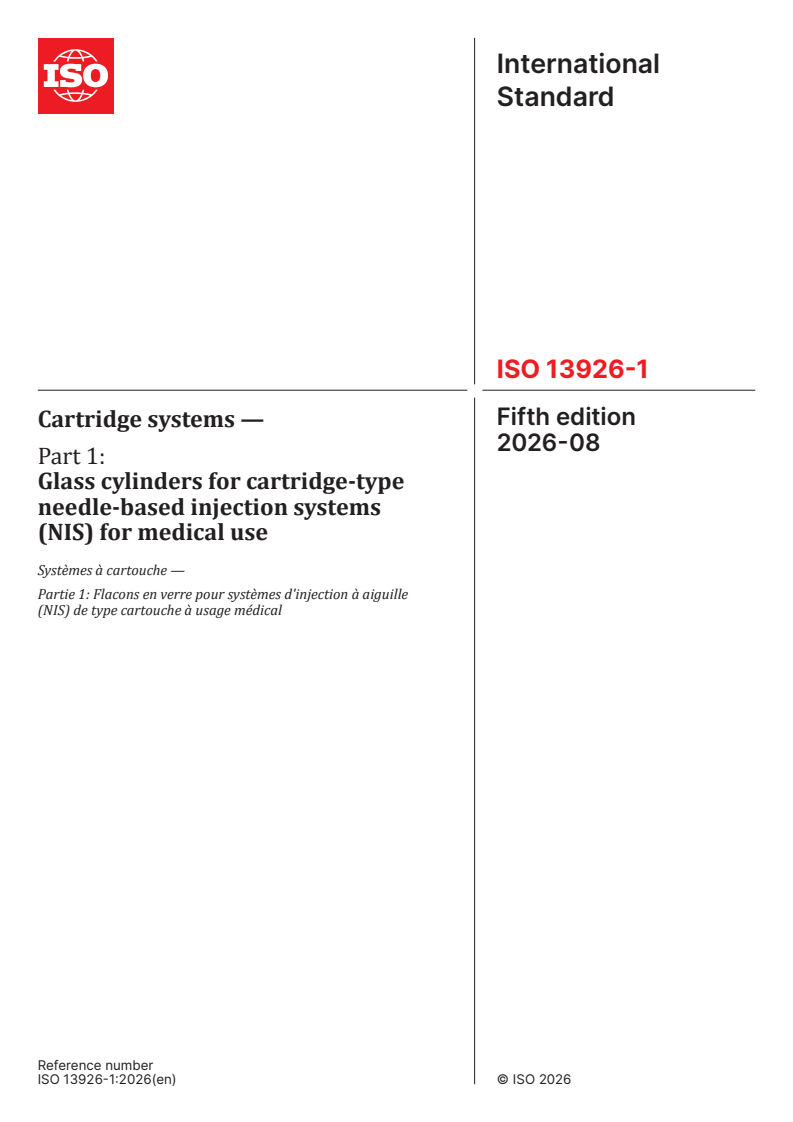

ISO 13926-1:2026

International
Standard
ISO 13926-1
Fifth edition
Cartridge systems —
2026-08
Part 1:
Glass cylinders for cartridge-type
needle-based injection systems
(NIS) for medical use
Systèmes à cartouche —
Partie 1: Flacons en verre pour systèmes d'injection à aiguille
(NIS) de type cartouche à usage médical
Reference number
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

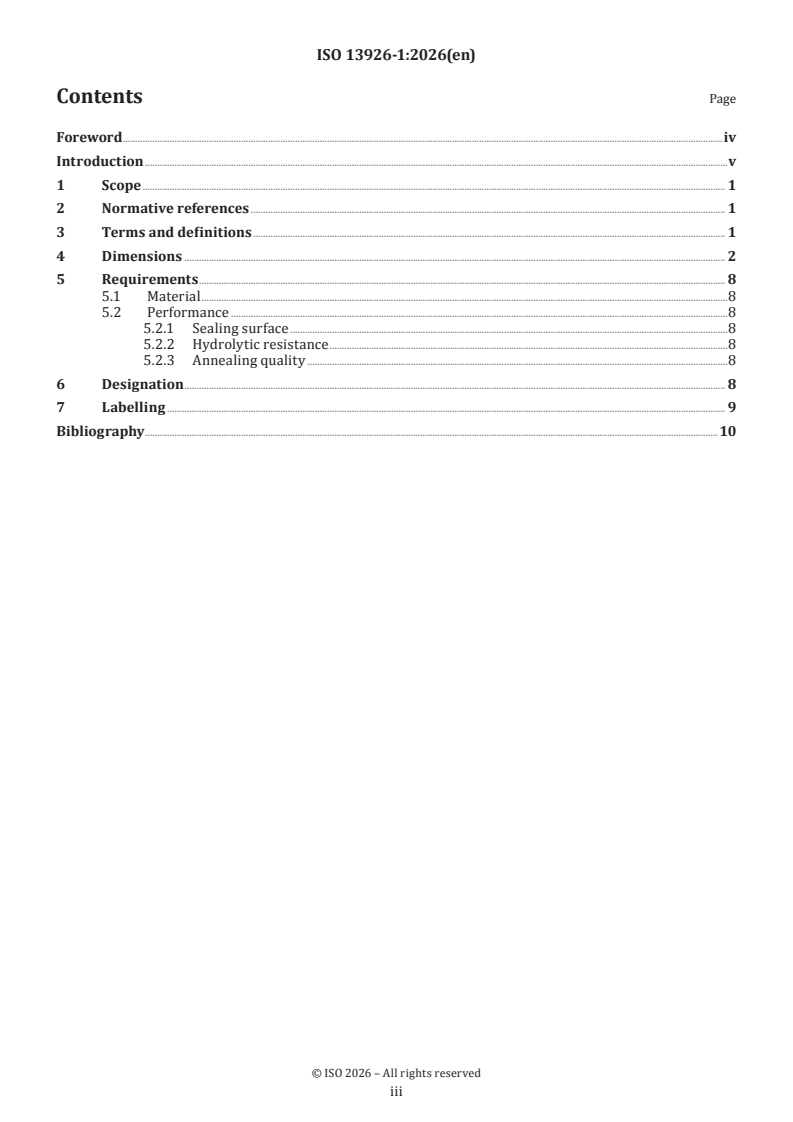

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Dimensions . 2
5 Requirements . 8
5.1 Material .8
5.2 Performance .8
5.2.1 Sealing surface .8
5.2.2 Hydrolytic resistance .8
5.2.3 Annealing quality .8
6 Designation . 8
7 Labelling . 9
Bibliography .10

iii

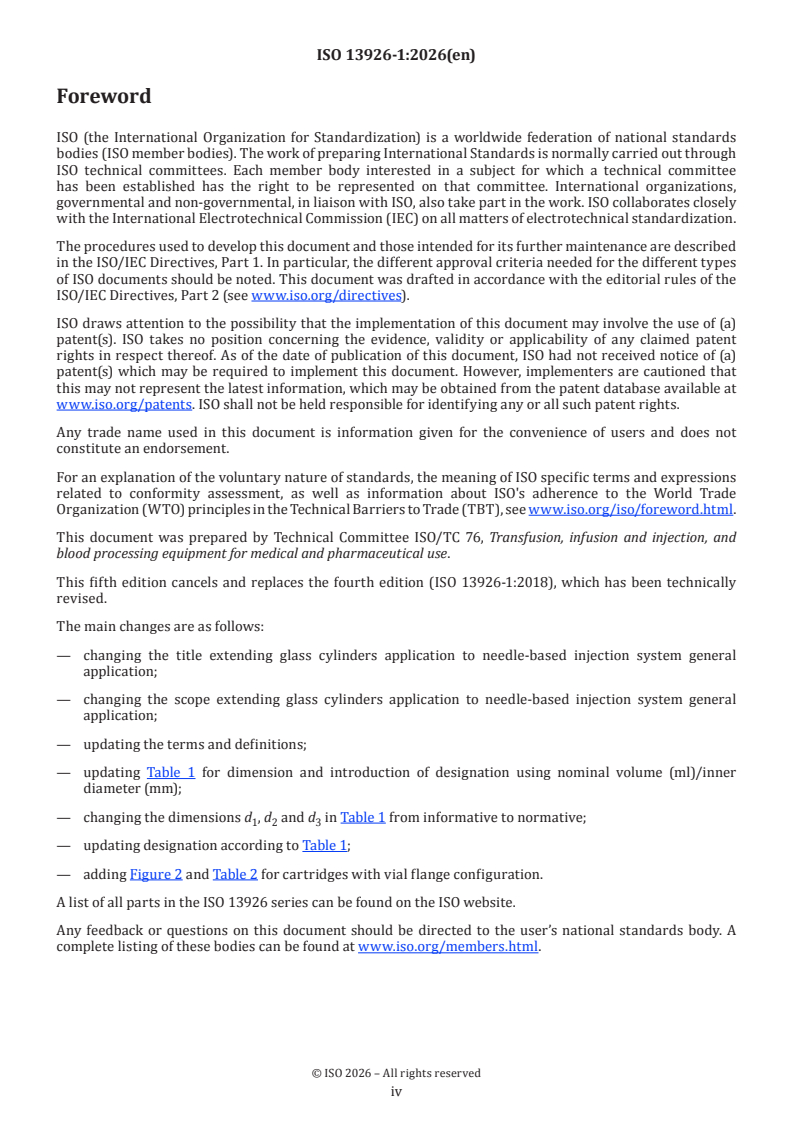

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 76, Transfusion, infusion and injection, and
blood processing equipment for medical and pharmaceutical use.
This fifth edition cancels and replaces the fourth edition (ISO 13926-1:2018), which has been technically
revised.
The main changes are as follows:
— changing the title extending glass cylinders application to needle-based injection system general
application;
— changing the scope extending glass cylinders application to needle-based injection system general
application;
— updating the terms and definitions;
— updating Table 1 for dimension and introduction of designation using nominal volume (ml)/inner
diameter (mm);
— changing the dimensions d , d and d in Table 1 from informative to normative;
1 2 3
— updating designation according to Table 1;
— adding Figure 2 and Table 2 for cartridges with vial flange configuration.
A list of all parts in the ISO 13926 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Primary packaging components made of glass materials are an integral part of medicinal products and
thus, the principles of current Good Manufacturing Practices (cGMP) apply to the manufacturing of these
components.
[6],[7]
Principles of cGMP are described in, for example, ISO 15378 or GMP Guidelines .

v
International Standard ISO 13926-1:2026(en)
Cartridge systems —
Part 1:
Glass cylinders for cartridge-type needle-based injection
systems (NIS) for medical use
1 Scope
This document specifies the material, performance requirements and labelling, and gives recommendations
for shape and dimensions of glass cylinders used in cartridge-type needle-based injection systems (NIS)
for medical use, according to ISO 11608-3. This document applies to the glass cylinders as supplied by the
manufacturer.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 720, Glass — Hydrolytic resistance of glass grains at 121 °C — Method of test and classification
ISO 4802-1, Glassware — Hydrolytic resistance of the interior surfaces of glass containers — Part 1:
Determination by titration method and classification
ISO 4802-2, Glassware — Hydrolytic resistance of the interior surfaces of glass containers — Part 2:
Determination by flame spectrometry and classification
ISO 8362-1, Injection containers and accessories — Part 1: Injection vials made of glass tubing
ISO 8536-2, Infusion equi
...
