ISO 13573:2012
(Main)Corrosion of metals and alloys — Test method for thermal-cycling exposure testing under high-temperature corrosion conditions for metallic materials
Corrosion of metals and alloys — Test method for thermal-cycling exposure testing under high-temperature corrosion conditions for metallic materials
ISO 13573:2012 describes the methodology for thermal cycling corrosion testing (known as cyclic oxidation testing) of metallic materials in gaseous environments between ambient and elevated temperatures (series of measurements on a single test piece with repeated, regular and controlled temperature cycles). ISO 13573:2012 may be applicable to other materials with some modifications. Tests with ultra short dwell times in the range of minutes or seconds are outside the scope of ISO 13573:2012.
Corrosion des métaux et alliages — Méthode pour essais de corrosion à haute température, avec exposition à des cycles thermiques, sur des matériaux métalliques
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 13573
First edition
2012-12-15
Corrosion of metals and alloys —
Test method for thermal-cycling
exposure testing under high-
temperature corrosion conditions for
metallic materials
Corrosion des métaux et alliages — Méthode pour essais de corrosion
à haute température, avec exposition à des cycles thermiques, sur des
matériaux métalliques
Reference number
©
ISO 2012

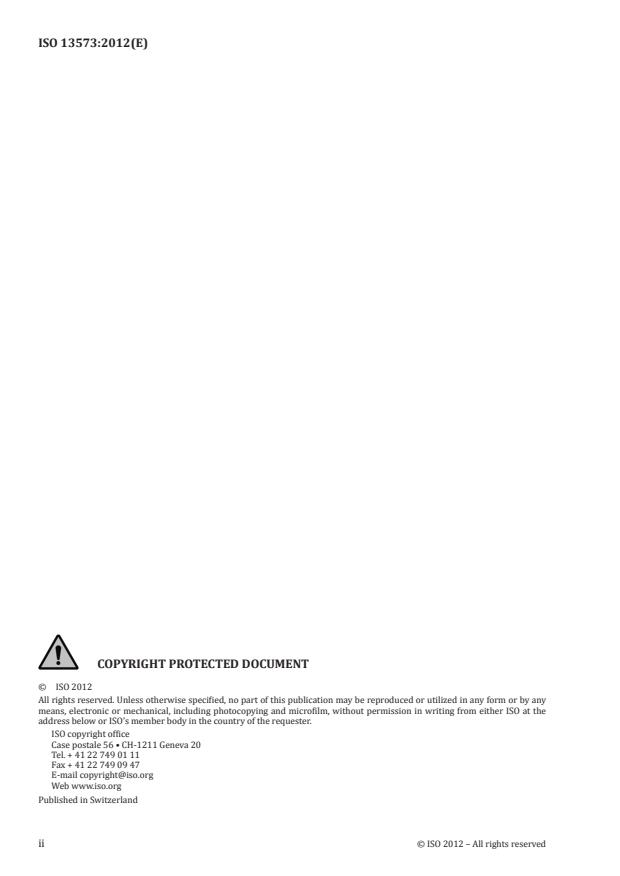

© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Test method . 2
4.1 Reagents and materials . 2
4.2 Test apparatus . 4
4.3 Procedure . 9
4.4 Determination of mass change .13
4.5 Analysis of mass change .16
4.6 Post-test evaluation of test pieces .20
5 Report .20
5.1 Matters to be described .20
5.2 Supplementary note .22
Bibliography .23

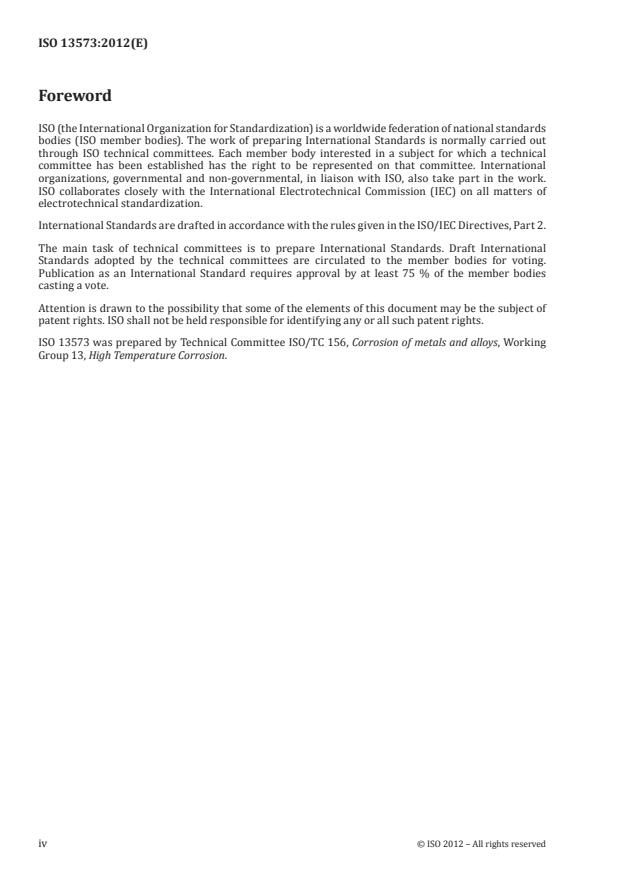

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 13573 was prepared by Technical Committee ISO/TC 156, Corrosion of metals and alloys, Working
Group 13, High Temperature Corrosion.
iv © ISO 2012 – All rights reserved
INTERNATIONAL STANDARD ISO 13573:2012(E)
Corrosion of metals and alloys — Test method for thermal-
cycling exposure testing under high-temperature corrosion
conditions for metallic materials
1 Scope
This International Standard describes the methodology for thermal cycling corrosion testing (known as
cyclic oxidation testing) of metallic materials in gaseous environments between ambient and elevated
temperatures (series of measurements on a single test piece with repeated, regular and controlled
temperature cycles). It also may be applicable to other materials with some modifications. Tests with ultra
short dwell times in the range of minutes or seconds are outside the scope of this International Standard.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ANSI B74.12-92, Specifications for the Size of Abrasive Grain – Grinding Wheels, Polishing and General
Industrial Uses
ASTM E1350-97, Standard Test Methods for Testing Sheathed Thermocouples Prior to, During, and
After Installation
ASTM E220-02, Standard Test Method for Calibration of Thermocouples By Comparison Techniques
ASTM E230-03, Standard Specification and Temperature-Electromotive Force (EMF) Tables for Standardized
Thermocouples
ASTM E3-01, Standard Practice for Preparation of Metallographic Specimens
ASTM E407-07e1, Standard Practice for Microetching Metals and Alloys
ASTM E633-00, Standard Guide for Use of Thermocouples in Creep and Stress Rupture Testing to 1800°F
(1000°C) in Air
FEPA 43-1984 R:1993, Grit Sizes for Coated Abrasives
ISO 3611, Geometrical product specifications (GPS) — Dimensional measuring equipment: Micrometers for
external measurements — Design and metrological characteristics
ISO 6344-3:1998, Coated abrasives — Grain size analysis — Part 3: Determination of grain size distribution
of microgrits P240 to P2500
ISO 13385-1, Geometrical product specifications (GPS) — Dimensional measuring equipment — Part 1:
Callipers; Design and metrological characteristics
ISO 26146, Corrosion of metals and alloys – Method for metallographic examination of samples after
exposure to high temperature corrosive environments
JIS R6001-87, Bonded abrasive grain sizes
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
scale
surface film and corrosion products produced on the surface of the test piece by high temperature corrosion
3.2
adherent scale
scale adhering to the test piece even after cooling
3.3
spalled scale
scale flaked from the test piece
3.4
delaminated scale
scale fully or partially detached from the surface but still in contact with the test piece
3.5
gross mass change
mass change of the test piece after cooling, including collected spalled scale
3.6
net mass change
mass change of the test piece after cooling, without including the mass of spalled scale
3.7
high temperature corrosion
corrosion occurring when the temperature is higher than the dew point of aqueous phases of the
environment but at least 100 °C
3.8
breakaway
rapid increase in corrosion rate following a change from protective to non-protective scale growth
3.9
thermal cycle
sequence of temperatures that is repeated throughout the test. A single thermal cycle consists of the
heating phase, the hot dwell time, the cooling time and the cold dwell time
4 Test method
4.1 Reagents and materials
4.1.1 Test pieces
The test pieces shall have the form of a rectangular plate, a disc or a cylinder with a surface area of
300 mm at minimum and a thickness of 1,5 mm at minimum.
If the test pieces cannot be made according to these specifications, the shape and dimensions of the test
piece shall be in accordance with the agreement between the parties involved.
The test pieces shall be finished by machining so that the strata affected by cutting do not remain.
The final finishing of the surface of the test pieces shall be performed with abrasives with mean particle
diameter of approximately 15 µm. This can be achieved by the use of abrasives according to Table 1.
If another surface finish is required by the parties involved, the surface finish condition shall be described.
2 © ISO 2012 – All rights reserved
Table 1 — Designation and mean diameter of particles of coated abrasives according to
regional standards
Standard Designation Mean diameter Region
µm
a
FEPA 43-1984 R:1993, Grit Sizes for Coated Abrasives
ISO 6344-3:1998, Coated abrasives – Grain size analysis –
P1200 15,3 ± 1,0 Europe
Part 3: Determination of grain size distribution of microgrits
P240 to P2500
JIS R6001-87, Bonded abrasive grain sizes #1000 15,5 ± 1,0 Japan
ANSI B74.12-92, Specifications for the Size of Abrasive Grain
600 16,0 America
– Grinding Wheels, Polishing and General Industrial Uses
a
Federation of European Producers of abrasives
Sharp edges of the test pieces may give anomalous behaviour. These shall be slightly rounded during the
final stages of the test piece preparation.
The surface of the test pieces shall not be deformed by marking, stamping or notching. Identification
of the test pieces shall be solely on the basis of recording the relative position within the test chamber,
however, holes for the test piece support (Figure 5) and or reference marking are permissible.
Where holes are used for the test piece support, they shall be drilled prior to final finishing or application
of coatings. These have to be taken into account when calculating the surface area.
The dimensions of the test pieces shall be measured prior to exposure at a minimum of three positions
for each dimension with a precision of ±0,02 mm by means of the measuring instruments specified in
ISO 3611 and ISO 13385-1.
The test pieces shall be dried after degreasing by ultrasonic cleaning using iso-propanol or ethanol.
If it is suspected that specimens may adsorb significant amounts of atmospheric contaminants such as water,
it is recommended that the cleaned test pieces are stored in a desiccator prior to weighing and exposure.
The mass of the test pieces shall be determined prior to exposure. At least two measurements shall be
made for each test piece. The difference between the measurements shall not exceed 0,05 mg.
It is recommend that duplicate test pieces are used each time.
4.1.2 Gas supply for closed system operation
The gas supply system shall be capable of supplying the test gases at a constant rate to the test piece chamber.
When a humidifying regulator is used, it shall be capable of adjusting to the desired humidity. Deionized
−1
water of a conductivity less than 1 µS cm shall be used, unless otherwise specified.
The space between the humidifying regulator and the test piece chamber shall be kept above the dew
point in order to avoid condensation.
The gas flow shall be monitored by a gas flow meter. The flow meter shall be located as close as practicable
to the inlet of the test piece chamber except where a humidifying regulator is used, in which case it shall
be located upstream to the humidifier.
For testing in air, a specific humidity (mass fraction of water in air) of ~20 g/kg is recommended. This
corresponds to a relative humidity of 100 % at 25 °C (dew point) and is easy to obtain by bubbling
through a water bath of 25 °C.
If any other humidity is employed, it shall be agreed between the parties concerned.
In the case that the gas is humidified the water vapor content shall be measured. For example, this can
be achieved by the use of a hygrometer before the test piece chamber or by measuring the amount of
water after condensation of the exhaust gases or by measuring the water consumption of the humidifier
over the course of the experiment.
The formation of condensed phases from the test gas during the cooling cycle shall be avoided. This may
be achieved by turning off the humidification or by switching to an inert gas.
4.2 Test apparatus
4.2.1 Design of apparatus
The apparatus shall be comprised of a set-up that will transition the test pieces between hot and cold
environments in a controllable and reproducible manner. Ideally, the heating device should be equipped
with a testing portion capable of separating the test piece from outside air (this assembly is referred to
as a closed system) unless this is impracticable for the tests planned. When applicable, a humidifying
regulator should be used to continuously supply the gas kept at a constant humidity which should
be monitored with a hygrometer. The gas supply shall be controlled by a gas flow meter. A facility to
accelerate cooling may also be included. Examples of ba
...
