INTERNATIONAL ISO
STANDARD 14683
Third edition
2017-06
Thermal bridges in building
construction — Linear thermal
transmittance — Simplified methods
and default values
Ponts thermiques dans les bâtiments — Coefficient linéique de
transmission thermique — Méthodes simplifiées et valeurs par défaut
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and subscripts . 2
4.1 Symbols . 2
4.2 Subscripts . 3
5 Description of the method . 3
5.1 Output . 3
5.2 General description . 3
5.3 Influence of thermal bridges on overall heat transfer . 3
5.3.1 Transmission heat transfer coefficient . 3
5.3.2 Linear thermal transmittance . 4
5.3.3 Internal and external dimensions . 4
6 Methods for determination of linear thermal transmittance . 5
6.1 Output data . 5
6.2 Calculation time intervals . 5
6.3 Input data . 5
6.4 Available methods and expected accuracy . 6
6.5 Numerical calculations . 6
6.6 Thermal bridge catalogues . 6
6.7 Manual calculation methods . 7
7 Default values of linear thermal transmittance . 7
Annex A (normative) Input and method selection data sheet — Template .8
Annex B (informative) Input and method selection data sheet — Default choices .10
Annex C (normative) Default values of linear thermal transmittance .12
Bibliography .25

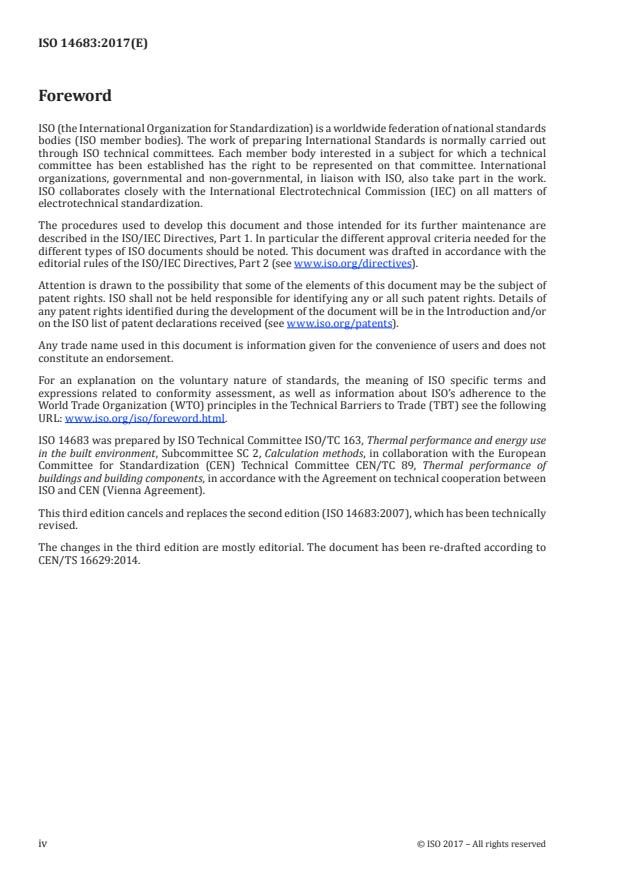

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
ISO 14683 was prepared by ISO Technical Committee ISO/TC 163, Thermal performance and energy use
in the built environment, Subcommittee SC 2, Calculation methods, in collaboration with the European
Committee for Standardization (CEN) Technical Committee CEN/TC 89, Thermal performance of
buildings and building components, in accordance with the Agreement on technical cooperation between
ISO and CEN (Vienna Agreement).
This third edition cancels and replaces the second edition (ISO 14683:2007), which has been technically
revised.
The changes in the third edition are mostly editorial. The document has been re-drafted according to
CEN/TS 16629:2014.
iv © ISO 2017 – All rights reserved
Introduction
This document is part of a series aimed at the international harmonization of the methodology for
assessing the energy performance of buildings. Throughout, this series is referred to as a “set of EPB
standards”.
All EPB standards follow specific rules to ensure overall consistency, unambiguity and transparency.
All EPB standards provide a certain flexibility with regard to the methods, the required input data and
references to other EPB standards, by the introduction of a normative template in Annex A and Annex B
with informative default choices.
For the correct use of this document, a normative template is given in Annex A to specify these choices.
Informative default choices are provided in Annex B.
The main target groups for this document are architects, engineers and regulators.
Use by or for regulators: In case the document is used in the context of national or regional legal
requirements, mandatory choices may be given at national or regional level for such specific
applications. These choices (either the informative default choices from Annex B or choices adapted to
national/regional needs, but in any case following the template of Annex A) can be made available as
national annex or as separate (e.g. legal) document (national data sheet).
NOTE 1 So in this case:
— the regulators will specify the choices;
— the individual user will apply the document to assess the energy performance of a building, and thereby use
the choices made by the regulators.
Topics addressed in this document can be subject to public regulation. Public regulation on the same
topics can override the default values in Annex B. Public regulation on the same topics can even, for
certain applications, override the use of this document. Legal requirements and choices are in general
not published in standards but in legal documents. In order to avoid double publications and difficult
updating of double documents, a national annex may refer to the legal texts where national choices
have been made by public authorities. Different national annexes or national data sheets are possible,
for different applications.
It is expected, if the default values, choices and references to other EPB standards in Annex B are not
followed due to national regulations, policy or traditions, that:
— national or regional authorities prepare data sheets containing the choices and national or regional
values, according to the model in Annex A. In this case a national annex (e.g. NA) is recommended,
containing a reference to these data sheets;
— or, by default, the national standards body will consider the possibility to add or include a national
annex in agreement with the template of Annex A, in accordance to the legal documents that give
national or regional values and choices.
Further target groups are parties wanting to motivate their assumptions by classifying the building
energy performance for a dedicated building stock.
More information is provided in the Technical Report (ISO/TR 52019-2) accompanying this document.
The subset of EPB standards prepared under the responsibility of ISO/TC 163/SC 2 cover inter alia:
— calculation procedures on the overall energy use and energy performance of buildings;
— calculation procedures on the internal temperature in buildings (e.g. in case of no space heating or
cooling);
— indicators for partial EPB requirements related to thermal energy balance and fabric features;
— calculation methods covering the performance and thermal, hygrothermal, solar and visual
characteristics of specific parts of the building and specific building elements and components, such
as opaque envelope elements, ground floor, windows and facades.
ISO/TC 163/SC 2 cooperates with other technical committees for the details on appliances, technical
building systems, indoor environment, etc.
This document provides the means (in part) to assess the contribution that building products and
services make to energy conservation and to the overall energy performance of buildings.
This document deals with methods for assessing thermal bridges, which give rise to changes in heat
flow rates and surface temperatures compared with those of the unbridged structure. These heat
flow rates and temperatures can be precisely determined by numerical calculation in accordance with
ISO 10211. However, for linear thermal bridges, it is often convenient to use simplified methods or
tabulated values to obtain an estimate of their linear thermal transmittance.
The effect of repeating thermal bridges which are part of an otherwise uniform building element, such
as wall ties penetrating a thermal insulation layer or mortar joints in lightweight blockwork, needs
to be included in the calculation of the thermal transmittance of the building element concerned, in
accordance with ISO 6946.
Although not covered by this document, thermal bridges can also give rise to low internal surface
temperatures, with an associated risk of surface condensation or mould growth.
Table 1 shows the relative position of this document within the set of EPB standards in the context of
the modular structure as set out in ISO 52000-1.
NOTE 2 In ISO/TR 52000-2, the same table can be found, with, for each module, the numbers of the relevant
EPB standards and accompanying technical reports that are published or in preparation.
NOTE 3 The modules represent EPB standards, although one EPB standard could cover more than one module
and one module could be covered by more than one EPB standard, for instance a simplified and a detailed method
re
...
NORME ISO
INTERNATIONALE 14683
Troisième édition
2017-06
Ponts thermiques dans les
bâtiments — Coefficient linéique de
transmission thermique — Méthodes
simplifiées et valeurs par défaut
Thermal bridges in building construction — Linear thermal
transmittance — Simplified methods and default values
Numéro de référence
©
ISO 2017
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2017, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – Tous droits réservés
Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Symboles et indices. 2
4.1 Symboles . 2
4.2 Indices . 3
5 Description de la méthode . 3
5.1 Résultat . 3
5.2 Description générale . 3
5.3 Influence des ponts thermiques sur les déperditions totales . 4
5.3.1 Coefficient de déperdition par transmission . 4
5.3.2 Coefficient linéique de transmission thermique . 4
5.3.3 Dimensions intérieures et extérieures. 5
6 Méthodes de détermination du coefficient linéique de transmission thermique .5
6.1 Données de sortie . 5
6.2 Intervalles utilisés pour les calculs. 5
6.3 Données d’entrée . 5
6.4 Méthodes disponibles et exactitude attendue . 6
6.5 Calculs numériques . 7
6.6 Catalogues de ponts thermiques . 7
6.7 Méthodes manuelles de calcul . 7
7 Valeurs par défaut du coefficient linéique de transmission thermique .8
Annexe A (normative) Données d’entrée et fiche technique pour la sélection de la méthode
— Modèle . 9
Annexe B (informative) Données d’entrée et fiche technique pour la sélection de la
méthode — Choix par défaut .11
Annexe C (normative) Valeurs par défaut du coefficient linéique de transmission thermique .13
Bibliographie .26

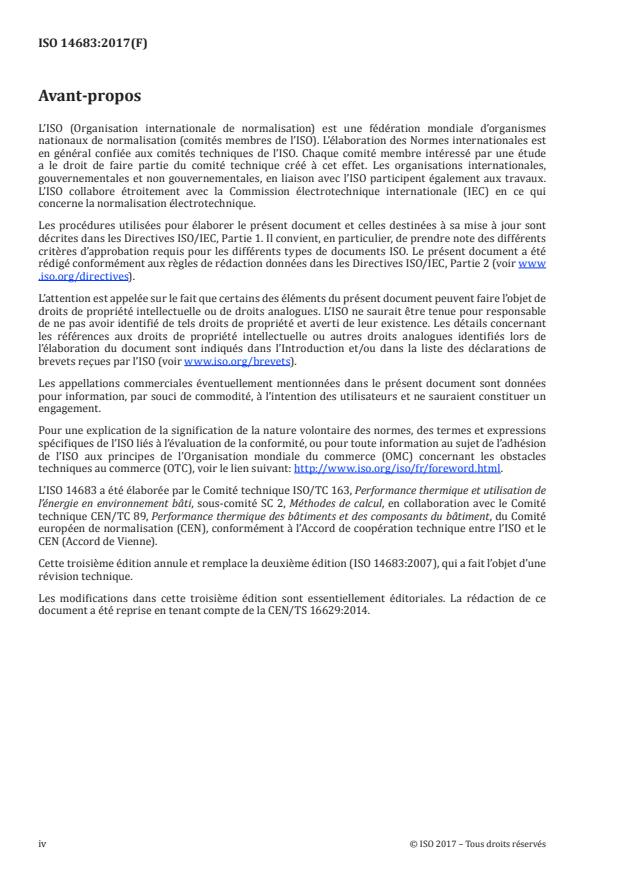

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/ directives).
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www .iso .org/ brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la signification de la nature volontaire des normes, des termes et expressions
spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion
de l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir le lien suivant: http:// www .iso .org/ iso/ fr/ foreword .html.
L’ISO 14683 a été élaborée par le Comité technique ISO/TC 163, Performance thermique et utilisation de
l’énergie en environnement bâti, sous-comité SC 2, Méthodes de calcul, en collaboration avec le Comité
technique CEN/TC 89, Performance thermique des bâtiments et des composants du bâtiment, du Comité
européen de normalisation (CEN), conformément à l’Accord de coopération technique entre l’ISO et le
CEN (Accord de Vienne).
Cette troisième édition annule et remplace la deuxième édition (ISO 14683:2007), qui a fait l’objet d’une
révision technique.
Les modifications dans cette troisième édition sont essentiellement éditoriales. La rédaction de ce
document a été reprise en tenant compte de la CEN/TS 16629:2014.
iv © ISO 2017 – Tous droits réservés
Introduction
Le présent document fait partie d’une série de normes visant à l’harmonisation internationale de la
méthodologie d’évaluation de la performance énergétique des bâtiments. Cette série est appelée
«ensemble de normes PEB».
Toutes les normes PEB respectent des règles spécifiques afin d’assurer leur cohérence, leur clarté et
leur transparence.
Toutes les normes PEB offrent une certaine flexibilité par rapport aux méthodes, aux données d’entrée
requises et aux références faites aux autres normes PEB, par l’introduction d’un modèle à l’Annexe A et
de choix par défaut à l’Annexe B.
Pour permettre une utilisation appropriée du présent document, un modèle normatif est donné
dans l’Annexe A pour spécifier ces choix. Des choix par défaut sont donnés à titre d’information dans
l’Annexe B.
Les principaux groupes cibles du présent document sont les architectes, les ingénieurs et les autorités
de réglementation.
Utilisation par ou pour les autorités de réglementation: si le document est utilisé dans le contexte
d’exigences légales nationales ou régionales, des choix obligatoires peuvent être spécifiés au niveau
national ou régional pour de telles applications spécifiques. Ces choix (qu’il s’agisse des choix par défaut
donnés à titre informatif dans l’Annexe B ou des choix adaptés aux besoins nationaux/régionaux, mais
respectant dans tous les cas le modèle de l’Annexe A) peuvent être disponibles sous forme d’une annexe
nationale ou d’un document (par exemple, juridique) distinct (fiche technique nationale).
NOTE 1 Par conséquent dans ce cas:
— les autorités de réglementation spécifieront les choix;
— l’utilisateur individuel appliquera le document afin d’évaluer la performance énergétique d’un bâtiment, et
utilisera par conséquent les choix retenus par les autorités de réglementation.
Les sujets abordés dans le présent document peuvent être soumis à une réglementation publique. La
réglementation publique portant sur les mêmes sujets peut remplacer les valeurs par défaut présentées
à l’Annexe B. La réglementation publique portant sur les mêmes sujets peut même, pour certaines
applications, remplacer l’utilisation du présent document. Les exigences légales et les choix ne sont
généralement pas publiés sous forme de normes mais plutôt sous forme de documents juridiques.
Afin d’éviter des doubles publications et une mise à jour difficile des documents en double, une
annexe nationale peut se référer aux textes juridiques lorsque des choix nationaux ont été faits par les
autorités publiques. Différentes annexes nationales ou fiches techniques nationales sont possibles, pour
différentes applications.
Il est prévu, si les valeurs par défaut, les choix et les références à d’autres normes PEB à l’Annexe B ne
sont pas respectés en raison de réglementations, de politiques ou de traditions nationales, que:
— les autorités nationales ou régionales préparent des fiches techniques contenant les choix et les
valeurs nationales ou régionales, conformément au modèle de l’Annexe A. Dans ce cas, une annexe
nationale (par exemple AN) est recommandée, se référant à ces fiches techniques;
— ou, par défaut, l’organisme national de normalisation examinera la possibilité d’ajouter ou d’inclure
une annexe nationale en accord avec le modèle de l’Annexe A, conformément aux documents
juridiques qui donnent les valeurs et les choix nationaux ou régionaux.
D’autres groupes cibles correspondent aux parties souhaitant motiver leurs hypothèses en classant la
performance énergétique des bâtiments d’un parc immobilier dédié.
Plus d’informations sont disponibles dans le Rapport technique accompagnant le présent document
(ISO/TR 52019-2).
Le sous-ensemble de normes PEB préparées sous la responsabilité de l’ISO/TC 163/SC 2 couvrent
entre autres:
— les méthodes de calcul relatives à l’utilisation globale de l’énergie et à la performance énergétique
des bâtiments;
— les méthodes de calcul relatives à la température intérieure des bâtiments (par exemple en l’absence
de chauffage ou de refroidissement des locaux);
— les indicateurs pour les exigences de PEB partielle liées au bilan énergétique thermique et aux
éléments de l’enveloppe;
— les méthodes de calcul couvrant la performance et les caractéristiques thermiques, hygrothermiques,
solaires et visuelles des parties spécifiques du bâtiment et des éléments et composants spécifiques
du bâtiment, tels que les éléments opaques de l’enveloppe, le plancher sur-terre, les fenêtres et les
façades.
L’ISO/TC 163/SC 2 coopère avec d’autres TC pour les détails concernant par exemple les appareils, les
systèmes techniques des bâtiments et l’environnement intérieur.
Le présent document indique (en partie) comment évaluer la contribution des produits et services du
bâtiment aux économies d’énergie et à la performance énergétique globale des bâtiments.
Le présent document traite des méthodes pour évaluer les ponts thermiques qui provoquent une
modification des flux thermiqu
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
