ISO 20462-2:2005

SLOVENSKI STANDARD
01-julij-2011
)RWRJUDILMD3VLKRIL]LþQHHNVSHULPHQWDOQHPHWRGH]DRFHQMHYDQMHVOLNRYQH
NDNRYRVWLGHO7URMQDSULPHUMDOQDPHWRGD
Photography - Psychophysical experimental methods for estimating image quality - Part
2: Triplet comparison method
Photographie - Méthodes psychophysiques expérimentales pour estimer la qualité
d'image - Partie 2: Méthode comparative du triplet
Ta slovenski standard je istoveten z: ISO 20462-2:2005
ICS:
37.040.01 Fotografija na splošno Photography in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

INTERNATIONAL ISO
STANDARD 20462-2
First edition
2005-11-01
Photography — Psychophysical
experimental methods for estimating
image quality —
Part 2:
Triplet comparison method
Photographie — Méthodes psychophysiques expérimentales pour
estimer la qualité d'image —
Partie 2: Méthode comparative du triplet

Reference number
©
ISO 2005

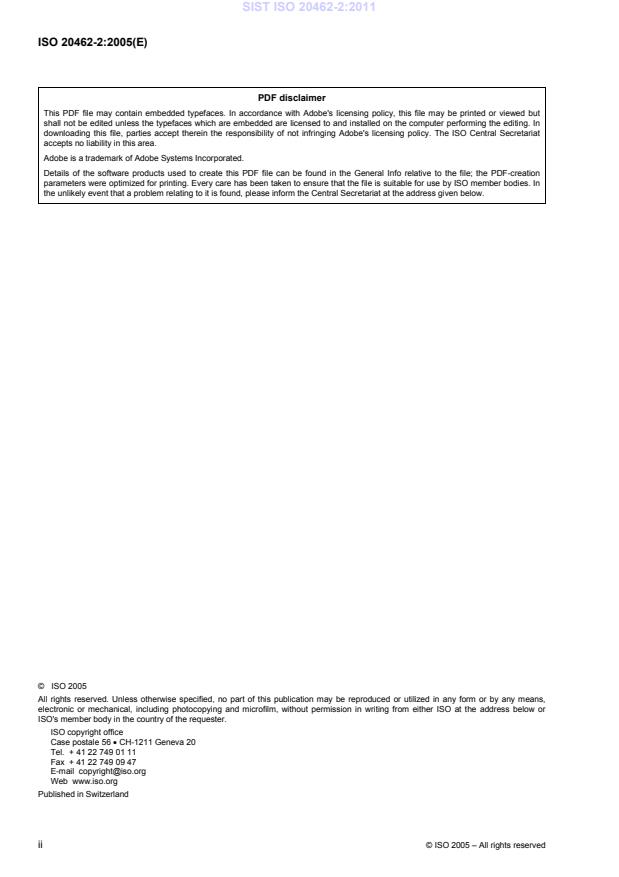

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Terms and definitions. 1
3 Two-step psychophysical method. 2
4 Experimental procedure. 3
4.1 Step 1. 3
4.2 Step 2. 3
Annex A (informative) Comparison between a paired comparison and a triplet comparison
technique . 4
Annex B (informative) Number of sample combinations for triplet comparison. 6
Annex C (informative) Standard portrait images . 8
Annex D (informative) Performance of the triplet comparison method. 12
Annex E (informative) Scheffe’s method . 17
Annex F (informative) Conversion of Scheffe’s scale to JND. 22
Bibliography . 25

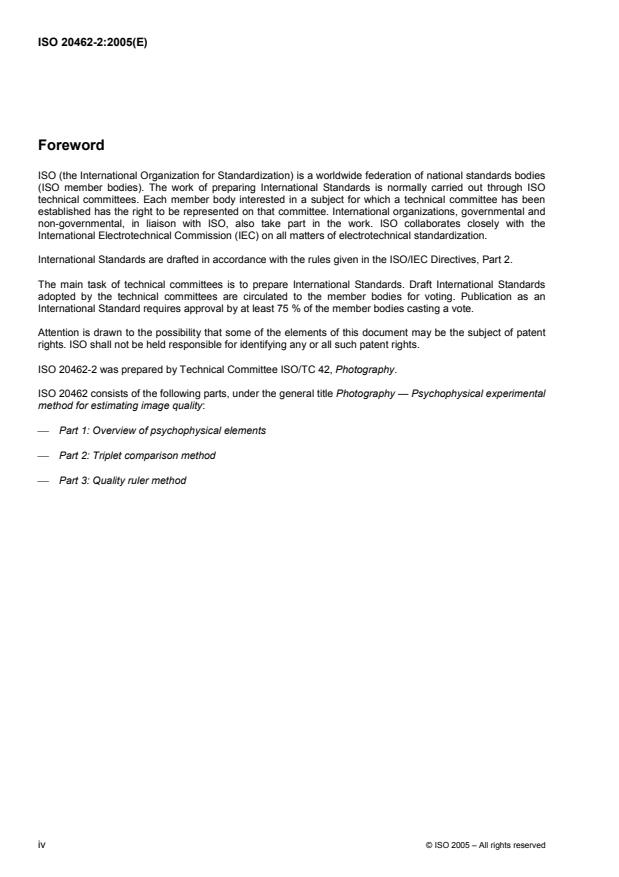

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 20462-2 was prepared by Technical Committee ISO/TC 42, Photography.
ISO 20462 consists of the following parts, under the general title Photography — Psychophysical experimental
method for estimating image quality:
⎯ Part 1: Overview of psychophysical elements
⎯ Part 2: Triplet comparison method
⎯ Part 3: Quality ruler method

iv © ISO 2005 – All rights reserved

Introduction
This part of ISO 20462 is necessary to provide a basis for visually assessing photographic image quality in a
precise, repeatable and efficient manner. This part of ISO 20462 is needed in order to evaluate various test
methods or image processing algorithms that may be used in other international and industry standards. For
example, it should be used to perform subjective evaluation of exposure series images from digital cameras
as part of the work needed for future revisions of ISO 12232.
The opportunities to create and observe images using different types of hard copy media and soft copy
displays have increased significantly with advances in computer-based digital imaging technology. As a result,
there is a need to develop requirements for obtaining colour-appearance matches between images produced
using various media and display technologies under a variety of viewing conditions. To develop the necessary
requirements, organizations, including the CIE and the ICC, are developing methods to compensate for the
effect of different viewing conditions, and to map colours optimally across disparate media having different
colour gamuts.
Such technical activities are often faced with the need to evaluate proposed methods or algorithms by visual
[1]
assessment based on psychophysical experiments. K.M. Braun et al. examined five viewing techniques for
cross-media image comparisons in terms of sensitivity of scaling, and mental and physical stress for the
observers. CIE TC1-27 “Specification of Colour Appearance for Reflective Media and Self-Luminous Display
Comparisons” proposed guidelines for conducting psychophysical experiments for the evaluation of
[6]
colorimetric and colour-appearance models . Accordingly, for the design and evaluation of digital imaging
systems, it is of great importance to develop a methodology for subjective visual assessment, so that reliable
and stable results can be derived with minimum observer stress.
When performing a psychophysical experiment, it is highly desirable to obtain results that are precise and
reproducible. In order to derive statistically reliable results, large numbers of observers are required and
careful attention should be paid to the experimental setup. Multiple (repeated) assessments are also useful.
Observer stress during the visual assessment process can adversely affect the results. The order of image
presentation, and the types of questions or questionnaires addressed by the observers, can also affect the
results.
Table 1 gives a comparison of three visual assessment techniques commonly used for image quality
evaluation. The advantages of the category methods include low stress and high stability, since the observer’s
task is to rank each image using typically five or seven categories. However, its scalability within a category is
less precise. One of the most common techniques for image quality assessment is the paired comparison
method. This method is particularly suited to assessing image quality when precise scalability is required.
However, a serious problem with the paired comparison method is that the number of samples to be
examined is to be relatively limited. As the number of the samples increases, the number of combinations
becomes extensive. This causes excessive observer stress, which can affect the accuracy and repeatability of
the results. The third method, commonly known as magnitude scaling, is magnitude estimation. This method
is extremely difficult when the psychophysical experiments are conducted using ordinary (non-expert)
observers to perform the image quality assessment.
Table 1 — Comparison of typical psychophysical experimental methods
Name of method Scalability Stability Stress
Category Low High Low
Magnitude estimation Medium Low Medium
Paired comparison High High High

[3]
G. Johnson et al. have proposed “A sharpness rule”, where the magnitude of sharpness was analyzed in
terms of resolution, contrast, noise and degree of sharpness-enhancement. Likewise, preferred skin colour
may be considered not only from the viewpoint of chromaticity, but also with respect to the lightness,
[4]
background and white point of the display media . These examples show that image quality is not always
evaluated by a single attribute, but may vary in combination with multiple attributes. In cases where a
psychophysical experiment is designed for a new application, the experimenter may need to vary many
attributes simultaneously during the course of the experiment. In these situations, the number of the samples
to be examined becomes excessively large, making it difficult to employ the paired comparison technique.

vi © ISO 2005 – All rights reserved

INTERNATIONAL STANDARD ISO 20462-2:2005(E)

Photography — Psychophysical experimental methods
for estimating image quality —
Part 2:
Triplet comparison method
1 Scope
This part of ISO 20462 defines a standard psychophysical experimental method for subjective image quality
assessment of soft copy and hard copy still picture images.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
just noticeable difference
JND
stimulus difference that would lead to a 75:25 proportion of responses in a paired comparison task
2.2
psychophysical experimental method
experimental technique for subjective evaluation of image quality or attributes thereof, from which stimulus
differences in units of JNDs may be estimated
cf. categorical sort (2.5), paired comparison (2.3) and triplet comparison methods (2.4)
2.3
paired comparison method
psychophysical method involving the choice of which of two simultaneously presented stimuli exhibits greater
or lesser image quality or an attribute thereof, in accordance with a set of instructions given to the observer
NOTE Two limitations of the paired comparison method are as follows.
a) If all possible stimulus comparisons are done, as is usually the case, a large number of assessments are required for
even modest numbers of experimental stimulus levels [if N levels are to be studied, N(N − 1)/2 paired comparisons
are needed].
b) If a stimulus difference exceeds approximately 1,5 JNDs, the magnitude of the stimulus difference cannot be directly
estimated reliably because the response saturates as the proportions approach unanimity.
However, if a series of stimuli having no large gaps are assessed, the differences between more widely separated stimuli
may be deduced indirectly by summing smaller, reliably determined (unsaturated) stimulus differences. The standard
methods for transformation of paired comparison data to an interval scale (a scale linearly related to JNDs) perform
statistically optimized procedures for inferring the stimulus differences, but they may yield unreliable results when too
many of the stimulus differences are large enough (> 1,5 JNDs) that they produce saturated responses.
2.4
triplet comparison
psychophysical method that involves the simultaneous scaling of three test stimuli with respect to image
quality or an attribute thereof, in accordance with a set of instructions given to the observer
2.5
categorical sort method
psychophysical method involving the classification of a stimulus into one of several ordered categories, at
least some of which are identified by adjectives or phrases that describe different levels of image quality or
attributes thereof
NOTE The application of adjectival descriptors is strongly affected by the range of stimuli presented, so that it is
difficult to compare the results of one categorical sort experiment to another. Range effects and the coarse quantization of
categorical sort experiments also hinder conversion of the responses to JND units. Given these limitations, it is not
possible to unambiguously map adjectival descriptors to JND units, but it is worth noting that in some experiments where a
broad range of stimuli have been presented, the categories excellent, very good, good, fair, poor, and not worth keeping
have been found to provide very roughly comparable intervals that average about six quality JNDs in width.
2.6
observer
individual performing the subjective evaluation task in a psychophysical method
3 Two-step psychophysical method
This part of ISO 20462 defines a new psychophysical experimental method, which satisfies the following
requirements:
⎯ enables a large number of samples to be examined;
⎯ provides precise scalability;
⎯ provides low observer stress;
⎯ suitable for ordinary (non-expert) observers;
⎯ provides high repeatability of the results.
The method comprises two steps. The first step is a “category step”, and the second step is a “triplet
comparison step” which is newly developed for this purpose.
The reason for applying the “category step” is to reduce the number of the samples to an appropriate number
which is determined by the purpose of each experiment. Typically this number is less than 27 samples.
Category scaling using three categories, such as “favourable”, “acceptable” and “unacceptable” (or
“acceptable”, “just acceptable” and “unacceptable”) is used for the first step, and samples are selected
according to the number of samples required in the following step. If the number of test samples examined is
relatively small, then the first step should be omitted, and the psychophysical experiment should start directly
from the second step.
The second step is conducted in order to derive a precise scaling based on an interval scale. The present
proposal is to use a newly developed triplet comparison method. In this method three samples are compared
at a time, thereby achieving high assessment accuracy while keeping the experimental scale realistic.
NOTE If the normal paired comparison method were used with 21 samples, a total of 210 combinations would need
to be examined. This is time-consuming and imposes excessive stress upon the observers. Furthermore, paired
comparison methods require a significant number of observers in order that a precise scaling can be derived. This will
result in an experiment that is excessively large and unrealizable.
2 © ISO 2005 – All rights reserved

4 Experimental procedure
4.1 Step 1
Proceed as follows.
a) Prepare the test images to be examined.
b) Observe each sample and rank it into 3 categories; “favourable”, “acceptable” and “unacceptable”.
c) Count the number of test images in each category.
d) Select the samples that will be used in Step 2 (4.2) from the upper category. It is recommended that the
number of samples, N, be less than 27 in order to avoid observer stress during the experiment. The
number of samples should obey the following equations:
N = 6K + 1 or N = 6K + 3, (1)
where
N is the number of samples;
K is an integer number.
NOTE It is possible to use 5 or 7 categories in the case of many samples.
4.2 Step 2
Proceed as follows.
a) Create combinations of samples for use in the triplet comparison step. Each combination shall consist of
three samples. If the total number of the samples selected for the triplet comparison step satisfies
Equation (1), then it is possible to arrange each combination of samples such that each pair of samples
will only ever be viewed together once during the course of the experiment.
b) Observe the samples and rank them into 5 categories;
⎯ 1: favourable,
⎯ 2: acceptable,
⎯ 3: just acceptable,
⎯ 4: unacceptable, and
⎯ 5: poor.
c) Apply Scheffe’s method for statistical analysis to obtain an interval scale.
NOTE See Annex E.
d) Convert interval scale to JNDs.
NOTE See Annex F.
Annex A
(informative)
Comparison between a paired comparison and a triplet comparison
technique
The paired comparison method has traditionally been the most popular psychophysical method, capable of
providing a high level of reliability and accuracy. However, the reproducibility of Scheffe’s method with
assessment scales (variations over repeated assessments) and the stress imposed on observers (due to
prolonged assessment time caused by the increase in the number of combinations and fluctuation in the
assessment scaling for paired comparison, etc.) have not been fully investigated.
The triplet comparison method has the desirable feature of reducing the level of stress on the observer. This is
due to shortened assessment times and is expected to improve assessment accuracy and reproducibility.
However, no experiments to validate these advantages have been conducted. Furthermore, the triplet
comparison method inevitably yields a level of duplication in comparison for certain sample numbers, and the
procedure for determining the minimum number of sample combinations has not yet been established. For
various reasons, including those cited above, the triplet comparison method has not been commonly used in
general subjective assessment experiments.
A series of experiments were conducted in order to assess the two comparison methods from the following
aspects:
a) reproducibility (consistency) in terms of order fluctuation over a number of repeated assessments;
b) accuracy evaluated by the correlation between the orders determined by the two methods;
c) degree of difficulty expressed in terms of the degree of fluctuation for each sample, the necessary
assessment time and the difficulty reflected in introspective reports;
d) stress on observers reflected in their introspective reports;
e) comparison of expert observers with naïve observers.
A set of experiments to assess favourable skin colour (tones) using the sample set described in References
[5] and [6] was conducted for both comparison methods.
The experiments were repeated five times and the results, which are described in detail in Reference [7] of the
Bibliography, are summarized as follows.
⎯ In general the overall trends in assessment made by each method are similar.
⎯ The triplet method can accommodate larger scales of assessment and is capable therefore of separating
“favourable” samples from “unfavourable” ones more easily than the paired comparison method when
assessment deviation is taken into consideration. A method for analysis that is more in agreement with
the objectives of the assessment is therefore expected.
⎯ It was generally noted that the assessment result obtained from the first run of the experiment was
unreliable. The standard of the assessment scaling and its stability improved with subsequent repetitions
of the experiment.
⎯ The time required for assessment with the triplet method was about 1/3 of that required by the paired
comparison method.
4 © ISO 2005 – All rights reserved

In conclusion, the two methods are similar with respect to their consistency and accuracy. The level of stress
induced by the triplet method on the observer (due to assessment time) was about one third of the stress
induced by the paired comparison method. This indicates that the triplet comparison method has the potential
of achieving consistent, accurate (reliable) results while simultaneously reducing the level of stress induced on
the observer. The primary aim of the triplet comparison technique is therefore fulfilled.
Annex B
(informative)
Number of sample combinations for triplet comparison
The number of sample combinations for paired comparison, N, is expressed by
N = C = n(n − 1)/2
n 2
where n is the number of samples and n = 2, 3, 4, 5, etc.
For the method of triplet comparison, if the number of samples selected, n′ = 7, 9, 13, 15, 19, 21, 25 and 27,
then it is possible to select sample combinations that eliminate the duplication of samples across
combinations. More generally, the number of samples, n′, can be expressed as:
n′ = 6k + 1, 6k + 3 (k = 1, 2, 3, 4, 5, 6, etc.)
For any value n′, the number of sample combinations, N ′, is calculated as:
N ′ = n′ (n′ − 1)/6
Let us place n′ points on the circumference of a circle to form an n’-sided regular polygon. Each apex of the
polygon, is assigned an integer value 1, 2, 3, . . . , n′. We define the notation whereby (p, q, r) represents a
triangle comprising the apices p, q and r, and where the triangle apices represent a combination of samples
for the triplet comparison method.
Examples of combinations without duplication are shown in Table B.1. In this table function f is defined as
follows;
f(i) = 1 + modulo(i − 1, n′)
where modulo(i − 1, n′) represents the remainder for the division of ( i − 1) by n′.
For the case of n′ = 7, congruent triangles represented by (1, 2, 4), (2, 3, 5), (3, 4, 6), (4, 5, 7), (5, 6, 1), (6, 7,
2) and (7, 1, 3) give combinations without duplication.
For the case where n′ = 6k + 1 and k = 1, 2, 3, 4, etc., combinations without duplication are represented by
combining k differently shaped triangles chosen from the n′ congruent acute angle triangles and the n′
congruent obtuse angle ones.
For n′ = 9, combinations without duplication can be achieved by triangles (1, 2, 4), (4, 5, 7), (7, 8, 1), (2, 3, 5),
(5, 6, 8), (8, 9, 2), (1, 3, 6), (4, 6, 9), (7, 9, 3), (1, 5, 9), (4, 8, 3) and (7, 2, 6).
For n′ = 15, the first thirty combinations are specified as follows: two combinations correspond to the apices of
triangles (1, 3, 9) and (1, 2, 5). Twenty-eight combinations are formed when the apices of triangles (1, 3, 9)
and (1, 2, 5) are moved to their adjacent apices, respectively, to form a further 14 triangles each. The
remaining five combinations are specified by the apices of the five regular triangles (with a side length of 5)
that are formed by shifting apex (1) of the regular triangle (1, 6, 11) to 2, 3, 4 and 5 respectively. The sample
combinations are obtained without duplication.
For the case where n′ = 6k + 3 and k = 2, 3, 4, etc., combinations without duplication are represented by
combining k differently shaped triangles chosen from the n′ congruent acute angle triangles, the n′ congruent
obtuse angle triangles and using the n′/3 regular triangles.

6 © ISO 2005 – All rights reserved

Table B.1 — Examples of combinations without duplication
n′ N ′ Possible combinations Alternative combinations
n' = 7 7 × 1 = 7 [i, f (i+1), f (i+3)] for i = 1 to 7
n' = 13 13 × 2 = 26 [i, f (i+2), f (i+7)] for i = 1 to 13
[i, f (i+1), f (i+4)] for i = 1 to 13
n' = 19 [i, f (i+2), f (i+10)] for i = 1 to 19 [i, f (i+3), f (i+10)] for i = 1 to 19
19 × 3 = 57
[i, f(i+3), f (i+7)] for i = 1 to 19 [i, f (i+2), f (i+8)] for i = 1 to 19

[i, f (i+1), f (i+6)] for i = 1 to 19 [i, f (i+1), f (i+5)] for i = 1 to 19
n' = 25 25 × 4 = 100 [i, f (i+2), f (i+12)] for i = 1 to 25 [i, f (i+2), f (i+12)] for i = 1 to 25
[i, f (i+3), f(i+11)] for i = 1 to 25 [i, f (i+5), f (i+11)] for i = 1 to 25
[i, f (i+4), f (i+9)] for i = 1 to 25 [i, f (i+1), f (i+9)] for i = 1 to 25

[i, f (i+1), f (i+7)] for i = 1 to 25 [i, f (i+3), f (i+7)] for i = 1 to 25

n' = 9 9 + 3 = 12 [i, f (i+1), f (i+3)] for i = 1, 4, 7
[i, f (i+1), f (i+3)] for i = 2, 5, 8
[i, f (i+2), f (i+5)] for i = 1, 4, 7
[i, f (i+4), f (i+8)] for i = 1, 4, 7
n' = 15 [i, f (i+2), f (i+8)] for i = 1 to 15
15 × 2 + 5 = 35
[i, f (i+1), f (i+4)] for i = 1 to 15

[i, f (i+5), f (i+10)] for i = 1 to 5
n' = 21 21 × 3 + 7 = 70 [i, f (i+1), f (i+10)] for i = 1 to 21 [i, f (i+2), f (i+10)] for i = 1 to 21
[i, f (i+3), f (i+8)] for i = 1 to 21 [i, f (i+3), f (i+9)] for i = 1 to 21
[i, f (i+2), f (i+6)] for i = 1 to 21 [i, f (i+1), f (i+5)] for i = 1 to 21

[i, f (i+7), f (i+14)] for i = 1 to 7 [i, f (i+7), f (i+14)] for i = 1 to 7

n' = 27 27 × 4 + 9 = 117 [i, f (i+1), f (i+13)] for i = 1 to 27 [i, f (i+2), f (i+13)] for i = 1 to 27
[i, f (i+3), f (i+11)] for i = 1 to 27 [i, f (i+4), f (i+12)] for i = 1 to 27
[i, f (i+4), f (i+10)] for i = 1 to 27 [i, f (i+3), f (i+10)] for i = 1 to 27
[i, f (i+2), f (i+7)] for i = 1 to 27 [i, f (i+1), f (i+6)] for i = 1 to 27

[i, f (i+9), f (i+18)] for i = 1 to 9 [i, f (i+9), f (i+18)] for i = 1 to 9

Annex C
(informative)
Standard portrait images
C.1 Preparation of standard images
It is important to decide on a suitable set of standard images for use in visual assessment during the course of
a psychophysical experiment. Image and subject composition, and colour casts are examples of factors that
may significantly affect the results of visual assessment. In order to minimize unwanted bias in psychophysical
experiments, factors that should be taken into account when establishing a set of standard images, include
the following.
a) Choose a model whose skin tone is close to that of a typical Japanese person, described as Type A skin
in C.2, based on its spectral reflectance.
b) Choose neutral grey for clothes and background in order to avoid unwanted casts on skin tone and to
remove any unwanted biases which may be introduced into the visual assessment.
c) Shoot a head and shoulders portrait with the model facing you and compose the scene such that the face
of the model is reproduced at an appropriate size for visual assessment.
d) Select camera equipment that is widely used in professional portrait studio photography.
e) Adjust the lighting conditions to those that are typically used in studio portrait photography. Relatively soft
lighting with an illumination ratio of 1:2 can be used to avoid dark shadows.
f) Select professional use 4 in × 5 in photographic films, that are known to provide excellent image quality
from the point of view of sharpness and graininess.
A set of pictures was taken under the conditions described above and 2L size photographic prints were made
using a typical optical printer. Skilful operators optimized the density and colour balance during printing. The
equipment and materials used during the experiment are listed in Table C.1.
Table C.1 — Equipment and photographic materials used for the preparation of standard portrait
images
Equipment Description of materials used
a a
Camera and lens
Sinar P 4×5, Fujinon 250 mm F:6.3
a
Strobe
Photona PH 2501× 3 with umbrellas
a
Shooting film
Fujicolor NS 160 (a colour negative film)
a
Photographic colour paper Fujicolor paper FA-P
a
These are examples of suitable products available commercially that have been used for this example.
This information is given for the convenience of users of this part of ISO 20462 and does not constitute an
endorsement by ISO of these products.

A standard digital file was required in order to enable high quality reproductions of the standard image to be
made for use in future experiments. The requirement for preparing a standard digital file was met using the
workflow shown in Figure C.1. In order to minimize image degradation the reflection print image was scanned
using a drum scanner capable of scanning at a bit depth of 12 bits per colour. The integral spectral densities
8 © ISO 2005 – All rights reserved

for each pixel were calculated using a prepared conversion table. CIELAB values under D65 were derived
from integral densities due to the fact that the standard illuminant for the colour space defined by ITU-R
BT.709-3 is D65. Finally the CIELAB values were converted to sRGB and a digital file that conformed to the
TIFF 6.0 format was created.
Figure C.1 — Workflow of preparing standard digital files
C.2 Data on CD-ROM
The image data for the 3 portrait images were encoded as 8-bit sRGB and were contained on one CD-ROM.
The portrait images are identified as P1 to P3, respectively, and each image has been assigned a descriptive
name that is associated with content of the picture. For this example, the descriptive names Type A, Type B
and Type C skin were used. Figure C.2 shows a reduced size monochrome reproduction of the images. The
portrait images have the following characteristics:
Picture size: 1400 × 1 900 pixels
NOTE The images (1 400 × 1 900 pixels) produce a physical image size of 116,67 mm by 158,33 mm when rendered
at 12 pixels/mm.
Interleaving: Pixel interleaving
Colour sequence: R, G, B
Colour values: RGB data consists of three 8-bit values.
Image data orientation: Horizontal scanning starting from top left of the image and ending at bottom right.

a) Type A skin b) Type B skin c) Type C skin
Figure C.2 — Standard images
C.3 Check-sum data
The check-sums given in Table C.2 may be used to check the integrity of the data. These values were
calculated by summing each image plane (R, G, B) with a one-byte accumulator and ignoring the overflow bit
of the accumulator. The total accumulation, T, for all three planes is also shown. The data are shown in both
hex and decimal notation. The check-sums apply only to the image data and exclude any headers.
Table C.2 — Check-sum
Decimal Hex
R G B T B G B T
Type A skin 185 88 223 240 B9 58 DF F0
182 62 46 34 B6 3E 2E 22
Type B skin
B6
Type C skin 90 255 217 50 5A FF D9 32

C.4 CD-ROM operating system compatibility
The format used for the format layer on the CD-ROM is as follows:
⎯ Physical format layer ISO/IEC 10149
⎯ Volume and file formats layer ISO 9660, interchange level 1 and implementation level 1
⎯ Application format layer TIFF, Revision 6.0 for RGB image data
Special TIFF structured file format based on TIFF 6.0
Figure C.3 in C.5 shows the TIFF 6.0 file headers of images: P1RGB.TIF
The RGB image files are compatible with TIFF Revision 6.0, Section 6 and Section 20.
C.5 Example of TIFF file header of the RGB image
Figure C.3 shows the TIFF file header for portrait images P1RGB, “TYPE A SKIN” of the image set recorded
on the CD-ROM.
The TIFF file header encoding of the colour picture file named “P1RGB.TIF” is shown in Figure C.3. This
encoding uses tags defined as TIFF 6.0.
The following fields are not included and take their default values.
NewSubfileType = 0
Orientation = 1 (load from top left, horizontally)
RowsPerStrip = 2 −1 (only one strip)
PlanarConfiguration = 1 (pixel interleaving)
The symbol “n” represents a null byte, and “x” represents a “don't care” hexadecimal digit for padding data.
10 © ISO 2005 – All rights reserved

Offsets Value Description
***TIFF File Header***
00000000 4D4D Byte order “MM”(big-endian)
00000002 002A Version number: 42
00000004 00000008 Pointer to the 1st: the 1st IFD begins in 8th byte in a
file
***the 1st IFD***
00000008 0011 Number of in this IFD: 17 entries in this IFD
Tag# Type Count Value-offset
0000000A 0100 0003 00000001 076Cxxxx 256 ImageWidth: 1900 pixels/line
00000016 0101 0003 00000001 0578xxxx 257 ImageLength: 1400 lines/image
00000022 0102 0003 00000003 00000200 258 BitsPerSample: pointer to the area of 00000200h
0000002E 0103 0003 00000001 0001xxxx 259 Compression: 1(no compression)
0000003A 0106 0003 00000001 0002xxxx 262 PhotometricInterpretation: 2 (for RGB image)
00000046 010E 0002 00000009 00000206 270 ImageDescription: pointer to the area of 00000206h
00000052 010F 0002 0000000E 00000220 271 Make(Vendor name): pointer to the area of
00000220h
0000005E 0111 0004 00000001 00000400 273 StripOffsets: 00000400h (pointer to the image data)
0000006A 0115 0003 00000001 0003xxxx 277 SamplesPerPixel: 3
00000076 0117 0004 00000001 0079C3E0 279 StripByteCounts: 7,980,000 bytes in the strip
00000082 011A 0005 00000001 00000230 282 XResolution: pointer to the area of 00000230h
0000008E 011B 0005 00000001 00000238 283 YResolution: pointer to the area of 00000238h
0000009A 0128 0003 00000001 0003xxxx 296 ResolutionUnit: cm
000000A6 0132 0002 00000014 00000240 306 DateTime: pointer to the area of 00000240h
000000B2 013E 0005 00000002 00000258 318 WhitePoint: pointer to the area of 00000258h
000000BE 013F 0005 00000006 00000268 319 PrimaryChromaticities: pointer to the area of
00000268h
000000CA 8298 0002 00000029 00000298 33432 Copyright: pointer to the area of 00000298h
000000D6 00000000  Pointer to next IFD: None
***Value area***
00000200 0008 0008 0008  BitsPerSample: 8,8,8 (8-bits/sample for each
separation)
00000206 41 53 49 41 4E 52 47 42 00 xx xx xx xx xx xx xx ImageDescription:
xx xx xx xx xx xx xx xx xx xx “TYPE A SKINRGBn”
00000220 49 53 4F 20 54 43 34 32 2F 57 47 31 38 00 xx xx Make(Vendor name): “ISO TC42/WG18n”
00000230 00002EE0 00000064 XResolution: 12000/100 (120 pixels/cm)
00000238 00002EE0 00000064 YResolution: 12000/100 (120 pixels/cm)
00000240 32 30 30 32 3A 30 34 3A 30 31 20 31 30 3A 30 30 DateTime: “2002:04:01 10:00:00n” (April 1, 2002 at
10:00:00)
3A 30 30 00 xx xx xx xx
00000258 00000C37 00002710 00000CDA 00002710 D white point:
x=3127/10000 y=3290/10000
00000268 00000280 000003E8 0000014A 000003E8 sRGB primary colours:
0000012C 000003E8 00000258 000003E8 R(640/1000,330/1000)
00000096 000003E8 0000003C 000003E8 G(300/1000,600/1000)
B(150/1000,60/1000)
00000298 43 6F 70 79 72 69 67 68 74 20 32 30 30 30 20 49 Copyright:
53 4F 2C 20 41 6C 6C 20 72 69 67 68 74 73 20 72 “Copyright 2000 ISO, All rights reserved.n”
65 73 65 72 76 65 64 2E 00 xx
000002C2 – 000003FF not used
***Image data***
00000400 – 0079C7DF Image data area is from 00000400h to 0079C7DFh
Figure C.3 — TIFF file header encoding of the colour picture file named "P1RGB.TIF for Type A skin
Annex D
(informative)
Performance of the triplet comparison method
D.1 General
In 4.1, it states that the proposed method comprises two steps as shown in Figure D.1. The first step is a
“category step”, and the second step is a “triplet comparison step”. The reason for the first step is to reduce
the number of the samples to the appropriate number determined by the purpose of each experiment.

Figure D.1 — Flow of the proposed method
Category scaling using three categories, such as “favourable”, “acceptable” and “unacceptable” (or
“acceptable”, “just acceptable”, “unacceptable”) is used for the first step, and samples are selected according
to the number of samples required for the next step. If the number of test samples to be examined is relatively
small, then this first step should be omitted and the psychophysical experiment should be started directly from
the second step.
The second step is conducted in order to derive a precise scaling based on an interval scale. Three samples
are compared at a time, achieving high assessment accuracy while keeping the experimental scale realistic.
D.2 Experimental
D.2.1 General
To examine the visual technique employed for psychophysical experiments in more detail, a case study was
conducted in order to derive the preferred skin colour reproduced on photographic paper. The standard
portrait image, Type A skin, was designed and details of procedure taken to prepare the image are described
in Reference [6]. The reliability of the proposed method was investigated by conducting psychophysical
experiments using both the “categorical step” and “triplet comparison step” processes respectively.
12 © ISO 2005 – All rights reserved

D.2.2 Step 1: Categorical step
A psychophysical experiment was conducted during which a total of 102 reflection print samples were
prepared by changing the hue and chroma (17 combinations) as well as lightness (6 steps) of the facial area
of the portrait image in CIELAB space. A total of 18 observers participated in the experiment. Each observer
was asked to apply category scaling using three categories. For example, “favourable”, “acceptable” and
“unacceptable”. Wherever possible, the viewing conditions applied were based on those specified in ISO 3664.
However, fluorescent lamps for colour evaluation purposes were used. Illumination level was set to 1 000 lx.
The rank order, with respect to skin colour preference, was obtained by assigning a score of +1, 0, and −1 to
each of the categories.
D.2.3 Step 2: Triplet comparison step
In order to improve the assessment accuracy and repeatability of the judging without imposing excessive
[2]
stress on the observer during the visual assessment, a triplet comparison method , shown in Figure D.2, was
developed. Psychophysical experiments conducted using the triplet comparison method can be designed
using a higher number of samples than with the paired comparison method. This is due to the fact that triplet
comparison invariably always reduces the number of comparisons relative to paired comparison. To
determine the reliability and usefulness of the proposed triplet comparison method, psychophysical
experiments were conducted and the results compared against those obtained by the paired comparison
method. The following points were considered:
a) repeatability of the psychophysical scale;
b) similarity of the results between the methods;
c) observer stress (evaluated in terms of the validity of the rank for each sample, and the assessment time
required).
a) Triplet comparison (1 set) b) Paired comparison (3 sets)

A, B and C are samples.
Figure D.2 — A new triplet comparison and conventional paired comparison
D.2.4 Procedure
The experiments were conducted as follows. The total number of samples, N, used in the triplet comparison
experiment was selected such that the equations, N = 6K + 1 or N = 6K + 3, where K is a positive integer,
were satisfied. This is recommended as it ensures that combinations of samples can be selected without
unnecessary duplication of sample combinations. A total of 21 samples were selected from 102 print samples
and 15 observers took part in the experiment.
All the observers were requested to perform both the paired comparison and the triplet comparison
experiments. They were also encouraged to repeat the same experiment 5 times. The viewing conditions did
not vary between experiments and were held constant throughout each experiment.
D.2.5 Results
Scheffe’s method was used to derive an interval scale using statistical analysis. The results are shown in
Figure D.3. The correlation between scale values derived by the paired comparison and the triplet comparison
is examined and is shown in Figure D.4.

Key
X paired comparison
Y triple comparison
Figure D.3 — Comparison of the experimental results
14 © ISO 2005 – All rights reserved

Key
X sample number 1 triplet
Y interval scale 2 paired
Figure D.4 — Correlations between two psychophysical methods
It was found that a good level of correlation exists between the two methods. It was also found that in the
triplet comparison method, the scale values were distributed across a relatively wide range, suggesting that
the observers were able to clearly distinguish the difference between samples. Figure D.5 compares the
assessment time required for observations.

Key
X number of samples 1 paired comparison
Y assessment time, hours 2 triplet comparison
Figure D.5 — Estimated time required for visual assessment
D.2.6 Conclusions
A series of psychophysical experiments were performed to examine the reliability of the proposed method.
The following conclusions were drawn.
⎯ The scale values obtained by the triplet comparison method correlate highly with those obtained by the
pair comparison method and suggest that the reliability of the triplet comparison method is sufficiently
high.
⎯ The repeatability of the results derived by the triplet comparison is the same as that derived by the paired
comparison.
⎯ The triplet comparison reduced the assessment time by almost 50 % compared to the pair comparison.
⎯ The new psychophysical experimental method can, therefore, be considered as a useful technique for
estimating image quality.
It can be concluded from a review of the subjective assessment results of the paired comparison and triplet
comparison methods that triplet comparison has the following features.
a) Due to the re
...
