ISO 23280:2022

INTERNATIONAL ISO
STANDARD 23280
First edition
2022-05
Electrically propelled mopeds and
motorcycles — Test method for
evaluation of energy performance
using motor dynamometer
Motocycles et cyclomoteurs à propulsion électrique — Méthode
d'essai pour l'évaluation de la performance énergétique à l'aide d'un
dynamomètre
Reference number
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Determination of resistance torque to traction motor system . 3
5.1 Running resistance of vehicle . 3
5.2 Resistance torque for central drive system . 3
5.3 Resistance torque for in-wheel drive system . 5
6 Test conditions .6
6.1 Motor dynamometer . 6
6.2 Driving mode . . 7
6.3 Operation for the motor dynamometer . 7
6.3.1 Resistance torque to traction motor . 8
6.3.2 Load motor system . 8
6.3.3 Torque and speed sensors . 8
6.4 DC Power supply . 8
6.5 Power meter . 8
6.6 Measurement of voltage and current . 9
6.7 Measurement of temperature . 9
7 Performance calculation . 9
7.1 Consumed energy . 9
7.2 Travelled distance . 9
7.3 Motor system efficiency . 9
7.4 Reference energy consumption . 10
8 Presentation of results .10
Annex A (informative) Classification of equivalent inertia mass and the running resistance
for motorcycles .11
Annex B (informative) Classification of equivalent inertia mass and the running resistance
for mopeds .13
Annex C (informative) Derivation of traction motor torque for central drive system .15
Annex D (informative) Derivation of traction motor torque for in-wheel drive system.19
Annex E (normative) Test report – test motor and test conditions .20
Bibliography .22
iii

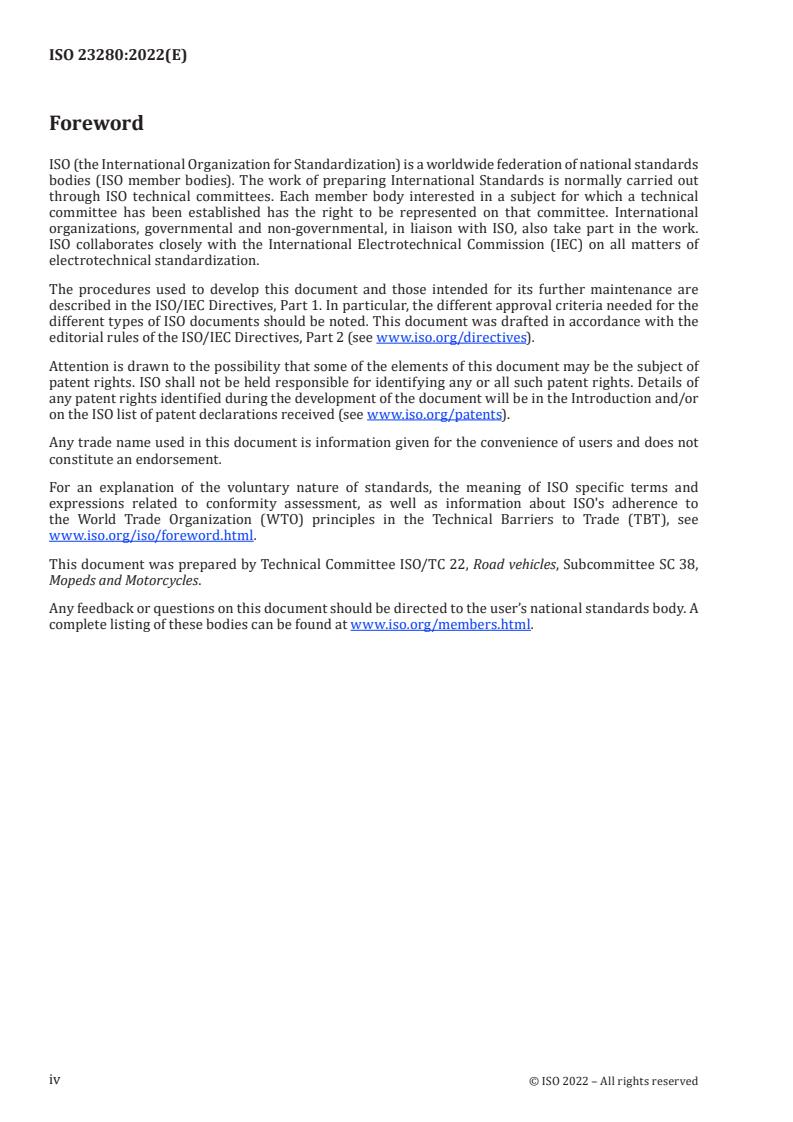

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 38,
Mopeds and Motorcycles.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
INTERNATIONAL STANDARD ISO 23280:2022(E)
Electrically propelled mopeds and motorcycles — Test
method for evaluation of energy performance using motor
dynamometer
1 Scope
This document specifies a test method to evaluate energy performance of electric motorcycles and
mopeds by measuring performance of a test motor system (3.4) to be installed to an electric moped or
motorcycle under consideration.
The test is carried out on a motor dynamometer test bench where the traction motor system is connected
to a load motor system (3.3) that simulates resistance torque arising from running resistance of vehicle
and drive train friction loss and inertia effect.
This method provides estimates of specific energy consumption and range of an electric moped or
motorcycle to which the traction motor system is intended to be applied.
This document is only applicable to two-wheeled motorcycles and mopeds.
NOTE This test method is applicable to motorcycle or moped regardless of types of power transmission
devices, such as chains, belts, gears, ratio controllable CVTs, shaft drives, direct drives, etc., once gear ratios
(ratio of input to output speed) and transmission efficiencies (ratio of input to output torque) are provided.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 11486, Motorcycles — Methods for setting running resistance on a chassis dynamometer
ISO 13064-1, Battery-electric mopeds and motorcycles — Performance — Part 1: Reference energy
consumption and range
ISO 13064-2, Battery-electric mopeds and motorcycles — Performance — Part 2: Road operating
characteristics
ISO 28981, Mopeds - Methods for setting the running resistance on a chassis dynamometer
IEC 60034-1, Rotating electrical machines — Part 1: Rating and performance
IEC 60034-2-1, Rotating electrical machines — Part 2-1: Standard methods for determining losses and
efficiency from test (excluding machines for traction vehicles)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 13064-2, IEC 60034-1,
IEC 60034-2-1 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
driving mode
test mode used for performance evaluation of mopeds and motorcycles such as UDC (urban driving
cycle), EUDC (extra-urban driving cycle), WMTC (world motorcycle test cycle)
Note 1 to entry: For reference to UDC, see ISO 13064-1:2012, Annex A for mopeds and Annex B for motorcycles,
and EUDC, see ISO 13064-1:2012, Annex B for mopeds, and WMTC, see UN-ECE GTR No.02.
3.2
load motor
electric motor that provides torque control function defined from running resistance, friction loss and
inertia effect of the drive train when testing a traction motor system of electrically propelled mopeds
and motorcycles
3.3
load motor system
combination of a load motor (3.2) and its pairing inverter
3.4
test motor system
combination of a traction motor and its pairing inverter under test that is used as a main traction motor
for electric mopeds or motorcycles
3.5
speed-torque control mode
test mode performed in a motor dynamometer (3.6) where a test motor system (3.4) is speed controlled
and load motor system (3.3) is torque controlled
3.6
motor dynamometer
test equipment for measuring test motor system (3.4) energy performance comprising test motor
system, load motor system (3.3), DC power supply, transducers, data acquisition and analysing system
4 Principle
This test method specifies a test procedure to evaluate energy performance, such as consumed energy
(7.1), travelled distance (7.2), motor system efficiency (7.3) and reference energy consumption (7.4)
of electric motorcycles and mopeds with a traction motor system to be fitted to a vehicle under
consideration. Instead of chassis dynamometer test that requires a full vehicle, this method is
carried out with a traction motor system on a motor dynamometer and provides estimate of energy
performance of vehicle with nominal information of the vehicle.
NOTE Reference energy consumption (7.4) defined in this document is different from those in other
standards, such as ISO/TR 8713, ISO 8714 and ISO 13064-1, where reference energy consumption is defined as
electric energy required to fully recharge the traction battery from the main electric supply network system
after completion of a selected driving cycle. While in this document reference energy consumption is the ratio of
consumed energy (7.1) to travelled distance (7.2).
In order to determine resistance torque to the traction motor system, running resistance acting on the
d
...
