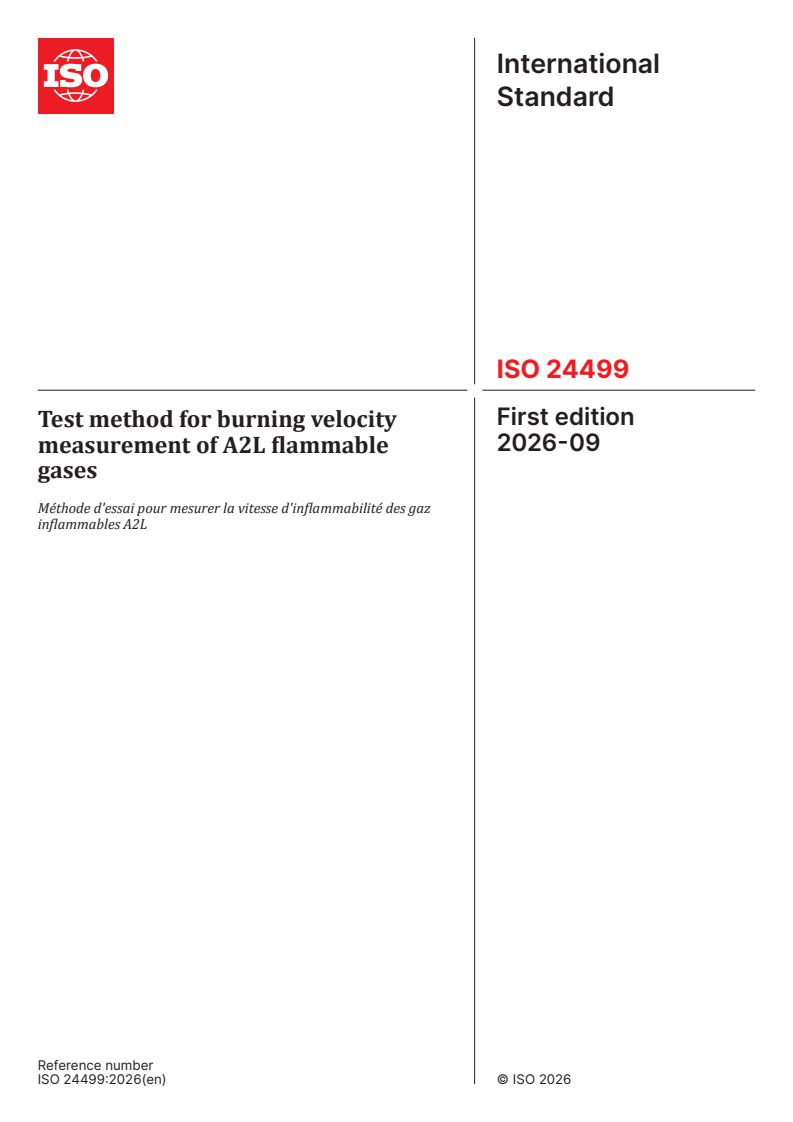

ISO 24499:2026

International
Standard
ISO 24499
First edition
Test method for burning velocity
2026-09
measurement of A2L flammable
gases
Méthode d'essai pour mesurer la vitesse d'inflammabilité des gaz
inflammables A2L
Reference number
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

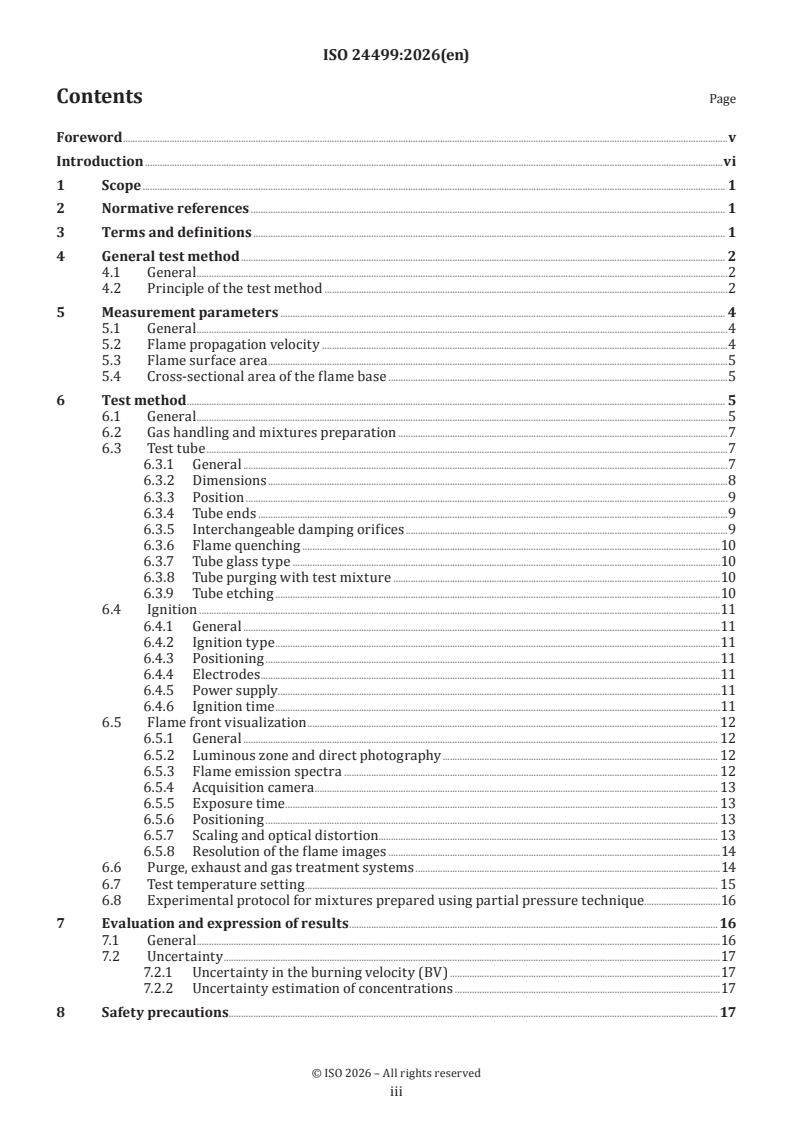

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General test method . 2
4.1 General .2
4.2 Principle of the test method .2
5 Measurement parameters . 4
5.1 General .4
5.2 Flame propagation velocity .4
5.3 Flame surface area .5
5.4 Cross-sectional area of the flame base .5
6 Test method . 5
6.1 General .5
6.2 Gas handling and mixtures preparation .7
6.3 Test tube .7
6.3.1 General .7
6.3.2 Dimensions .8
6.3.3 Position .9
6.3.4 Tube ends .9
6.3.5 Interchangeable damping orifices .9
6.3.6 Flame quenching .10
6.3.7 Tube glass type .10
6.3.8 Tube purging with test mixture .10
6.3.9 Tube etching .10
6.4 Ignition .11
6.4.1 General .11
6.4.2 Ignition type .11
6.4.3 Positioning .11
6.4.4 Electrodes .11
6.4.5 Power supply . .11
6.4.6 Ignition time .11
6.5 Flame front visualization . 12
6.5.1 General . 12
6.5.2 Luminous zone and direct photography . 12
6.5.3 Flame emission spectra . 12
6.5.4 Acquisition camera . 13
6.5.5 Exposure time . . 13
6.5.6 Positioning . 13
6.5.7 Scaling and optical distortion. 13
6.5.8 Resolution of the flame images .14
6.6 Purge, exhaust and gas treatment systems .14
6.7 Test temperature setting . 15
6.8 Experimental protocol for mixtures prepared using partial pressure technique.16
7 Evaluation and expression of results . .16
7.1 General .16
7.2 Uncertainty .17
7.2.1 Uncertainty in the burning velocity (BV) .17
7.2.2 Uncertainty estimation of concentrations .17
8 Safety precautions. 17

iii

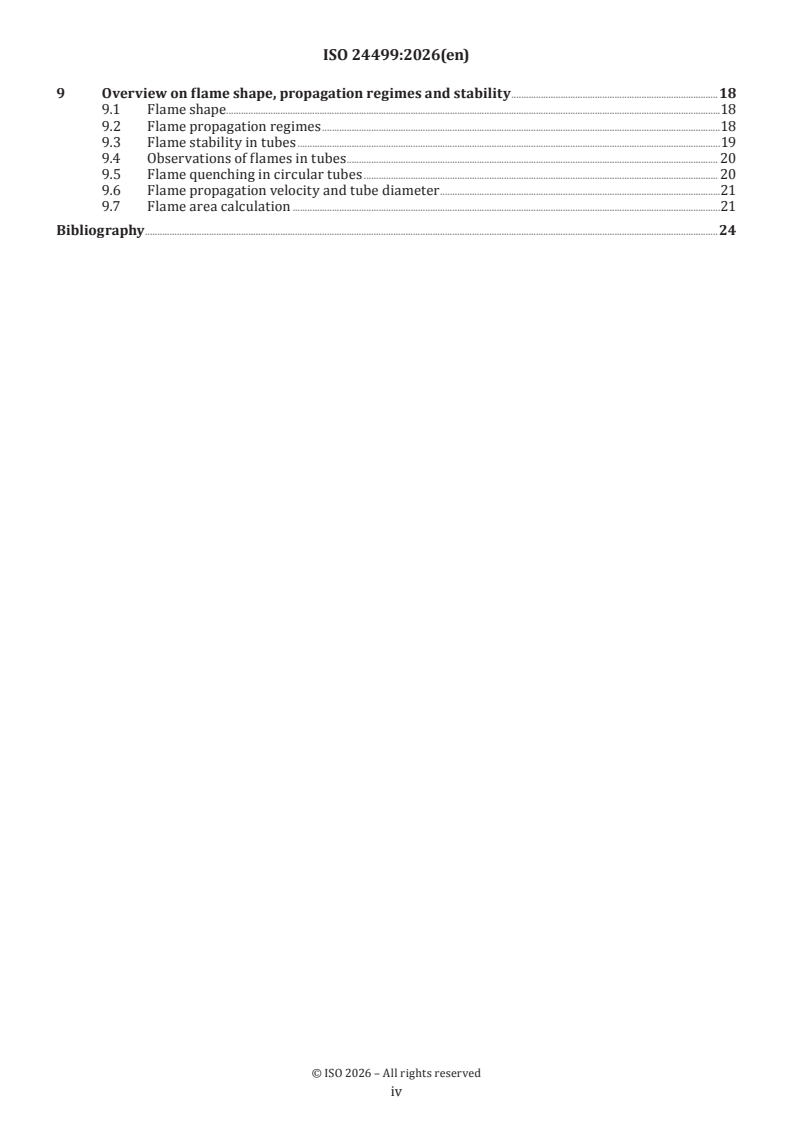

9 Overview on flame shape, propagation regimes and stability .18
9.1 Flame shape.18
9.2 Flame propagation regimes .18
9.3 Flame stability in tubes .19
9.4 Observations of flames in tubes . 20
9.5 Flame quenching in circular tubes . 20
9.6 Flame propagation velocity and tube diameter .21
9.7 Flame area calculation .21
Bibliography .24

iv
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 86, Refrigeration and air-conditioning,
Subcommittee SC 8, Refrigerants and refrigeration lubricants.
This first edition cancels and replaces ISO/PAS 24499:2024, which has been technically revised.
The main changes are as follows:
— the term "blend" was added to Clause 3;
— requirements were added to: 6.2 (to measure the concentration of gas mixture in the tube), 8.3 (to train
personnel in potential system hazards and have HF safety kits available), 9.5 (to not neglect the effect on
flame configuration) and 9.7 (on how to estimate the area of the tipped flame front);
— recommendations were added to: 6.3.7 (to compare the glass transmission profiles before selecting the
type of glass) and 9.5 (to use a tube of cross-sectional area that is as large as possible).
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

v
Introduction
[1]
The safety classification and relative flammability properties of refrigerants are a critical part of ISO 817 .
[2]
The flammability limits of refrigerant gas in air, as described in ISO 817:2024 , Clause B.1, give a partial
measure of the relative flammability. Another dimension of flammability is how fast a substance burns,
releases energy and spreads a flame. It is possible to measure the rate at which a flame front moves through
a cloud of refrigerant gas in air or its burning velocity (BV). This document describes one method that can
be useful for BV measurement and thereby better quantify and compare relative flame fronts for some
refrigerant classes. In this test, a flame is allowed to propagate upward (vertically) through a well-mixed,
quiescent column of a refrigerant-air mixture enclosed in an open-ended glass tube. Optical systems are
used to measure the upward velocity of the flame front.
The measurement of BV has been widely used in the past to compare highly energetic fluids, such as motor
fuels and rocket propellants. The BV measurement of slow burning fluids, such as ammonia and fluorinated
refrigerants, can be more difficult to measure due to the inherent instability of a slow flame. The low rate
of energy evolution from a slow flame makes it susceptible to quenching from a variety of sources. For slow
burning refrigerants, turbulence and convection currents can break the flame front and hence quench the
flame. In addition, the test chamber surface can quench free radical flame intermediates as well as extract
some of the heat necessary for flame propagation. Gas-phase thermal radiation is also important for flames
with low BV. These effects are important to note as they tend to diminish and sometimes quench a weak
flame.
The use of the vertical tube method for BV characterization of slow burning refrigerants was the subject
[2] [3]
of doctoral research which was used in ISO 817:2024 , Annex C and is the basis for this document . In
[4][5]
addition, ASHRAE research notes the use and limitations of the vertical tube technique . While the basic
framework of the method is relatively simple, some sophisticated imaging instrumentation and mathematics
are necessary to extract an average local BV separate from the bulk burning speed as the flame progresses
up the tube. Since 2004 other laboratories have used the basic principle of vertical tube method and have
shown acceptable results for reproducing the measurement of R-32, at (6,7 ±0,7) cm/s. Lower burning
velocities (i.e. <4 cm/s) make it more difficult to measure reproducibility, so variability can increase as
flame instability increases. The lower BV limit of this method is between 3 cm/s and 4 cm/s, depending on
the actual design and geometry of the apparatus being used. The uncertainty of the measurement of flames
that burn more slowly than R-32 has not yet been determined in any multi-lab comparative testing. The
appealing aspects of this test are the relative simplicity and low cost of its implementation. Therefore, the
lower accuracy limit of this BV method is considered to be 4 cm/s; any data generated by this method which
yields a lower value should be reported as <4 cm/s.

vi
International Standard ISO 24499:2026(en)
Test method for burning velocity measurement of A2L
flammable gases
1 Scope
This document specifies a method of measuring the burning velocity (BV) of lower burning refrigerants
( [1]
refrigerants (e.g. ISO 817 ) or that use the BV in establishing requirements on the use of slow burning
[2]
refrigerants (e.g. ISO 817:2024 , 6.1.3.3).
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
blend
mixture composed of two or more refrigerants (3.11)
3.2
burning velocity
BV
S
u
maximum velocity at which a laminar flame (3.5) propagates in a normal direction relative to the unburned
gas ahead of it
Note 1 to entry: This value is expressed in centimetres per second (cm/s).
3.3
combustion
exothermic reaction between an oxidant (e.g. air) and a combustible fuel
3.4
compound
substance composed of two or more atoms chemically bonded in definite proportions
3.5
flame
space where combustion (3.3) takes place, resulting in a temperature increase and light emission
3.6
flame propagation
combustion (3.3) causing a continuous flame (3.5) which moves upward and outward from the point of
ignition without the influence of the ignition source

3.7
flame propagation velocity
S
s
velocity at which the continuous flame (3.5) moves upward and outward from the point of ignition without
the point of ignition and without the influence of the ignition source
3.8
flame surface area
A
f
surface area of the flame (3.5) generated during the combustion (3.3) of the flammable (3.9) gas
3.9
flammable
property of a mixture in which a flame (3.5) is capable of self-propagating
3.10
quenching
effect of extinction of the flame (3.5) near a surface due to heat conduction losses, absorption of active
chemical species and viscous effects of the surface
3.11
refrigerant
fluid used for heat transfer in a refrigerating system
Note 1 to entry: Refrigerants absorb heat at a low temperature and a low pressure of the fluid and rejects it at a higher
temperature and a higher pressure of the fluid usually involving changes of the phase of the fluid.
3.12
stoichiometric concentration
C
st
concentration of a fuel in a fuel-air mixture that contains exactly the necessary quantity of air (approximately
21 % O / 79 % N by volume) needed for the complete oxidation of all the compounds (3.4)
2 2
4 General test method
4.1 General
The test method is based on:
a) the initiation of the combustion of the gas, or blends of gases, in a stagnant homogeneous mixture with
air contained in a vertical cylindrical tube;
b) the observation and the recording of the flame propagation;
c) determining the surface area of the flame.
The BV is a function of the flammable gas concentration in the total mixture with air. The BV reaches a
maximum in the vicinity of the stoichiometric concentration.
This test method involves the use of hazardous substances and therefore requires, for safe handling and
testing, the knowledge of safety parameters and prevention measures. These measures shall be the user’s
responsibility. However, general safety precautions are given in Clause 8.
4.2 Principle of the test method
The test method consists of initiating the combustion of a homogeneous mixture of a flammable gas (or
a flammable mixture of gases) and air, contained in a vertical tube opened at the lower ignition end, and
propagating a flame upwardly to the upper closed end; see Figure 1. In the early stages of this propagation,
there is a phase of uniform movement during which the shape and the size of the flame are constant.

Taking into account the mass and species balance through the flame front, the BV, S , is calculated from the
u
knowledge of the flame propagation velocity, S , in the tube and the ratio of the flame surface area to its
s
base cross-sectional area. The volume of burned gas per second and per unit area, or the BV, S , is obtained
u
by dividing the mixture volume which is consumed per second, at the test temperature and pressure, by
the flame surface area, A . The volume consumption of the mix per second is the volume swept by a cross-
f
sectional area of the flame base, a , with a velocity equal to the flame propagation velocity S . Formula (1) is
f s
used to determine volume consumption per unit time.
(1)
where
a is the cross-sectional area of the flame base;
f
A is the flame surface area;
f
S is the flame propagation velocity;
s
S is the BV.
u
NOTE The cross-sectional area of the flame base is equal to the tube cross-section reduced by the quenching area
(the area between the edge of the flame and the tube wall).
At a given temperature and pressure, the BV is only a function of the type of flammable substance and its
concentration with the oxidant and is dependent to a limited extent on the experimental apparatus.

Key
1 direction of flame propagation
2 unburned mixture
3 flame front displacement
4 dx thickness of the combustion region
5 S
u
6 burnt gas
7 ignition
Figure 1 — Schematic of the flame propagation in a vertical tube
5 Measurement parameters
5.1 General
The measurement of the BV requires the knowledge of the following three parameters of Formula (1):
a) the flame propagation velocity, S ;
s
b) the flame surface area A ;
f
c) the cross-sectional area of the flame base a .
f
5.2 Flame propagation velocity
The flame propagation velocity in the tube is required for the measurement of the BV. As a condition to the
derivation Formula (1), only parts of uniform flame propagation shall be considered in the measurements
(constant S ).
s
The linear propagation velocity of the flame is obtained from the direct measurement of the flame front
displacement determined by two successive images with a known interval (30 Hz to 50 Hz) of the camera

acquisition frequency. More than one succession of images shall be used to check that the flame propagation
is uniform. An image treatment is necessary in order to enhance the flame front shape and to locate on
both images an identical luminous spot (pixels with equal brightness level) that corresponds to the same
location on the front and deduce the flame front displacement. This procedure is proved necessary with low
luminosity flames since any uncertainty in the flame front displacement leads to an uncertainty in the flame
propagation velocity and thus on the BV.
5.3 Flame surface area
The flame front shape cannot be generated by the revolution of a parabola nor by the approximation by an
ellipsoid segment, even though in many cases this shape is symmetrical. An accurate method is necessary
to calculate the flame surface area, A . For an upward propagation, the flame usually shows a symmetrical
f
front surface referred to the tube axis. For a uniform propagation, the shape of the flame front remains
constant. Fast moving flames are almost hemispherical, while the slower flames are somewhat elongated.
9.7 describes a mathematical and geometrical model to calculate the flame surface area. In summary, the
flame front profile is marked with fitting points (20 to 40 fitting points) then divided into two or more
horizontal sections. The fitting points shall be selected on the rim of the most luminous zone on the flame
front.
For each section, a polynomial fit of appropriate order is made in order to give the best fit curve to the points
selected on that section. The best fit gives the minimum deviation of the fit curve to the fitting experimental
points. The area of each section shall then be calculated separately by dividing it into many small elementary
sections. The area of each elementary section is then calculated from the assumption of a revolution shape,
taking into account the bottom edge of the flame not being horizontal.
5.4 Cross-sectional area of the flame base
The cross-sectional area of the flame base shall be calculated from knowledge of the diameter d measured at
the base of the flame as illustrated in 9.7. In that case, use Formula (2):
π
(2)
where
a is the cross-sectional area of the flame base;
f
d is the diameter of the flame base.
6 Test method
6.1 General
Measuring the BV in a tube consists of:
a) propagating a flame in a vertical transparent tube, opened at the lower ignition end, closed at the other
upper end and filled with the flammable mixture;
b) measuring the velocity of the flame propagating along the tube;
c) recording the flame surface area with a camera.
Measurements are performed at atmospheric pressure.
The test bench layout is shown in Figure 2. The main elements of the bench are:
— mixing vessel;
— ignition system;
— camera;
— test temperature control;
— gas treatment systems.
NOTE To minimize pressure feedback effects, the scrubber system is typically not attached during the ignition
and burn portion of the testing (see Figure 8).
Key
1 mixing vessel
2 magnetic stirrer
3 purging gas line
4 tube inlet
5 quenching and smoothing screen
6 test tube
7 electrodes
8 fitting orifices
9 quenching screen
10 poly(vinyl chloride) pipe
11 igniter
12 gas expansion tank
13 collection tank with neutralizing solution
a
From gas supply tanks.
b
Pressure measurement.
c
To vacuum pump.
d
To inlet tube.
e
Temperature measurement.
f
Supply power to ignition.
g
Extraction to hood.
Figure 2 — Schematic of the test bench

6.2 Gas handling and mixtures preparation
[2]
The gas mixture preparation is described in ISO 817:2024 , 6.1.3. If used, the scrubbing system described
in 6.6 should be disconnected so that the expansion volume is not filled with a flammable concentration. The
constant composition blend is then caused to flow through the tube until the gas mixture displaces at least
13 times the air volume of the tube. Care should be taken to ensure that the gas mixture exiting the bottom
of the tube is properly vented. Once the desired mixture has been achieved in the tube, the mixing vessel
shall be isolated from the tube before ignition to prevent ignition of the gas in the vessel. The concentration
of the gas mixture shall be measured in the tube to ensure the methods employed adequately accomplish
this objective. A paramagnetic oxygen analyser is effective for this determination.
It is recommended that all the components, connections and parts of the test bench be resistant to their use
with corrosive gases, such as ammonia and copper, or other oxidation reactions. Stainless steel may be used,
or any other material identified to be adequate for use with the substances to test.
6.3 Test tube
6.3.1 General
The test tube shall be designed to ease the flame propagation with less possible disturbances, especially at
the ignition level and the first stage of flame propagation; see Figure 3. The design of the test tube should
look into the following points:
a) The ignition system, the quenching screen and the damping orifice should be designed as close as
possible to the outlet of the tube.
b) The outlet of the tube (at the lower end) should be designed to facilitate its connection to the extraction
and gas treatment systems.
c) The tube should be fixed on a vertical support and at a level below the ignition system to prevent the
fixing support from disturbing the flame propagation (excessive cooling) or any obstruction of the flame
photography.
d) Technical limitation with glass design and work should be considered as well.

Dimensions in millimetres
Key
1 fixing housing
2 RIN 10/19 housing for electrodes
3 inlet tube end
Figure 3 — Test tube design and main dimensions
6.3.2 Dimensions
The tube shall be made of glass. It shall be 1,2 m to 1,5 m long with a 40 mm internal diameter. The
diameter has been chosen as a compromise between narrower tubes that increase the quenching effect but
allow more stable propagation regimes, and larger tubes in which the losses to the walls are smaller but
[3][6] [7]
associated with an increase of instabilities . The choice of the 40 mm diameter has been shown to be
the most convenient for measurement of BVs below 40 cm/s. It withstands a pressure of 100 kPa above the
atmospheric pressure even if the overpressure is very limited, the bottom end of the tube being the open
end.
NOTE Unstable regimes are frequent with fast propagating flames; see 9.3. The tube length is based on dimensions
[4][5]
from previous research . Any great change in that length affects the flame propagation regimes and its stability
only when working with high BV compounds.

6.3.3 Position
The tube should be placed in a vertical position to reduce possible deformations of the flame front from
buoyant effect and to ensure a more symmetrical shape. In this position the flame propagates upwardly, the
ignition occurring at the lower end of the tube.
6.3.4 Tube ends
The bottom end of the tube shall be open to the atmosphere. The ignition system and the damping orifices
are located at this end. A GL45 cap may be used to maintain the system in place (see Figure 4 and Figure 5).
With harmful components present in the combustion products (toxic or corrosive, e.g. HF, HCl, NH ), the
lower end should be connected to a gas post-treatment system (see 6.6). This design does not allow excessive
pressure build-up and the combustion products can freely exit the tube or expand in a 125 l tank if the gas
treatment system is used.
The upper end of the tube should be connected to the mixing vessel. The mixture flows out from mixing
vessel into the tube and out of its bottom end. A GL45 cap shall be used to fix the inlet system. This end shall
be closed before the ignition and until the end of flame propagation.
6.3.5 Interchangeable damping orifices
The flame propagation velocity and the flame shape vary with the type of flammable substance and the
composition of its mixture with the oxidant. Adjusting the exit diameter at the lower open end by insertion
of calibrated orifices helps stabilize the flame front shape by reducing the instabilities and damping the
[8][9][10][11]
acoustic effects and therefore helps to reproduce a better shape of the flame front. The diameters
of the damping orifices for a tube of 40 mm internal diameter can be varied, e.g. from 9 mm to 11 mm (see
[11]
Reference for detailed calculation). The damping orifices are recommended with relatively high BVs (i.e.
higher than 25 cm/s).
Dimensions in millimetres
Key
1 cap for GL 45 tip
2 polytetrafluoroethylene (PTFE) body
3 quenching screen
4 PTFE fitting orifice
5 RIN 10/19 PTFE stopper
6 test tube
7 1 mm diameter electrode
8 power supply connection
Figure 4 — Drawing of the lower end of the tube showing the ignition electrodes and the damping
(fitting) orifice
6.3.6 Flame quenching
Quenching screens shall be mounted at both ends of the tube, resistant to the reaction with hydrogen
fluoride (HF) and NH , to prevent any hazard to the surroundings. The quenching screens shall have a mesh
size of 1 (+0,5 –0,1) mm.
6.3.7 Tube glass type
The spectral emissions of most flames are presumed to be in the range of 250 nm to 600 nm. To prevent
excessive losses, the glass transmission profiles should be compared before selecting the type of glass (e.g.
silica glass, borosilicate glass).
6.3.8 Tube purging with test mixture
The test tube shall be purged by the mixture under test with a continuous flow from the mixing vessel with
an equivalent volume flow rate which represents at least 13 times the internal tube volume. The gas mixture
shall enter the upper end of the tube and exit from its lower end. The lower end may be closed after purging
to avoid any possible concentration variation by dilution in the neighbourhood of the electrodes. This end is
opened to the atmosphere just before ignition.
6.3.9 Tube etching
The presence of substances such as hydrogen fluoride (HF) or hydrogen chloride (HCl) with water residues
in the combustion products of hydrofluorocarbons (HFCs) or hydrochlorofluorocarbons (HCFCs) results in
tube etching so that after several tests (30 to 50 depending on the cleaning process) the tube turns opaque
with an almost white colour (see Figure 5).
For this reason, the tube shall be purged immediately after the end of the flame propagation with a stream
of dry nitrogen. Afterwards, a wet wiper may be introduced inside the tube to clear all deposits on the inner
wall. A stream of nitrogen may be again circulated inside the tube to remove water deposits from the wiper.
With this cleaning technique the same tube may be used for a larger number of tests before the etching
effect becomes noticeable and the tube has to be discarded.
Figure 5 — Tube etching due to hydrogen fluoride

6.4 Ignition
6.4.1 General
The ignition source can affect not only the flammability limit results but also the flame propagation regime.
[12]
Analyses of spark ignition have been made by many researchers (Reference gives a survey) and deal
with the electrode arrangement, type (e.g. flange electrodes), material and size, the electrode gap, the spark
duration and the breakdown voltage as well as the effect of these on the minimum ignition energy.
The ignition system described in this test method has the same characteristics as the ignition system used
[13]
in the ASTM E681 flammability test method in terms of the electrode dimensions, the gap distance, the
ignition time and the power supply. This similarity helps to ensure that the vertical tube BV method and
[13]
complements the ASTM E681 flammability method.
[14]
NOTE These ignition specifications are also very similar to those specified in DIN 51649-1 (which is meant by
[11]
the flammability limits) .
6.4.2 Ignition type
The mixture is ignited with an electrical spark produced by two electrodes.
6.4.3 Positioning
The ignition occurs at the bottom end of the tube. The electrodes are fixed diametrically opposite on the
tube, centred on its axis and positioned 5 mm to 10 mm above the upper surface of the interchangeable
orifices. The electrodes shall be fixed in place using appropriately sized PTFE stoppers lodged in specially
conceived RIN 10/19 housing (see Figure 4).
6.4.4 Electrodes
The electrodes are made of tungsten with 1 mm diameter. The gap between the electrodes is 6,4 mm. When
necessary, a special calibrating cylinder can be inserted inside the tube and in-between the electrodes in
order to verify their eccentricity and to ensure a correct gap distance.
To ensure good ignition conditions, especially near the lower and upper propagation limits, the electrodes
shall be repeatedly cleaned of any deposit.
6.4.5 Power supply
Power to the ignition electrodes shall be supplied by a transformer with an output of 15 kV, 30 mA. Usually,
such high voltage is not required except with compounds that have a high breakdown potential. The power
supply system is connected to the electrodes using insulation rated for at least 15 kV to avoid short circuits
and poor contacts avoiding overheating.
6.4.6 Ignition time
The ignition time shall be set at (0,3 ±0,05) s by adjusting the spark duration with a timer. This time duration
[11]
is the most appropriate for flammability limits measurements .
Ignition should not be made immediately after filling the tube with the corresponding mixture, but 5 s to
10 s later, permitting the turbulence to cease in the tube.
NOTE The excessive energy release from this ignition system can be responsible for emitting waves inducing
turbulence in the flame front and the mixture ahead of it. Flame propagation is not steady close to the ignition source.

6.5 Flame front visualization
6.5.1 General
Direct photography is used to record the flame front images. These images are used for the calculation of the
flame propagation velocity as well as its surface area.
6.5.2 Luminous zone and direct photography
The BV measurement, Formula (1), is based on the calculation of the flame surface area at the preheat zone
layer. With direct photography, the luminous zones of the flame are revealed. Therefore, any measurement
made with this photography technique shall be based on the zone of the flame of most intense illumination.
This zone corresponds to the region of the flame between the point whose temperature is equal to the
ignition temperature and the point at the end of reaction (see Figure 6). The relative uncertainty in the BV
assessed with the flame surface area calculation based on flame profiles from direct photography is 6,5 %.
NOTE The 6,5 % relative uncertainty can be reduced and the correct surface position can be better approached
if the profile of the outer edge of the luminous zone is shifted outwards by a distance equivalent to the luminous zone
width.
Key
1 unburned gas
2 burned gas
3 luminous zone
4 pre-heat zone
5 reaction zone
T temperature at initial condition
T maximum temperature
M
T temperature at the midpoint of the tangent line
i
Figure 6 — Temperature profile along a combustion flame and luminous zone
6.5.3 Flame emission spectra
The spectra peaks from combustion depend on the type of substance combusted and the radicals formed
such as OH, HCO, CH, C and C . From a qualitative point of view, it can be stated that the typical peaks for
2 3
maximum emission, and even sometimes a higher-level continuum, are in the range of 250 nm to 600 nm for
HC and HFC flames.
6.5.4 Acquisition camera
A digital camera shall be used to visualize the flame propagation. The flame front images shall be recorded
and saved for further treatment (flame propagation velocity measurement and flame surface area
calculation).
When identifying the camera to run the tests, the characteristics of exposure time and acquisition rate shall
be selected as a function of the velocity range being measured. With very fast flames, a high acquisition
rate and small exposure time are needed (i.e. <1 ms). The spectral response of the camera shall also be
taken into account and the higher efficiency of the quantum efficiency curve shall cover the range of typical
wavelength of the flames being visualized.
NOTE A set of adjustments and different operating modes (e.g. the resolution, image enhancements, image rate,
exposure time, number of frames during record, pre-/post-trigger and parameters for image output), performed via
an appropriate interface, can help in adapting the images to the type of flame front being recorded. A set of lenses are
useful to focus on the optimized photography frame.
6.5.5 Exposure time
Setting the exposure time is necessary before starting the photography of the flame propagation to best
reproduce the flame front shape and increase the precision of its area measurement.
Since there is no defined relationship between the flame propagation velocity and its more or less luminous
aspect, the tester has to find a compromise for setting the exposure time for fast and low luminous flames.
A higher exposure time compensates the low luminosity but results in an imprecise shape of the flame front
due to its displacement during the exposure time.
For measurements around the stoichiometry, the recommended exposure times are of 1 ms or less. This
value is determined by practica
...
