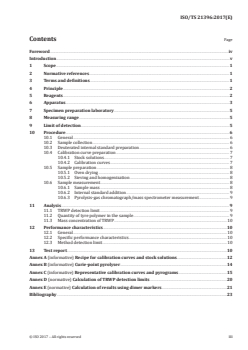

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Reagents . 2
6 Apparatus . 3
7 Specimen preparation laboratory . 5
8 Measuring range . 5
9 Limit of detection . 5
10 Procedure. 6
10.1 General . 6
10.2 Sample collection . 6
10.3 Deuterated internal standard preparation . 6
10.4 Calibration curve preparation . 7
10.4.1 Stock solutions . 7
10.4.2 Calibration curves . 7
10.5 Sample preparation . 8
10.5.1 Oven drying . 8
10.5.2 Sieving and homogenization . 8
10.6 Sample measurement . 8
10.6.1 Sample mass . 8
10.6.2 Internal standard addition . 9
10.6.3 Pyrolysis-gas chromatograph/mass spectrometer measurement . 9
11 Analysis . 9
11.1 TRWP detection limit . 9
11.2 Quantity of tyre polymer in the sample . 9
11.3 Mass concentration of TRWP.10
12 Performance characteristics .10
12.1 General .10
12.2 Specific performance characteristics .10
12.3 Method detection limit .10
13 Test report .10
Annex A (informative) Recipe for calibration curves and stock solutions .12
Annex B (informative) Curie-point pyrolyser .14
Annex C (informative) Representative calibration curves and pyrograms .15
Annex D (normative) Calculation of TRWP detection limits .20
Annex E (normative) Calculation of results using dimer markers .21
Bibliography .23

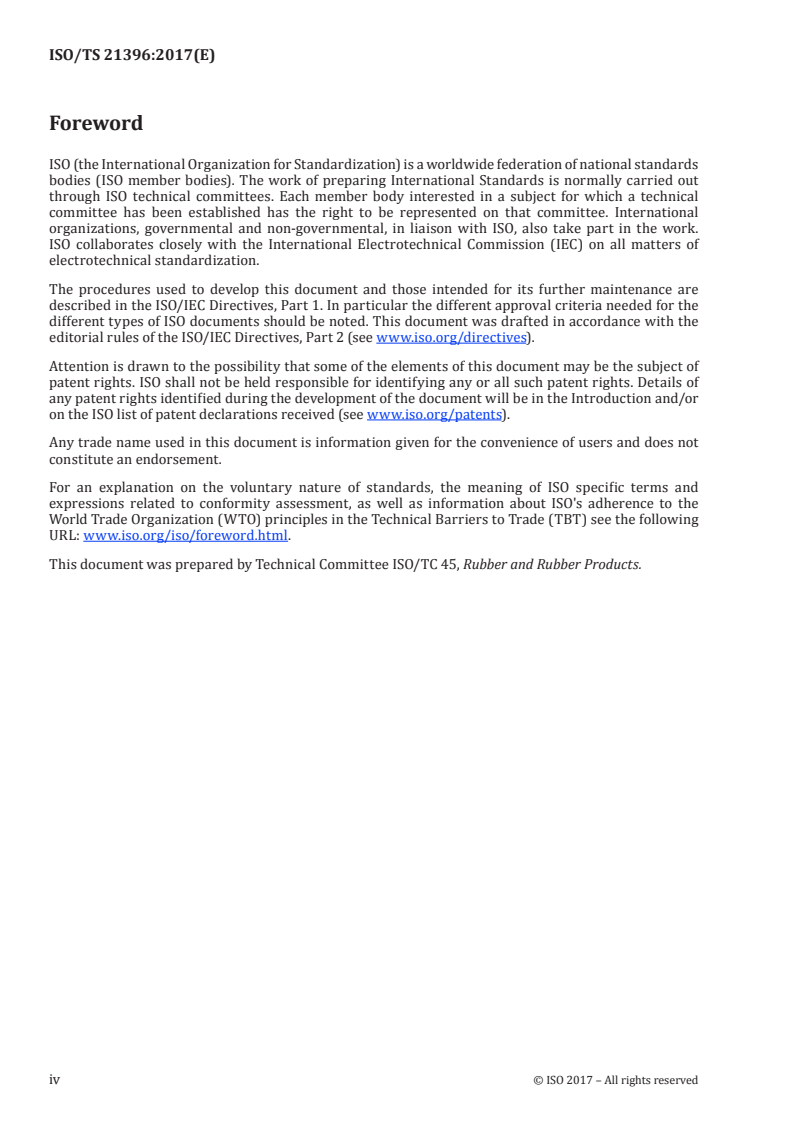

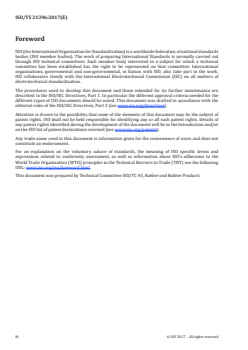

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 45, Rubber and Rubber Products.
iv © ISO 2017 – All rights reserved

Introduction
Tyre and road wear particles (TRWP) are formed as a result of tread abrasion from the road surface,
and subsequent particle release to the environment. TRWP consist of tyre tread particles which include
[1]
incorporated material from the road surface (Kreider et al. 2010 ). The elastomeric fraction in TRWP
contained in soil or sediment materials is quantified in this document by direct pyrolysis-GC/MS
analysis. Mass concentration can be expressed on the basis of the rubber polymer, tyre tread, or TRWP.
This method has been used to measure the TRWP concentration in soil and sediment samples from three
[2] [3]
geographically separated regions (Unice et al. 2012 ; Unice et al. 2013 ). The airborne concentration
[4]
of TRWP in the PM fraction has also been characterized by a similar method (Panko et al. 2013 ).
Specific chemical markers are generated from intact TRWP by pyrolysis of sample specimens. The
chemical markers consist of characteristic and specific pyrolysis dimeric fragments of passenger
and truck tyre tread polymers including butadiene rubber, styrene-butadiene rubber, and isoprene
rubber. The polymer fragments generated by sample pyrolysis are subsequently separated by gas
chromatography, and identified by mass spectroscopy. The TRWP mass concentration is calculated
based on market average polymer use rates in tread, and prior characterization of the mineral content
of TRWP. Rubber polymer specificity is achieved by quantification of dimeric polymer fragments
[5] [6]
consisting of two monomer units (Kitamura et al. 2007 ; Harada et al. 2009 ). Repeatability is
achieved by the use of a deuterated internal standard of similar polymeric structure to the tyre tread
polymers. The internal standard corrects for variable analyte recovery caused by sample size, matrix
effects, and temporal variation in instrument response. The method is suitable for monitoring changes
in soil or sediment TRWP concentrations over time.
TECHNICAL SPECIFICATION ISO/TS 21396:2017(E)
Rubber — Determination of mass concentration of tire
and road wear particles (TRWP) in soil and sediments —
Pyrolysis-GC/MS method
WARNING 1 — Persons using this document should be familiar with normal laboratory practice.
This document does not purport to address all of the safety problems, if any, associated with its
use. It is the responsibility of the user to establish appropriate safety and health practices.
WARNING 2 — Certain procedures specified in this document may involve the use or generation
of substances, or the generation of waste, that could constitute a local environmental hazard.
Reference should be made to appropriate documentation on safe handling and disposal after use.
1 Scope
This document specifies a method for the determination of the soil or sediment mass concentration
(μg/g) of tyre and road wear particles (TRWP) in environmental samples.
This document establishes principles for soil or sediment sample collection, the generation of pyrolysis
fragments from the sample, and the quantification of the generated polymer fragments. The quantified
polymer mass is used to calculate the concentration of TRWP in soil or sediment. These quantities are
expressed on a TRWP basis, which includes the mass of tyre tread and mass of road wear encrustations,
and can also be expressed on a tyre rubber polymer or tyre tread basis.
NOTE Tyre and road wear particles are a discrete mass of elongated particles generated at the frictional
interface between the tyre and roadway surface during the service life of a tyre. The particles consist o
...
