ISO 15830-1:2022

INTERNATIONAL ISO
STANDARD 15830-1
Third edition
2022-06
Road vehicles — Design and
performance specifications for the
WorldSID 50th percentile male side-
impact dummy —
Part 1:
Vocabulary and rationale
Véhicules routiers — Conception et spécifications de performance
pour le mannequin mondial (WorldSID), 50e percentile homme, de
choc latéral —
Partie 1: Vocabulaire et raisonnement
Reference number
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 S c op e . 1
2 N ormative references . 1
3 T erms and definitions . 1
4 S ymbols, subscripts and abbreviated terms . 4
4.1 Symbols . 4
4. 2 Sub s c r ip t s . . 5
4 . 3 A bbr e v i at e d t er m s . 5
5 T echnical targets and performance of WorldSID . 6
Annex A (informative) Rationale regarding background and goals for WorldSID .7
Annex B (informative) Rationale regarding performance of the WorldSID (May 2005) .23
Annex C (informative) Biofidelity test data (May 2005 version) .40
Annex D (informative) Repeatability and reproducibility data (May 2005 version) .94
Bibliography . 109
iii

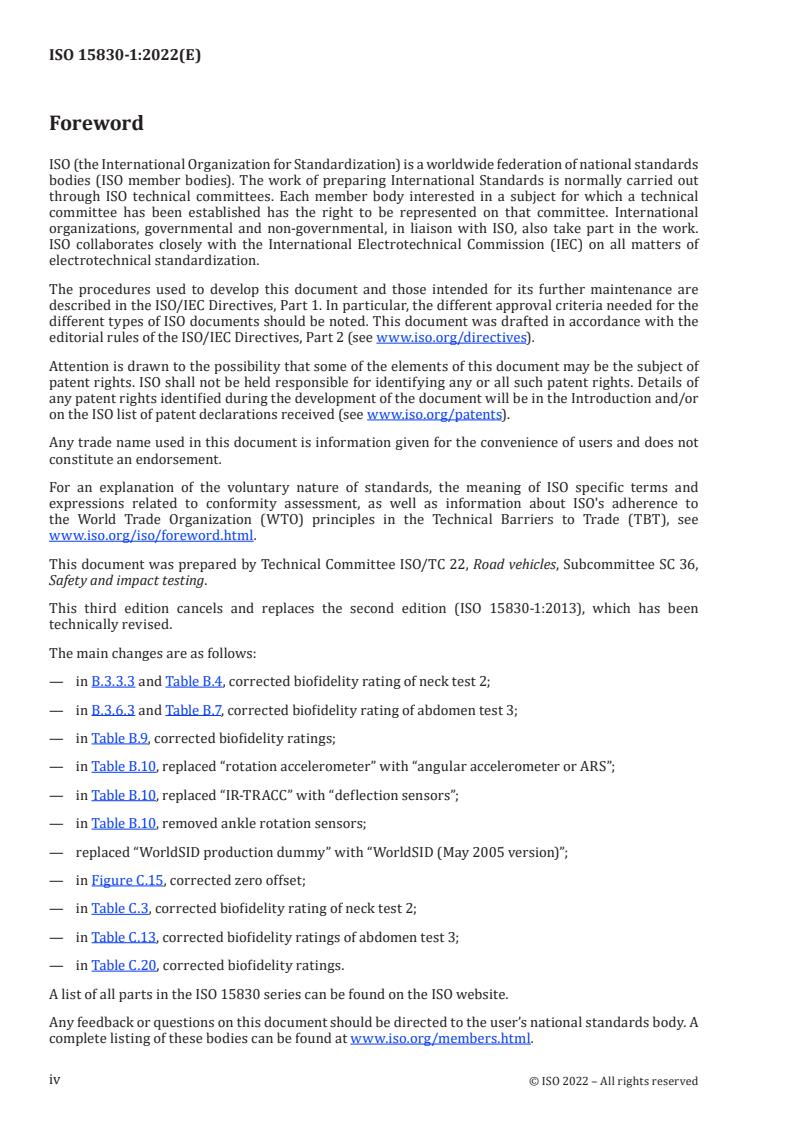

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 36,
Safety and impact testing.
This third edition cancels and replaces the second edition (ISO 15830-1:2013), which has been
technically revised.
The main changes are as follows:
— in B.3.3.3 and Table B.4, corrected biofidelity rating of neck test 2;
— in B.3.6.3 and Table B.7, corrected biofidelity rating of abdomen test 3;
— in Table B.9, corrected biofidelity ratings;
— in Table B.10, replaced “rotation accelerometer” with “angular accelerometer or ARS”;
— in Table B.10, replaced “IR-TRACC” with “deflection sensors”;
— in Table B.10, removed ankle rotation sensors;
— replaced “WorldSID production dummy” with “WorldSID (May 2005 version)”;
— in Figure C.15, corrected zero offset;
— in Table C.3, corrected biofidelity rating of neck test 2;
— in Table C.13, corrected biofidelity ratings of abdomen test 3;
— in Table C.20, corrected biofidelity ratings.
A list of all parts in the ISO 15830 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
The purpose of the ISO 15830 series is to document the design and specifications of this side-impact
dummy in a form suitable and intended for worldwide use.
In 1997, the WorldSID 50th percentile adult male dummy development was initiated, with the aims
of defining a global-consensus side-impact dummy, with more human-like anthropometry, improved
biofidelity, and increased injury-monitoring capabilities, suitable, for example, for regulatory use.
Participating in the development were research institutes, dummy and instrumentation manufacturers,
governments, and vehicle manufacturers from around the world.
This document is intended to document information and design changes which have become available
since the publication of the second edition of the ISO 15830 series (2013-05-15).
In order to apply the ISO 15830 series properly, it is important that all four parts be used together.
v
INTERNATIONAL STANDARD ISO 15830-1:2022(E)
Road vehicles — Design and performance specifications for
the WorldSID 50th percentile male side-impact dummy —
Part 1:
Vocabulary and rationale
1 S cope
This document provides the vocabulary, symbols, and rationale used in all parts of the ISO 15830 series
for the WorldSID 50th percentile side-impact dummy, a standardized anthropomorphic dummy for
near-side-impact tests of road vehicles.
2 Normat ive references
There are no normative references in this document.
3 T erms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
1-to-2-g-setting
joint friction setting which will support the weight of a horizontally extended limb segment but will not
support twice the limb segment weight
3.2
abdomen rib
lowest two ribs of the six mechanical ribs in the WorldSID dummy
3.3
aluminium honeycomb
manufactured material comprising multi-layered bonded sheets of aluminium bent or corrugated in a
rib pattern, in which there is an internal pattern of hexagonal cylindrical spaces
3.4
angular rate sensor
ARS
sensor which records angular velocity
3.5
arm
assembly of the WorldSID dummy comprising dedicated upper arm components which are different
from the components of the full arm (3.12)
Note 1 to entry: Unless otherwise specified, arm refers to the half arm for the ISO 15830 series.
3.6
C7
location corresponding to the seventh cervical vertebra in a human
3.7
capacity
maximum designed range for force or moment measurements
3.8
cheese screw
slotted button head screw
Note 1 to entry: This concept is also referred to as a slotted cheese head screw as defined by ISO 1207.
3.9
data acquisition system
DAS
system that includes sensors, recorders, cables and other associated hardware
3.10
docking station
data recorder connection point inside the dummy which allows the recorder to be conveniently
disconnected from the sensors
3.11
frontal
forward-facing or anterior surfaces of the dummy, when it is in a standing posture
3.12
full arm
optional assembly of the WorldSID dummy comprising the articulated upper arm and forearm, including
the hand
3.13
H-point
point on the outer surface of the dummy on an imaginary line which passes through the left and right
hip ball centres
3.14
H-point tool
device which can be inserted into index holes in the dummy pelvis to provide an external surface for
indicating the orientation of the pelvis and an imaginary line connecting the left and right hip ball joint
centres
3.15
head form
mechanical device with the same mass and I inertia as the WorldSID head, used for lateral neck
xx
validation (3.33) tests
3.16
infrared telescoping rod for assessment of chest compression
IR-TRACC
sensor for deflection measurements
3.17
L1
location corresponding to the first lumbar vertebra in a human
3.18
L5
location corresponding to the fifth lumbar vertebra in a human
3.19
lower leg
portion of the lower extremity between the knee and the ankle
3.20
mass replacement
non-electronic component which is substituted for a given dummy electronic component, which has the
same mass as the given electronic component, and which does not act as a structural component of the
dummy (e.g. an accelerometer)
3.21
rib deflection
change in distance between the accelerometer mount on the rib and the spine box
3.22
S1
location corresponding to the first sacral vertebra in a human
3.23
shoulder rib
upper-most rib of the six mechanical ribs in the WorldSID dummy
3.24
side impact dummy
dummy used to evaluate performance of impacts lateral to the dummy
3.25
structural replacement
non-electronic component which is substituted for a given dummy electronic component (e.g. a load
cell), which has the same mass as the given component, and which also acts as a structural component
of the dummy
3.26
thorax rib
second, third, and fourth upper-most ribs of the six mechanical ribs in the WorldSID dummy
3.27
T1
location corresponding to the first thoracic vertebra in a human
3.28
T4
location corresponding to the fourth thoracic vertebra in a human
3.29
T12
location corresponding to the twelfth thoracic vertebra in a human
3.30
tilt sensor
sensor that measures angle relative to gravity
3.31
universal
capable of being mounted at several different locations on the dummy
3.32
upper leg
portion of the lower extremity between the knee and the hip ball
3.33
validation
process by which the relevant dummy component or whole dummy is verified and documented to meet
the specifications
3.34
validation bench
specialized seat with defined seat bottom and seat back angles used to position the dummy for validation
(3.33) tests
3.35
W50-
prefix denoting WorldSID 50th percentile adult male dummy part or drawing number
4 S ymbols, subscripts and abbreviated terms
4.1 S ymbols
See Table 1.
Table 1 — Symbols and their meanings
Symbol Meaning
a Linear acceleration
B Biofidelity rating for a body region
F Force
g Acceleration due to gravity (9,81 m/s )
M Moment
R Biofidelity rating for how well an individual response meets its requirement
V Biofidelity weighting factor for a test condition of a body region
W Biofidelity weighting factor for an individual response measurement
x Coordinate in accordance with SAE J1733
y Coordinate in accordance with SAE J1733
z Coordinate in accordance with SAE J1733
α Angular acceleration
β Maximum angular displacement of the head form relative to the neck pendulum
δ Deflection
θ Tilt angle
φ Angular displacement
ω Angular rate
4.2 Subscripts
See Table 2.
Table 2 — Subscripts and their meanings
Symbol Meaning
F Forward pendulum-to-head form sliding rod
H Head form
R Rearward pendulum-to-head form sliding rod
i, j, k Biofidelity rating:
i: body region
j: test condition for a given body region
k: response measurement for a given test conditio
...
