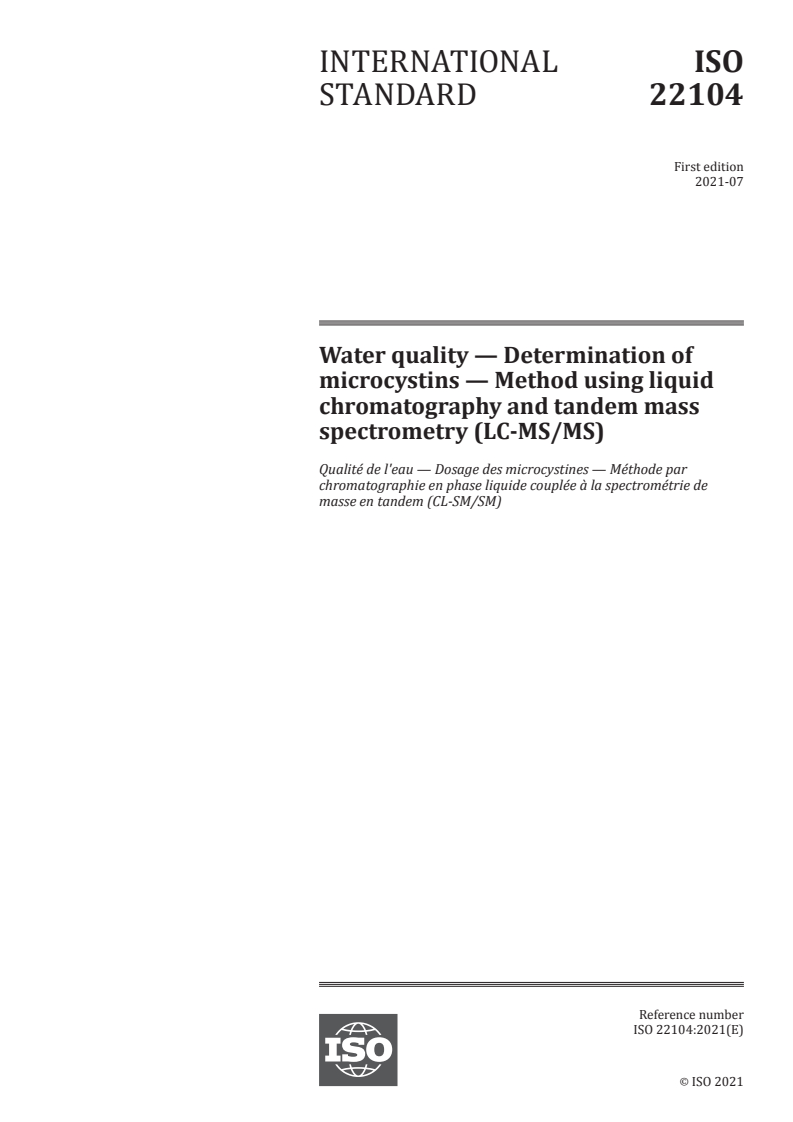

ISO 22104:2021

INTERNATIONAL ISO
STANDARD 22104
First edition
2021-07
Water quality — Determination of
microcystins — Method using liquid
chromatography and tandem mass
spectrometry (LC-MS/MS)
Qualité de l'eau — Dosage des microcystines — Méthode par
chromatographie en phase liquide couplée à la spectrométrie de
masse en tandem (CL-SM/SM)
Reference number
©
ISO 2021
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Interferences . 2
5.1 Biases . 3
5.2 Limitations . 3
6 Reagents and standards . 3
6.1 General . 3
6.2 Preparation of solutions . 4
7 Apparatus . 6
8 Sampling . 7
9 Procedure. 8
9.1 Preparation of samples . 8
9.1.1 General. 8
9.1.2 Preparation of method blank sample . 8
9.1.3 Preparation of laboratory control spike sample . 8
9.1.4 Preparation of calibration control sample . 8
9.1.5 Preparation of calibration standard solutions . 8
9.1.6 Preparation of drinking water and freshwater sample . 9
9.1.7 Sample preparation procedure with freeze/thaw cycles . 9
9.2 Instrumental analysis by LC-MS/MS procedure .10
9.2.1 Instrument set-up parameters .10
9.3 Run processing and quality assurance .13
9.3.1 Run sequence .13
9.3.2 Run control operations / limits .13
10 Calibration .14
11 Evaluation and calculation of results .15
11.1 Identification and calculations .15
11.2 Calibration curve equation determination .15
11.3 Internal standard calculation .15
11.4 Internal standard recovery calculation .16
12 Expressing of results .16
13 Test report .16
Annex A (informative) Use of high resolution mass spectrometry detectors (HRMS).17
Annex B (informative) Use of online solid phase extraction coupled to liquid
chromatography for the automated analysis of microcystins .19
Annex C (informative) Use of manual solid phase extraction prior to instrumental analysis
for improved method detection limits .25
Bibliography .32
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 147, Water quality, Subcommittee SC 2,
Physical, chemical and biochemical methods.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved

INTERNATIONAL STANDARD ISO 22104:2021(E)
Water quality — Determination of microcystins —
Method using liquid chromatography and tandem mass
spectrometry (LC-MS/MS)
WARNING — Persons using this document should be familiar with normal laboratory practice.
This document does not purport to address all of the safety problems, if any, associated with its
use. It is the responsibility of the user to establish appropriate safety and health practices.
IMPORTANT — It is absolutely essential that tests conducted in accordance with this document
be carried out by suitably qualified staff.
1 Scope
This document specifies a method for the quantification of twelve microcystin variants (microcystin-
7 7
LR, -LA, -YR, -RR, -LY, -WR, -HtyR, -HilR, -LW, -LF, [Dha ]-microcystin-LR, and [Dha ]-microcystin-RR)
in drinking water and freshwater samples between 0,05 µg/l to 1,6 µg/l. The method can be used to
determine further microcystins, provided that analytical conditions for chromatography and mass
spectrometric detection has been tested and validated for each microcystin. Samples are analysed by
LC-MS/MS using internal standard calibration.
This method is performance based. The laboratory is permitted to modify the method, e.g. increasing
direct flow injection volume for low interference samples or diluting the samples to increase the upper
working range limit, provided that all performance criteria in this method are met.
Detection of microcystins by high resolution mass spectrometry (HRMS) as an alternative for tandem
mass spectrometry (MS/MS) is described in Annex A.
An alternative automated sample preparation method based on on-line solid phase extraction coupled
to liquid chromatography is described in Annex B.
When instrumental sensitivity is not sufficient to reach the method detection limits by direct flow
injection, a solid phase extraction clean-up and concentration step is described in Annex C.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3696, Water for analytical laboratory use — Specification and test methods
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Principle
This method is designed to identify and quantify total (free + intracellular) microcystins in water
by direct flow injection liquid chromatography and tandem mass spectrometry (LC-MS/MS) with
[1] [2]
electrospray ionization , . 12 microcystins (Table 1) are determined quantitatively by multi-point
calibration using nodularin as internal standard.
Table 1 — Microcystin variants included in the method
a
Microcystin variant CAS-RN Molecular formular
Microcystin-LR 101043-37-2 C H N O
49 74 10 12
Microcystin-RR 111755-374 C H N O
49 75 13 12
Microcystin-LA 96180-79-9 C H N O
46 67 7 12
Microcystin-YR 101064-48-6 C H N O
52 72 10 13
Microcystin-LY 123304-10-9 C H N O
52 71 7 13
Microcystin-WR 138234-58-9 C H N O
54 73 11 12
Microcystin-HtyR 913178-65-1 C H N O
52 72 10 13
Microcystin-HilR N/A C H N O
50 76 10 12
Microcystin-LW 157622-02-1 C H N O
54 72 8 12
Microcystin-LF 154037-70-4 C H N O
52 71 7 12
[Dha ]-Microcystin-LR (dmLR) 120011-66-7 C H N O
48 72 10 12
[Dha ]-Microcystin-RR (dmRR) 131022-02-1 C H N O
48 73 13 12
a
CAS-RN: Ch
...
