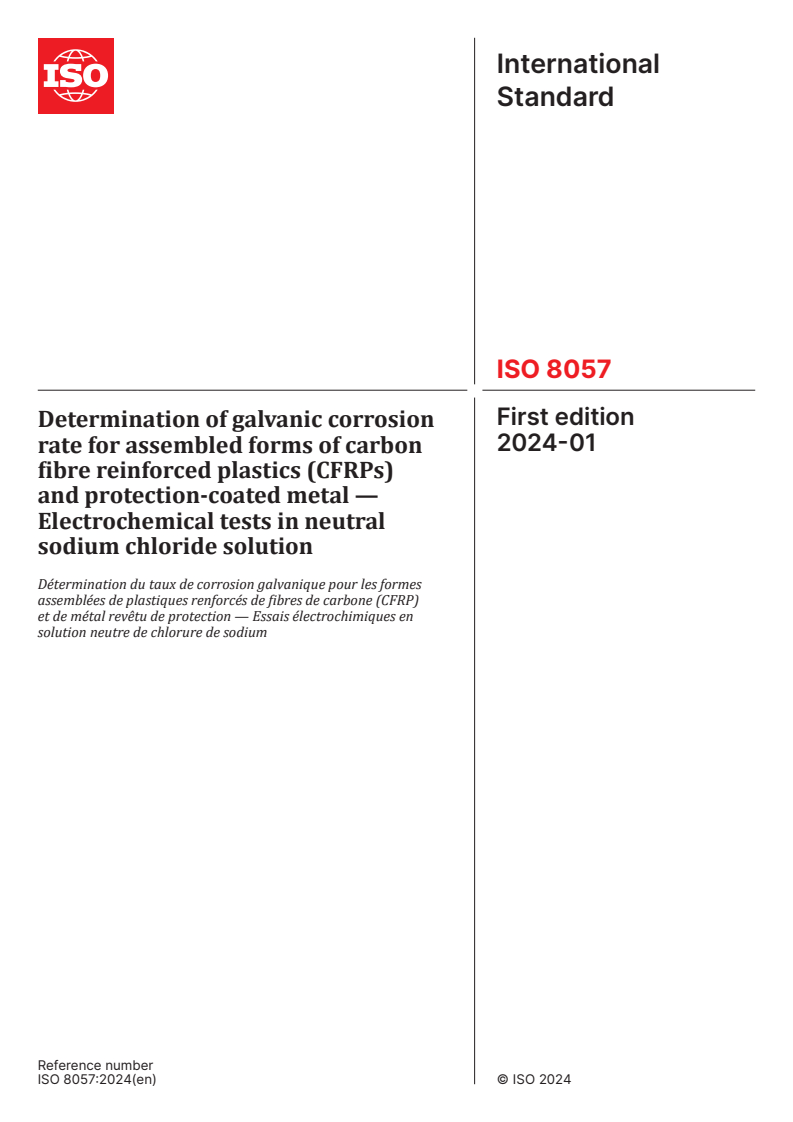

ISO 8057:2024

International
Standard
ISO 8057
First edition
Determination of galvanic corrosion
2024-01
rate for assembled forms of carbon
fibre reinforced plastics (CFRPs)
and protection-coated metal —
Electrochemical tests in neutral
sodium chloride solution
Détermination du taux de corrosion galvanique pour les formes
assemblées de plastiques renforcés de fibres de carbone (CFRP)
et de métal revêtu de protection — Essais électrochimiques en
solution neutre de chlorure de sodium
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

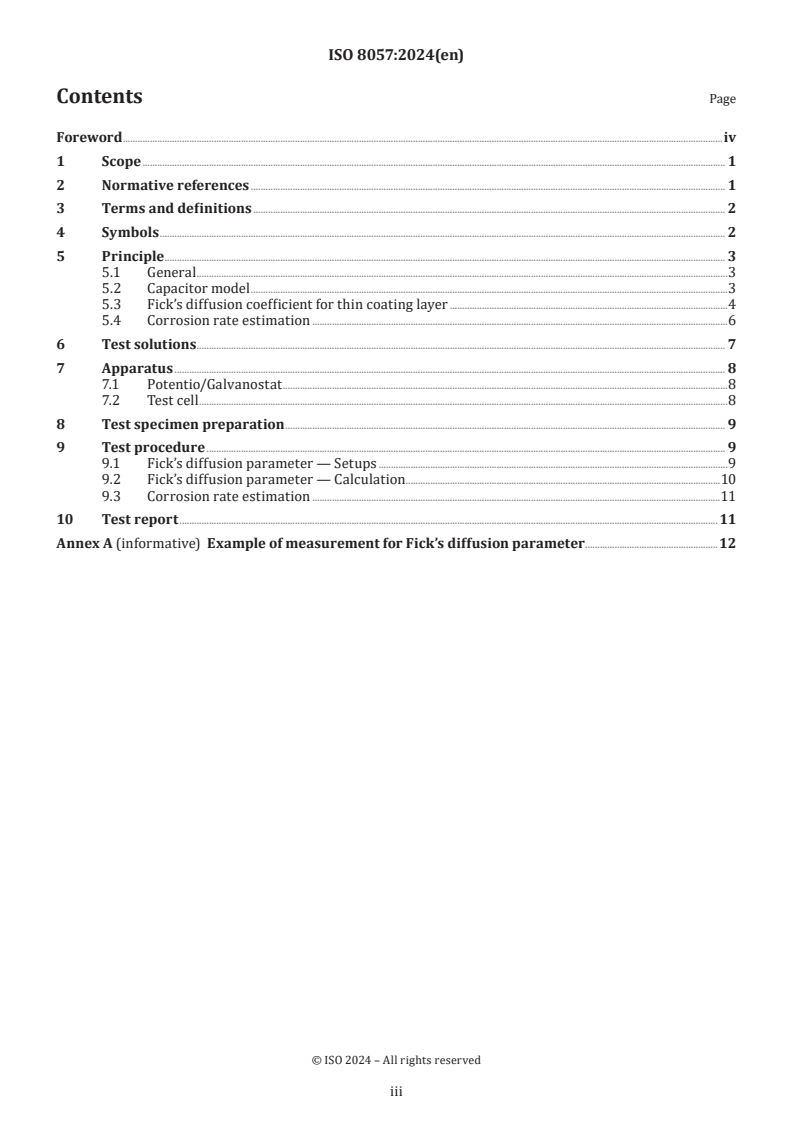

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Symbols . 2
5 Principle . 3
5.1 General .3
5.2 Capacitor model .3
5.3 Fick’s diffusion coefficient for thin coating layer .4
5.4 Corrosion rate estimation .6
6 Test solutions . 7
7 Apparatus . 8
7.1 Potentio/Galvanostat .8
7.2 Test cell .8
8 Test specimen preparation . 9
9 Test procedure . 9
9.1 Fick’s diffusion parameter — Setups .9
9.2 Fick’s diffusion parameter — Calculation .10
9.3 Corrosion rate estimation .11
10 Test report .11
Annex A (informative) Example of measurement for Fick’s diffusion parameter .12

iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 13, Composites
and reinforcement fibres.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 8057:2024(en)
Determination of galvanic corrosion rate for assembled forms
of carbon fibre reinforced plastics (CFRPs) and protection-
coated metal — Electrochemical tests in neutral sodium
chloride solution
1 Scope
1.1 This document specifies the electrochemical test for determining galvanic corrosion rate of CFRPs and
metal assemblies with protection-coating, subjected to the corrosive environment of electrolyte diffusion
through the coating. It specifies the apparatus, the test solutions, and the procedure to be used in conducting
the electrochemical tests for
a) the assessment of the Fick's diffusion parameter for protective coating on metallic materials, and
b) the estimation of the galvanic corrosion rates with the conversion of ISO 21746 coating-free sample
data.
1.2 The following are intended situations of implementing an electrochemical test based on this document:
a) when interested parties estimate the galvanic corrosion rate of bonded joints relating engineering
metals with protection-coating and CFRPs of the potential drastically nobler than those of most metals,
utilizing the resources of ISO 17475;
b) when expanding CFRP-metal bonded joints applications using coatings to the fields of corrosion-
sensitive environments caused by electrolytes.
1.3 It is not the intent of this document to fulfil the need for:
— omitting relevant field tests for the applications in corrosive environment;
— superimposing test data for specific applications for the range of relevant data;
— comparative testing as a means of ranking different protections with respect to corrosion rates;
— ignoring the field hazards such as erosion, abrasion, and ultraviolet irradiation.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 2808, Paints and varnishes — Determination of film thickness
ISO 17475, Corrosion of metals and alloys — Electrochemical test methods — Guidelines for conducting
potentiostatic and potentiodynamic polarization measurements
ISO 21746, Composites and metal assemblies — Galvanic corrosion tests of carbon fibre reinforced plastics
(CFRPs) related bonded or fastened structures in artificial atmospheres — Salt spray tests

3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Symbols
a slope of Q-t plot
b error in Q-t plot owing to charge duration and other factors
C static capacity of capacitor
c saturated oxygen density in water
O
c(x) electrolyte density function
d coating thickness
D Fick’s diffusion parameter
D oxygen diffusion constant in water
ox
E estimation of galvanic corrosion rate for coated sample
cr
F protection efficiency
pe
J diffusion flux
J oxygen flux in air saturated static water
ASO
J steady flux through thin protective coating
PC
J oxygen flux through protection coating
PCO
J oxygen flux of air saturated water for protection free sample
PFO
J the maximum through coating flux of oxygen in the form of water solution
OMax
K galvanic corrosion rate of coating-free sample derived with ISO 21746
cr
Q charge at a time t
Q charge at linearly extrapolated time point t
0 0
S grid area of capacitor
t time
t flux onset time
t upper bound time of linear section in time-charge plot
V inter-grid potential of capacitor
x inter-grid distance of capacitor
x locational dimension in flux direction
x diffusion layer thickness
DL
ε
permittivity of vacuum
ε
relative permittivity
r
5 Principle
5.1 General
Protection coating behaves as a capacitor in the form between conductive materials and conductive
electrolytes. Focusing on the capacitance, Fick's diffusion parameter is monitored by analysing the drift in
charge due to the distance shrinkage with electrolyte absorption from the surface of the protective coating
in the plate-shaped sample. The effect of the protective coating is evaluated by converting the value into the
salt spray flux in the galvanic corrosion test.
5.2 Capacitor model
Static capacity, C, of a capacitor in Figure 1 is expressed as Formula (1):
S
C =εε (1)
r 0
x
−12
whereε =×8,85418762 10 is the permittivity of vacuum.
The charge, Q, is expressed as follows when inter-grid potential, V, is loaded.
QC= V (2)
Formulae (1) and (2) lead to the following expression.
SV
Q=εε (3)
r 0
x
When the inter-grid distance x shrinks to x -Δx through diffusion, the charge drift ΔQ is expressed using
1 1 1
Formula (3) as follows.
xQΔΔ+=Qx 0 (4)
Figure 1 — Schematic diagram of capacitor
A capacitor in Figure 1 is expressed as is shown in Figure 2 for a grid of conductive base material, a grid of
electrolyte, and thin coating with the thickness, x , to separate the grids.
Key
1 water/electrolyte
2 thin coating layer
3 conductive base
Figure 2 — Capacitor formation with thin coating layer
5.3 Fick’s diffusion coefficient for thin coating layer
A. Fick expressed the phenomenon of water diffusion in a mathematical form using an analogy with the
...
