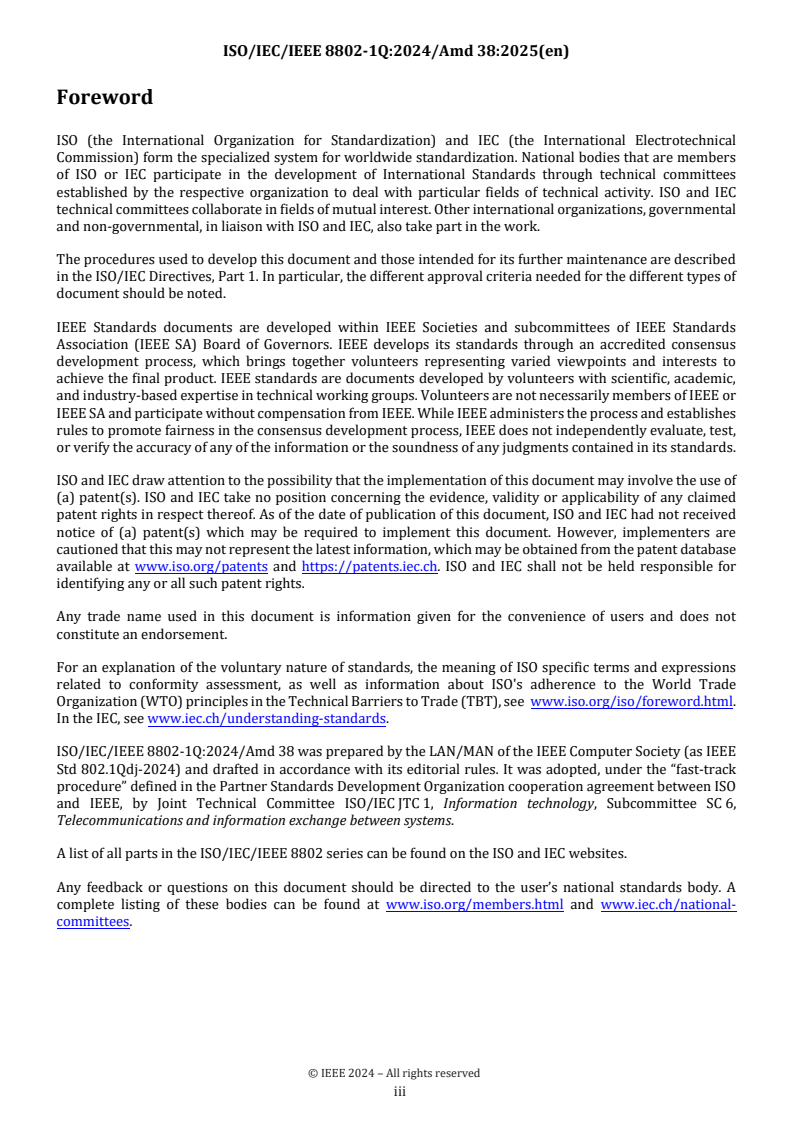

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members
of ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
document should be noted.
IEEE Standards documents are developed within IEEE Societies and subcommittees of IEEE Standards
Association (IEEE SA) Board of Governors. IEEE develops its standards through an accredited consensus
development process, which brings together volunteers representing varied viewpoints and interests to
achieve the final product. IEEE standards are documents developed by volunteers with scientific, academic,
and industry-based expertise in technical working groups. Volunteers are not necessarily members of IEEE or
IEEE SA and participate without compensation from IEEE. While IEEE administers the process and establishes
rules to promote fairness in the consensus development process, IEEE does not independently evaluate, test,
or verify the accuracy of any of the information or the soundness of any judgments contained in its standards.
ISO and IEC draw attention to the possibility that the implementation of this document may involve the use of
(a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent database
available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held responsible for
identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
ISO/IEC/IEEE 8802-1Q:2024/Amd 38 was prepared by the LAN/MAN of the IEEE Computer Society (as IEEE
Std 802.1Qdj-2024) and drafted in accordance with its editorial rules. It was adopted, under the “fast-track
procedure” defined in the Partner Standards Development Organization cooperation agreement between ISO
and IEEE, by Joint Technical Committee ISO/IEC JTC 1, Information technology, Subcommittee SC 6,
Telecommunications and information exchange between systems.
A list of all parts in the ISO/IEC/IEEE 8802 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html and www.iec.ch/national-
committees.
© IEEE 2024 – All rights reserved
© IEEE 2024 – All rights reserved
iii
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Standard for
Local and Metropolitan Area Networks—
Bridges and Bridged Networks
Amendment 38:
Configuration Enhancements for
Time-Sensitive Networking
(This amendment is based on IEEE Std 802.1Q™-2022 as amended by IEEE Std 802.1Qcz™-2023,
IEEE Std 802.1Qcw™-2023, and IEEE Std 802.1Qcj™-2023.)
NOTE—The editing instructions contained in this amendment define how to merge the material contained therein into
the existing base standard and its amendments to form the comprehensive standard.
The editing instructions are shown in bold italics. Four editing instructions are used: change, delete, insert, and replace.
Change is used to make corrections in existing text or tables. The editing instruction specifies the location of the change
and describes what is being changed by using strikethrough (to remove old material) and underscore (to add new
material). Delete removes existing material. Insert adds new material without disturbing the existing material. Deletions
and insertions may require renumbering. If so, renumbering instructions are given in the editing instruction. Replace is
used to make changes in figures or equations by removing the existing figure or equation and replacing it with a new
one. Editing instructions, change markings, and this note will not be carried over into future editions because the
changes will be incorporated into the base standard.
Notes in text, tables, and figures are given for information only and do not contain requirements needed to implement the standard.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
1. Overview
1.3 Introduction
Change the paragraph beginning “This standard specifies enhancements to protocols, procedures, and
managed objects for the configuration of network resources” (as amended by IEEE Std 802.1Qcw-2023)
as follows, and renumber the subsequent list items accordingly:
This standard specifies enhancements to protocols, procedures, and managed objects for the configuration of
network resources for time-sensitive (i.e., bounded latency) applications that require timely, high
probability, delivery of frames without end station retransmission. The enhancements address
Time-Sensitive Networking (TSN) application requirements beyond audio/video (AV) traffic. To this end, it:
cm) Specifies a software interface between the user (i.e., time-sensitive application) and network
components, such that the user provides Stream requirements (e.g., for bounded latency), and the
network configures resources from Talker to Listeners to meet those requirements. This
user/network interface (UNI) is specified as an information model that can be applied to any
protocol.
cm) Describes three approaches to network configuration: Specifies three models for the UNI: fully
distributed, centralized network/distributed user, and fully centralized.
co) Specifies enhancements to the Stream Reservation Protocol (SRP), using a new application version,
MSRPv1. MSRPv1 integrates the UNI TLVs for the benefits of enhanced configuration. For
compatibility, MSRPv1 translates to the previous version (MSRPv0).
cn) Specifies enhancements to the managed objects for forwarding and queuing enhancements for
time-sensitive streams (FQTSS).
cq) Specifies enhancements to the managed objects for SRP.
co) Describes Centralized User Configuration (CUC) and Centralized Network Configuration (CNC)
entities.
cp) Specifies managed objects for configuration of Bridges by a Centralized Network Configuration
(CNC) component.
cq) Define Specifies YANG configuration and operational state models (Clause 48) in support of
Scheduled Traffic, frame preemption, and Per-Stream Filtering and Policing, and CUC
configuration.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
3. Definitions
Insert the following definitions in the appropriate collating sequence, renumbering accordingly:
3.1 Configuration Domain: A set of stations that are under a common configuration and management
scheme, and a single administration.
3.2 TSN features: The protocols and mechanisms that constitute the set of tools available for building a
time-sensitive network.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
5. Conformance
5.29 TSN CNC station requirements
Change 5.29, as follows:
This subclause (5.29) defines the conformance requirements for a station that supports the Time-Sensitive
Networking (TSN) Centralized Network Configuration (CNC) requirements (46.1.3). The TSN CNC station
component is implemented within an end station or Bridge.
A TSN CNC station implementation that conforms to the provisions of this standard shall:
a) Support the use of a remote management protocol. The TSN CNC claiming to support remote
management shall state the following:
1) Which remote management protocol standard(s) or specification(s) are supported for the client
implementation.
2) Which standard(s) or specification(s) for managed object definitions and encodings are
supported for use by the remote management protocol.
b) Support the managed object definitions and encodings for Stream reservation remote management
(12.32).
c) Support the use of at least one protocol for User/network configuration information that complies
with the requirements for protocol integration defined in 46.2. The TSN CNC shall state which
User/network configuration information protocol standard(s) or specification(s) are supported.
d) If a YANG-based protocol is supported by the TSN CNC for the User/network configuration
information, that protocol shall use the YANG module specified in 46.3.
d) If SRP (Clause 35) is supported by the TSN CNC for the User/network configuration information,
the TSN CNC shall support MRP External Control (12.32.4).
A TSN CNC station implementation that conforms to the provisions of this standard may:
e) Use the YANG modules identified in 46.3.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
46. Time-Sensitive Networking (TSN) configuration
46.1 Overview of TSN configuration
Change the title and text of 46.1.1 as follows:
46.1.1 User/Network Interface (UNI)Streams, Talkers, and Listeners
TSN configuration uses the concept of a Stream that is transmitted by a Talker to one or more Listeners. The
Talkers and Listeners are located within end stations.
This clause specifies configuration information that is exchanged over a User/Network Interface (UNI). The
user side of the interface represents for Streams requested by Talkers and Listeners, or by network
management entities acting on their behalf. The network side of the interface represents the Bridges that
transfer frames of the Stream from each Talker to its Listeners. Each user specifies Stream requirements for
its data, but are initially specified by, or for, Talker and Listener without detailed knowledge of the network.
The network Network entities or administrators obtains these requirements from users, analyzes the
topology and TSN capabilities of the Bridges, and configures the Bridges to meet user the requirements. The
network returns the success or failure of each Stream’s configuration to the user its Talker(s) and Listener(s).
Change the title and text of 46.1.2 as follows:
46.1.2 Modeling of user/networkTSN configuration information protocols
A variety of protocols can be used for the exchange of configuration information over the TSN UNI (e.g.,
signaling protocols, remote network management protocols). These protocols can exchange the
configuration information as text or as binary fields. To enable flexible integration of TSN configuration into
a variety of protocols, 46.2 specifies the TSN user/network configuration information in a manner that is
independent of schema, encoding, or protocol.
Specific TSN-capable products list the user/network protocol that is supported as part of their conformance
[e.g., 5.18.3, item c) in 5.29]. Each user/network protocol will specify a specific schema and/or encoding for
the configuration information in 46.2. Examples of these protocols are described for each of the TSN
configuration models in 46.1.3.
46.1.3 TSN configuration models
Change the introductory text of 46.1.3 as follows:
This subclause describes threeThree models for TSN user/network configuration are described. These
models provide an architectural context for subsequent specifications. Each model specification shows the
logical flow of user/network configuration information between various entities in the network.
46.1.3.1 Fully distributed model
Change 46.1.3.1 as follows:
In the fully distributed model, the end stations that contain users of Streams (i.e., Talkers and Listeners)
communicate the user requirements directly over the TSN user/network protocol to the neighboring Bridge.
The network is configured in a fully distributed manner, without a centralized network configuration entity.
The distributed network configuration is performed using a protocol that propagates TSN user/network
configuration information along the active topology for the Stream (i.e., Bridges in the tree from Talker to
Listeners).
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
As user Stream requirements propagate through each Bridge, management of the Bridge’s resources is
effectively performed locally. This local management is limited to the information that the Bridge has
knowledge of and does not necessarily include knowledge of the entire network.
Figure 46-1 provides a graphical representation of the fully distributed model.
Figure 46-1—Fully distributed model
User/Network User/Network User/Network
User/Network User/Network
Configuration Configuration Configuration
Configuration Configuration
Info Info Info
Info Info
Listeners Bridges Talkers
Figure 46-1—Fully distributed model
In the figure, the solid arrows represent the protocol that is used as the UNI for to exchange of configuration
information between Talkers/Listeners (users) and Bridges (network). This configuration information is
specified in 46.2.
In the figure, the dashed arrows represent the protocol that propagates configuration information within the
network. This protocol carries the TSN user/network Stream configuration information (46.2) as well as
additional information that is specific to network configuration.
The following TSN features can be configured by Bridges using this model:
a) Credit-based shaper algorithm (8.6.8.2) and its configuration (Clause 34)
The Stream Reservation Protocol (SRP) of Clause 35 can be used as the UNI by Talkers and Listeners, and
to propagate configuration information throughout the network of Bridges. SRP exchanges configuration
information as binary fields using the Type-Length-Value (TLV) technique. Using this technique, the
protocol’s top-level message contains a list of one or more TLVs. Each TLV consists of a Type field that
specifies what the Value field contains, a Length field that specifies the number of octets in the Value field,
and the Value field. In SRP specifications, each TLV Type identifies one of the groups specified in 46.2, and
the TLV Value contains a binary representation of the elements in that group.
46.1.3.2 Centralized network/distributed user model
Change 46.1.3.2 as follows:
Some TSN use cases are computationally complex. For example, for scheduled traffic (8.6.8.4),
computation of the gate control list of each Port can take significant time. For such use cases, it is helpful to
centralize the computation in a single entity (Bridge or end station), rather than perform the computation in
all Bridges.
Some TSN use cases can benefit from a complete knowledge of all Streams in the network. For example, if
the bandwidth for multiple Streams is greater than the available bandwidth along the shortest path between
Talkers and Listeners, it is helpful to forward a subset of those Streams along a path other than the shortest.
For these use cases, a centralized entity can gather information for the entire network in order to find the best
configuration.
The In the centralized network/distributed user model, is similar to the fully distributed model in that end
stations communicate their Talker/Listener requirements directly over the TSN UNI to the neighboring
Bridge, just as in the fully distributed model. However, in the centralized network/distributed user model, a
© IEEE 2024 – All rights reserved
User/Network
Configuration
Info
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
Centralized Network Configuration (CNC, 46.1.6) entity configures Bridges to pass Talker/ Listener Stream
requirements directly to the CNC, rather than propagating that information along the path to be taken by
Stream data. In contrast, in the centralized network/distributed user model, the configuration information is
directed to/from a Centralized Network Configuration (CNC) entity. All configuration of Bridges for TSN
Streams is performed by this CNC using a remote network management protocol.
The CNC has a complete view of the physical topology of the network as well as the capabilities of each
Bridge. This enables the CNC to centralize complex computations. The CNC can exist in either an end
station or a Bridge.
The CNC knows the address of all Bridges at the edge of the network (those with an end station connected).
The CNC configures those edge Bridges to act as a proxy, transferring Talker/Listener information directly
between the edge Bridge and the CNC, rather than propagate the information to the interior of the network.
Figure 46-2 provides a graphical representation of the centralized network/distributed user model.
Figure 46-2—Centralized network/distributed user model
Centralized
Network
Configuration
User/Network User/Network
Configuration Configuration
Management
Info Info
Listeners Bridges Talkers
Figure 46-2—Centralized network/distributed user model
In the figure, the solid arrows represent the protocol that is used as the UNI for to exchange of configuration
Stream information between Talkers/Listeners (users) and Bridges (network). This configuration
information is specified in 46.2.
In the figure, the dashed arrows represent the protocol that transfers Stream configuration information
between edge Bridges and the CNC. This configuration information is specified in 46.2.
In the figure, dotted arrows represent the remote network management protocol. The CNC acts as the
management client, and each Bridge acts as the management server. The CNC uses remote management to
discover physical topology, retrieve Bridge capabilities, and configure TSN features in each Bridge. Talkers
and Listeners are not required to participate in this remote network management protocol. The information
carried by the remote network management protocol is specified in Clause 12.
NOTE 1—If the Talker/Listener protocol of the fully distributed model is selected to be the same as the Talker/Listener
protocol of the centralized network/distributed user model, end stations can support both models without explicit
knowledge of how the network is configured.
The following TSN features can be configured by the CNC using this model:
a) Credit-based shaper algorithm (8.6.8.2) and its configuration (Clause 34)
b) Frame preemption (6.7.2)
c) Scheduled traffic (8.6.8.4, 8.6.9)
© IEEE 2024 – All rights reserved
User/Network
Configuration
Info
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
d) Frame Replication and Elimination for Reliability (IEEE Std 802.1CB)
e) Per-Stream Filtering and Policing (8.6.5.1)
f) Cyclic queuing and forwarding (Annex T)
SRP (Clause 35) can be used as the UNI Talker/Listener protocol (solid arrows of Figure 46-2). SRP’s MRP
External Control (12.32.4) feature can be used to exchange configuration information with the CNC
component (dashed arrows of Figure 46-2). SRP exchanges configuration information using the TLV
technique to reference elements in 46.2 (see 46.1.3.1). Examples of a remote network management protocol
(dotted arrows of Figure 46-2) include Simple Network Management Protocol (SNMP), NETCONF (IETF
RFC 6241 [B39]), and RESTCONF (IETF RFC 8040 [B47]).
NOTE 2—NETCONF and RESTCONF specify a startup datastore: nonvolatile configuration that is applied when the
Bridge powers on. The startup datastore feature enables a TSN CNC to configure Bridges and then remove itself from
the network. SNMP does not specify a startup datastore feature. If SNMP is used by a TSN CNC, this can be mitigated
by a) using a proprietary (Bridge-specific) startup datastore feature or b) ensuring that the TSN CNC is always active in
the network in order to reconfigure Bridges that cycle power.
46.1.3.3 Fully centralized model
Change the first four paragraphs of 46.1.3.3 as follows:
Many TSN use cases require significant user configuration in the end stations that act as Talkers and
Listeners. For example, in many automotive and industrial control applications, the timing of physical inputs
and outputs (I/Os) is determined by the physical environment under control, and the timing requirements for
TSN Streams are derived from that I/O timing. In some use cases, these I/O timing requirements can be
computationally complex and involve detailed knowledge of the application software/hardware within each
end station.
In order to accommodate this sort of TSN use case, the fully centralized model enables a Centralized User
Configuration (CUC, 46.1.5) entity to discover end stations, retrieve end station capabilities and user
requirements, and configure TSN features in end stations. The protocols that the CUC uses for this purpose
are specific to the user application and outside the scope of not specified in this standard.
From a network perspective, the primary difference between the fully centralized model and the centralized
network/distributed user model is that all user requirements are exchanged between the CNC and CUC.
Therefore, the TSN UNI exists between the CNC and CUC.
Figure 46-3 provides a graphical representation of the fully centralized model with multiple CUCs.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
Replace Figure 46-3 with the following figure:
Figure 46-3—Fully centralized model
Centralized Centralized Centralized
User Configuration User Configuration User Configuration
User/Network Configuration Information
Centralized
Network
Configuration
Management
Bridges
Listeners Talkers
Figure 46-3—Fully centralized model
Change 46.1.3.3 from paragraph five onwards, as follows:
In the figure, the solid arrows represent the protocol that is used as the UNI for to exchange of configuration
Stream information between the CUC and the CNC. This configuration information is specified in 46.2.
In the figure, the dotted arrows represent the remote network management protocol. The CNC acts as the
management client, and each Bridge acts as the management server. The CNC uses remote management to
discover physical topology, retrieve Bridge capabilities, and configure TSN features in each Bridge. Talkers
and Listeners are not required to participate in this remote network management protocol. The information
carried by the remote network management protocol is specified in Clause 12.
In this fully centralized model, a protocol is used between the CUC and end stations (Talkers and Listeners)
to retrieve end station capabilities and requirements and to configure the end stations. Since that protocol is
user-to-user, its configuration information is considered to be outside the scope of this standard, and it is not
shown in Figure 46-3.
The following TSN features can be configured by the CNC using this model:
a) Credit-based shaper algorithm (8.6.8.2) and its configuration (Clause 34)
b) Frame preemption (6.7.2)
c) Scheduled traffic (8.6.8.4, 8.6.9)
d) Frame Replication and Elimination for Reliability (IEEE Std 802.1CB)
e) Per-Stream Filtering and Policing (8.6.5.1)
f) Cyclic queuing and forwarding (Annex T)
YANG (IETF RFC 7950) is a data modeling language used to model configuration data and state data for
remote network management protocols. The remote network management protocol uses a specific encoding
such as XML or JSON. For a particular feature, a YANG module specifies the organization and rules for the
feature’s management data, and a mapping from YANG to the specific encoding enables the data to be
understood correctly by both client (e.g., network manager) and server (e.g., Bridge). Technically speaking,
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
the TSN user/network configuration is not network management, in that information is exchanged between
user and network, and not between a network manager and the network’s Bridges (Clause 12). Nevertheless,
the concepts are sufficiently similar that YANG is useful for modeling the configuration and state data for
the TSN user/network configuration information.
In order to support the use of YANG-based protocols for the fully centralized model, 46.3 specifies a YANG
module. The YANG module specifies a YANG typedef/grouping for each group of information in 46.2.
NOTE—At the time that this clause was developed, specific protocol implementations for the fully centralized model
were a work in progress. One protocol explored for the UNI between CUC and CNC is RESTCONF (IETF RFC 8040
[B47]). A complete YANG module for the TSN UNI can be specified in a document other than IEEE Std 802.1Q. In
order to conform with this clause, the complete TSN UNI YANG module imports the YANG module of 46.3 for use
within its containers and lists. The complete TSN UNI YANG module will presumably specify features outside the
scope of this clause, such as operations to control the deployment of Stream configuration to the network. The JSON
encoding can be used with RESTCONF. Although the TSN UNI is technically not network management, use of
RESTCONF provides a simple and effective application programming interface (API) for TSN configuration.
For an informative example workflow using the fully centralized model, refer to U.2.
Change the title and text of 46.1.4 as follows:
46.1.4 Stream identification and transformation
TSN configuration uses the concept of a Stream of data that is transmitted by a Talker to one or more
Listeners. The Talkers and Listeners are end stations.
In order to apply TSN behavior to a Streams (e.g., to reserved bandwidth guarantees), the network must be
able to distinguishes one Streams from another Stream and distinguish Streams each other and from non-
TSN traffic (e.g., best-effort). Therefore, each Each frame of the a Stream must contains fields in its header
that uniquely identify the Stream.
The goal of TSN configuration is to allow Talkers and Listeners to use their existing transport layer and
application layer protocols for data, rather than requiring a TSN-specific frame format. TSN achieves this
goal by identifying each Stream using fields from well-established frame formats such as Transmission
Control Protocol (TCP), User Datagram Protocol (UDP), and IEEE 802.1 (i.e., MAC addresses and VLAN
identifier).
As the frames of each Stream cross the user/network boundary, the identification of the Stream in its frames
can be different between the network and the user. For example, the user can use UDP without an awareness
of VLAN IDs, but the network can require a specific VLAN ID in order to apply TSN features. In order to
support this sort of difference in frame format, the TSN user/network configuration information (46.2)
provides features to enable transformation of the Stream’s identification at the user/network boundary. The
user identification translates to/from the network identification at the boundary, either within the end station
or a nearest Bridge. This transformation has the benefit of allowing the user’s identification to match its
higher layer application protocol and the network’s identification to match the bridging technology.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
Stream transformation can be accomplished using the functions specified in IEEE Std 802.1CB. The
functions of IEEE Std 802.1CB can be implemented in the end station (Talker/Listener) or within the nearest
Bridge. The descriptions in this clause focus on Stream transformation in the end station and use features of
the TSN user/network configuration information (46.2).
NOTE 1—In this clause, Stream transformation refers to changes to the fields of a frame that identify the Stream. IEEE
Std 802.1CB specifies Stream transformation for identification as well as for frame replication and elimination
(redundancy).
NOTE 2—Stream transformation is an optional capability of end stations and Bridges. If stream transformation is not
supported, the user’s identification of the Stream must be the same as the network’s identification, and the user must use
an identification that is consistent with bridging as specified for TSN features in this standard (e.g., VLAN tag and group
destination MAC address).
Figure 46-4 provides an example of Stream transformation in the Talker end station. Stream transformation
in the Listener end station is similar. The example of Figure 46-4 assumes use of the centralized network/
distributed user model (46.1.3.2). Use of the fully centralized model (46.1.3.3) is similar.
Figure 46-4—Example of Stream transformation in Talker end station
DataFrameSpecification InterfaceCapabilities
User
MRP
Application
External
Control
InterfaceConfiguration
Stream
Transformation
User Stream Network Stream
Talker
Bridge
Figure 46-4—Example of Stream transformation in Talker end station
For Stream transformation in the end station, the end station’s interface to the network can provide the
transformation capability, acting as a network entity within the user’s end station.
The identification of the Stream in the user originates from the User Application block, specified by the
Talker as the DataFrameSpecification (46.2.3.4). The end station knows this user identification, but not the
identification that the network requires. To negotiate the network identification, the Talker uses SRP to
transmit InterfaceCapabilities (46.2.3.7) that describe its Stream transformation capabilities to the nearest
Bridge. The Bridge uses MRP External Control (12.32.4) to send the InterfaceCapabilities to a CNC. The
CNC consults its configuration of network identification and uses MRP External Control to send
InterfaceConfiguration (46.2.5.3) along with successful Status (46.2.5) back to the Bridge. When the Bridge
receives this information, it propagates back to the Talker using SRP. The InterfaceConfiguration provides
the network identification, which the end station uses to perform Stream transformation for data frames.
NOTE 3—The network identification typically entails allocation of a group MAC address for the Stream. If a CNC is
used, the CNC can allocate a group MAC address from a pool that it maintains.
Figure 46-5 provides an example of IEEE 802.1CB functions within the Stream Transformation block in the
Talker end station. The example assumes that the user identification uses an Internet Protocol (IP) packet for
identification and that the frame conveying the IP packet does not use the appropriate MAC address and
VLAN tag for TSN features in Bridges (e.g., IP packet unicast destination MAC address, untagged). The
IEEE 802.1CB function for IP Stream identification uses fields of the IP packet to identify the packet as a
specific TSN sStream. That sStream identification is then applied to the IEEE 802.1CB function for Active
Destination MAC and VLAN Stream identification to replace the destination MAC address and add a
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
VLAN tag for TSN Bridge features. The IP fields of the packet are not changed. The IEEE 802.1CB
functions can be implemented in software (e.g., operating system driver) or in hardware.
Figure 46-5—Example of IEEE 802.1CB functions in Talker end station
User’s IP Packet
Stream Transfer Function
IP Stream Active Destination MAC and VLAN
identification, Stream identification,
(in-facing output port) (out-facing output port)
Internal LAN
Talker’s interface
Figure 46-5—Example of IEEE 802.1CB functions in Talker end station
Figure 46-6 provides a corresponding example of IEEE 802.1CB functions within the Stream
Transformation block in the Listener end station. In this direction, the IEEE 802.1CB function for Active
Destination MAC and VLAN Stream identification provides both functions. The IEEE 802.1CB function
uses the group destination MAC address and VLAN tag of the received frame to identify a specific Stream.
The IEEE 802.1CB function then transforms the destination MAC address and VLAN tag to restore the
Stream’s frame to its original format (as transmitted by the Talker).
Figure 46-6—Example of IEEE 802.1CB functions in Listener end station
User’s IP Packet
Active Destination MAC and VLAN
Stream identification,
(out-facing input port)
Listener’s interface
Figure 46-6—Example of IEEE 802.1CB functions in Listener end station
Insert 46.1.5, 46.1.6, and 46.1.7 after 46.1.4 as follows:
46.1.5 Centralized User Configuration
A Centralized User Configuration (CUC) delivers user requirements to the CNC. The CUC delivers
information for configuring TSN features to end stations. It is a logical entity that can be located in any
network system.
The CUC is responsible for:
a) Reconciling the requirements from Talkers and Listeners to Stream requirements, if necessary.
b) Sending the Stream requirements to the CNC.
c) Receiving the end station communication-configuration from the CNC.
d) Distributing the end station communication-configuration to Talkers and Listeners.
NOTE—The CNC is responsible for the assignment of a unique StreamID to each Stream. For this a remote procedure
call (RPC) RequestFreeStreamId (46.2.7.5) is available so the CUC can request a free (i.e., available) StreamID from the
CNC.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
Stream requirements, in the context of the CUC, result from combining the Stream requirements of one
Talker with the Stream requirements of one or multiple Listeners that, together, apply to form a Stream.
Reconciling the requirements for the Stream does not change the parameters in the Stream request
originating from the Talker or the Listener(s).
The end station communication-configuration that is received by the CUC from the CNC and then
distributed to the Talkers and Listeners does not directly configure features on the end stations. It consists of
configuration information that a CUC can provide for a Talker and Listeners to configure the Stream. An end
station could, for example, make use of the information it receives in the communication-configuration from
the CUC to configure an application in a way that ensures different Streams are sent by the application in a
specific order that correlates with the expected Stream’s transmission on the network.
A CUC affects only one Configuration Domain. Talkers and Listeners can only make use of the CUC to
reconcile their Stream requirements into a Stream request if they are part of the same Configuration Domain.
If a Talker wants to communicate with one or more Listeners in a different Configuration Domain, this needs
to be done through dedicated inter-domain communication mechanisms. Such inter-domain communication
mechanisms are not specified by this standard.
The protocols that the CUC uses for communication with end stations are not specified by this standard. A
CUC exchanges information with a CNC in order to configure TSN features on behalf of its end stations
(46.2). The CUC can request computation of paths and configurations for Streams in the following ways:
e) Request computation of the paths and configurations for a set of Streams, using the protocol
operation described in 46.2.7.1. The computation is performed by the CNC on the complete set of
Streams of this request. This allows for optimized scheduling of Streams in the network.
f) Request computation of the paths and configurations for new or modified Streams, using the
protocol operation described in 46.2.7.2. The computation is performed by the CNC on all Streams
in a Configuration Domain that have a StreamStatus (46.2.3.8) of either planned or modified.
g) Request computation of the paths and configurations for all Streams of a CUC, using the protocol
operation described in 46.2.7.3. The computation is performed by the CNC on all Streams in a
Configuration Domain that belong to the CUC specified in the request.
h) Request the joining of a set of Listeners to an already existing Stream. The paths are extended to
allow forwarding of the Stream to the new Listeners. Computation for the changes has to be
triggered via RPC.
i) Request the removal of an existing Stream, using the protocol operation described in 46.2.8.1.
j) Request the removal of one or more Listeners from an existing Stream. Computation for the changes
has to be triggered via RPC.
A CUC can be present for initial configuration, to manage changes to a running network, or both. Multiple
CUCs can co-exist and operate in parallel in the same Configuration Domain as shown in Figure 46-3.
46.1.6 Centralized Network Configuration
The Centralized Network Configuration (CNC) is a logical entity that configures network resources on
behalf of applications (users) and can be located in any station of a network.
The CNC is responsible for:
a) Receiving the Stream requirements for one or more Streams from the corresponding CUC.
b) Providing a way for a CUC to request a free StreamID.
c) Assigning a unique destination MAC address in the Configuration Domain it is responsible for to
each of the requested Streams.
d) Computing paths for requested Streams.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
e) Performing computation of scheduling and/or shaping configuration for the requested Streams.
f) Configuring the network devices to provide the required resources for the Streams (e.g., Filtering
Database (8.8) entries or configuration of transmission gates), using remote management.
g) Providing the end station communication-configuration for the Streams to the corresponding CUC.
If the paths for the Streams impact existing Streams the CNC is also responsible for providing that
information to the CUCs that originally requested the impacted Streams.
h) Removing of Streams as requested by a CUC.
i) Discovering physical topology, using remote management.
j) Retrieving station capabilities, using remote management.
The CNC communicates with a CUC through the user/network configuration information specified in 46.2.
It communicates with the stations using the managed objects defined in this and other IEEE 802.1 standards.
There can only be one active CNC per Configuration Domain.
46.1.7 Configuration Domain
A Configuration Domain is a set of stations that are under a common configuration and management
scheme, and a single administration. The Configuration Domain provides boundary information for the
common management scheme and to support the responsibilities of the CUC and CNC regarding Streams.
Whether a CNC and one or more CUCs are present in a Configuration Domain depends on the TSN
configuration model (46.1.3) that is used in the domain (e.g., whether the fully centralized model or a
different configuration model is used). The CNC and the CUCs required for the configuration of a
Configuration Domain affect only one Configuration Domain.
46.2 User/network configuration information
Change the introductory text of 46.2 as follows:
This subclause specifies the user/network configuration information that is used for the three TSN
configuration models (46.1.3). The semantics for the TSN user/network configuration information is
specified i
...
