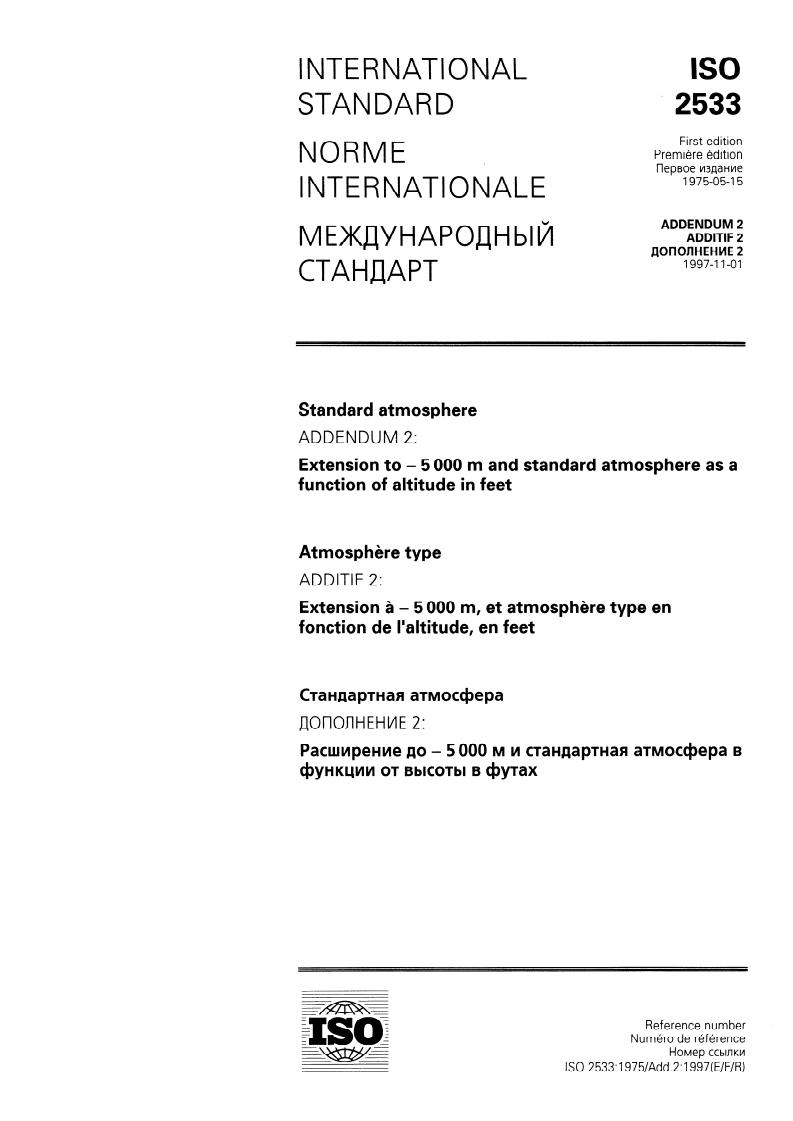

Standard atmosphere
ADDENDUM 2:
Extension to - 5000 m and Standard atmosphere as a
function of altitude in feet
Atmosph&e type
ADDITIF 2:
Extension a - 5 000 m, et atmosphkre type en
fonction de I’altitude, en feet
CTaHaapTHa%l aTMOCC#Epa
flOl-lOJlHEHVlE 2:
Pacwvipetime fl0 - 5000 M VI CTaHflaPTHaFI aTMOCC#Epa B
*~HK~VII/I 0~ BblcoTbl B clpyTax
Reference number
Numero de rkference
HoMep CCblJlKL ’l
ISO 2533:1975/Add.2:1997(E/F/R)

ISO 2533:1975/Add.2:1997(E/F/R)
Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national Standards bodies (ISO member bodies). The work
of preparing International Standards is normally carried out through ISO
technical committees. Esch member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(1 EC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
Addendum 2 to International Standard ISO 2533:1975 was prepared by
Technical Committee lSO/TC 20, Aircraft and space vehicles, Sub-
committee SC 6, Standard afmosphere, under the technical instruction of
the International Civil Aviation Organization (ICAO).
Annex A of this addendum is for information only.
0 ISO 1997
All rights reserved. Unless otherwise specified, no part of this publication may be
reproduced or utilized in any form or by any means, electronie or mechanical, including
photocopying and microfilm, without Permission in writing from the publisher. / Droits de
reproduction reserves. Sauf prescription differente, aucune Partie de cette publication ne
peut etre reproduite ni utilisee sous quelque forme que ce soit et par aucun procede,
electronique ou mecanique, y compris Ia photocopie et les microfilms, sans I ’accord ecrit de
I ’editeur.
International Organization for Standardization
Case postale 56 l CH-l 211 Geneve 20 l Switzerland
Internet central@iso.ch
x.400 c=ch; a=400net; p=iso; o=isocs; s=central
Printed in Switzerland/lmprime en Suisse
ii
ISO 2533:1975/Add,2:1997(E/F/R)
@ ISO

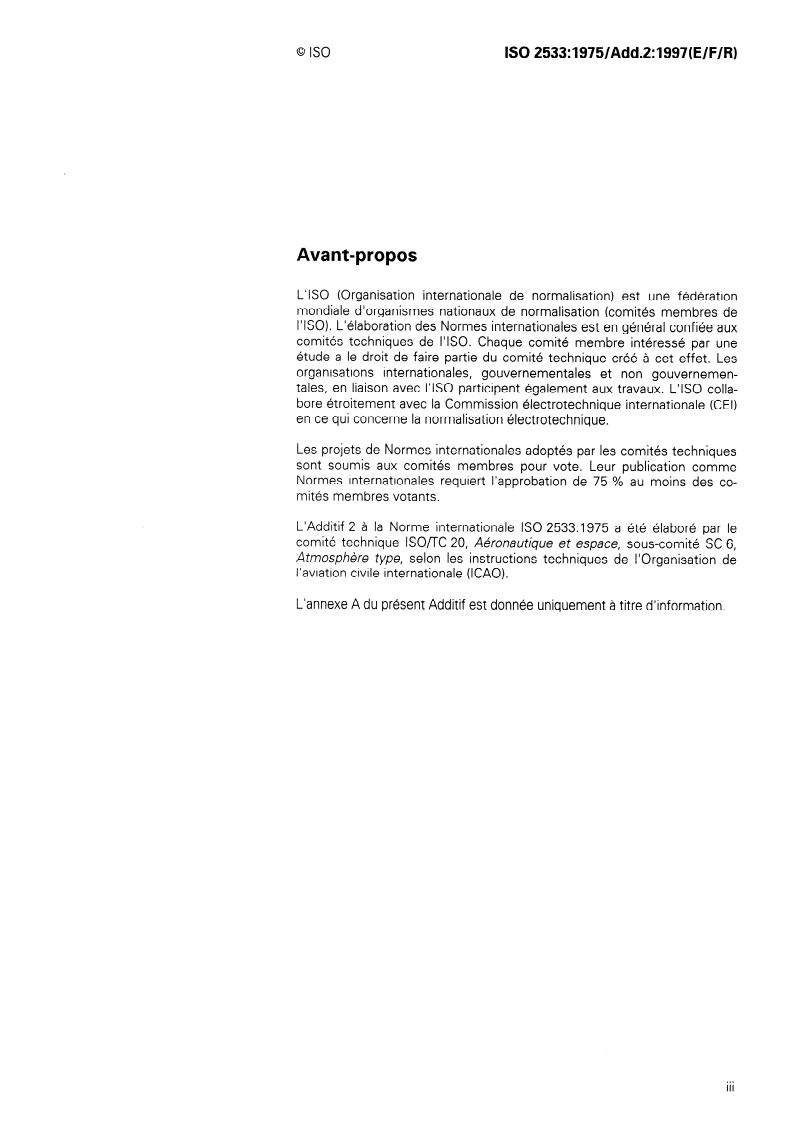

Avant-propos
