IEC 63203-201-2:2022/COR1:2023
(Corrigendum)Corrigendum 1 - Wearable electronic devices and technologies - Part 201-2: Electronic textile - Measurement methods for basic properties of conductive fabrics and insulation materials
General Information
- Abstract
IEC 63203-201-2:2022 specifies the provisions for conductive fabrics and insulation materials used for electronic textiles and measurement methods for their properties.
Conductive fabrics covered by this document are basic materials in electronic textiles and are mainly used as conductive traces, electrodes and the like in clothes-type wearable devices. This document does not cover high-resistance conductive fabrics used for antistatic purposes and heater applications.
Insulating materials handled in this document are materials used for electrical insulation of conductive parts in electronic textiles. They include materials for covering the conductive parts, and general fabrics constituting the basic structure of clothes‑type wearable devices.
This document does not define the required characteristics of the conductive fabric and insulation materials; rather, it specifies measurement methods for general and electrical properties of the conductive fabric and insulation materials.
- Status
- Published
- Publication Date
- 19-Oct-2023
- Technical Committee
- TC 124 - Wearable electronic devices and technologies
- Current Stage
- PPUB - Publication issued
- Start Date
- 20-Oct-2023
- Completion Date
- 11-Dec-2023
Buy Documents
IEC 63203-201-2:2022/COR1:2023 - Corrigendum 1 - Wearable electronic devices and technologies - Part 201-2: Electronic textile - Measurement methods for basic properties of conductive fabrics and insulation materials Released:10/20/2023
Relations
- Effective Date
- 05-Sep-2023
Buy Documents
IEC 63203-201-2:2022/COR1:2023 - Corrigendum 1 - Wearable electronic devices and technologies - Part 201-2: Electronic textile - Measurement methods for basic properties of conductive fabrics and insulation materials Released:10/20/2023
Get Certified
Connect with accredited certification bodies for this standard
Control Union Certifications
Global certification for agriculture and sustainability.
Hohenstein Institut
Textile testing and certification.
Bureau Veritas Bangladesh
Bureau Veritas certification services in Bangladesh.
Sponsored listings
Frequently Asked Questions
IEC 63203-201-2:2022/COR1:2023 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Corrigendum 1 - Wearable electronic devices and technologies - Part 201-2: Electronic textile - Measurement methods for basic properties of conductive fabrics and insulation materials". This standard covers: IEC 63203-201-2:2022 specifies the provisions for conductive fabrics and insulation materials used for electronic textiles and measurement methods for their properties. Conductive fabrics covered by this document are basic materials in electronic textiles and are mainly used as conductive traces, electrodes and the like in clothes-type wearable devices. This document does not cover high-resistance conductive fabrics used for antistatic purposes and heater applications. Insulating materials handled in this document are materials used for electrical insulation of conductive parts in electronic textiles. They include materials for covering the conductive parts, and general fabrics constituting the basic structure of clothes‑type wearable devices. This document does not define the required characteristics of the conductive fabric and insulation materials; rather, it specifies measurement methods for general and electrical properties of the conductive fabric and insulation materials.
IEC 63203-201-2:2022 specifies the provisions for conductive fabrics and insulation materials used for electronic textiles and measurement methods for their properties. Conductive fabrics covered by this document are basic materials in electronic textiles and are mainly used as conductive traces, electrodes and the like in clothes-type wearable devices. This document does not cover high-resistance conductive fabrics used for antistatic purposes and heater applications. Insulating materials handled in this document are materials used for electrical insulation of conductive parts in electronic textiles. They include materials for covering the conductive parts, and general fabrics constituting the basic structure of clothes‑type wearable devices. This document does not define the required characteristics of the conductive fabric and insulation materials; rather, it specifies measurement methods for general and electrical properties of the conductive fabric and insulation materials.
IEC 63203-201-2:2022/COR1:2023 is classified under the following ICS (International Classification for Standards) categories: 59.080.30 - Textile fabrics; 59.080.80 - Smart textiles. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 63203-201-2:2022/COR1:2023 has the following relationships with other standards: It is inter standard links to IEC 63203-201-2:2022. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 63203-201-2:2022/COR1:2023 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 63203-201-2 IEC 63203-201-2
Edition 1.0 2022-04 Édition 1.0 2022-04
WEARABLE ELECTRONIC DEVICES TECHNOLOGIES ET DISPOSITIFS
AND TECHNOLOGIES – ÉLECTRONIQUES PRÊTS-À-PORTER –
Part 201-2: Electronic textile – Measurement Partie 201-2: Textile électronique – Méthodes de
methods for basic properties of conductive mesure des propriétés fondamentales des
fabrics and insulation materials étoffes conductrices et des matériaux isolants
CO RRI G E NDUM 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.
Figure 2, Figure 3, Figure 4, and Figure 5
Replace the existing keys of the above figures (excluding values or symbols):
1 stretchable substrate
2 stretchable conductor
3 stretchable insulator
with the following new key:
1 non-conductive fabric as substrate
2 conductive fabric
3 cover insulation material
6.1.3.2.1 Procedure
Replace the existing list item a) with the following new list item a):
a) Test specimens should be prepared as shown in Figure 2. The test specimens consist of a
substrate, a rectangular conductive fabric of 70 mm × 210 mm, and a cover insulation layer
of 70 mm × 70 mm.
The test specimen substrate shall have a margin of at least 5 mm on each side of the edges
of the conductor. Dimensional errors of ±1 mm are allowed for conductive fabric and cover
insulation layer.
IEC 63203-201-2:2022-04/COR1:2023-10 (en-fr)
– 2 – IEC 63203-201-2:2022/COR1:2023
IEC 2023

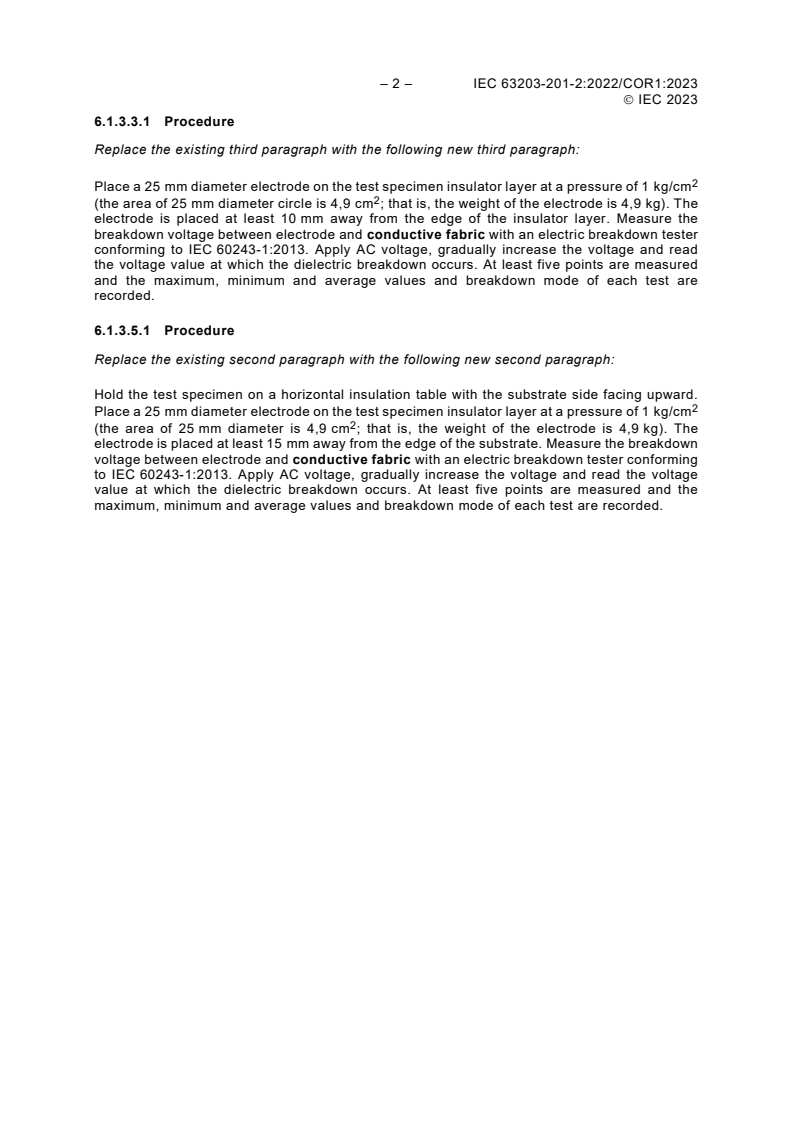

6.1.3.3.1 Procedure
Replace the existing third paragraph with the following new third paragraph:
Place a 25 mm diameter electrode on the test specimen insulator layer at a pressure of 1 kg/cm
(the area of 25 mm diameter circle is 4,9 cm ; that is, the weight of the electrode is 4,9 kg). The
electrode is placed at least 10 mm away from the edge of the insulator layer. Measure the
breakdown voltage between electrode and conductive fabric with an electric breakdown tester
conforming to IEC 60243-1:2013. Apply AC voltage, gradually increase the voltage and read
the voltage value at which the dielectric breakdown occurs. At least five points are measured
and the maximum, minimum and average values and breakdown mode of each test are
recorded.
6.1.3.5.1 Procedure
Replace the existing second paragraph with the following new second paragraph:
Hold the test specimen on a horizontal insulation table with the substrate side facing upward.
Place a 25 mm diameter electrode on the test specimen insulator layer at a pressure of 1 kg/cm
(the area of 25 mm diameter is 4,9 cm ; that is, the weight of the electrode is 4,9 kg). The
electrode is placed at least 15 mm away from the edge of the substrate. Measure the breakdown
voltage between electrode and conductive fabric with an electric breakdown tester conforming
to IEC 60243-1:2013. Apply AC voltage, gradually increase the voltage and read the voltage
value at
...
