SLOVENSKI STANDARD
01-marec-2024
Fotonapetostni elementi v stavbah - 1. del: Moduli, vgrajeni v konstrukcijo (BIPV)
Photovoltaics in buildings - Part 1: BIPV modules
Photovoltaik im Bauwesen - Teil 1 BIPV-Module
Photovoltaïque dans la construction - Partie 1: Modules photovoltaïques intégrés au
bâtiment
Ta slovenski standard je istoveten z: prEN 50583-1
ICS:
27.160 Sončna energija Solar energy engineering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD DRAFT
prEN 50583-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2023
ICS 27.160 Will supersede EN 50583-1:2016
English Version
Photovoltaics in buildings - Part 1: BIPV modules
Photovoltaïque dans la construction - Partie 1: Modules Photovoltaik im Bauwesen - Teil 1 BIPV-Module
photovoltaïques intégrés au bâtiment
This draft European Standard is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2024-03-08.
It has been drawn up by CLC/TC 82.
If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 74287 Ref. No. prEN 50583-1 E
prEN 50583-1:2023 (E)

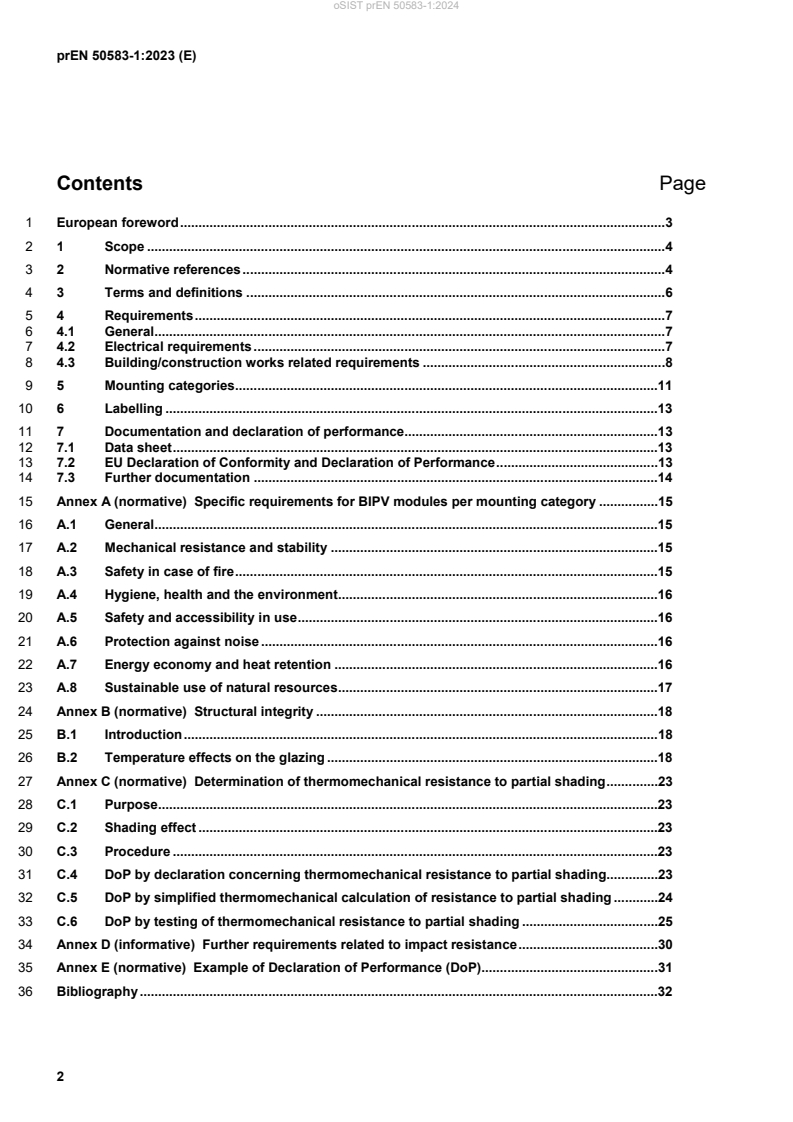

Contents Page
1 European foreword . 3
2 1 Scope . 4
3 2 Normative references . 4
4 3 Terms and definitions . 6
5 4 Requirements . 7
6 4.1 General . 7
7 4.2 Electrical requirements . 7
8 4.3 Building/construction works related requirements . 8
9 5 Mounting categories .11
10 6 Labelling .13
11 7 Documentation and declaration of performance.13
12 7.1 Data sheet .13
13 7.2 EU Declaration of Conformity and Declaration of Performance .13
14 7.3 Further documentation .14
15 Annex A (normative) Specific requirements for BIPV modules per mounting category .15
16 A.1 General .15
17 A.2 Mechanical resistance and stability .15
18 A.3 Safety in case of fire .15
19 A.4 Hygiene, health and the environment .16
20 A.5 Safety and accessibility in use .16
21 A.6 Protection against noise .16
22 A.7 Energy economy and heat retention .16
23 A.8 Sustainable use of natural resources .17
24 Annex B (normative) Structural integrity .18
25 B.1 Introduction .18
26 B.2 Temperature effects on the glazing .18
27 Annex C (normative) Determination of thermomechanical resistance to partial shading .23
28 C.1 Purpose .23
29 C.2 Shading effect .23
30 C.3 Procedure .23
31 C.4 DoP by declaration concerning thermomechanical resistance to partial shading.23
32 C.5 DoP by simplified thermomechanical calculation of resistance to partial shading .24
33 C.6 DoP by testing of thermomechanical resistance to partial shading .25
34 Annex D (informative) Further requirements related to impact resistance .30
35 Annex E (normative) Example of Declaration of Performance (DoP).31
36 Bibliography .32
prEN 50583-1:2023 (E)
37 European foreword
38 This document (prEN 50583-1:2023 has been prepared by CLC/TC 82 “Solar photovoltaic energy systems”.
39 This document is currently submitted to the Enquiry.
40 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
41 This document will supersede EN 50583-1: 2016.
42 This document is read in conjunction with EN 50583-2:2016.
prEN 50583-1:2023 (E)
43 1 Scope
44 This document applies to photovoltaic modules that contain at least one glass pane and which are used as
45 construction products. It focuses on the properties of these photovoltaic modules relevant to essential building
46 requirements as specified in the European Construction Product Regulation CPR 305/2011, and the applicable
47 electro-technical requirements as stated in the Low Voltage Directive 2014/35/EU / or CENELEC standards.
48 The CE mark of building integrated photovoltaic (BIPV) modules will thus state properties based on both
49 documents as they are both equally applicable.
50 This document references international standards, technical reports and guidelines. For some mounting
51 categories, in addition, national standards (or regulations) for building products may apply in individual countries,
52 which are not explicitly referenced here and for which harmonized European Standards are not yet available.
53 The document is addressed to manufacturers, planners, system designers, installers, testing institutes and
54 building authorities.
55 This document does not address concentrating or building-attached photovoltaic modules (BAPV).
56 This document addresses requirements on the PV modules in the specific ways they are intended to be
57 mounted. Separable mounting structures are within the scope of EN 50583-2.
58 NOTE For the definition of building-attached photovoltaic modules (BAPV) refer to Clause 3.
59 2 Normative references
60 The following documents, in whole or in part, are normatively referenced in this document or its annexes and
61 are indispensable for its application. For dated references, only the edition cited applies. For undated
62 references, the latest edition of the referenced document (including any amendments) applies.
63 EN 356, Glass in building - Security glazing - Testing and classification of resistance against manual attack
64 prEN 410:2023, Glass in building - Determination of luminous and solar characteristics of glazing
65 EN 572-9, Glass in building - Basic soda lime silicate glass products - Part 9: Evaluation of conformity/Product
66 standard
67 EN 673, Glass in building - Determination of thermal transmittance (U value) - Calculation method
68 EN 674, Glass in building - Determination of thermal transmittance (U value) - Guarded hot plate method
69 EN 675, Glass in building - Determination of thermal transmittance (U value) - Heat flow meter method
70 EN 1063, Glass in building - Security glazing - Testing and classification of resistance against bullet attack
71 EN 1096-4, Glass in building - Coated glass - Part 4: Product standard
72 EN 1279-5, Glass in building - Insulating glass units - Part 5: Product standard
73 EN 1863-2, Glass in building - Heat strengthened soda lime silicate glass - Part 2: Evaluation of
74 conformity/Product standard
75 EN 1990, Eurocode - Basis of structural and geotechnical design
76 EN 1991 (all parts), Eurocode 1 - Actions on structures
77 EN 1992, (all parts), Eurocode 2 - Design of concrete structures
78 EN 1993, (all parts), Eurocode 3: Design of steel structures
79 EN 1994, (all parts), Eurocode 4 - Design of composite steel and concrete structures
prEN 50583-1:2023 (E)
