EUROPEAN STANDARD
EN 61008-1/A12
NORME EUROPÉENNE
February 2009
EUROPÄISCHE NORM
ICS 29.120.50
English version
Residual current operated circuit-breakers
without integral overcurrent protection
for household and similar uses (RCCB's) -
Part 1: General rules
Interrupteurs automatiques  Fehlerstrom-/Differenzstrom-
à courant différentiel résiduel Schutzschalter ohne eingebauten
pour usages domestiques et analogues Überstromschutz (RCCBs)
sans dispositif de protection für Hausinstallationen
contre les surintensités incorporées (ID) - und für ähnliche Anwendungen -
Partie 1: Règles générales Teil 1: Allgemeine Anforderungen

This amendment A12 modifies the European Standard EN 61008-1:2004; it was approved by CENELEC on
2008-12-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61008-1:2004/A12:2009 E

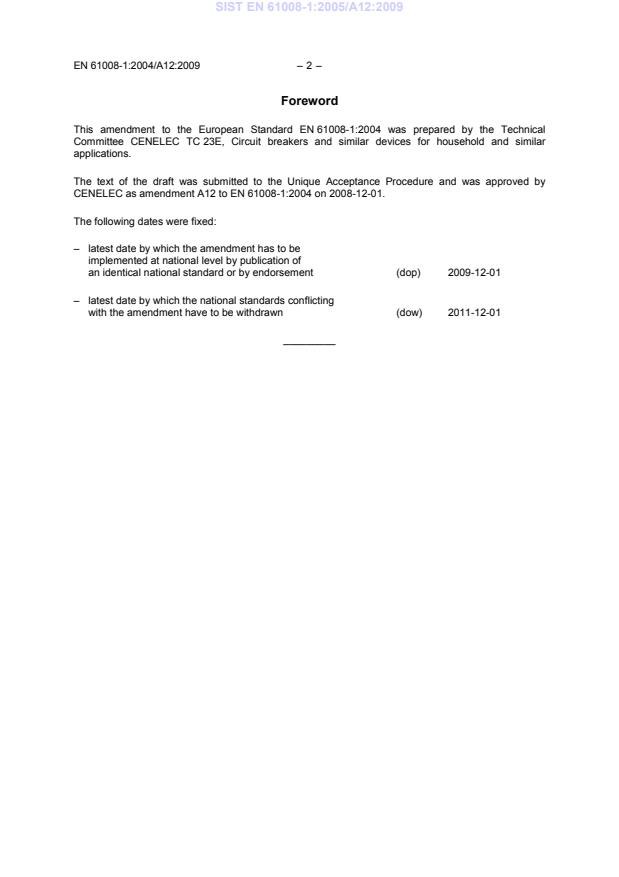

Foreword
This amendment to the European Standard EN 61008-1:2004 was prepared by the Technical
Committee CENELEC TC 23E, Circuit breakers and similar devices for household and similar
applications.
The text of the draft was submitted to the Unique Acceptance Procedure and was approved by
CENELEC as amendment A12 to EN 61008-1:2004 on 2008-12-01.
The following dates were fixed:
– latest date by which the amendment has to be
implemented at national level by publication of
an identical national standard or by endorsement (dop) 2009-12-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2011-12-01
_________
– 3 – EN 61008-1:2004/A12:2009

Contents Add:
8.Z2 Electromagnetic compatibility (EMC)

9.Z2 Electromagnetic compatibility (EMC)
8 Requirements for construction and operation
8.Z1 Replace the second paragraph by the following:
Compliance is checked by the tests of 9.Z1.
8.Z2 Add the following new Subclause 8.Z2:
8.Z2 Electromagnetic compatibility (EMC)
RCCBs shall comply with the relevant EMC requirements.

Compliance is checked by the tests of 9.Z2.
9 Tests
Replace the last paragraph by the following new paragraph:
9.21.1.4
The half-wave current I , starting from zero, being steadily increased at an approximate
rate of 1,4 I /30 A per second for RCCBs with I > 0,01 A and 2 I /30 A per second
∆n ∆n ∆n
for RCCBs with I ≤ 0,01 A, the device shall trip before this half-wave current I reaches
∆n 1
a value not exceeding 1,4 I or 2 I respectively.
∆n ∆n
9.Z2 Add the following new Subclause 9.Z2:
9.Z2 Electromagnetic compatibility (EMC)
EMC tests shall be performed according to EN 61543 as follows:
– Tests listed in the following table are covered by this standard and have not to be
repeated:
Table Z4 – Tests to be applied for EMC

Reference to Tables 4 and 5
Electromagnetic phenomena Tests of EN 61008-1
of EN 61543
T 1.3 Voltage amplitude variations 9.9.5 and 9.17
T 1.4 Voltage unbalance 9.9.5 and 9.17
T 1.5 Power frequency variations 9.2
T 1.8 Magnetic fields 9.11 and 9.18
T 2.4 Current oscillatory transients 9.19

– The remaining tests in Tables 4, 5 and 6 of EN 61543 shall be done according to

the test sequences Z1, Z2 and Z3 listed in Annex A of this standard.
For devices containing a continuously operating oscillator, the test of EN 55014 shall be
carried out on the samples prior to the tests of EN 61543.
Figure Z3 Replace the title with ‘Figure Z3 – Test cycle for low temperature test (9.Z1)’

Annex A Test sequence and
...
