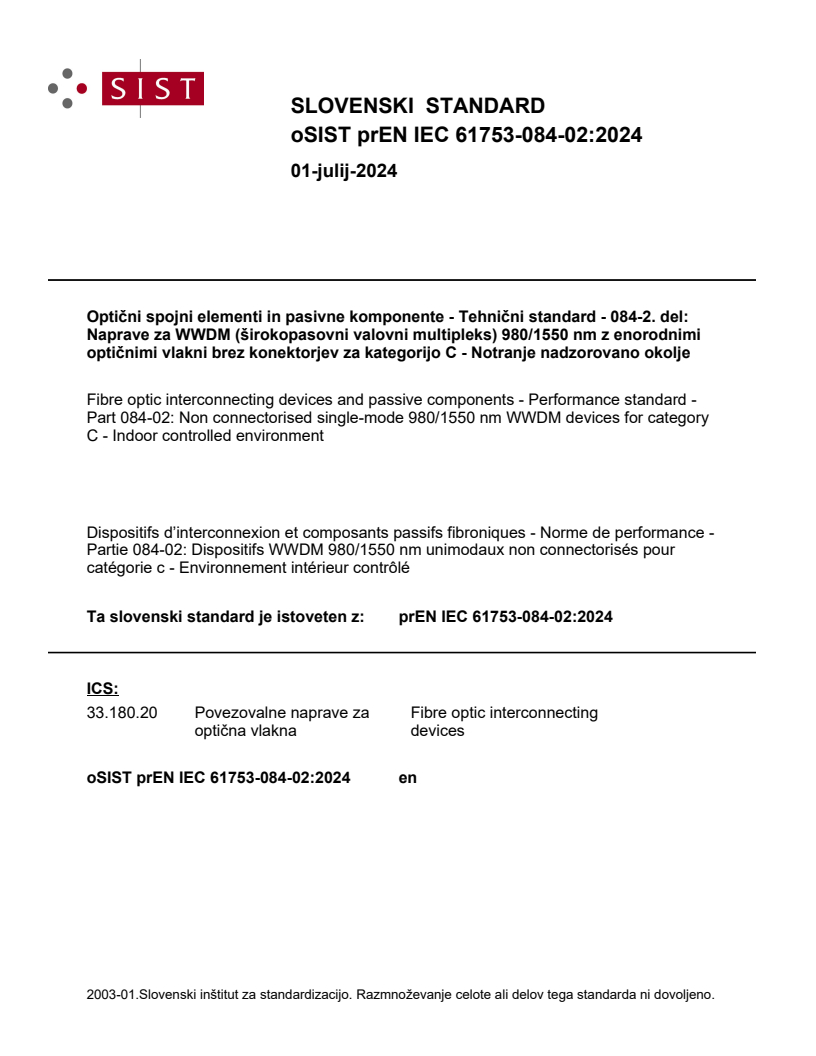

EN IEC 61753-084-02:2025

SLOVENSKI STANDARD
oSIST prEN IEC 61753-084-02:2024
01-julij-2024
Optični spojni elementi in pasivne komponente - Tehnični standard - 084-2. del:
Naprave za WWDM (širokopasovni valovni multipleks) 980/1550 nm z enorodnimi
optičnimi vlakni brez konektorjev za kategorijo C - Notranje nadzorovano okolje
Fibre optic interconnecting devices and passive components - Performance standard -
Part 084-02: Non connectorised single-mode 980/1550 nm WWDM devices for category
C - Indoor controlled environment
Dispositifs d’interconnexion et composants passifs fibroniques - Norme de performance -
Partie 084-02: Dispositifs WWDM 980/1550 nm unimodaux non connectorisés pour
catégorie c - Environnement intérieur contrôlé
Ta slovenski standard je istoveten z: prEN IEC 61753-084-02:2024
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
oSIST prEN IEC 61753-084-02:2024 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

oSIST prEN IEC 61753-084-02:2024

oSIST prEN IEC 61753-084-02:2024

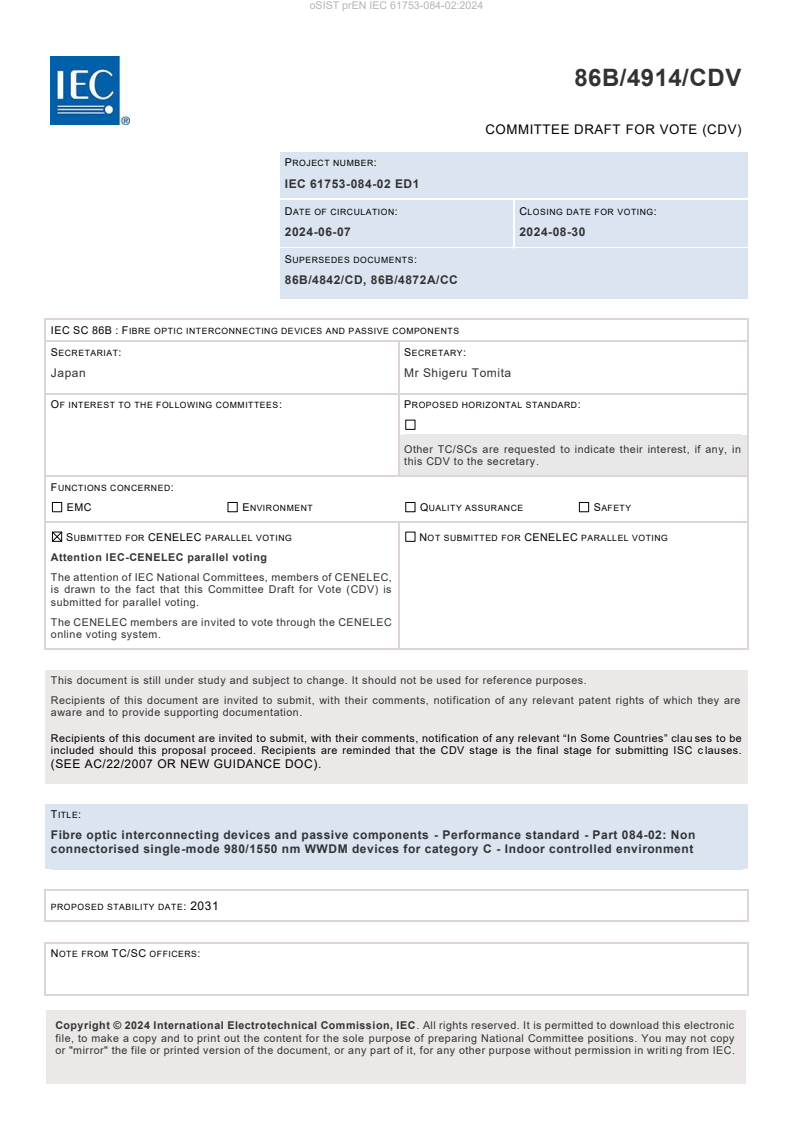

86B/4914/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 61753-084-02 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2024-06-07 2024-08-30
SUPERSEDES DOCUMENTS:
86B/4842/CD, 86B/4872A/CC
IEC SC 86B : FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE COMPONENTS
SECRETARIAT: SECRETARY:
Japan Mr Shigeru Tomita
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:

Other TC/SCs are requested to indicate their interest, if any, in
this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of CENELEC,
is drawn to the fact that this Committee Draft for Vote (CDV) is
submitted for parallel voting.
The CENELEC members are invited to vote through the CENELEC
online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some Countries” clau ses to be
included should this proposal proceed. Recipients are reminded that the CDV stage is the final stage for submitting ISC c lauses.
(SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Fibre optic interconnecting devices and passive components - Performance standard - Part 084-02: Non
connectorised single-mode 980/1550 nm WWDM devices for category C - Indoor controlled environment

PROPOSED STABILITY DATE: 2031
NOTE FROM TC/SC OFFICERS:
file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions. You may not copy
or "mirror" the file or printed version of the document, or any part of it, for any other purpose without permission in writi ng from IEC.

oSIST prEN IEC 61753-084-02:2024
86B/4914/CDV - 2 - IEC CDV 61753-084-02 © IEC 2024
CONTENTS
FOREWORD . 2
1 Scope . 3
2 Normative references . 3
3 Terms and definitions . 4
4 Tests . 5
5 Test reports . 5
6 Performance requirements . 5
6.1 Reference components . 5
6.2 Dimensions . 5
6.3 Sample size . 5
6.4 Test details and requirements . 5
Annex A (normative) Sample size . 11
Bibliography . 12

Table 1 – Single-mode spectral bands . 5
Table 2 – Test details and requirements for category C . 6
Table A.1 – Sample size of tests . 11

oSIST prEN IEC 61753-084-02:2024
IEC CDV 61753-084-02 © IEC 2024 - 3 - 86B/4914/CDV

2 FOREWORD
3 1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
4 all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
5 international co-operation on all questions concerning standardization in the electrical and electronic fields. To
6 this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
7 entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
8 participate in this preparatory work. International, governmental and non-governmental organizations liaising with
9 the IEC also participate in this preparation. The IEC collaborates closely with the International Organization for
10 Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
11 2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
12 international consensus of opinion on the relevant subjects since each technical committee has representation
13 from all interested National Committees.
14 3) The documents produced have the form of recommendations for international use and are published in the form
15 of standards, technical specifications, technical reports or guides and they are accepted by the National
16 Committees in that sense.
17 4) In order to promote international unification, IEC National Committees undertake to apply IEC International
18 Standards transparently to the maximum extent possible in their national and regional standards. Any divergence
19 between the IEC Standard and the corresponding national or regional standard shall be clearly indicated in the
20 latter.
21 5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
22 equipment declared to be in conformity with one of its standards.
23 6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
24 of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
26 International Standard IEC 61753-084-02 has been prepared by subcommittee 86B: Fibre optic
27 interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
28 This first edition cancels and replaces the first edition of IEC 61753-084-2 published in 2007
29 and constitutes a technical revision. The specific technical changes from the previous edition
30 are as follows:
32 a) Change of test conditions harmonizing with IEC 61753-1: 2018.
35 The text of this document is based on the following documents:
FDIS Report on voting
86B/XX/FDIS 86B/XX/RVD
37 Full information on the voting for the approval of this document can be found in the report on
38 voting indicated in the above table.
39 This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
40 The committee has decided that the contents of this publication will remain unchanged until
41 ______. At this date, the publication will be
42 • reconfirmed;
43 • withdrawn;
44 • replaced by a revised edition, or
45 • amended.
oSIST prEN IEC 61753-084-02:2024
86B/4914/CDV - 4 - IEC CDV 61753-084-02 © IEC 2024
47 FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE COMPONENTS
48 PERFORMANCE STANDARD
50 Part 084-02: Non connectorised single-mode 980/1550 nm
51 WWDM devices for category C – Indoor controlled environment
52 1  Scope
53 This part of IEC 61753 contains the minimum initial performance, test and measurement
54 requirements and severities which a fibre optic pigtailed 980 / 1 550 nm wide wavelength
55 division multiplexing (WWDM) device must satisfy in order to be categorized as meeting the
56 requirements of category C (Indoor controlled environment), as defined in Annex A of IEC
