EN 15186:2012

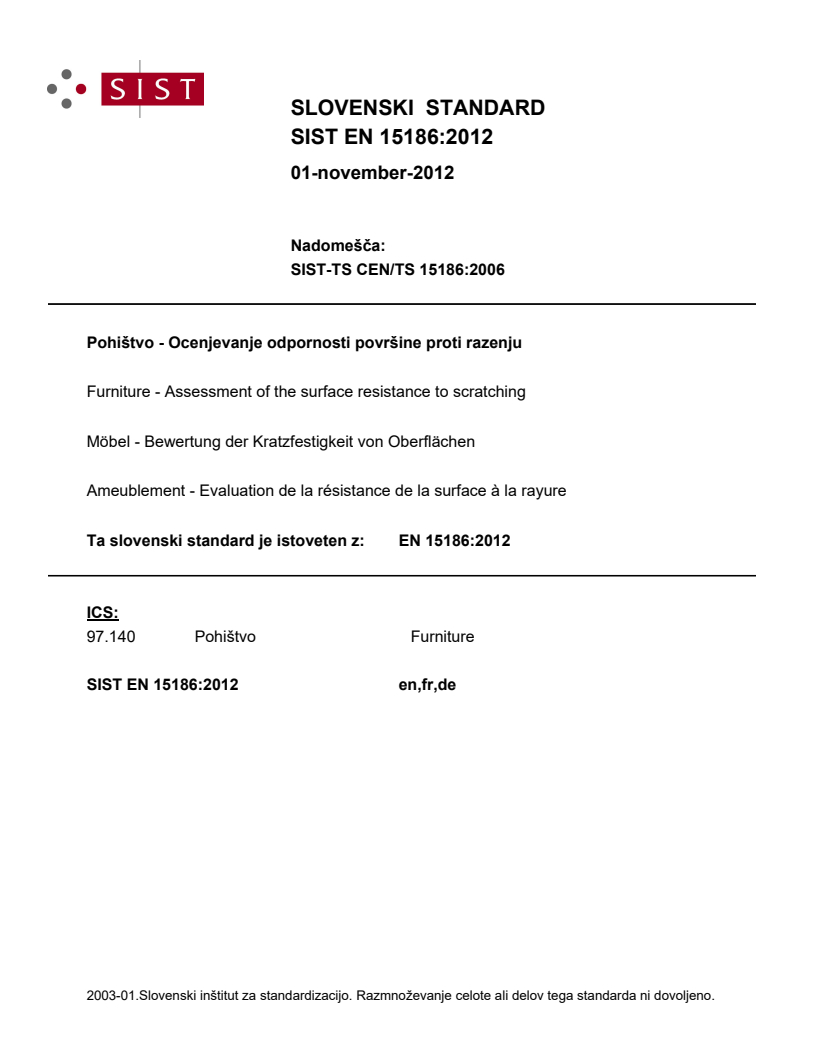

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Pohištvo - Ocenjevanje odpornosti površine proti razenjuMöbel - Bewertung der Kratzfestigkeit von OberflächenAmeublement - Evaluation de la résistance de la surface à la rayureFurniture - Assessment of the surface resistance to scratching97.140PohištvoFurnitureICS:Ta slovenski standard je istoveten z:EN 15186:2012SIST EN 15186:2012en,fr,de01-november-2012SIST EN 15186:2012SLOVENSKI
STANDARDSIST-TS CEN/TS 15186:20061DGRPHãþD

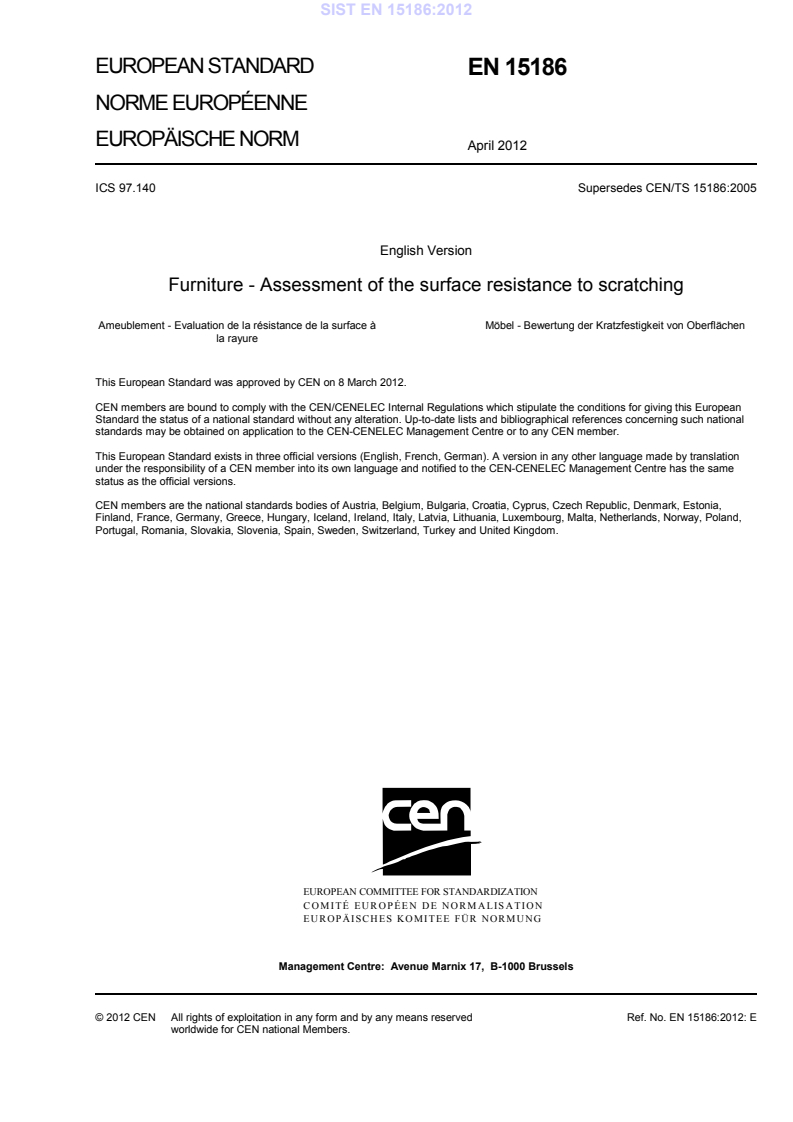

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15186
April 2012 ICS 97.140 Supersedes CEN/TS 15186:2005English Version
Furniture - Assessment of the surface resistance to scratching
Ameublement - Evaluation de la résistance de la surface à la rayure
Möbel - Bewertung der Kratzfestigkeit von Oberflächen This European Standard was approved by CEN on 8 March 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15186:2012: ESIST EN 15186:2012

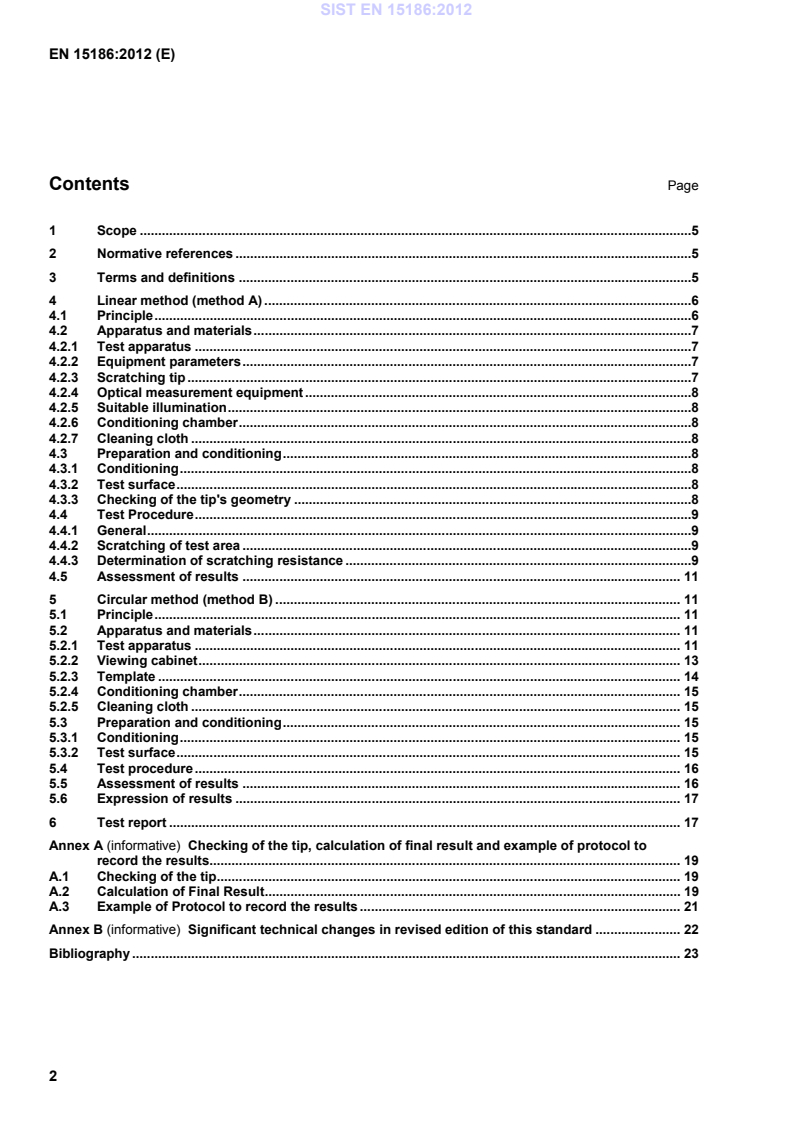

Checking of the tip, calculation of final result and example of protocol to record the results. 19A.1 Checking of the tip. 19A.2 Calculation of Final Result . 19A.3 Example of Protocol to record the results . 21Annex B (informative)
Significant technical changes in revised edition of this standard . 22Bibliography . 23SIST EN 15186:2012

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes CEN/TS 15186:2005. Regarding the significant technical changes that have been made in this new edition of EN 15186, see the informative Annex B. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 15186:2012

Method A is suitable for all types of surface coatings and coverings except for melamine faced boards (according to EN 14322) and HPL (according to EN 438-1). It simulates measurable penetrating and/or deforming scratches. Method B is suitable for all types of surfaces. It simulates first visible scratches that may only be a change in the gloss. The test is intended to be carried out on a part of finished furniture. It can however be carried out on test panels of the same material, finished in an identical manner to the finished product, and of a size sufficient to meet the requirements of the test. It is essential that the test be carried out on unused surfaces. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN ISO 1518-1, Paint and varnishes  Determination of scratch resistance – Part 1: constant loading method (ISO 1518-1) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 test surface part of the test panel
3.2 test panel panel including the test surface Note 1 to entry: The panel may be cut from a finished item of furniture or it may be a separate panel produced in the same manner as the finished item of furniture. 3.3 test area part of the test surface under the equipment, where the measurement is carried out 3.4 scratching tip 3.4.1 method A needle with a point of defined geometry SIST EN 15186:2012

Note 1 to entry: See Figure A.2 in the informative Annex A. 4 Linear method (method A) 4.1 Principle Surface scratching resistance is defined as the minimum load in N (Newtons) applied to the tip with specified geometry, which produces a specified scratch width (see 4.4.2). The width of the scratching trace is the result of the assessment of the series of scratches produced by the tip. SIST EN 15186:2012

4.2.3 Scratching tip Scratching tip made of diamond, with a radius (R) of (0,30 ± 0,01) mm.
The coupling between the spherical part of the tool and the truncated cone section shall allow the width of the trace produced by the tool on the test area to be higher than 0,30 mm, without disturbing this truncated cone section. An example of this tool is shown in Figure 1. The tip shall be mounted in the holder with the flat part on the leading side of the shank facing the worki
...
