EN 15157:2006
(Main)Advanced technical ceramics - Mechanical properties of ceramic composites at high temperature in air at atmospheric pressure - Determination of fatigue properties at constant amplitude
General Information
- Abstract
This European Standard specifies the conditions for the determination of constant-amplitude of load or strain in uniaxial tension/tension or in uniaxial tension/compression cyclic fatigue properties of ceramic matrix composite materials (CMCs) with fibre reinforcement for temperature up to 1 700 °C in air at atmospheric pressure.
This European Standard applies to all ceramic matrix composites with fibre reinforcement, unidirectional (1D), bi-directional (2D), and tri-directional (xD, where 2 < x 3).
The purpose of this European Standard is to determine the behaviour of CMC when subjected to mechanical fatigue and oxidation simultaneously. Tests for the determination of fatigue properties at high temperature in inert atmospheres differ from those in oxidative atmospheres. Contrary to an inert atmosphere, damage in an oxidative atmosphere accumulates due to the influence of purely mechanical fatigue and to chemical effects of the material’s oxidation.
- Status
- Withdrawn
- Publication Date
- 08-Aug-2006
- Withdrawal Date
- 22-Sep-2026
- Technical Committee
- CEN/TC 184 - Advanced technical ceramics
- Drafting Committee
- CEN/TC 184/SC 1 - Ceramic composites
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 20-Apr-2016
- Completion Date
- 23-Sep-2026
Relations
- Effective Date
- 27-Apr-2016
- Effective Date
- 25-Aug-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Frequently Asked Questions
EN 15157:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Advanced technical ceramics - Mechanical properties of ceramic composites at high temperature in air at atmospheric pressure - Determination of fatigue properties at constant amplitude". This standard covers: This European Standard specifies the conditions for the determination of constant-amplitude of load or strain in uniaxial tension/tension or in uniaxial tension/compression cyclic fatigue properties of ceramic matrix composite materials (CMCs) with fibre reinforcement for temperature up to 1 700 °C in air at atmospheric pressure. This European Standard applies to all ceramic matrix composites with fibre reinforcement, unidirectional (1D), bi-directional (2D), and tri-directional (xD, where 2 < x 3). The purpose of this European Standard is to determine the behaviour of CMC when subjected to mechanical fatigue and oxidation simultaneously. Tests for the determination of fatigue properties at high temperature in inert atmospheres differ from those in oxidative atmospheres. Contrary to an inert atmosphere, damage in an oxidative atmosphere accumulates due to the influence of purely mechanical fatigue and to chemical effects of the material’s oxidation.
This European Standard specifies the conditions for the determination of constant-amplitude of load or strain in uniaxial tension/tension or in uniaxial tension/compression cyclic fatigue properties of ceramic matrix composite materials (CMCs) with fibre reinforcement for temperature up to 1 700 °C in air at atmospheric pressure. This European Standard applies to all ceramic matrix composites with fibre reinforcement, unidirectional (1D), bi-directional (2D), and tri-directional (xD, where 2 < x 3). The purpose of this European Standard is to determine the behaviour of CMC when subjected to mechanical fatigue and oxidation simultaneously. Tests for the determination of fatigue properties at high temperature in inert atmospheres differ from those in oxidative atmospheres. Contrary to an inert atmosphere, damage in an oxidative atmosphere accumulates due to the influence of purely mechanical fatigue and to chemical effects of the material’s oxidation.
EN 15157:2006 is classified under the following ICS (International Classification for Standards) categories: 81.060.30 - Advanced ceramics. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 15157:2006 has the following relationships with other standards: It is inter standard links to EN ISO 17142:2016, ISO 3611:1978, EN 60584-1:2013, CEN/TR 13233:2007, EN ISO 14544:2025, EN 658-1:1998, EN ISO 7500-1:2018, EN ISO 9513:2012, EN ISO 14574:2025, ENV 1186-12:1995, EN 4075:2008, EN 4075:2025. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 15157:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

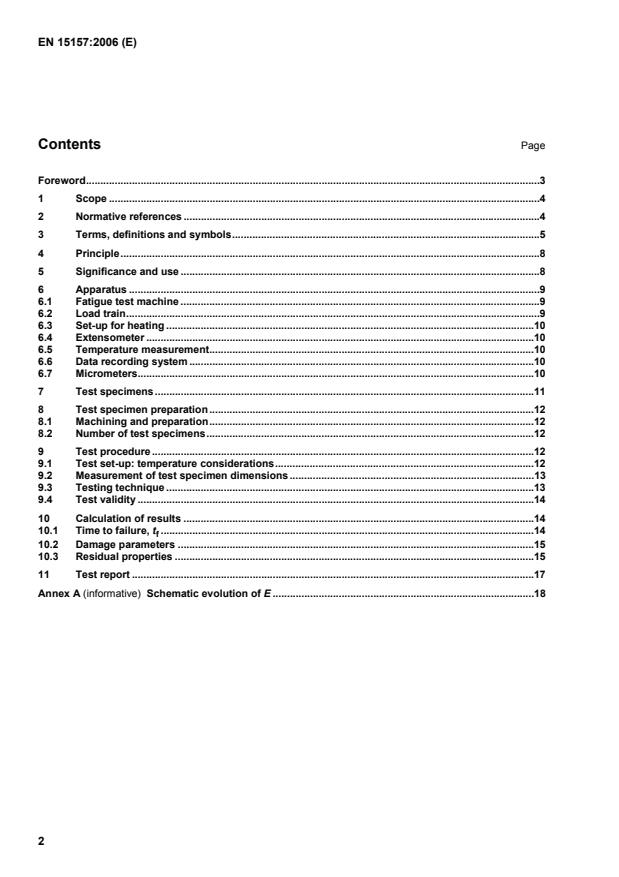

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Advanced technical ceramics - Mechanical properties of ceramic composites at high temperature in air at atmospheric pressure - Determination of fatigue properties at constant amplitudeCéramiques techniques avancées - Propriétés mécaniques des céramiques composites a haute température sous air a pression atmosphérique - Détermination des propriétés de fatigue a amplitude constanteHochleistungskeramik - Mechanische Eigenschaften von keramischen Verbundwerkstoffen bei hoher Temperatur in Luft bei Atmosphärendruck - Bestimmung der Dauerschwingeigenschaften bei Belastung mit konstanter AmplitudeTa slovenski standard je istoveten z:EN 15157:2006SIST EN 15157:2007en,fr,de81.060.30Sodobna keramikaAdvanced ceramicsICS:SLOVENSKI
STANDARDSIST EN 15157:200701-januar-2007
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15157August 2006ICS 81.060.30 English VersionAdvanced technical ceramics - Mechanical properties of ceramiccomposites at high temperature in air at atmospheric pressure -Determination of fatigue properties at constant amplitudeCéramiques techniques avancées - Propriétés mécaniquesdes céramiques composites à haute température dans l'airà pression atmosphérique - Détermination des propriétésde fatigue à amplitude constanteHochleistungskeramik - Mechanische Eigenschaften vonkeramischen Verbundwerkstoffen bei hoher Temperatur inLuft bei Atmosphärendruck - Bestimmung derDauerschwingeigenschaften bei Belastung mit konstanterAmplitudeThis European Standard was approved by CEN on 14 July 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15157:2006: E
Schematic evolution of E.18
1 To be published in 2007
Key 1 time 6 mean 2 control parameter (test mode) 7 peak (maximum) 3 triangular form 8 valley (minimum) 4 trapezoidal form 9 amplitude 5 sinusoidal form 10 range Figure 1 — Cyclic fatigue nomenclature and wave forms 3.10 Cyclic fatigue phenomena 3.10.1 load ratio, R in cyclic fatigue loading, algebraic ratio of the two loading parameters of a cycle NOTE The most widely used ratios are: R = (minimum load/maximum load) or R = (valley load/peak load). 3.10.2 stress cyclic fatigue 3.10.2.1 maximum stress, σσσσmax maximum applied stress during cyclic fatigue 3.10.2.2 minimum stress, σσσσmin minimum applied stress during cyclic fatigue
...
