EN 14758-1:2012
(Main)Plastics piping systems for non-pressure underground drainage and sewerage - Polypropylene with mineral modifiers (PP-MD) - Part 1: Specifications for pipes, fittings and the system
General Information
- Abstract
This European Standard specifies the requirements for solid-wall pipes, fittings and the system of piping systems made from mineral modified polypropylene materials (PP-MD) in the field of non-pressure underground drainage and sewerage outside the building structure (application area code "U"), and non- pressure underground drainage and sewerage for both buried in ground within the building structure (application area code "D") and outside the building structure.
This is reflected in the marking of products by "U" and "UD".
It also specifies the test parameters for the test methods referred to in this European Standard.
This European Standard covers a range of nominal sizes, a range of pipe series/stiffness classes and gives recommendations concerning colours.
NOTE 1 It is the responsibility of the purchaser or specifier to make the appropriate selection from these aspects, taking into account their particular requirements and any relevant national regulations and installation practices or codes.
In conjunction with Part 2 and Part 3 of EN 14758 (see Foreword) it is applicable to PP-MD pipes and fittings, their elastomeric sealing ring joints and to joints with components of other plastics and non-plastics materials intended to be used for buried piping systems for non-pressure underground drainage and sewerage.
This European Standard is applicable to PP-MD pipes with or without an integral socket.
NOTE 2 The fittings can be manufactured by injection-moulding or be fabricated from pipes and/or mouldings.
NOTE 3 Requirements and limiting values for application area code "D" are given in Table 4, Table 7 and Table 13.
NOTE 4 Pipes, fittings and other components conforming to any of the plastics product standards listed in Annex B can be used with pipes and fittings conforming to this European Standard, when they conform to the requirements for joint dimensions given in Clause 6 and to the requirements of Table 13.
- Status
- Withdrawn
- Publication Date
- 06-Mar-2012
- Withdrawal Date
- 22-Sep-2026
- Technical Committee
- CEN/TC 155 - Plastics piping systems and ducting systems
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 05-Apr-2023
- Completion Date
- 23-Sep-2026
Relations
- Effective Date
- 12-Jun-2010
- Effective Date
- 17-Jun-2020
- Effective Date
- 25-Aug-2026
- Effective Date
- 25-Aug-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 28-Jan-2026
- Refers
EN 450-1:2005 - Fly ash for concrete - Part 1: Definition, specifications and conformity criteria - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Refers
EN ISO 13967:2009 - Thermoplastics fittings - Determination of ring stiffness (ISO 13967:2009) - Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
Institut za varilstvo d.o.o. (Welding Institute)
Slovenia's leading welding institute since 1952. ISO 3834, EN 1090, pressure equipment certification, NDT personnel, welder qualification. Only IIW Au
Zavod za gradbeništvo Slovenije (ZAG) - Inšpekcija
ZAG inspection body for construction products, structures, and materials.
Sponsored listings
Frequently Asked Questions
EN 14758-1:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Plastics piping systems for non-pressure underground drainage and sewerage - Polypropylene with mineral modifiers (PP-MD) - Part 1: Specifications for pipes, fittings and the system". This standard covers: This European Standard specifies the requirements for solid-wall pipes, fittings and the system of piping systems made from mineral modified polypropylene materials (PP-MD) in the field of non-pressure underground drainage and sewerage outside the building structure (application area code "U"), and non- pressure underground drainage and sewerage for both buried in ground within the building structure (application area code "D") and outside the building structure. This is reflected in the marking of products by "U" and "UD". It also specifies the test parameters for the test methods referred to in this European Standard. This European Standard covers a range of nominal sizes, a range of pipe series/stiffness classes and gives recommendations concerning colours. NOTE 1 It is the responsibility of the purchaser or specifier to make the appropriate selection from these aspects, taking into account their particular requirements and any relevant national regulations and installation practices or codes. In conjunction with Part 2 and Part 3 of EN 14758 (see Foreword) it is applicable to PP-MD pipes and fittings, their elastomeric sealing ring joints and to joints with components of other plastics and non-plastics materials intended to be used for buried piping systems for non-pressure underground drainage and sewerage. This European Standard is applicable to PP-MD pipes with or without an integral socket. NOTE 2 The fittings can be manufactured by injection-moulding or be fabricated from pipes and/or mouldings. NOTE 3 Requirements and limiting values for application area code "D" are given in Table 4, Table 7 and Table 13. NOTE 4 Pipes, fittings and other components conforming to any of the plastics product standards listed in Annex B can be used with pipes and fittings conforming to this European Standard, when they conform to the requirements for joint dimensions given in Clause 6 and to the requirements of Table 13.
This European Standard specifies the requirements for solid-wall pipes, fittings and the system of piping systems made from mineral modified polypropylene materials (PP-MD) in the field of non-pressure underground drainage and sewerage outside the building structure (application area code "U"), and non- pressure underground drainage and sewerage for both buried in ground within the building structure (application area code "D") and outside the building structure. This is reflected in the marking of products by "U" and "UD". It also specifies the test parameters for the test methods referred to in this European Standard. This European Standard covers a range of nominal sizes, a range of pipe series/stiffness classes and gives recommendations concerning colours. NOTE 1 It is the responsibility of the purchaser or specifier to make the appropriate selection from these aspects, taking into account their particular requirements and any relevant national regulations and installation practices or codes. In conjunction with Part 2 and Part 3 of EN 14758 (see Foreword) it is applicable to PP-MD pipes and fittings, their elastomeric sealing ring joints and to joints with components of other plastics and non-plastics materials intended to be used for buried piping systems for non-pressure underground drainage and sewerage. This European Standard is applicable to PP-MD pipes with or without an integral socket. NOTE 2 The fittings can be manufactured by injection-moulding or be fabricated from pipes and/or mouldings. NOTE 3 Requirements and limiting values for application area code "D" are given in Table 4, Table 7 and Table 13. NOTE 4 Pipes, fittings and other components conforming to any of the plastics product standards listed in Annex B can be used with pipes and fittings conforming to this European Standard, when they conform to the requirements for joint dimensions given in Clause 6 and to the requirements of Table 13.
EN 14758-1:2012 is classified under the following ICS (International Classification for Standards) categories: 23.040.01 - Pipeline components and pipelines in general; 93.030 - External sewage systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14758-1:2012 has the following relationships with other standards: It is inter standard links to EN 14758-1:2005+A1:2009, EN 14758-1:2023, ISO 3127:1994, ISO 11173:1994, ISO 13264:2010, ISO 13259:2010, ISO 13257:2010, ISO 13263:2010, EN ISO 13968:2008, EN 450-1:2005, EN ISO 1043-1:2011, EN 681-1:1996, EN ISO 1133:2005, EN ISO 1167-2:2006, EN ISO 13967:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14758-1:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

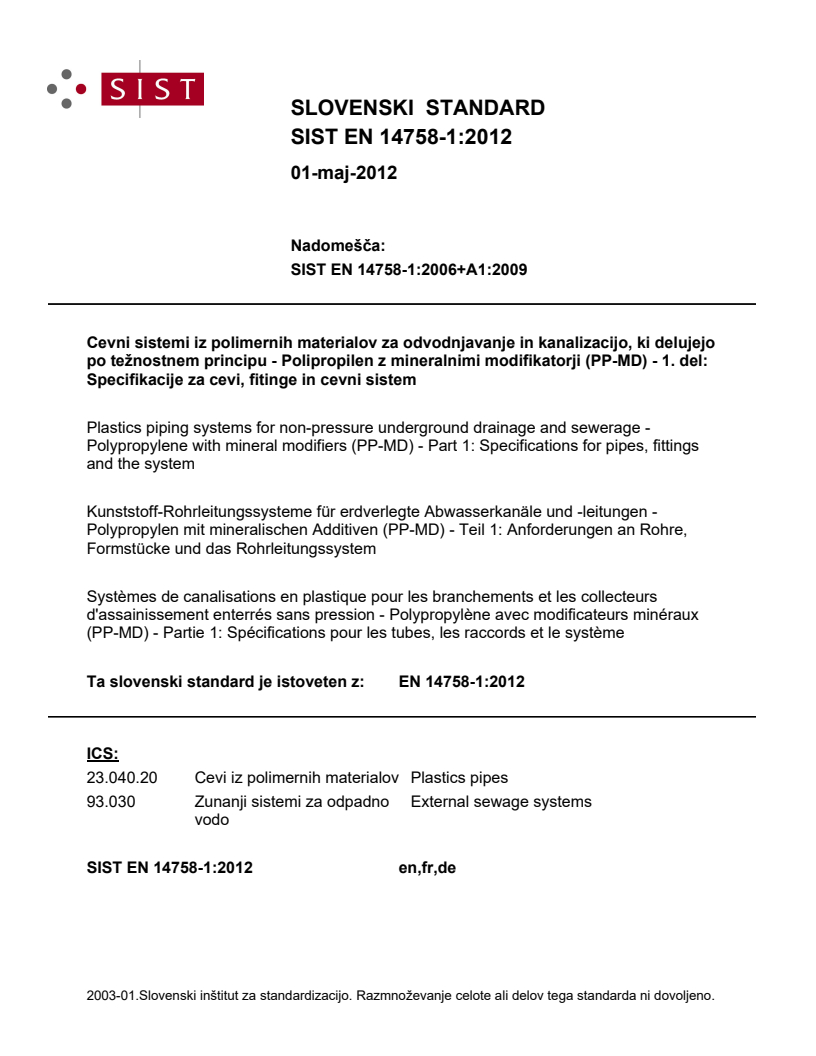

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Cevni sistemi iz polimernih materialov za odvodnjavanje in kanalizacijo, ki delujejo po težnostnem principu - Polipropilen z mineralnimi modifikatorji (PP-MD) - 1. del: Specifikacije za cevi, fitinge in cevni sistemKunststoff-Rohrleitungssysteme für erdverlegte Abwasserkanäle und -leitungen - Polypropylen mit mineralischen Additiven (PP-MD) - Teil 1: Anforderungen an Rohre, Formstücke und das RohrleitungssystemSystèmes de canalisations en plastique pour les branchements et les collecteurs d'assainissement enterrés sans pression - Polypropylène avec modificateurs minéraux (PP-MD) - Partie 1: Spécifications pour les tubes, les raccords et le systèmePlastics piping systems for non-pressure underground drainage and sewerage - Polypropylene with mineral modifiers (PP-MD) - Part 1: Specifications for pipes, fittings and the system93.030Zunanji sistemi za odpadno vodoExternal sewage systems23.040.20Cevi iz polimernih materialovPlastics pipesICS:Ta slovenski standard je istoveten z:EN 14758-1:2012SIST EN 14758-1:2012en,fr,de01-maj-2012SIST EN 14758-1:2012SLOVENSKI
STANDARDSIST EN 14758-1:2006+A1:20091DGRPHãþD

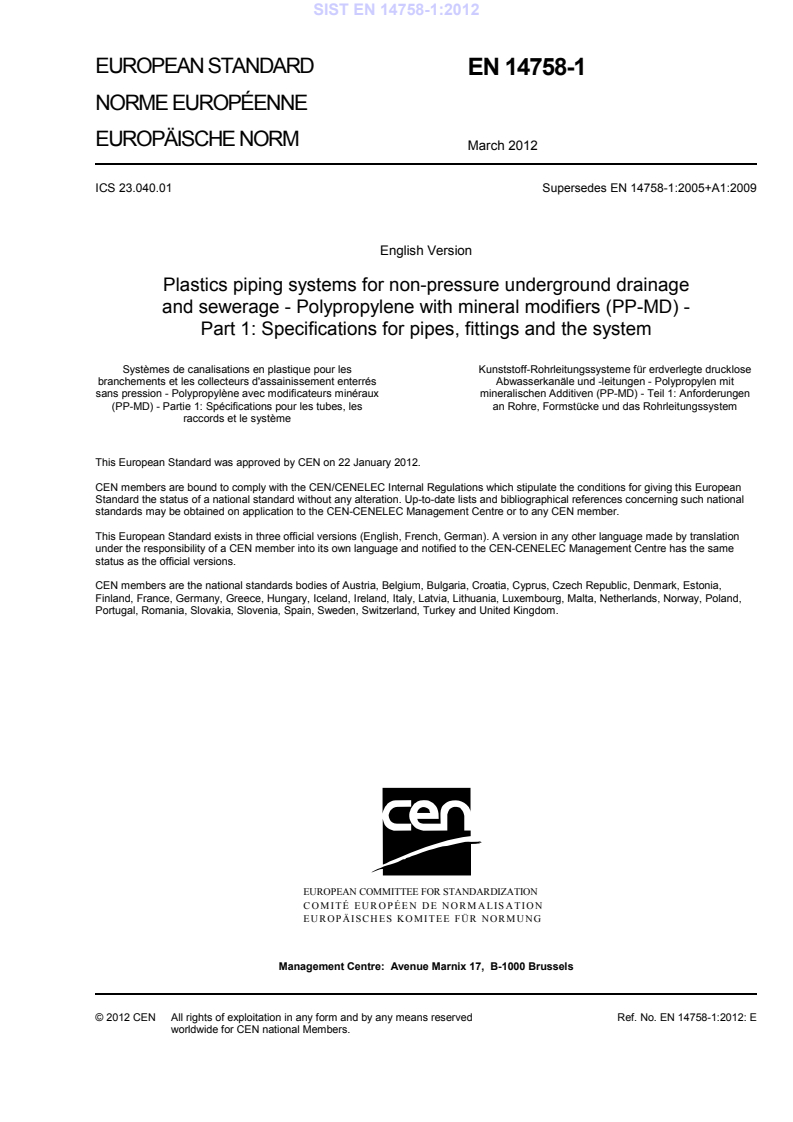

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14758-1
March 2012 ICS 23.040.01 Supersedes EN 14758-1:2005+A1:2009English Version
Plastics piping systems for non-pressure underground drainage and sewerage - Polypropylene with mineral modifiers (PP-MD) -Part 1: Specifications for pipes, fittings and the system
Systèmes de canalisations en plastique pour les branchements et les collecteurs d'assainissement enterrés sans pression - Polypropylène avec modificateurs minéraux (PP-MD) - Partie 1: Spécifications pour les tubes, les raccords et le système
Kunststoff-Rohrleitungssysteme für erdverlegte drucklose Abwasserkanäle und -leitungen - Polypropylen mit mineralischen Additiven (PP-MD) - Teil 1: Anforderungen an Rohre, Formstücke und das Rohrleitungssystem This European Standard was approved by CEN on 22 January 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14758-1:2012: ESIST EN 14758-1:2012

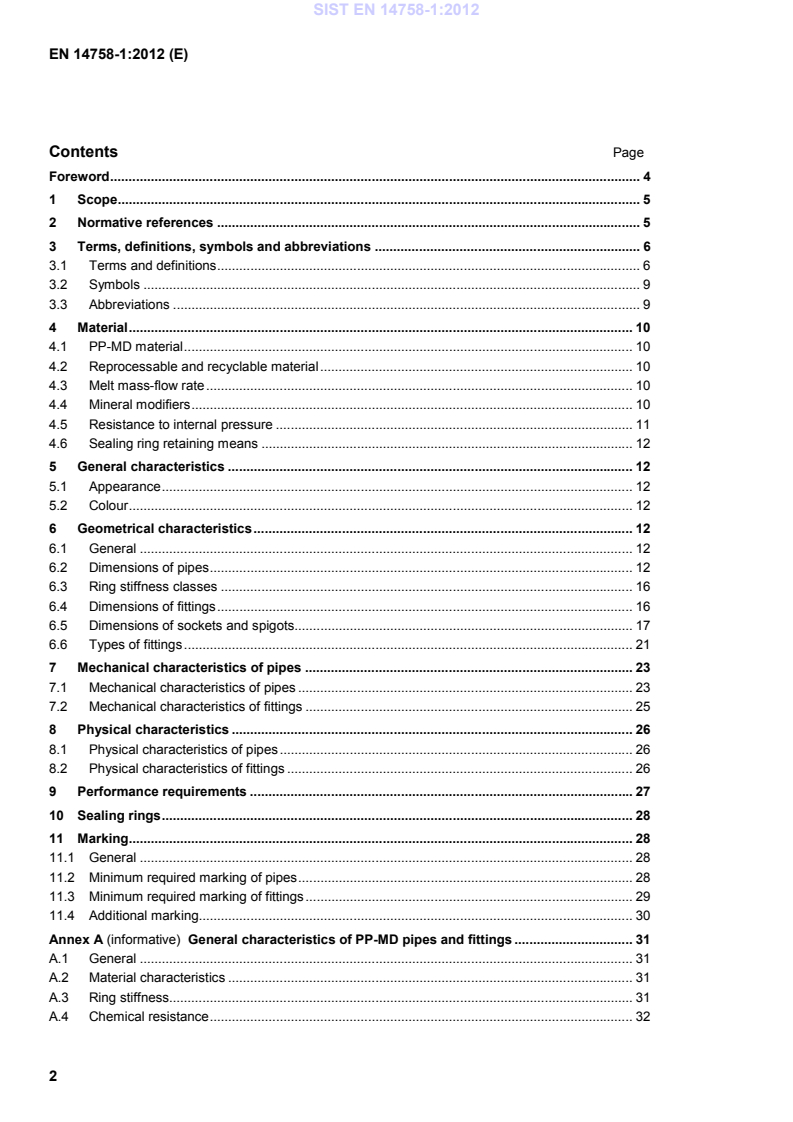

General characteristics of PP-MD pipes and fittings . 31 A.1 General . 31 A.2 Material characteristics . 31 A.3 Ring stiffness . 31 A.4 Chemical resistance . 32 SIST EN 14758-1:2012
Standards for pipes and fittings of a material other than PP-MD . 33 Bibliography . 34
Specifications for pipes, fittings and the system
Part 2:
Guidance for the assessment of conformity (published as CEN/Technical Specification) Part 3:
Guidance for installation (published as CEN/Technical Specification). According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 14758-1:2012
Elastomeric seals — Materials requirements for pipe joint seals used in water and drainage applications — Part 1: Vulcanized rubber EN 681-2,
Elastomeric seals — Materials requirements for pipe joint seals used in water and drainage applications — Part 2: Thermoplastic elastomers EN ISO 472:2001,
Plastics — Vocabulary (ISO 472:1999) EN ISO 580:2005, Plastics piping and ducting systems - Injection-moulded thermoplastics fittings - Methods for visually assessing the effects of heating (ISO 580:2005) EN ISO 1043-1:2001,
Plastics — Symbols and abbreviated terms — Part 1: Basic polymers and their special characteristics (ISO 1043-1:2001) EN ISO 1133:2005,
Plastics — Determination of the melt mass-flow rate (MFR) and the melt volume-flow rate (MVR) of thermoplastics (ISO 1133:2005) EN ISO 1167 (all parts), Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination of the resistance to internal pressure SIST EN 14758-1:2012
Plastics piping systems — Plastics components — Determination of dimensions (ISO 3126) EN ISO 13967,
Thermoplastics fittings — Determination of ring stiffness (ISO 13967) EN ISO 13968, Plastics piping and ducting systems — Thermoplastics pipes — Determination of ring flexibility (ISO 13968) EN ISO 9969, Thermoplastics pipes — Determination of ring stiffness(ISO 9969) ISO 3127, Thermoplastics pipes — Determination of resistance to external blows — Round-the-clock method ISO 11173, Thermoplastics pipes — Determination of resistance to external blows — Staircase method ISO 13257, Thermoplastics piping systems for non-pressure applications — Test method for resistance to elevated temperature cycling ISO 13259, Thermoplastics piping systems for underground non-pressure applications — Test method for leaktightness of elastomeric sealing ring type joints ISO 13263, Thermoplastics piping systems for non-pressure underground drainage and sewerage — Thermoplastics fittings — Test method for impact strength ISO 13264, Thermoplastics piping systems for non-pressure underground drainage and sewerage — Thermoplastics fittings — Test method for mechanical strength or flexibility of fabricated fittings 3 Terms, definitions, symbols and abbreviations 3.1 Terms and definitions For the purposes of this European Standard, the terms, definitions and symbols given in EN ISO 472:2001 and EN ISO 1043-1:2001 and the following apply. 3.1.1 application area code code used in the marking of pipes and fittings to indicate the application area for which they are intended, as follows: U:
code for the area more than 1 m from the building to which the buried piping system is connected; D:
code for the area under and within 1 m from the building where the pipes and the fittings are buried in ground and are connected to the soil and waste discharge system of the building Note 1 to entry: In code D application areas, the existence of hot water discharge in addition to the external forces from the surroundings is usual. 3.1.2 Geometrical definitions 3.1.2.1 nominal size DN numerical designation of the size of a component, which is a convenient round number approximately equal to the manufacturing dimension, in millimetres SIST EN 14758-1:2012
In case of a change in direction (e.g. in case of a bend or the service pipe of a branch), it is the length from one end to the intersection of the straight axis of this end with the straight axis of the other end of the fitting, excluding any spigot or socket length (see the dimensions Z1 and Z2 in e.g. Figures 7 and 11) 3.1.3 Material definitions 3.1.3.1 virgin material material in a form such as granules or powder that has not been subjected to use or processing other than that required for its manufacture and to which no reprocessable or recyclable material has been added 3.1.3.2 mineral modified material (PP-MD) material to which has been added minerals during specific processing operation(s) which during such processing is well distributed in the material 3.1.3.3 mean particle size D50 diameter which 50 % by mass of the particles of a mineral modifier is smaller than 3.1.3.4 particle top cut D98 diameter which 98 % by mass of the particles of a mineral modifier is smaller than 3.1.3.5 own reprocessable material material prepared from rejected unused pipes or fittings including trimmings from the production of pipes or fittings, that will be reprocessed in a manufacturer's plant after having been previously processed by the same manufacturer by a process such as moulding or extrusion, and for which the complete formulation is known 3.1.3.6 external reprocessable material material comprising either one of the following forms: a) material from rejected unused pipes or fittings or trimmings there from, that will be reprocessed and that were originally processed by another manufacturer; b) material from the production of unused products other than pipes and fittings, regardless of where they are manufactured 3.1.3.7 recyclable material material comprising either one of the following forms: a) material from used pipes or fittings which have been cleaned and crushed or ground; SIST EN 14758-1:2012
magnesium carbonate Mg3Si4O10(OH)2 magnesium silicate PP polypropylene PP-MD mineral modified polypropylene SIST EN 14758-1:2012
230 °C and loading mass 2,16 kg 4.4 Mineral modifiers 4.4.1 Types of mineral modifiers The mineral modifiers shall be of following types: coated calcium carbonate, CaCO3 or talc. When it is calcium carbonate following apply: content of CaCO3 ≥ 96 % by mass; content of MgCO3
≤ 4 % by mass; content of CaCO3 and MgCO3 in total ≥ 98 % by mass. When it is talc following apply: content of magnesium silicate (Mg3Si4O10(OH)2) ≥ 97 % by mass. NOTE The addition of mineral modifiers is an effective way of increasing the E-modulus of the base polypropylene material. SIST EN 14758-1:2012
...
