EN ISO 10821:2005/A1:2009
(Amendment)Industrial sewing machines - Safety requirements for sewing machines, units and systems - Amendment 1 (ISO 10821:2005/Amd 1:2009, Corrected version 2009-08-01)
General Information
- Abstract
2008-08-08 SJ - ISO confirmed need to have DOW of 2009-12-28!
- Status
- Published
- Publication Date
- 14-Mar-2009
- Withdrawal Date
- 27-Dec-2009
- Technical Committee
- CEN/SS H10 - Sewing machines
- Drafting Committee
- CEN/SS H10 - Sewing machines
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 15-Mar-2009
- Completion Date
- 15-Mar-2009
- Directive
- Harmonized Standard2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)OJ Ref: C, C 309 OJ Date: 18-Dec-2009
Not Harmonized98/37/EC - Machinery
Overview
EN ISO 10821:2005/A1:2009 is Amendment 1 (corrected version 2009-08-01) to the international standard on industrial sewing machines - safety requirements for sewing machines, units and systems. Adopted by CEN in March 2009, this amendment updates normative references, clarifies terms, adjusts acoustic acceptance levels, and refines safety and marking requirements. The amendment supports conformity with the EU Machinery Directives (98/37/EC and 2006/42/EC) and was to be implemented by CEN members during 2009.
Key topics and technical requirements
- Safety-related control performance: Specifies minimum performance levels per ISO 13849-1:2006 - machines where hazards originate mainly from stitch-form elements require at least Performance Level (PL) b, while other industrial sewing machines require PL c.
- Acoustics / noise limits: Several clauses, examples and figures in the standard have been revised to use 80 dB (replacing prior 85 dB) for specific A-weighted sound pressure/power acceptance criteria and worked examples.
- Normative references updated: Replaces or clarifies references to key standards such as ISO 3747:2000, ISO 13849-1:2006, IEC 60204-1:2005, and IEC 60825-1:2007.
- Terms & definitions: Incorporates terminology from ISO 3744, ISO 4915/4916, ISO 11204, ISO 12100-1 and ISO/IEC Guide 51.
- Machine marking and documentation: Sewing units and systems must be marked legibly and indelibly with manufacturer name/address, machine designation, mandatory marking, series/type, year of construction and serial number. The amendment adds a requirement to include specifications of spare parts when they impact operator health and safety.
- Embroidery machines: Clarifies that, given certain process and design constraints, embroidery machines may not require shields for needle break protection, lever protective fixtures or finger deflectors as defined in the standard.
- Measurement clarifications: Edits remove some background/environmental correction text and update measurement-surface dimensional guidance (e.g., largest dimension > 10 m).
Applications and who uses it
- Machine manufacturers and designers use the standard to design compliant, safe industrial sewing machines and systems.
- Safety engineers and risk assessors apply its PL and guarding guidance for control system selection and hazard mitigation.
- Test laboratories and acoustic consultants use the amended noise criteria and measurement references.
- Purchasing/specification teams, compliance officers and notified bodies rely on the standard for CE conformity assessment under the Machinery Directive.
- Maintenance and spare‑parts managers use the documentation requirements to ensure safe servicing.
Related standards
- ISO 13849-1:2006 (safety-related parts of control systems)
- ISO 3747:2000 (acoustics)
- IEC 60204-1:2005 (electrical equipment of machines)
- IEC 60825-1:2007 (laser safety)
- ISO 12100 series (machine safety basics and terminology)
Keywords: EN ISO 10821:2005/A1:2009, industrial sewing machines safety, ISO 13849-1, noise limits 80 dB, machinery directive compliance, machine marking and documentation.
Relations
- Consolidated By
ISO 10821:2005/Amd 1:2009 - Industrial sewing machines — Safety requirements for sewing machines, units and systems — Amendment 1 - Effective Date
- 12-Feb-2026
- Effective Date
- 22-Dec-2008
Frequently Asked Questions
EN ISO 10821:2005/A1:2009 is a amendment published by the European Committee for Standardization (CEN). Its full title is "Industrial sewing machines - Safety requirements for sewing machines, units and systems - Amendment 1 (ISO 10821:2005/Amd 1:2009, Corrected version 2009-08-01)". This standard covers: 2008-08-08 SJ - ISO confirmed need to have DOW of 2009-12-28!
2008-08-08 SJ - ISO confirmed need to have DOW of 2009-12-28!
EN ISO 10821:2005/A1:2009 is classified under the following ICS (International Classification for Standards) categories: 61.080 - Sewing machines and other equipment for the clothing industry. The ICS classification helps identify the subject area and facilitates finding related standards.
EN ISO 10821:2005/A1:2009 has the following relationships with other standards: It is inter standard links to ISO 10821:2005/Amd 1:2009, EN ISO 10821:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN ISO 10821:2005/A1:2009 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC, 98/37/EC; Standardization Mandates: M/079, M/396. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN ISO 10821:2005/A1:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2009
Industrijski šivalni stroji - Varnostne zahteve za šivalne stroje, enote in sisteme -
Dopolnilo A1 (ISO 10821:2005/Amd 1:2009, popravljena različica 2009-08-01)
Industrial sewing machines - Safety requirements for sewing machines, units and
systems - Amendment 1 (ISO 10821:2005/Amd 1:2009, Corrected version 2009-08-01)
Industrienähmaschinen - Sicherheitsanforderungen an Nähmaschinen, Näheinheiten
und Nähanlagen - Änderung 1 (ISO 10821:2005/Amd 1:2009, korrigierte Fassung 2009-
08-01)
Machines à coudre industrielles - Exigences de sécurité pour machines à coudre, unités
et systèmes de couture - Amendement 1 (ISO 10821:2005/Amd 1:2009, Version
corrigée 2009-08-01)
Ta slovenski standard je istoveten z: EN ISO 10821:2005/A1:2009
ICS:
61.080 Šivalni stroji in druga oprema Sewing machines and other
za oblačilno industrijo equipment for the clothing
industry
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN ISO 10821:2005/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2009
ICS 61.080
English Version
Industrial sewing machines - Safety requirements for sewing
machines, units and systems - Amendment 1 (ISO
10821:2005/Amd 1:2009, Corrected version 2009-08-01)
Machines à coudre industrielles - Exigences de sécurité Industrienähmaschinen - Sicherheitsanforderungen an
pour machines à coudre, unités et systèmes de couture - Nähmaschinen, Näheinheiten und Nähanlagen - Änderung
Amendement 1 (ISO 10821:2005/Amd 1:2009, Version 1 (ISO 10821:2005/Amd 1:2009, korrigierte Fassung 2009-
corrigée 2009-08-01) 08-01)
This amendment A1 modifies the European Standard EN ISO 10821:2005; it was approved by CEN on 14 March 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this
amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references concerning such
national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10821:2005/A1:2009: E
worldwide for CEN national Members.

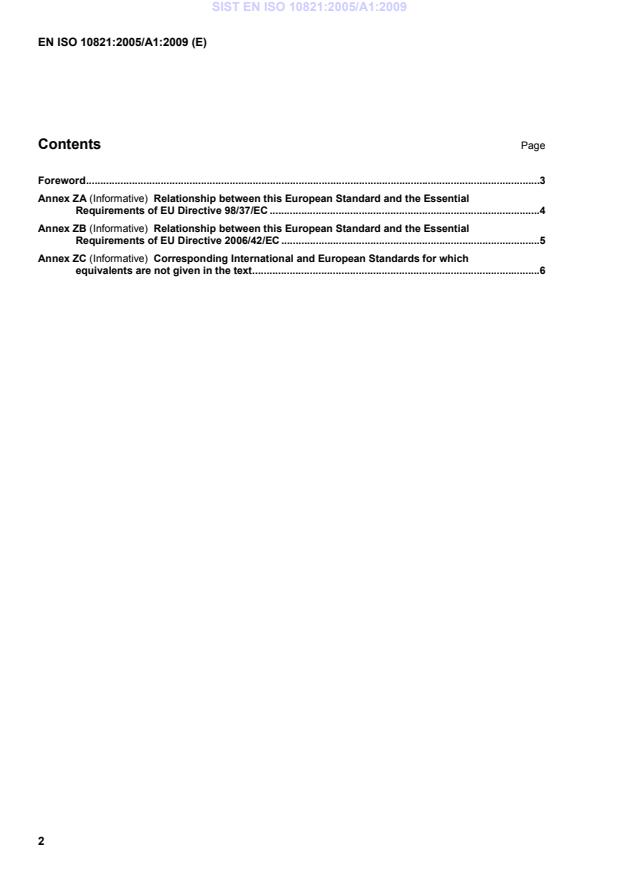

Contents Page
Foreword .3
Annex ZA (Informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC .4
Annex ZB (Informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC .5
Annex ZC (Informative) Corresponding International and European Standards for which
equivalents are not given in the text.6
Foreword
The text of this Amendment EN ISO 10821:2005/Amd 1:2009, includes Corrected version 2009-08-01 to the
EN ISO 10821:2005 from Technical Committee ISO/TC 148 “Sewing machines” of the International
Organization for Standardization (ISO) has been taken over as an amendment to the European Standard.
This Amendment to the European Standard EN ISO 10821:2005 shall be given the status of a national
standard, either by publication of an identical text or by endorsement, at the latest by September 2009, and
conflicting national standards shall be withdrawn at the latest by December 2009.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directives.
For relationship with EU Directives, see informative Annexes ZA, B and C, which are integral parts of this
document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of ISO 10821:2005/Amd 1:2009, includes Corrected version 2009-08-01 has been approved by CEN
as a EN ISO 10821:2005 without any modification.
Annex ZA
(Informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association to provide a means of conforming to Essential Requirements of the
New Approach Directive Machinery 98/37/EC, amended by 98/79/EC.
Once this standard is cited in the Official Journal of the European Union under that Directive and has been
implemented as a national standard in at least one Member State, compliance with the normative clauses of
this standard confers, within the limits of the scope of this standard, a presumption of conformity with the
relevant Essential Requirements of that Directive and associated EFTA regulations.
WARNING — Other requirements and other EU Directives may be applicable to the product(s) falling
within the scope of this standard.
Annex ZB
(Informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association to provide a means of conforming to Essential Requirements of the
New Approach Directive Machinery 2006/42/EC.
Once this standard is cited in the Official Journal of the European Union under that Directive and has been
implemented as a national standard in at least one Member State, compliance with the normative clauses of
this standard confers, within the limits of the scope of this standard, a presumption of conformity with the
relevant Essential Requirements of that Directive and associated EFTA regulations.
WARNING — Other requirements and other EU Directives may be applicable to the product(s) falling
within the scope of this standard.
Annex ZC
(Informative)
Corresponding International and European Standards for which
equivalents are not given in the text
At the time of publication of this International Standard, the editions of the following documents were valid.
Members of ISO and IEC maintain registers of currently valid International Standards.
Table ZC.1
International Standard European Standard
ISO 286 (all parts) —
ISO 639 —
ISO 2768 (all parts) —
ISO 2972:1979 —
ISO 3740:2000 EN ISO 3740:1999
ISO 3741:1999 EN ISO 3741:1999
ISO 3743-1:1994 EN ISO 3743-1:1995
ISO 3744:1994 EN ISO 3744:1995
ISO 3745:2003 EN ISO 3745:2003
ISO 3746:1995 EN ISO 3746:1995
ISO 3747:2000 EN ISO 3747:2000
ISO 3864-2:2004 —
ISO 4183:1995 —
ISO 4871:1996 EN ISO 4871:1996
ISO 4915:1991 —
SO 4916:1991 —
ISO 7574 (all parts) EN 27574 (all parts)
ISO 8239:1987 —
ISO/CIE 8995:2002 EN 12464:1998
ISO 9614-1:1993 EN ISO 9614-1:1995
ISO 9614-2:1996 EN ISO 9614-2:1996
ISO 11200:1995 EN ISO 11200:1995
ISO 11201:1995 EN ISO 11201:1995
ISO 11202:1995 EN ISO 11202:1995
ISO 11203:1995 EN ISO 11203:1995
ISO 11204:1995 EN ISO 11204:1995
ISO/TR 11688-1:1995 EN ISO/TR 11688-1:1998
ISO 12100-1:2003 EN ISO 12100-1:2003
Table ZC.1 (continued)
International Standard European Standard
ISO 12100-2:2003 EN ISO 12100-2:2003
ISO 13849-1:2006 EN ISO 13849-1:2006
ISO/DIS 13857:2006 prEN 13857:2007
ISO 13854:1996 EN 349:1993
IEC 60204-1 EN 60204-1
IEC 60204-31 EN 60204-31
IEC 60745-1:2006 EN 60745-1:2006
IEC 60825-1:2007 EN 60825-1:2007
— EN 563
...
