EN ISO 21309-1:2019
(Main)Plastics - Ethylene/vinyl alcohol (EVOH) copolymer moulding and extrusion materials - Part 1: Designation system and basis for specifications (ISO 21309-1:2019)
General Information
- Abstract
This document establishes a system of designation for ethylene/vinyl alcohol (EVOH) copolymer thermoplastic materials, which may be used as the basis for specifications.
The types of ethylene/vinyl alcohol (EVOH) copolymer plastic are differentiated from each other by a classification system based on appropriate levels of the designatory property:
— melt mass-flow rate;
— and on information about basic polymer parameters, intended application and/or method of processing, important properties, additives, colorants, fillers and reinforcing materials.
This document is applicable to copolymers of ethylene and vinyl alcohol containing from 15 mol % to 60 mol % of ethylene. It applies to materials ready for normal use in the form of powder, granules or pellets, unmodified or modified by colorants, additives, fillers, etc.
It is not intended to imply that materials having the same designation give necessarily the same performance. This document does not provide engineering data, performance data or data on processing conditions which can be required to specify a material for a particular application and/or method of processing.
If such additional properties are required, they are intended to be determined in accordance with the test methods described ISO 21309-2, if suitable.
In order to specify a thermoplastic material for a particular application or to ensure reproducible processing, additional requirements can be given in data block 4 and 5 (see Clause 4, introductory paragraph).
- Status
- Published
- Publication Date
- 19-Mar-2019
- Withdrawal Date
- 29-Sep-2019
- Technical Committee
- CEN/TC 249 - Plastics
- Drafting Committee
- CEN/TC 249 - Plastics
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 20-Mar-2019
- Completion Date
- 20-Mar-2019
Overview
EN ISO 21309-1:2019 - Plastics - Ethylene/vinyl alcohol (EVOH) copolymer moulding and extrusion materials - Part 1: Designation system and basis for specifications - establishes a standardized labeling and classification system for EVOH thermoplastic materials. It applies to ethylene/vinyl alcohol copolymers containing 15 mol % to 60 mol % ethylene, in forms ready for use (powder, granules or pellets), unmodified or modified by colourants, additives, fillers or reinforcements. The document defines how to record composition, processing intent and key designatory properties (notably melt mass‑flow rate) as the basis for material specifications.
Key topics and technical requirements
- Designation structure: A standardized pattern with an identity block and an individual-item block subdivided into five data blocks (Data blocks 1–5). The individual-item block begins with a hyphen and data blocks are comma-separated.
- Data block 1 (composition): Identifies the polymer symbol EVOH (per ISO 1043-1) plus a two‑figure code number indicating ethylene content (mol %) using specified ranges (e.g., code 15 = >13–≤17 mol %; code 58 = >55–≤60 mol % - full table in the standard).
- Data block 2 (fillers/reinforcements): Reserved for filler or reinforcement type and typical content (not normally used for EVOH).
- Data block 3 (application/processing & modifiers): Position 1 = intended application or method of processing (letters for extrusion, moulding, films, etc.); positions 2–8 = important properties, additives and colour (e.g., “G” for granules, “C” for coloured).
- Data block 4 (designatory property - MFR): Melt mass‑flow rate (MFR) encoded as a code-letter (test conditions) plus a three‑figure code for the MFR range. MFR is measured per ISO 1133-1 using set X (210 °C, 2.16 kg); set D (190 °C, 2.16 kg) can be used for comparisons with some polymers.
- Data block 5 (additional specification data): Optional block for extra requirements needed in contractual specifications.
- Important note: a common designation does not guarantee identical performance-engineering, performance and processing data are outside Part 1.
Applications and who uses it
- Intended for material suppliers, polymer compounders, product designers, specifiers, purchasing and quality engineers who need a consistent designation system for EVOH.
- Useful when preparing material specifications for moulding and extrusion procurement, regulatory submissions, supplier declarations and production traceability.
- Particularly relevant in industries specifying barrier or specialty copolymers where EVOH composition and processability must be clearly communicated.
Related standards
- ISO 21309-2 (test methods for additional properties)
- ISO 1133-1 (MFR determination)
- ISO 1043-1 (polymer symbols and abbreviated terms)
- Replaces ISO 14663-1:1999
Keywords: EN ISO 21309-1:2019, EVOH, ethylene/vinyl alcohol, designation system, melt mass-flow rate, thermoplastic materials, moulding and extrusion, ISO 21309-2.
Relations
- Effective Date
- 27-Mar-2019
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 12-Feb-2026
Get Certified
Connect with accredited certification bodies for this standard
DIN CERTCO
DIN Group product certification.
Smithers Quality Assessments
US management systems and product certification.
Sponsored listings
Frequently Asked Questions
EN ISO 21309-1:2019 is a standard published by the European Committee for Standardization (CEN). Its full title is "Plastics - Ethylene/vinyl alcohol (EVOH) copolymer moulding and extrusion materials - Part 1: Designation system and basis for specifications (ISO 21309-1:2019)". This standard covers: This document establishes a system of designation for ethylene/vinyl alcohol (EVOH) copolymer thermoplastic materials, which may be used as the basis for specifications. The types of ethylene/vinyl alcohol (EVOH) copolymer plastic are differentiated from each other by a classification system based on appropriate levels of the designatory property: — melt mass-flow rate; — and on information about basic polymer parameters, intended application and/or method of processing, important properties, additives, colorants, fillers and reinforcing materials. This document is applicable to copolymers of ethylene and vinyl alcohol containing from 15 mol % to 60 mol % of ethylene. It applies to materials ready for normal use in the form of powder, granules or pellets, unmodified or modified by colorants, additives, fillers, etc. It is not intended to imply that materials having the same designation give necessarily the same performance. This document does not provide engineering data, performance data or data on processing conditions which can be required to specify a material for a particular application and/or method of processing. If such additional properties are required, they are intended to be determined in accordance with the test methods described ISO 21309-2, if suitable. In order to specify a thermoplastic material for a particular application or to ensure reproducible processing, additional requirements can be given in data block 4 and 5 (see Clause 4, introductory paragraph).
This document establishes a system of designation for ethylene/vinyl alcohol (EVOH) copolymer thermoplastic materials, which may be used as the basis for specifications. The types of ethylene/vinyl alcohol (EVOH) copolymer plastic are differentiated from each other by a classification system based on appropriate levels of the designatory property: — melt mass-flow rate; — and on information about basic polymer parameters, intended application and/or method of processing, important properties, additives, colorants, fillers and reinforcing materials. This document is applicable to copolymers of ethylene and vinyl alcohol containing from 15 mol % to 60 mol % of ethylene. It applies to materials ready for normal use in the form of powder, granules or pellets, unmodified or modified by colorants, additives, fillers, etc. It is not intended to imply that materials having the same designation give necessarily the same performance. This document does not provide engineering data, performance data or data on processing conditions which can be required to specify a material for a particular application and/or method of processing. If such additional properties are required, they are intended to be determined in accordance with the test methods described ISO 21309-2, if suitable. In order to specify a thermoplastic material for a particular application or to ensure reproducible processing, additional requirements can be given in data block 4 and 5 (see Clause 4, introductory paragraph).
EN ISO 21309-1:2019 is classified under the following ICS (International Classification for Standards) categories: 83.080.20 - Thermoplastic materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN ISO 21309-1:2019 has the following relationships with other standards: It is inter standard links to EN ISO 14663-1:2006, ISO 1133-1:2011, ISO 1043-1:2011, ISO 21309-1:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN ISO 21309-1:2019 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2019
1DGRPHãþD
SIST EN ISO 14663-1:2006
3ROLPHUQLPDWHULDOL0DWHULDOLQDRVQRYLNRSROLPHUDHWLOHQYLQLODONRKRO (92+ ]D
REOLNRYDQMHLQHNVWUXGLUDQMHGHO 6LVWHPR]QDþHYDQMDLQSRGODJH]D
VSHFLILNDFLMH ,62
Plastics - Ethylene/vinyl alcohol (EVOH) copolymer moulding and extrusion materials -
Part 1: Designation system and basis for specifications (ISO 21309-1:2019)
Kunststoffe - Ethylen-Vinylalkohol (EVOH)-Copolymer-Formmassen - Teil 1:
Bezeichnungssystem und Basis für Spezifikationen (ISO 21309-1:2019)
Plastiques - Matériaux à base de copolymères éthylène/alcool vinylique (EVOH) pour
moulage et extrusion - Partie 1: Système de désignation et base de spécification (ISO
21309-1:2019)
Ta slovenski standard je istoveten z: EN ISO 21309-1:2019
ICS:
83.080.20 Plastomeri Thermoplastic materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 21309-1
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2019
EUROPÄISCHE NORM
ICS 83.080.20
English Version
Plastics - Ethylene/vinyl alcohol (EVOH) copolymer
moulding and extrusion materials - Part 1: Designation
system and basis for specifications (ISO 21309-1:2019)
Plastiques - Matériaux à base de copolymères Kunststoffe - Ethylen-Vinylalkohol (EVOH)-Copolymer-
éthylène/alcool vinylique (EVOH) pour moulage et Werkstoffe - Teil 1: Bezeichnungssystem und Basis für
extrusion - Partie 1: Système de désignation et base de Spezifikationen (ISO 21309-1:2019)
spécification (ISO 21309-1:2019)
This European Standard was approved by CEN on 8 February 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 21309-1:2019 E
worldwide for CEN national Members.

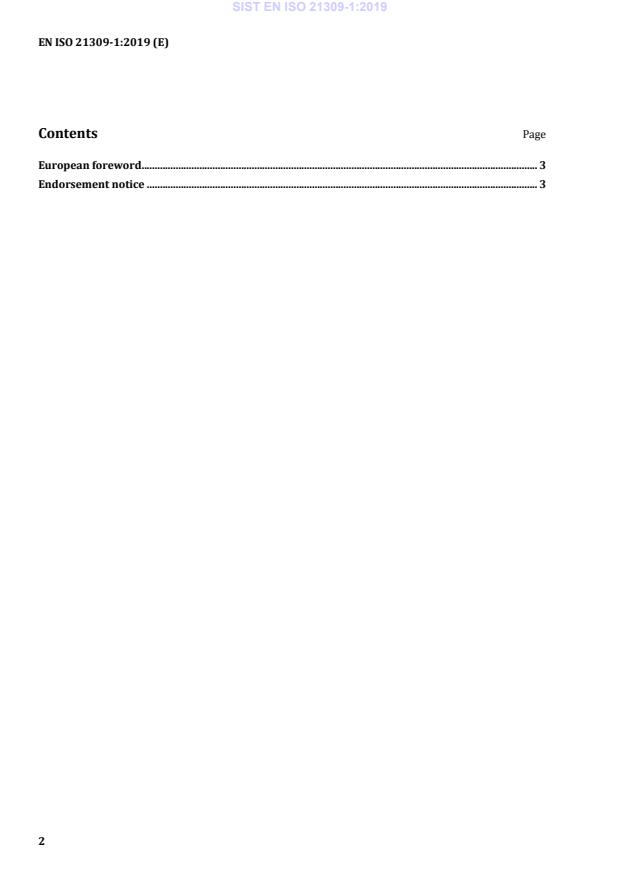

Contents Page
European foreword . 3
Endorsement notice . 3
European foreword
This document (EN ISO 21309-1:2019) has been prepared by Technical Committee ISO/TC 61 "Plastics"
in collaboration with Technical Committee CEN/TC 249 “Plastics” the secretariat of which is held by
NBN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2019, and conflicting national standards
shall be withdrawn at the latest by September 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 14663-1:2006.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 21309-1:2019 has been approved by CEN as EN ISO 21309-1:2019 without any
modification.
INTERNATIONAL ISO
STANDARD 21309-1
First edition
2019-02
Plastics — Ethylene/vinyl alcohol
(EVOH) copolymer moulding and
extrusion materials —
Part 1:
Designation system and basis for
specifications
Plastiques — Matériaux à base de copolymères éthylène/alcool
vinylique (EVOH) pour moulage et extrusion —
Partie 1: Système de désignation et base de spécification
Reference number
ISO 21309-1:2019(E)
©
ISO 2019
ISO 21309-1:2019(E)
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
ISO 21309-1:2019(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Designation system . 2
4.1 General . 2
4.2 Data block 1 . 2
4.3 Data block 2 . 3
4.4 Data block 3 . 3
4.5 Data block 4 . 4
4.6 Data block 5 . 4
5 Examples of designations . 5
Bibliography . 7
ISO 21309-1:2019(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held respons
...
