EN 12312-1:2013

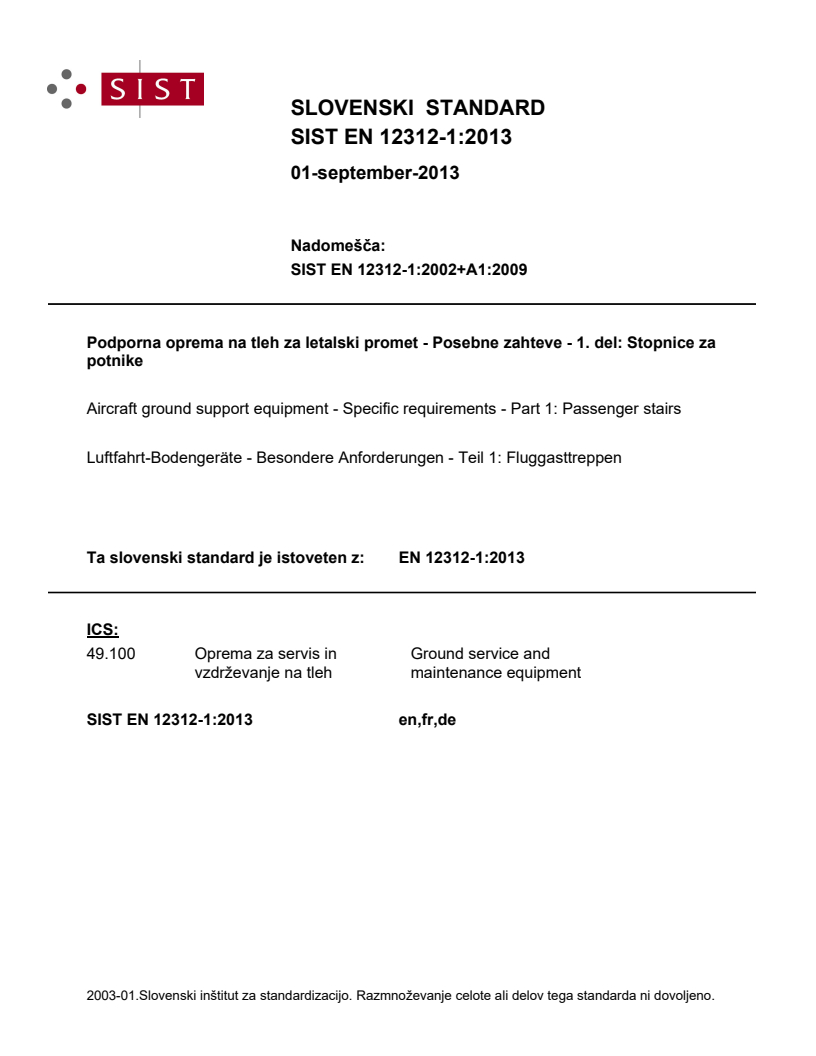

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Podporna oprema na tleh za letalski promet - Posebne zahteve - 1. del: Stopnice za potnikeLuftfahrt-Bodengeräte - Besondere Anforderungen - Teil 1: FluggasttreppenAircraft ground support equipment - Specific requirements - Part 1: Passenger stairs49.100Oprema za servis in vzdrževanje na tlehGround service and maintenance equipmentICS:Ta slovenski standard je istoveten z:EN 12312-1:2013SIST EN 12312-1:2013en,fr,de01-september-2013SIST EN 12312-1:2013SLOVENSKI
STANDARDSIST EN 12312-1:2002+A1:20091DGRPHãþD

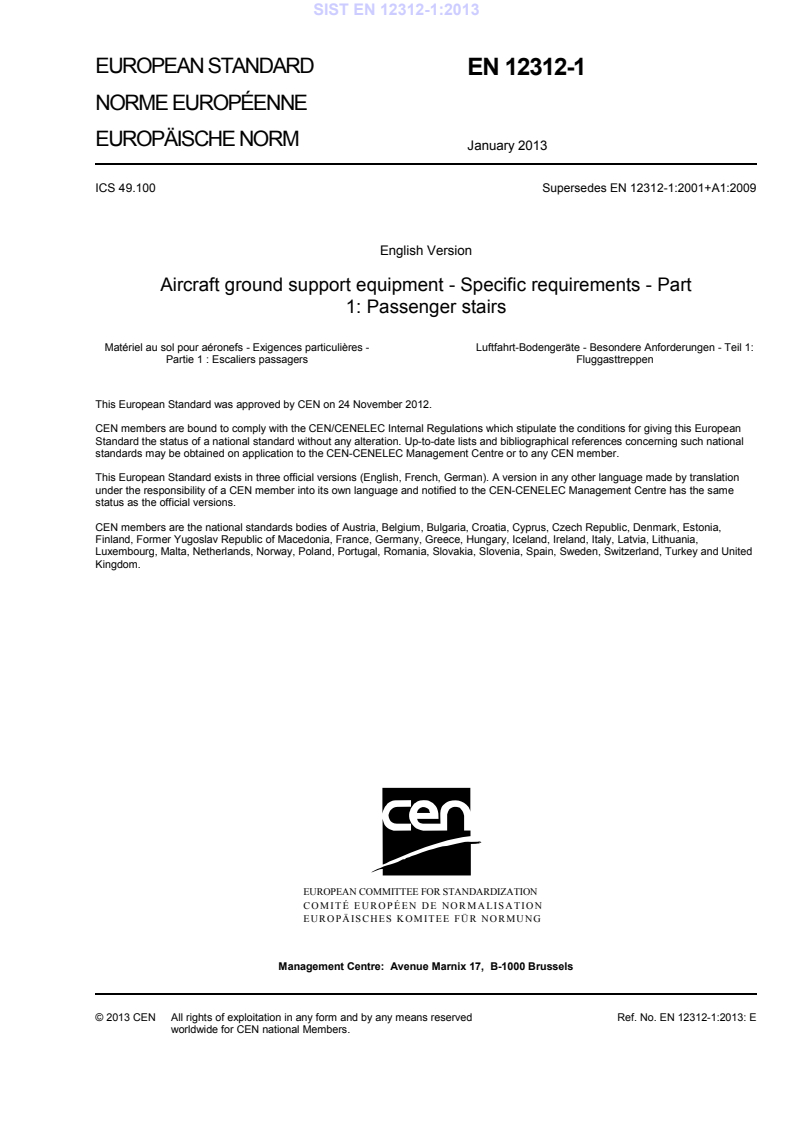

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12312-1
January 2013 ICS 49.100 Supersedes EN 12312-1:2001+A1:2009English Version
Aircraft ground support equipment - Specific requirements - Part 1: Passenger stairs
Matériel au sol pour aéronefs - Exigences particulières - Partie 1 : Escaliers passagers
Luftfahrt-Bodengeräte - Besondere Anforderungen - Teil 1: Fluggasttreppen This European Standard was approved by CEN on 24 November 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12312-1:2013: ESIST EN 12312-1:2013

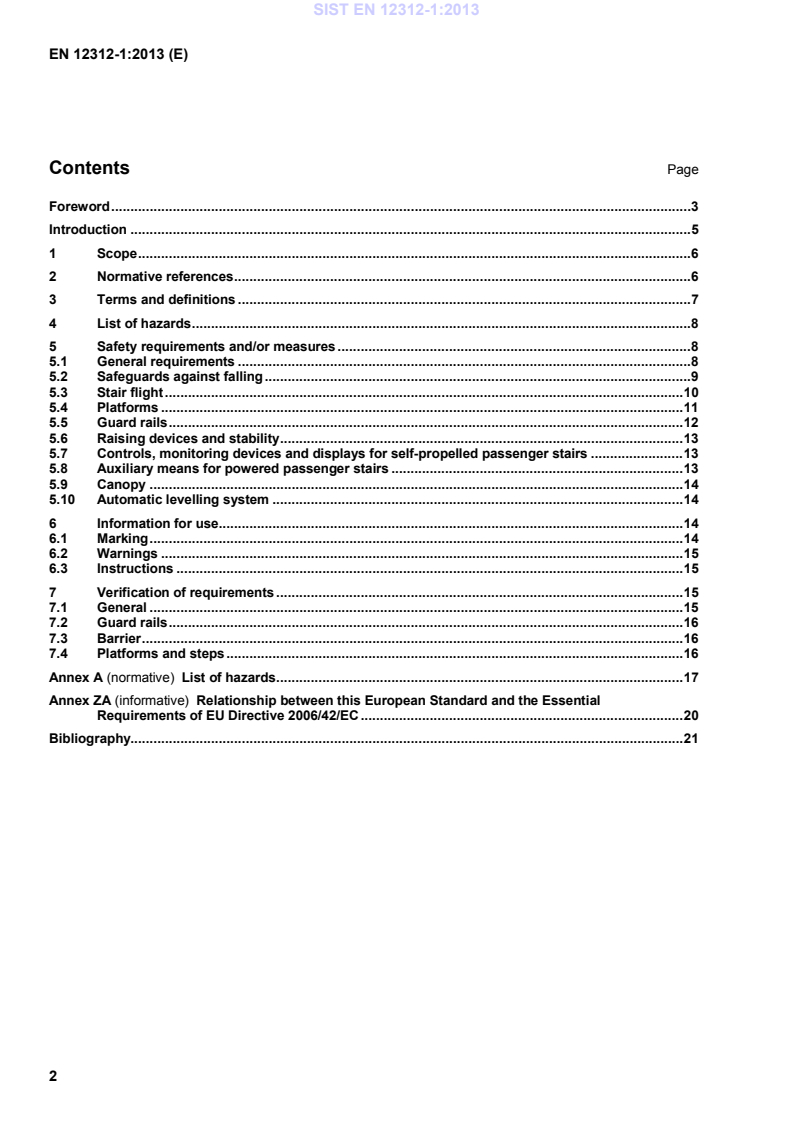

List of hazards . 17 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC . 20 Bibliography. 21
 Part 17: Air conditioning equipment;
 Part 20: Electrical ground power units. The main changes compared to the previous edition are: a) Amendment A1:2009 was incorporated; b) the Introduction was updated; c) the Scope was updated; d) Clause 2, Normative references, was updated; e) another term and definition was added; f) List of hazards was moved to Annex A; g) 5.1 was changed; h) 5.2, Safeguards against falling, was inserted, thus making it necessary to re-number the following sub-clauses; i) 5.3 to 5.10 were changed; j) 6.2 and 6.3 were changed; k) 7.1 was changed; l) 7.2, Guard rails, 7.3, Barrier and 7.4, Platforms and steps, were inserted; m) Annex A, Examples of passenger stairs, was deleted; n) Annex ZA referring to the Machinery directive 98/37/EC was replaced by Annex ZA referring to the new Machinery directive 2006/42/EC; o) the Bibliography was updated. According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
This European standard is a Type C standard as defined in EN ISO 12100. The machinery concerned and the extent to which hazards, hazardous situations and hazardous events are covered are indicated in the scope of this document. When provisions of this Type C standard are different from those which are stated in Type A or B standards, the provisions of this Type C standard take precedence over the provisions of the other standards, for machines that have been designed and built according to the provisions of this Type C standard. Deviations from requirements do not fall within the presumption of conformity given by the standard. SIST EN 12312-1:2013

R distance between the surface of the tread of one step and the surface of a step above or below when measured perpendicularly between the tread surfaces 3.4 tread depth
T distance from one step nosing to the adjacent step nosing when measured parallel to the tread surface 3.5 step width maximum usable width measured along the nose of the step 3.6 handrail height distance to the top surface of the handrail as measured at the nose of the step or platform and perpendicular to the tread surface SIST EN 12312-1:2013

5.1.2 Stability and strength calculations shall be carried out in accordance with EN 1915-2. 5.1.3 For stairs to be moved on public roadways, the dimensions, laden mass and other characteristics shall meet all applicable government regulations when in fully retracted position. NOTE Applicable government regulations depend on the airport of use. 5.1.4 Passenger stairs shall have an upper (main) platform and, where the number of risers exceeds 18, an intermediate platform shall be provided at least after every 18 risers. The number of risers shall not normally exceed 40. SIST EN 12312-1:2013

5.1.13 Pedestrian controlled or towable stairs shall be fitted with a service and parking brake function that can be engaged and released at the operator's workplace or at the towbar head. 5.1.14 The minimum field of view from the driver's position shall include the ground area immediately aft of the unit up to the first steps. This can be achieved either by using see-through risers on the stair flight, or indi-rect means such as e.g. mirrors or closed circuit TV. It is further recommended to consider providing indirect means for seeing the stairs upper platform from the driver's position. 5.2 Safeguards against falling 5.2.1 Provisions shall be made for eliminating or reducing the risk of falling of persons from the front edge of the stairs' upper platform when the stair is not completely connected to the aircraft or is being removed. Such provisions shall consist of: a) for passenger stairs with a maximum height of the upper (main) platform from 1 000 mm up to 2 000 mm: one barrier at the upper (main) platform of the passenger stairs; b) for passenger stairs with a maximum height of the upper (main) platform in excess of 2 000 mm: two barriers, one at the bottom end of the passenger stairs, one at the upper (main) platform. 5.2.2 Upper (main) platform barriers shall: SIST EN 12312-1:2013
...
